6-1. Using the air conditioning system and defogger
Interior features
●The outside temperature is extremely
low
●When the hybrid system is cool (for
example, after being left for a long time in low temperatures)
■Windshield defogger
When defogging the windshield using
the Remote Air Conditioning System, defogging may be insufficient due to the power being restricted more than during
normal air conditioning operation. Also, the outside of the windshield may fog up due to the outside temperature, humidity
or air conditioning set temperature.
■Using the heater via the Remote Air Conditioning System
●When the outside temperature is low, heating may feel insufficient due to restricted operation of the air condi-
tioning.
●When the outside heat exchanger
becomes frosted over, heating perfor- mance may decline due to automati-cally switching to the frost removal
operation. ( P.432)
■Security feature
Any unlocked doors will be automatically locked when the system is operating.
The emergency flashers flash to indicate that the doors have been locked or the system has been turned off.
■Conditions affecting operation
 P.254
■While the Remote Air Conditioning System is operating
●Depending on the operating condition of the Remote Air Conditioning Sys-tem, the air conditioning compressor
or cooling fan may spin and an operat- ing noise may be heard.However, this does not indicate a mal-
function.
●The air conditioning operation
switches, etc. will not operate while the Remote Air Conditioning System is operating.
■Electronic key battery depletion
 P.232
■When the electronic key battery is fully depleted
 P.511
■Customization
Setting (e.g. Operation using “A/C” on the wireless remote control) can be changed. (Customizable features:
 P.607)
WARNING
■Precautions for the Remote Air Conditioning System
●Do not use the system if people are in the vehicle. Even when the system is in use, the
internal temperature may still reach a high or low level due to features such as the automatic shut-off.
Children and pets left inside the vehicle may suffer heatstroke dehy-dration or hypothermia, or could
result in death or serious injury.
●Depending on the surrounding envi-
ronment, signals from the wireless switch may transmit further than expected. Pay appropriate attention
to the vehicle’s surroundings and use the switch only when neces-sary.
●Do not operate “A/C” on the wire-less remote control if the hood is
open. The air conditioning may operate unintentionally and objects may be drawn into the electrical
cooling fan.
NOTICE
■To prevent the hybrid battery (traction battery) from being dis-charged
Use “A/C” on the wireless remote control only when necessary.

4907-3. Do-it-yourself maintenance
while the vehicle is moving.
2Turn the power switch to ON.
3Press and hold to display
the cursor on the content display
area (center) of the multi-infor-
mation display.
4Press or of the meter
control switches to select
and then press .
5Press or of the meter
control switches and select
“ Vehicle Settings”, and
then press and hold .
6Press or of the meter
control switches and select
“TPWS”, and then press .
7Press or to select “Pres-
sure unit setting”.
8Press or to select the
desired unit and then press .
■Routine tire inflation pressure
checks
The tire pressure warning system does
not replace routine tire inflation pressure
checks. Make sure to check tire inflation
pressure as part of your routine of daily
vehicle checks.
■Tire inflation pressure
●It may take a few minutes to display
the tire inflation pressure after the
power switch is turned to ON. It may
also take a few minutes to display the
tire inflation pressure after inflation
pressure has been adjusted.
●Tire inflation pressure changes with temperature. The displayed values
may also be different from the values
measured using a tire pressure
gauge.
■Situations in which the tire pres-
sure warning system may not oper-
ate properly
●In the following cases, the tire pres-
sure warning system may not operate
properly.
• If non-genuine Toyota wheels are
used.
• A tire has been replaced with a tire
that is not an OE (Original Equipment)
tire.
• A tire has been replaced with a tire
that is not of the specified size.
• Tire chains, etc. are equipped.
• An auxiliary-supported run-flat tire is
equipped.
• If a window tint that affects the radio
wave signals is installed.
• If there is a lot of snow or ice on the
vehicle, particularly around the wheels
or wheel housings.
• If the tire inflation pressure is
extremely higher than the specified
level.
• If wheels without tire pressure warning
valves and transmitters are used.
• If the ID code on the tire pressure
warning valves and transmitters is not
registered in the tire pressure warning
computer.
●Performance may be affected in the
following situations.
• Near a TV tower, electric power plant,
gas station, radio station, large dis-
play, airport or other facility that gen-
erates strong radio waves or electrical
noise
• When carrying a portable radio, cellu-
lar phone, cordless phone or other
wireless communication device
If tire position information is not cor-
rectly displayed due to the radio wave
conditions, the display may be cor-
rected by driving and changing the
radio wave conditions.
●When the vehicle is parked, the time
taken for the warning to start or go off

517
7
7-3. Do-it-yourself maintenance
Maintenance and care
Rear
Rear turn signal lights
Back-up lights
■Lights that need to be
replaced by any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer
 Headlights
 Front turn signal lights
 Daytime running lights
 Front position lights
 Front fog lights
 Side turn signal lights
 Tail lights
 Stop lights
 Rear fog light
 High mounted stoplight
 License plate lights
■LED lights
The lights other than the following lights each consist of a number of LEDs. If any of the LEDs burn out, take your vehicle
to any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer to have the light replaced.
●Rear turn signal lights
●Back-up lights
●Outer foot lights (if equipped)
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the light lens does not indi-cate a malfunction. Contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer for more information in the fol-
lowing situations:
●Large drops of water have built up on
the inside of the lens.
●Water has built up inside the light.
■When replacing an electronic com-
ponent, such as a lights, etc.
 P.515
■Rear turn signal lights
1 Open the back door and remove
the cover.
2 Remove the screws and remove
the light unit.
Remove the light unit by pulling it
directly backward from the rear of the
A
B
Replacing light bulb

5268-1. Essential information

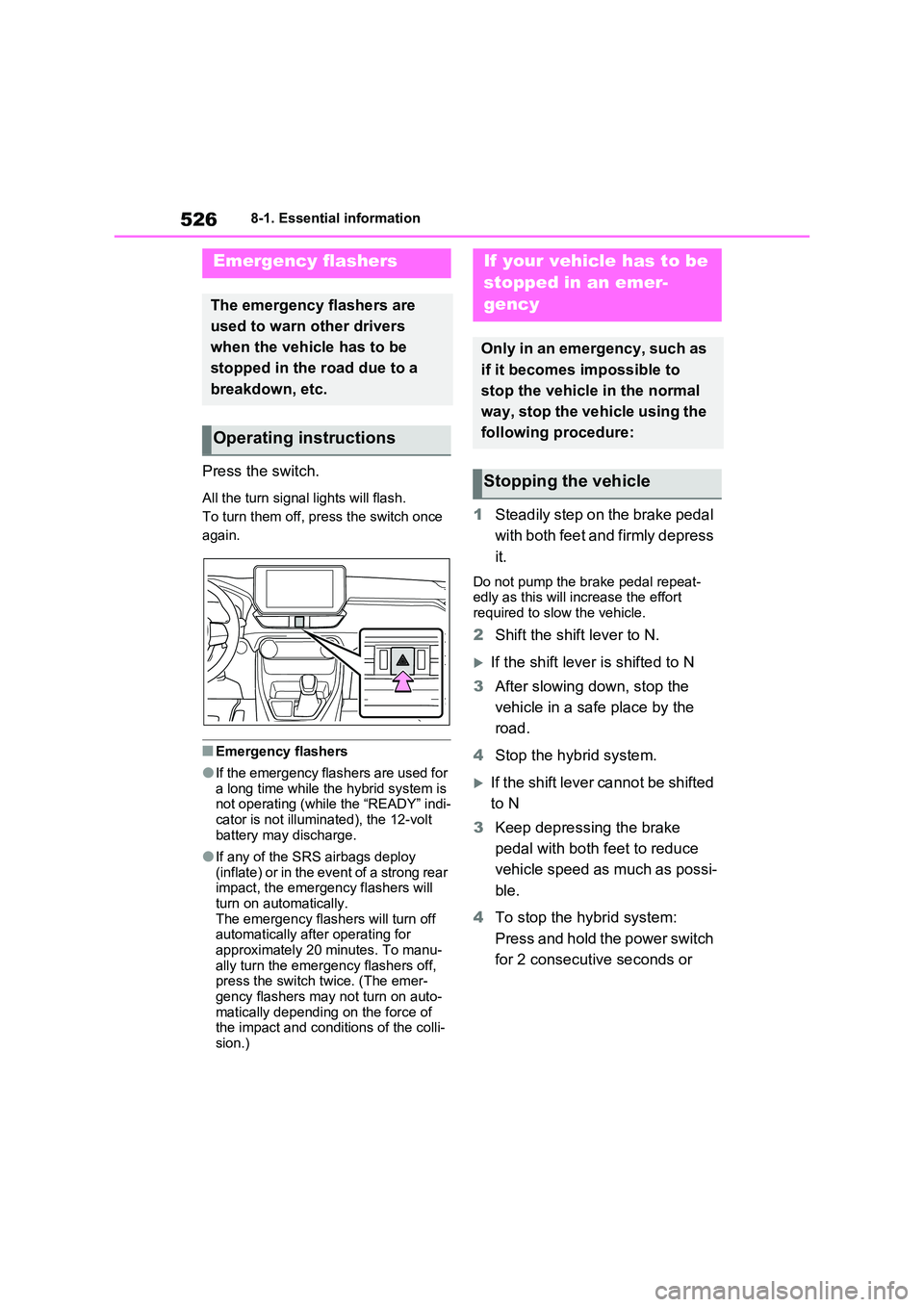

8-1.Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once
again.
■Emergency flashers
●If the emergency flashers are used for a long time while the hybrid system is not operating (while the “READY” indi-
cator is not illuminated), the 12-volt battery may discharge.
●If any of the SRS airbags deploy (inflate) or in the event of a strong rear impact, the emergency flashers will
turn on automatically. The emergency flashers will turn off automatically after operating for
approximately 20 minutes. To manu- ally turn the emergency flashers off, press the switch twice. (The emer-
gency flashers may not turn on auto- matically depending on the force of the impact and conditions of the colli-
sion.)
1 Steadily step on the brake pedal
with both feet and firmly depress
it.
Do not pump the brake pedal repeat- edly as this will increase the effort required to slow the vehicle.
2 Shift the shift lever to N.
If the shift lever is shifted to N
3 After slowing down, stop the
vehicle in a safe place by the
road.
4 Stop the hybrid system.
If the shift lever cannot be shifted
to N
3 Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as possi-
ble.
4 To stop the hybrid system:
Press and hold the power switch
for 2 consecutive seconds or
Emergency flashers
The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped in the road due to a
breakdown, etc.
Operating instructions
If your vehicle has to be
stopped in an emer-
gency
Only in an emergency, such as
if it becomes impossible to
stop the vehicle in the normal
way, stop the vehicle using the
following procedure:
Stopping the vehicle

591
9 9-1. Specifications
Vehicle specifications
Type B
■Compact spare tire (if equipped)
■When towing a trailer: P.296
Add 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi) to the recommended tire inflation pressure
and drive at speeds below 100 km/h (62 mph).
■When all the seats are occupied
Make sure that the rear tires are inflated to 260 kPa (2.6 kgf/cm
2 or bar, 38 psi).
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
*: If equipped
Tire size235/55R19 101V
Tire inflation pres-
sure (Recom-
mended cold tire
inflation pressure)Front230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Wheel size19  7 1/2 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT165/90D18 107M
Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size18  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWType
Rear turn signal lights21A
Back-up lights16B
Outer foot lights*5B

6089-2. Customization
■Illumination (P.443)
*: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking
function are both on, the door lock operates as follows.
• If the vehicle is started with all the doors locked, the speed linked door locking
function would not operate.
• If the vehicle is started with any door unlocked, the speed linked door locking func-
tion will operate.
• When shifting the shift lever to any position other than P, all the doors will be
locked.
●When the smart entry & start system is off, the selecting door to unlock cannot be
customized.
●When the doors remain closed after unlocking the doors and the automatic door
lock function is activated, the signals will be generated in accordance with the
Operation signal (emergency flashers) settings.
Stopping operation using the
“A/C” button on the wireless
remote control
Press twice
Press once
––O
Press and hold
(short)
Press and hold
(long)
Off
FunctionDefault
settingCustomized
setting
Time elapsed before the interior
lights turn off15 seconds
Off
O–O7.5 seconds
30 seconds
Operation after the power switch
is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff––O
Footwell lighting*OnOff––O
FunctionDefault
settingCustomized
settingABC
ABC

619Alphabetical Index
Operation ................................... 282
Emergency, in case of
If a warning buzzer sounds ........ 534
If a warning light turns on ........... 534
If a warning message is displayed
................................................. 544
If the 12-volt battery is discharged
................................................. 573
If the electronic key does not operate
properly.................................... 571
If the fuel filler door cannot be
opened..................................... 570
If the hybrid system will not start 568
If the vehicle is submerged or water
on the road is rising ................. 527
If you have a flat tire........... 548, 559
If you lose your keys .................. 570
If you think something is wrong.. 532
If your vehicle becomes stuck .... 582
If your vehicle has to be stopped in
an emergency .......................... 526
If your vehicle needs to be towed
................................................. 529
If your vehicle overheats ............ 578
Emergency brake signal .............. 416
Emergency flashers ..................... 526
Emergency tire puncture repair kit
..................................................... 548
Energy monitor ............................. 226
Engine
Compartment ............................. 479
Exhaust gas precautions.............. 47
Hood .......................................... 476
How to start the hybrid system... 310
Identification number.................. 585
If the hybrid system will not start 568
If your vehicle has to be stopped in
an emergency .......................... 526
Overheating ............................... 578
Power switch .............................. 310
Engine coolantCapacity ..................................... 588
Checking .................................... 481
High coolant temperature warning
light .......................................... 535
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
Engine coolant temperature 187, 193
Engine oil
Capacity ..................................... 587
Checking .................................... 479
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
EPS (Electric Power Steering)
Function ..................................... 416
Warning light .............................. 536
EV/HV mode selection switch........ 86
EV driving range ........................... 103
EV mode ..........................................85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 327
F
Flat tire ................................... 548, 559
Tire pressure warning system .... 488
Floor mats ....................................... 32
Fluid
Brake .......................................... 590
Hybrid transmission.................... 589
Rear differential .......................... 589
Washer ....................................... 483
Fog lights
Replacing light bulbs ..................516
Switch......................................... 331
Footwell lights............................... 443
Front fog lights
Replacing light bulbs ..................516
Switch......................................... 331
Front passenger’s seat belt reminder

620Alphabetical Index
light.............................................. 541
Front position lights
Light switch ................................ 326
Replacing light bulbs .................. 516
Front seat concentrated airflow
mode (S-FLOW) .......................... 435
Front seat heaters ........................ 440
Front seats .................................... 258
Adjustment ................................. 258
Cleaning ..................................... 469
Correct driving posture................. 33
Driving position memory ............ 261
Head restraints........................... 264
Memory recall function ............... 262
Seat heaters............................... 440
Seat position memory ................ 261
Seat ventilators .......................... 440
Front turn signal lights
Replacing light bulbs .................. 516
Turn signal lever ........................ 319
Fuel
Capacity ..................................... 586
Fuel gauge ......................... 187, 193
Gas station information .............. 716
Information ................................. 592
Refueling .................................... 336
Type ........................................... 586
Warning light .............................. 541
Fuel filler door .............................. 337
If the fuel filler door cannot be
opened..................................... 570
Opener ....................................... 337
Refueling .................................... 336
Fuel gauge ............................ 187, 193
Fuses ............................................. 513
G
Gas station information ............... 716
Gauges .................................. 187, 193
Glove box ...................................... 446
GPF (Gasoline Particulate Filter) system ......................................... 414
H
Headlight cleaner .......................... 332
Headlights ..................................... 326
Automatic headlight leveling ...... 327
Automatic High Beam (AHB)...... 328
Extended Headlight Lighting system
................................................. 327
Light switch ................................ 326
Replacing light bulbs ..................516
Head restraints.............................. 264
Head-up display ............................ 222
Heated steering wheel ..................440
Heated Windshield Defroster....... 435
Heaters
Automatic air conditioning system
................................................. 430
Heated steering wheel ............... 440
Hybrid battery (traction battery).. 128
Outside rear view mirrors ........... 432
Seat heaters ............................... 440
High coolant temperature warning
light ..............................................535
High mounted stoplight
Replacing light bulbs ..................516
High voltage components ..............95
Hill-start assist control ................. 416
Hood............................................... 476
Warning message ...................... 544
Hooks
Cargo hooks ............................... 449
Coat hooks ................................. 463
Retaining hooks (floor mat) .......... 32
Horn ............................................... 266
HV mode ..........................................85
Hybrid battery (traction battery)
Charging............................. 127, 135
Location........................................ 95
Specification ............................... 586
Hybrid battery (traction battery)

622Alphabetical Index
Replacing the battery ................. 511
Warning buzzer .......................... 253
Wireless remote control key....... 233
Knee airbags ................................... 39
L
Lane Tracing Assist (LTA) ........... 353
Operation ................................... 353
Warning messages .................... 363
Language (multi-information dis-
play) ............................. 208, 217, 596
Lever
Auxiliary catch lever ................... 476
Hood lock release lever ............. 476
Shift lever ................................... 315
Tilt and telescopic steering lock
release lever ............................ 266
Turn signal lever ........................ 319
Wiper lever ......................... 332, 334
License plate lights
Light switch ................................ 326
Replacing light bulbs .................. 516
Light bulbs
Replacing ................................... 516
Wattage...................................... 591
Lights
Automatic High Beam system .... 328
Emergency flasher switch .......... 526
Extended Headlight Lighting system
................................................. 327
Fog light switch .......................... 331
Front interior lights ..................... 444
Headlight switch ......................... 326
Illuminated entry system ............ 443
Interior lights .............................. 444
Luggage compartment light 242, 245
Personal lights ........................... 444
Rear interior light........................ 444
Replacing light bulbs .................. 516
Turn signal lever ........................ 319
Vanity lights................................ 453Wattage ...................................... 591
Lock steering column................... 311
LTA (Lane Tracing Assist) ........... 353
Operation ...................................353
Warning messages .................... 363
Luggage compartment light 242, 245
Luggage cover .............................. 450
M
Maintenance
Do-it-yourself maintenance ........ 474
Maintenance data.......................584
Maintenance requirements......... 472
Malfunction indicator lamp .......... 536
Menu icons .................................... 200
Meter
“ODO TRIP” switch ............ 191, 199
Clock .................................. 192, 193
Head-up display ......................... 222
Hybrid System Indicator ..... 190, 196
Indicators.................................... 180
Meter control switches ....... 200, 212
Meters ................................187, 193
Multi-information display ....199, 211
Settings ...................... 206, 217, 596
Units ................................... 208, 220
Warning lights .................... 534, 544
Warning messages .................... 209
Meter control switches ......... 200, 212
Mirrors
Digital Rear-view Mirror.............. 268
Inside rear view mirror................ 267
Outside rear view mirror defoggers
................................................. 432
Outside rear view mirrors ........... 277
Vanity mirrors .............................453
Multi-information display ..... 199, 211
Audio system-linked display204, 216
BSM (Blind Spot Monitor)........... 387
Changing the display..........200, 212
Convenience Services (Suggestion

624Alphabetical Index
Function ..................................... 343
Warning light .............................. 537
Warning message .............. 341, 547
Personal lights .............................. 444
Switch ........................................ 444
PKSB (Parking Support Brake) ... 403
Indicator ..................................... 184
Parking Support Brake function
(rear-crossing vehicles) ........... 410
Parking Support Brake function
(static objects) ......................... 407
Warning light .............................. 538
Plug-in hybrid system .................... 84
AUTO EV/HV mode switch .......... 86
AUTO EV/HV mode ..................... 85
Driving tips ................................. 100
EV driving range ........................ 103
EV mode ...................................... 85
EV/HV mode selection switch ...... 86
Features ....................................... 84
How to charge ............................ 135
HV mode ...................................... 85
Hybrid battery (traction battery)
charge mode .............................. 85
Power back door switch ...... 243, 244
Power control unit coolant .......... 481
Capacity ..................................... 588
Checking .................................... 482
Preparing and checking before win-
ter ............................................ 422
Radiator ..................................... 482
Power outlets ................................ 453
Power sources .............................. 124
Power steering (Electric Power
Steering system) ........................ 416
Warning light .............................. 536
Power switch ................................ 310
Auto power off function .............. 313
Changing the power switch modes
................................................. 313
If your vehicle has to be stopped in an emergency .......................... 526
Starting the hybrid system.......... 310
Power windows
Catch protection function ........... 279
Door lock linked window operation
................................................. 280
Jam protection function .............. 279
Operation ...................................279
Window lock switch .................... 281
Pre-Collision System (PCS)
Enabling/disabling the pre-collision
system...................................... 346
Function ..................................... 343
Warning light .............................. 537
Warning message .............. 341, 547
Predictive efficient drive ................ 93
R
Radar cruise control
Dynamic radar cruise control with
full-speed range .......................368
Radiator ......................................... 482
RCTA (Rear Crossing Traffic Alert)
RCTA Function................... 386, 391
Warning message ...................... 388
Rear Crossing Traffic Alert (RCTA)
..................................................... 386
Rear fog light
Replacing light bulbs ..................516
Switch......................................... 331
Rear passengers’ seat belt reminder
light ..............................................542
Rear seat........................................259
Folding down the rear seatbacks260
Head restraints ........................... 264
Seat heaters ............................... 441
Rear turn signal lights
Replacing light bulbs ..................516
Turn signal lever......................... 319
Wattage ...................................... 591
Rear view mirror
