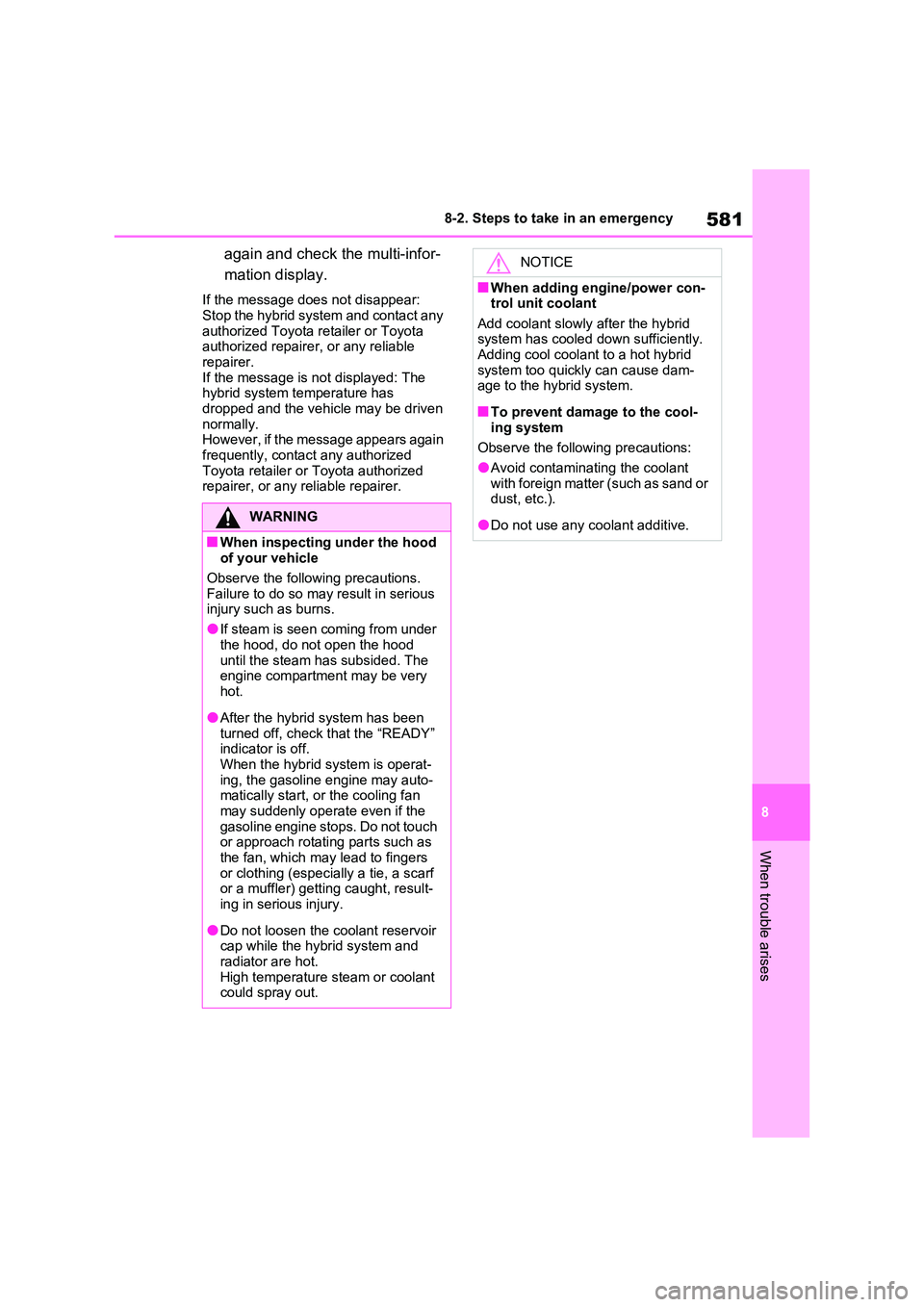

8-2. Steps to take in an emergency
When trouble arises
again and check the multi-infor-
mation display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer. If the message is not displayed: The hybrid system temperature has
dropped and the vehicle may be driven normally. However, if the message appears again
frequently, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under
the hood, do not open the hood until the steam has subsided. The engine compartment may be very
hot.
●After the hybrid system has been
turned off, check that the “READY” indicator is off.When the hybrid system is operat-
ing, the gasoline engine may auto- matically start, or the cooling fan may suddenly operate even if the
gasoline engine stops. Do not touch or approach rotating parts such as the fan, which may lead to fingers
or clothing (especially a tie, a scarf or a muffler) getting caught, result-ing in serious injury.
●Do not loosen the coolant reservoir cap while the hybrid system and
radiator are hot. High temperature steam or coolant could spray out.
NOTICE
■When adding engine/power con-trol unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool coolant to a hot hybrid
system too quickly can cause dam- age to the hybrid system.
■To prevent damage to the cool-ing system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust, etc.).
●Do not use any coolant additive.

587
9 9-1. Specifications
Vehicle specifications
■Oil capacity (Drain and refill  reference*)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserv-
ing”, SN PLUS “Resource-Conserv-
ing” or SP “Resource-Conserving”;
or ILSAC GF-6B multigrade engine
oil
0W-20 and 5W-30:
API grade SM “Energy-Conserv-
ing”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving”
or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel economy and good starting in cold
weather.
If SAE 0W-16 oil is not available,
SAE 0W-20 oil may be used. How-
ever, it should be replaced with
SAE 0W-16 at the next oil change.
Temperature range anticipated
before next oil change
Preferred
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the
characteristic of the oil which
allows cold startability. Oils with
a lower value before the W allow
for easier starting of the engine
Quantity96 cells
Nominal voltage355.2 V
Lubrication system
With filter4.5 L (4.8 qt., 4.0 Imp. qt.)
Without filter4.2 L (4.4 qt., 3.7 Imp. qt.)
A
B

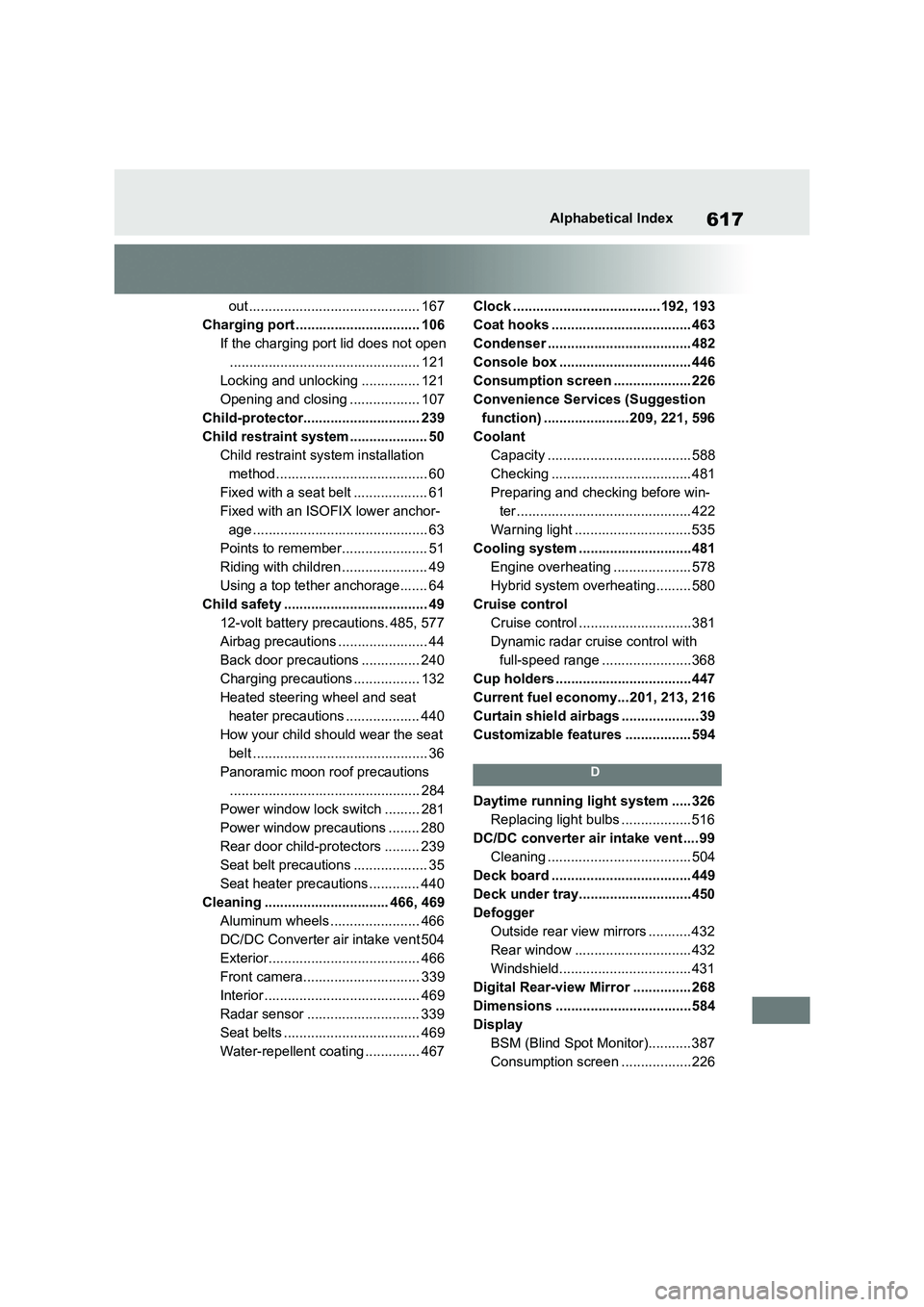

617Alphabetical Index
out ............................................ 167
Charging port ................................ 106
If the charging port lid does not open
................................................. 121
Locking and unlocking ............... 121
Opening and closing .................. 107
Child-protector.............................. 239
Child restraint system .................... 50
Child restraint system installation
method....................................... 60
Fixed with a seat belt ................... 61
Fixed with an ISOFIX lower anchor-
age ............................................. 63
Points to remember...................... 51
Riding with children ...................... 49
Using a top tether anchorage....... 64
Child safety ..................................... 49
12-volt battery precautions. 485, 577
Airbag precautions ....................... 44
Back door precautions ............... 240
Charging precautions ................. 132
Heated steering wheel and seat
heater precautions ................... 440
How your child should wear the seat
belt ............................................. 36
Panoramic moon roof precautions
................................................. 284
Power window lock switch ......... 281
Power window precautions ........ 280
Rear door child-protectors ......... 239
Seat belt precautions ................... 35
Seat heater precautions ............. 440
Cleaning ................................ 466, 469
Aluminum wheels ....................... 466
DC/DC Converter air intake vent 504
Exterior....................................... 466
Front camera.............................. 339
Interior ........................................ 469
Radar sensor ............................. 339
Seat belts ................................... 469
Water-repellent coating .............. 467Clock ......................................192, 193
Coat hooks .................................... 463
Condenser ..................................... 482
Console box .................................. 446
Consumption screen .................... 226
Convenience Services (Suggestion
function) ...................... 209, 221, 596
Coolant
Capacity ..................................... 588
Checking .................................... 481
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
Cooling system .............................481
Engine overheating .................... 578
Hybrid system overheating......... 580
Cruise control
Cruise control .............................381
Dynamic radar cruise control with
full-speed range .......................368
Cup holders ...................................447
Current fuel economy... 201, 213, 216
Curtain shield airbags ....................39
Customizable features ................. 594
D
Daytime running light system ..... 326
Replacing light bulbs ..................516
DC/DC converter air intake vent .... 99
Cleaning ..................................... 504
Deck board .................................... 449
Deck under tray.............................450
Defogger
Outside rear view mirrors ........... 432
Rear window .............................. 432
Windshield.................................. 431
Digital Rear-view Mirror ............... 268
Dimensions ...................................584
Display
BSM (Blind Spot Monitor)........... 387
Consumption screen ..................226

619Alphabetical Index
Operation ................................... 282
Emergency, in case of
If a warning buzzer sounds ........ 534
If a warning light turns on ........... 534
If a warning message is displayed
................................................. 544
If the 12-volt battery is discharged
................................................. 573
If the electronic key does not operate
properly.................................... 571
If the fuel filler door cannot be
opened..................................... 570
If the hybrid system will not start 568
If the vehicle is submerged or water
on the road is rising ................. 527
If you have a flat tire........... 548, 559
If you lose your keys .................. 570
If you think something is wrong.. 532
If your vehicle becomes stuck .... 582
If your vehicle has to be stopped in
an emergency .......................... 526
If your vehicle needs to be towed
................................................. 529
If your vehicle overheats ............ 578
Emergency brake signal .............. 416
Emergency flashers ..................... 526
Emergency tire puncture repair kit
..................................................... 548
Energy monitor ............................. 226
Engine
Compartment ............................. 479
Exhaust gas precautions.............. 47
Hood .......................................... 476
How to start the hybrid system... 310
Identification number.................. 585
If the hybrid system will not start 568
If your vehicle has to be stopped in
an emergency .......................... 526
Overheating ............................... 578
Power switch .............................. 310
Engine coolantCapacity ..................................... 588
Checking .................................... 481
High coolant temperature warning
light .......................................... 535
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
Engine coolant temperature 187, 193
Engine oil
Capacity ..................................... 587
Checking .................................... 479
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
EPS (Electric Power Steering)
Function ..................................... 416
Warning light .............................. 536
EV/HV mode selection switch........ 86
EV driving range ........................... 103
EV mode ..........................................85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 327
F
Flat tire ................................... 548, 559
Tire pressure warning system .... 488
Floor mats ....................................... 32
Fluid
Brake .......................................... 590
Hybrid transmission.................... 589
Rear differential .......................... 589
Washer ....................................... 483
Fog lights
Replacing light bulbs ..................516
Switch......................................... 331
Footwell lights............................... 443
Front fog lights
Replacing light bulbs ..................516
Switch......................................... 331
Front passenger’s seat belt reminder

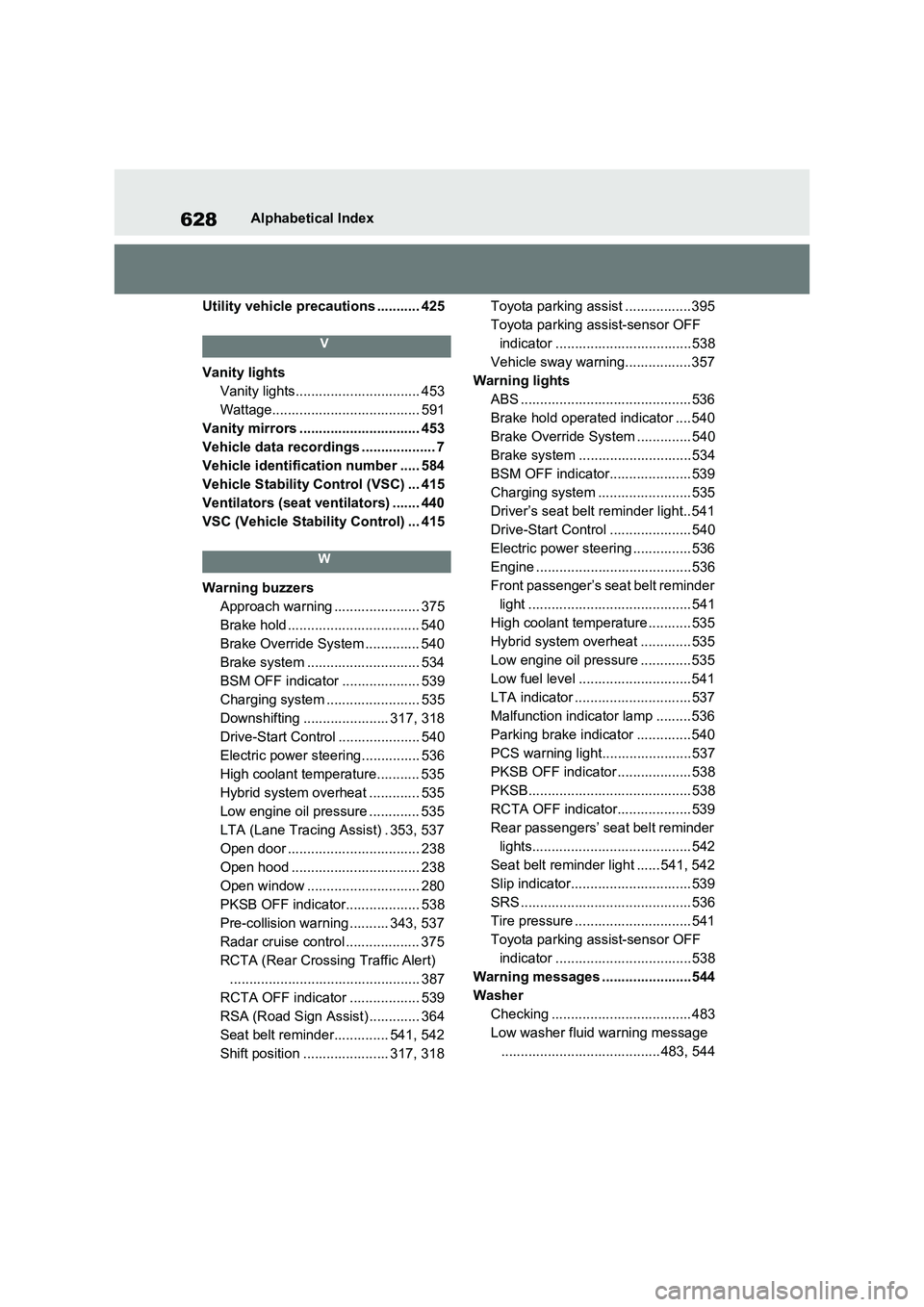

628Alphabetical Index
Utility vehicle precautions ........... 425
V
Vanity lights
Vanity lights................................ 453
Wattage...................................... 591
Vanity mirrors ............................... 453
Vehicle data recordings ................... 7
Vehicle identification number ..... 584
Vehicle Stability Control (VSC) ... 415
Ventilators (seat ventilators) ....... 440
VSC (Vehicle Stability Control) ... 415
W
Warning buzzers
Approach warning ...................... 375
Brake hold .................................. 540
Brake Override System .............. 540
Brake system ............................. 534
BSM OFF indicator .................... 539
Charging system ........................ 535
Downshifting ...................... 317, 318
Drive-Start Control ..................... 540
Electric power steering............... 536
High coolant temperature........... 535
Hybrid system overheat ............. 535
Low engine oil pressure ............. 535
LTA (Lane Tracing Assist) . 353, 537
Open door .................................. 238
Open hood ................................. 238
Open window ............................. 280
PKSB OFF indicator................... 538
Pre-collision warning .......... 343, 537
Radar cruise control ................... 375
RCTA (Rear Crossing Traffic Alert)
................................................. 387
RCTA OFF indicator .................. 539
RSA (Road Sign Assist) ............. 364
Seat belt reminder.............. 541, 542
Shift position ...................... 317, 318Toyota parking assist ................. 395
Toyota parking assist-sensor OFF
indicator ...................................538
Vehicle sway warning................. 357
Warning lights
ABS ............................................ 536
Brake hold operated indicator .... 540
Brake Override System .............. 540
Brake system .............................534
BSM OFF indicator..................... 539
Charging system ........................ 535
Driver’s seat belt reminder light.. 541
Drive-Start Control ..................... 540
Electric power steering ............... 536
Engine ........................................536
Front passenger’s seat belt reminder
light .......................................... 541
High coolant temperature ........... 535
Hybrid system overheat ............. 535
Low engine oil pressure ............. 535
Low fuel level .............................541
LTA indicator .............................. 537
Malfunction indicator lamp ......... 536
Parking brake indicator .............. 540
PCS warning light.......................537
PKSB OFF indicator ................... 538
PKSB.......................................... 538
RCTA OFF indicator................... 539
Rear passengers’ seat belt reminder
lights......................................... 542
Seat belt reminder light ...... 541, 542
Slip indicator............................... 539
SRS ............................................ 536
Tire pressure .............................. 541
Toyota parking assist-sensor OFF
indicator ...................................538
Warning messages .......................544
Washer
Checking .................................... 483
Low washer fluid warning message
......................................... 483, 544
