3825-5. Using the driving support systems
■Operation switches
“+RES” switch
Cruise control main switch
“-SET” switch
Cancel switch
1 Press the cruise control main
switch to activate the cruise con-
trol.
Cruise control indicator will be dis-
played. Press the switch again to deactivate the cruise control.
2 Accelerate or decelerate, with
accelerator pedal operation, to
the desired speed (at or above
approximately 30 km/h [20
mph]) and press the “-SET”
switch to set the speed.
Cruise control “SET” indicator will be displayed.
The vehicle speed at the moment the switch is released becomes the set speed.
To change the set speed, operate
WARNING
■To avoid operating the cruise
control by mistake
Switch the cruise control off using the cruise control main switch when not in
use.
■Situations unsuitable for cruise
control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting in death or serious injury.
●In heavy traffic
●On roads with sharp bends
●On winding roads
●On slippery roads, such as those covered with rain, ice or snow
●On steep hillsVehicle speed may exceed the set
speed when driving down a steep hill.
●When your vehicle is towing a trailer or during emergency towing
A
B
C
D
Setting the vehicle speed
Adjusting the set speed

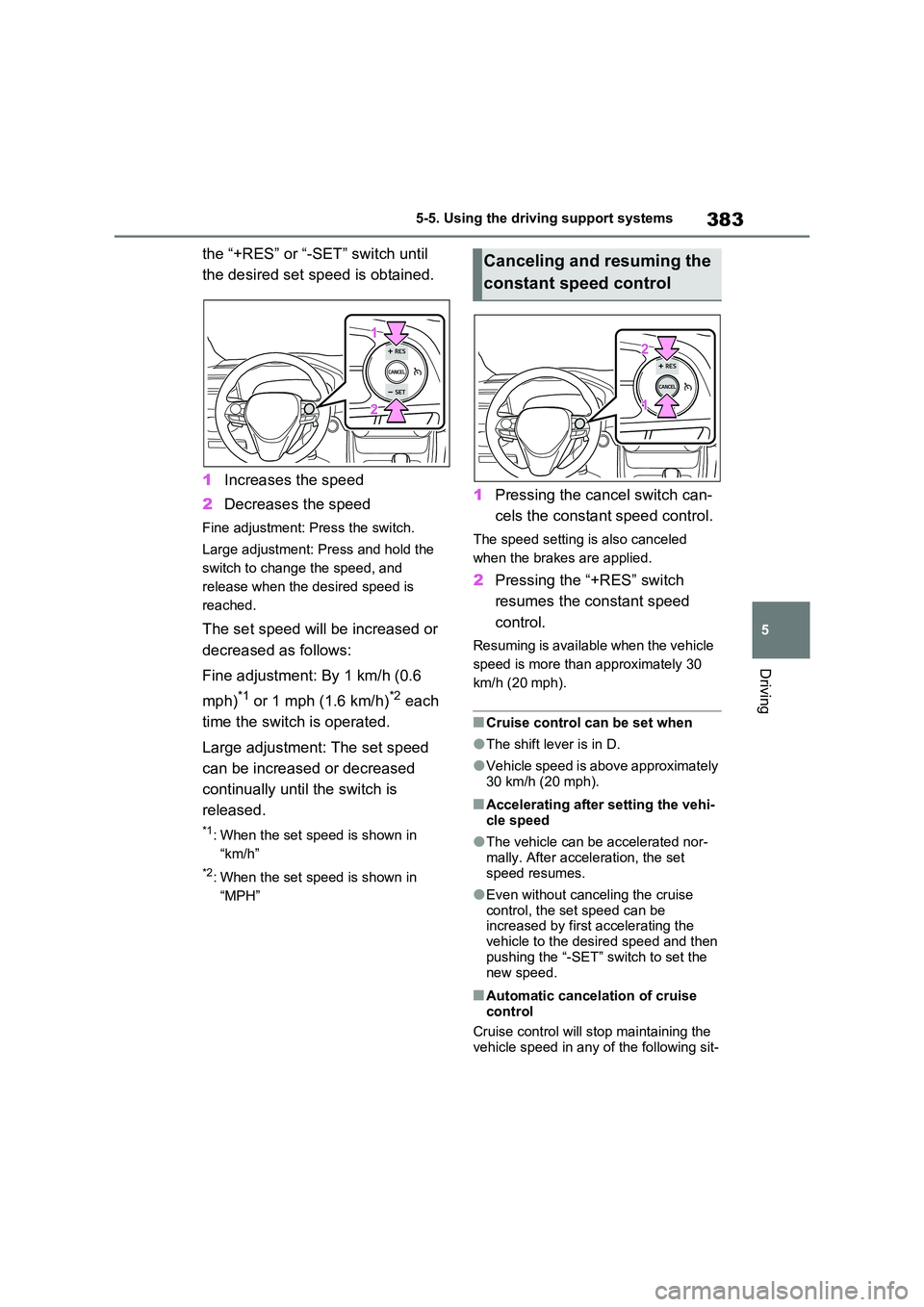

383
5
5-5. Using the driving support systems
Driving
the “+RES” or “-SET” switch until
the desired set speed is obtained.
1 Increases the speed
2 Decreases the speed
Fine adjustment: Press the switch.
Large adjustment: Press and hold the
switch to change the speed, and
release when the desired speed is
reached.
The set speed will be increased or
decreased as follows:
Fine adjustment: By 1 km/h (0.6
mph)*1 or 1 mph (1.6 km/h)*2 each
time the switch is operated.
Large adjustment: The set speed
can be increased or decreased
continually until the switch is
released.
*1: When the set speed is shown in
“km/h”
*2: When the set speed is shown in
“MPH”
1 Pressing the cancel switch can-
cels the constant speed control.
The speed setting is also canceled
when the brakes are applied.
2 Pressing the “+RES” switch
resumes the constant speed
control.
Resuming is available when the vehicle
speed is more than approximately 30
km/h (20 mph).
■Cruise control can be set when
●The shift lever is in D.
●Vehicle speed is above approximately 30 km/h (20 mph).
■Accelerating after setting the vehi-
cle speed
●The vehicle can be accelerated nor-
mally. After acceleration, the set speed resumes.
●Even without canceling the cruise control, the set speed can be increased by first accelerating the
vehicle to the desired speed and then pushing the “-SET” switch to set the
new speed.
■Automatic cancelation of cruise control
Cruise control will stop maintaining the
vehicle speed in any of the following sit-
Canceling and resuming the
constant speed control

3845-5. Using the driving support systems
uations.
●Actual vehicle speed falls more than approximately 16 km/h (10 mph)
below the preset vehicle speed.
●Actual vehicle speed is below approxi-
mately 30 km/h (20 mph).
●VSC is activated.
●TRC is activated for a period of time.
●When the VSC or TRC system is turned off.
●The parking brake is operated.
■If the warning message for the cruise control is shown on the multi-information display
Press the cruise control main switch once to deactivate the system, and then press the switch again to reactivate the
system. If the cruise control speed cannot be set or if the cruise control cancels immedi-
ately after being activated, there may be a malfunction in the cruise control sys-tem. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*: If equipped
1 Press the switch to activate the
speed limiter.
Press the switch once more to deacti-
Speed limiter*
A desired maximum speed can
be set using the cruise control
switch. ( P.381)
The speed limiter prevents
vehicle speed from exceeding
the set speed.
WARNING
■To avoid operating the speed
limiter by mistake
Keep the speed limiter switch off when not in use.
■Situations unsuitable for speed limiter
Do not use the speed limiter in either of the following situations. Doing so may result in control of the
vehicle being lost and could cause a serious or fatal accident.
●On slippery roads, such as those covered with rain, ice or snow
●On steep hills
●When your vehicle is towing a
trailer or during emergency towing
Setting the vehicle speed

3865-5. Using the driving support systems
■Automatic speed limiter cancella-
tion
The set speed is automatically canceled when the cruise control is activated.
■If the speed limiter indicator turns
off and “Speed Limiter Malfunction Visit Your Dealer” is displayed
Stop the hybrid system and then restart
the hybrid system. After restarting the hybrid system, set the speed limiter.If the speed limiter cannot be set, there
may be a malfunction in the speed lim- iter system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer.
*: If equipped
BSM (Blind Spot Moni-
tor)*
The Blind Spot Monitor is a
system that has 2 functions:
 The BSM (Blind Spot Monitor)
function
Assists the driver in making a
decision when changing lanes
 The RCTA (Rear Crossing
Traffic Alert) function
Assists the driver when backing
up
These functions use the same
sensors.
WARNING
■Cautions regarding the use of the BSM function
The driver is solely responsible for safe driving. Always drive safely, tak-ing care to observe your surround-
ings. The BSM function is a supplementary function which alerts the driver that a
vehicle is in a blind spot of the outside rear view mirrors or is approaching rapidly from behind into a blind spot.
Do not overly rely on the BSM func- tion. As the function cannot judge if it is safe to change lanes, over reliance
could lead to an accident resulting in death or serious injury.
As the system may not function cor-
rectly under certain conditions, the driver’s own visual confirmation of safety is necessary.

545
8
8-2. Steps to take in an emergency
When trouble arises
• A warning message about an opera-
tion of the brake pedal may be shown while the driving assist systems such as PCS (Pre-Collision system) (if
equipped) or the dynamic radar cruise control with full-speed range (if equipped) is operating. If a warning
message is shown, be sure to decel- erate the vehicle or follow the instruc-tion shown on the multi-information
display. • A warning message is shown when Brake Override System operates.
( P.289) • A warning message is shown when Drive-Start Control or Parking Support
Brake function (if equipped) operates ( P.289, 403). Follow the instructions on the multi-information display.
●If a message about an operation of the power switch is shown
An instruction for operation of the power
switch is shown when the incorrect pro-
cedure for starting the hybrid system is
performed or the power switch is oper-
ated incorrectly. Follow the instructions
shown on the multi-information display
to operate the power switch again.
●If a message about a shift lever opera- tion is shown
To prevent the shift lever from being
operated incorrectly or the vehicle from
moving unexpectedly, a message that
requires shifting the shift lever may be
shown on the multi-information display.
In that case, follow the instruction of the
message and shift the shift lever.
●If a message or image about an open/close state of a part or replen-
ishment of a consumable is shown
Confirm the part indicated by the multi-
information display or a warning light,
and then perform the coping method
such as closing the open door or replen-
ishing a consumable.
■If a message that indicates the
need for visiting any authorized Toyota retailer or Toyota autho-rized repairer, or any reliable
repairer is displayed
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
■If a message that indicates the need for referring to Owner’s Man-ual is displayed
●If the following messages are shown, follow the instructions, accordingly.
• “Blind Spot Monitor Unavailable” ( P.388) • “RCTA Unavailable” ( P.388)
• “Engine Coolant Temp High” ( P.578) • “Exhaust Filter Full” ( P.414)
●If the following messages are shown, there may be a malfunction.
Immediately have the vehicle inspected
by any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
• “Plug-in Charging System Malfunc- tion”• “Hybrid System Malfunction”
• “Charging system malfunction” • “Check Engine”• “Traction battery system malfunction”
• “Accelerator System Malfunction” • “Smart Entry & Start System Malfunc-tion”
●If the following messages are shown, there may be a malfunction.
Immediately stop the vehicle in a safe
place and contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer. Con-
tinuing to drive the vehicle may be dan-
gerous.
•“Oil Pressure Low” • “Braking Power Low”
●If any of the following messages are

547
8
8-2. Steps to take in an emergency
When trouble arises
12-volt battery.
■If “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level may be low. Check the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the vehicle is stopped on a slope. Move the vehicle to
a level surface and check if the mes- sage disappears.
■If a message that indicates the mal-function of front camera is dis-
played (if equipped)
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.341, 534)
●PCS (Pre-Collision System)*
●LTA (Lane Tracing Assist)*
●AHB (Automatic High Beam)*
●RSA (Road Sign Assist)*
●Dynamic radar cruise control with full-
speed range*
*: If equipped
■If a message that indicates the mal- function of radar sensor is dis-
played
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.341, 534)
●PCS (Pre-Collision System)*
●LTA (Lane Tracing Assist)*
●Dynamic radar cruise control with full-
speed range*
*: If equipped
■If “Radar Cruise Control Temporar- ily Unavailable See Owner’s Man-
ual” is shown
The dynamic radar cruise control with full-speed range system (if equipped) is
suspended temporarily or until the prob- lem shown in the message is resolved. (causes and coping methods: P.341)
■If “Radar Cruise Control Unavail-
able” is shown
The dynamic radar cruise control with full-speed range system (if equipped)
cannot be used temporarily. Use the system when it becomes available again.
■Warning buzzer
 P.542
WARNING
■If a warning light comes on or a warning buzzer sounds when a
warning message is shown on the multi-information display
 P.543
NOTICE
■“High Power Consumption Par- tial Limit On AC/Heater Opera-
tion” is frequently shown
There is a possible malfunction relat- ing to the charging system or the 12-
volt battery may be deteriorating. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■If “Maintenance Reqd. For Trac-tion Battery At Your Dealer” is
shown
The hybrid battery (traction battery) is scheduled to be inspected or
replaced. Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.
●Continuing to drive the vehicle with- out having the hybrid battery (trac-
tion battery) inspected will cause the hybrid system not to start.
●If the hybrid system does not start, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.

567
8
8-2. Steps to take in an emergency
When trouble arises
WARNING
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed for use with your vehicle.
Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-ing operations that cause sudden
engine braking.
■When the compact spare tire is
attached
The vehicle speed may not be cor- rectly detected, and the following sys-
tems may not operate correctly:
• ABS & Brake assist
• VSC/Trailer Sway Control
•TRC
• Cruise control (if equipped)
• Dynamic radar cruise control with full-speed range (if equipped)
• PCS (Pre-Collision System) (if equipped)
• EPS
• LTA (Lane Tracing Assist) (if
equipped)
• Tire pressure warning system
• AHB (Automatic High Beam) (if equipped)
• BSM (if equipped)
• RCTA (if equipped)
• PKSB (if equipped)
• Toyota parking assist-sensor
• Rear view monitor system (if
equipped)
• Panoramic view monitor (if
equipped)
• Toyota parking assist monitor (if
equipped)
• Navigation system (if equipped)
Also, not only can the following sys- tem not be utilized fully, but it may
actually negatively affect the drive- train components:
• E-Four (Electronic On-Demand
AWD system)
■Speed limit when using the com-
pact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds.
Failure to observe this precaution may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools
and jack are securely in place in their storage location to reduce the possi-bility of personal injury during a colli-
sion or sudden braking.
NOTICE
■Be careful when driving over bumps with the compact spare
tire installed on the vehicle
The vehicle height may become lower when driving with the compact spare
tire compared to when driving with standard tires. Be careful when driv-ing over uneven road surfaces.

605
9 9-2. Customization
Vehicle specifications
■LTA (Lane Tracing Assist)* (P.353)
*: If equipped
■RSA (Road Sign Assist)*1 (P.364)
*1: If equipped
*2: The system is automatically enabled each time the power switch is turned to ON.
*3: If a Speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with navigation system
■Dynamic radar cruise control with full-speed range* (P.368)
*: If equipped
FunctionCustomized setting
Lane centering functionOn, Off–O–
Alert typeSteering wheel vibration, Buzzer–O–
Alert sensitivityHigh, Standard–O–
Vehicle sway warning functionOn, Off–O–
Vehicle sway warning sensitivityHigh, Standard, Low–O–
FunctionCustomized setting
RSA (Road Sign Assist)*2On, Off–O–
Excess speed notification
method
*3No notification, Display only, Dis-
play and buzzer–O–
Excess speed notification level2 km/h (1 mph), 5 km/h (3 mph),
10 km/h (5 mph)–O–
No overtaking notification
methodNo notification, Display only, Dis-
play and steering wheel vibration–O–
Other notifications method (No-
entry notification)
*4No notification, Display only, Dis-
play and buzzer–O–
FunctionCustomized setting
Dynamic Radar Cruise Control
with Road Sign Assist
*On, Off–O–
Curve speed reduction functionHigh/Low/Off–O–
ABC
ABC
ABC

617Alphabetical Index
out ............................................ 167
Charging port ................................ 106
If the charging port lid does not open
................................................. 121
Locking and unlocking ............... 121
Opening and closing .................. 107
Child-protector.............................. 239
Child restraint system .................... 50
Child restraint system installation
method....................................... 60
Fixed with a seat belt ................... 61
Fixed with an ISOFIX lower anchor-
age ............................................. 63
Points to remember...................... 51
Riding with children ...................... 49
Using a top tether anchorage....... 64
Child safety ..................................... 49
12-volt battery precautions. 485, 577
Airbag precautions ....................... 44
Back door precautions ............... 240
Charging precautions ................. 132
Heated steering wheel and seat
heater precautions ................... 440
How your child should wear the seat
belt ............................................. 36
Panoramic moon roof precautions
................................................. 284
Power window lock switch ......... 281
Power window precautions ........ 280
Rear door child-protectors ......... 239
Seat belt precautions ................... 35
Seat heater precautions ............. 440
Cleaning ................................ 466, 469
Aluminum wheels ....................... 466
DC/DC Converter air intake vent 504
Exterior....................................... 466
Front camera.............................. 339
Interior ........................................ 469
Radar sensor ............................. 339
Seat belts ................................... 469
Water-repellent coating .............. 467Clock ......................................192, 193
Coat hooks .................................... 463
Condenser ..................................... 482
Console box .................................. 446
Consumption screen .................... 226
Convenience Services (Suggestion
function) ...................... 209, 221, 596
Coolant
Capacity ..................................... 588
Checking .................................... 481
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
Cooling system .............................481
Engine overheating .................... 578
Hybrid system overheating......... 580
Cruise control
Cruise control .............................381
Dynamic radar cruise control with
full-speed range .......................368
Cup holders ...................................447
Current fuel economy... 201, 213, 216
Curtain shield airbags ....................39
Customizable features ................. 594
D
Daytime running light system ..... 326
Replacing light bulbs ..................516
DC/DC converter air intake vent .... 99
Cleaning ..................................... 504
Deck board .................................... 449
Deck under tray.............................450
Defogger
Outside rear view mirrors ........... 432
Rear window .............................. 432
Windshield.................................. 431
Digital Rear-view Mirror ............... 268
Dimensions ...................................584
Display
BSM (Blind Spot Monitor)........... 387
Consumption screen ..................226

618Alphabetical Index
Cruise control ............................. 381
Drive information ................ 204, 216
Driving information ............. 201, 216
Dynamic radar cruise control with
full-speed range ....................... 368
Energy monitor........................... 226
Head-up display ......................... 222
LTA (Lane-Tracing Assist) ......... 359
Multi-information display .... 199, 211
Parking Support Brake function . 405
Pre-collision warning .................. 343
RCTA ......................................... 387
RSA (Road Sign Assist) ............. 365
Toyota parking assist-sensor ..... 395
Warning messages .................... 544
Do-it-yourself maintenance . 472, 474
Door lock
Back door ................................... 240
Side doors .................................. 235
Smart entry & start system......... 253
Wireless remote control ............. 233
Doors
Automatic door locking and unlock-
ing system ............................... 239
Back door ................................... 240
Door glasses .............................. 279
Door lock .................................... 235
Open door warning buzzer......... 238
Outside rear view mirrors ........... 277
Rear door child-protectors ......... 239
Side doors .................................. 235
Double locking system .................. 78
Drive information .................. 204, 216
Driver’s seat belt reminder light.. 541
Driver’s seat position memory .... 261
Driving position memory ............ 261
Memory recall function ............... 262
Drive-Start Control (DSC)
Sudden start restraint control ..... 294
Driving
Break-in tips ............................... 289Correct posture ............................ 33
Driving mode select switch......... 411
Plug in Hybrid Electric Vehicle ... 100
Procedures ................................. 288
Winter drive tips ......................... 422
Driving information display . 201, 212
Driving mode select switch ......... 411
Driving position memory ............. 261
Memory recall function ............... 262
Driving support system information
display ................................. 204, 216
DSC (Drive-Start Control)
Sudden start restraint control ..... 294
Dynamic radar cruise control with
full-speed range
Function ..................................... 368
Warning message ...................... 544
E
eCall ................................................. 66
ECB (Electronically Controlled Brake
System) ....................................... 415
Eco drive mode .............................411
E-Four (Electronic On-Demand AWD
system) ........................................416
Elapsed time.......................... 204, 216
Electric motor
Location........................................ 84
Specification ............................... 586
Electric Power Steering (EPS)
Function ..................................... 416
Warning light .............................. 536
Electronically Controlled Brake Sys-
tem (ECB) .................................... 415
Electronic key
Battery-saving function............... 254
If the electronic key does not operate
properly .................................... 571
Replacing the battery ................. 511
Electronic sunshade..................... 282
Jam protection function .............. 283
