TOYOTA SIENNA 2014 XL30 / 3.G Owners Manual

421
3-1. Using the air conditioning system and defogger
3
Interior features
SIENNA_OM_OM45483U_(U)

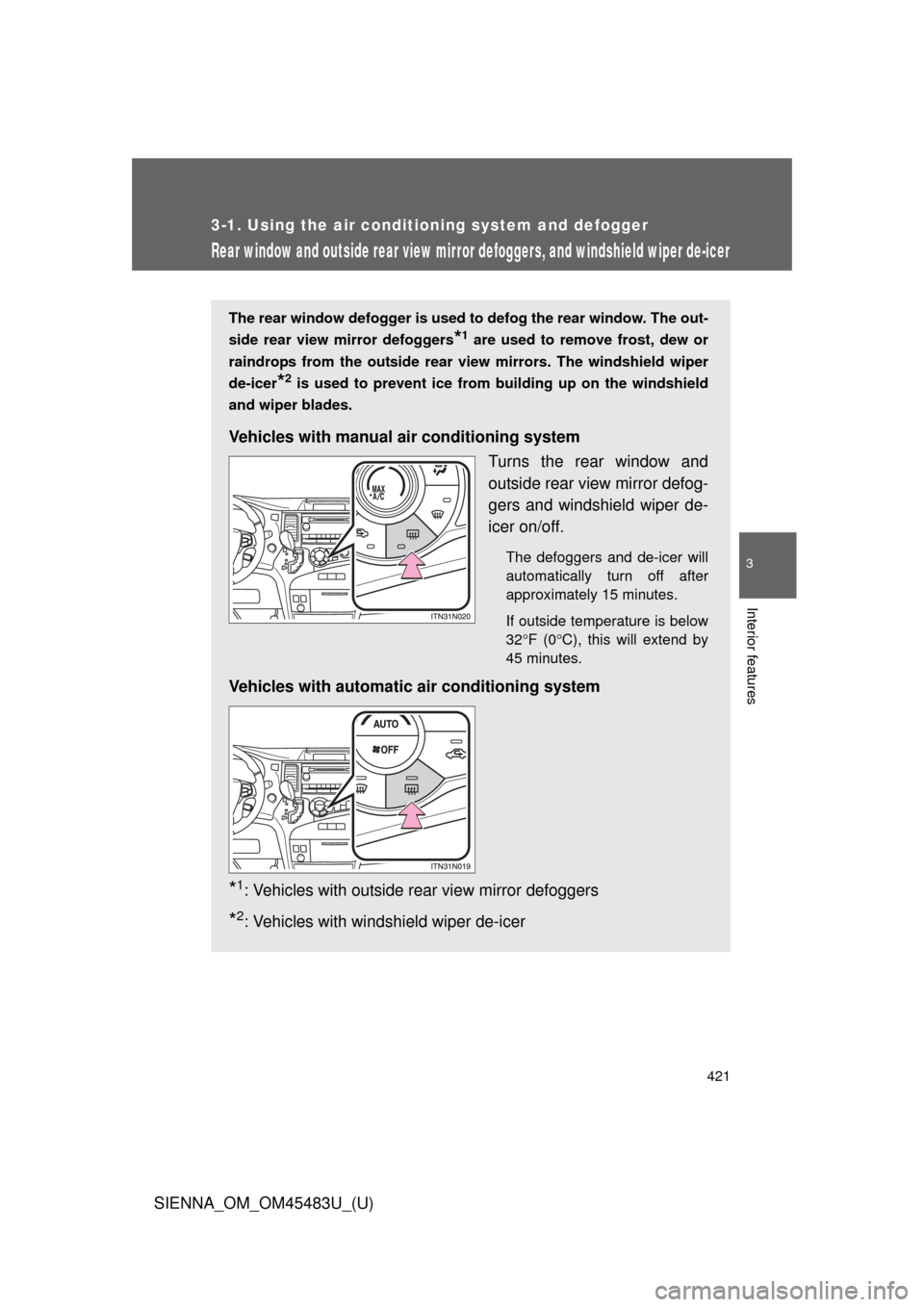

Rear window and outside rear view mirror defoggers, and windshield wiper de-icer
The rear window defogger is used to defog the rear window. The out-
side rear view mirror defoggers
*1 are used to remove frost, dew or
raindrops from the outside rear view mirrors. The windshield wiper
de-icer
*2 is used to prevent ice from building up on the windshield
and wiper blades.
Vehicles with manual air conditioning system
Turns the rear window and
outside rear view mirror defog-
gers and windshield wiper de-
icer on/off.
The defoggers and de-icer will
automatically turn off after
approximately 15 minutes.
If outside temperature is below
32F (0 C), this will extend by
45 minutes.
Vehicles with automatic air conditioning system
*1: Vehicles with outside rear view mirror defoggers
*2: Vehicles with windshield wiper de-icer

422 3-1. Using the air conditioning system and defogger
SIENNA_OM_OM45483U_(U)
■The defogger can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is IGNITION ON mode.
■ Outside rear view mirror defoggers (vehicles with outside rear view
mirror defoggers)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
■ The outside rear view mirror defo ggers and windshield wiper de-icer
(vehicles with windshield wiper de-icer)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers and windshield wiper de-icer on.
CAUTION
■ Outside rear view mirror defoggers (vehicles with outside rear view
mirror defoggers)
The surfaces of the outside rear view mirrors become hot. Do not touch
them to prevent from burning yourself.
■ When the windshield wiper de-icer is on (vehicles with windshield
wiper de-icer)
Do not touch the glass at the lower part of the windshield or to the side of the
front pillars as the surfaces can become very hot and burn you.

423
3
Interior features
SIENNA_OM_OM45483U_(U)

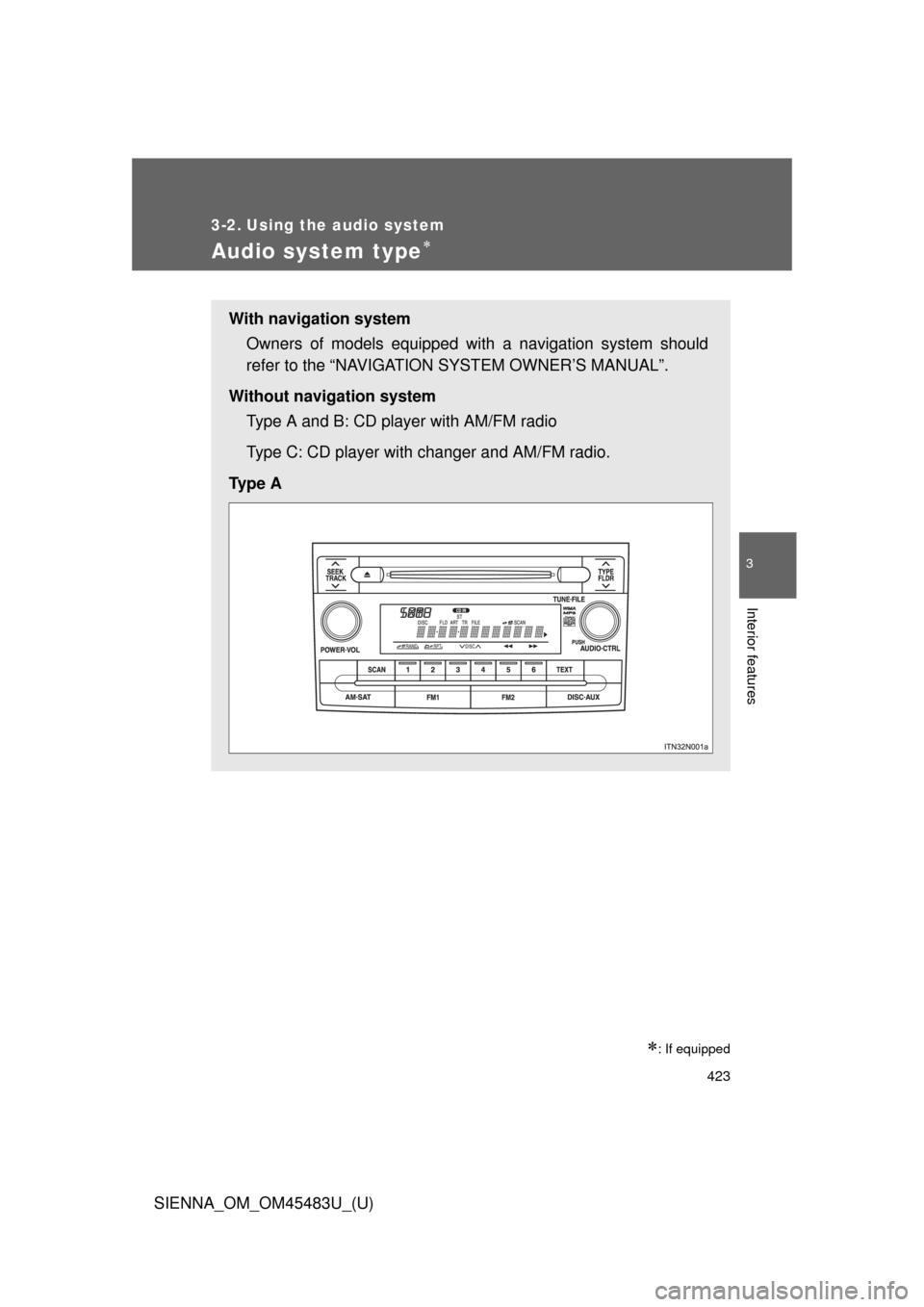

3-2. Using the audio system
Audio system type
: If equipped
With navigation systemOwners of models equipped with a navigation system should
refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
Without navigation system Type A and B: CD player with AM/FM radio
Type C: CD player with changer and AM/FM radio.
Ty p e A

424 3-2. Using the audio system
SIENNA_OM_OM45483U_(U)

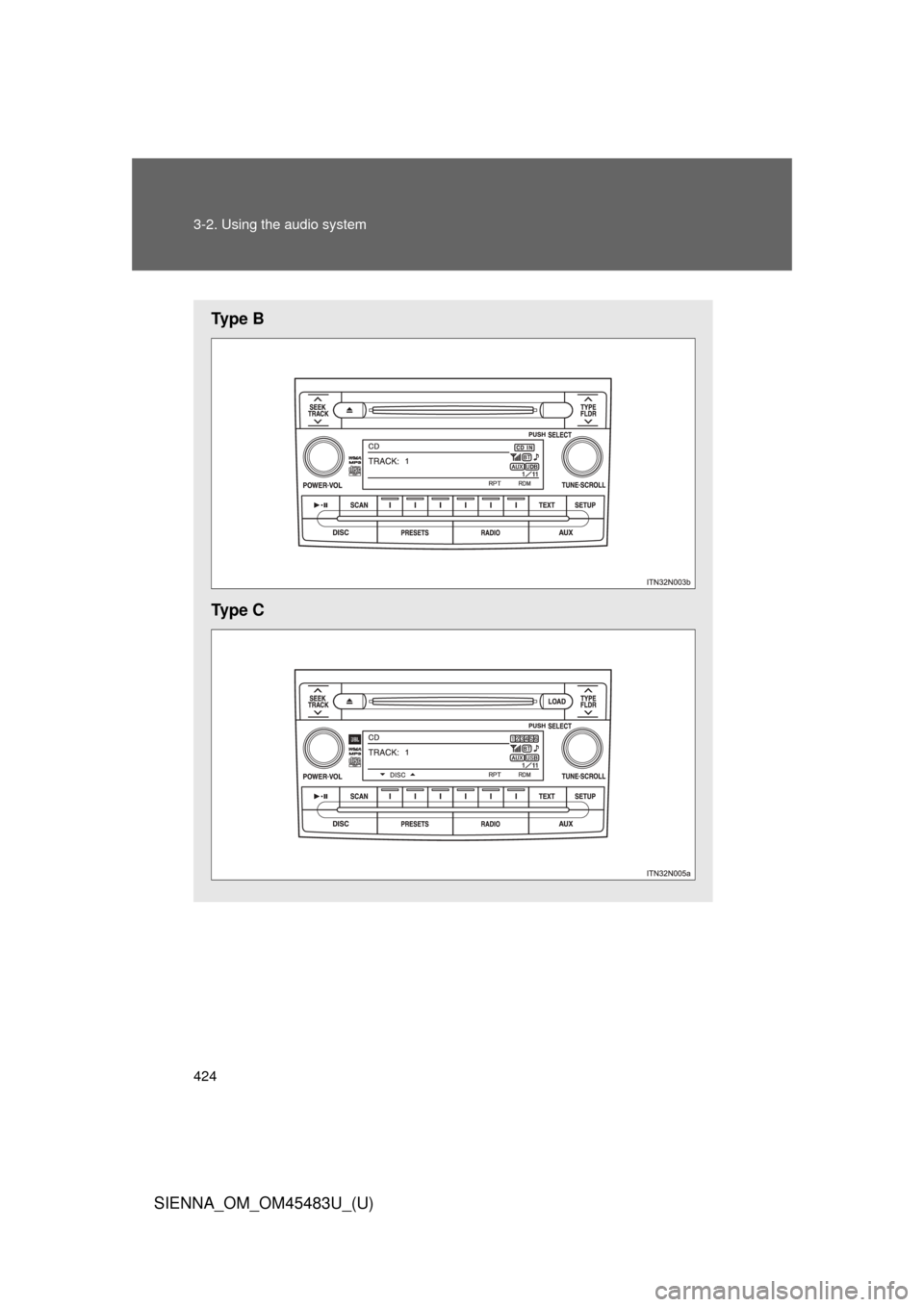

Ty p e B
Ty p e C

425
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45483U_(U)
Language settings (type B and C)
The language used for all voice guidance, voice recognition and mes-
sages may be changed.
Press .
Press that corresponds to “MORE”.
Press that corresponds to “LANG”.
Press that corresponds to the desired language.
For vehicles sold in the U.S.A.
“ENG” (English) or “ESP” (Spanish)
For vehicles sold in the Canada
“ENG” (English) or “FRAN” (French)
TitlePage
Using the radioP. 428
Using the CD playerP. 438
Playing back MP3 and WMA discs P. 447
Operating an iPodP. 458
Operating a USB memoryP. 465
Optimal use of the audio systemP. 473
Using the AUX port P. 478
Using the steering switchesP. 479
STEP1
STEP2
STEP3
STEP4

426 3-2. Using the audio system
SIENNA_OM_OM45483U_(U)
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio syste\
m is
operating.
CAUTION
■For vehicles sold in the U.S.A.
●Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user’s authority to operate this device.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas-
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.
The use of optical instruments with this product will increase eye haz-
ard.

427
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45483U_(U)
NOTICE
■
To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine o\
ff.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

428
3-2. Using the audio system
SIENNA_OM_OM45483U_(U)

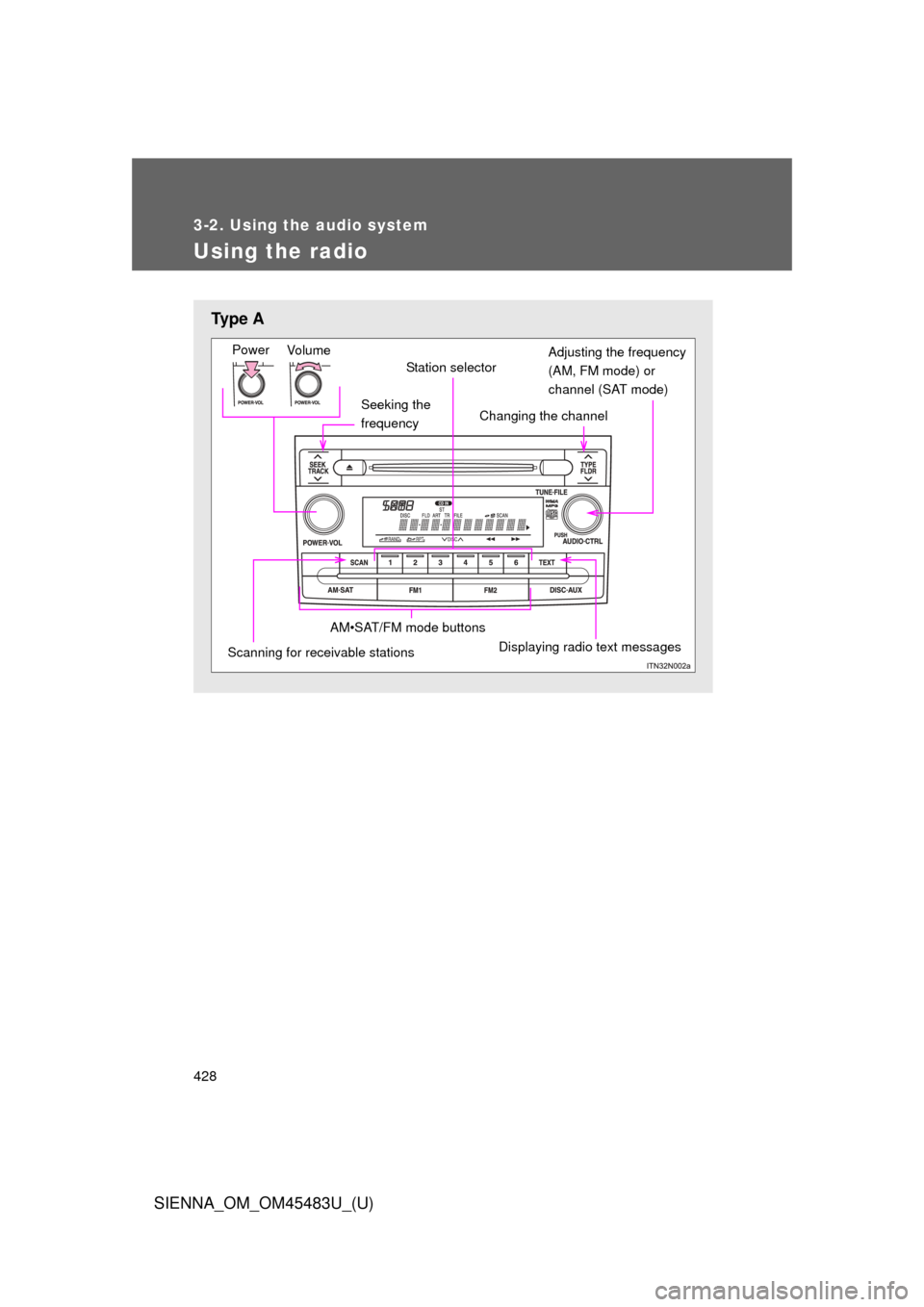

Using the radio
Ty p e A
Seeking the
frequency
Vo lu m e
Power
Station selector
Changing the channel
AM•SAT/FM mode buttons
Scanning for receivable stationsDisplaying radio text messages
Adjusting the frequency
(AM, FM mode) or
channel (SAT mode)

429
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45483U_(U)

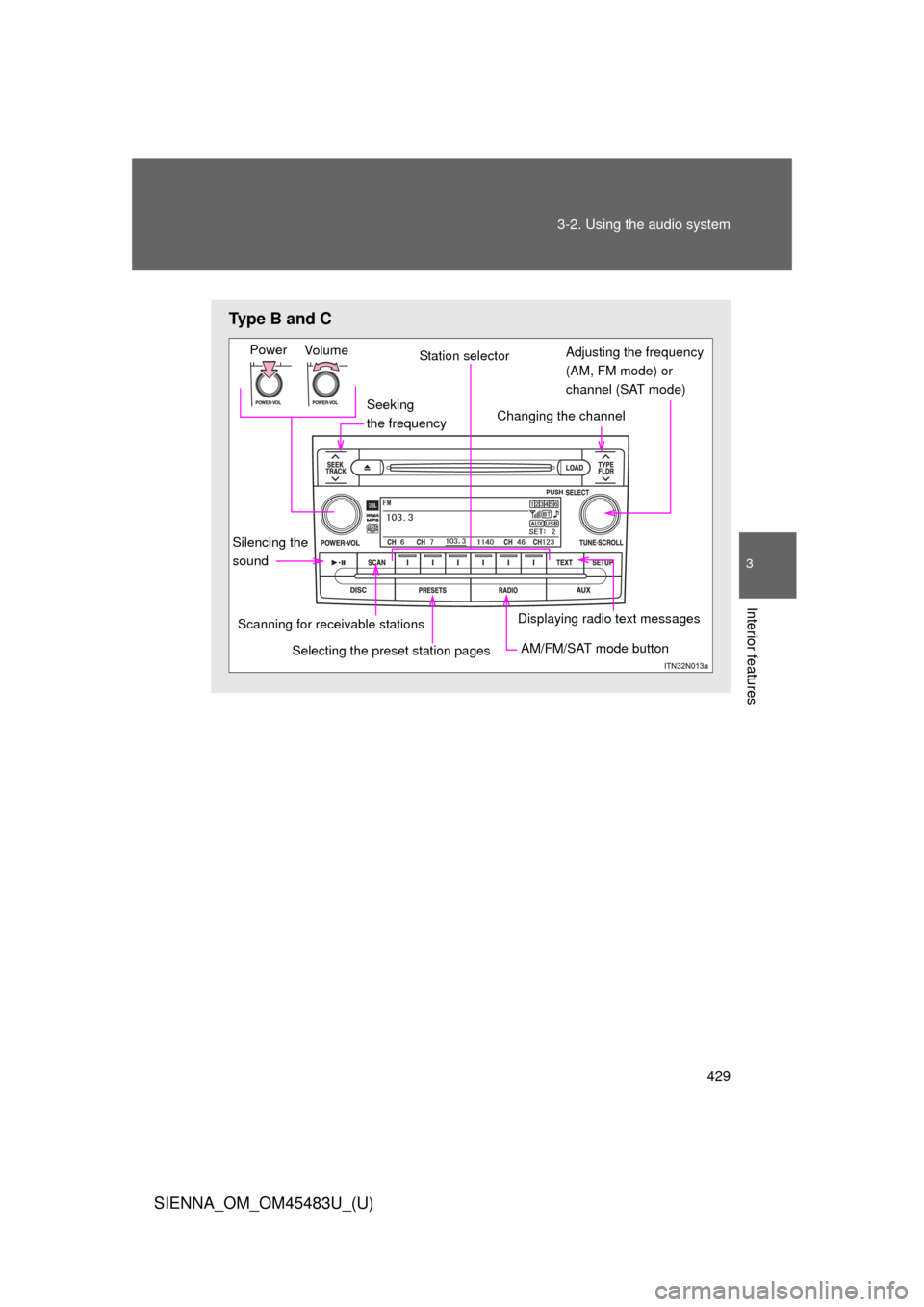

Type B and C
Seeking
the frequency
Vo lu m e
Power
Station selector
Changing the channel
AM/FM/SAT mode button
Scanning for receivable stations
Displaying radio text messages
Adjusting the frequency
(AM, FM mode) or
channel (SAT mode)
Selecting the preset station pages
Silencing the
sound

430 3-2. Using the audio system
SIENNA_OM_OM45483U_(U)
Setting station presets (excluding XM® Satellite Radio)
Search for desired stations by turning or or
pressing “ ” or “ ” on .
Press and hold the button (from to or one of )
until you hear a beep.
Type B and C:
Each time is pressed, station pages are changed. There
are 6 sets of 6 presets. There is a total of 36 presets.
STEP1
STEP2
