TOYOTA SOLARA 2004 Accessories, Audio & Navigation (in English)

ADVANCED FUNCTIONS
91
5. Touch the switch corresponding to the
desired category. Then touch the
OKºswitch.

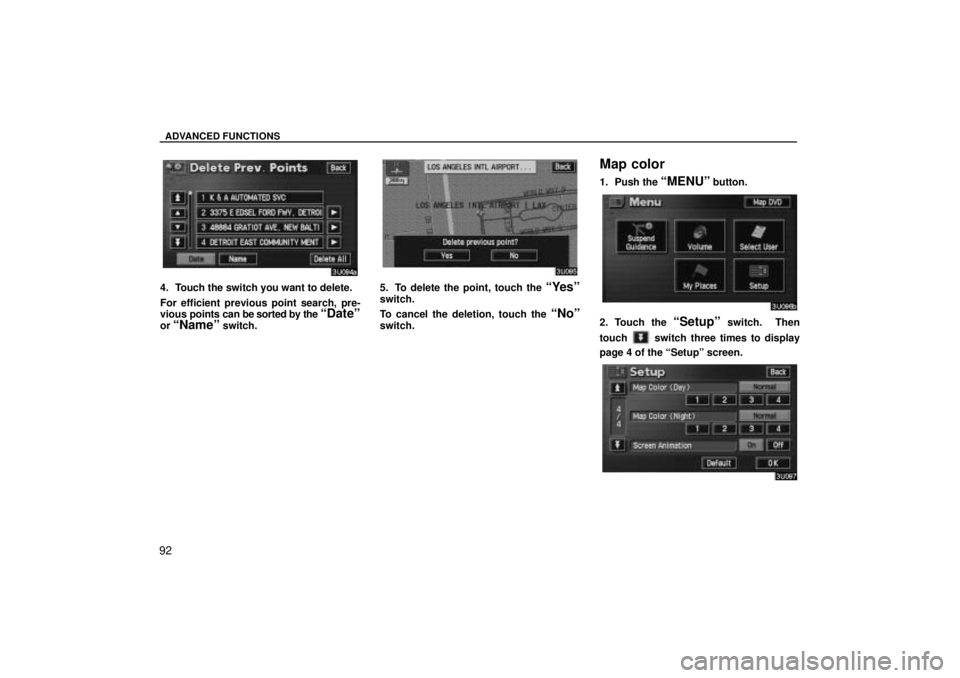

Delete previous point
You can delete your previous destination.
1. Push the
MENUº button.
2. Touch the Setupº switch. Then
touch
switch twice to display page 3 of
the Setupº screen.
3. Touch the Deleteº switch of Pre-
vious Pointº.

ADVANCED FUNCTIONS
92
4. Touch the switch you want to delete.
For efficient previous point search, pre-
vious points can be sorted by the
Dateº
or Nameº switch.
5. To delete the point, touch the Yesº
switch.
To cancel the deletion, touch the
Noº
switch.

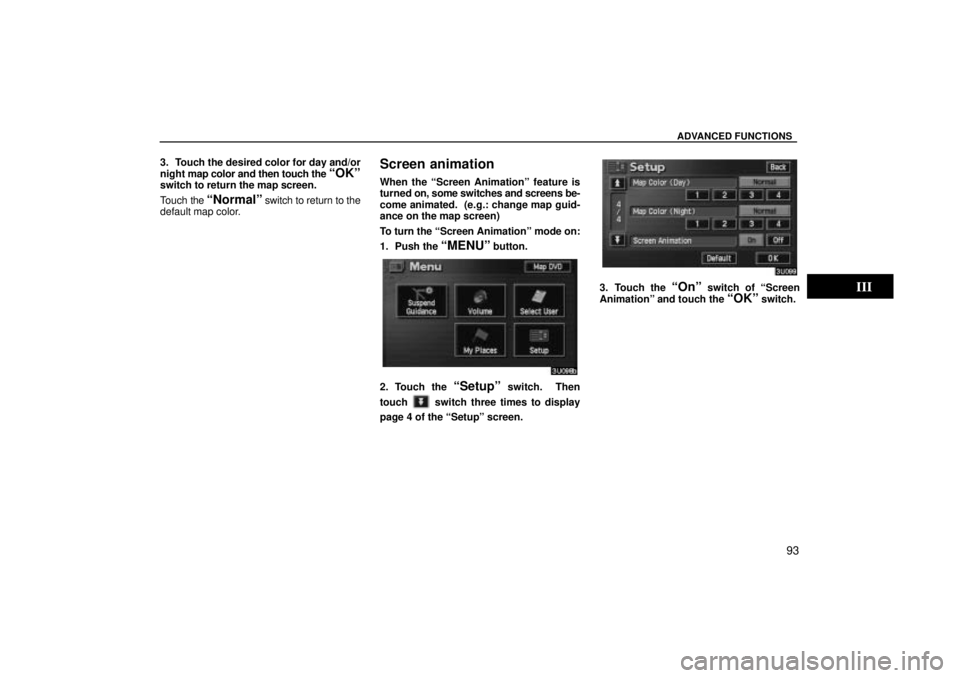

Map color
1. Push the MENUº button.
2. Touch the Setupº switch. Then
touch
switch three times to display
page 4 of the Setupº screen.

ADVANCED FUNCTIONS
93
3. Touch the desired color for day and/or
night map color and then touch the
OKºswitch to return the map screen.
Touch the
Normalº switch to return to the
default map color.
Screen animation
When the Screen Animationº feature is
turned on, some switches and screens be-
come animated. (e.g.: change map guid-
ance on the map screen)
To turn the Screen Animationº mode on:
1. Push the
MENUº button.
2. Touch the Setupº switch. Then
touch
switch three times to display
page 4 of the Setupº screen.
3. Touch the Onº switch of Screen
Animationº and touch the
OKº switch.

ADVANCED FUNCTIONS
94

OTHER FUNCTIONS
95
OTHER FUNCTIONS
Other functions
Maintenance information96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Calendar with memo 101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Screen adjustment 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Screen setting 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION IV

OTHER FUNCTIONS
96

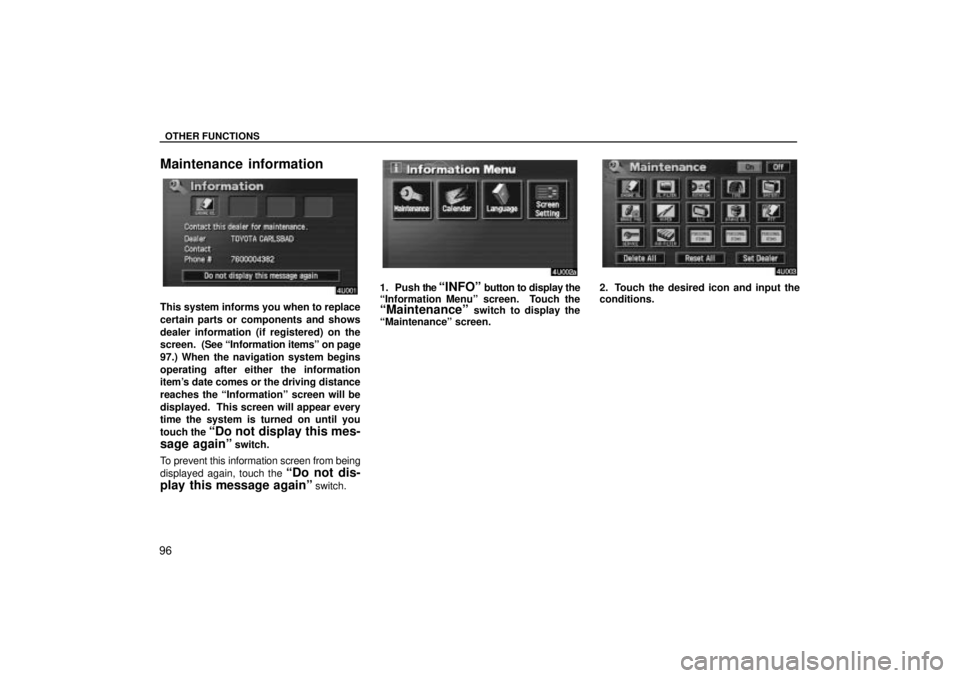

Maintenance information
This system informs you when to replace
certain parts or components and shows
dealer information (if registered) on the
screen. (See Information itemsº on page
97.) When the navigation system begins
operating after either the information
item's date comes or the driving distance
reaches the Informationº screen will be
displayed. This screen will appear every
time the system is turned on until you
touch the
Do not display this mes-
sage againº
switch.
To prevent this information screen from being
displayed again, touch the
Do not dis-
play this message againº
switch.
1. Push the INFOº button to display the
Information Menuº screen. Touch the
Maintenanceº switch to display the
Maintenanceº screen.
2. Touch the desired icon and input the
conditions.

OTHER FUNCTIONS
97
Notice of Dateº: You can input the next
maintenance date.
Notice of Distanceº: You can input the driv-
ing distance until the next maintenance
check.
When you touch the
switch on the
Maintenanceº screen, the screen changes to
the Personal Eventº screen. Touch the keys
to input the desired name and then input con-
ditions.
After you input the date and/or distance,
touch the
OKº switch. The screen then re-
turns to the Maintenanceº screen.
The following switches appear.
Delete Allº: To cancel all conditions which
have been inputted. Reset
Allº: To reset the item which has sat-
isfied a condition.
Touch the
Offº switch at the top of the
Maintenanceº screen to turn off the informa-
tion screen.
When your vehicle needs to be serviced, the
icon color will change to orange.
INFORMATION

For scheduled maintenance informa-
tion, please refer to the ScheduledMaintenance Guideº or Owner's
Manual Supplementº.

Depending on the driving or the roadconditions, the actual date and dis-
tance may differ from the stored dateand distance in the system.
Information items
Oil change
Replace oil filter
Rotate tires
Replace tires
Replace battery
Replace brake linings
Replace wiper blades

OTHER FUNCTIONS
98
Replace engine coolant
Replace brake fluid
Replace ATF
Scheduled maintenance
Replace air filter
Personal event
(a) Register dealer
You can register the dealer name, staff,
location and phone number.
1. Touch the Set Dealerº switch on
the Maintenanceº screen.
2. Enter the location of the dealer in the
same way as for destination input. (See
page 20.)

OTHER FUNCTIONS
99
After you input the dealer, the screen changes
and displays the map location of the dealer.
If it is OK, touch the
Enterº switch.
The screen changes to Edit Dealerº screen.
(See (b) Edit dealerº.)
(b) Edit dealer
You can edit the dealer name, staff, loca-
tion and phone number.
1. Touch the
Set Dealerº switch on
the Maintenanceº screen. The Edit
Dealerº screen appears.
2. To edit, touch the corresponding
switch.

OTHER FUNCTIONS
100

To edit Dealerº or Contactº
To input the name, touch the alphabet, nu-
meral and/or umlaut keys. You can input
up to 24 letters.
After
inputting, touch the
OKº switch at the
bottom right of the screen. The previous
screen will be displayed.

To edit Locationº
Set the cursor to the desired point, and
touch the
Enterº switch on the screen.

To edit Phone #º (telephone number)
Touch numeral keys.
After inputting, touch the
OKº switch. The
previous screen will be displayed.
