AUDIO SYSTEM
111
AUDIO SYSTEM
Audio system
Quick reference11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Using your audio system 11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Car audio system operating hints 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

V
SECTION V

AUDIO SYSTEM
11 2
1Function switch display screen
Touch the switches displayed on the
screen to control the radio and compact
disc player. For details, see page 114.
2TUNEº knob
Turn this knob to move up or down the
station band. For details, see page 116,
120 and 122.
3AM´SATº button
Push this button to choose either an AM
or SAT station. For details, see pages
114, 116 and 120.
4FMº button
Push this button to choose a FM station.
For details, see pages 114 and 116.
5DISCº button
Push this button to turn the compact disc
player on. For details, see pages 114
and 126.
6SCANº button
Push this button to scan radio stations or
scan the tracks on a compact disc. For
details, see pages 117, 122 and 127.
7OPENº button
Push this button to open the display to
access the slot for the compact disc
player. For details, see page 125.
Quick reference

AUDIO SYSTEM
11 3
8AUDIOº button
Push this button to display the audio
control screen. For details, see page
113.
9SEEK/TRACKº button
Push either side of this button to seek up
or down for a station, or to access a desi-
red program or track. For details, see
pages 117, 122 and 127.
10PWR´VOLº knob
Push this knob to turn the audio system
on and off, and turn it to adjust the volu-
me. For details, see page 113.
Using your audio system Ð
Ð Some basics
This section describes some of the basic fea-
tures of your audio system. Some information
may not pertain to your system.
Your audio system works when the ignition
switch is in the ACCº or ONº position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the car audio onlonger than necessary when the engineis not running.
(a) Turning the system on and off
PWR´VOLº: Push this knob to turn the audio
system on and off. Turn this knob to adjust the
volume. The system turns on in the last mode
used.
AUDIOº: Push this button to display
switches for audio system (audio control
mode).
You can select the function that enables auto-
matic return to the previous screen from the
audio screen. See page 109 for details.
V

AUDIO SYSTEM
11 4
Push AM´SATº, FMº or DISCº button to
turn on the desired mode. The selected
mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the disc is not set, the compact disc player
does not turn on.
You can turn off the compact disc player by
ejecting the compact disc. If the audio system
was previously off, then the entire audio sys-
tem will be turned off when you eject the com-
pact disc. If the another function was pre-
viously playing, it will come on again.
The switches for radio and compact disc
player operation are displayed on the
function switch display screen when the
audio control mode is selected. Touch
them lightly and directly on the screen.
The selected switch is highlighted in green or
yellow.
INFORMATION
If the system does not respond to a
touch of a switch, move your fingeraway from the screen and then touchit again.
You cannot operate dimmedswitches.
Wipe off fingerprints on the surface ofthe display using a glass cleaningcloth.

AUDIO SYSTEM
11 5
(b) Tone and balance
How good an audio program sounds to you is
largely determined by the mix of the treble,
midrange, and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different mixes of treble,
mid-range, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound lev-
els is also important.
Keep in mind that if you are listening to a ste-
reo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the vol-
ume of another.

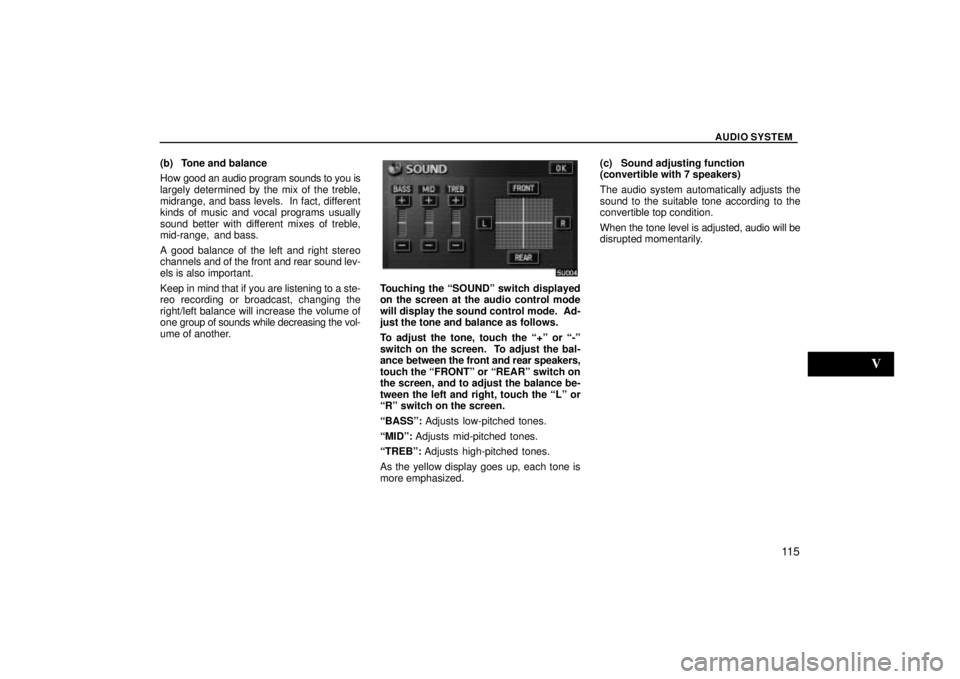

Touching the SOUNDº switch displayed
on the screen at the audio control mode
will display the sound control mode. Ad-
just the tone and balance as follows.
To adjust the tone, touch the +º or -º
switch on the screen. To adjust the bal-
ance between the front and rear speakers,
touch the FRONTº or REARº switch on
the screen, and to adjust the balance be-
tween the left and right, touch the Lº or
Rº switch on the screen.
BASSº: Adjusts low-pitched tones.
MIDº: Adjusts mid-pitched tones.
TREBº: Adjusts high-pitched tones.
As the yellow display goes up, each tone is
more emphasized. (c) Sound adjusting function
(convertible with 7 speakers)
The audio system automatically adjusts the
sound to the suitable tone according to the
convertible top condition.
When the tone level is adjusted, audio will be
disrupted momentarily.
V

AUDIO SYSTEM
11 6
(d) Your compact disc player
When you insert a compact disc, insert it with
the label side up. The compact disc player will
play from track 1 through the end of the disc.
Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any part
of the compact disc player. Do not in-sert anything other than compact discsinto the slot.
The player is intended for use with 12 cm (4.7
in.) discs only.
Ð Radio operation
(a) Listening to the radio
Push these buttons to choose either an
AM or FM station.
AMº,  FM1º or FM2º appears on the screen.
If your vehicle is equipped with satellite ra-
dio broadcast system, when you push the
AM´SATº button, AMº, SAT1º, SAT2º or
SAT3º station appears on the display. For
details about satellite radio broadcast, see
Ð Radio operation (XM satellite radio broad-
cast)º on page 119.
Turn the knob clockwise to step up the sta-
tion band or counterclockwise to step
down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. STº appears on the screen. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
STº disappears from the screen.

AUDIO SYSTEM
11 7

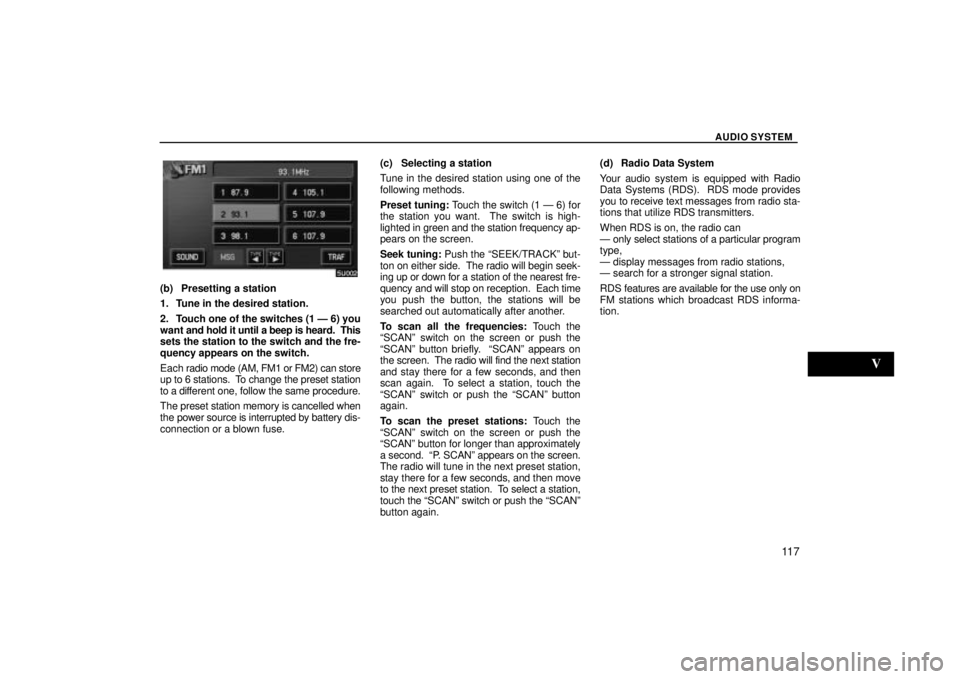

(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the switches (1 Ð 6) you
want and hold it until a beep is heard. This
sets the station to the switch and the fre-
quency appears on the switch.
Each radio mode (AM, FM1 or FM2) can store
up to 6 stations. To change the preset station
to a different one, follow the same procedure.
The preset station memory is cancelled when
the power source is interrupted by battery dis-
connection or a blown fuse. (c) Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning:
Touch the switch (1 Ð 6) for
the station you want. The switch is high-
lighted in green and the station frequency ap-
pears on the screen.
Seek tuning: Push the SEEK/TRACKº but-
ton on either side. The radio will begin seek-
ing up or down for a station of the nearest fre-
quency and will stop on reception. Each time
you push the button, the stations will be
searched out automatically after another.
To scan all the frequencies: Touch the
SCANº switch on the screen or push the
SCANº button briefly. SCANº appears on
the screen. The radio will find the next station
and stay there for a few seconds, and then
scan again. To select a station, touch the
SCANº switch or push the SCANº button
again.
To scan the preset stations: Touch the
SCANº switch on the screen or push the
SCANº button for longer than approximately
a second. P. SCANº appears on the screen.
The radio will tune in the next preset station,
stay there for a few seconds, and then move
to the next preset station. To select a station,
touch the SCANº switch or push the SCANº
button again. (d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode provides
you to receive text messages from radio sta-
tions that utilize RDS transmitters.
When RDS is on, the radio can
Ð only select stations of a particular program
type,
Ð display messages from radio stations,
Ð search for a stronger signal station.
RDS features are available for the use only on
FM stations which broadcast RDS informa-
tion.
V

AUDIO SYSTEM
11 8
TYPE
º switch
If the system receives no RDS stations, NO
PTYº appears on the display.
Each time you touch the TYPE º or TYPE

º switch, the program type changes as in
the following:
ROCK
MISC (Miscellaneous)
Inform (Information)
Easy Lis (Easy listening)
Cls/Jazz (Classical music and Jazz)
R & B (Rhythm and Blues)
Religion
Alert (Emergency message)
TYPE SEEKº switch
When a program is set, TYPE SEEKº switch
appears. Touch the switch and the system
starts to seek the station in the relevant pro-
gram type.
If any type program station is not found,
NOTHINGº appears on the display.MSGº (MESSAGE) switch
If the system receives a radio text from RDS
station, MSGº appears on the display. T ouch
the MSGº switch, and a text message is dis-
played on the screen.
In case a text message is not accepted in a
screen, you can touch the MSGº switch and
hold it to display the rest of the message.
When the system can show the station name,
RDSº appears on the display. Each time you
touch the MSGº switch, indication on the dis-
play changes from the band to the station
name, a radio text in this order. After six sec-
onds passes, indication returns to the band.

AUDIO SYSTEM
11 9
(e) Traffic announcement
TRAFº switch
A station that regularly broadcasts traffic in-
formation is automatically located.
When you push the TRAFº switch, TRAF
SEEKº appears on the display and the radio
will start seeking any traffic program station.
If any traffic program station is not found,
NOTHINGº appears on the display.
If the traffic program station is found, the
name for traffic program station is displayed
and TRAFº is lit for a while until traffic an-
nouncement is received.
Ð Radio operation
(XM satellite radio broadcast)
To listen to a satellite radio broadcast in your
vehicle, an additional genuine Toyota satellite
receiver and antenna must be purchased and
installed, and the subscription to the XM sat-
ellite radio is necessary. (a) How to subscribe to an XM satellite
radio
An XM satellite radio is a tuner designed ex-
clusively to receive broadcasts provided un-
der a separate subscription. Availability is
limited to the 48 contiguous states.
How to subscribe: You must enter into a
separate service agreement with the XM ra-
dio in order to receive satellite broadcast pro-
gramming in the vehicle. Additional activation
and service subscription fees apply that are
not included in the purchase price of the ve-
hicle and optional digital satellite tuner. For
complete information on subscription rates
and terms, or to subscribe to the XM radio,
visit XM on the web at www.xmradio.com
or
call an XM's List ener Care at (800) 852-9696.
The XM radio is solely responsible for the
quality, availability and content of the satellite
radio services provided, which are subject to
the terms and conditions of the XM radio cus-
tomer service agreement.
Customers should have their radio ID ready;
the radio ID can be found by selecting the
channel 000º on the radio. For details, see
the Displaying the radio IDº that follows.
All fees and programming are the responsibil-
ity of the XM satellite radio and are subject to
change.
V

AUDIO SYSTEM
120
Satellite tuner technology notice:
Toyota's satellite radio tuners are awarded
Type Approval Certificates from XM Satellite
Radio Inc. on March 10, 2003º and April 15,
2003º as proof of compatibility with the ser-
vices offered by the XM satellite radio. (b) Displaying the radio ID
Each XM tuner is identified with a unique ra-
dio ID. You w
ill need the radio ID when activat-
ing XM service or when reporting a problem.
If you select the CH 000º using the TUNEº
knob, the ID code of 8 alphanumeric charac-
ters appears. If you select another channel,
display of the ID code is canceled. The chan-
nel (000) alternates the display between the
radio ID and the specific radio ID code.
(c) Listening to the satellite radio
Push the AM´SATº button to choose a
SAT channel.
Besides AMº, SAT1º, SAT2º or SAT3º ap-
pears on the display.
