TOYOTA SUPRA 2019 Owners Manual
Manufacturer: TOYOTA, Model Year: 2019, Model line: SUPRA, Model: TOYOTA SUPRA 2019Pages: 456, PDF Size: 88.65 MB
Page 291 of 456

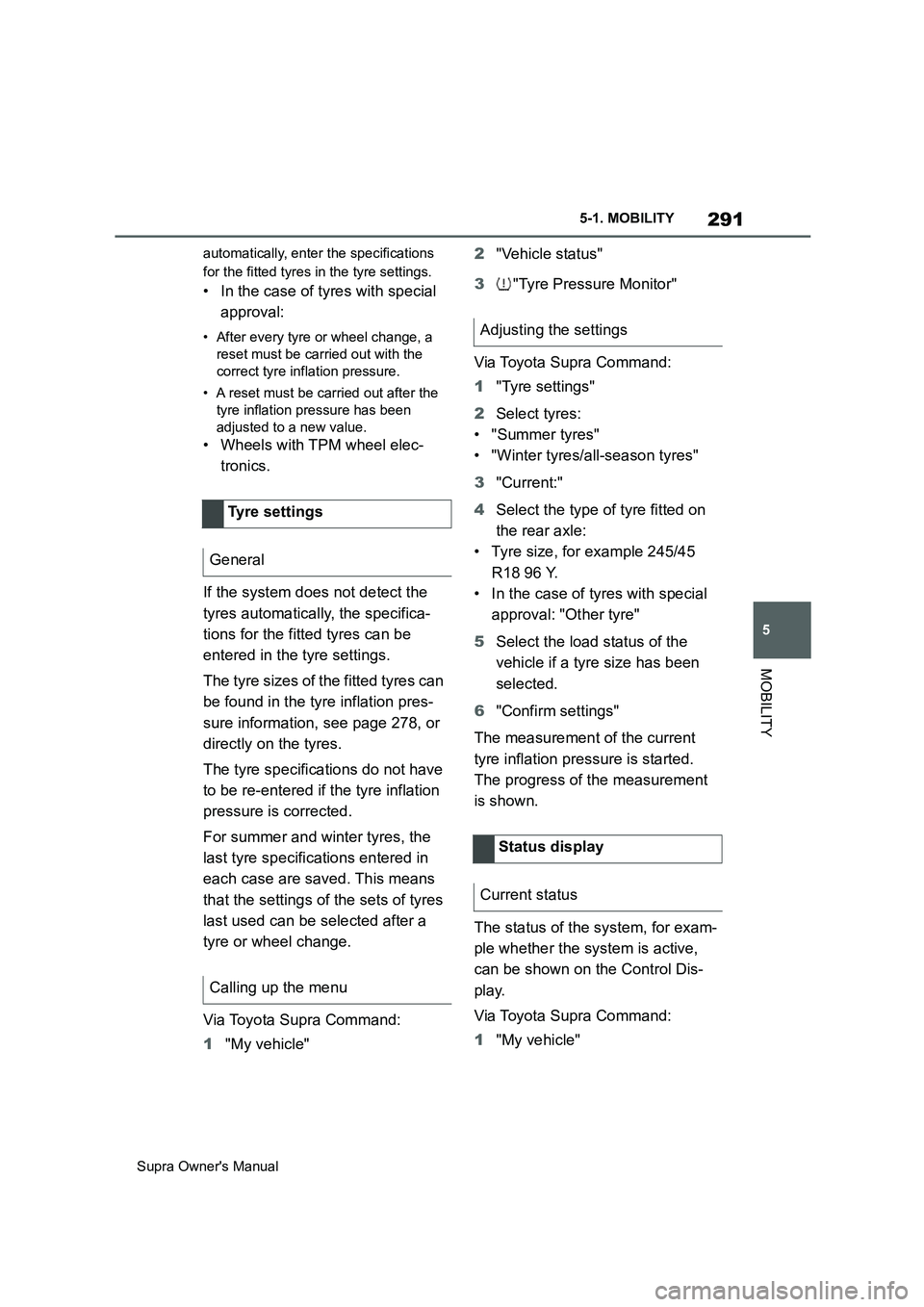

291
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
automatically, enter the specifications
for the fitted tyres in the tyre settings.
• In the case of tyres with special
approval:
• After every tyre or wheel change, a
reset must be carried out with the
correct tyre inflation pressure.
• A reset must be carried out after the
tyre inflation pressure has been
adjusted to a new value.
• Wheels with TPM wheel elec-
tronics.
If the system does not detect the
tyres automatically, the specifica-
tions for the fitted tyres can be
entered in the tyre settings.
The tyre sizes of the fitted tyres can
be found in the tyre inflation pres-
sure information, see page 278, or
directly on the tyres.
The tyre specifications do not have
to be re-entered if the tyre inflation
pressure is corrected.
For summer and winter tyres, the
last tyre specifications entered in
each case are saved. This means
that the settings of the sets of tyres
last used can be selected after a
tyre or wheel change.
Via Toyota Supra Command:
1"My vehicle"2"Vehicle status"
3"Tyre Pressure Monitor"
Via Toyota Supra Command:
1"Tyre settings"
2Select tyres:
• "Summer tyres"
• "Winter tyres/all-season tyres"
3"Current:"
4Select the type of tyre fitted on
the rear axle:
• Tyre size, for example 245/45
R18 96 Y.
• In the case of tyres with special
approval: "Other tyre"
5Select the load status of the
vehicle if a tyre size has been
selected.
6"Confirm settings"
The measurement of the current
tyre inflation pressure is started.
The progress of the measurement
is shown.
The status of the system, for exam-
ple whether the system is active,
can be shown on the Control Dis-
play.
Via Toyota Supra Command:
1"My vehicle" Tyre settings
General
Calling up the menu
Adjusting the settings
Status display
Current status
Page 292 of 456

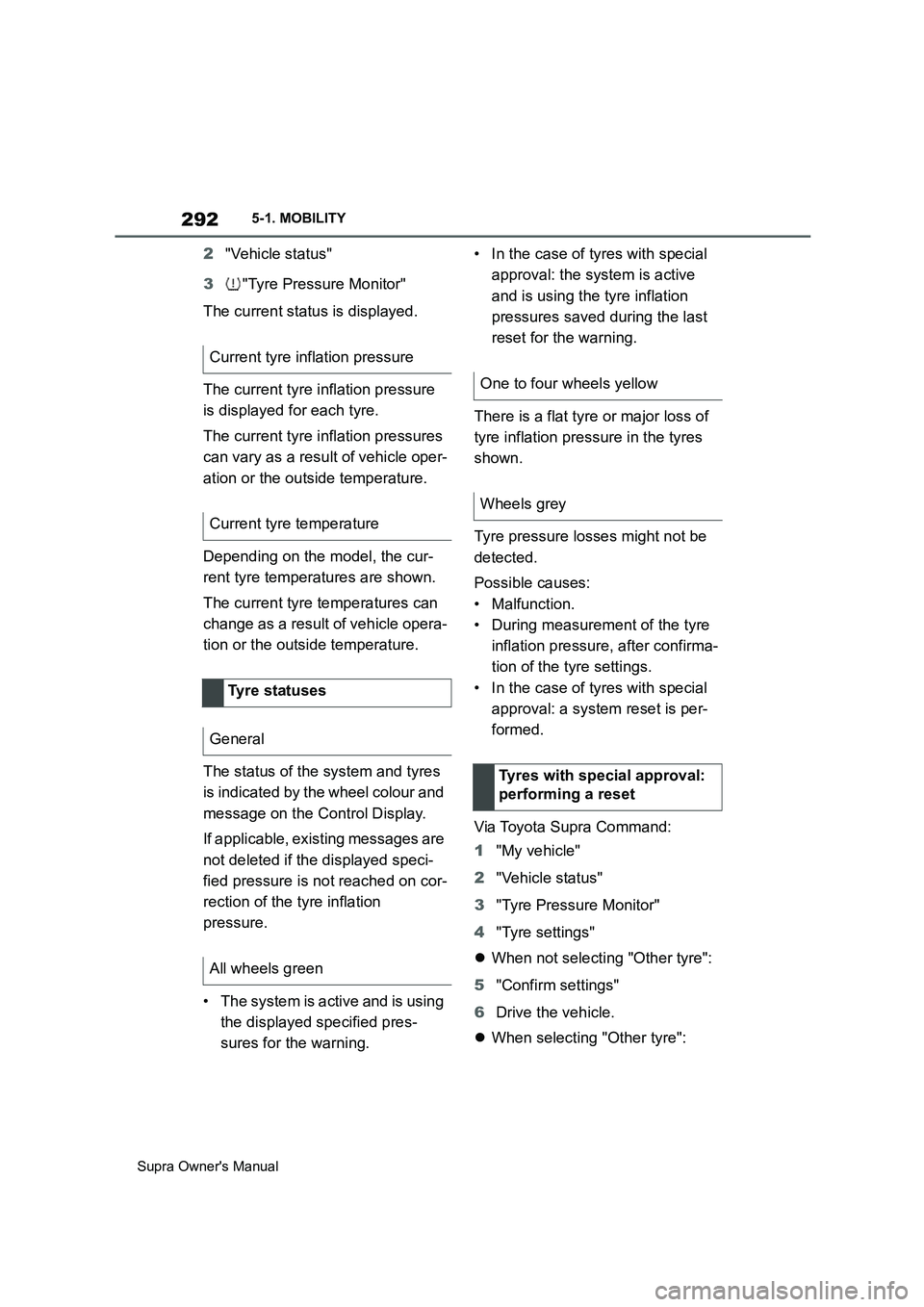

292
Supra Owner's Manual5-1. MOBILITY
2"Vehicle status"
3"Tyre Pressure Monitor"
The current status is displayed.
The current tyre inflation pressure
is displayed for each tyre.
The current tyre inflation pressures
can vary as a result of vehicle oper-
ation or the outside temperature.
Depending on the model, the cur-
rent tyre temperatures are shown.
The current tyre temperatures can
change as a result of vehicle opera-
tion or the outside temperature.
The status of the system and tyres
is indicated by the wheel colour and
message on the Control Display.
If applicable, existing messages are
not deleted if the displayed speci-
fied pressure is not reached on cor-
rection of the tyre inflation
pressure.
• The system is active and is using
the displayed specified pres-
sures for the warning.• In the case of tyres with special
approval: the system is active
and is using the tyre inflation
pressures saved during the last
reset for the warning.
There is a flat tyre or major loss of
tyre inflation pressure in the tyres
shown.
Tyre pressure losses might not be
detected.
Possible causes:
• Malfunction.
• During measurement of the tyre
inflation pressure, after confirma-
tion of the tyre settings.
• In the case of tyres with special
approval: a system reset is per-
formed.
Via Toyota Supra Command:
1"My vehicle"
2"Vehicle status"
3"Tyre Pressure Monitor"
4"Tyre settings"
When not selecting "Other tyre":
5"Confirm settings"
6Drive the vehicle.
When selecting "Other tyre": Current tyre inflation pressure
Current tyre temperature
Tyre statuses
General
All wheels green
One to four wheels yellow
Wheels grey
Tyres with special approval:
performing a reset
Page 293 of 456

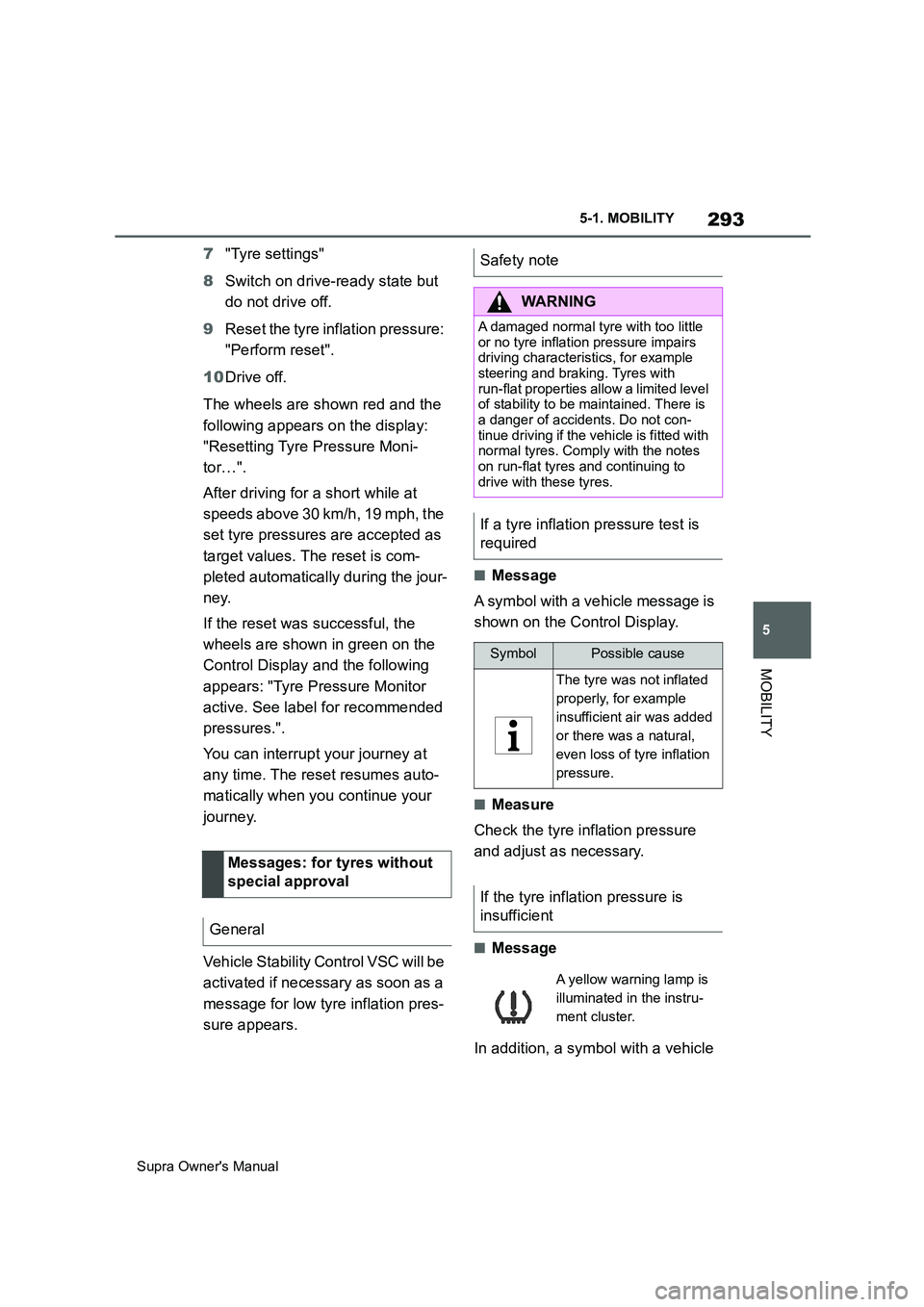

293
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
7"Tyre settings"
8Switch on drive-ready state but
do not drive off.
9Reset the tyre inflation pressure:
"Perform reset".
10Drive off.
The wheels are shown red and the
following appears on the display:
"Resetting Tyre Pressure Moni-
tor…".
After driving for a short while at
speeds above 30 km/h, 19 mph, the
set tyre pressures are accepted as
target values. The reset is com-
pleted automatically during the jour-
ney.
If the reset was successful, the
wheels are shown in green on the
Control Display and the following
appears: "Tyre Pressure Monitor
active. See label for recommended
pressures.".
You can interrupt your journey at
any time. The reset resumes auto-
matically when you continue your
journey.
Vehicle Stability Control VSC will be
activated if necessary as soon as a
message for low tyre inflation pres-
sure appears.
■Message
A symbol with a vehicle message is
shown on the Control Display.
■Measure
Check the tyre inflation pressure
and adjust as necessary.
■Message
In addition, a symbol with a vehicle Messages: for tyres without
special approval
General
Safety note
WARNING
A damaged normal tyre with too little
or no tyre inflation pressure impairs
driving characteristics, for example
steering and braking. Tyres with
run-flat properties allow a limited level
of stability to be maintained. There is
a danger of accidents. Do not con-
tinue driving if the vehicle is fitted with
normal tyres. Comply with the notes
on run-flat tyres and continuing to
drive with these tyres.
If a tyre inflation pressure test is
required
SymbolPossible cause
The tyre was not inflated
properly, for example
insufficient air was added
or there was a natural,
even loss of tyre inflation
pressure.
If the tyre inflation pressure is
insufficient
A yellow warning lamp is
illuminated in the instru-
ment cluster.
Page 294 of 456

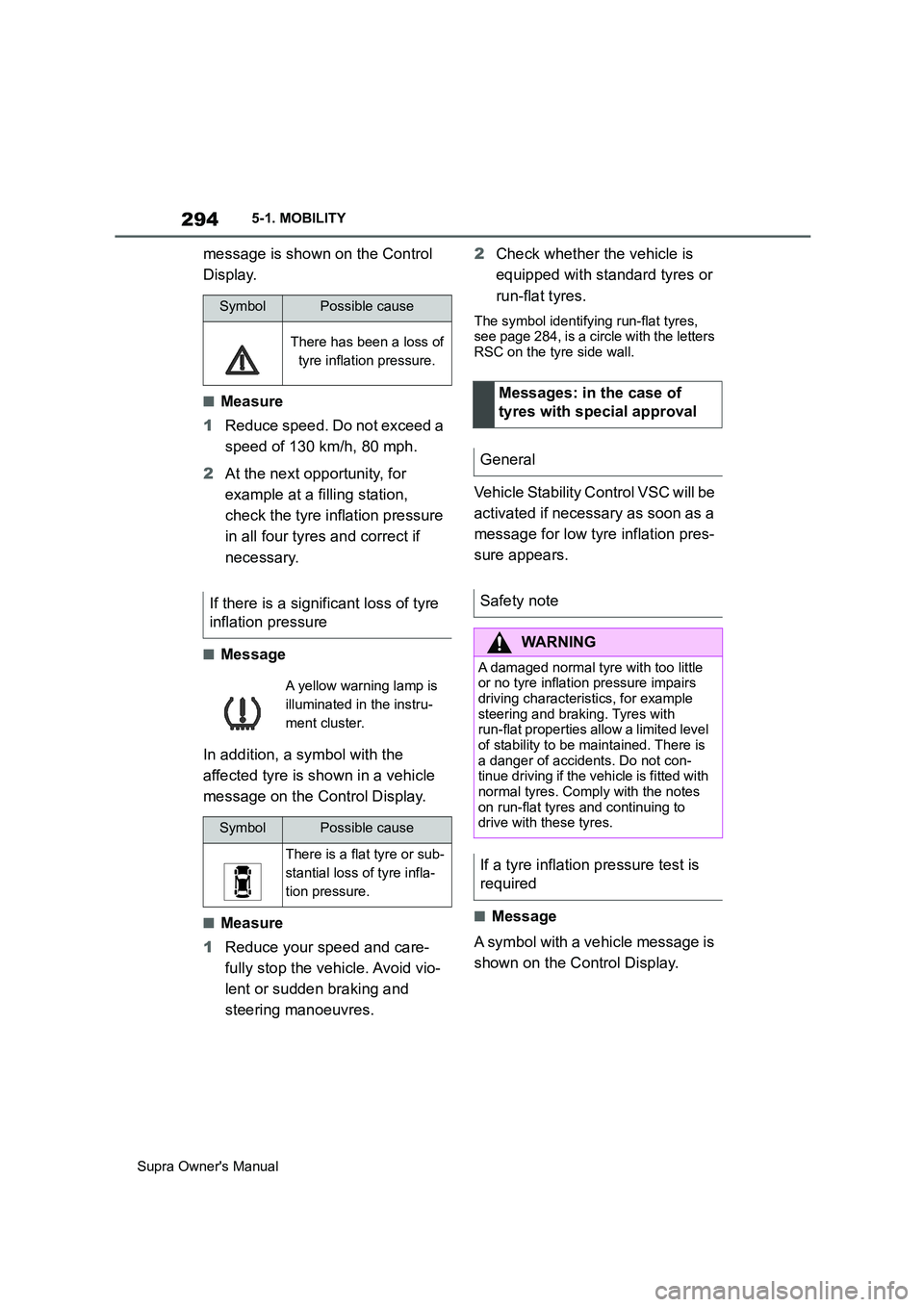

294
Supra Owner's Manual5-1. MOBILITY
message is shown on the Control
Display.
■Measure
1Reduce speed. Do not exceed a
speed of 130 km/h, 80 mph.
2At the next opportunity, for
example at a filling station,
check the tyre inflation pressure
in all four tyres and correct if
necessary.
■Message
In addition, a symbol with the
affected tyre is shown in a vehicle
message on the Control Display.
■Measure
1Reduce your speed and care-
fully stop the vehicle. Avoid vio-
lent or sudden braking and
steering manoeuvres.2Check whether the vehicle is
equipped with standard tyres or
run-flat tyres.
The symbol identifying run-flat tyres,
see page 284, is a circle with the letters
RSC on the tyre side wall.
Vehicle Stability Control VSC will be
activated if necessary as soon as a
message for low tyre inflation pres-
sure appears.
■Message
A symbol with a vehicle message is
shown on the Control Display.
SymbolPossible cause
There has been a loss of
tyre inflation pressure.
If there is a significant loss of tyre
inflation pressure
A yellow warning lamp is
illuminated in the instru-
ment cluster.
SymbolPossible cause
There is a flat tyre or sub-
stantial loss of tyre infla-
tion pressure.
Messages: in the case of
tyres with special approval
General
Safety note
WARNING
A damaged normal tyre with too little
or no tyre inflation pressure impairs
driving characteristics, for example
steering and braking. Tyres with
run-flat properties allow a limited level
of stability to be maintained. There is
a danger of accidents. Do not con-
tinue driving if the vehicle is fitted with
normal tyres. Comply with the notes
on run-flat tyres and continuing to
drive with these tyres.
If a tyre inflation pressure test is
required
Page 295 of 456

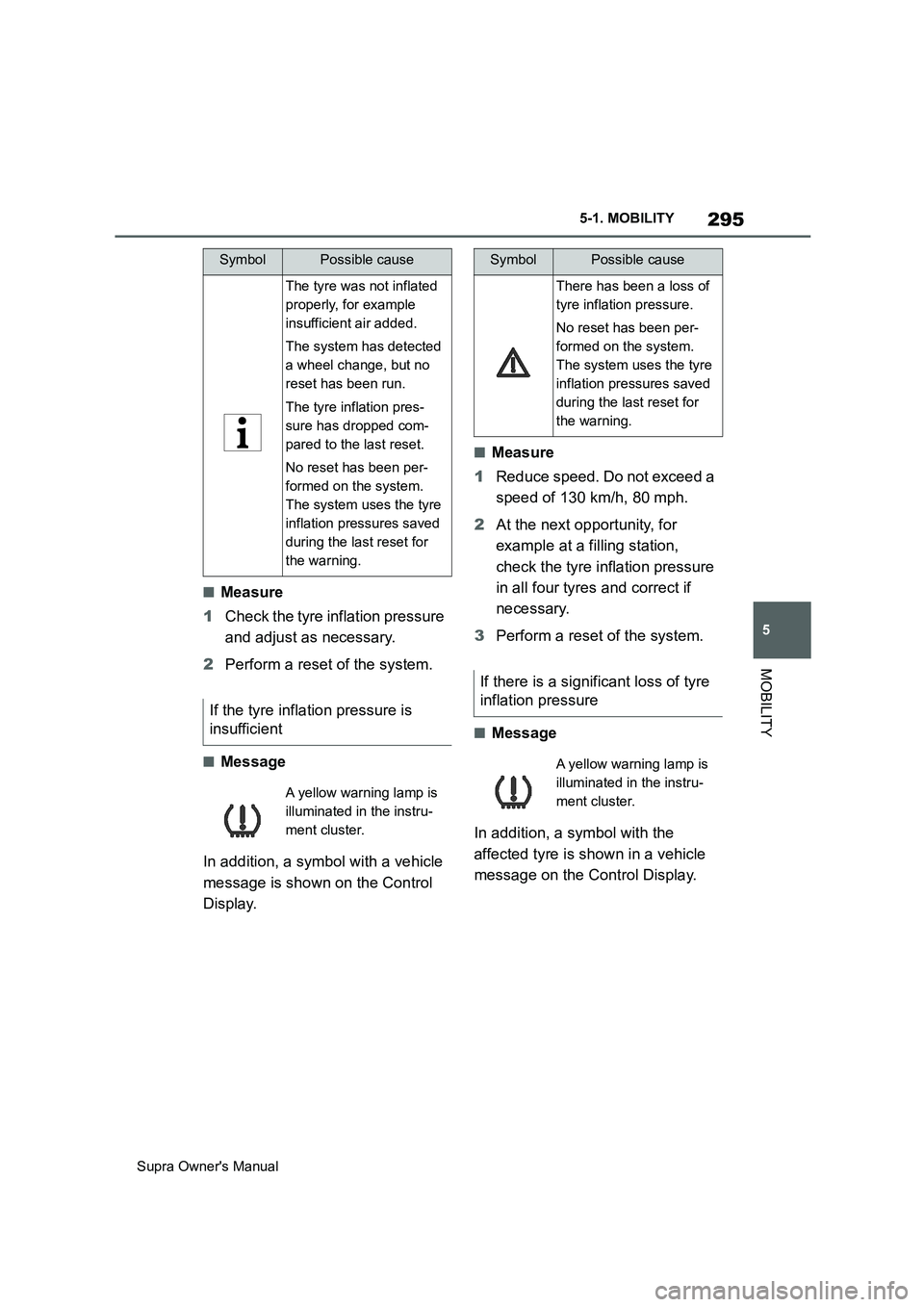

295
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
■Measure
1Check the tyre inflation pressure
and adjust as necessary.
2Perform a reset of the system.
■Message
In addition, a symbol with a vehicle
message is shown on the Control
Display.
■Measure
1Reduce speed. Do not exceed a
speed of 130 km/h, 80 mph.
2At the next opportunity, for
example at a filling station,
check the tyre inflation pressure
in all four tyres and correct if
necessary.
3Perform a reset of the system.
■Message
In addition, a symbol with the
affected tyre is shown in a vehicle
message on the Control Display.
SymbolPossible cause
The tyre was not inflated
properly, for example
insufficient air added.
The system has detected
a wheel change, but no
reset has been run.
The tyre inflation pres-
sure has dropped com-
pared to the last reset.
No reset has been per-
formed on the system.
The system uses the tyre
inflation pressures saved
during the last reset for
the warning.
If the tyre inflation pressure is
insufficient
A yellow warning lamp is
illuminated in the instru-
ment cluster.
SymbolPossible cause
There has been a loss of
tyre inflation pressure.
No reset has been per-
formed on the system.
The system uses the tyre
inflation pressures saved
during the last reset for
the warning.
If there is a significant loss of tyre
inflation pressure
A yellow warning lamp is
illuminated in the instru-
ment cluster.
Page 296 of 456

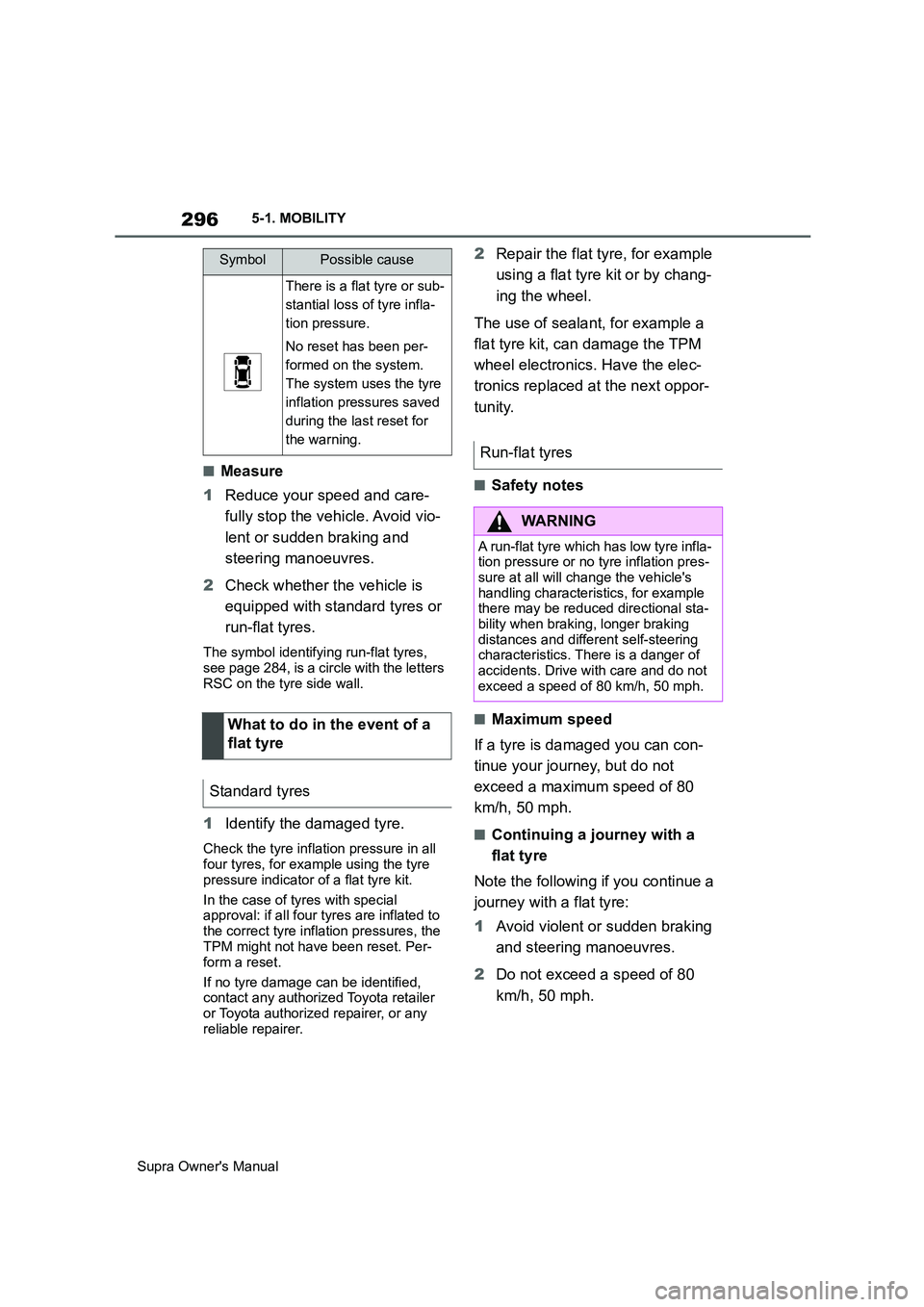

296
Supra Owner's Manual5-1. MOBILITY
■Measure
1Reduce your speed and care-
fully stop the vehicle. Avoid vio-
lent or sudden braking and
steering manoeuvres.
2Check whether the vehicle is
equipped with standard tyres or
run-flat tyres.
The symbol identifying run-flat tyres,
see page 284, is a circle with the letters
RSC on the tyre side wall.
1Identify the damaged tyre.
Check the tyre inflation pressure in all
four tyres, for example using the tyre
pressure indicator of a flat tyre kit.
In the case of tyres with special
approval: if all four tyres are inflated to
the correct tyre inflation pressures, the
TPM might not have been reset. Per-
form a reset.
If no tyre damage can be identified,
contact any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer.
2Repair the flat tyre, for example
using a flat tyre kit or by chang-
ing the wheel.
The use of sealant, for example a
flat tyre kit, can damage the TPM
wheel electronics. Have the elec-
tronics replaced at the next oppor-
tunity.
■Safety notes
■Maximum speed
If a tyre is damaged you can con-
tinue your journey, but do not
exceed a maximum speed of 80
km/h, 50 mph.
■Continuing a journey with a
flat tyre
Note the following if you continue a
journey with a flat tyre:
1Avoid violent or sudden braking
and steering manoeuvres.
2Do not exceed a speed of 80
km/h, 50 mph.
SymbolPossible cause
There is a flat tyre or sub-
stantial loss of tyre infla-
tion pressure.
No reset has been per-
formed on the system.
The system uses the tyre
inflation pressures saved
during the last reset for
the warning.
What to do in the event of a
flat tyre
Standard tyres
Run-flat tyres
WARNING
A run-flat tyre which has low tyre infla-
tion pressure or no tyre inflation pres-
sure at all will change the vehicle's
handling characteristics, for example
there may be reduced directional sta-
bility when braking, longer braking
distances and different self-steering
characteristics. There is a danger of
accidents. Drive with care and do not
exceed a speed of 80 km/h, 50 mph.
Page 297 of 456

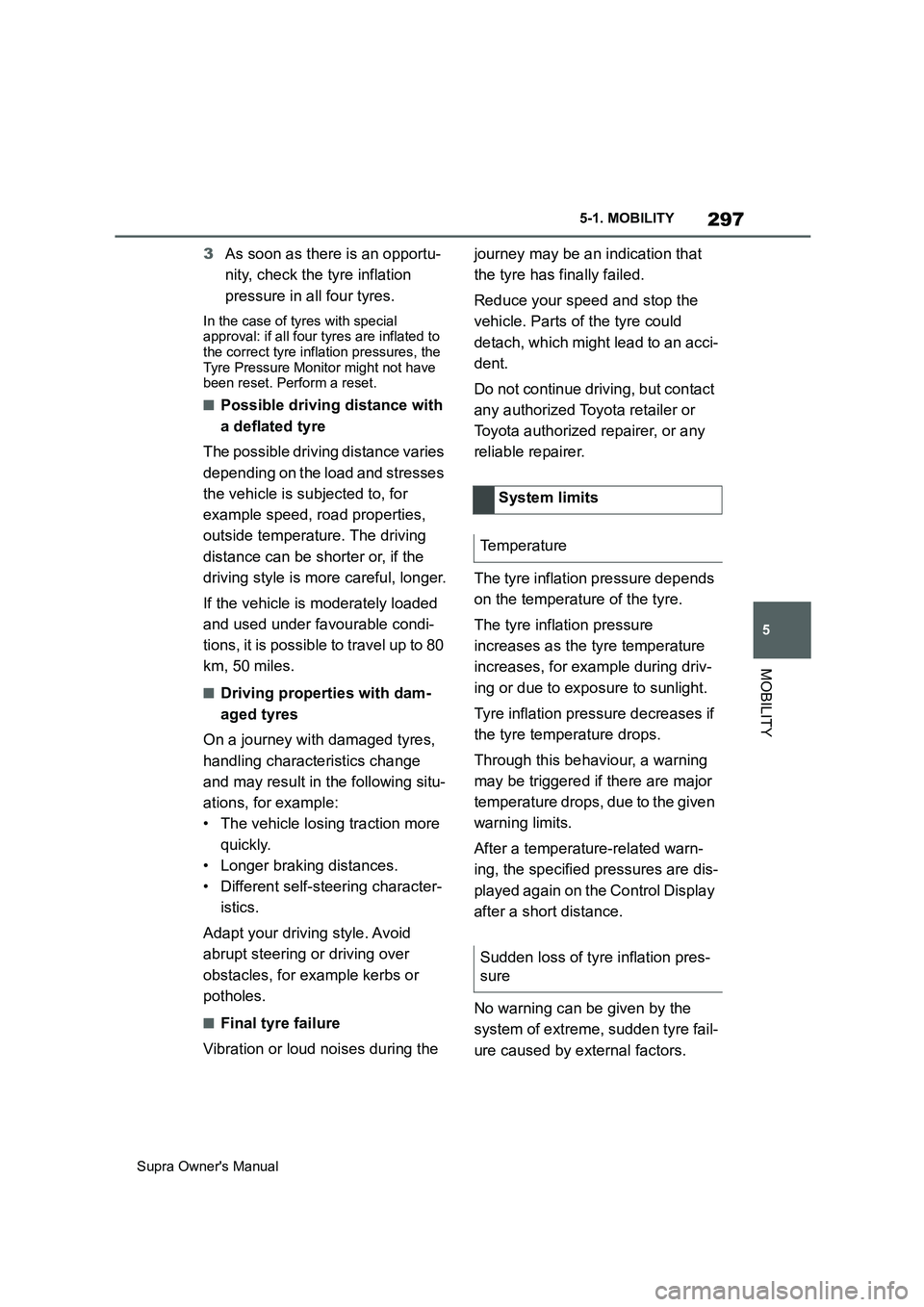

297
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
3As soon as there is an opportu-
nity, check the tyre inflation
pressure in all four tyres.
In the case of tyres with special
approval: if all four tyres are inflated to
the correct tyre inflation pressures, the
Tyre Pressure Monitor might not have
been reset. Perform a reset.
■Possible driving distance with
a deflated tyre
The possible driving distance varies
depending on the load and stresses
the vehicle is subjected to, for
example speed, road properties,
outside temperature. The driving
distance can be shorter or, if the
driving style is more careful, longer.
If the vehicle is moderately loaded
and used under favourable condi-
tions, it is possible to travel up to 80
km, 50 miles.
■Driving properties with dam-
aged tyres
On a journey with damaged tyres,
handling characteristics change
and may result in the following situ-
ations, for example:
• The vehicle losing traction more
quickly.
• Longer braking distances.
• Different self-steering character-
istics.
Adapt your driving style. Avoid
abrupt steering or driving over
obstacles, for example kerbs or
potholes.
■Final tyre failure
Vibration or loud noises during the journey may be an indication that
the tyre has finally failed.
Reduce your speed and stop the
vehicle. Parts of the tyre could
detach, which might lead to an acci-
dent.
Do not continue driving, but contact
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
The tyre inflation pressure depends
on the temperature of the tyre.
The tyre inflation pressure
increases as the tyre temperature
increases, for example during driv-
ing or due to exposure to sunlight.
Tyre inflation pressure decreases if
the tyre temperature drops.
Through this behaviour, a warning
may be triggered if there are major
temperature drops, due to the given
warning limits.
After a temperature-related warn-
ing, the specified pressures are dis-
played again on the Control Display
after a short distance.
No warning can be given by the
system of extreme, sudden tyre fail-
ure caused by external factors.System limits
Temperature
Sudden loss of tyre inflation pres-
sure
Page 298 of 456

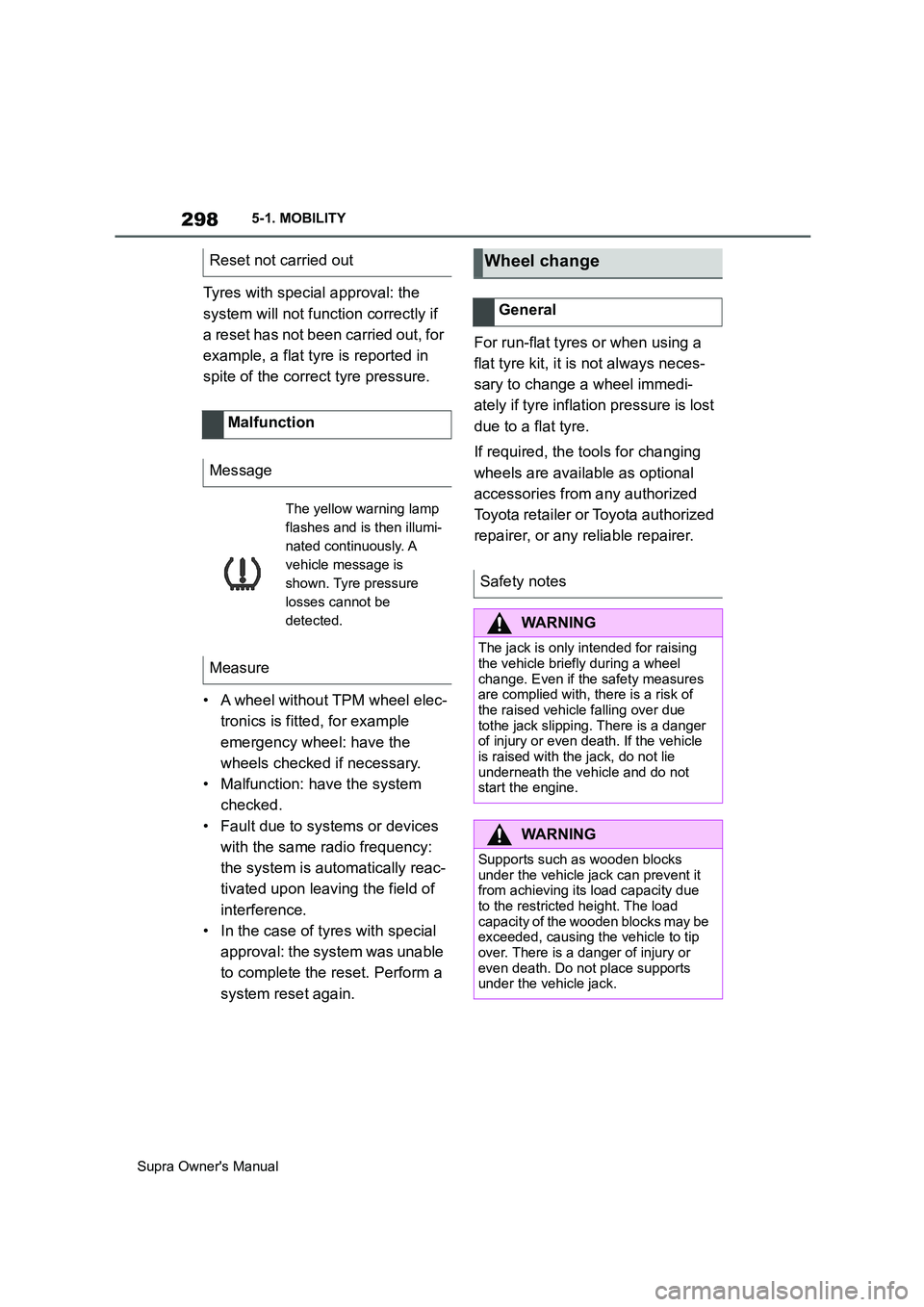

298
Supra Owner's Manual5-1. MOBILITY
Tyres with special approval: the
system will not function correctly if
a reset has not been carried out, for
example, a flat tyre is reported in
spite of the correct tyre pressure.
• A wheel without TPM wheel elec-
tronics is fitted, for example
emergency wheel: have the
wheels checked if necessary.
• Malfunction: have the system
checked.
• Fault due to systems or devices
with the same radio frequency:
the system is automatically reac-
tivated upon leaving the field of
interference.
• In the case of tyres with special
approval: the system was unable
to complete the reset. Perform a
system reset again.For run-flat tyres or when using a
flat tyre kit, it is not always neces-
sary to change a wheel immedi-
ately if tyre inflation pressure is lost
due to a flat tyre.
If required, the tools for changing
wheels are available as optional
accessories from any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer. Reset not carried out
Malfunction
Message
The yellow warning lamp
flashes and is then illumi-
nated continuously. A
vehicle message is
shown. Tyre pressure
losses cannot be
detected.
Measure
Wheel change
General
Safety notes
WARNING
The jack is only intended for raising
the vehicle briefly during a wheel
change. Even if the safety measures
are complied with, there is a risk of
the raised vehicle falling over due
tothe jack slipping. There is a danger
of injury or even death. If the vehicle
is raised with the jack, do not lie
underneath the vehicle and do not
start the engine.
WARNING
Supports such as wooden blocks
under the vehicle jack can prevent it
from achieving its load capacity due
to the restricted height. The load
capacity of the wooden blocks may be
exceeded, causing the vehicle to tip
over. There is a danger of injury or
even death. Do not place supports
under the vehicle jack.
Page 299 of 456

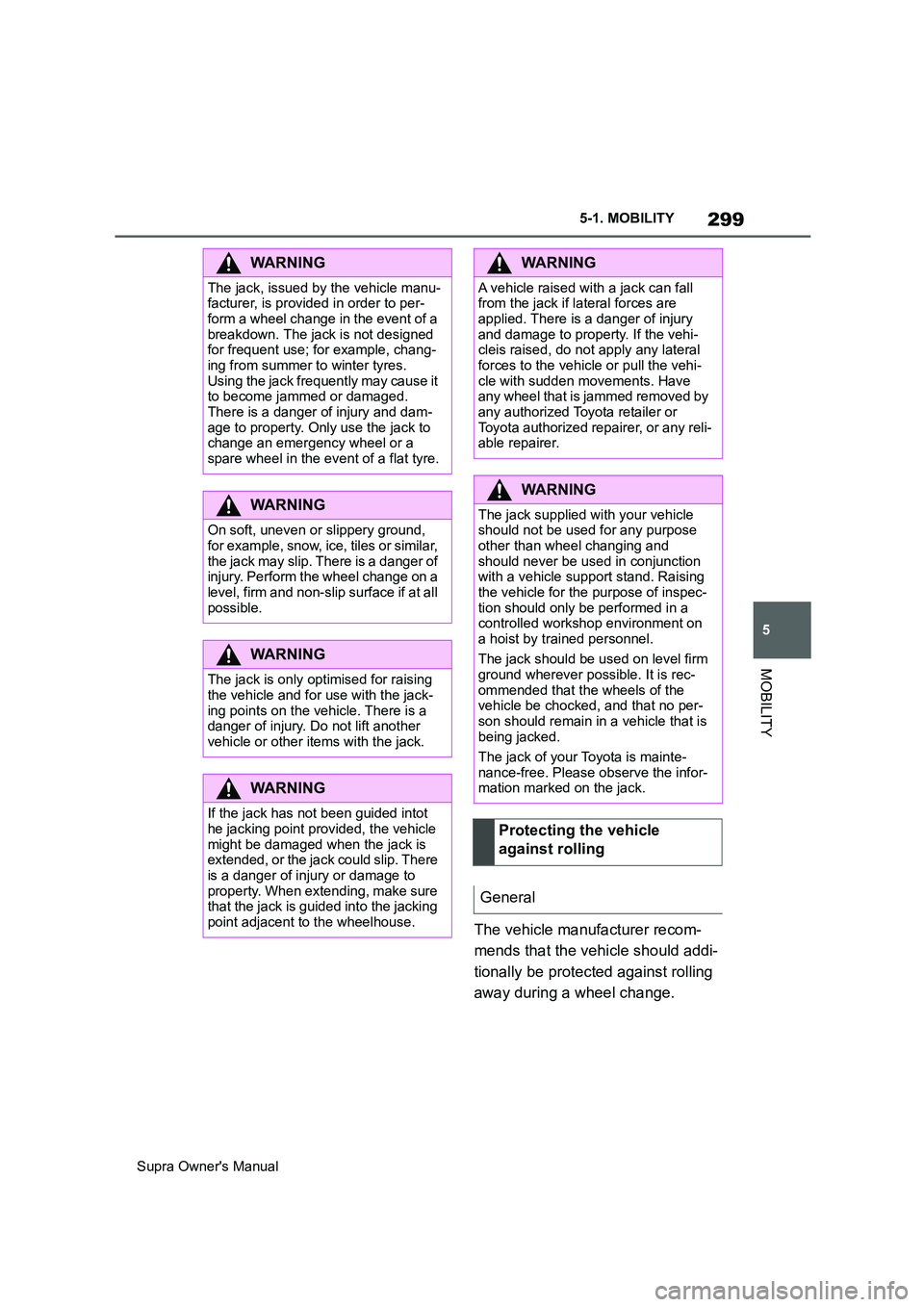

299
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
The vehicle manufacturer recom-
mends that the vehicle should addi-
tionally be protected against rolling
away during a wheel change.
WARNING
The jack, issued by the vehicle manu-
facturer, is provided in order to per-
form a wheel change in the event of a
breakdown. The jack is not designed
for frequent use; for example, chang-
ing from summer to winter tyres.
Using the jack frequently may cause it
to become jammed or damaged.
There is a danger of injury and dam-
age to property. Only use the jack to
change an emergency wheel or a
spare wheel in the event of a flat tyre.
WARNING
On soft, uneven or slippery ground,
for example, snow, ice, tiles or similar,
the jack may slip. There is a danger of
injury. Perform the wheel change on a
level, firm and non-slip surface if at all
possible.
WARNING
The jack is only optimised for raising
the vehicle and for use with the jack-
ing points on the vehicle. There is a
danger of injury. Do not lift another
vehicle or other items with the jack.
WARNING
If the jack has not been guided intot
he jacking point provided, the vehicle
might be damaged when the jack is
extended, or the jack could slip. There
is a danger of injury or damage to
property. When extending, make sure
that the jack is guided into the jacking
point adjacent to the wheelhouse.
WARNING
A vehicle raised with a jack can fall
from the jack if lateral forces are
applied. There is a danger of injury
and damage to property. If the vehi-
cleis raised, do not apply any lateral
forces to the vehicle or pull the vehi-
cle with sudden movements. Have
any wheel that is jammed removed by
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
WARNING
The jack supplied with your vehicle
should not be used for any purpose
other than wheel changing and
should never be used in conjunction
with a vehicle support stand. Raising
the vehicle for the purpose of inspec-
tion should only be performed in a
controlled workshop environment on
a hoist by trained personnel.
The jack should be used on level firm
ground wherever possible. It is rec-
ommended that the wheels of the
vehicle be chocked, and that no per-
son should remain in a vehicle that is
being jacked.
The jack of your Toyota is mainte-
nance-free. Please observe the infor-
mation marked on the jack.
Protecting the vehicle
against rolling
General
Page 300 of 456

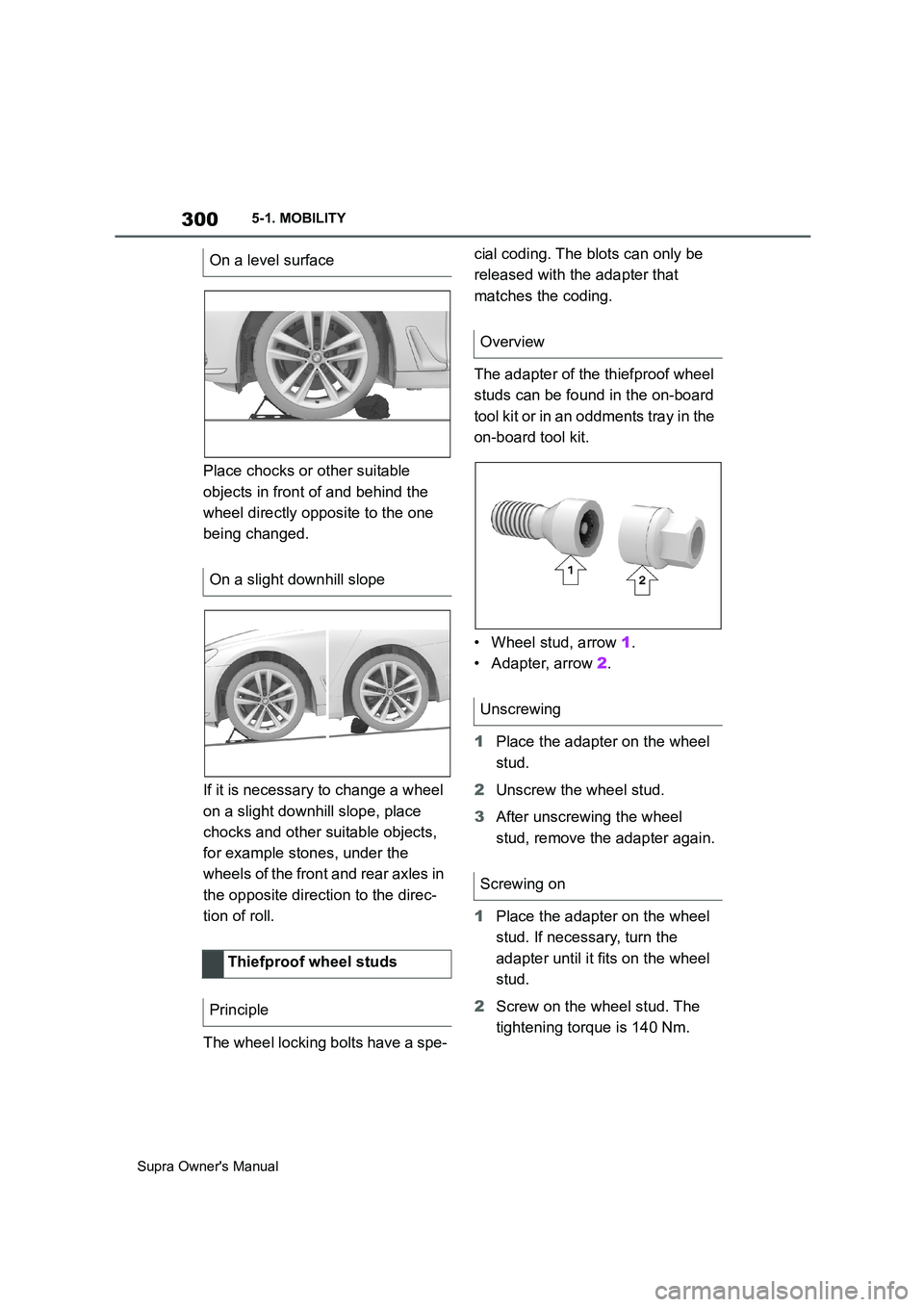

300
Supra Owner's Manual5-1. MOBILITY
Place chocks or other suitable
objects in front of and behind the
wheel directly opposite to the one
being changed.
If it is necessary to change a wheel
on a slight downhill slope, place
chocks and other suitable objects,
for example stones, under the
wheels of the front and rear axles in
the opposite direction to the direc-
tion of roll.
The wheel locking bolts have a spe-cial coding. The blots can only be
released with the adapter that
matches the coding.
The adapter of the thiefproof wheel
studs can be found in the on-board
tool kit or in an oddments tray in the
on-board tool kit.
• Wheel stud, arrow 1.
• Adapter, arrow 2.
1Place the adapter on the wheel
stud.
2Unscrew the wheel stud.
3After unscrewing the wheel
stud, remove the adapter again.
1Place the adapter on the wheel
stud. If necessary, turn the
adapter until it fits on the wheel
stud.
2Screw on the wheel stud. The
tightening torque is 140 Nm. On a level surface
On a slight downhill slope
Thiefproof wheel studs
Principle
Overview
Unscrewing
Screwing on
