Supra Owner's Manual5-1. MOBILITY
MOBILITY
3After screwing on the wheel
stud, remove the adapter again
and stow it.
• Park the vehicle on firm and-
non-slip ground at a safe dis-
tance from traffic.
• Switch on the hazard warning
lights.
• Apply the parking brake.
• Engage a gear or select selector
lever position P.
• As soon as the traffic permits,
have all vehicle occupants get
out of the vehicle and guide them
out of the danger area, for exam-
ple behind the crash barrier.
• Depending on the equipment,
take the wheel change tools and,
if necessary, the emergency
wheel out of the vehicle.
• If applicable, set up warning tri-
angle or flashing light at the cor-
rect distance.
• Additionally protect the vehicle
against rolling away.
• Undo the wheel studs by half a
turn.The jacking points are located in
the marked positions.

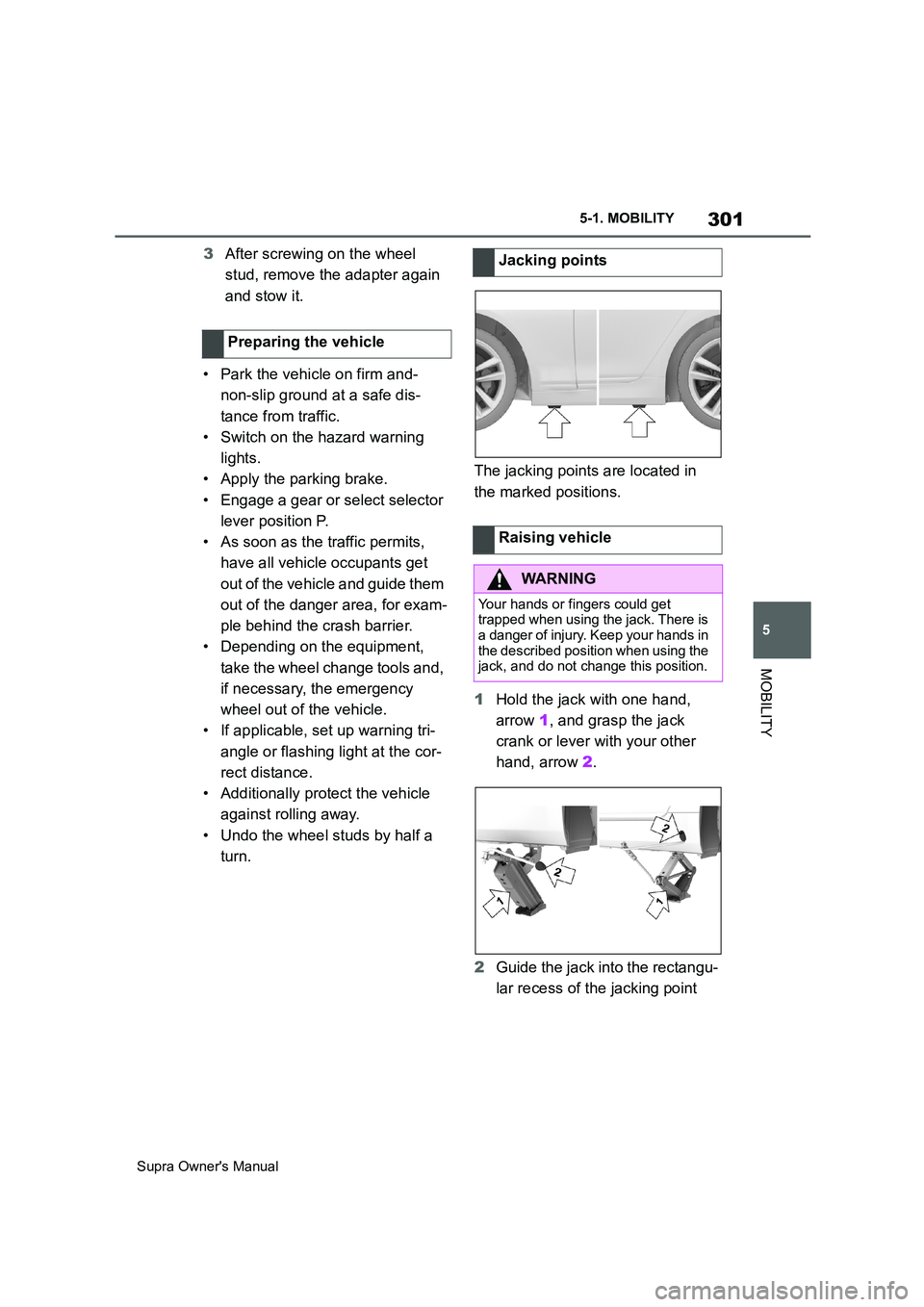

1Hold the jack with one hand,
arrow 1, and grasp the jack
crank or lever with your other
hand, arrow 2.
2Guide the jack into the rectangu-
lar recess of the jacking point Preparing the vehicleJacking points
Raising vehicle
WARNING
Your hands or fingers could get
trapped when using the jack. There is
a danger of injury. Keep your hands in
the described position when using the
jack, and do not change this position.
Page 302 of 456

302
Supra Owner's Manual5-1. MOBILITY
closest to the wheel to be
changed.

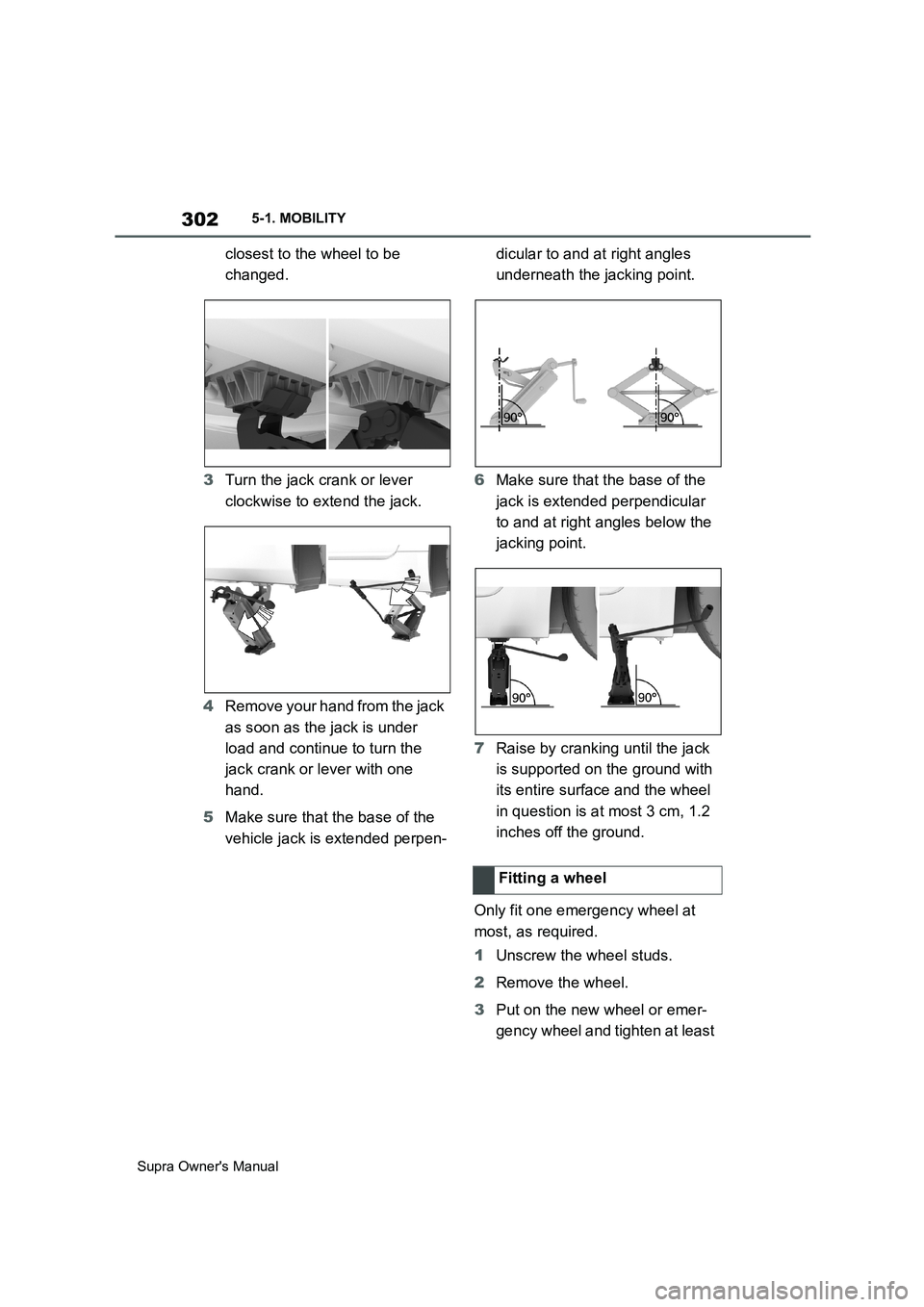

3Turn the jack crank or lever
clockwise to extend the jack.
4Remove your hand from the jack
as soon as the jack is under
load and continue to turn the
jack crank or lever with one
hand.
5Make sure that the base of the
vehicle jack is extended perpen-dicular to and at right angles
underneath the jacking point.
6Make sure that the base of the
jack is extended perpendicular
to and at right angles below the
jacking point.
7Raise by cranking until the jack
is supported on the ground with
its entire surface and the wheel
in question is at most 3 cm, 1.2
inches off the ground.
Only fit one emergency wheel at
most, as required.
1Unscrew the wheel studs.
2Remove the wheel.
3Put on the new wheel or emer-
gency wheel and tighten at least
Fitting a wheel
Page 303 of 456

303
5

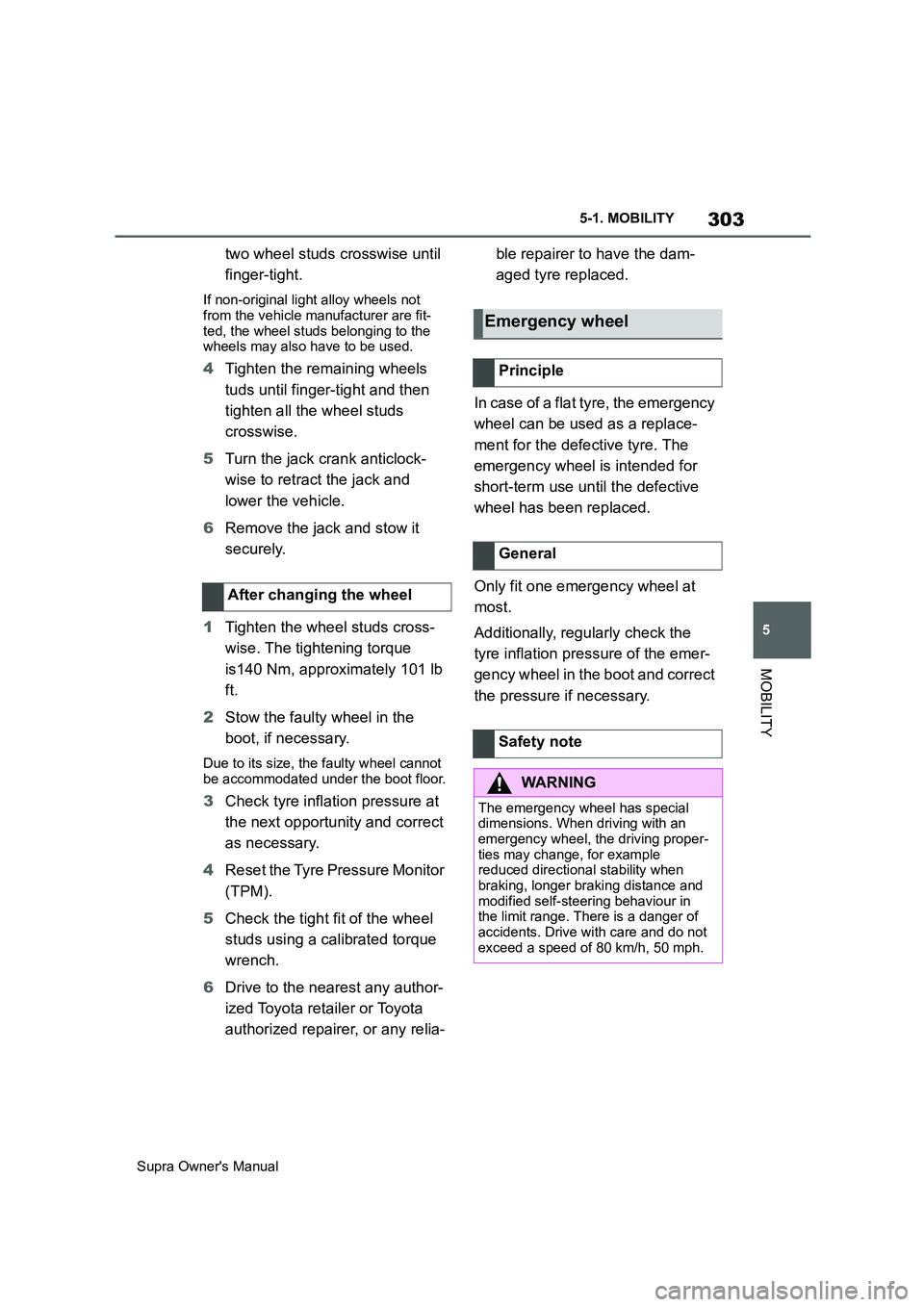

Supra Owner's Manual5-1. MOBILITY
MOBILITY
two wheel studs crosswise until
finger-tight.
If non-original light alloy wheels not
from the vehicle manufacturer are fit-
ted, the wheel studs belonging to the
wheels may also have to be used.
4Tighten the remaining wheels
tuds until finger-tight and then
tighten all the wheel studs
crosswise.
5Turn the jack crank anticlock-
wise to retract the jack and
lower the vehicle.
6Remove the jack and stow it
securely.
1Tighten the wheel studs cross-
wise. The tightening torque
is140 Nm, approximately 101 lb
ft.
2Stow the faulty wheel in the
boot, if necessary.
Due to its size, the faulty wheel cannot
be accommodated under the boot floor.
3Check tyre inflation pressure at
the next opportunity and correct
as necessary.
4Reset the Tyre Pressure Monitor
(TPM).
5Check the tight fit of the wheel
studs using a calibrated torque
wrench.
6Drive to the nearest any author-
ized Toyota retailer or Toyota
authorized repairer, or any relia-ble repairer to have the dam-
aged tyre replaced.
In case of a flat tyre, the emergency
wheel can be used as a replace-
ment for the defective tyre. The
emergency wheel is intended for
short-term use until the defective
wheel has been replaced.
Only fit one emergency wheel at
most.
Additionally, regularly check the
tyre inflation pressure of the emer-
gency wheel in the boot and correct
the pressure if necessary. After changing the wheel
Emergency wheel
Principle
General
Safety note
WARNING
The emergency wheel has special
dimensions. When driving with an
emergency wheel, the driving proper-
ties may change, for example
reduced directional stability when
braking, longer braking distance and
modified self-steering behaviour in
the limit range. There is a danger of
accidents. Drive with care and do not
exceed a speed of 80 km/h, 50 mph.
Page 304 of 456

304
Supra Owner's Manual5-1. MOBILITY

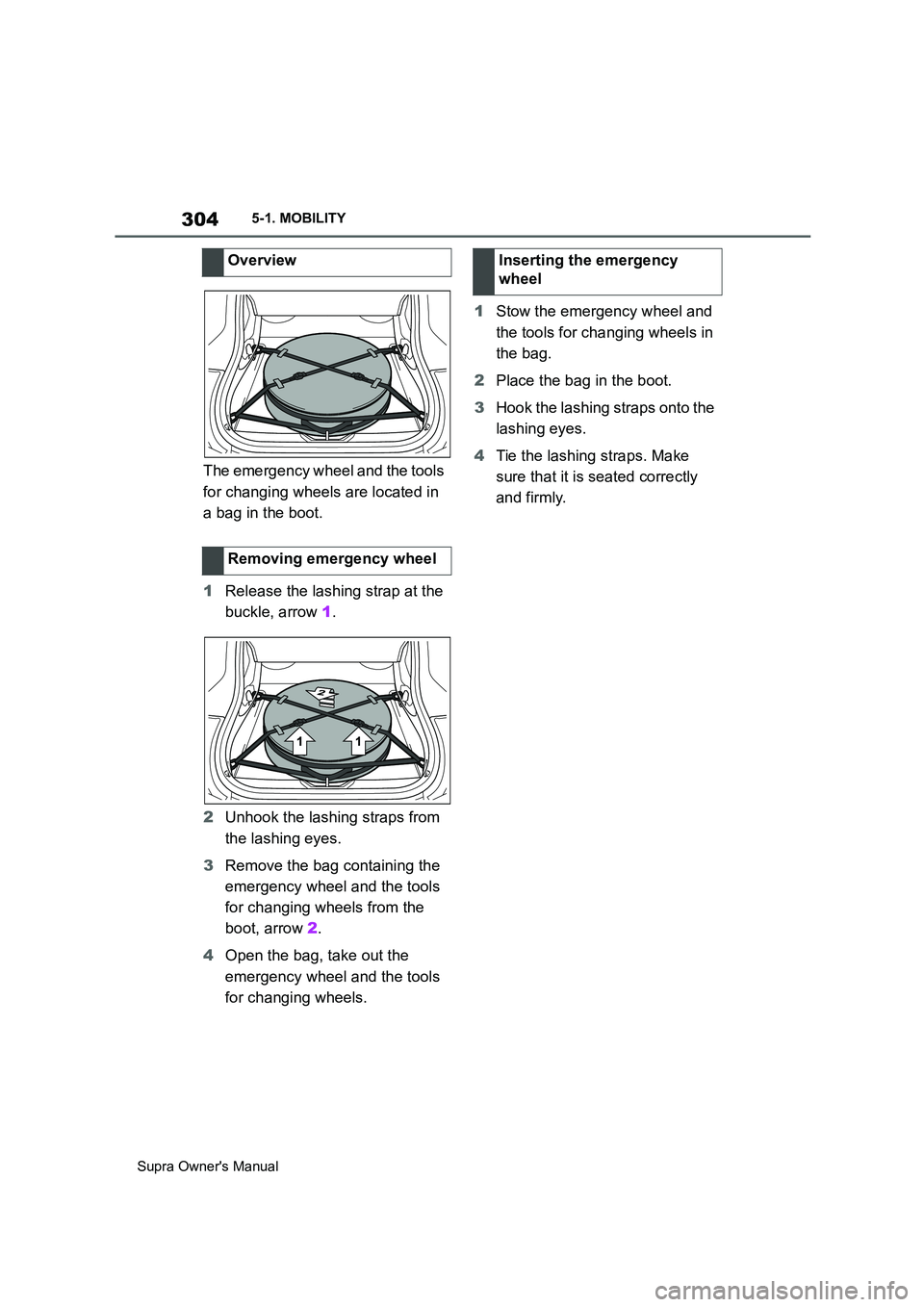

The emergency wheel and the tools
for changing wheels are located in
a bag in the boot.
1Release the lashing strap at the
buckle, arrow 1.
2Unhook the lashing straps from
the lashing eyes.
3Remove the bag containing the
emergency wheel and the tools
for changing wheels from the
boot, arrow 2.
4Open the bag, take out the
emergency wheel and the tools
for changing wheels.1Stow the emergency wheel and
the tools for changing wheels in
the bag.
2Place the bag in the boot.
3Hook the lashing straps onto the
lashing eyes.
4Tie the lashing straps. Make
sure that it is seated correctly
and firmly. Overview
Removing emergency wheel
Inserting the emergency
wheel
Page 305 of 456

305
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.

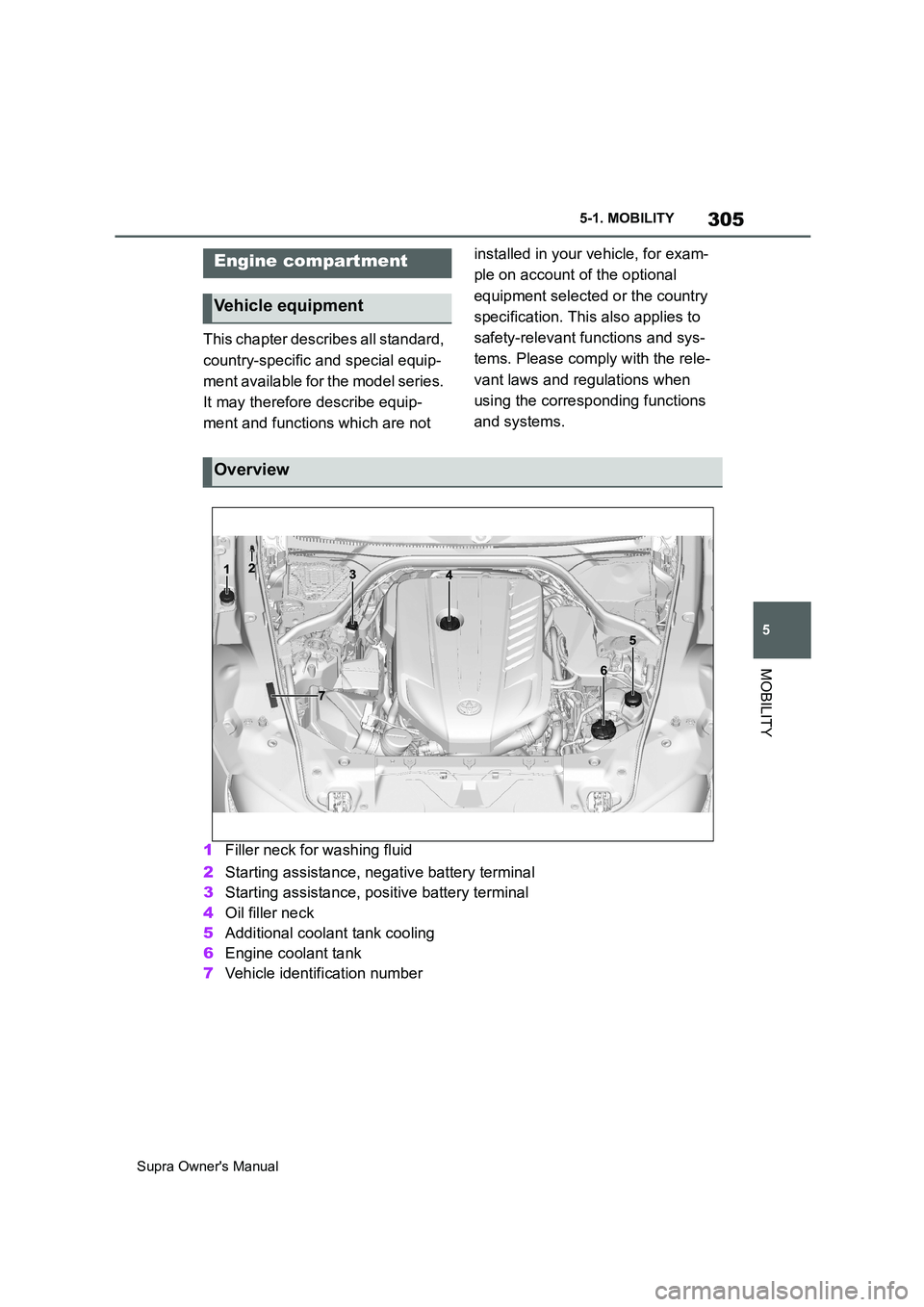

1Filler neck for washing fluid
2Starting assistance, negative battery terminal
3Starting assistance, positive battery terminal
4Oil filler neck
5Additional coolant tank cooling
6Engine coolant tank
7Vehicle identification number
Engine compartment
Vehicle equipment
Overview
Page 306 of 456

306
Supra Owner's Manual5-1. MOBILITY

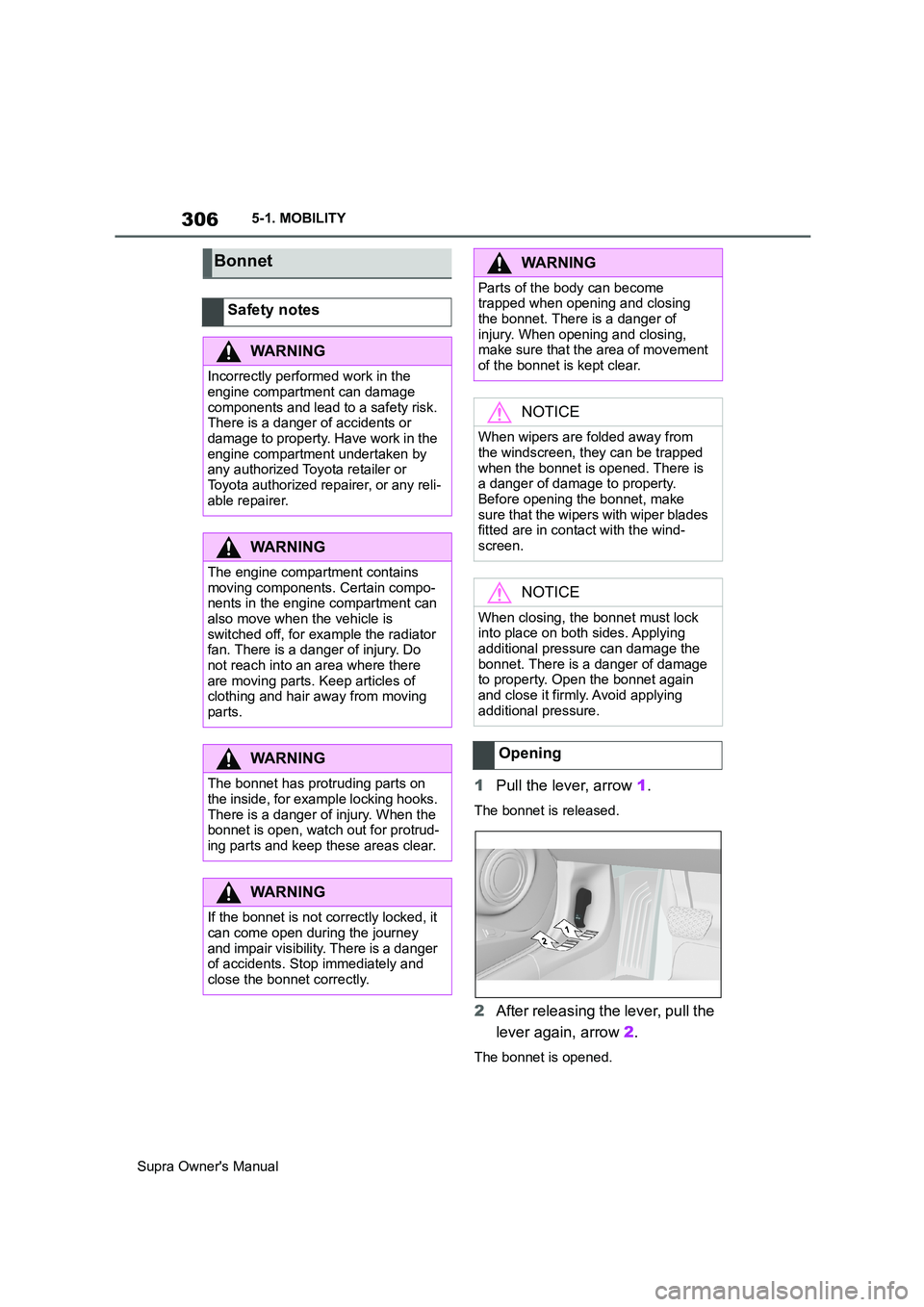

1Pull the lever, arrow 1.
The bonnet is released.
2After releasing the lever, pull the
lever again, arrow 2.
The bonnet is opened.
Bonnet
Safety notes
WARNING
Incorrectly performed work in the
engine compartment can damage
components and lead to a safety risk.
There is a danger of accidents or
damage to property. Have work in the
engine compartment undertaken by
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
WARNING
The engine compartment contains
moving components. Certain compo-
nents in the engine compartment can
also move when the vehicle is
switched off, for example the radiator
fan. There is a danger of injury. Do
not reach into an area where there
are moving parts. Keep articles of
clothing and hair away from moving
parts.
WARNING
The bonnet has protruding parts on
the inside, for example locking hooks.
There is a danger of injury. When the
bonnet is open, watch out for protrud-
ing parts and keep these areas clear.
WARNING
If the bonnet is not correctly locked, it
can come open during the journey
and impair visibility. There is a danger
of accidents. Stop immediately and
close the bonnet correctly.
WARNING
Parts of the body can become
trapped when opening and closing
the bonnet. There is a danger of
injury. When opening and closing,
make sure that the area of movement
of the bonnet is kept clear.
NOTICE
When wipers are folded away from
the windscreen, they can be trapped
when the bonnet is opened. There is
a danger of damage to property.
Before opening the bonnet, make
sure that the wipers with wiper blades
fitted are in contact with the wind-
screen.
NOTICE
When closing, the bonnet must lock
into place on both sides. Applying
additional pressure can damage the
bonnet. There is a danger of damage
to property. Open the bonnet again
and close it firmly. Avoid applying
additional pressure.
Opening
Page 307 of 456

307
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY

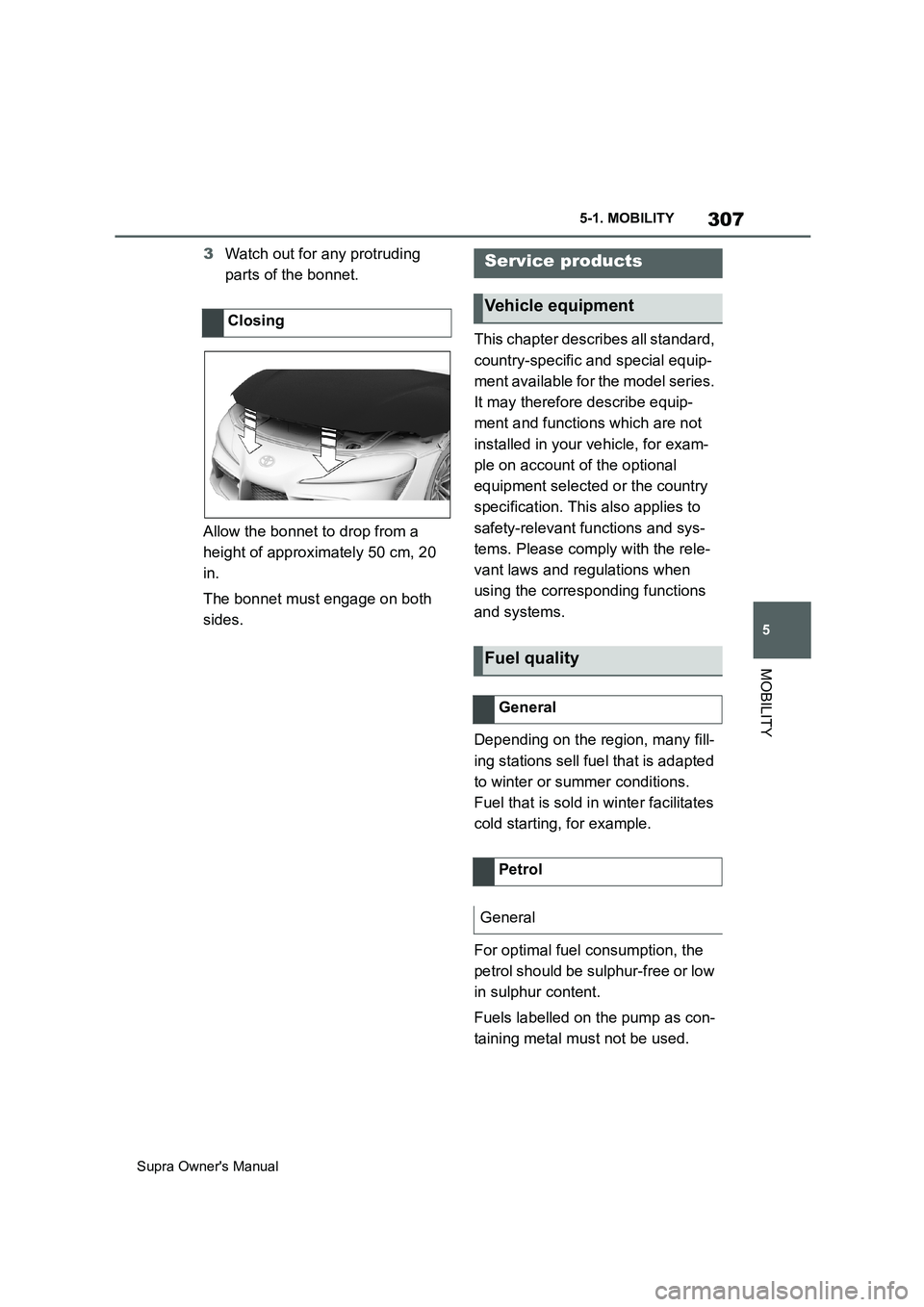

3Watch out for any protruding
parts of the bonnet.
Allow the bonnet to drop from a
height of approximately 50 cm, 20
in.
The bonnet must engage on both
sides.This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
Depending on the region, many fill-
ing stations sell fuel that is adapted
to winter or summer conditions.
Fuel that is sold in winter facilitates
cold starting, for example.
For optimal fuel consumption, the
petrol should be sulphur-free or low
in sulphur content.
Fuels labelled on the pump as con-
taining metal must not be used. ClosingService products
Vehicle equipment
Fuel quality
General
Petrol
General
Page 308 of 456

308
Supra Owner's Manual5-1. MOBILITY

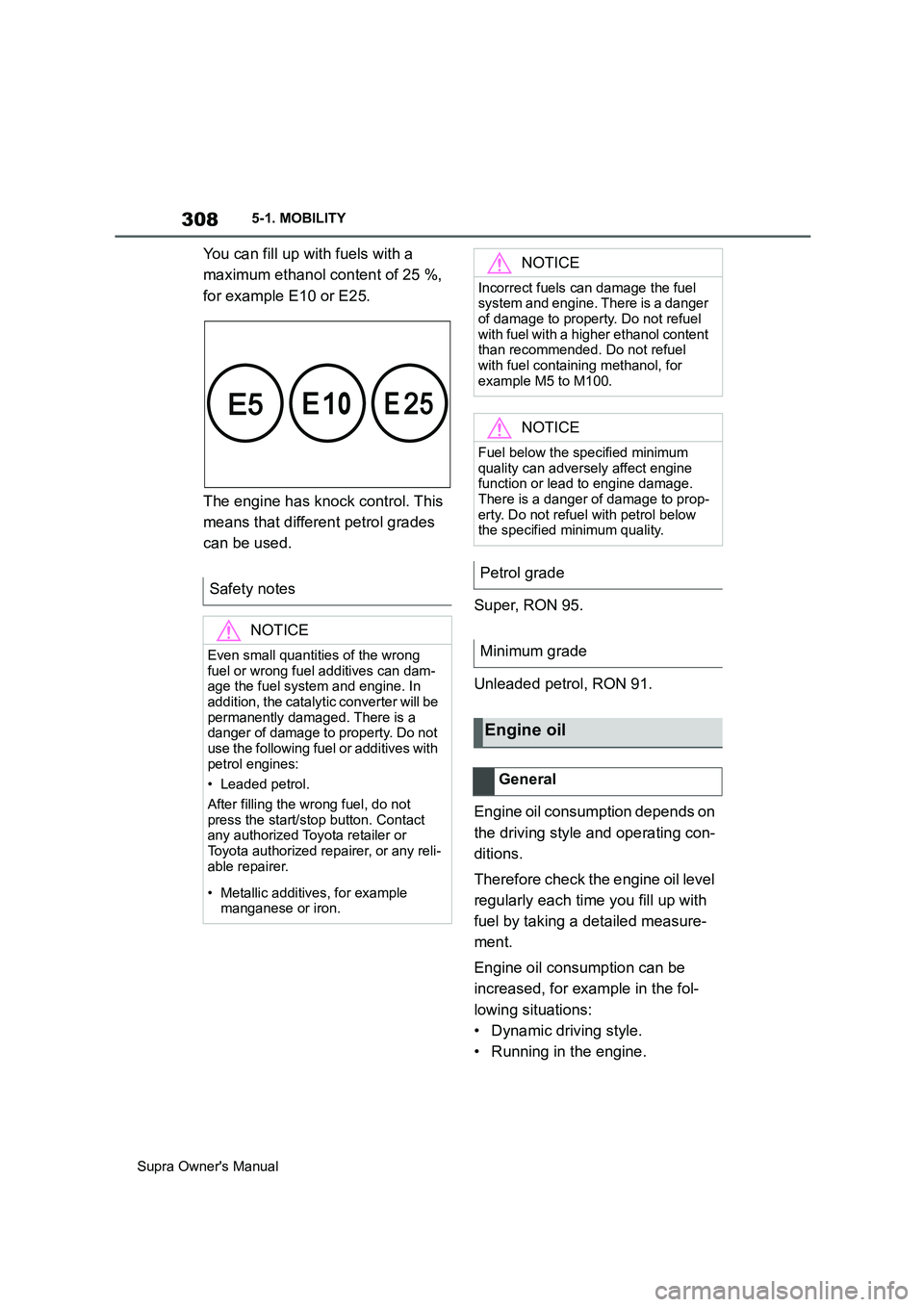

You can fill up with fuels with a
maximum ethanol content of 25 %,
for example E10 or E25.
The engine has knock control. This
means that different petrol grades
can be used.
Super, RON 95.
Unleaded petrol, RON 91.
Engine oil consumption depends on
the driving style and operating con-
ditions.
Therefore check the engine oil level
regularly each time you fill up with
fuel by taking a detailed measure-
ment.
Engine oil consumption can be
increased, for example in the fol-
lowing situations:
• Dynamic driving style.
• Running in the engine. Safety notes
NOTICE
Even small quantities of the wrong
fuel or wrong fuel additives can dam-
age the fuel system and engine. In
addition, the catalytic converter will be
permanently damaged. There is a
danger of damage to property. Do not
use the following fuel or additives with
petrol engines:
• Leaded petrol.
After filling the wrong fuel, do not
press the start/stop button. Contact
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
• Metallic additives, for example
manganese or iron.
NOTICE
Incorrect fuels can damage the fuel
system and engine. There is a danger
of damage to property. Do not refuel
with fuel with a higher ethanol content
than recommended. Do not refuel
with fuel containing methanol, for
example M5 to M100.
NOTICE
Fuel below the specified minimum
quality can adversely affect engine
function or lead to engine damage.
There is a danger of damage to prop-
erty. Do not refuel with petrol below
the specified minimum quality.
Petrol grade
Minimum grade
Engine oil
General
Page 309 of 456

309
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
• Engine idling.
• Use of engine oil grades catego-
rised as unsuitable.

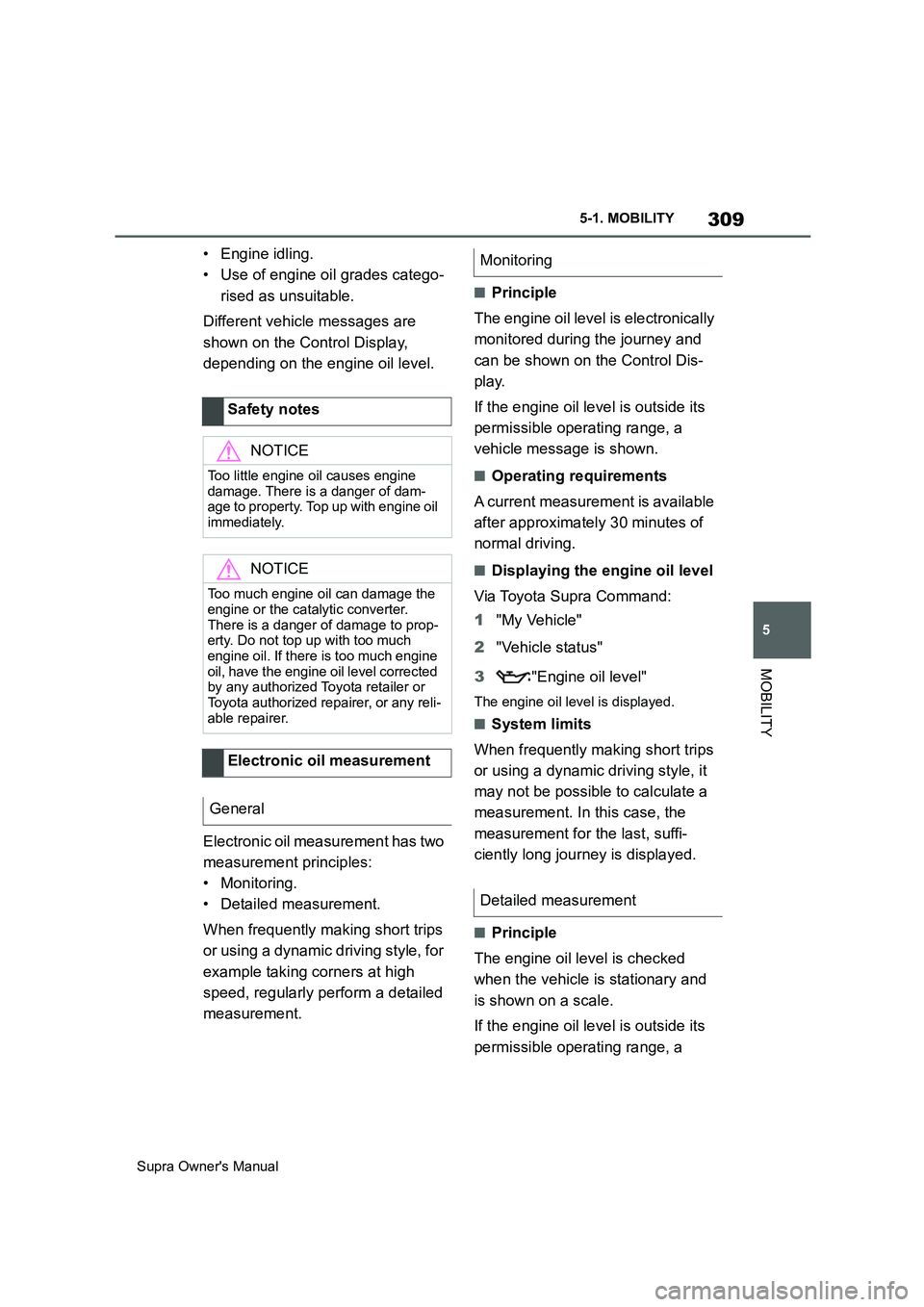

Different vehicle messages are
shown on the Control Display,
depending on the engine oil level.
Electronic oil measurement has two
measurement principles:
• Monitoring.
• Detailed measurement.
When frequently making short trips
or using a dynamic driving style, for
example taking corners at high
speed, regularly perform a detailed
measurement.
■Principle
The engine oil level is electronically
monitored during the journey and
can be shown on the Control Dis-
play.
If the engine oil level is outside its
permissible operating range, a
vehicle message is shown.
■Operating requirements
A current measurement is available
after approximately 30 minutes of
normal driving.
■Displaying the engine oil level
Via Toyota Supra Command:
1"My Vehicle"
2"Vehicle status"
3"Engine oil level"
The engine oil level is displayed.
■System limits
When frequently making short trips
or using a dynamic driving style, it
may not be possible to calculate a
measurement. In this case, the
measurement for the last, suffi-
ciently long journey is displayed.
■Principle
The engine oil level is checked
when the vehicle is stationary and
is shown on a scale.
If the engine oil level is outside its
permissible operating range, a Safety notes
NOTICE
Too little engine oil causes engine
damage. There is a danger of dam-
age to property. Top up with engine oil
immediately.
NOTICE
Too much engine oil can damage the
engine or the catalytic converter.
There is a danger of damage to prop-
erty. Do not top up with too much
engine oil. If there is too much engine
oil, have the engine oil level corrected
by any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
Electronic oil measurement
General
Monitoring
Detailed measurement
Page 310 of 456

310
Supra Owner's Manual5-1. MOBILITY
vehicle message is shown.
■General
During measurement, the idle
speed is slightly raised.
■Operating requirements
• Vehicle is standing horizontally.
• Automatic transmission: selector
lever in selector lever position N
or P and accelerator pedal not
pressed.
• Engine is running and is at oper-
ating temperature.
■Carrying out a detailed meas-
urement
Via Toyota Supra Command:
1"My Vehicle"
2"Vehicle status"
3"Engine oil level"
4"Engine oil level measurement"
5"Start measurement"
The engine oil level is checked and
shown on a scale.
Do not top up engine oil unless a
message is displayed in the instru-
ment cluster. The top-up amount is
specified in the message on the
Control Display.
Only replenish with suitable types
of engine oil, see page 311.
Safely stop the vehicle and switch off drive-ready state before topping
up with engine oil.
Do not top up with too much engine
oil.
The oil filler neck is in the engine
compartment , see page 305. Adding engine oil
General
Safety notes
WARNING
Service products, for example oils,
greases, coolants and fuels, can con-
tain substances that are harmful to
health. There is a danger of injury or
even death. Please comply with the
instructions on the containers. Do not
allow service products to come into
contact with clothing, skin or eyes. Do
not pour service products into other
bottles. Keep service products out of
the reach of children.
NOTICE
Too little engine oil causes engine
damage. There is a danger of dam-
age to property. Top up with engine oil
immediately.
NOTICE
Too much engine oil can damage the
engine or the catalytic converter.
There is a danger of damage to prop-
erty. Do not top up with too much
engine oil. If there is too much engine
oil, have the engine oil level corrected
by any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
Overview
