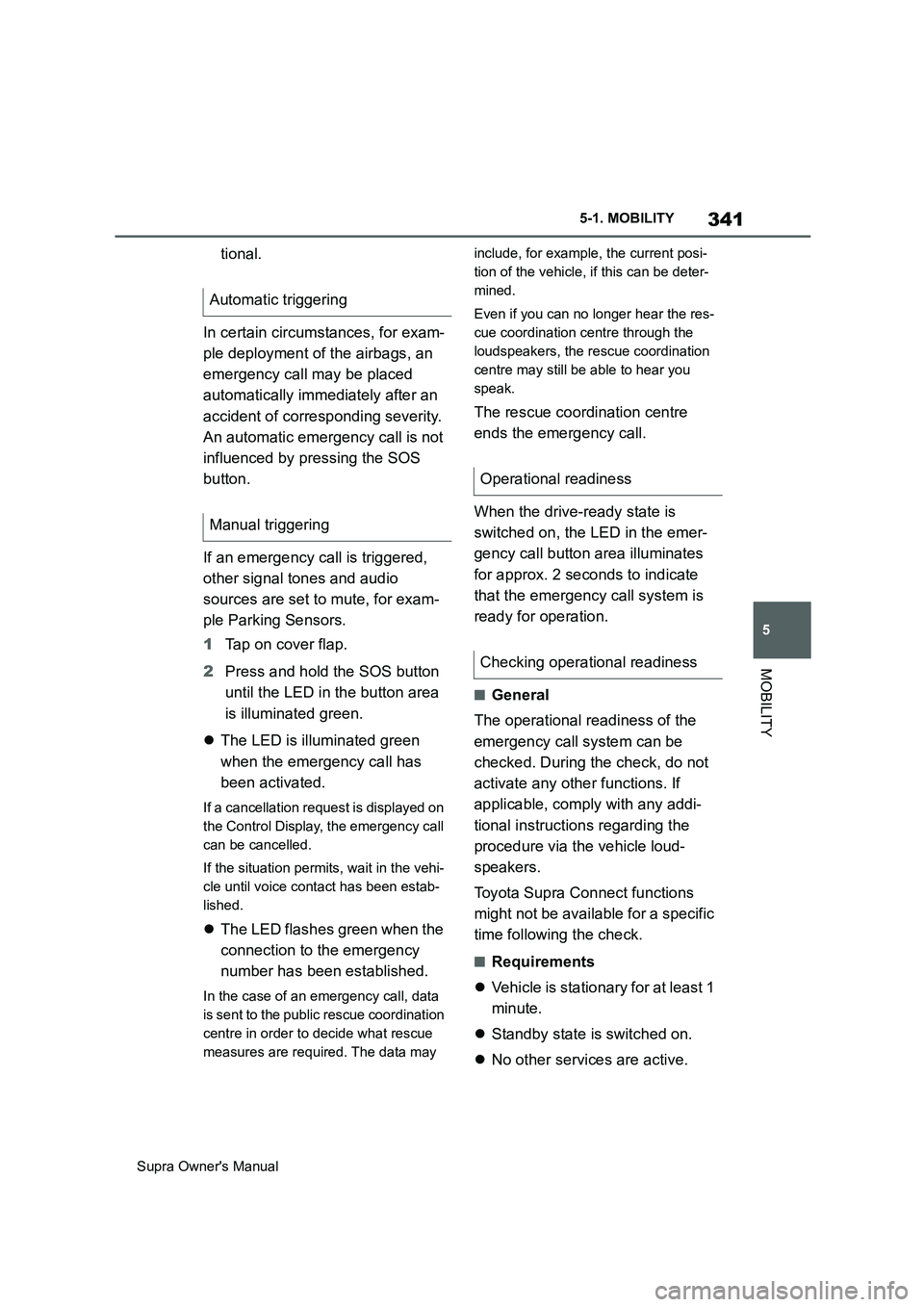

341
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
tional.
In certain circumstances, for exam-
ple deployment of the airbags, an
emergency call may be placed
automatically immediately after an
accident of corresponding severity.
An automatic emergency call is not
influenced by pressing the SOS
button.
If an emergency call is triggered,
other signal tones and audio
sources are set to mute, for exam-
ple Parking Sensors.
1Tap on cover flap.
2Press and hold the SOS button
until the LED in the button area
is illuminated green.
The LED is illuminated green
when the emergency call has
been activated.
If a cancellation request is displayed on
the Control Display, the emergency call
can be cancelled.
If the situation permits, wait in the vehi-
cle until voice contact has been estab-
lished.
The LED flashes green when the
connection to the emergency
number has been established.
In the case of an emergency call, data
is sent to the public rescue coordination
centre in order to decide what rescue
measures are required. The data may include, for example, the current posi-
tion of the vehicle, if this can be deter-
mined.
Even if you can no longer hear the res-
cue coordination centre through the
loudspeakers, the rescue coordination
centre may still be able to hear you
speak.
The rescue coordination centre
ends the emergency call.
When the drive-ready state is
switched on, the LED in the emer-
gency call button area illuminates
for approx. 2 seconds to indicate
that the emergency call system is
ready for operation.
■General
The operational readiness of the
emergency call system can be
checked. During the check, do not
activate any other functions. If
applicable, comply with any addi-
tional instructions regarding the
procedure via the vehicle loud-
speakers.
Toyota Supra Connect functions
might not be available for a specific
time following the check.
■Requirements
Vehicle is stationary for at least 1
minute.
Standby state is switched on.
No other services are active. Automatic triggering
Manual triggering
Operational readiness
Checking operational readiness
Page 342 of 456

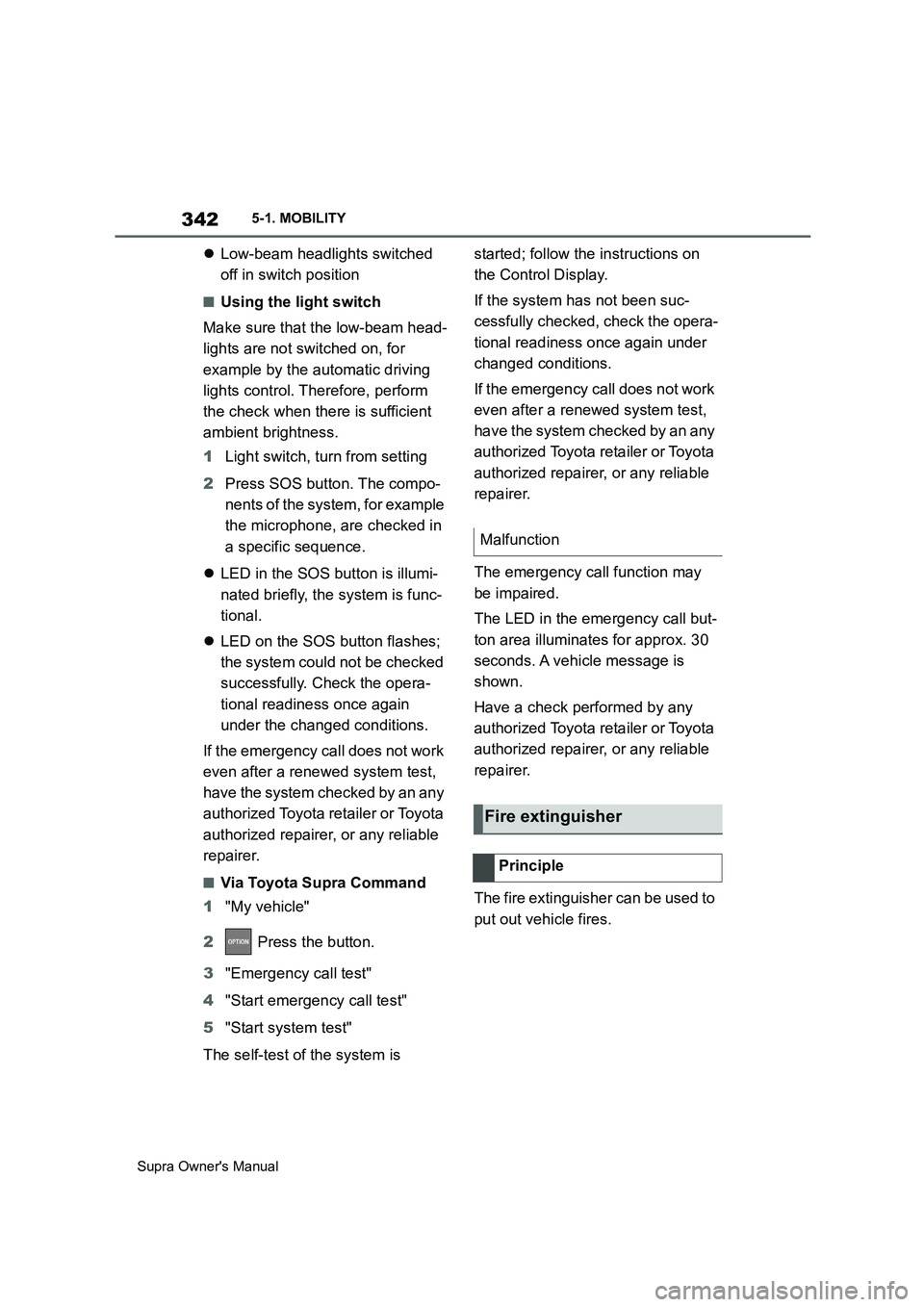

342
Supra Owner's Manual5-1. MOBILITY
Low-beam headlights switched
off in switch position
■Using the light switch
Make sure that the low-beam head-
lights are not switched on, for
example by the automatic driving
lights control. Therefore, perform
the check when there is sufficient
ambient brightness.
1Light switch, turn from setting
2Press SOS button. The compo-
nents of the system, for example
the microphone, are checked in
a specific sequence.
LED in the SOS button is illumi-
nated briefly, the system is func-
tional.
LED on the SOS button flashes;
the system could not be checked
successfully. Check the opera-
tional readiness once again
under the changed conditions.
If the emergency call does not work
even after a renewed system test,
have the system checked by an any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■Via Toyota Supra Command
1"My vehicle"
2 Press the button.
3"Emergency call test"
4"Start emergency call test"
5"Start system test"
The self-test of the system is started; follow the instructions on
the Control Display.
If the system has not been suc-
cessfully checked, check the opera-
tional readiness once again under
changed conditions.
If the emergency call does not work
even after a renewed system test,
have the system checked by an any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The emergency call function may
be impaired.
The LED in the emergency call but-
ton area illuminates for approx. 30
seconds. A vehicle message is
shown.
Have a check performed by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The fire extinguisher can be used to
put out vehicle fires.
Malfunction
Fire extinguisher
Principle
Page 343 of 456

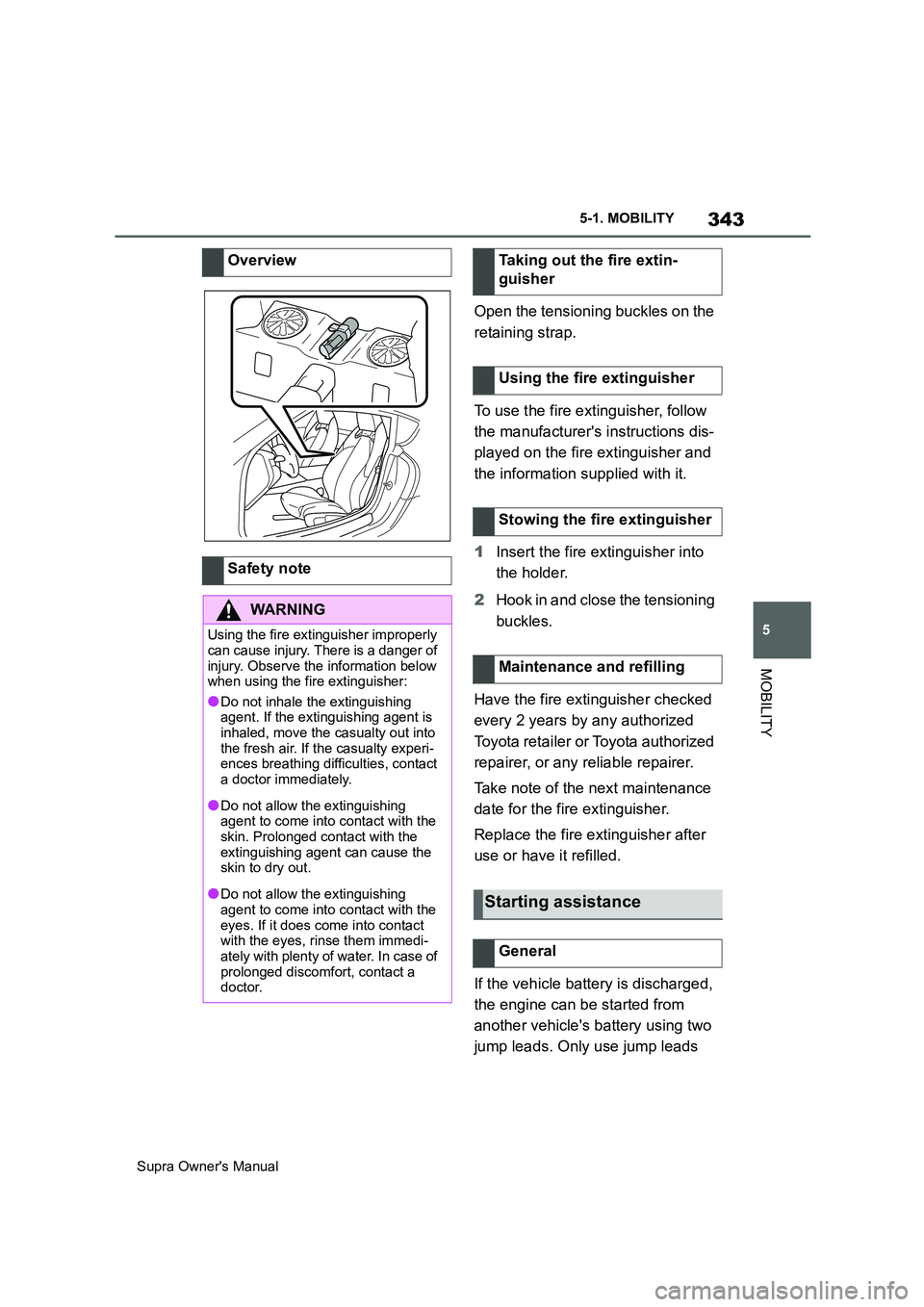

343
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
Open the tensioning buckles on the
retaining strap.
To use the fire extinguisher, follow
the manufacturer's instructions dis-
played on the fire extinguisher and
the information supplied with it.
1Insert the fire extinguisher into
the holder.
2Hook in and close the tensioning
buckles.
Have the fire extinguisher checked
every 2 years by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Take note of the next maintenance
date for the fire extinguisher.
Replace the fire extinguisher after
use or have it refilled.
If the vehicle battery is discharged,
the engine can be started from
another vehicle's battery using two
jump leads. Only use jump leads Overview
Safety note
WARNING
Using the fire extinguisher improperly
can cause injury. There is a danger of
injury. Observe the information below
when using the fire extinguisher:
●Do not inhale the extinguishing
agent. If the extinguishing agent is
inhaled, move the casualty out into
the fresh air. If the casualty experi-
ences breathing difficulties, contact
a doctor immediately.
●Do not allow the extinguishing
agent to come into contact with the
skin. Prolonged contact with the
extinguishing agent can cause the
skin to dry out.
●Do not allow the extinguishing
agent to come into contact with the
eyes. If it does come into contact
with the eyes, rinse them immedi-
ately with plenty of water. In case of
prolonged discomfort, contact a
doctor.
Taking out the fire extin-
guisher
Using the fire extinguisher
Stowing the fire extinguisher
Maintenance and refilling
Starting assistance
General
Page 344 of 456

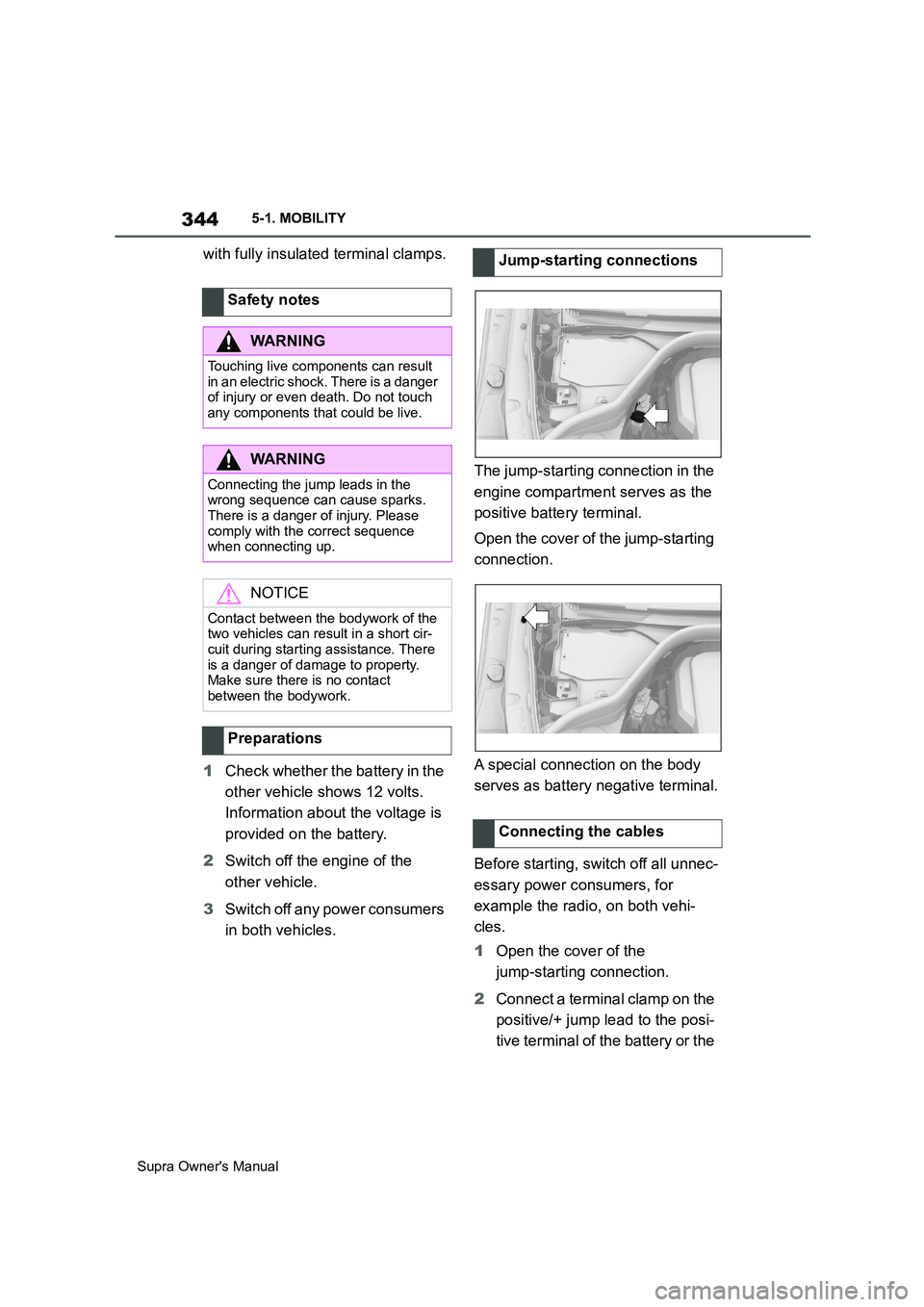

344
Supra Owner's Manual5-1. MOBILITY
with fully insulated terminal clamps.
1Check whether the battery in the
other vehicle shows 12 volts.
Information about the voltage is
provided on the battery.
2Switch off the engine of the
other vehicle.
3Switch off any power consumers
in both vehicles.The jump-starting connection in the
engine compartment serves as the
positive battery terminal.
Open the cover of the jump-starting
connection.
A special connection on the body
serves as battery negative terminal.
Before starting, switch off all unnec-
essary power consumers, for
example the radio, on both vehi-
cles.
1Open the cover of the
jump-starting connection.
2Connect a terminal clamp on the
positive/+ jump lead to the posi-
tive terminal of the battery or the Safety notes
WARNING
Touching live components can result
in an electric shock. There is a danger
of injury or even death. Do not touch
any components that could be live.
WARNING
Connecting the jump leads in the
wrong sequence can cause sparks.
There is a danger of injury. Please
comply with the correct sequence
when connecting up.
NOTICE
Contact between the bodywork of the
two vehicles can result in a short cir-
cuit during starting assistance. There
is a danger of damage to property.
Make sure there is no contact
between the bodywork.
Preparations
Jump-starting connections
Connecting the cables
Page 345 of 456

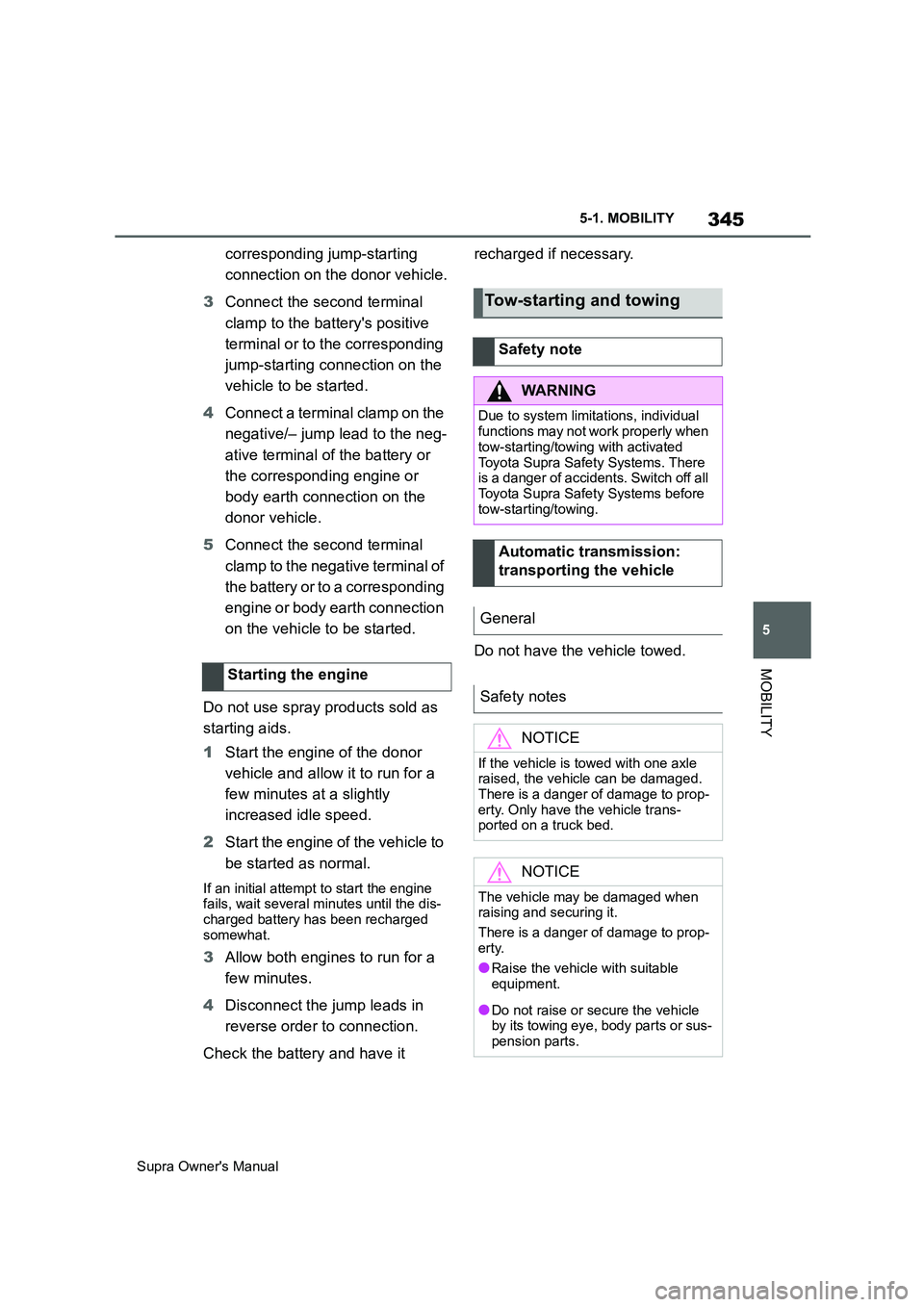

345
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
corresponding jump-starting
connection on the donor vehicle.
3Connect the second terminal
clamp to the battery's positive
terminal or to the corresponding
jump-starting connection on the
vehicle to be started.
4Connect a terminal clamp on the
negative/– jump lead to the neg-
ative terminal of the battery or
the corresponding engine or
body earth connection on the
donor vehicle.
5Connect the second terminal
clamp to the negative terminal of
the battery or to a corresponding
engine or body earth connection
on the vehicle to be started.
Do not use spray products sold as
starting aids.
1Start the engine of the donor
vehicle and allow it to run for a
few minutes at a slightly
increased idle speed.
2Start the engine of the vehicle to
be started as normal.
If an initial attempt to start the engine
fails, wait several minutes until the dis-
charged battery has been recharged
somewhat.
3Allow both engines to run for a
few minutes.
4Disconnect the jump leads in
reverse order to connection.
Check the battery and have it recharged if necessary.
Do not have the vehicle towed.
Starting the engine
Tow-starting and towing
Safety note
WARNING
Due to system limitations, individual
functions may not work properly when
tow-starting/towing with activated
Toyota Supra Safety Systems. There
is a danger of accidents. Switch off all
Toyota Supra Safety Systems before
tow-starting/towing.
Automatic transmission:
transporting the vehicle
General
Safety notes
NOTICE
If the vehicle is towed with one axle
raised, the vehicle can be damaged.
There is a danger of damage to prop-
erty. Only have the vehicle trans-
ported on a truck bed.
NOTICE
The vehicle may be damaged when
raising and securing it.
There is a danger of damage to prop-
erty.
●Raise the vehicle with suitable
equipment.
●Do not raise or secure the vehicle
by its towing eye, body parts or sus-
pension parts.
Page 346 of 456

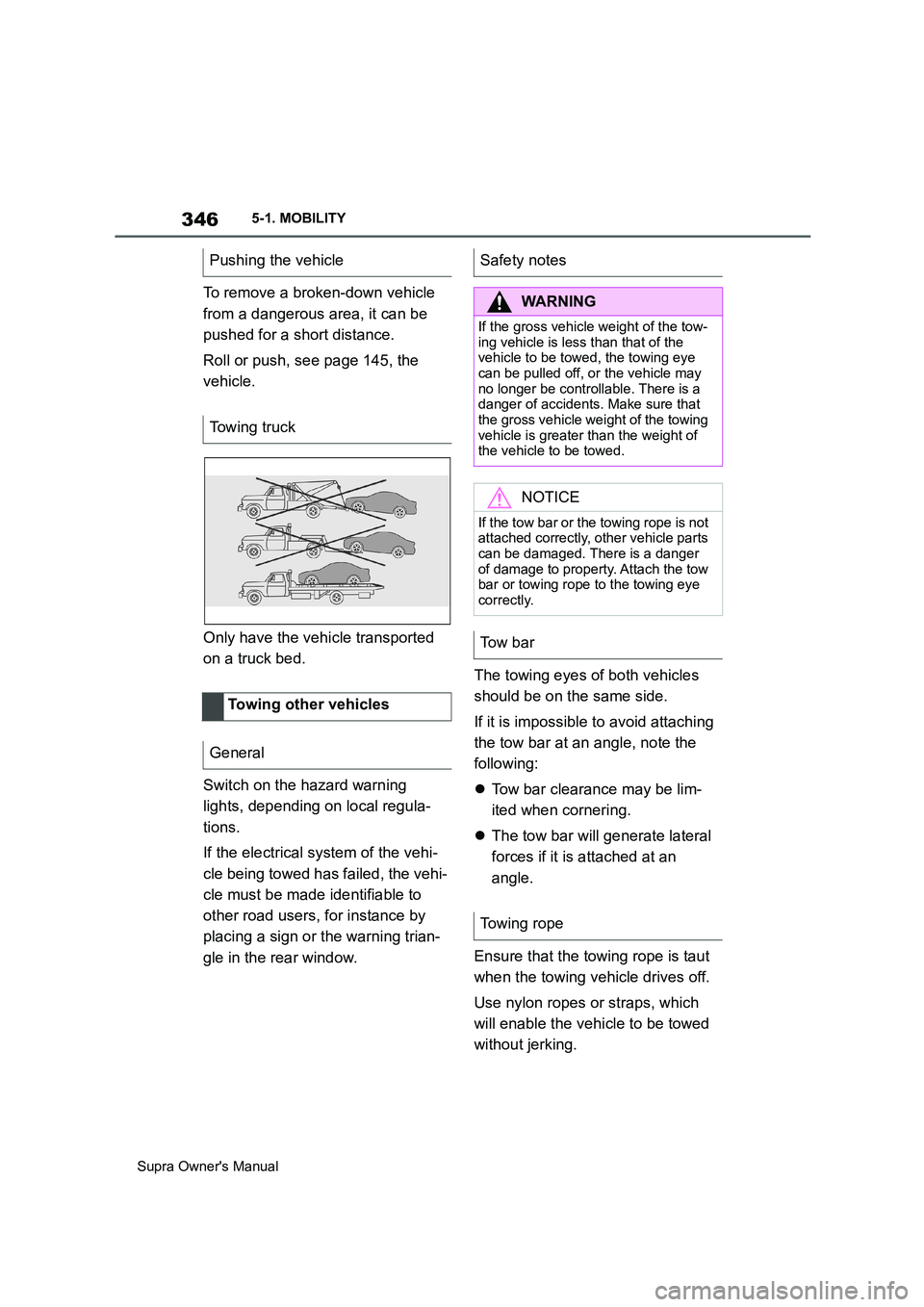

346
Supra Owner's Manual5-1. MOBILITY
To remove a broken-down vehicle
from a dangerous area, it can be
pushed for a short distance.
Roll or push, see page 145, the
vehicle.
Only have the vehicle transported
on a truck bed.
Switch on the hazard warning
lights, depending on local regula-
tions.
If the electrical system of the vehi-
cle being towed has failed, the vehi-
cle must be made identifiable to
other road users, for instance by
placing a sign or the warning trian-
gle in the rear window.The towing eyes of both vehicles
should be on the same side.
If it is impossible to avoid attaching
the tow bar at an angle, note the
following:
Tow bar clearance may be lim-
ited when cornering.
The tow bar will generate lateral
forces if it is attached at an
angle.
Ensure that the towing rope is taut
when the towing vehicle drives off.
Use nylon ropes or straps, which
will enable the vehicle to be towed
without jerking. Pushing the vehicle
Towing truck
Towing other vehicles
General
Safety notes
WARNING
If the gross vehicle weight of the tow-
ing vehicle is less than that of the
vehicle to be towed, the towing eye
can be pulled off, or the vehicle may
no longer be controllable. There is a
danger of accidents. Make sure that
the gross vehicle weight of the towing
vehicle is greater than the weight of
the vehicle to be towed.
NOTICE
If the tow bar or the towing rope is not
attached correctly, other vehicle parts
can be damaged. There is a danger
of damage to property. Attach the tow
bar or towing rope to the towing eye
correctly.
To w b a r
Towing rope
Page 347 of 456

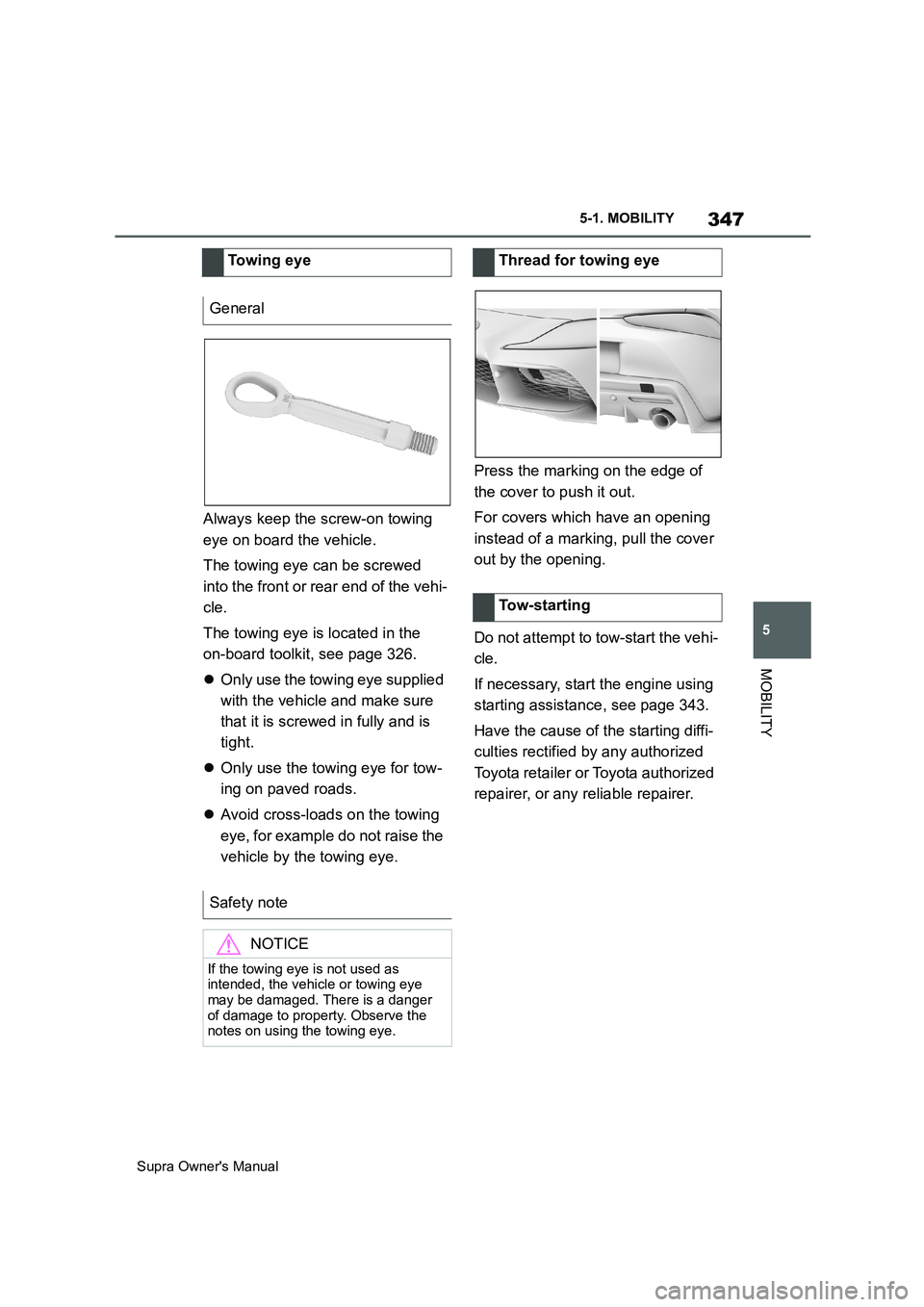

347
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
Always keep the screw-on towing
eye on board the vehicle.
The towing eye can be screwed
into the front or rear end of the vehi-
cle.
The towing eye is located in the
on-board toolkit, see page 326.
Only use the towing eye supplied
with the vehicle and make sure
that it is screwed in fully and is
tight.
Only use the towing eye for tow-
ing on paved roads.
Avoid cross-loads on the towing
eye, for example do not raise the
vehicle by the towing eye.Press the marking on the edge of
the cover to push it out.
For covers which have an opening
instead of a marking, pull the cover
out by the opening.
Do not attempt to tow-start the vehi-
cle.
If necessary, start the engine using
starting assistance, see page 343.
Have the cause of the starting diffi-
culties rectified by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer. Towing eye
General
Safety note
NOTICE
If the towing eye is not used as
intended, the vehicle or towing eye
may be damaged. There is a danger
of damage to property. Observe the
notes on using the towing eye.
Thread for towing eye
Tow-starting
Page 348 of 456

348

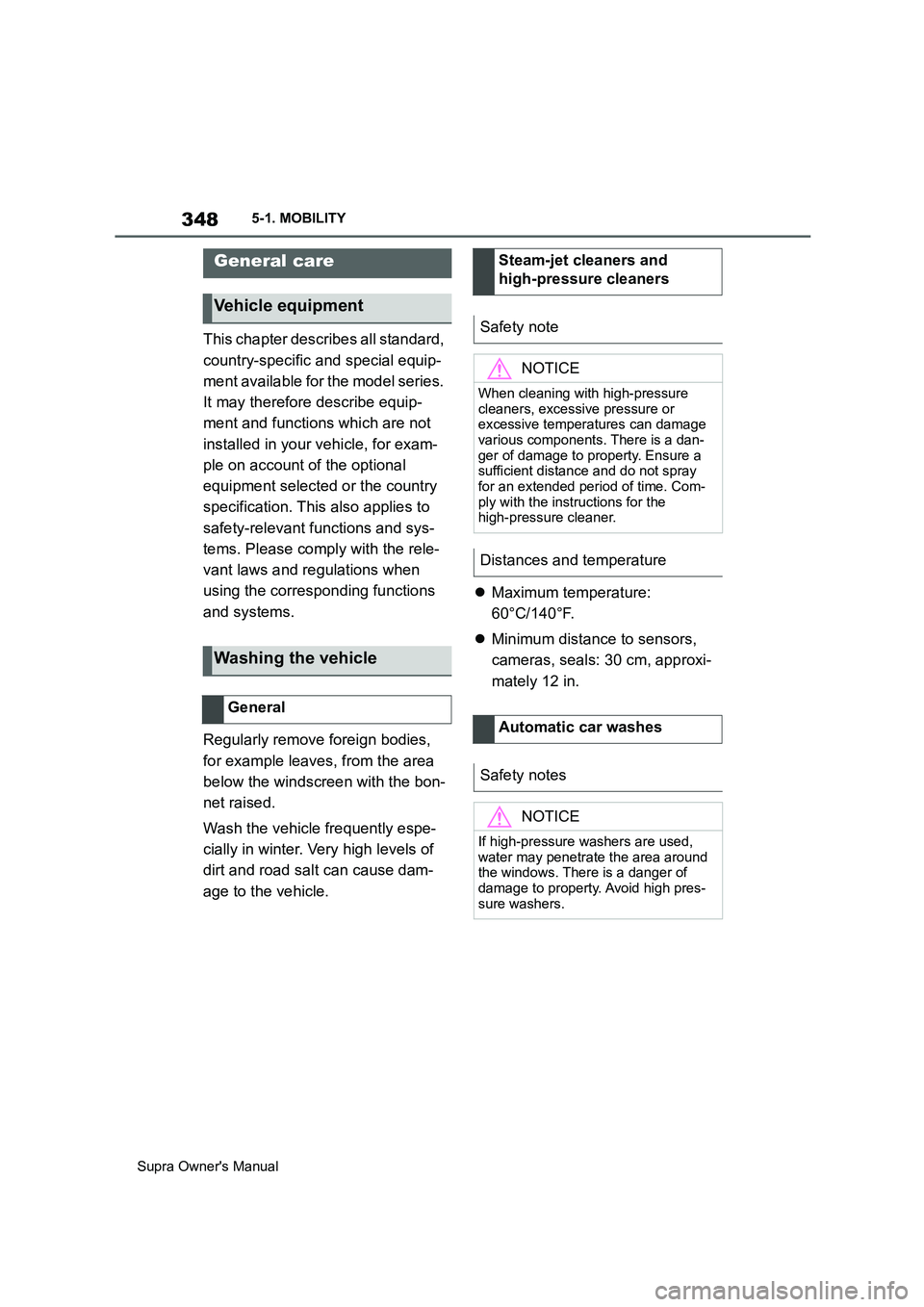

Supra Owner's Manual5-1. MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
Regularly remove foreign bodies,
for example leaves, from the area
below the windscreen with the bon-
net raised.
Wash the vehicle frequently espe-
cially in winter. Very high levels of
dirt and road salt can cause dam-
age to the vehicle.Maximum temperature:
60°C/140°F.
Minimum distance to sensors,
cameras, seals: 30 cm, approxi-
mately 12 in.
General care
Vehicle equipment
Washing the vehicle
General
Steam-jet cleaners and
high-pressure cleaners
Safety note
NOTICE
When cleaning with high-pressure
cleaners, excessive pressure or
excessive temperatures can damage
various components. There is a dan-
ger of damage to property. Ensure a
sufficient distance and do not spray
for an extended period of time. Com-
ply with the instructions for the
high-pressure cleaner.
Distances and temperature
Automatic car washes
Safety notes
NOTICE
If high-pressure washers are used,
water may penetrate the area around
the windows. There is a danger of
damage to property. Avoid high pres-
sure washers.
Page 349 of 456

349
5

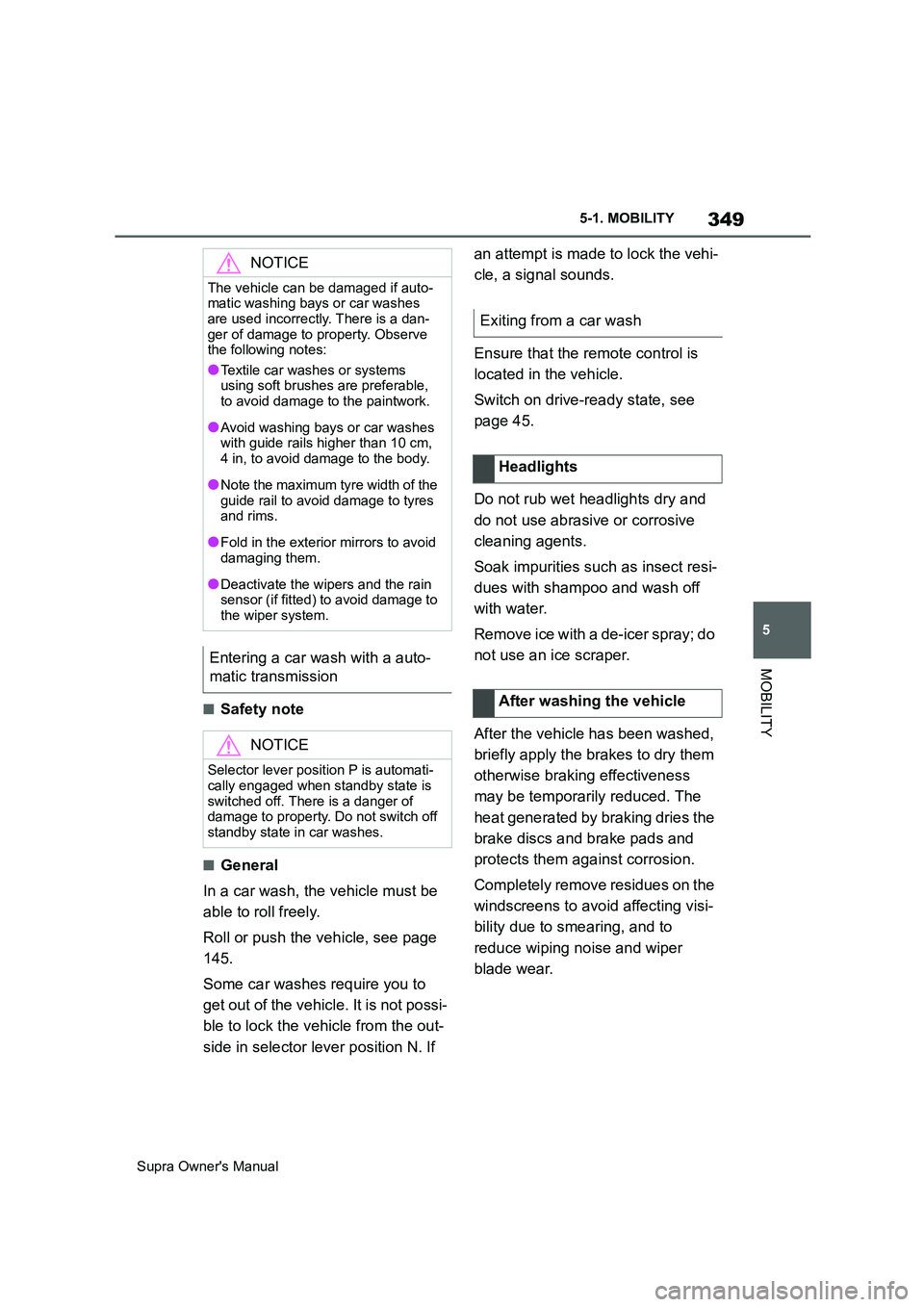

Supra Owner's Manual5-1. MOBILITY
MOBILITY
■Safety note
■General
In a car wash, the vehicle must be
able to roll freely.
Roll or push the vehicle, see page
145.
Some car washes require you to
get out of the vehicle. It is not possi-
ble to lock the vehicle from the out-
side in selector lever position N. If an attempt is made to lock the vehi-
cle, a signal sounds.
Ensure that the remote control is
located in the vehicle.
Switch on drive-ready state, see
page 45.
Do not rub wet headlights dry and
do not use abrasive or corrosive
cleaning agents.
Soak impurities such as insect resi-
dues with shampoo and wash off
with water.
Remove ice with a de-icer spray; do
not use an ice scraper.
After the vehicle has been washed,
briefly apply the brakes to dry them
otherwise braking effectiveness
may be temporarily reduced. The
heat generated by braking dries the
brake discs and brake pads and
protects them against corrosion.
Completely remove residues on the
windscreens to avoid affecting visi-
bility due to smearing, and to
reduce wiping noise and wiper
blade wear.
NOTICE
The vehicle can be damaged if auto-
matic washing bays or car washes
are used incorrectly. There is a dan-
ger of damage to property. Observe
the following notes:
●Textile car washes or systems
using soft brushes are preferable,
to avoid damage to the paintwork.
●Avoid washing bays or car washes
with guide rails higher than 10 cm,
4 in, to avoid damage to the body.
●Note the maximum tyre width of the
guide rail to avoid damage to tyres
and rims.
●Fold in the exterior mirrors to avoid
damaging them.
●Deactivate the wipers and the rain
sensor (if fitted) to avoid damage to
the wiper system.
Entering a car wash with a auto-
matic transmission
NOTICE
Selector lever position P is automati-
cally engaged when standby state is
switched off. There is a danger of
damage to property. Do not switch off
standby state in car washes.
Exiting from a car wash
Headlights
After washing the vehicle
Page 350 of 456

350
Supra Owner's Manual5-1. MOBILITY
Regular care promotes driving
safety and preserves your vehicle's
value. Environmental effects in
areas with high air pollution or natu-
ral contaminants, for example tree
resin or pollen, may have an effect
on the vehicle paintwork. Base the
frequency and extent of vehicle
care on such factors.
Immediately remove aggressive
substances, for example spilled
fuel, oil, grease or bird droppings so
as to prevent damage and discol-
ouration of the paintwork.
Vehicle care
Care products
Safety note
WARNING
Cleaning agents can contain hazard-
ous substances or constitute a health
risk. There is a danger of injury. When
cleaning the interior, open the doors
or windows. Use only products that
are intended for cleaning the vehicle's
interior. Observe the notes on the
packaging.
Vehicle paintwork
General
Safety note
WARNING
Work performed incorrectly on the
vehicle paintwork can cause the radar
sensors to fail or malfunction, result-
ing in a safety risk. There is a danger
of accidents or damage to property.
For vehicles with radar sensors, only
have paintwork or paint repairs on the
bumpers carried out by any author-
ized Toyota retailer or Toyota author-
ized repairer, or any reliable repairer.
NOTICE
■To prevent paint deterioration
and corrosion on the body and
components (aluminum wheels
etc.)
Observe the following precautions:
●Wash the vehicle immediately in the
following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on
the paint surface
• If dead insects, insect droppings or
bird droppings are present on the
paint surface
• After driving in an area contami-
nated with soot, oily smoke, mine
dust, iron powder or chemical sub-
stances
• If the vehicle becomes heavily
soiled with dust or mud
• If liquids such as benzene and gas-
oline are spilled on the paint sur-
face
●If the paint is chipped or scratched,
have it repaired immediately.
