TOYOTA TACOMA 2013 Owners Manual (in English)

301
3-5. Other interior features
3
Interior and exterior features
■
Training a Rolling Code system (for U.S. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Training the HomeLink
®” before proceeding with the
steps listed below.
Locate the learn button on t he ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the learning button.
Press the learning button.
Following this step, you have 30 seconds in which to initiate step 3
below.
Press and hold the vehicle’s trained HomeLink® button for 2
seconds and release it. Repeat this step once again. The
garage door may open.
If the garage door opens, the training process is complete. If the
door does not open, press and release the button a third time. This
third press and release will complete the training process by opening
the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink
® transceiver and operate the garage door.
Repeat the steps a bove to train another rolling code system
for any of the remaining HomeLink® buttons.

302 3-5. Other interior features
■Training an entry gate (for U.S. owners)/Training a device in
the Canadian market
Place the remote control transmitter 1 to 3 in. (25 to 75 mm)
away from the HomeLink
® buttons
Keep the HomeLink® indicator light in view while training.
Press and hold the selected HomeLink® button.
Repeatedly press and release (c ycle) one of the buttons on
the remote control transmitter for 2 seconds at a time until is completed.
When the HomeLink
® indicator light starts to flash rapidly,
release the buttons on the HomeLink®.
Test the HomeLink
® operation by pressing the newly trained
button. Check to see if the gate/device operates correctly.
Repeat the steps above to train another device for any of the
remaining HomeLink
® buttons.
■ Training other devices
To train other devices such as home security systems, home door
locks and lighting, contact your Toyota dealer for assistance.
■ Retraining a button
The individual HomeLink
® buttons cannot be erased but can be
retrained. To retrain a button, follow the “Retraining a HomeLink®
button” instructions.

303
3-5. Other interior features
3
Interior and exterior features
Operating HomeLink®
Press the appropriate HomeLink® button. The HomeLink® indicator
light should come on.
The HomeLink® compatible transceiver in your vehicle continues to send
a signal for up to 20 seconds as long as the button is pressed.
Retraining a HomeLink® button
Press and hold the desired HomeLink
® button. After 20 seconds, the
HomeLink® indicator light will start flas hing slowly. Keep pressing the
HomeLink® button and then follow the “Training the HomeLink® (for
U.S. owners)” instructions. ( P. 298)
Erasing the entire HomeLink® memory (all three programs)
Press and hold down the 2 out-
side buttons for 10 seconds until
the indicator flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
® memory.

304 3-5. Other interior features
■Before training
●Install a new battery in the remote control transmitter.
● The battery side of the remote control transmitter must be pointed away
from the HomeLink
® button.
■ Certification for the garage door opener
For vehicles sold in the U.S.A.
FCC ID: NZLGHSHL4
NOTE:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any inter-
ference received, including interference that may cause undesired opera-
tion.
FCC WARNING:
Changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user’s authority to operate the equip-
ment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.

305
3-5. Other interior features
3
Interior and exterior features
■
If the following message is displayed
This message appears when training procedures have not been performed
correctly. Follow the instructions on the screen to complete or cancel train-
ing.
Pattern A
Pattern B
■ When support is necessary
Visit on the web at www.homelink.com
or call 1-800-355-3515.

306 3-5. Other interior features
CAUTION
■When training a garage door or other remote control devices
The garage door or other devices may operate, so ensure people and
objects are out of danger to prevent potential harm.
■ Conforming to federal safety standards
Do not use the HomeLink
® compatible transceiver with any garage door
opener or device that lacks safety stop and reverse features as required by
federal safety standards.
This includes any garage door that cannot detect an interfering object. A
door or device without these features increases the risk of death or serious
injury.

307
3-5. Other interior features
3
Interior and exterior features

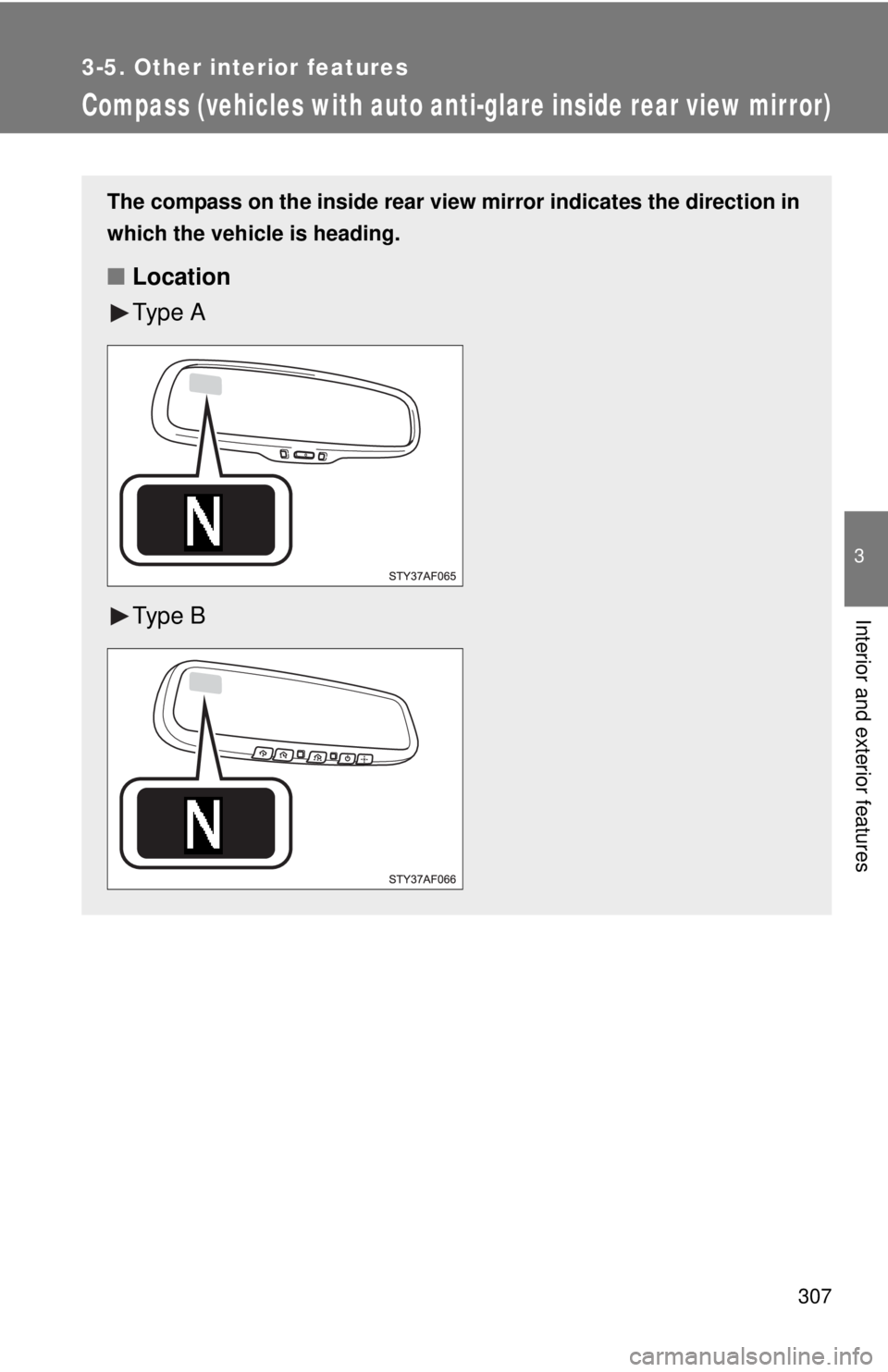

Compass (vehicles with auto anti-glare inside rear view mirror)
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■ Location
Ty p e A
Ty p e B

308 3-5. Other interior features

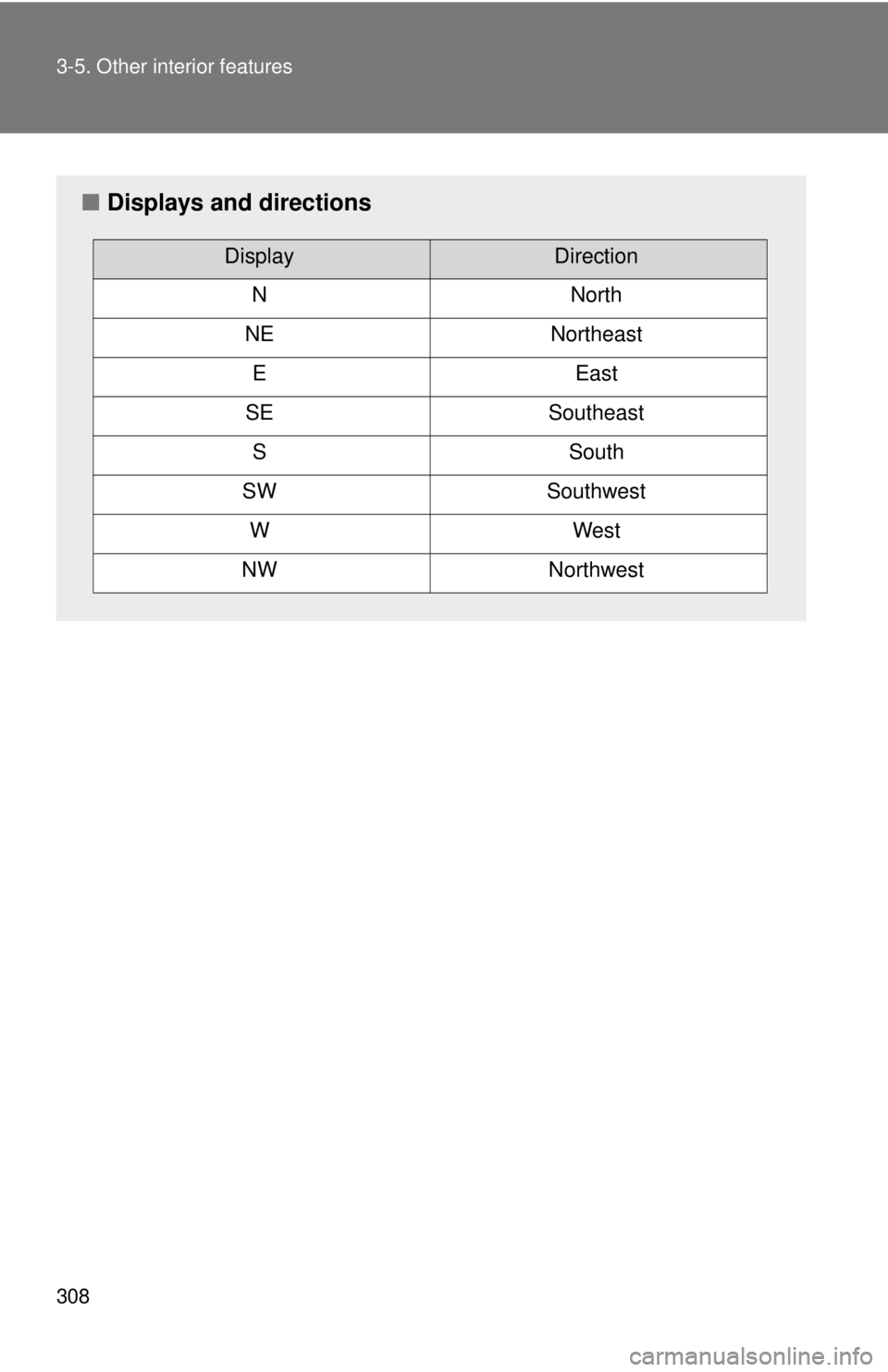

■Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWest
NWNorthwest

309
3-5. Other interior features
3
Interior and exterior features
Calibrating the compass
The direction display deviates fr om the true direction determined by
the earth’s magnetic field. The amount of deviation varies depending
on the geographic position of the vehicle.
If you cross over one of the map boundaries shown in the illustration, the
compass will deviate.
To obtain higher precision or perfect calibration, refer to “Deviation
calibration”.
Turning the compass display on/off
The compass display on the inside rear view mirror can be turned
on/off and the country and region settings can be changed. Type A: Press and hold to display “Custom Settings Menu”.
Type B: Press to display “Custom Settings Menu”.

310 3-5. Other interior features
Type A: Press and select“Compass”, then press
and hold .
Type B: Press and select “Compass”, then press
.
Type A: Press and select “Compass Display”.
Type B: Press and select “Compass Display”.
Type A: Press and hold and select display on/off.
Type B: Press and select display on/off.
To leave the “Compass Settings Menu”, select “Back to main
menu” to return to the starting screen, then either select “Exit”
or wait several seconds wi thout pressing any buttons.
Deviation calibration
Stop the vehicle.
Type A: Press and hold to display “Custom Settings Menu”.
Type B: Press to display “Custom Settings Menu”.
Type A: Press and select“Compass”, then press
and hold .
Type B: Press and select “Compass”, then press.
