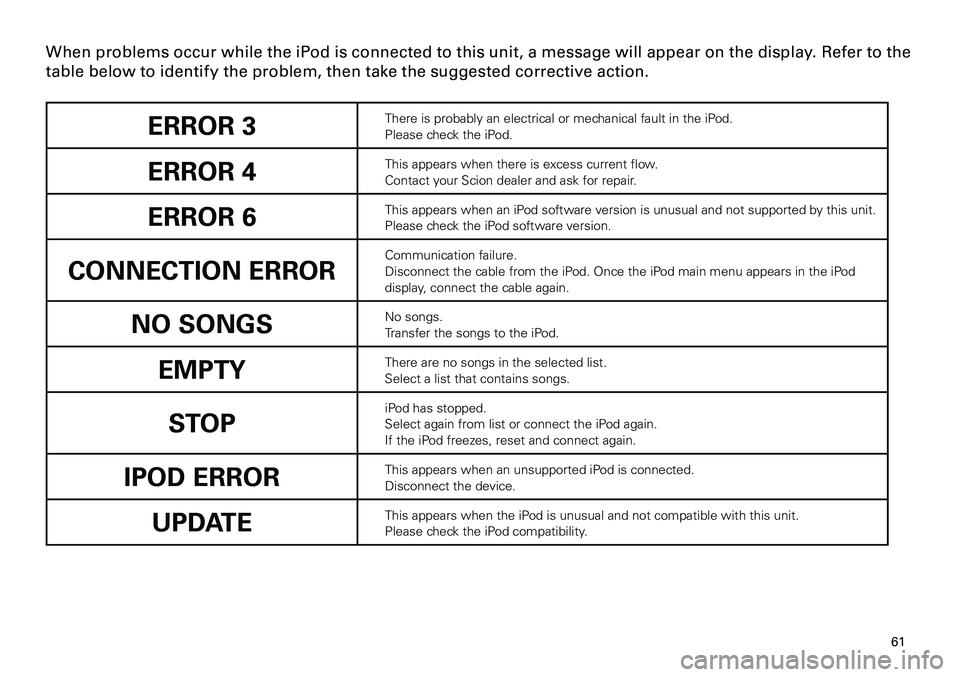

When problems occur while the iPod is connected to this unit, a message will appear on the display. Refer to the
table below to identif y the problem, then take the suggested corrective action.
ERROR 3There is probably an electrical or mechanical fault in the iPod.Please check the iPod.
ERROR 4This appears when there is excess current flow.Contact your Scion dealer and ask for repair.
ERROR 6This appears when an iPod software version is unusual and not supported by this unit.Please check the iPod software version.
CONNECTION ERROR
Communication failure.Disconnect the cable from the iPod. Once the iPod main menu appears in the iPod display, connect the cable again.
NO SONGSNo songs.Transfer the songs to the iPod.
EMPTYThere are no songs in the selected list.Select a list that contains songs.
STOP
iPod has stopped.Select again from list or connect the iPod again.If the iPod freezes, reset and connect again.
IPOD ERRORThis appears when an unsupported iPod is connected.Disconnect the device.
UPDATEThis appears when the iPod is unusual and not compatible with this unit.Please check the iPod compatibility.

6
6

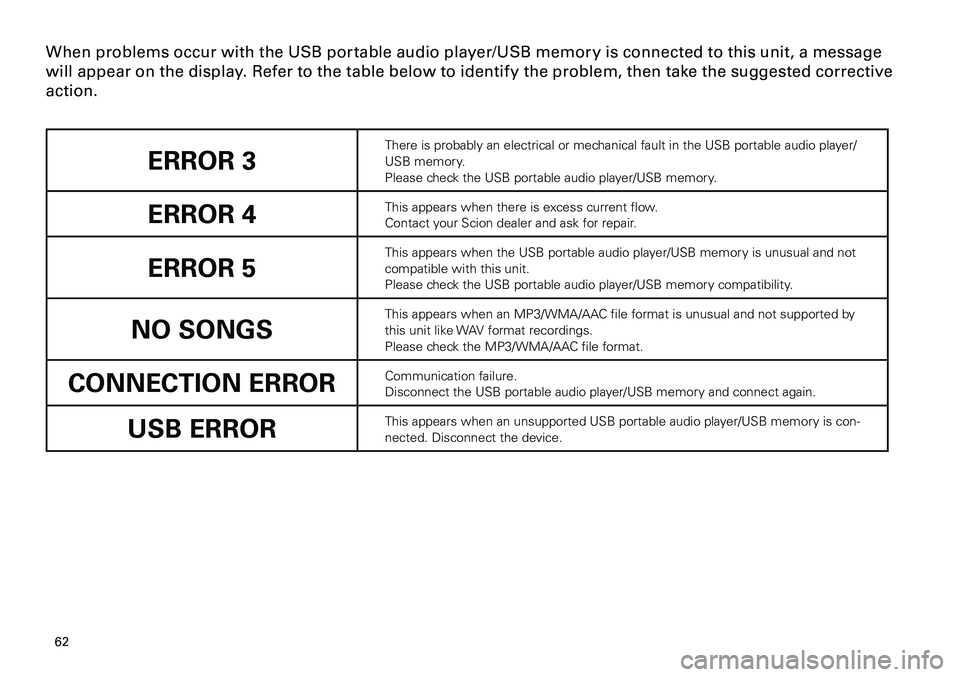

When problems occur with the USB portable audio player/USB memory is connected to this unit, a message
will appear on the display. Refer to the table below to identif y the problem, then take the suggested corrective
action.
ERROR 3
There is probably an electrical or mechanical fault in the USB portable audio player/USB memory.Please check the USB portable audio player/USB memory.
ERROR 4This appears when there is excess current flow.Contact your Scion dealer and ask for repair.
ERROR 5
This appears when the USB portable audio player/USB memory is unusual and not compatible with this unit.Please check the USB portable audio player/USB memory compatibility.
NO SONGS
This appears when an MP3/WMA/AAC file format is unusual and not supported by this unit like WAV format recordings.Please check the MP3/WMA/AAC file format.
CONNECTION ERRORCommunication failure.Disconnect the USB portable audio player/USB memory and connect again.
USB ERRORThis appears when an unsupported USB portable audio player/USB memory is con-nected. Disconnect the device.

63
63

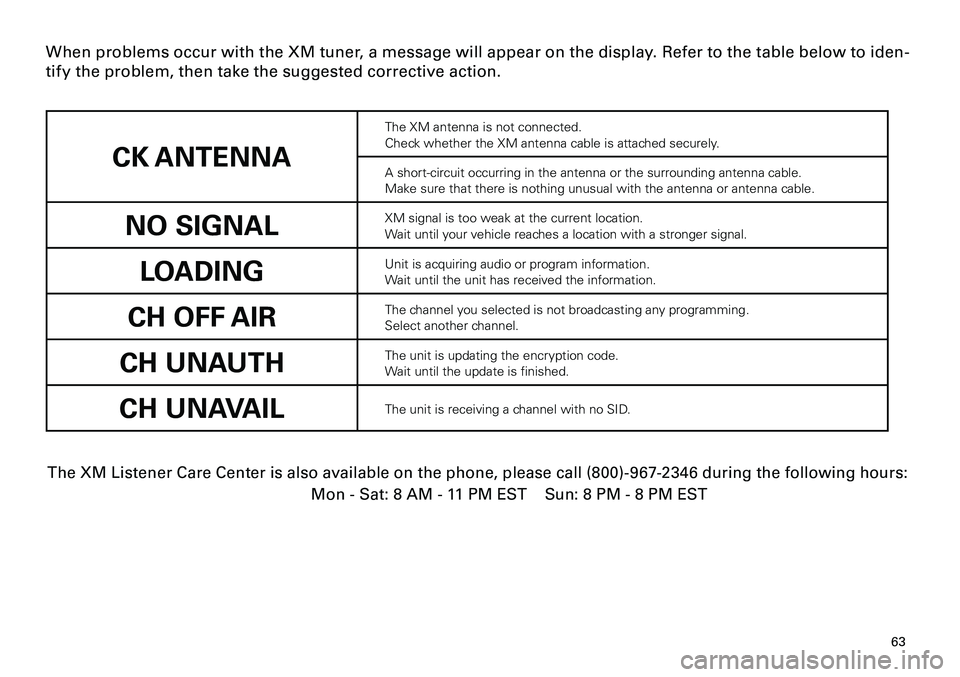

When problems occur with the XM tuner, a message will appear on the display. Refer to the table below to iden-
tif y the problem, then take the suggested corrective action.
The XM Listener Care Center is also available on the phone, please call (800)-967-346 during the following hours:
Mon - Sat: 8 AM - 11 PM EST Sun: 8 PM - 8 PM EST
CK ANTENNA
The XM antenna is not connected.Check whether the XM antenna cable is attached securely.
A short-circuit occurring in the antenna or the surrounding antenna cable.Make sure that there is nothing unusual with the antenna or antenna cable.
NO SIGNALXM signal is too weak at the current location.Wait until your vehicle reaches a location with a stronger signal.
LOADINGUnit is acquiring audio or program information.Wait until the unit has received the information.
CH OFF AIRThe channel you selected is not broadcasting any programming.Select another channel.
CH UNAUTHThe unit is updating the encryption code.Wait until the update is finished.
CH UNAVAILThe unit is receiving a channel with no SID.

64
64

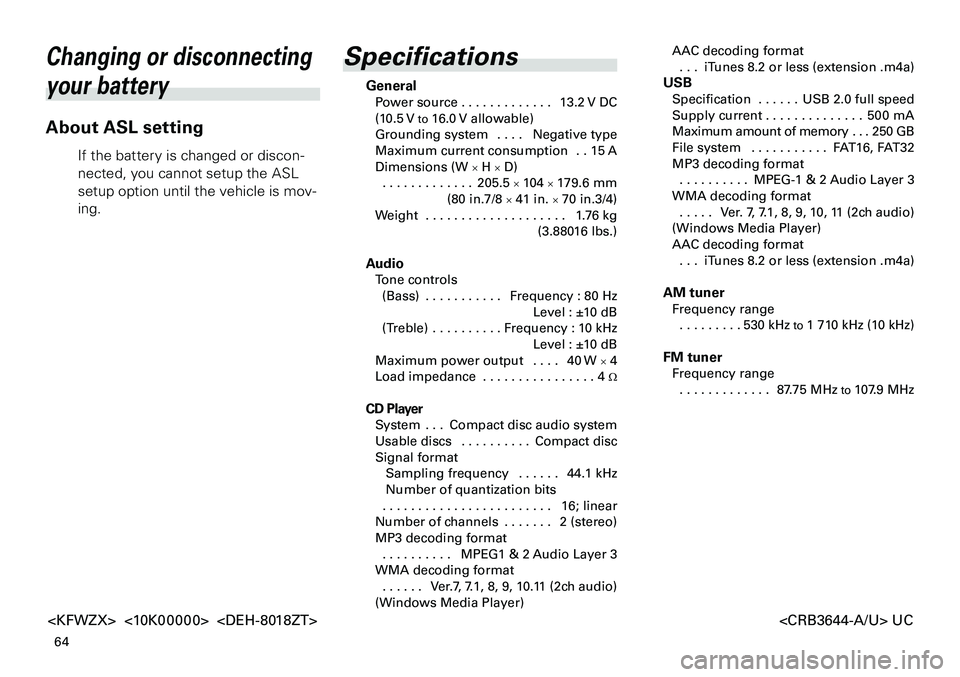

Changing or disconnecting
your battery
About ASL setting
If the battery is changed or discon-
nected, you cannot setup the ASL
setup option until the vehicle is mov-
ing.
Specifications
GeneralPower source . . . . . . . . . . . . . 13. V DC (10.5 V to 16.0 V allowable)Grounding system . . . . Negative typeMaximum current consumption . . 15 ADimensions (W × H × D) . . . . . . . . . . . . . 05.5 × 104 × 179.6 mm
(80 in.7/8 × 41 in. × 70 in.3/4)Weight . . . . . . . . . . . . . . . . . . . . 1.76 kg
(3.88016 lbs.)
AudioTone controls (Bass) . . . . . . . . . . . Frequency : 80 HzLevel : ±10 dB (Treble) . . . . . . . . . . Frequency : 10 kHzLevel : ±10 dBMaximum power output . . . . 40 W × 4Load impedance . . . . . . . . . . . . . . . . 4 Ω
CD PlayerSystem . . . Compact disc audio systemUsable discs . . . . . . . . . . Compact discSignal format
Sampling frequency . . . . . . 44.1 kHz Number of quantization bits . . . . . . . . . . . . . . . . . . . . . . . . 16; linearNumber of channels . . . . . . .  (stereo)MP3 decoding format . . . . . . . . . . MPEG1 &  Audio Layer 3WMA decoding format . . . . . . Ver.7, 7.1, 8, 9, 10.11 (ch audio)(Windows Media Player)
AAC decoding format . . . iTunes 8. or less (extension .m4a)USBSpecification . . . . . . USB .0 full speedSupply current . . . . . . . . . . . . . . 500 mAMaximum amount of memory . . .  50 GBFile system . . . . . . . . . . . FAT16, FAT3MP3 decoding format . . . . . . . . . . MPEG-1 &  Audio Layer 3WMA decoding format . . . . . Ver. 7, 7.1, 8, 9, 10, 11 (ch audio)(Windows Media Player)AAC decoding format
. . . iTunes 8. or less (extension .m4a)
AM tunerFrequency range . . . . . . . . .530 kHz to 1 710 kHz (10 kHz)
FM tunerFrequency range . . . . . . . . . . . . . 87.75 MHz to 107.9 MHz
