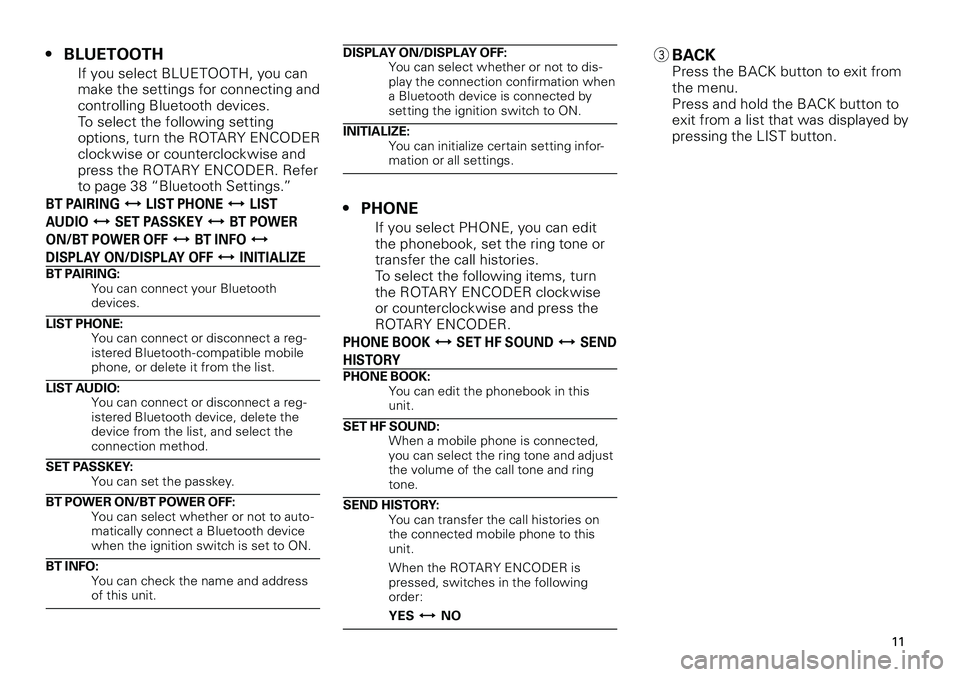

BLUETOOTH
If you select BLUETOOTH, you can make the settings for connecting and controlling Bluetooth devices.To select the following setting options, turn the ROTARY ENCODER clockwise or counterclockwise and press the ROTARY ENCODER. Refer to page 38 “Bluetooth Settings.”
BT PAIRING  LIST PHONE  LIST
AUDIO  SET PASSKEY  BT POWER
ON/BT POWER OFF  BT INFO 
DISPLAY ON/DISPLAY OFF  INITIALIZE
BT PAIRING:You can connect your Bluetooth devices.
LIST PHONE:You can connect or disconnect a reg-istered Bluetooth- compatible mobile phone, or delete it from the list.
LIST AUDIO:You can connect or disconnect a reg-istered Bluetooth device, delete the device from the list, and select the connection method.
SET PASSKEY:You can set the passkey.
BT POWER ON/BT POWER OFF:You can select whether or not to auto-matically connect a Bluetooth device when the ignition switch is set to ON.
BT INFO:You can check the name and address of this unit.
•DISPLAY ON/DISPLAY OFF:You can select whether or not to dis-play the connection confirmation when a Bluetooth device is connected by setting the ignition switch to ON.
INITIALIZE:You can initialize certain setting infor-mation or all settings.
PHONE
If you select PHONE, you can edit the phonebook, set the ring tone or transfer the call histories.To select the following items, turn the ROTARY ENCODER clockwise or counterclockwise and press the ROTARY ENCODER.
PHONE BOOK  SET HF SOUND  SEND
HISTORYPHONE BOOK:You can edit the phonebook in this unit.
SET HF SOUND:When a mobile phone is connected, you can select the ring tone and adjust the volume of the call tone and ring tone.
SEND HISTORY:You can transfer the call histories on the connected mobile phone to this unit.
When the ROTARY ENCODER is pressed, switches in the following order:
YES  NO
•
3 BACKPress the BACK button to exit from the menu.Press and hold the BACK button to exit from a list that was displayed by pressing the LIST button.

1
1

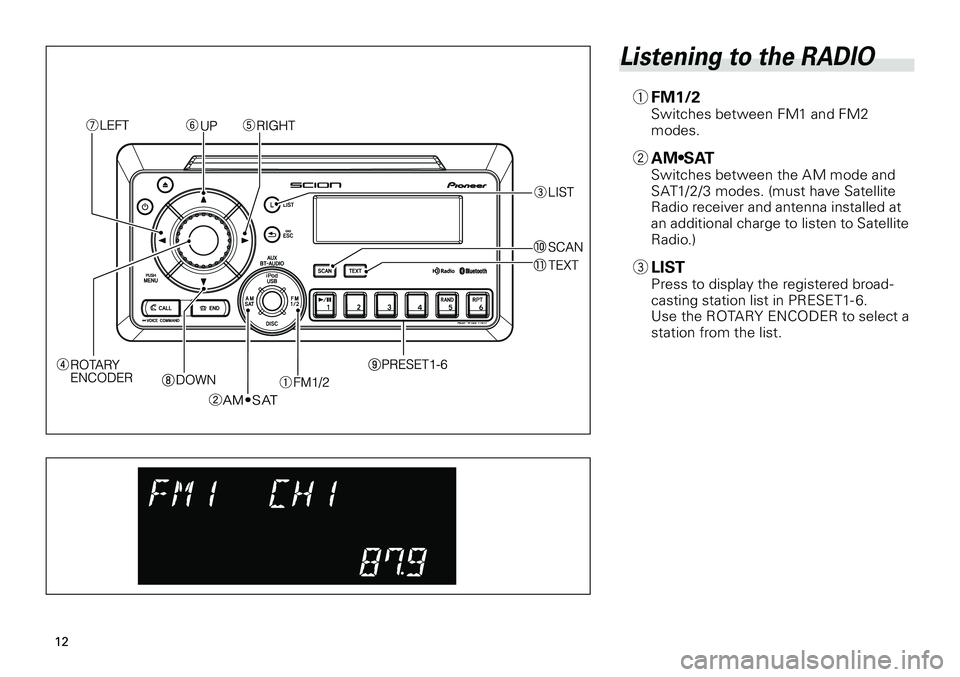

Listening to the RADIO
1 FM1/2Switches between FM1 and FM2 modes.
2 AM•SATSwitches between the AM mode and SAT1/2/3 modes. (must have Satellite Radio receiver and antenna installed at an additional charge to listen to Satellite Radio.)
3 LISTPress to display the registered broad-casting station list in PRESET1- 6.Use the ROTARY ENCODER to select a station from the list.

13
13

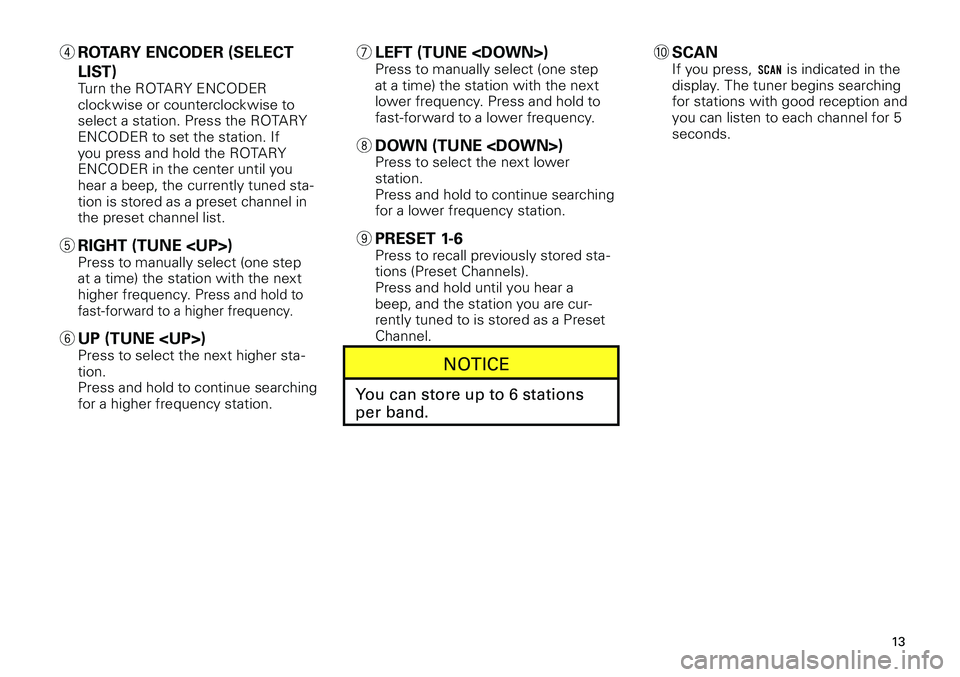

4 ROTARY ENCODER (SELECT
LIST)Turn the ROTARY ENCODER clockwise or counterclockwise to select a station. Press the ROTARY ENCODER to set the station. If you press and hold the ROTARY ENCODER in the center until you hear a beep, the currently tuned sta-tion is stored as a preset channel in the preset channel list.
5 RIGHT (TUNE )Press to manually select (one step at a time) the station with the next higher frequency. Press and hold to fast-forward to a higher frequency.
6 UP (TUNE )Press to select the next higher sta-tion.Press and hold to continue searching for a higher frequency station.
7 LEFT (TUNE )Press to manually select (one step at a time) the station with the next lower frequency. Press and hold to fast-forward to a lower frequency.
8 DOWN (TUNE )Press to select the next lower station.Press and hold to continue searching for a lower frequency station.
9 PRESET 1-6Press to recall previously stored sta-tions (Preset Channels).Press and hold until you hear a beep, and the station you are cur-rently tuned to is stored as a Preset Channel.
NOTICE
You can store up to 6 stations
per band.
a SCANIf you press, is indicated in the display. The tuner begins searching for stations with good reception and you can listen to each channel for 5 seconds.

14
14

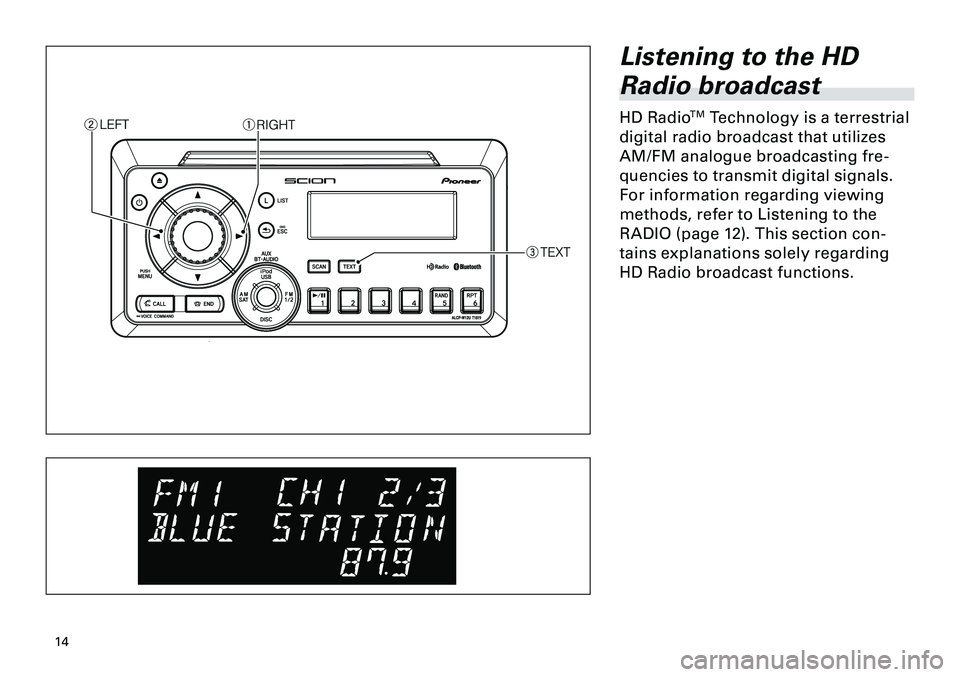

Listening to the HD
Radio broadcast
HD RadioTM Technology is a terrestrial
digital radio broadcast that utilizes
AM/FM analogue broadcasting fre-
quencies to transmit digital signals.
For information regarding viewing
methods, refer to Listening to the
RADIO (page 1). This section con
-
tains explanations solely regarding
HD Radio broadcast functions.

15
15

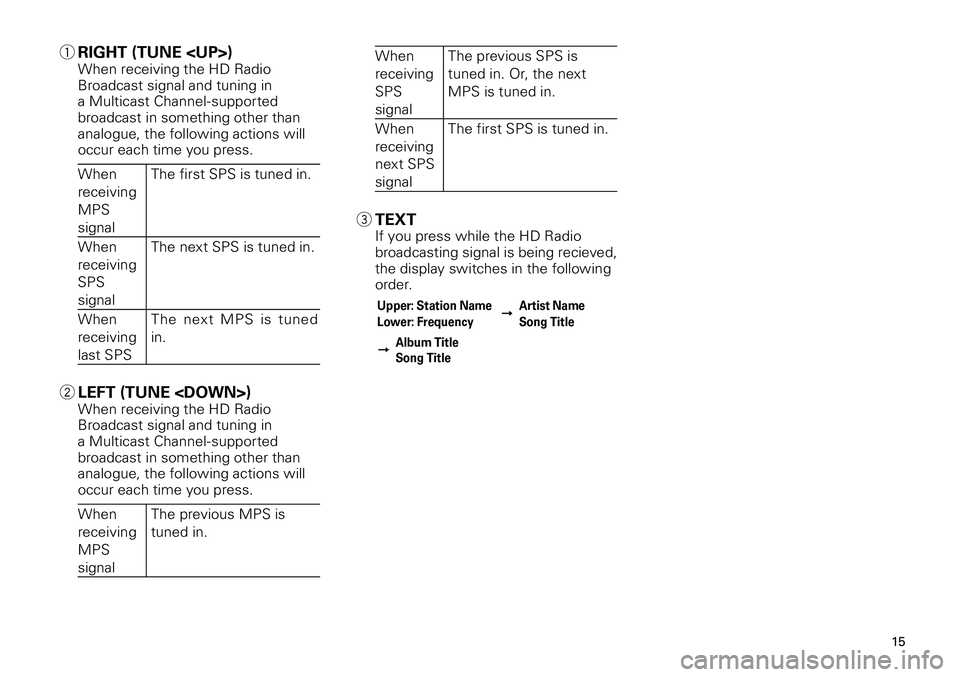

1 RIGHT (TUNE )When receiving the HD Radio Broadcast signal and tuning in a Multicast Channel-supported broadcast in something other than analogue, the following actions will occur each time you press.
When
receiving
MPS
signal
The first SPS is tuned in.
When
receiving
SPS
signal
The next SPS is tuned in.
When
receiving
last SPS
T he nex t MP S is tuned
in.
2 LEFT (TUNE )When receiving the HD Radio Broadcast signal and tuning in a Multicast Channel-supported broadcast in something other than analogue, the following actions will occur each time you press.
When
receiving
MPS
signal
The previous MPS is
tuned in.
When
receiving
SPS
signal
The previous SPS is
tuned in. Or, the next
MPS is tuned in.
When
receiving
next SPS
signal
The first SPS is tuned in.
3 TEXTIf you press while the HD Radio broadcasting signal is being recieved, the display switches in the following order.
Upper: Station NameLower: FrequencyArtist Name Song Title
Album TitleSong Title

16
16

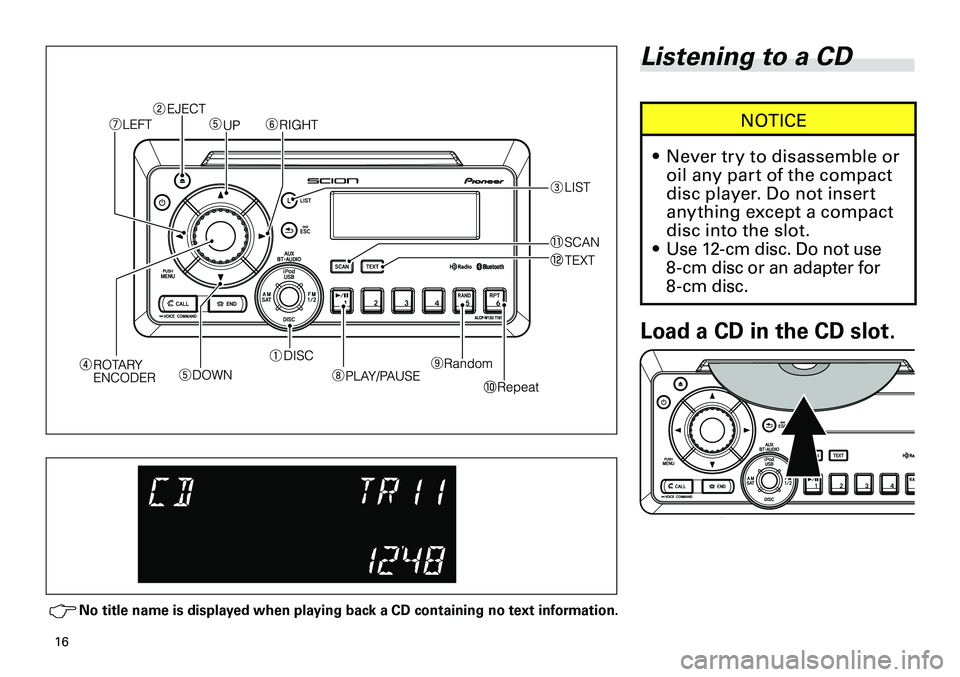

.No title name is displayed when playing back a CD containing no te xt information.
Listening to a CD
NOTICE
Never try to disassemble or
oil any part of the compact
disc player. Do not insert
anything except a compact
disc into the slot.
Use 1 -cm disc. Do not use
8-cm disc or an adapter for
8-cm disc.
•
•
Load a CD in the CD slot.

17
17

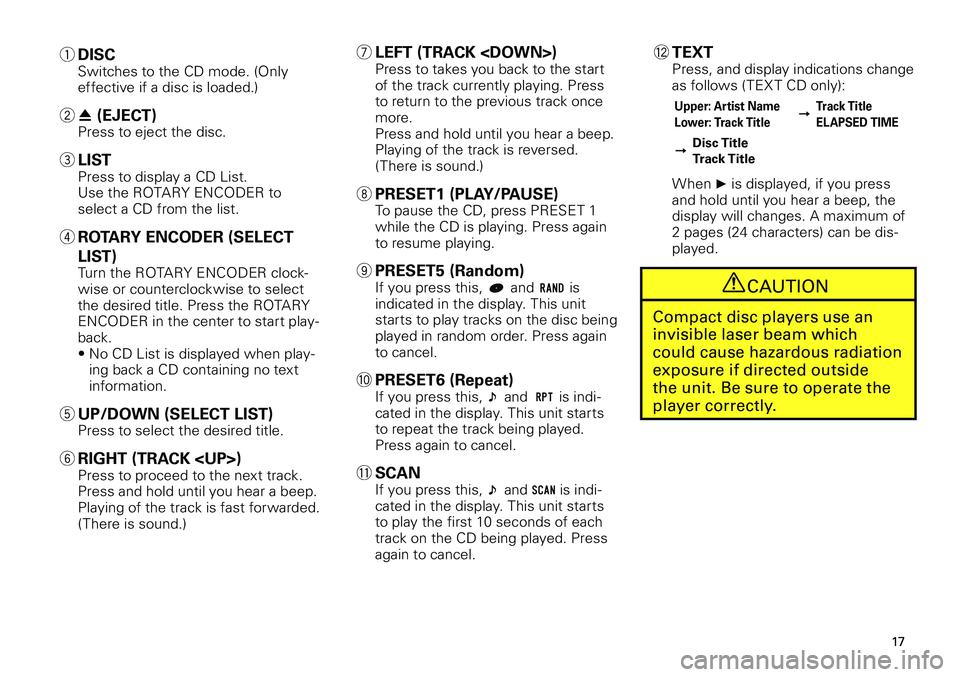

1 DISCSwitches to the CD mode. (Only effective if a disc is loaded.)
2 h (EJECT)Press to eject the disc.
3 LISTPress to display a CD List.Use the ROTARY ENCODER to select a CD from the list.
4 ROTARY ENCODER (SELECT
LIST)Turn the ROTARY ENCODER clock-wise or counterclockwise to select the desired title. Press the ROTARY ENCODER in the center to start play-back.
• No CD List is displayed when play-ing back a CD containing no text information.
5 UP/DOWN (SELECT LIST)Press to select the desired title.
6 RIGHT (TRACK )Press to proceed to the next track. Press and hold until you hear a beep. Playing of the track is fast forwarded. ( There is sound.)
7 LEFT (TRACK )Press to takes you back to the start of the track currently playing. Press to return to the previous track once more.Press and hold until you hear a beep. Playing of the track is reversed. ( There is sound.)
8 PRESET1 (PLAY/PAUSE)To pause the CD, press PRESET 1 while the CD is playing. Press again to resume playing.
9 PRESET5 (Random)If you press this, and is indicated in the display. This unit starts to play tracks on the disc being played in random order. Press again to cancel.
a PRESET6 (Repeat)If you press this, and is indi-cated in the display. This unit starts to repeat the track being played. Press again to cancel.
b SCANIf you press this, and is indi-cated in the display. This unit starts to play the first 10 seconds of each track on the CD being played. Press again to cancel.
c TEXTPress, and display indications change as follows ( TEX T CD only):
Upper: Artist NameLower: Track Title Track TitleELAPSED TIME
Disc Title Track Title
When d is displayed, if you press and hold until you hear a beep, the display will changes. A maximum of 2 pages (24 characters) can be dis-played.
CAUTION
Compact disc players use an
invisible laser beam which
could cause hazardous radiation
exposure if directed outside
the unit. Be sure to operate the
player correctly.

18
18

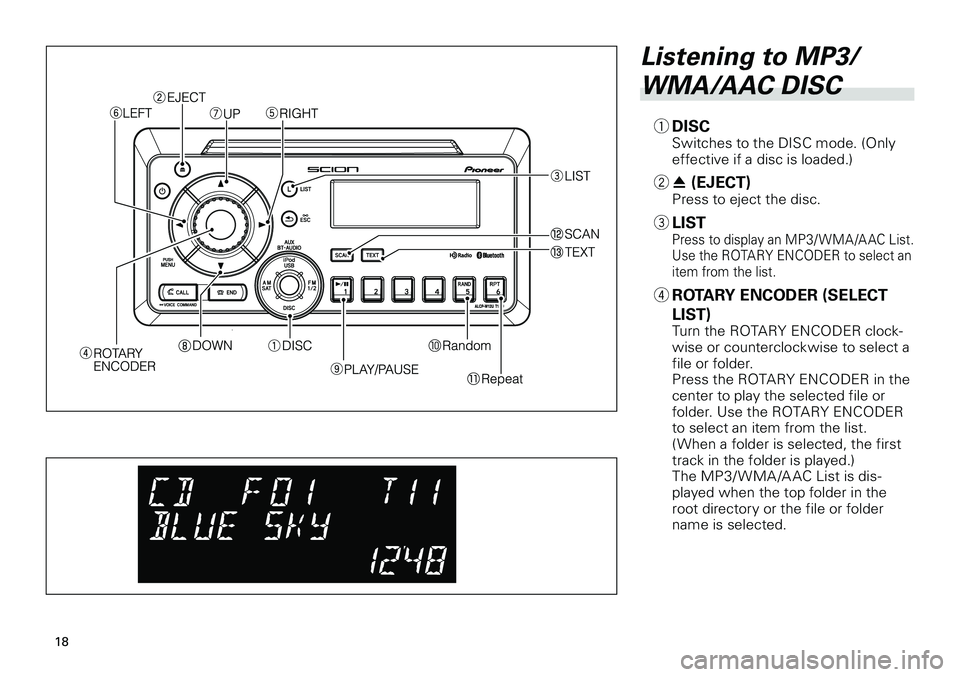

Listening to MP3/
WMA/AAC DISC
1 DISCSwitches to the DISC mode. (Only effective if a disc is loaded.)
2 h (EJECT)Press to eject the disc.
3 LISTPress to display an MP3/ WMA /A AC List.Use the ROTARY ENCODER to select an item from the list.
4 ROTARY ENCODER (SELECT
LIST)Turn the ROTARY ENCODER clock-wise or counterclockwise to select a file or folder. Press the ROTARY ENCODER in the center to play the selected file or folder. Use the ROTARY ENCODER to select an item from the list. ( When a folder is selected, the first track in the folder is played.)
The MP3/ WMA /A AC List is dis-played when the top folder in the root directory or the file or folder name is selected.

19
19

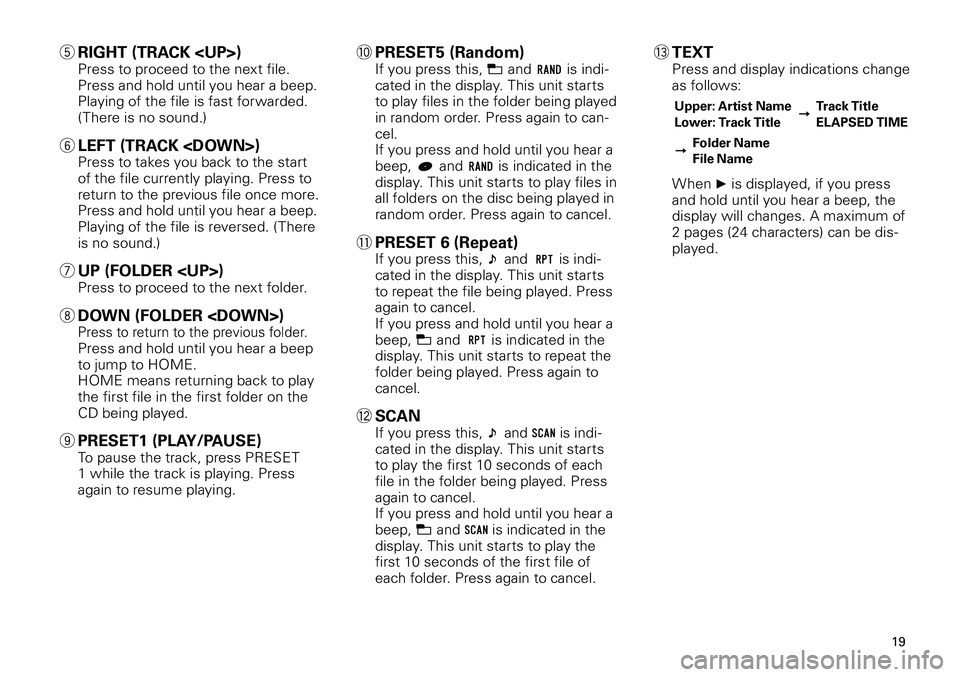

5 RIGHT (TRACK )Press to proceed to the next file. Press and hold until you hear a beep. Playing of the file is fast forwarded. ( There is no sound.)
6 LEFT (TRACK )Press to takes you back to the start of the file currently playing. Press to return to the previous file once more. Press and hold until you hear a beep. Playing of the file is reversed. ( There is no sound.)
7 UP (FOLDER )Press to proceed to the next folder.
8 DOWN (FOLDER )Press to return to the previous folder. Press and hold until you hear a beep to jump to HOME. HOME means returning back to play the first file in the first folder on the CD being played.
9 PRESET1 (PLAY/PAUSE)To pause the track, press PRESET
1 while the track is playing. Press again to resume playing.
a PRESET5 (Random)If you press this, and is indi-cated in the display. This unit starts to play files in the folder being played in random order. Press again to can-cel.If you press and hold until you hear a beep, and is indicated in the display. This unit starts to play files in all folders on the disc being played in random order. Press again to cancel.
b PRESET 6 (Repeat)If you press this, and is indi-
cated in the display. This unit starts to repeat the file being played. Press again to cancel.If you press and hold until you hear a beep, and is indicated in the display. This unit starts to repeat the folder being played. Press again to cancel.
c SCANIf you press this, and is indi-cated in the display. This unit starts to play the first 10 seconds of each file in the folder being played. Press again to cancel.If you press and hold until you hear a beep, and is indicated in the display. This unit starts to play the first 10 seconds of the first file of each folder. Press again to cancel.
d TEXTPress and display indications change as follows:
Upper: Artist NameLower: Track Title Track TitleELAPSED TIME
Folder Name File Name
When d is displayed, if you press and hold until you hear a beep, the display will changes. A maximum of 2 pages (24 characters) can be dis-played.

0
0

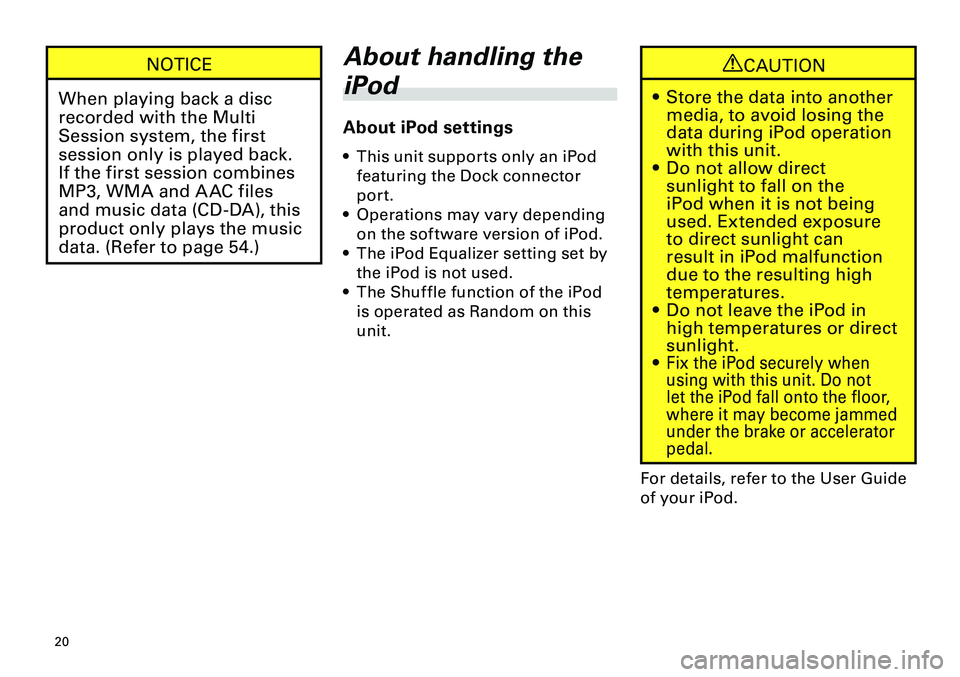

NOTICE
When playing back a disc
recorded with the Multi
Session system, the first
session only is played back.
If the first session combines
MP3, WMA and A AC files
and music data (CD-DA), this
product only plays the music
data. (Refer to page 54.)
About handling the
iPod
About iPod settings
This unit supports only an iPod
featuring the Dock connector
port.
Operations may vary depending
on the sof tware version of iPod.
The iPod Equalizer setting set by
the iPod is not used.
The Shuf fle function of the iPod
is operated as Random on this
unit.
•
•
•
•
CAUTION
Store the data into another
media, to avoid losing the
data during iPod operation
with this unit.
Do not allow direct
sunlight to fall on the
iPod when it is not being
used. Extended exposure
to direct sunlight can
result in iPod malfunction
due to the resulting high
temperatures.
Do not leave the iPod in
high temperatures or direct
sunlight.
Fix the iPod securely when
using with this unit. Do not
let the iPod fall onto the floor,
where it may become jammed
under the brake or accelerator
pedal.
•
•
•
•
For details, refer to the User Guide
of your iPod.
