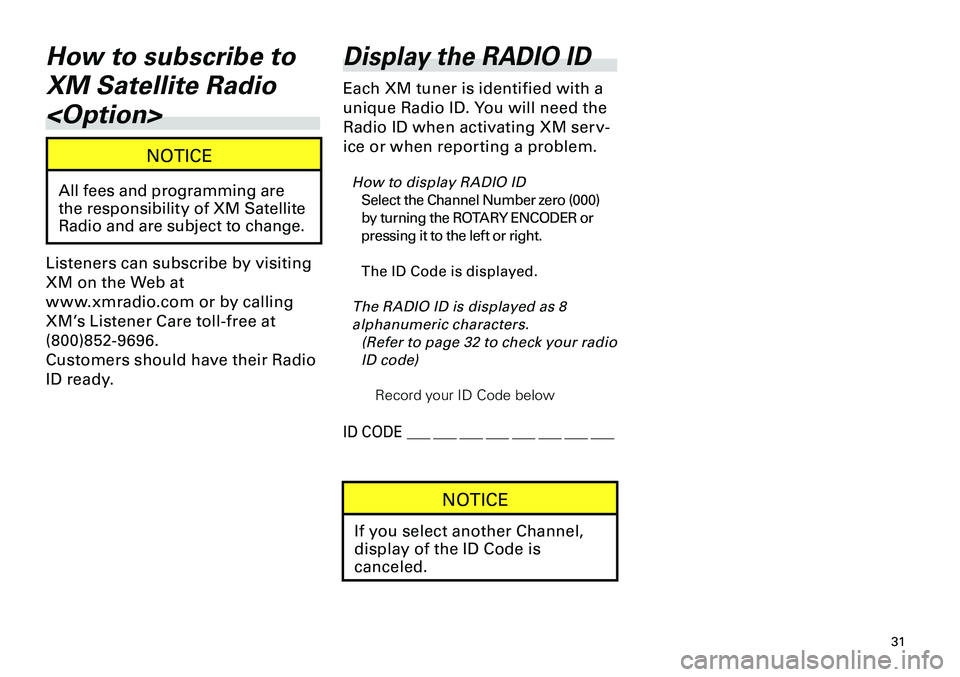

How to subscribe to
XM Satellite Radio

NOTICE
All fees and programming are
the responsibility of XM Satellite
Radio and are subject to change.
Listeners can subscribe by visiting
XM on the Web at
w w w.xmradio.com or by calling
XM’s Listener Care toll-free at
(800)85-9696.
Customers should have their Radio
ID ready.
Display the RADIO ID
Each XM tuner is identified with a
unique Radio ID. You will need the
Radio ID when activating XM serv-
ice or when reporting a problem.
How to display RADIO ID
Select the Channel Number zero (000)
by turning the ROTARY ENCODER or
pressing it to the left or right.
The ID Code is displayed.
The RADIO ID is displayed as 8
alphanumeric characters.
(Refer to page 32 to check your radio
ID code)
Record your ID Code below
ID CODE ___ ___ ___ ___ ___ ___ ___ ___
NOTICE
If you select another Channel,
display of the ID Code is
canceled.

3
3

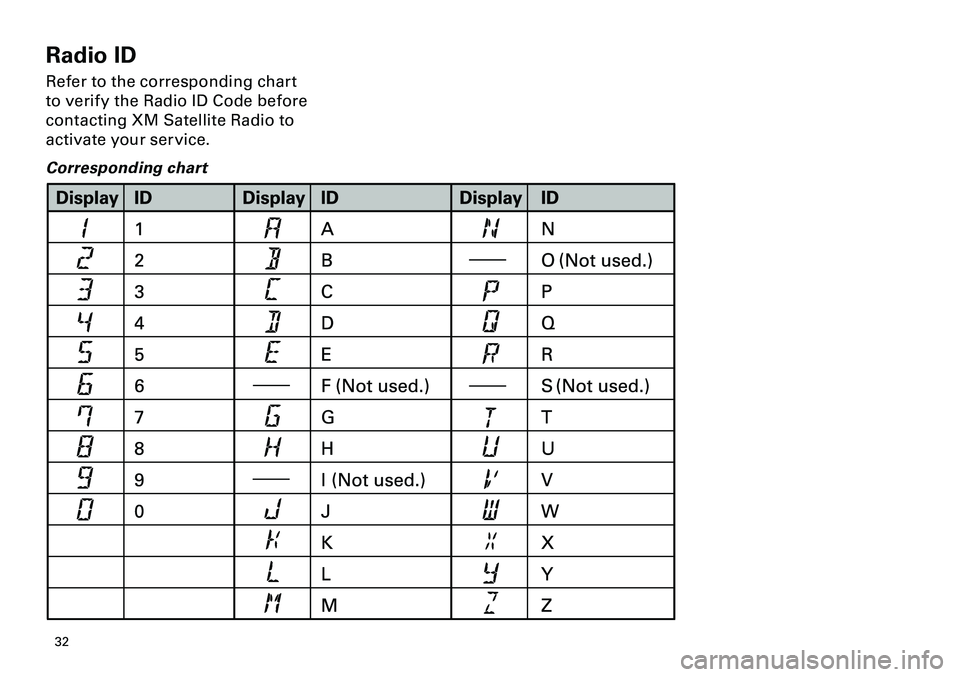

Radio ID
Refer to the corresponding chart
to verif y the Radio ID Code before
contacting XM Satellite Radio to
activate your service.
Corresponding chart

33
33

34
34

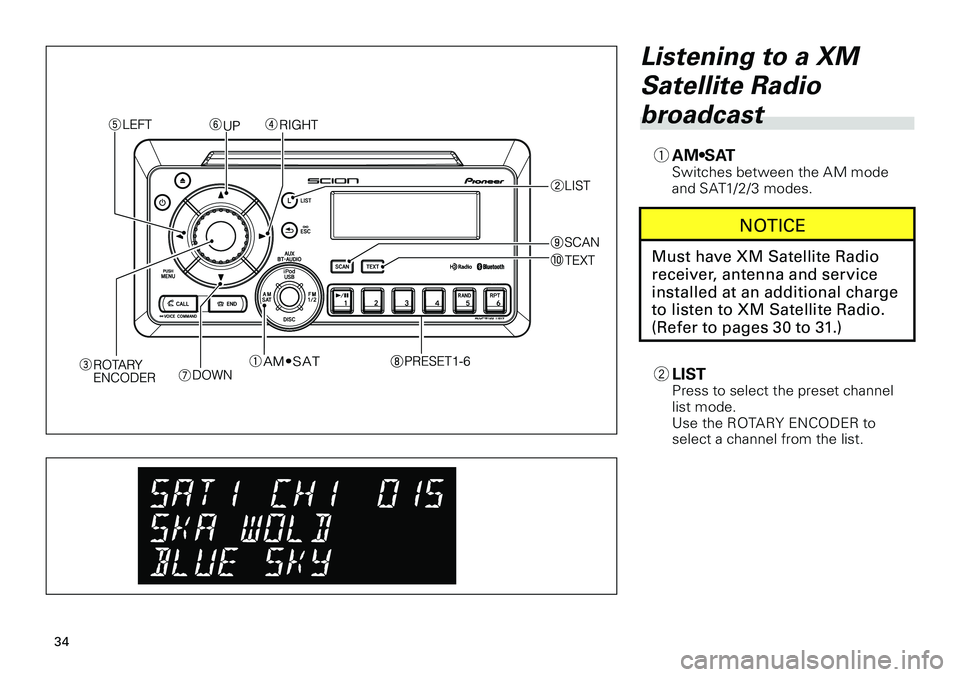

Listening to a XM
Satellite Radio
broadcast
1 AM•SATSwitches between the AM mode and SAT1/2/3 modes.
NOTICE
Must have XM Satellite Radio
receiver, antenna and service
installed at an additional charge
to listen to XM Satellite Radio.
(Refer to pages 30 to 31.)
2 LISTPress to select the preset channel list mode.Use the ROTARY ENCODER to select a channel from the list.

35
35

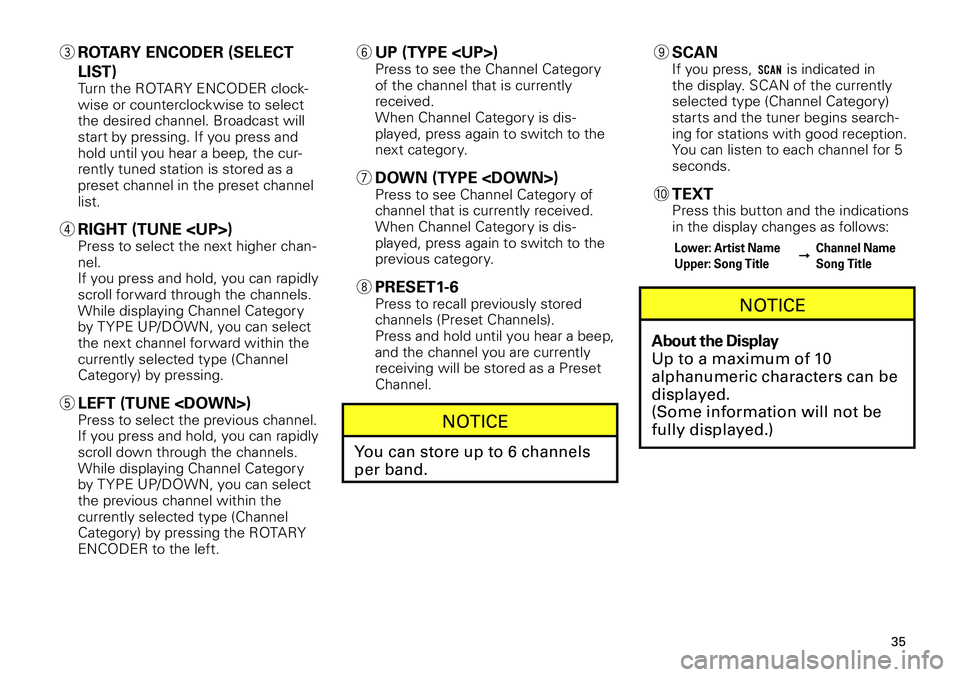

3 ROTARY ENCODER (SELECT
LIST)Turn the ROTARY ENCODER clock-wise or counterclockwise to select the desired channel. Broadcast will start by pressing. If you press and hold until you hear a beep, the cur-rently tuned station is stored as a preset channel in the preset channel list.
4 RIGHT (TUNE )Press to select the next higher chan-
nel.If you press and hold, you can rapidly scroll forward through the channels.While displaying Channel Category by T YPE UP/DOWN, you can select the next channel forward within the currently selected type (Channel Category) by pressing.
5 LEFT (TUNE )Press to select the previous channel.If you press and hold, you can rapidly scroll down through the channels.While displaying Channel Category by T YPE UP/DOWN, you can select the previous channel within the currently selected type (Channel Category) by pressing the ROTARY ENCODER to the left.
6 UP (TYPE )Press to see the Channel Category of the channel that is currently received.When Channel Category is dis-played, press again to switch to the next category.
7 DOWN (TYPE )Press to see Channel Category of channel that is currently received.When Channel Category is dis-played, press again to switch to the previous category.
8 PRESET1-6Press to recall previously stored channels (Preset Channels).Press and hold until you hear a beep, and the channel you are currently receiving will be stored as a Preset Channel.
NOTICE
You can store up to 6 channels
per band.
9 SCANIf you press, is indicated in the display. SCAN of the currently selected type (Channel Category) starts and the tuner begins search-ing for stations with good reception. You can listen to each channel for 5 seconds.
a TEXTPress this button and the indications in the display changes as follows:
Lower: Artist NameUpper: Song Title Channel NameSong Title
NOTICE
About the Display
Up to a maximum of 10
alphanumeric characters can be
displayed.
(Some information will not be
fully displayed.)

36
36

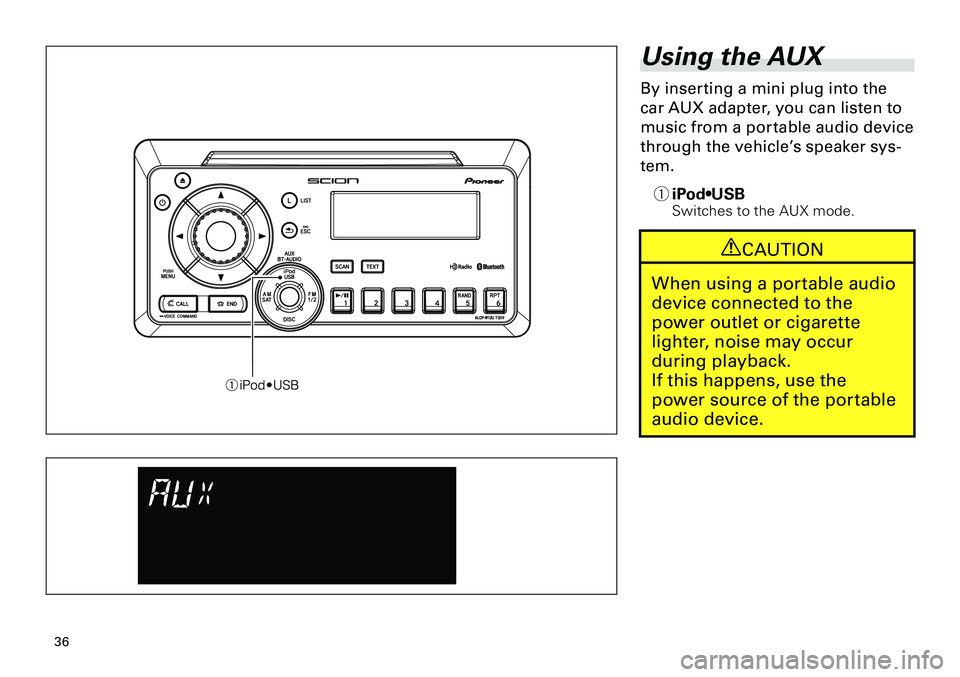

Using the AUX
By inserting a mini plug into the
car AUX adapter, you can listen to
music from a portable audio device
through the vehicle’s speaker sys-
tem.
1 iPod•USBSwitches to the AUX mode.
CAUTION
When using a portable audio
device connected to the
power outlet or cigarette
lighter, noise may occur
during playback.

If this happens, use the
power source of the portable
audio device.

37
37

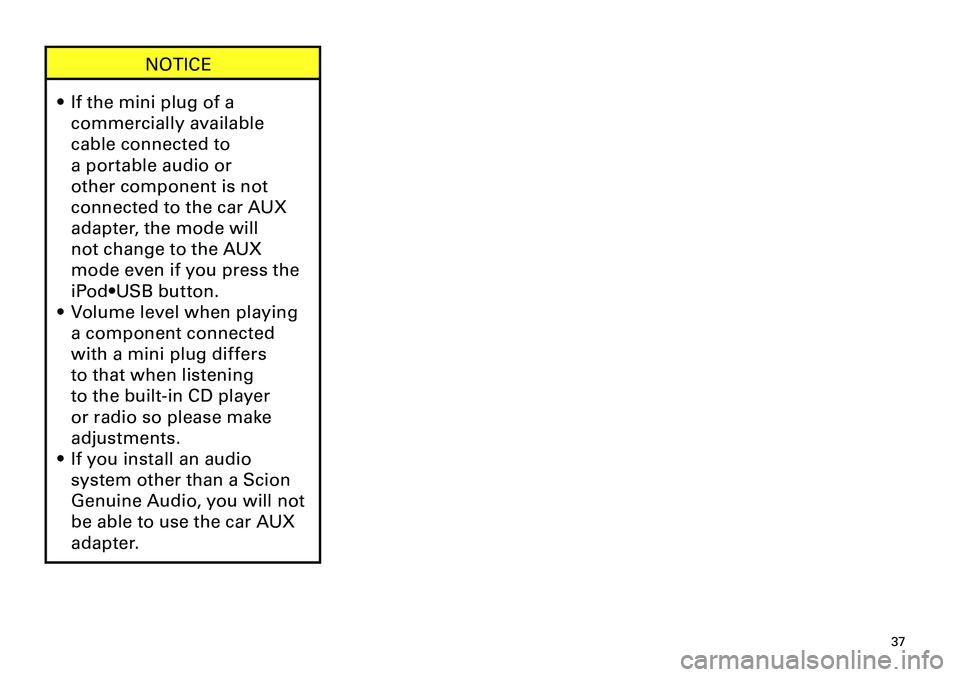

NOTICE
If the mini plug of a
commercially available
cable connected to
a portable audio or
other component is not
connected to the car AUX
adapter, the mode will
not change to the AUX
mode even if you press the
iPod•USB button.
Volume level when playing
a component connected
with a mini plug differs
to that when listening
to the built-in CD player
or radio so please make
adjustments.
If you install an audio
system other than a Scion
Genuine Audio, you will not
be able to use the car AUX
adapter.
•
•
•

38
38

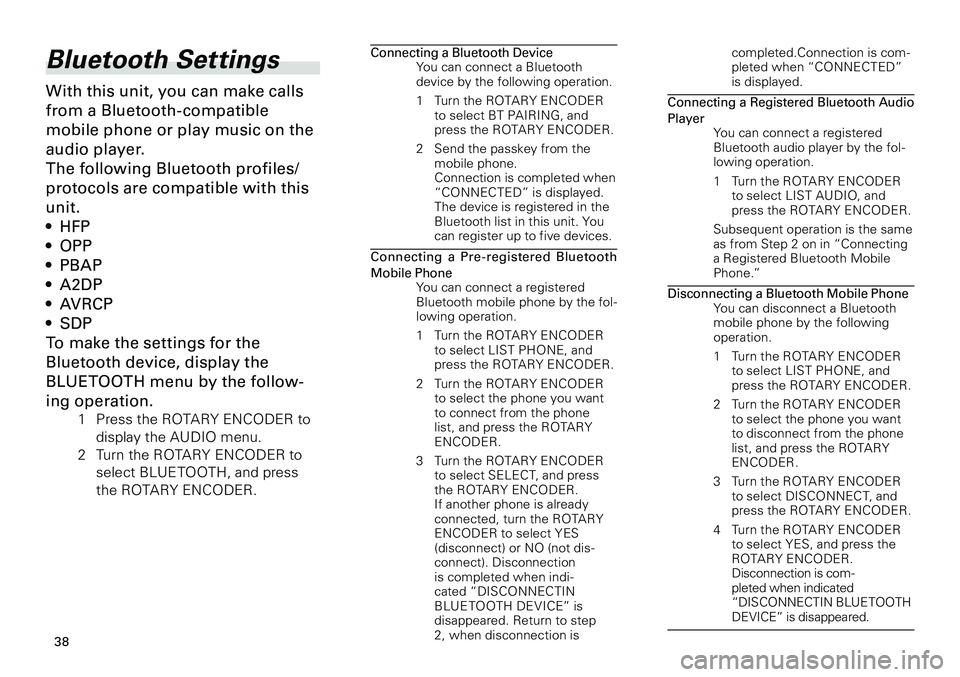

Bluetooth Settings
With this unit, you can make calls
from a Bluetooth-compatible
mobile phone or play music on the
audio player.
The following Bluetooth profiles/
protocols are compatible with this
unit.
HFP
OPP
PBAP
ADP
AVRCP
SDP
To make the settings for the
Bluetooth device, display the
BLUETOOTH menu by the follow-
ing operation.
1 Press the ROTARY ENCODER to
display the AUDIO menu.
2 Turn the ROTARY ENCODER to
select BLUETOOTH, and press
the ROTARY ENCODER.
•
•
•
•
•
•
Connecting a Bluetooth DeviceYou can connect a Bluetooth device by the following operation.
1 Turn the ROTARY ENCODER
to select BT PAIRING, and press the ROTARY ENCODER.
2 Send the passkey from the
mobile phone. Connection is completed when “CONNECTED” is displayed. The device is registered in the Bluetooth list in this unit. You can register up to five devices.
Connecting a Pre-registered Bluetooth Mobile PhoneYou can connect a registered Bluetooth mobile phone by the fol-lowing operation.
1 Turn the ROTARY ENCODER
to select LIST PHONE, and press the ROTARY ENCODER.
2 Turn the ROTARY ENCODER
to select the phone you want to connect from the phone list, and press the ROTARY ENCODER.
3 Turn the ROTARY ENCODER
to select SELECT, and press the ROTARY ENCODER. If another phone is already connected, turn the ROTARY ENCODER to select YES (disconnect) or NO (not dis-connect). Disconnection is completed when indi-cated “DISCONNECTIN BLUETOOTH DEVICE” is disappeared. Return to step 2, when disconnection is
completed.Connection is com-pleted when “CONNECTED” is displayed.
Connecting a Registered Bluetooth Audio PlayerYou can connect a registered Bluetooth audio player by the fol-lowing operation.
1 Turn the ROTARY ENCODER
to select LIST AUDIO, and press the ROTARY ENCODER.
Subsequent operation is the same as from Step 2 on in “Connecting a Registered Bluetooth Mobile Phone.”
Disconnecting a Bluetooth Mobile PhoneYou can disconnect a Bluetooth mobile phone by the following operation.
1 Turn the ROTARY ENCODER
to select LIST PHONE, and press the ROTARY ENCODER.
2 Turn the ROTARY ENCODER
to select the phone you want to disconnect from the phone list, and press the ROTARY ENCODER.
3 Turn the ROTARY ENCODER
to select DISCONNECT, and press the ROTARY ENCODER.
4 Turn the ROTARY ENCODER
to select YES, and press the ROTARY ENCODER. Disconnection is com-pleted when indicated “DISCONNECTIN BLUETOOTH DEVICE” is disappeared.

39
39

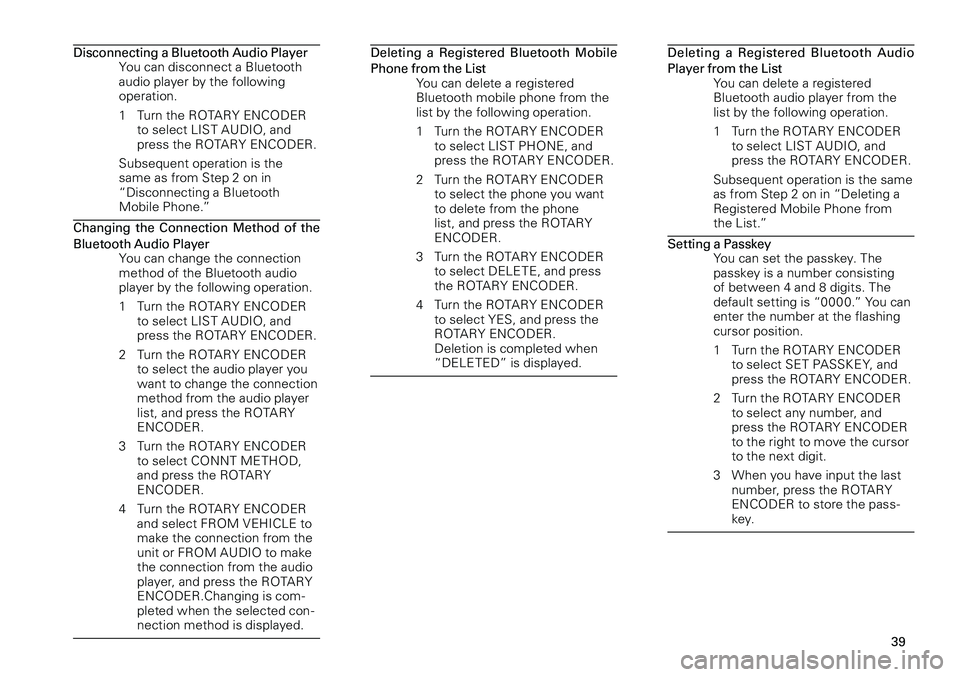

Disconnecting a Bluetooth Audio PlayerYou can disconnect a Bluetooth audio player by the following operation.
1 Turn the ROTARY ENCODER
to select LIST AUDIO, and press the ROTARY ENCODER.
Subsequent operation is the same as from Step 2 on in “Disconnecting a Bluetooth Mobile Phone.”
Changing the Connection Method of the Bluetooth Audio PlayerYou can change the connection method of the Bluetooth audio player by the following operation.
1 Turn the ROTARY ENCODER
to select LIST AUDIO, and press the ROTARY ENCODER.
2 Turn the ROTARY ENCODER
to select the audio player you want to change the connection method from the audio player list, and press the ROTARY ENCODER.
3 Turn the ROTARY ENCODER
to select CONNT METHOD, and press the ROTARY ENCODER.
4 Turn the ROTARY ENCODER
and select FROM VEHICLE to make the connection from the unit or FROM AUDIO to make the connection from the audio player, and press the ROTARY ENCODER.Changing is com-pleted when the selected con-nection method is displayed.
Deleting a Registered Bluetooth Mobile Phone from the ListYou can delete a registered Bluetooth mobile phone from the list by the following operation.
1 Turn the ROTARY ENCODER
to select LIST PHONE, and press the ROTARY ENCODER.
2 Turn the ROTARY ENCODER
to select the phone you want to delete from the phone list, and press the ROTARY ENCODER.
3 Turn the ROTARY ENCODER
to select DELETE, and press the ROTARY ENCODER.
4 Turn the ROTARY ENCODER
to select YES, and press the ROTARY ENCODER. Deletion is completed when “DELETED” is displayed.
Deleting a Registered Bluetooth Audio Player from the ListYou can delete a registered Bluetooth audio player from the list by the following operation.
1 Turn the ROTARY ENCODER
to select LIST AUDIO, and press the ROTARY ENCODER.
Subsequent operation is the same as from Step 2 on in “Deleting a Registered Mobile Phone from the List.”
Setting a PasskeyYou can set the passkey. The passkey is a number consisting of between 4 and 8 digits. The default setting is “0000.” You can enter the number at the flashing cursor position.
1 Turn the ROTARY ENCODER
to select SET PASSKEY, and press the ROTARY ENCODER.
2 Turn the ROTARY ENCODER
to select any number, and press the ROTARY ENCODER to the right to move the cursor to the next digit.
3 When you have input the last
number, press the ROTARY ENCODER to store the pass-key.

40
40

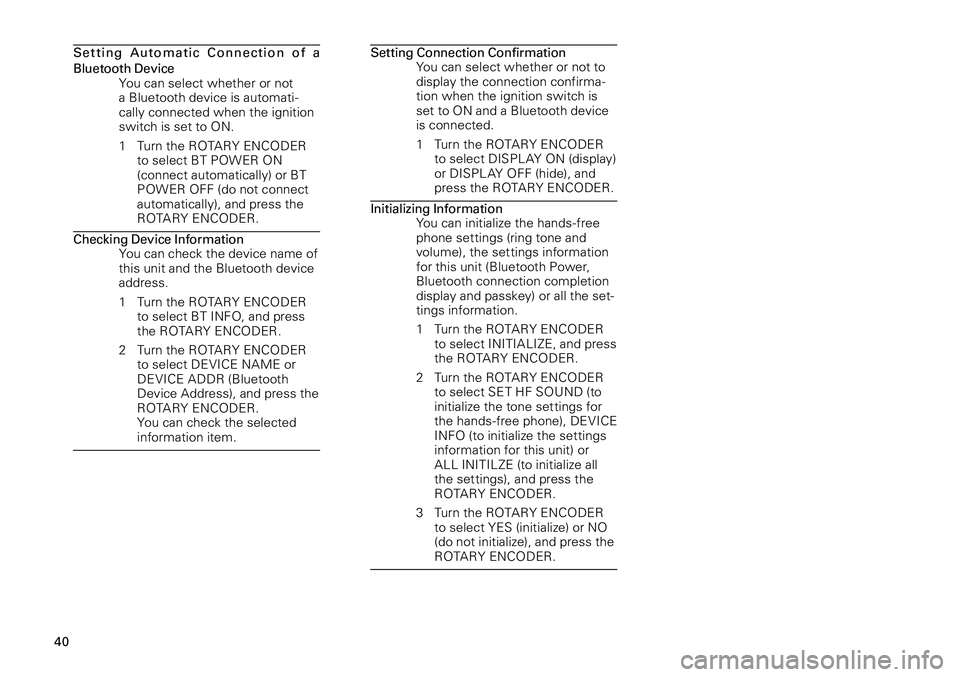

S e t t i n g A u t o m a t i c C o n n e c t i o n o f a Bluetooth DeviceYou can select whether or not a Bluetooth device is automati-cally connected when the ignition switch is set to ON.
1 Turn the ROTARY ENCODER
to select BT POWER ON (connect automatically) or BT POWER OFF (do not connect automatically), and press the ROTARY ENCODER.
Checking Device InformationYou can check the device name of this unit and the Bluetooth device address.
1 Turn the ROTARY ENCODER
to select BT INFO, and press the ROTARY ENCODER.
2 Turn the ROTARY ENCODER
to select DEVICE NAME or DEVICE ADDR (Bluetooth Device Address), and press the ROTARY ENCODER. You can check the selected information item.
Setting Connection Confirmation You can select whether or not to display the connection confirma-tion when the ignition switch is set to ON and a Bluetooth device is connected.
1 Turn the ROTARY ENCODER
to select DISPL AY ON (display) or DISPL AY OFF (hide), and press the ROTARY ENCODER.
Initializing InformationYou can initialize the hands-free phone settings (ring tone and volume), the settings information for this unit (Bluetooth Power, Bluetooth connection completion display and passkey) or all the set-tings information.
1 Turn the ROTARY ENCODER
to select INITIALIZE, and press the ROTARY ENCODER.
2 Turn the ROTARY ENCODER
to select SET HF SOUND (to initialize the tone settings for the hands-free phone), DEVICE INFO (to initialize the settings information for this unit) or ALL INITIL ZE (to initialize all the settings), and press the ROTARY ENCODER.
3 Turn the ROTARY ENCODER
to select YES (initialize) or NO (do not initialize), and press the ROTARY ENCODER.
