Page 51 of 64
51

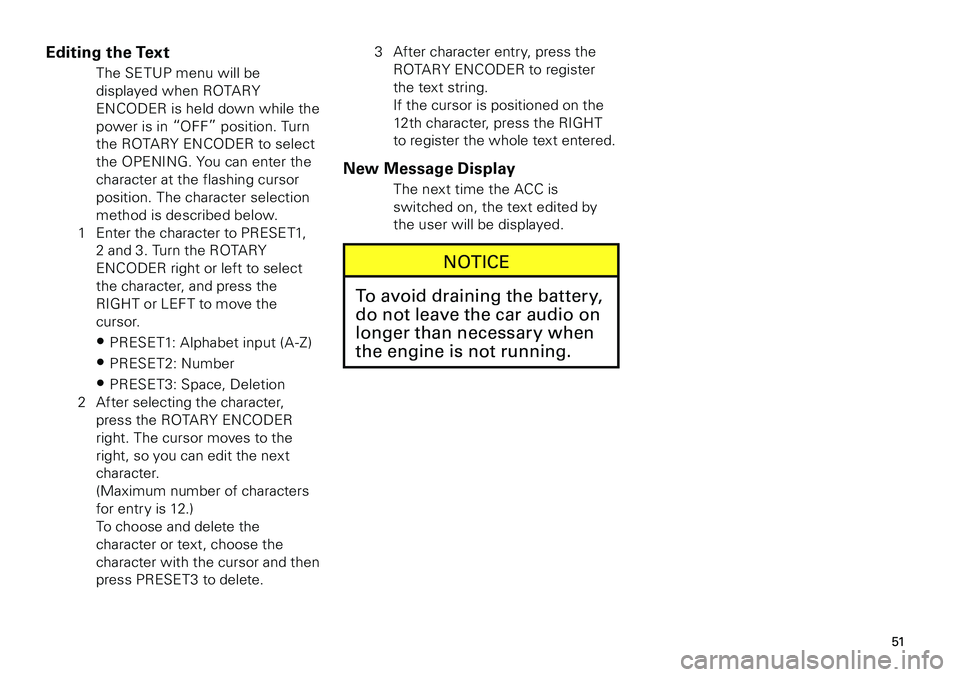

Editing the Text
The SETUP menu will be
displayed when ROTARY
ENCODER is held down while the
power is in “OFF” position. Turn
the ROTARY ENCODER to select
the OPENING. You can enter the
character at the flashing cursor
position. The character selection
method is described below.
1 Enter the character to PRESET1,
2 and 3. Turn the ROTARY
ENCODER right or left to select
the character, and press the
RIGHT or LEFT to move the
cursor.
• PRESET1: Alphabet input (A-Z)
• PRESET2: Number
• PRESET3: Space, Deletion
2 After selecting the character,
press the ROTARY ENCODER
right. The cursor moves to the
right, so you can edit the next
character.
(Maximum number of characters
for entry is 12.)
To choose and delete the
character or text, choose the
character with the cursor and then
press PRESET3 to delete.
3
After character entry, press the
ROTARY ENCODER to register
the text string.
If the cursor is positioned on the
12th character, press the RIGHT
to register the whole text entered.
New Message Display
The next time the ACC is
switched on, the text edited by
the user will be displayed.
NOTICE
To avoid draining the battery,
do not leave the car audio on
longer than necessary when
the engine is not running.
Page 52 of 64
5

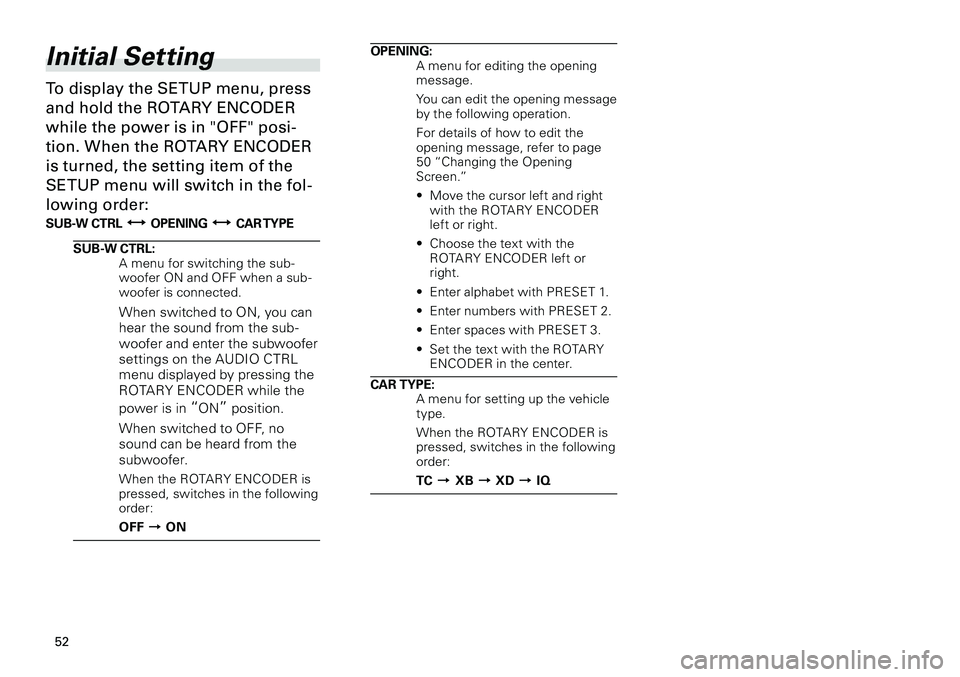

Initial Setting
To display the SETUP menu, press
and hold the ROTARY ENCODER
while the power is in "OFF" posi-
tion. When the ROTARY ENCODER
is turned, the setting item of the
SETUP menu will switch in the fol-
lowing order:
SUB-W CTRL OPENING CAR TYPE
SUB-W CTRL:
A menu for switching the sub
-woofer ON and OFF when a sub-woofer is connected.
When switched to ON, you can hear the sound from the sub-woofer and enter the subwoofer settings on the AUDIO CTRL menu displayed by pressing the ROTARY ENCODER while the
power is in “ON” position.
When switched to OFF, no sound can be heard from the subwoofer.
When the ROTARY ENCODER is pressed, switches in the following order:
OFF ON
OPENING:
A menu for editing the opening
message.
You can edit the opening message by the following operation.
For details of how to edit the opening message, refer to page 50 “Changing the Opening Screen.”
• Move the cursor left and right
with the ROTARY ENCODER left or right.
• Choose the text with the
ROTARY ENCODER left or right.
• Enter alphabet with PRESET 1.
• Enter numbers with PRESET 2.
• Enter spaces with PRESET 3.
• Set the text with the ROTARY
ENCODER in the center.
CAR TYPE:
A menu for setting up the vehicle
type.
When the ROTARY ENCODER is pressed, switches in the following order:
TC XB XD IQ

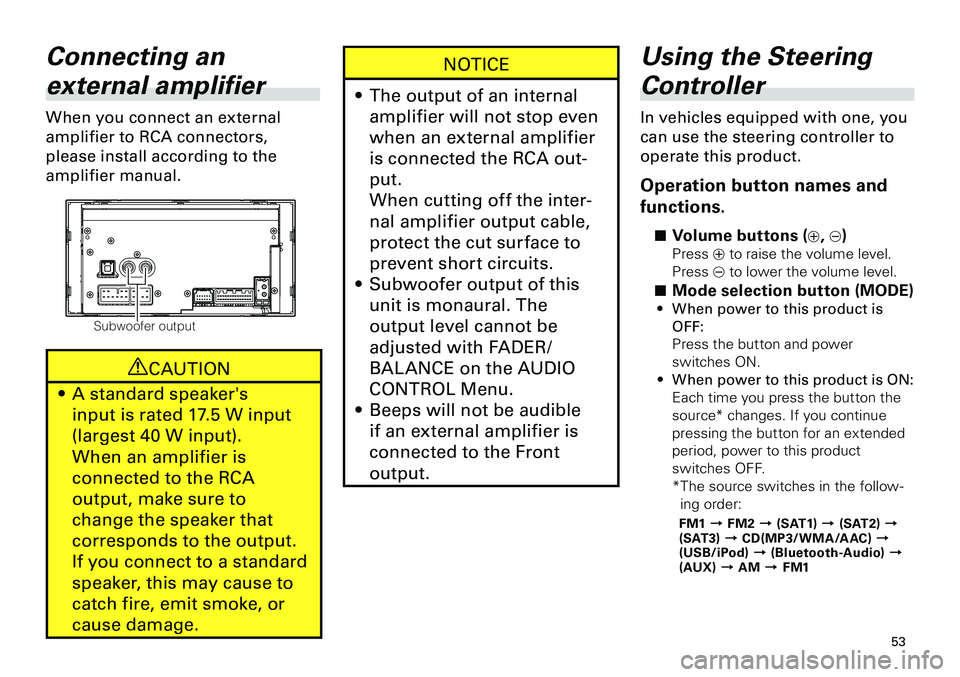

Page 53 of 64
53
Connecting an
external amplifier
When you connect an external
amplifier to RCA connectors,
please install according to the
amplifier manual.
Subwoofer output
CAUTION
A standard speaker's
input is rated 17.5 W input
(largest 40 W input).
When an amplifier is
connected to the RCA
output, make sure to
change the speaker that
corresponds to the output.
If you connect to a standard
speaker, this may cause to
catch fire, emit smoke, or
cause damage.
•
NOTICE
The output of an internal
amplifier will not stop even
when an external amplifier
is connected the RCA out-
put.
When cutting off the inter-
nal amplifier output cable,
protect the cut surface to
prevent short circuits.
Subwoofer output of this
unit is monaural. The
output level cannot be
adjusted with FADER/
BALANCE on the AUDIO
CONTROL Menu.
Beeps will not be audible
if an external amplifier is
connected to the Front
output.
•
•
•
Using the Steering
Controller
In vehicles equipped with one, you
can use the steering controller to
operate this product.
Operation button names and
functions.
g Volume buttons (+, *)
Press + to raise the volume level.
Press * to lower the volume level.
g Mode selection button (MODE)
• When power to this product is
OFF:
Press the button and power
switches ON.
• When power to this product is ON:
Each time you press the button the
source* changes. If you continue
pressing the button for an extended
period, power to this product
switches OFF.
* The source switches in the follow
-
ing order:
FM1 FM2 (SAT1) (SAT2) (SAT3) CD(MP3/WMA/AAC) (USB/iPod) (Bluetooth-Audio) (AUX) AM FM1
Page 54 of 64
54

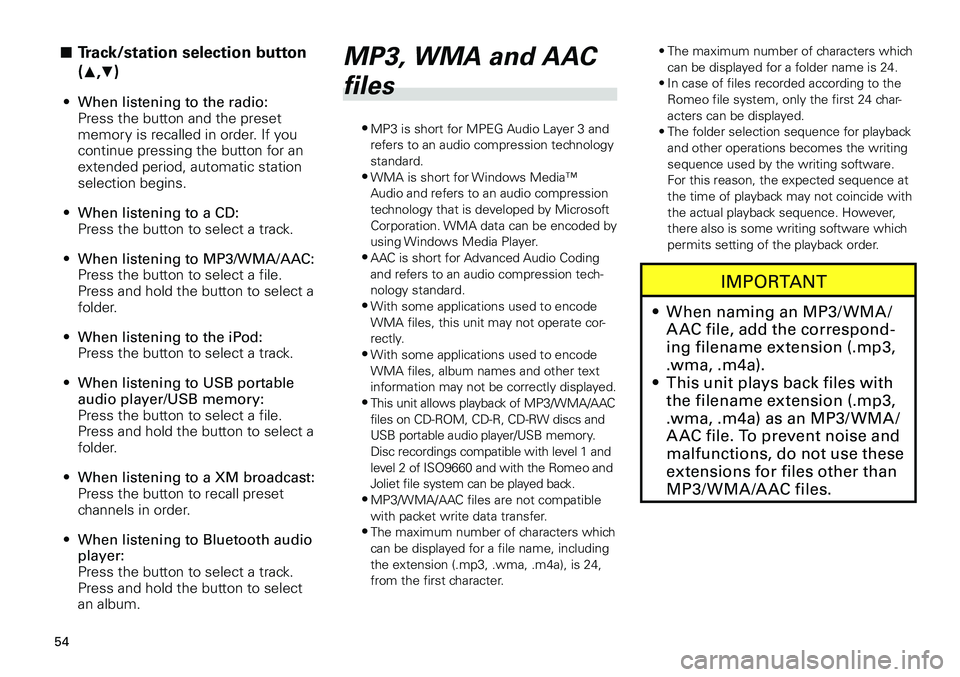

g Track/station selection button
(a,b)
• When listening to the radio:Press the button and the preset memory is recalled in order. If you continue pressing the button for an extended period, automatic station selection begins.
• When listening to a CD:
Press the button to select a track.
• When listening to MP3/WMA/AAC:
Press the button to select a file. Press and hold the button to select a folder.
• When listening to the iPod:
Press the button to select a track.
• When listening to USB portable
audio player/USB memory:Press the button to select a file. Press and hold the button to select a folder.
• When listening to a XM broadcast:
Press the button to recall preset channels in order.
• When listening to Bluetooth audio
player:
Press the button to select a track.Press and hold the button to select an album.
MP3, WMA and AAC
files
• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.• WMA is short for Windows Media™ Audio and refers to an audio compression technology that is developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player.• AAC is short for Advanced Audio Coding and refers to an audio compression tech-nology standard.• With some applications used to encode WMA files, this unit may not operate cor-rectly.• With some applications used to encode WMA files, album names and other text information may not be correctly displayed.• This unit allows playback of MP3/WMA/AAC files on CD-ROM, CD-R, CD-RW discs and USB portable audio player/USB memory. Disc recordings compatible with level 1 and level 2 of ISO9660 and with the Romeo and Joliet file system can be played back.• MP3/WMA/AAC files are not compatible with packet write data transfer.• The maximum number of characters which can be displayed for a file name, including the extension (.mp3, .wma, .m4a), is 24, from the first character. •
The maximum number of characters which
can be displayed for a folder name is 24.
• In case of files recorded according to the
Romeo file system, only the first 24 char-acters can be displayed.
• The folder selection sequence for playback
and other operations becomes the writing sequence used by the writing software. For this reason, the expected sequence at the time of playback may not coincide with the actual playback sequence. However, there also is some writing software which permits setting of the playback order.
IMPORTANT
When naming an MP3/ WMA /
A AC file, add the correspond-
ing filename extension (.mp3,
.wma, .m4a).
This unit plays back files with
the filename extension (.mp3,
.wma, .m4a) as an MP3/ WMA /
A AC file. To prevent noise and
malfunctions, do not use these
extensions for files other than
MP3/ WMA /A AC files.
•
•
Page 55 of 64
55

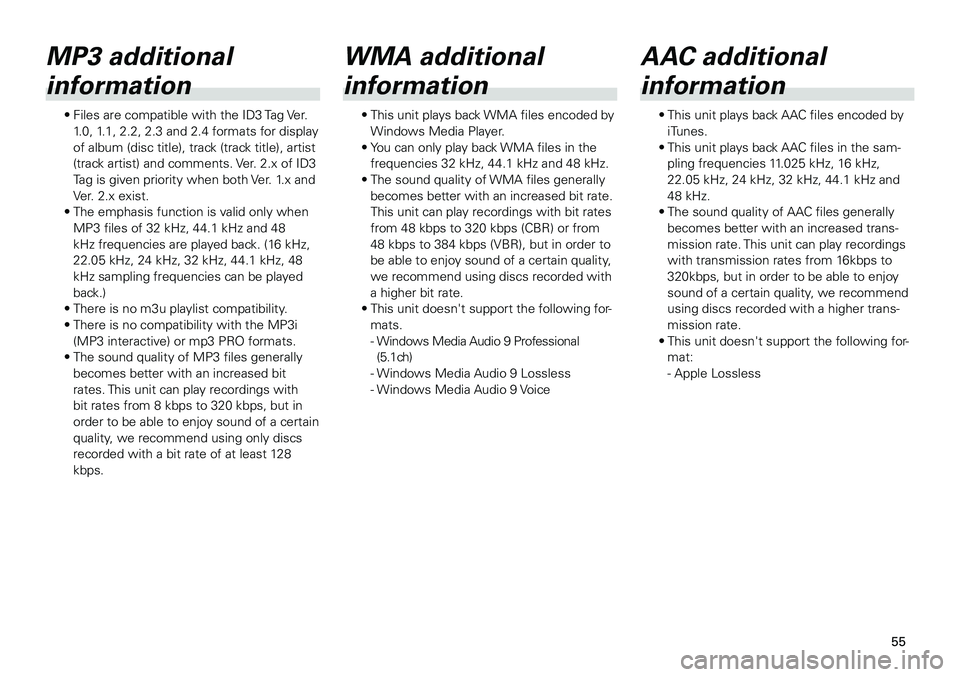

MP3 additional
information
• Files are compatible with the ID3 Tag Ver. 1.0, 1.1, 2.2, 2.3 and 2.4 formats for display of album (disc title), track (track title), artist (track artist) and comments. Ver. 2.x of ID3 Tag is given priority when both Ver. 1.x and Ver. 2.x exist.
• The emphasis function is valid only when
MP3 files of 32 kHz, 44.1 kHz and 48 kHz frequencies are played back. (16 kHz,
22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz sampling frequencies can be played back.)
• There is no m3u playlist compatibility.
• There is no compatibility with the MP3i
(MP3 interactive) or mp3 PRO formats.
• The sound quality of MP3 files generally
becomes better with an increased bit rates. This unit can play recordings with bit rates from 8 kbps to 320 kbps, but in order to be able to enjoy sound of a certain quality, we recommend using only discs recorded with a bit rate of at least 128 kbps.
WMA additional
information
• This unit plays back WMA files encoded by Windows Media Player.
• You can only play back WMA files in the
frequencies 32 kHz, 44.1 kHz and 48 kHz.
• The sound quality of WMA files generally
becomes better with an increased bit rate. This unit can play recordings with bit rates from 48 kbps to 320 kbps (CBR) or from 48 kbps to 384 kbps (VBR), but in order to
be able to enjoy sound of a certain quality, we recommend using discs recorded with a higher bit rate.
• This unit doesn't support the following for-mats.
-
Windows Media Audio 9 Professional
(5.1ch)
- Windows Media Audio 9 Lossless
- Windows Media Audio 9 Voice
AAC additional
information
• This unit plays back AAC files encoded by iTunes.
• This unit plays back AAC files in the sam-pling frequencies 11.025 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz and 48 kHz.
• The sound quality of AAC files generally
becomes better with an increased trans-mission rate. This unit can play recordings
with transmission rates from 16kbps to 320kbps, but in order to be able to enjoy sound of a certain quality, we recommend using discs recorded with a higher trans-mission rate.
• This unit doesn't support the following for-mat:
- Apple Lossless
Page 56 of 64
56

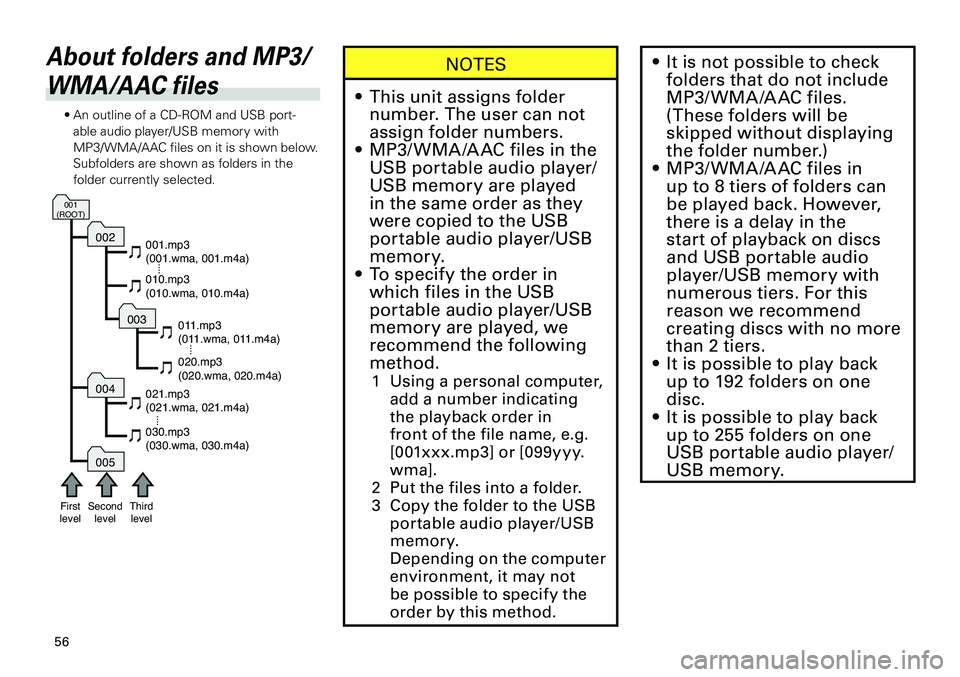

About folders and MP3/
WMA/AAC files
• An outline of a CD-ROM and USB port-able audio player/USB memory with MP3/WMA/AAC files on it is shown below. Subfolders are shown as folders in the folder currently selected.
001.mp3 (001.wma, 001.m4a)
010.mp3 (010.wma, 010.m4a)
021.mp3 (021.wma, 021.m4a)
030.mp3 (030.wma, 030.m4a)
011.mp3 (011.wma, 011.m4a)
020.mp3 (020.wma, 020.m4a)
FirstlevelSecondlevelThirdlevel
001(ROOT)
002
004
005
003
NOTES
This unit assigns folder
number. The user can not
assign folder numbers.
MP3/ WMA /A AC files in the
USB portable audio player/
USB memory are played
in the same order as they
were copied to the USB
portable audio player/USB
memory.
To specify the order in
which files in the USB
portable audio player/USB
memory are played, we
recommend the following
method.
1 Using a personal computer,
add a number indicating
the playback order in
front of the file name, e.g.
[001xxx.mp3] or [099yyy.
wma].
Put the files into a folder.
3 Copy the folder to the USB
portable audio player/USB
memory.
Depending on the computer
environment, it may not
be possible to specif y the
order by this method.
•
•
•
It is not possible to check
folders that do not include
MP3/ WMA /A AC files.
(These folders will be
skipped without displaying
the folder number.)
MP3/ WMA /A AC files in
up to 8 tiers of folders can
be played back. However,
there is a delay in the
start of playback on discs
and USB portable audio
player/USB memory with
numerous tiers. For this
reason we recommend
creating discs with no more
than tiers.
It is possible to play back
up to 19 folders on one
disc.
It is possible to play back
up to 55 folders on one
USB portable audio player/
USB memory.
•
•
•
•

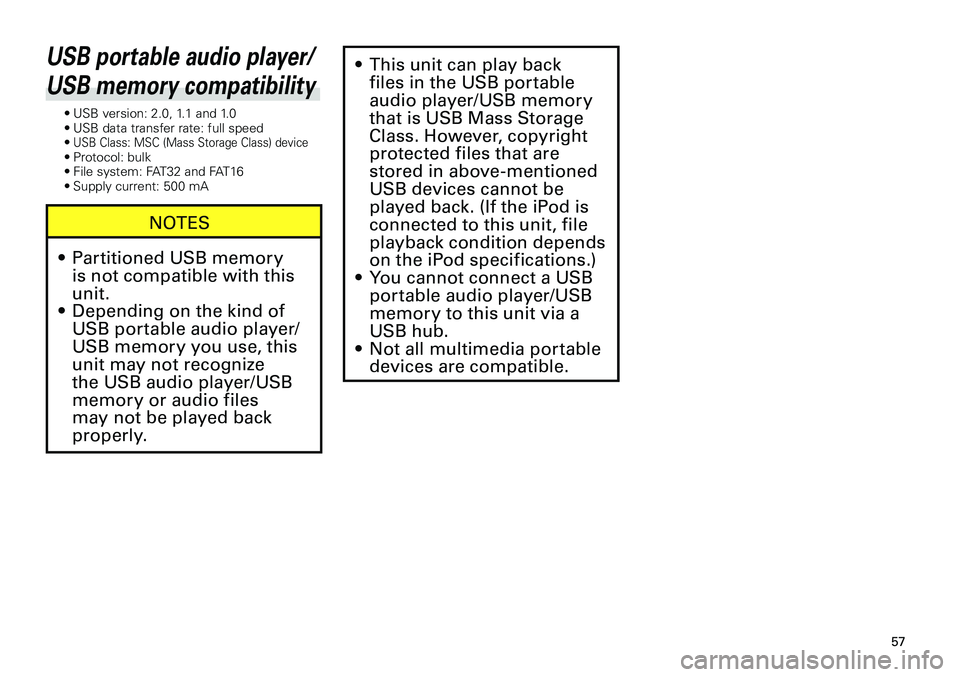

Page 57 of 64
57
USB portable audio player/
USB memory compatibility
• USB version: 2.0, 1.1 and 1.0
• USB data transfer rate: full speed
•
USB Class: MSC (Mass Storage Class) device• Protocol: bulk
• File system: FAT32 and FAT16
• Supply current: 500 mA
NOTES
Partitioned USB memory
is not compatible with this
unit.
Depending on the kind of
USB portable audio player/
USB memory you use, this
unit may not recognize
the USB audio player/USB
memory or audio files
may not be played back
properly.
•
•
This unit can play back
files in the USB portable
audio player/USB memory
that is USB Mass Storage
Class. However, copyright
protected files that are
stored in above-mentioned
USB devices cannot be
played back. (If the iPod is
connected to this unit, file
playback condition depends
on the iPod specifications.)
You cannot connect a USB
portable audio player/USB
memory to this unit via a
USB hub.
Not all multimedia portable
devices are compatible.
•
•
•
Page 58 of 64
58

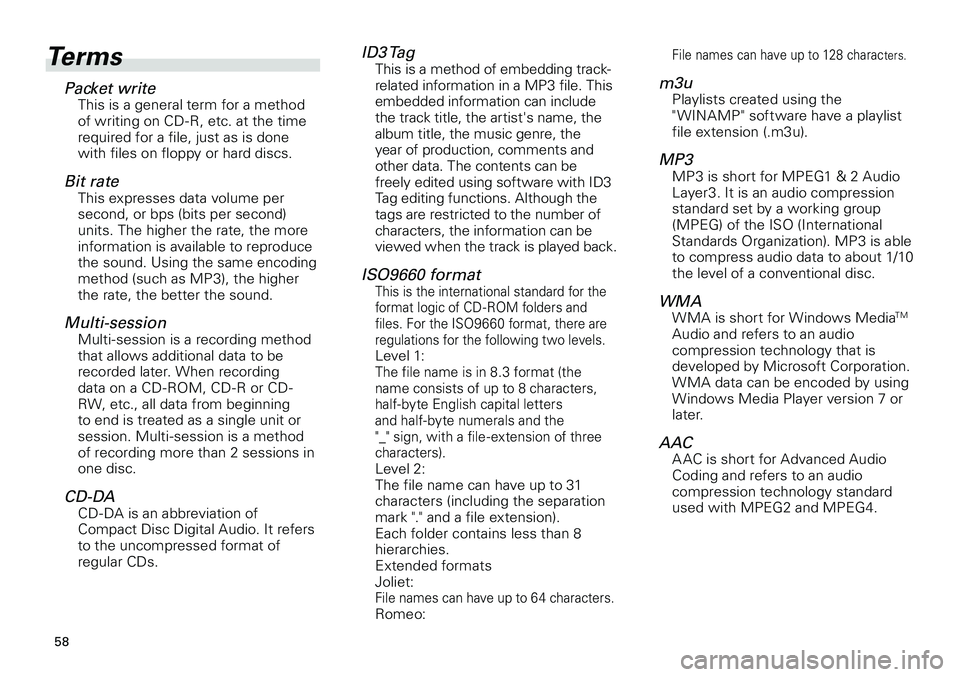

Terms
Packet writeThis is a general term for a method of writing on CD -R, etc. at the time required for a file, just as is done with files on floppy or hard discs.
Bit rateThis expresses data volume per second, or bps (bits per second) units. The higher the rate, the more information is available to reproduce the sound. Using the same encoding method (such as MP3), the higher the rate, the better the sound.
Multi-sessionMulti-session is a recording method that allows additional data to be recorded later. When recording data on a CD -ROM, CD -R or CD -RW, etc., all data from beginning to end is treated as a single unit or session. Multi-session is a method of recording more than 2 sessions in
one disc.
CD-DACD - DA is an abbreviation of Compact Disc Digital Audio. It refers to the uncompressed format of regular CDs.
ID3 TagThis is a method of embedding track-related information in a MP3 file. This embedded information can include the track title, the artist's name, the album title, the music genre, the year of production, comments and other data. The contents can be freely edited using software with ID3 Tag editing functions. Although the tags are restricted to the number of characters, the information can be viewed when the track is played back.
ISO9660 formatThis is the international standard for the format logic of CD -ROM folders and files. For the ISO9660 format, there are regulations for the following two levels.Level 1:The file name is in 8.3 format (the name consists of up to 8 characters, half-byte English capital letters and half-byte numerals and the "_" sign, with a file- extension of three characters).Level 2:The file name can have up to 31 characters (including the separation mark "." and a file extension). Each folder contains less than 8 hierarchies.Extended formats
Joliet:File names can have up to 64 characters.Romeo:
File names can have up to 128 characters.
m3uPlaylists created using the " WINAMP " software have a playlist file extension (.m3u).
MP3MP3 is short for MPEG1 & 2 Audio Layer3. It is an audio compression standard set by a working group (MPEG) of the ISO (International Standards Organization). MP3 is able to compress audio data to about 1/10 the level of a conventional disc.
WMAWMA is short for Windows MediaTM
Audio and refers to an audio compression technology that is developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 7 or later.
AACA AC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG2 and MPEG4.
Page 59 of 64
59

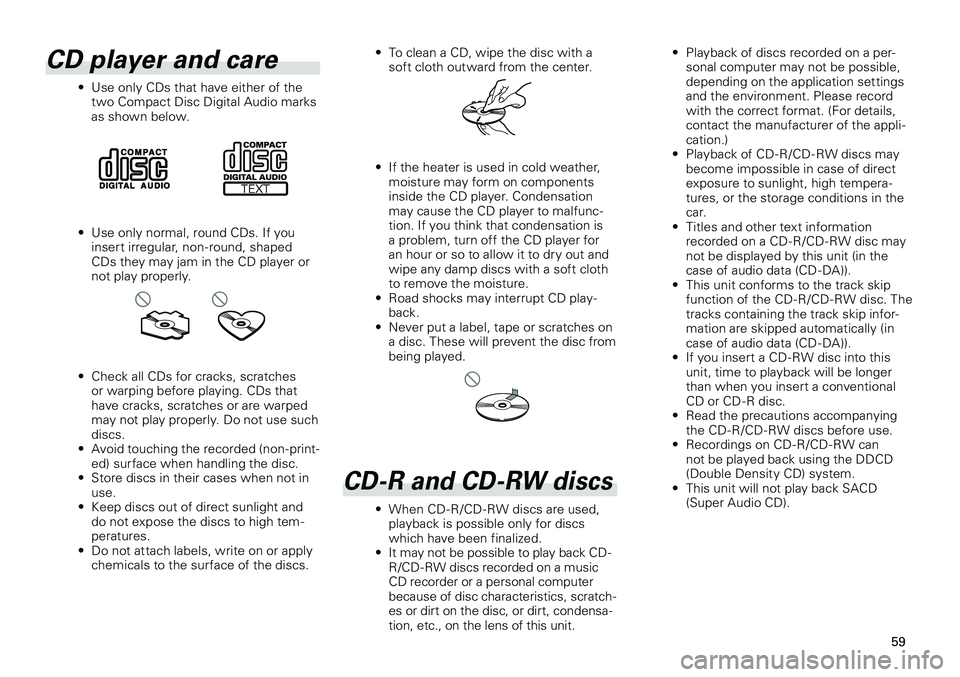

CD player and care
• Use only CDs that have either of the two Compact Disc Digital Audio marks as shown below.
• Use only normal, round CDs. If you
insert irregular, non-round, shaped CDs they may jam in the CD player or not play properly.
• Check all CDs for cracks, scratches or warping before playing. CDs that have cracks, scratches or are warped may not play properly. Do not use such discs.
• Avoid touching the recorded (non-print-ed) surface when handling the disc.
• Store discs in their cases when not in
use.
• Keep discs out of direct sunlight and
do not expose the discs to high tem-peratures.
• Do not attach labels, write on or apply
chemicals to the surface of the discs.
• To clean a CD, wipe the disc with a soft cloth outward from the center.
• If the heater is used in cold weather, moisture may form on components inside the CD player. Condensation may cause the CD player to malfunc-tion. If you think that condensation is a problem, turn off the CD player for an hour or so to allow it to dry out and wipe any damp discs with a soft cloth to remove the moisture.
• Road shocks may interrupt CD play-back.
• Never put a label, tape or scratches on
a disc. These will prevent the disc from being played.
CD-R and CD-RW discs
• When CD - R/CD - RW discs are used, playback is possible only for discs which have been finalized.
• It may not be possible to play back CD -
R/CD -RW discs recorded on a music CD recorder or a personal computer because of disc characteristics, scratch-es or dirt on the disc, or dirt, condensa-tion, etc., on the lens of this unit. •
Playback of discs recorded on a per
-sonal computer may not be possible, depending on the application settings and the environment. Please record with the correct format. (For details, contact the manufacturer of the appli-cation.)
• Playback of CD - R/CD - RW discs may
become impossible in case of direct exposure to sunlight, high tempera-tures, or the storage conditions in the car.
• Titles and other text information
recorded on a CD - R/CD - RW disc may not be displayed by this unit (in the case of audio data (CD - DA)).
• This unit conforms to the track skip
function of the CD - R/CD - RW disc. The tracks containing the track skip infor-mation are skipped automatically (in case of audio data (CD - DA)).
• If you insert a CD - RW disc into this
unit, time to playback will be longer than when you insert a conventional CD or CD - R disc.
• Read the precautions accompanying
the CD - R/CD - RW discs before use.
• Recordings on CD - R/CD - RW can
not be played back using the DDCD (Double Density CD) system.
• This unit will not play back SACD
(Super Audio CD).
Page 60 of 64
60

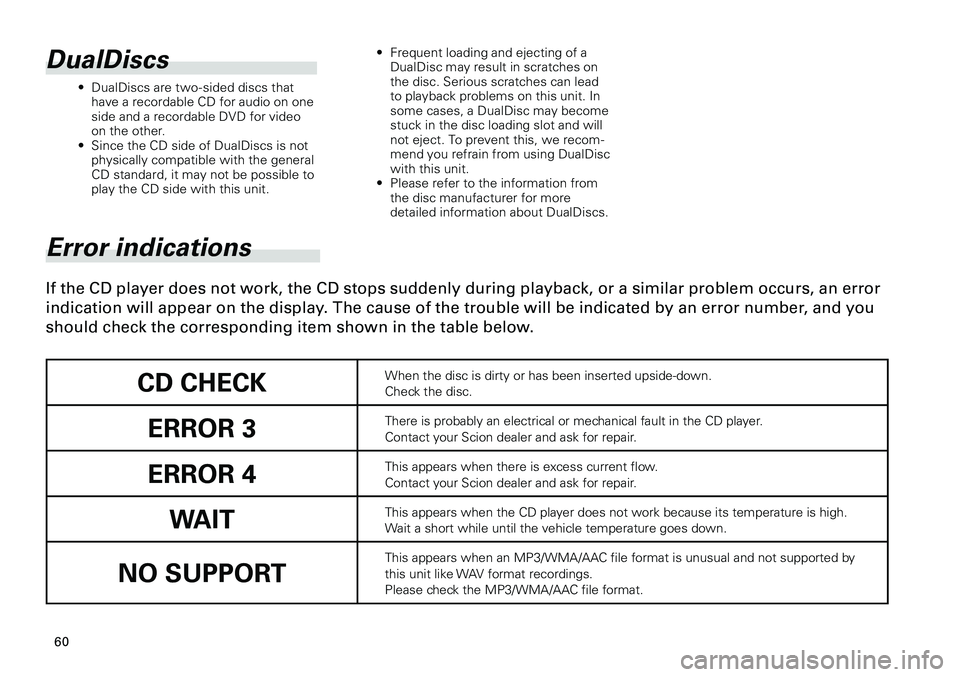

Error indications
If the CD player does not work, the CD stops suddenly during playback, or a similar problem occurs, an error
indication will appear on the display. The cause of the trouble will be indicated by an error number, and you
should check the corresponding item shown in the table below.
CD CHECKWhen the disc is dirty or has been inserted upside-down.Check the disc.
ERROR 3There is probably an electrical or mechanical fault in the CD player.Contact your Scion dealer and ask for repair.
ERROR 4This appears when there is excess current flow.Contact your Scion dealer and ask for repair.
WAITThis appears when the CD player does not work because its temperature is high. Wait a short while until the vehicle temperature goes down.
NO SUPPORT
This appears when an MP3/WMA/AAC file format is unusual and not supported by this unit like WAV format recordings.Please check the MP3/WMA/AAC file format.
DualDiscs
• DualDiscs are two -sided discs that have a recordable CD for audio on one side and a recordable DVD for video on the other.
• Since the CD side of DualDiscs is not
physically compatible with the general CD standard, it may not be possible to play the CD side with this unit. •
Frequent loading and ejecting of a
DualDisc may result in scratches on the disc. Serious scratches can lead to playback problems on this unit. In some cases, a DualDisc may become stuck in the disc loading slot and will not eject. To prevent this, we recom-mend you refrain from using DualDisc with this unit.
• Please refer to the information from
the disc manufacturer for more detailed information about DualDiscs.
