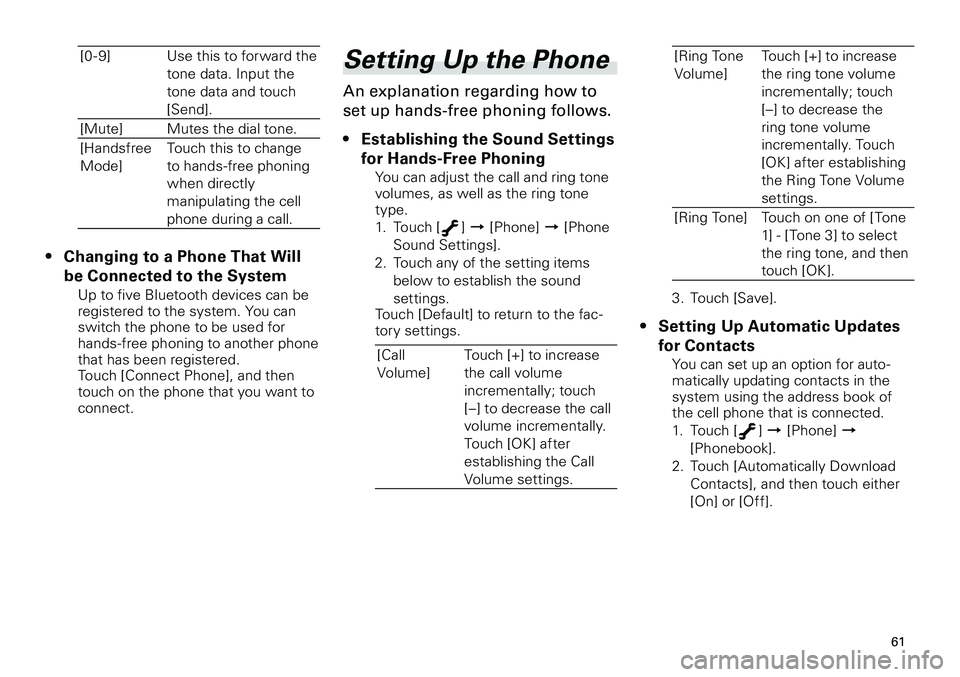

Page 61 of 76

61
Setting Up the Phone
An explanation regarding how to
set up hands-free phoning follows.
Establishing the Sound Settings
for Hands-Free Phoning
You can adjust the call and ring tone volumes, as well as the ring tone type.
1. Touch [
] d [Phone] d [Phone
Sound Settings].
2. Touch any of the setting items
below to establish the sound
settings. Touch [Default] to return to the fac-tory settings.
[Call
Volume]
Touch [+] to increase
the call volume
incrementally; touch
[–] to decrease the call
volume incrementally.
Touch [OK] after
establishing the Call
Volume settings.
•
[Ring Tone
Volume]
Touch [+] to increase
the ring tone volume
incrementally; touch
[–] to decrease the
ring tone volume
incrementally. Touch
[OK] after establishing
the Ring Tone Volume
settings.
[Ring Tone]Touch on one of [Tone
1] - [Tone 3] to select
the ring tone, and then
touch [OK].
3. Touch [Save].
Setting Up Automatic Updates
for Contacts
You can set up an option for auto-matically updating contacts in the system using the address book of the cell phone that is connected.
1. Touch [
] d [Phone] d
[Phonebook].
2. Touch [Automatically Download
Contacts], and then touch either
[On] or [Off].
•
[0 - 9]Use this to forward the
tone data. Input the
tone data and touch
[Send].
[Mute]Mutes the dial tone.
[Handsfree
Mode]
Touch this to change
to hands-free phoning
when directly
manipulating the cell
phone during a call.
Changing to a Phone That Will
be Connected to the System
Up to five Bluetooth devices can be registered to the system. You can switch the phone to be used for hands-free phoning to another phone that has been registered. Touch [Connect Phone], and then touch on the phone that you want to connect.
•

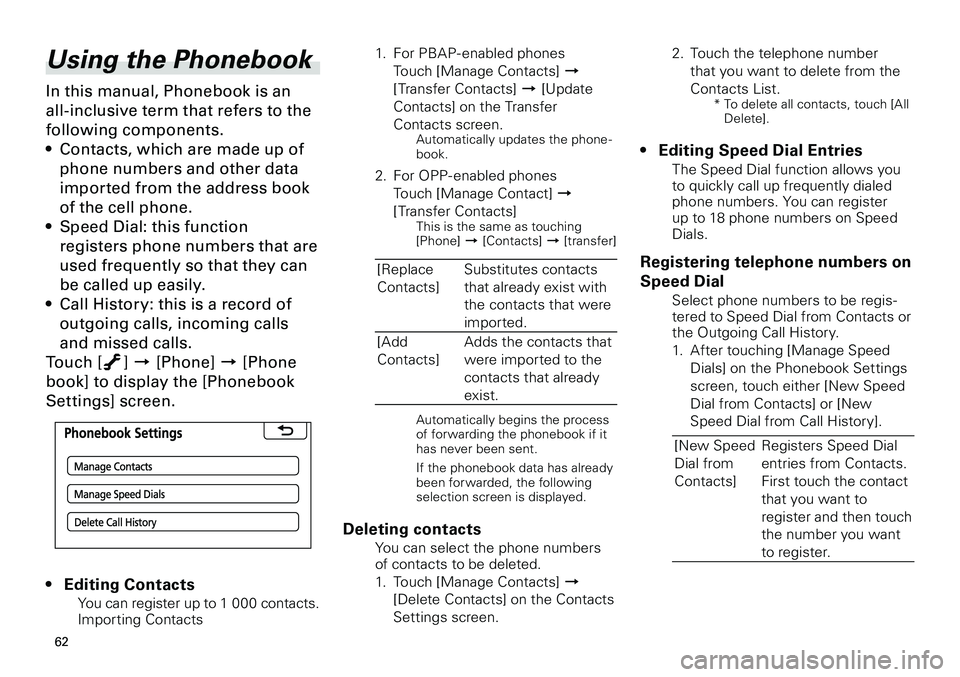

Page 62 of 76

6
Using the Phonebook
In this manual, Phonebook is an
all-inclusive term that refers to the
following components.
Contacts, which are made up of
phone numbers and other data
imported from the address book
of the cell phone.
Speed Dial: this function
registers phone numbers that are
used frequently so that they can
be called up easily.
Call History: this is a record of
outgoing calls, incoming calls
and missed calls.
Touch [] d [Phone] d [Phone
book] to display the [Phonebook
Settings] screen.
Editing Contacts
You can register up to 1 000 contacts.Importing Contacts
•
•
•
•
1. For PBAP- enabled phones
Touch [Manage Contacts]
d
[Transfer Contacts] d [Update
Contacts] on the Transfer
Contacts screen.Automatically updates the phone-book.
2. For OPP- enabled phones
Touch [Manage Contact] d
[Transfer Contacts]This is the same as touching [Phone] d [Contacts] d [transfer]
[Replace
Contacts]
Substitutes contacts
that already exist with
the contacts that were
imported.
[Add
Contacts]
Adds the contacts that
were imported to the
contacts that already
exist.
Automatically begins the process of forwarding the phonebook if it has never been sent.
If the phonebook data has already been forwarded, the following selection screen is displayed.
Deleting contacts
You can select the phone numbers of contacts to be deleted.
1. Touch [Manage Contacts]
d
[Delete Contacts] on the Contacts
Settings screen. 2.
Touch the telephone number
that you want to delete from the
Contacts List.* To delete all contacts, touch [All Delete].
Editing Speed Dial Entries
The Speed Dial function allows you to quickly call up frequently dialed phone numbers. You can register up to 18 phone numbers on Speed Dials.
Registering telephone numbers on
Speed Dial
Select phone numbers to be regis-tered to Speed Dial from Contacts or the Outgoing Call History.
1. After touching [Manage Speed
Dials] on the Phonebook Settings
screen, touch either [New Speed
Dial from Contacts] or [New
Speed Dial from Call History].
[New Speed
Dial from
Contacts]
Registers Speed Dial
entries from Contacts.
First touch the contact
that you want to
register and then touch
the number you want
to register.
•

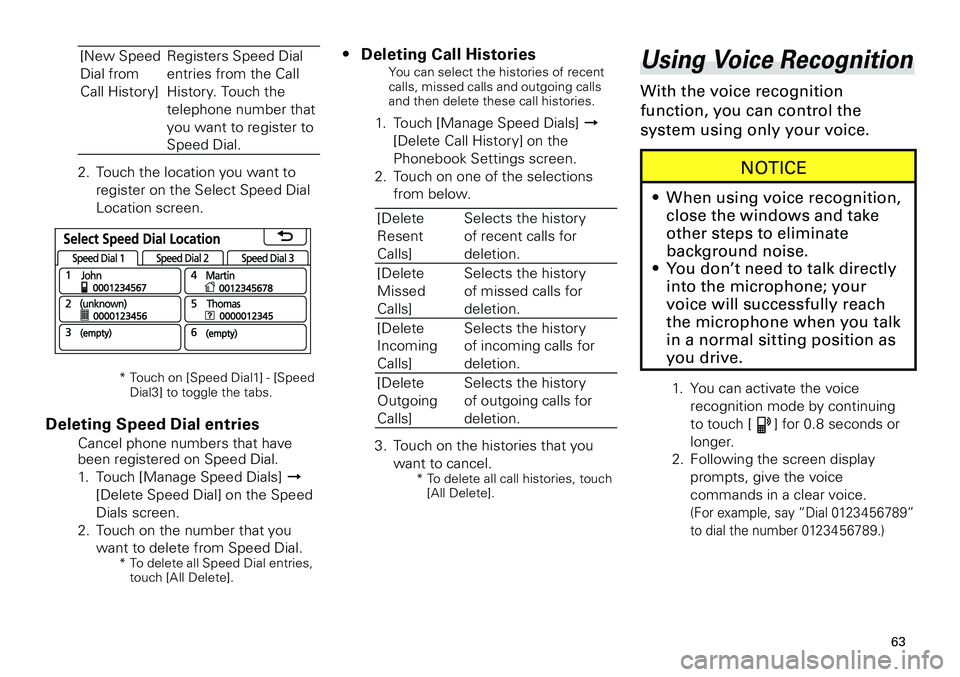

Page 63 of 76
![TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
63
<CRB3643-A/S>63
Deleting Call Histories
You can select the histories of recent calls, missed calls and outgoing calls and then delete these call histories.
1. Touch [Manage Speed Dials] d
[Dele TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
63
<CRB3643-A/S>63
Deleting Call Histories
You can select the histories of recent calls, missed calls and outgoing calls and then delete these call histories.
1. Touch [Manage Speed Dials] d
[Dele](/img/14/43266/w960_43266-62.png)
63
Deleting Call Histories
You can select the histories of recent calls, missed calls and outgoing calls and then delete these call histories.
1. Touch [Manage Speed Dials] d
[Delete Call History] on the
Phonebook Settings screen.
2. Touch on one of the selections
from below.
[Delete
Resent
Calls]
Selects the history
of recent calls for
deletion.
[Delete
Missed
Calls]
Selects the history
of missed calls for
deletion.
[Delete
Incoming
Calls]
Selects the history
of incoming calls for
deletion.
[Delete
Outgoing
Calls]
Selects the history
of outgoing calls for
deletion.
3. Touch on the histories that you
want to cancel.* To delete all call histories, touch [All Delete].
•Using Voice Recognition
With the voice recognition
function, you can control the
system using only your voice.
NOTICE
When using voice recognition,
close the windows and take
other steps to eliminate
background noise.
You don’t need to talk directly
into the microphone; your
voice will successfully reach
the microphone when you talk
in a normal sitting position as
you drive.
•
•
1. You can activate the voice
recognition mode by continuing
to touch [] for 0.8 seconds or
longer.
2. Following the screen display
prompts, give the voice
commands in a clear voice.
(For example, say “Dial 0123456789”
to dial the number 0123456789.)
[New Speed
Dial from
Call History]
Registers Speed Dial
entries from the Call
History. Touch the
telephone number that
you want to register to
Speed Dial.
2. Touch the location you want to
register on the Select Speed Dial
Location screen.
* Touch on [Speed Dial1] - [Speed Dial3] to toggle the tabs.
Deleting Speed Dial entries
Cancel phone numbers that have been registered on Speed Dial.
1. Touch [Manage Speed Dials]
d
[Delete Speed Dial] on the Speed
Dials screen.
2. Touch on the number that you
want to delete from Speed Dial.* To delete all Speed Dial entries, touch [All Delete].

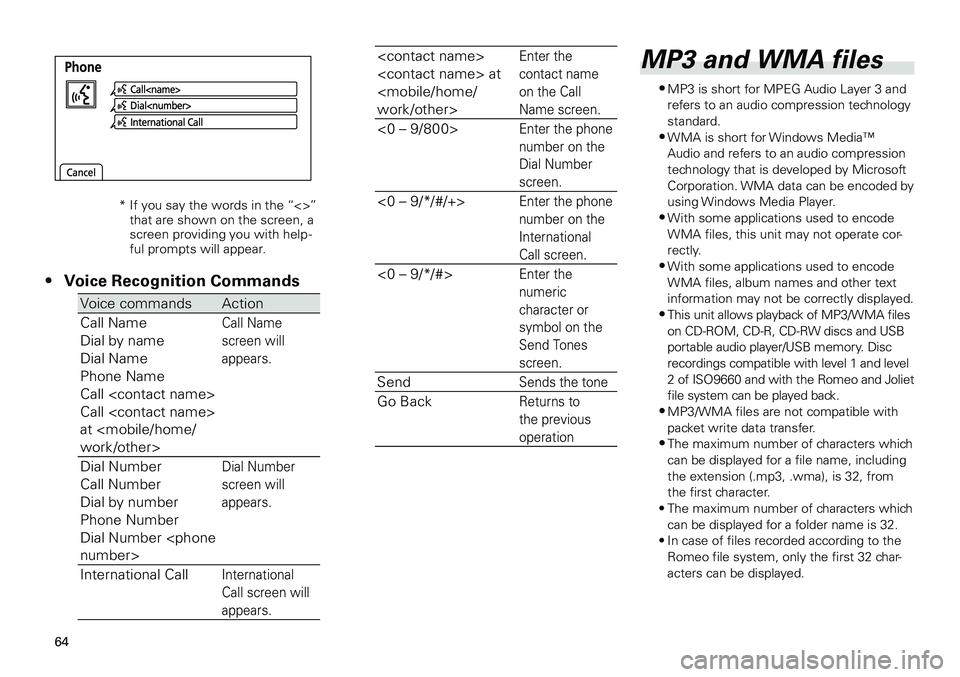

Page 64 of 76

64
* If you say the words in the “<>” that are shown on the screen, a screen providing you with help-ful prompts will appear.
Voice Recognition Commands
Voice commandsAction
Call Name
Dial by name
Dial Name
Phone Name
Call
Call
at
Call Name
screen will
appears.
Dial Number
Call Number
Dial by number
Phone Number
Dial Number
Dial Number
screen will
appears.
International CallInternational
Call screen will
appears.
•
Enter the
contact name
on the Call
Name screen.
<0 – 9/800>Enter the phone
number on the
Dial Number
screen.
<0 – 9/*/#/+>Enter the phone
number on the
International
Call screen.
<0 – 9/*/#>Enter the
numeric
character or
symbol on the
Send Tones
screen.
SendSends the tone
Go BackReturns to
the previous
operation
MP3 and WMA files
• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.• WMA is short for Windows Media™ Audio and refers to an audio compression technology that is developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player.• With some applications used to encode WMA files, this unit may not operate cor-
rectly.• With some applications used to encode WMA files, album names and other text information may not be correctly displayed.• This unit allows playback of MP3/WMA files on CD-ROM, CD-R, CD-RW discs and USB portable audio player/USB memory. Disc recordings compatible with level 1 and level 2 of ISO9660 and with the Romeo and Joliet file system can be played back.• MP3/WMA files are not compatible with packet write data transfer.• The maximum number of characters which can be displayed for a file name, including the extension (.mp3, .wma), is 32, from the first character.
• The maximum number of characters which
can be displayed for a folder name is 32.
• In case of files recorded according to the
Romeo file system, only the first 32 char-acters can be displayed.
Page 65 of 76

65

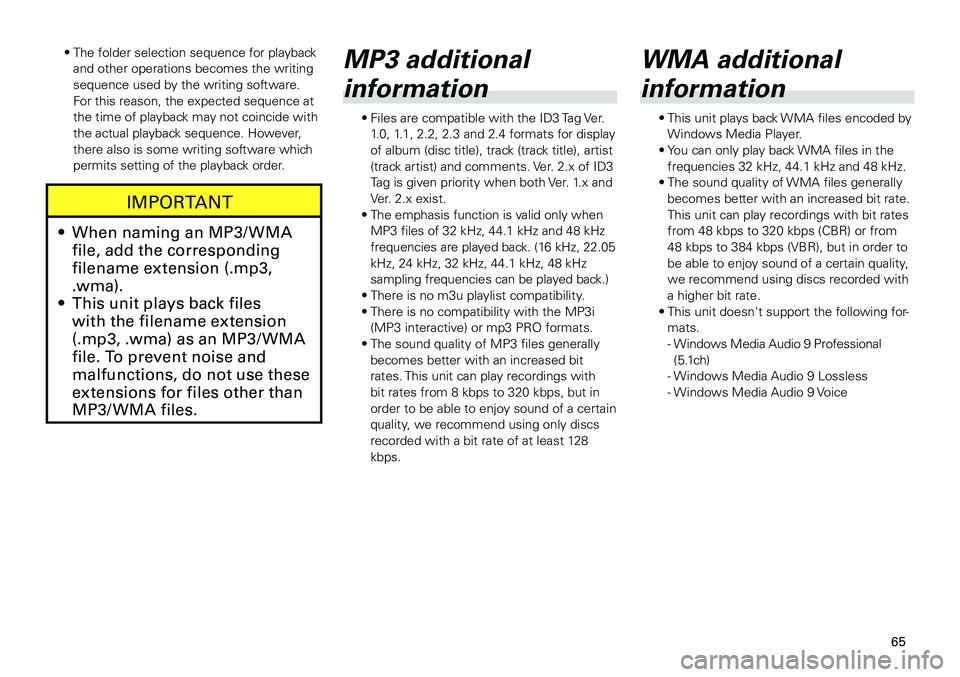

MP3 additional
information
• Files are compatible with the ID3 Tag Ver. 1.0, 1.1, 2.2, 2.3 and 2.4 formats for display of album (disc title), track (track title), artist (track artist) and comments. Ver. 2.x of ID3 Tag is given priority when both Ver. 1.x and Ver. 2.x exist.
• The emphasis function is valid only when
MP3 files of 32 kHz, 44.1 kHz and 48 kHz frequencies are played back. (16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz sampling frequencies can be played back.)
• There is no m3u playlist compatibility.
• There is no compatibility with the MP3i
(MP3 interactive) or mp3 PRO formats.
• The sound quality of MP3 files generally
becomes better with an increased bit rates. This unit can play recordings with bit rates from 8 kbps to 320 kbps, but in order to be able to enjoy sound of a certain quality, we recommend using only discs recorded with a bit rate of at least 128 kbps.
WMA additional
information
• This unit plays back WMA files encoded by Windows Media Player.
• You can only play back WMA files in the
frequencies 32 kHz, 44.1 kHz and 48 kHz.
• The sound quality of WMA files generally
becomes better with an increased bit rate. This unit can play recordings with bit rates from 48 kbps to 320 kbps (CBR) or from 48 kbps to 384 kbps (VBR), but in order to be able to enjoy sound of a certain quality, we recommend using discs recorded with a higher bit rate.
• This unit doesn't support the following for-mats.
-
Windows Media Audio 9 Professional
(5.1ch)
- Windows Media Audio 9 Lossless
- Windows Media Audio 9 Voice
•
The folder selection sequence for playback
and other operations becomes the writing sequence used by the writing software. For this reason, the expected sequence at the time of playback may not coincide with the actual playback sequence. However, there also is some writing software which permits setting of the playback order.
IMPORTANT
When naming an MP3/ WMA
file, add the corresponding
filename extension (.mp3,
.wma).
This unit plays back files
with the filename extension
(.mp3, .wma) as an MP3/ WMA
file. To prevent noise and
malfunctions, do not use these
extensions for files other than
MP3/ WMA files.
•
•
Page 66 of 76

66

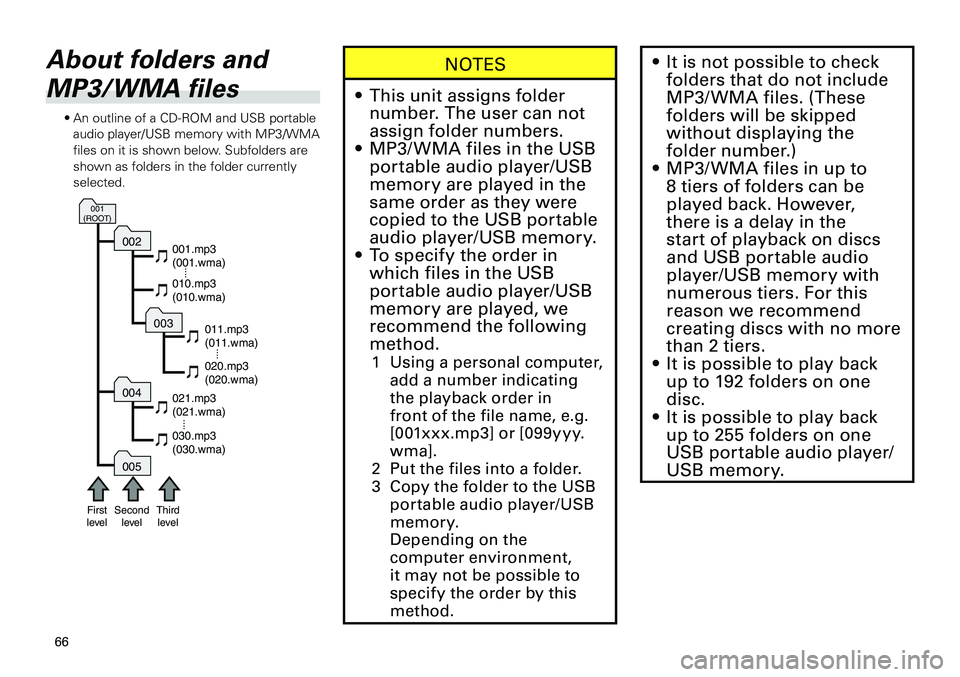

About folders and
MP3/WMA files
• An outline of a CD-ROM and USB portable audio player/USB memory with MP3/WMA files on it is shown below. Subfolders are shown as folders in the folder currently selected.
001.mp3 (001.wma)
010.mp3 (010.wma)
021.mp3 (021.wma)
030.mp3 (030.wma)
011.mp3 (011.wma)
020.mp3 (020.wma)
FirstlevelSecondlevelThirdlevel
001(ROOT)
002
004
005
003
NOTES
This unit assigns folder
number. The user can not
assign folder numbers.
MP3/ WMA files in the USB
portable audio player/USB
memory are played in the
same order as they were
copied to the USB portable
audio player/USB memory.
To specify the order in
which files in the USB
portable audio player/USB
memory are played, we
recommend the following
method.
1 Using a personal computer,
add a number indicating
the playback order in
front of the file name, e.g.
[001xxx.mp3] or [099yyy.
wma].
Put the files into a folder.
3 Copy the folder to the USB
portable audio player/USB
memory.
Depending on the
computer environment,
it may not be possible to
specif y the order by this
method.
•
•
•
It is not possible to check
folders that do not include
MP3/ WMA files. (These
folders will be skipped
without displaying the
folder number.)
MP3/ WMA files in up to
8 tiers of folders can be
played back. However,
there is a delay in the
start of playback on discs
and USB portable audio
player/USB memory with
numerous tiers. For this
reason we recommend
creating discs with no more
than tiers.
It is possible to play back
up to 19 folders on one
disc.
It is possible to play back
up to 55 folders on one
USB portable audio player/
USB memory.
•
•
•
•

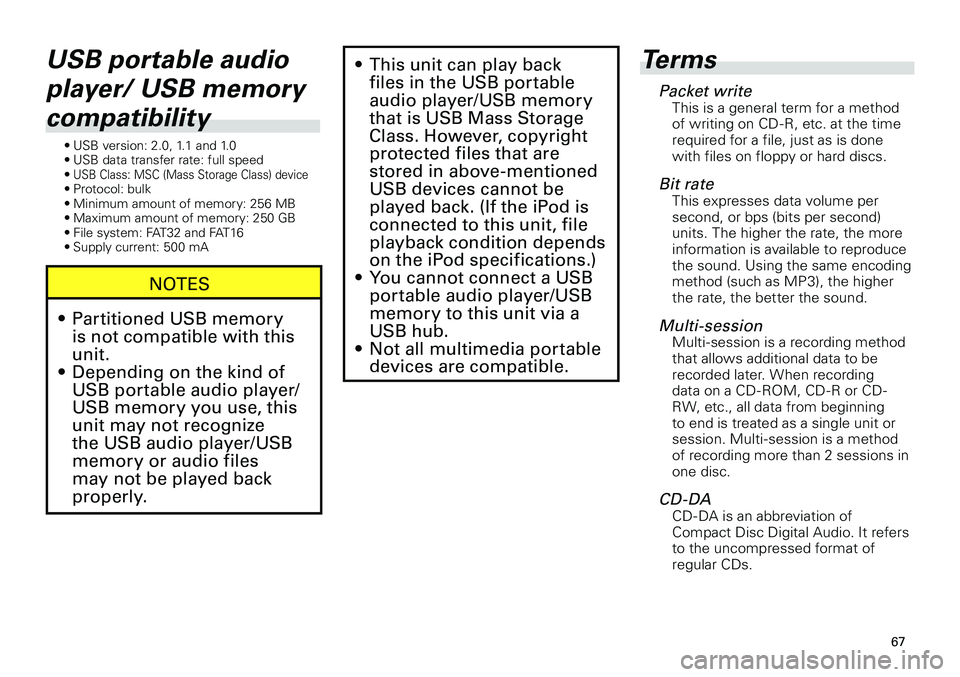

Page 67 of 76

67
This unit can play back
files in the USB portable
audio player/USB memory
that is USB Mass Storage
Class. However, copyright
protected files that are
stored in above-mentioned
USB devices cannot be
played back. (If the iPod is
connected to this unit, file
playback condition depends
on the iPod specifications.)
You cannot connect a USB
portable audio player/USB
memory to this unit via a
USB hub.
Not all multimedia portable
devices are compatible.
•
•
•
Terms
Packet writeThis is a general term for a method of writing on CD -R, etc. at the time required for a file, just as is done with files on floppy or hard discs.
Bit rateThis expresses data volume per second, or bps (bits per second) units. The higher the rate, the more information is available to reproduce the sound. Using the same encoding method (such as MP3), the higher the rate, the better the sound.
Multi-sessionMulti-session is a recording method that allows additional data to be recorded later. When recording data on a CD -ROM, CD -R or CD -RW, etc., all data from beginning to end is treated as a single unit or session. Multi-session is a method of recording more than 2 sessions in one disc.
CD-DACD - DA is an abbreviation of Compact Disc Digital Audio. It refers to the uncompressed format of regular CDs.
USB portable audio
player/ USB memory
compatibility
• USB version: 2.0, 1.1 and 1.0
• USB data transfer rate: full speed
•
USB Class: MSC (Mass Storage Class) device• Protocol: bulk
• Minimum amount of memory: 256 MB
• Maximum amount of memory: 250 GB
• File system: FAT32 and FAT16
• Supply current: 500 mA
NOTES
Partitioned USB memory
is not compatible with this
unit.
Depending on the kind of
USB portable audio player/
USB memory you use, this
unit may not recognize
the USB audio player/USB
memory or audio files
may not be played back
properly.
•
•
Page 68 of 76

68

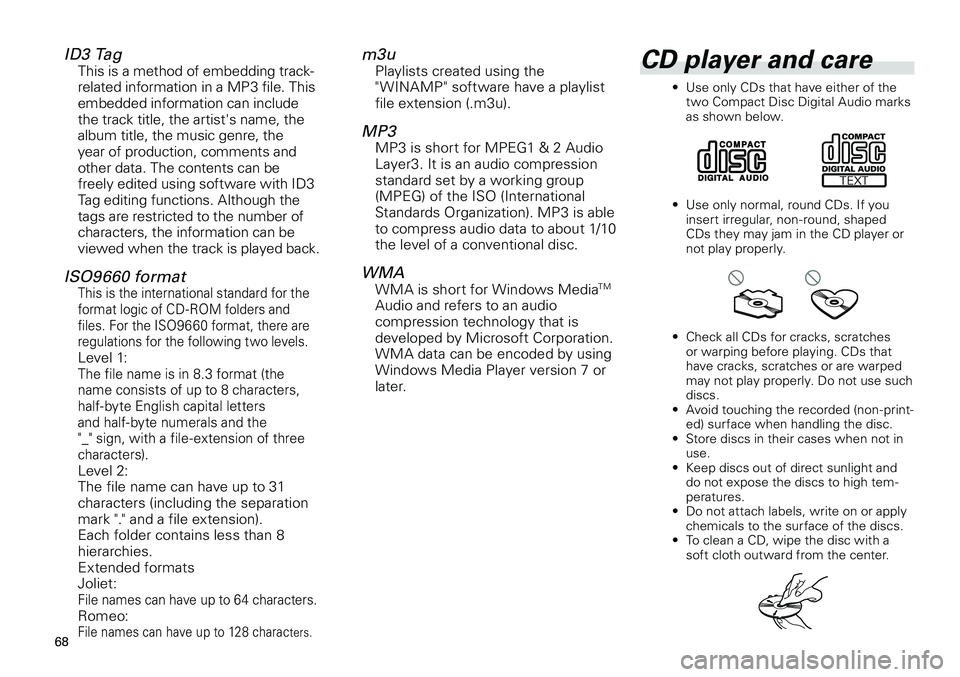

ID3 TagThis is a method of embedding track-related information in a MP3 file. This embedded information can include the track title, the artist's name, the album title, the music genre, the year of production, comments and other data. The contents can be freely edited using software with ID3 Tag editing functions. Although the tags are restricted to the number of characters, the information can be viewed when the track is played back.
ISO9660 formatThis is the international standard for the format logic of CD -ROM folders and files. For the ISO9660 format, there are regulations for the following two levels.Level 1:The file name is in 8.3 format (the name consists of up to 8 characters, half-byte English capital letters and half-byte numerals and the "_" sign, with a file- extension of three characters).
Level 2:The file name can have up to 31 characters (including the separation mark "." and a file extension). Each folder contains less than 8 hierarchies.Extended formatsJoliet:File names can have up to 64 characters.Romeo:
File names can have up to 128 characters.
m3uPlaylists created using the " WINAMP " software have a playlist file extension (.m3u).
MP3MP3 is short for MPEG1 & 2 Audio Layer3. It is an audio compression standard set by a working group (MPEG) of the ISO (International Standards Organization). MP3 is able to compress audio data to about 1/10 the level of a conventional disc.
WMAWMA is short for Windows MediaTM
Audio and refers to an audio compression technology that is developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 7 or later.
CD player and care
• Use only CDs that have either of the two Compact Disc Digital Audio marks as shown below.
• Use only normal, round CDs. If you
insert irregular, non-round, shaped CDs they may jam in the CD player or not play properly.
• Check all CDs for cracks, scratches or warping before playing. CDs that have cracks, scratches or are warped may not play properly. Do not use such discs.
• Avoid touching the recorded (non-print-ed) surface when handling the disc.
• Store discs in their cases when not in
use.
• Keep discs out of direct sunlight and
do not expose the discs to high tem-peratures.
• Do not attach labels, write on or apply
chemicals to the surface of the discs.
• To clean a CD, wipe the disc with a
soft cloth outward from the center.
Page 69 of 76

69

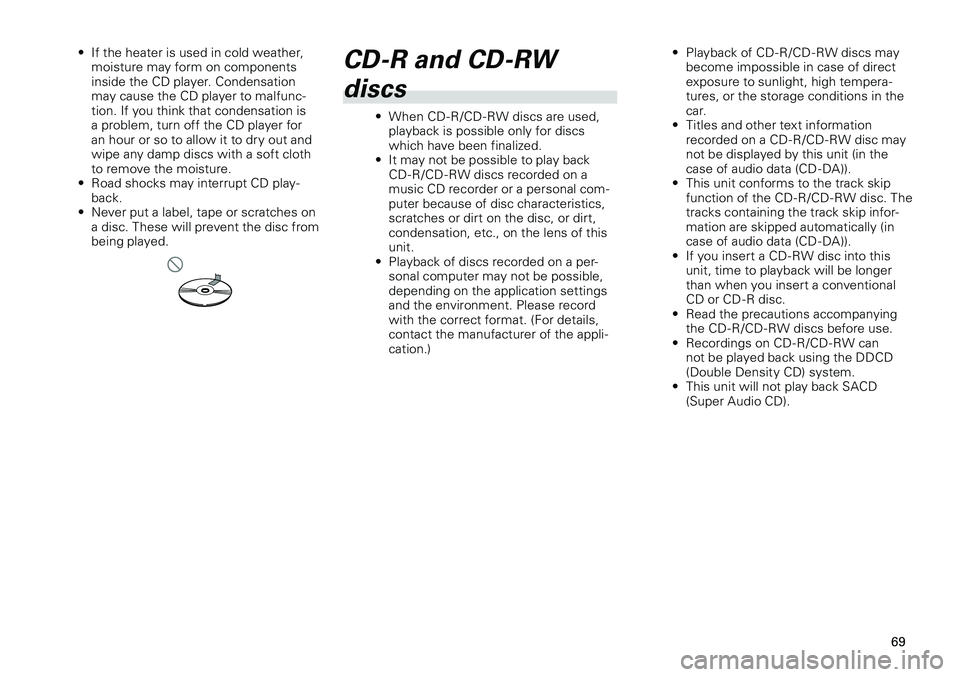

CD-R and CD-RW
discs
• When CD - R/CD - RW discs are used, playback is possible only for discs which have been finalized.
• It may not be possible to play back
CD - R/CD - RW discs recorded on a music CD recorder or a personal com-puter because of disc characteristics, scratches or dirt on the disc, or dirt, condensation, etc., on the lens of this unit.
• Playback of discs recorded on a per-sonal computer may not be possible, depending on the application settings and the environment. Please record with the correct format. (For details, contact the manufacturer of the appli-cation.) •
Playback of CD - R/CD - RW discs may
become impossible in case of direct exposure to sunlight, high tempera-tures, or the storage conditions in the car.
• Titles and other text information
recorded on a CD - R/CD - RW disc may not be displayed by this unit (in the case of audio data (CD - DA)).
• This unit conforms to the track skip
function of the CD - R/CD - RW disc. The tracks containing the track skip infor-mation are skipped automatically (in case of audio data (CD - DA)).
• If you insert a CD - RW disc into this
unit, time to playback will be longer than when you insert a conventional CD or CD - R disc.
• Read the precautions accompanying
the CD - R/CD - RW discs before use.
• Recordings on CD - R/CD - RW can
not be played back using the DDCD (Double Density CD) system.
• This unit will not play back SACD
(Super Audio CD).
•
If the heater is used in cold weather,
moisture may form on components inside the CD player. Condensation may cause the CD player to malfunc-tion. If you think that condensation is a problem, turn off the CD player for an hour or so to allow it to dry out and wipe any damp discs with a soft cloth to remove the moisture.
• Road shocks may interrupt CD play-back.
• Never put a label, tape or scratches on
a disc. These will prevent the disc from being played.
Page 70 of 76

70

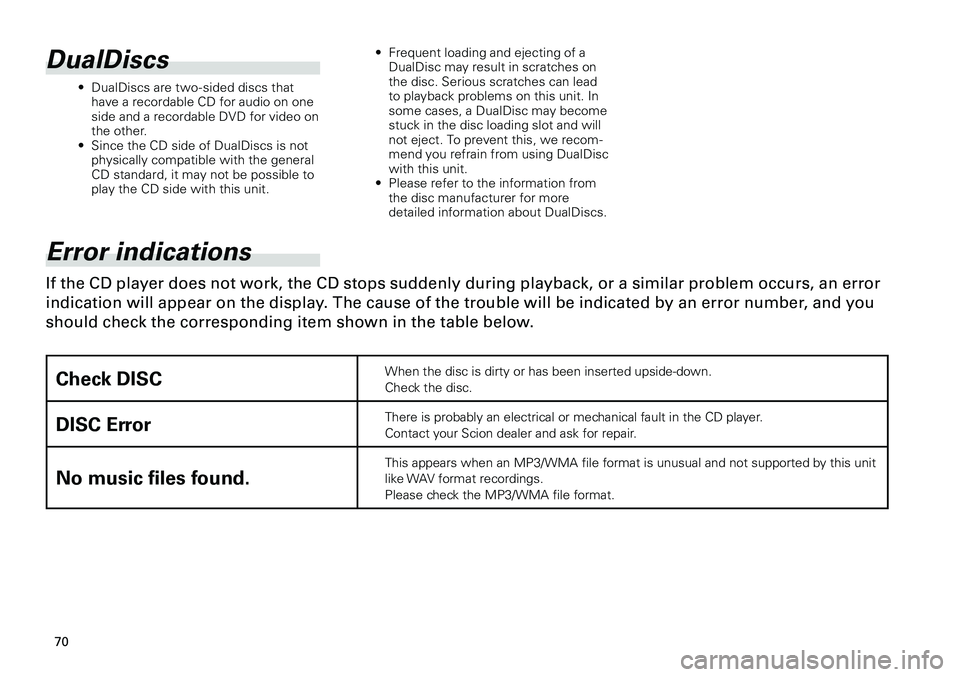

DualDiscs
• DualDiscs are two -sided discs that have a recordable CD for audio on one side and a recordable DVD for video on the other.
• Since the CD side of DualDiscs is not
physically compatible with the general CD standard, it may not be possible to play the CD side with this unit. •
Frequent loading and ejecting of a
DualDisc may result in scratches on the disc. Serious scratches can lead to playback problems on this unit. In some cases, a DualDisc may become stuck in the disc loading slot and will not eject. To prevent this, we recom-mend you refrain from using DualDisc with this unit.
• Please refer to the information from
the disc manufacturer for more detailed information about DualDiscs.
Error indications
If the CD player does not work, the CD stops suddenly during playback, or a similar problem occurs, an error
indication will appear on the display. The cause of the trouble will be indicated by an error number, and you
should check the corresponding item shown in the table below.
Check DISCWhen the disc is dirty or has been inserted upside-down.Check the disc.
DISC ErrorThere is probably an electrical or mechanical fault in the CD player.Contact your Scion dealer and ask for repair.
No music files found.
This appears when an MP3/WMA file format is unusual and not supported by this unit
like WAV format recordings.Please check the MP3/WMA file format.
