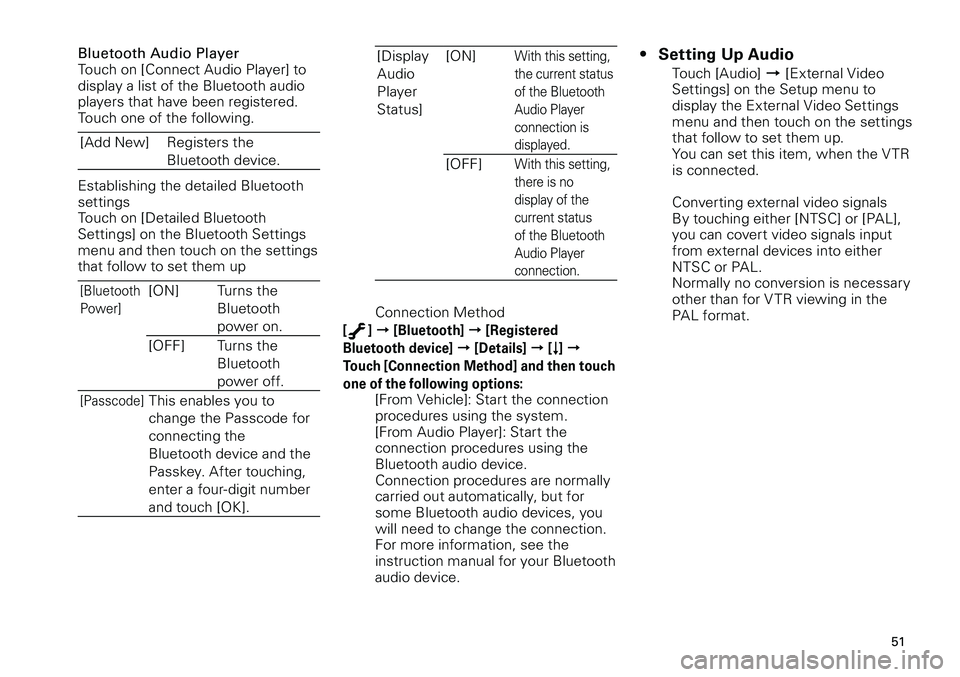

![TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
51
<CRB3643-A/S>51
Bluetooth Audio PlayerTouch on [Connect Audio Player] to display a list of the Bluetooth audio players that have been registered. Touch one of the following.
[Add New]Registers th TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
51
<CRB3643-A/S>51
Bluetooth Audio PlayerTouch on [Connect Audio Player] to display a list of the Bluetooth audio players that have been registered. Touch one of the following.
[Add New]Registers th](/img/14/43266/w960_43266-50.png)
51
Bluetooth Audio PlayerTouch on [Connect Audio Player] to display a list of the Bluetooth audio players that have been registered. Touch one of the following.
[Add New]Registers the
Bluetooth device.
Establishing the detailed Bluetooth settingsTouch on [Detailed Bluetooth Settings] on the Bluetooth Settings menu and then touch on the settings that follow to set them up
[Bluetooth
Power]
[ON]Turns the
Bluetooth
power on.
[OFF]Turns the
Bluetooth
power off.
[Passcode]This enables you to
change the Passcode for
connecting the
Bluetooth device and the
Passkey. After touching,
enter a four- digit number
and touch [OK].
[Display
Audio
Player
Status]
[ON]With this setting,
the current status
of the Bluetooth
Audio Player
connection is
displayed.
[OFF]With this setting,
there is no
display of the
current status
of the Bluetooth
Audio Player
connection.
Connection Method
[] d [Bluetooth] d [Registered
Bluetooth device] d [Details] d [] d
Touch [Connection Method] and then touch
one of the following options: [From Vehicle]: Start the connection procedures using the system. [From Audio Player]: Start the connection procedures using the
Bluetooth audio device.
Connection procedures are normally carried out automatically, but for some Bluetooth audio devices, you will need to change the connection. For more information, see the instruction manual for your Bluetooth audio device.
Setting Up Audio
Touch [Audio] d [External Video Settings] on the Setup menu to display the External Video Settings menu and then touch on the settings that follow to set them up.You can set this item, when the V TR is connected.
Converting external video signalsBy touching either [NTSC] or [PAL], you can covert video signals input from external devices into either
NTSC or PAL.Normally no conversion is necessary other than for V TR viewing in the PAL format.
•
Page 52 of 76

5

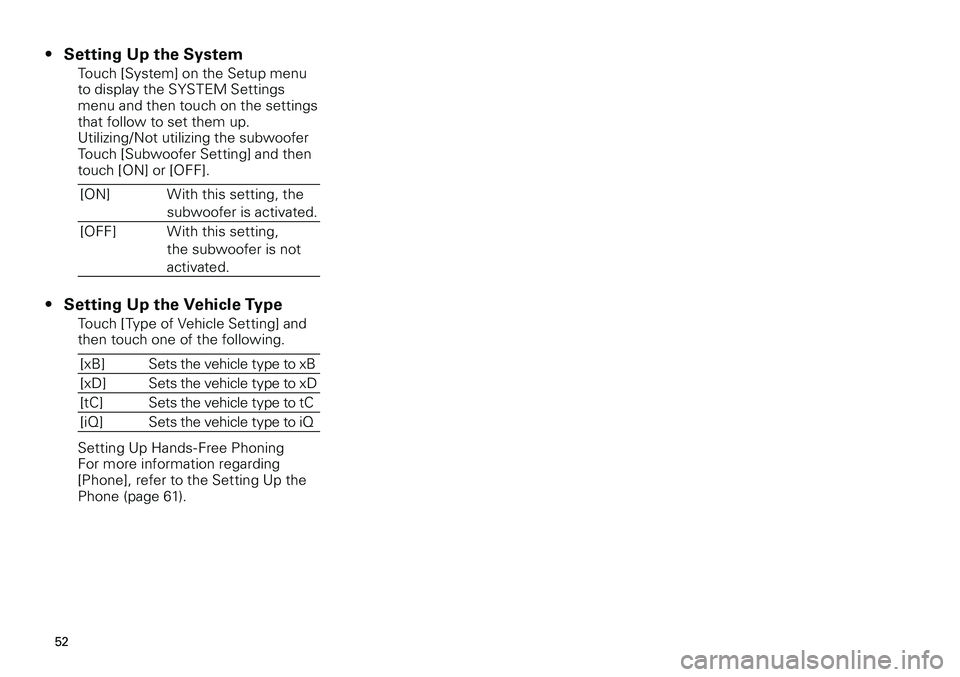

Setting Up the System
Touch [System] on the Setup menu to display the SYSTEM Settings menu and then touch on the settings that follow to set them up.Utilizing/Not utilizing the subwooferTouch [Subwoofer Setting] and then touch [ON] or [OFF].
[ON]With this setting, the
subwoofer is activated.
[OFF]With this setting,
the subwoofer is not
activated.
Setting Up the Vehicle Type
Touch [Type of Vehicle Setting] and then touch one of the following.
[xB]Sets the vehicle type to xB
[xD]Sets the vehicle type to xD
[tC]Sets the vehicle type to tC
[iQ]Sets the vehicle type to iQ
Setting Up Hands- Free Phoning For more information regarding
[Phone], refer to the Setting Up the Phone (page 61).
•
•
Page 53 of 76
![TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
53
<CRB3643-A/S>53
Setting Up the Sound
Quality
Touch on [] for each mode
screen to display the SOUND
SET TINGS MENU. On the SOUND
SET TINGS MENU, a variety of
settings related to sound quality TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
53
<CRB3643-A/S>53
Setting Up the Sound
Quality
Touch on [] for each mode
screen to display the SOUND
SET TINGS MENU. On the SOUND
SET TINGS MENU, a variety of
settings related to sound quality](/img/14/43266/w960_43266-52.png)
53

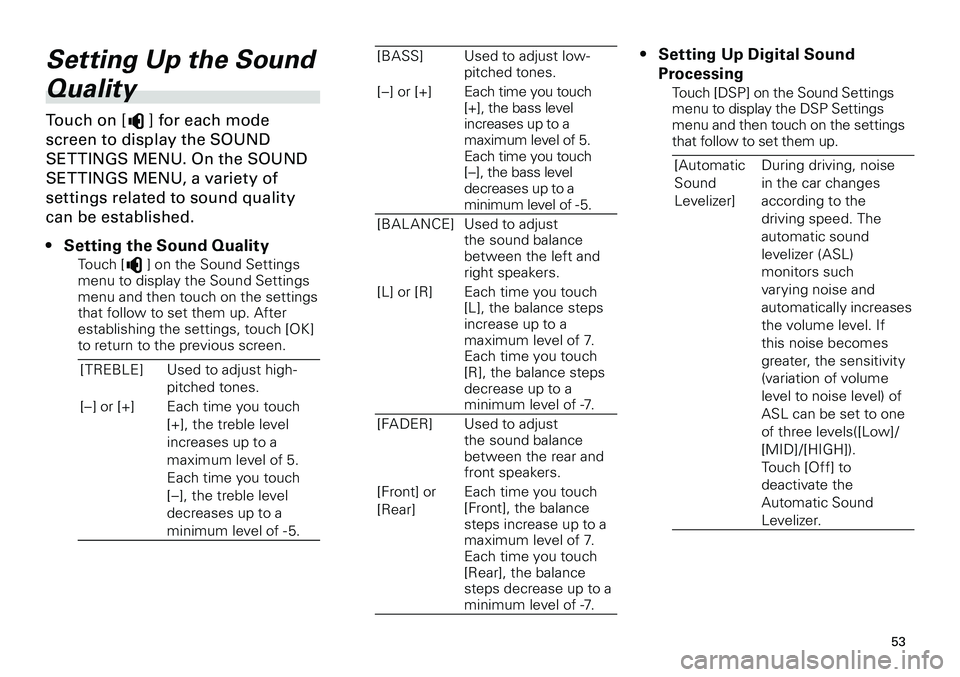

Setting Up the Sound
Quality
Touch on [] for each mode
screen to display the SOUND
SET TINGS MENU. On the SOUND
SET TINGS MENU, a variety of
settings related to sound quality
can be established.
Setting the Sound Quality
Touch [] on the Sound Settings menu to display the Sound Settings menu and then touch on the settings that follow to set them up. After establishing the settings, touch [OK] to return to the previous screen.
[TREBLE]Used to adjust high-
pitched tones.
[–] or [+]Each time you touch
[+], the treble level
increases up to a
maximum level of 5.
Each time you touch
[–], the treble level
decreases up to a
minimum level of - 5.
•
[BASS]Used to adjust low-pitched tones.
[–] or [+]Each time you touch [+], the bass level increases up to a maximum level of 5. Each time you touch [–], the bass level decreases up to a minimum level of -5.
[BAL ANCE]Used to adjust the sound balance between the left and right speakers.
[L] or [R]Each time you touch [L], the balance steps increase up to a maximum level of 7. Each time you touch [R], the balance steps decrease up to a minimum level of -7.
[FADER]Used to adjust the sound balance between the rear and
front speakers.
[Front] or
[Rear]
Each time you touch [Front], the balance steps increase up to a maximum level of 7. Each time you touch
[Rear], the balance steps decrease up to a minimum level of -7.
Setting Up Digital Sound
Processing
Touch [DSP] on the Sound Settings menu to display the DSP Settings menu and then touch on the settings that follow to set them up.
[Automatic
Sound
Levelizer]
During driving, noise
in the car changes
according to the
driving speed. The
automatic sound
levelizer (ASL)
monitors such
varying noise and
automatically increases
the volume level. If
this noise becomes
greater, the sensitivity
(variation of volume
level to noise level) of
ASL can be set to one
of three levels([Low]/
[MID]/ [HIGH]).
Touch [Off] to
deactivate the
Automatic Sound
Levelizer.
•
Page 54 of 76
![TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
54
<CRB3643-A/S>54
[Advanced
Sound
Retriever]
The Advanced Sound
Retriever function
provides a wide, deep
and rich quality to
CD/MP3/ WMA /USB/
iPod sound, which
gives the user a lively
impr TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
54
<CRB3643-A/S>54
[Advanced
Sound
Retriever]
The Advanced Sound
Retriever function
provides a wide, deep
and rich quality to
CD/MP3/ WMA /USB/
iPod sound, which
gives the user a lively
impr](/img/14/43266/w960_43266-53.png)
54

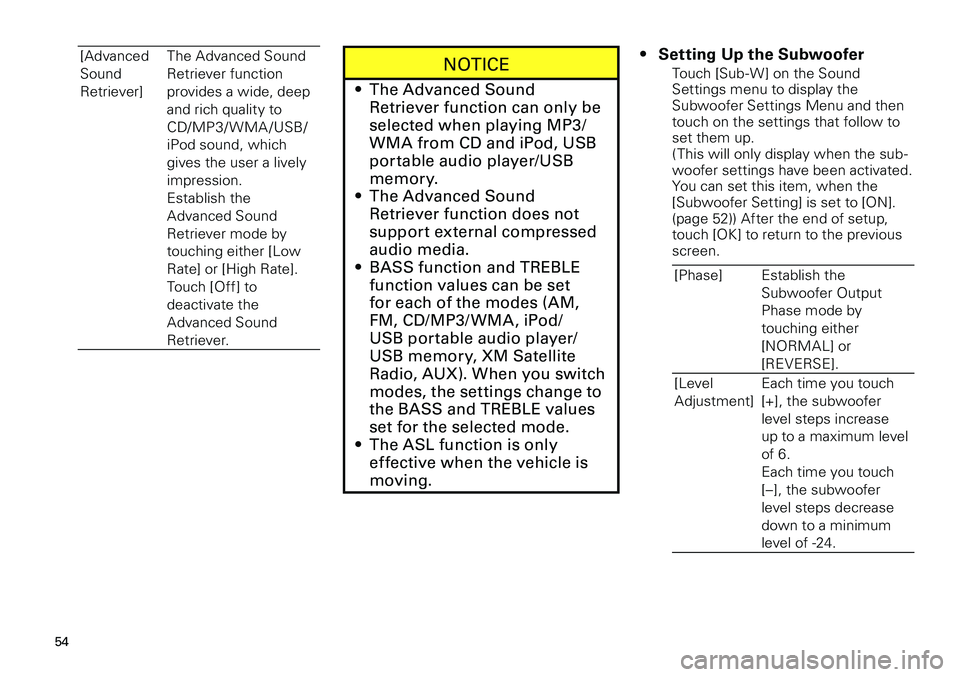

[Advanced
Sound
Retriever]
The Advanced Sound
Retriever function
provides a wide, deep
and rich quality to
CD/MP3/ WMA /USB/
iPod sound, which
gives the user a lively
impression.
Establish the
Advanced Sound
Retriever mode by
touching either [Low
Rate] or [High Rate].
Touch [Off] to
deactivate the
Advanced Sound
Retriever.
NOTICE
The Advanced Sound
Retriever function can only be
selected when playing MP3/
WMA from CD and iPod, USB
portable audio player/USB
memory.
The Advanced Sound
Retriever function does not
support external compressed
audio media.
BASS function and TREBLE
function values can be set
for each of the modes (AM,
FM, CD/MP3/ WMA, iPod/
USB portable audio player/
USB memory, XM Satellite
Radio, AUX). When you switch
modes, the settings change to
the BASS and TREBLE values
set for the selected mode.
The ASL function is only
ef fective when the vehicle is
moving.
•
•
•
•
Setting Up the Subwoofer
Touch [Sub -W] on the Sound Settings menu to display the Subwoofer Settings Menu and then touch on the settings that follow to set them up. ( This will only display when the sub-woofer settings have been activated. You can set this item, when the [Subwoofer Setting] is set to [ON]. (page 52)) After the end of setup, touch [OK] to return to the previous screen.
[Phase]Establish the
Subwoofer Output
Phase mode by
touching either
[NORMAL] or
[REVERSE].
[Level
Adjustment]
Each time you touch
[+], the subwoofer
level steps increase
up to a maximum level
of 6.
Each time you touch
[–], the subwoofer
level steps decrease
down to a minimum
level of -24.
•
Page 55 of 76
![TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
55
<CRB3643-A/S>55
Establishing the SSP (Scion
Sound Processing) Mode
SSP is a modified DSP (Digital Signal Processing) system that provides a customized sound for your vehicle. Touch [SSP] on the TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
55
<CRB3643-A/S>55
Establishing the SSP (Scion
Sound Processing) Mode
SSP is a modified DSP (Digital Signal Processing) system that provides a customized sound for your vehicle. Touch [SSP] on the](/img/14/43266/w960_43266-54.png)
55

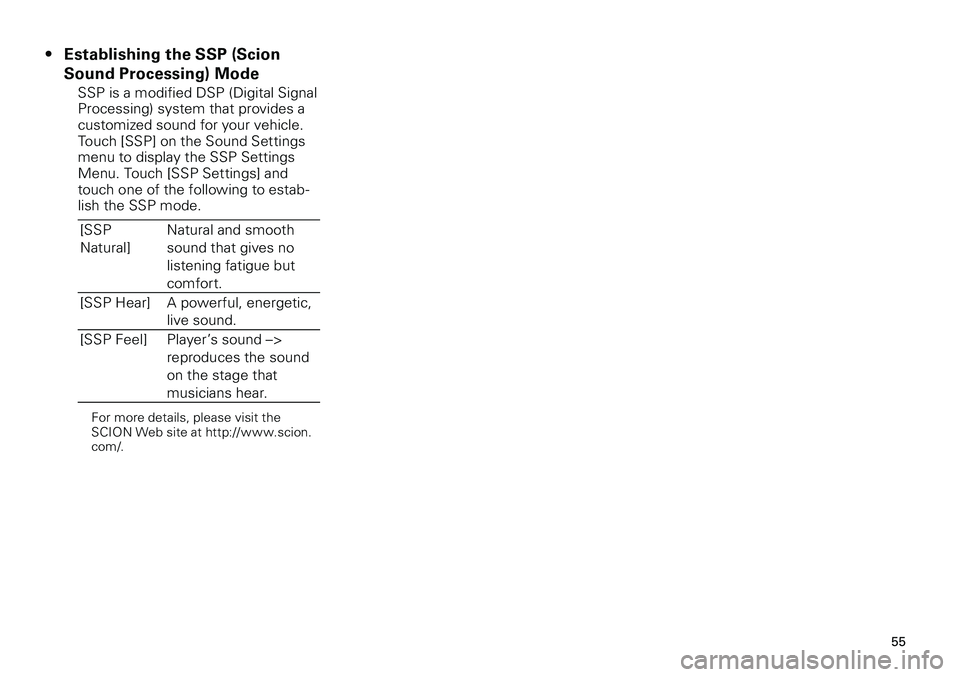

Establishing the SSP (Scion
Sound Processing) Mode
SSP is a modified DSP (Digital Signal Processing) system that provides a customized sound for your vehicle. Touch [SSP] on the Sound Settings menu to display the SSP Settings Menu. Touch [SSP Settings] and touch one of the following to estab-lish the SSP mode.
[SSP
Natural]
Natural and smooth
sound that gives no
listening fatigue but
comfort.
[SSP Hear]A powerful, energetic,
live sound.
[SSP Feel]Player’s sound –>
reproduces the sound
on the stage that
musicians hear.
For more details, please visit the SCION Web site at http://www.scion.com/.
•
Page 56 of 76

56

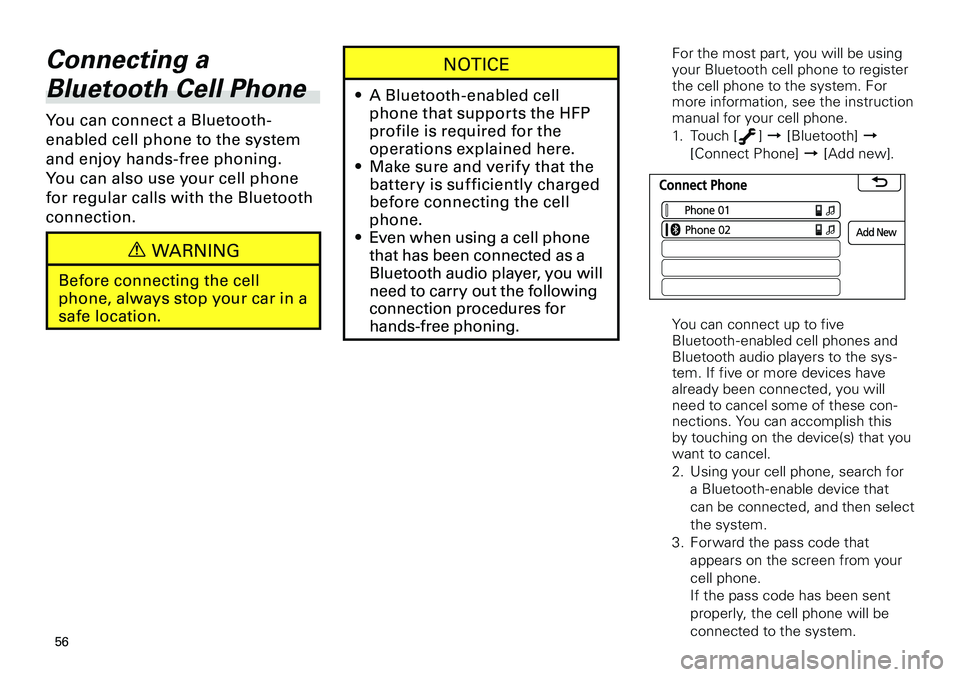

Connecting a
Bluetooth Cell Phone
You can connect a Bluetooth-
enabled cell phone to the system
and enjoy hands-free phoning.
You can also use your cell phone
for regular calls with the Bluetooth
connection.
WARNING
Before connecting the cell
phone, always stop your car in a
safe location.
NOTICE
A Bluetooth-enabled cell
phone that supports the HFP
profile is required for the
operations explained here.
Make sure and verif y that the
battery is suf ficiently charged
before connecting the cell
phone.
Even when using a cell phone
that has been connected as a
Bluetooth audio player, you will
need to carry out the following
connection procedures for
hands-free phoning.
•
•
•
For the most part, you will be using your Bluetooth cell phone to register the cell phone to the system. For more information, see the instruction manual for your cell phone.
1. Touch [
] d [Bluetooth] d
[Connect Phone] d [Add new].
Phone 01
Phone 02
You can connect up to five Bluetooth- enabled cell phones and Bluetooth audio players to the sys-tem. If five or more devices have already been connected, you will need to cancel some of these con-nections. You can accomplish this by touching on the device(s) that you want to cancel.
2. Using your cell phone, search for
a Bluetooth- enable device that
can be connected, and then select
the system.
3. Forward the pass code that
appears on the screen from your
cell phone.
If the pass code has been sent
properly, the cell phone will be
connected to the system.
Page 57 of 76
![TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
57
<CRB3643-A/S>57
Sending your pass key for registration
1. Touch [] d [Bluetooth] d [Connect Phone] d [Add New]. If a device has already been connected, a screen will appear seeking confirmation o TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
57
<CRB3643-A/S>57
Sending your pass key for registration
1. Touch [] d [Bluetooth] d [Connect Phone] d [Add New]. If a device has already been connected, a screen will appear seeking confirmation o](/img/14/43266/w960_43266-56.png)
57

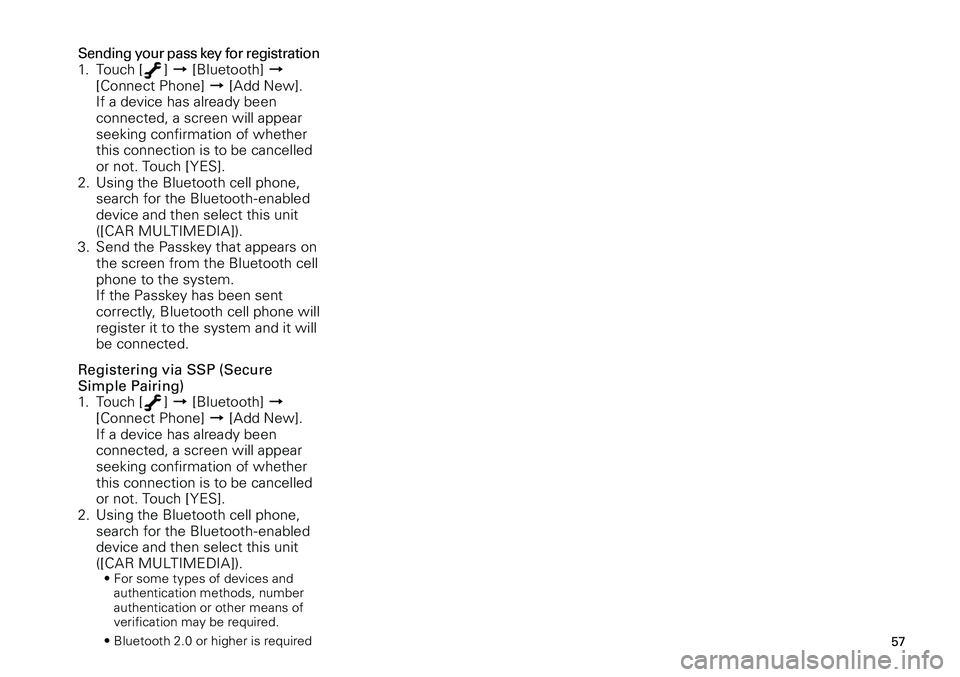

Sending your pass key for registration
1. Touch [] d [Bluetooth] d [Connect Phone] d [Add New]. If a device has already been connected, a screen will appear seeking confirmation of whether this connection is to be cancelled or not. Touch [YES].
2. Using the Bluetooth cell phone,
search for the Bluetooth- enabled device and then select this unit ([CAR MULTIMEDIA]).
3. Send the Passkey that appears on
the screen from the Bluetooth cell phone to the system.
If the Passkey has been sent
correctly, Bluetooth cell phone will register it to the system and it will be connected.
Registering via SSP (Secure Simple Pairing)
1. Touch [] d [Bluetooth] d [Connect Phone] d [Add New]. If a device has already been connected, a screen will appear seeking confirmation of whether this connection is to be cancelled or not. Touch [YES].
2. Using the Bluetooth cell phone,
search for the Bluetooth- enabled device and then select this unit ([CAR MULTIMEDIA]). • For some types of devices and authentication methods, number authentication or other means of verification may be required.
• Bluetooth 2.0 or higher is required
Page 58 of 76

58

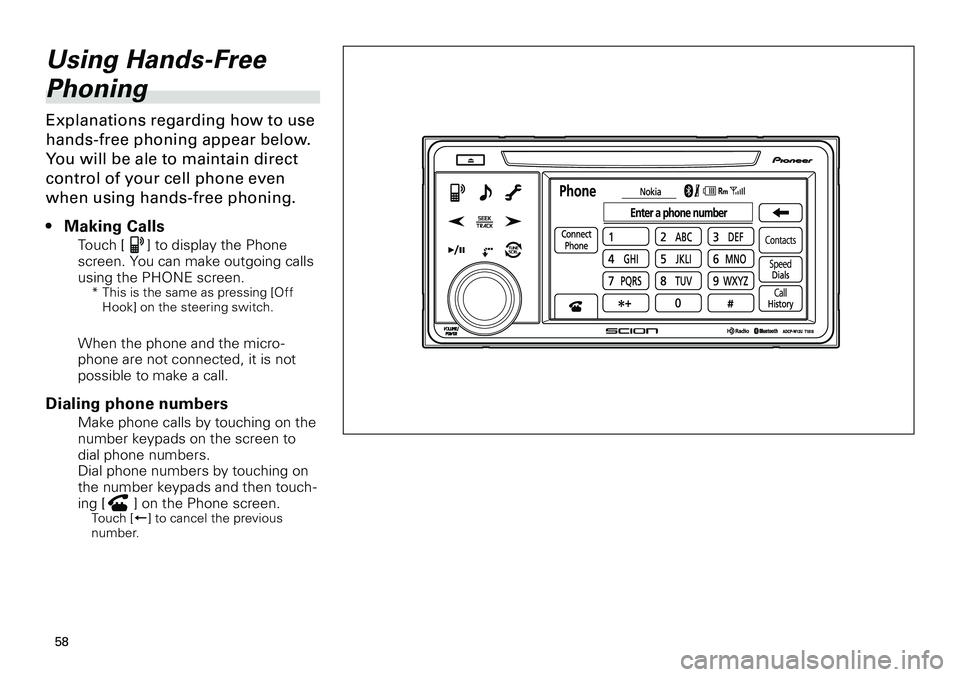

Using Hands-Free
Phoning
Explanations regarding how to use
hands-free phoning appear below.
You will be ale to maintain direct
control of your cell phone even
when using hands-free phoning.
Making Calls
Touch [] to display the Phone
screen. You can make outgoing calls using the PHONE screen.* This is the same as pressing [Off Hook] on the steering switch.
When the phone and the micro-phone are not connected, it is not possible to make a call.
Dialing phone numbers
Make phone calls by touching on the number keypads on the screen to dial phone numbers.Dial phone numbers by touching on the number keypads and then touch-ing [] on the Phone screen.Touch [] to cancel the previous number.
•
Page 59 of 76

59

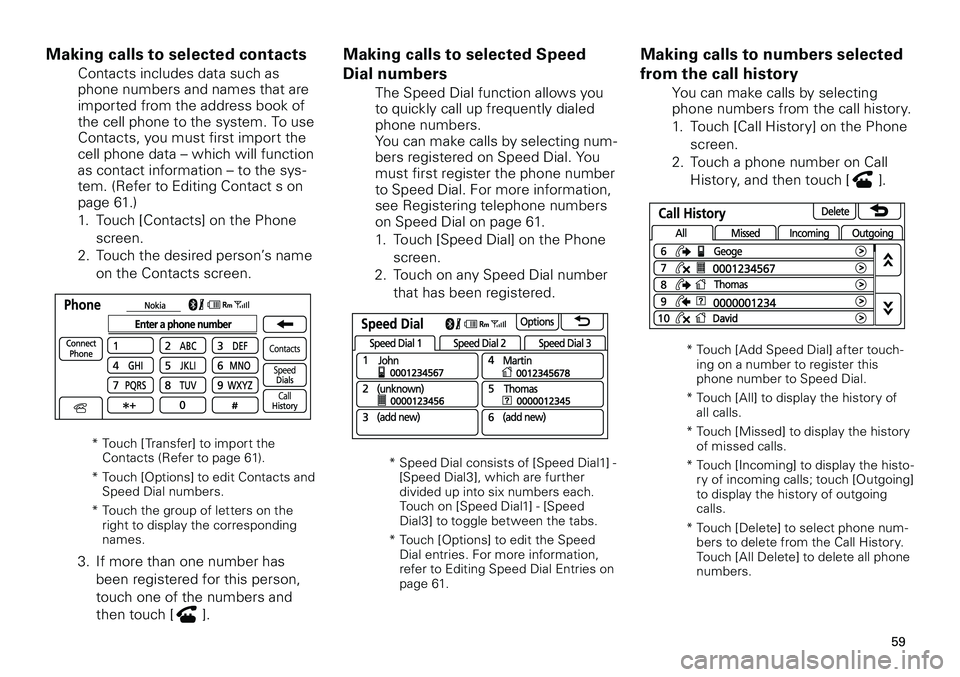

Making calls to selected Speed
Dial numbers
The Speed Dial function allows you to quickly call up frequently dialed phone numbers. You can make calls by selecting num-bers registered on Speed Dial. You must first register the phone number to Speed Dial. For more information, see Registering telephone numbers on Speed Dial on page 61.
1. Touch [Speed Dial] on the Phone
screen.
2. Touch on any Speed Dial number
that has been registered.
* Speed Dial consists of [Speed Dial1] - [Speed Dial3], which are further divided up into six numbers each. Touch on [Speed Dial1] - [Speed Dial3] to toggle between the tabs.
* Touch [Options] to edit the Speed
Dial entries. For more information, refer to Editing Speed Dial Entries on page 61.
Making calls to numbers selected
from the call history
You can make calls by selecting phone numbers from the call history.
1. Touch [Call History] on the Phone
screen.
2. Touch a phone number on Call
History, and then touch [].
* Touch [Add Speed Dial] after touch-ing on a number to register this phone number to Speed Dial.
* Touch [All] to display the history of
all calls.
* Touch [Missed] to display the history
of missed calls.
* Touch [Incoming] to display the histo
-ry of incoming calls; touch [Outgoing] to display the history of outgoing calls.
* Touch [Delete] to select phone num
-bers to delete from the Call History. Touch [All Delete] to delete all phone numbers.
Making calls to selected contacts
Contacts includes data such as phone numbers and names that are imported from the address book of the cell phone to the system. To use Contacts, you must first import the cell phone data – which will function as contact information – to the sys-tem. (Refer to Editing Contact s on page 61.)
1. Touch [Contacts] on the Phone
screen.
2. Touch the desired person’s name
on the Contacts screen.
* Touch [ Transfer] to import the Contacts (Refer to page 61).
* Touch [Options] to edit Contacts and
Speed Dial numbers.
* Touch the group of letters on the
right to display the corresponding names.
3. If more than one number has
been registered for this person,
touch one of the numbers and
then touch [].
Page 60 of 76

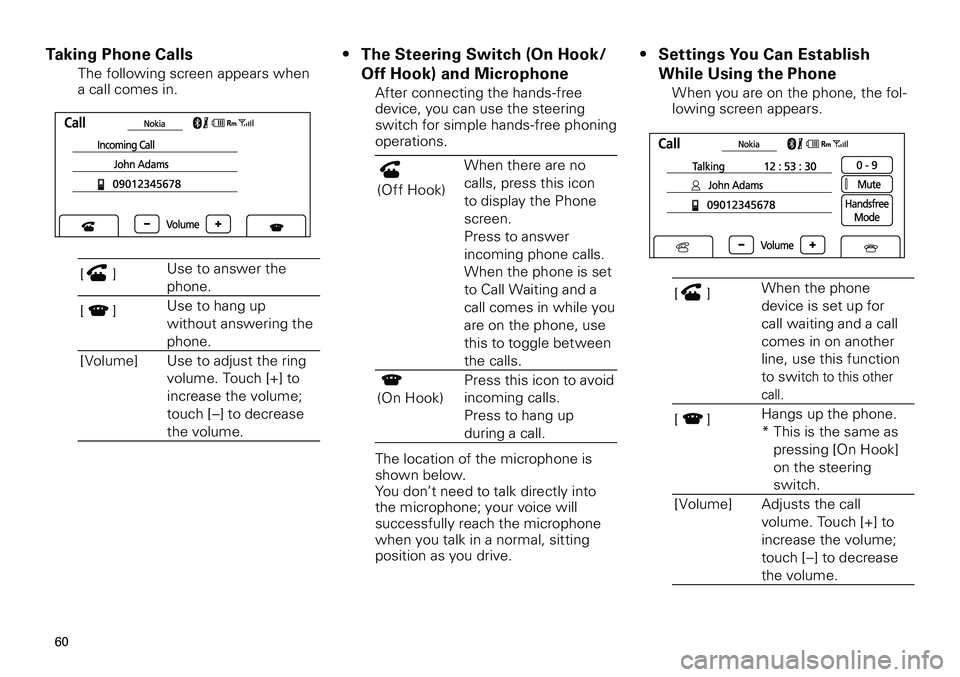

![TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
60
<CRB3643-A/S>60
Taking Phone Calls
The following screen appears when a call comes in.
[]Use to answer the
phone.
[]Use to hang up
without answering the
phone.
[Volume]Use to adjust the ring
TOYOTA tC 2012 Accessories, Audio & Navigation (in English)
60
<CRB3643-A/S>60
Taking Phone Calls
The following screen appears when a call comes in.
[]Use to answer the
phone.
[]Use to hang up
without answering the
phone.
[Volume]Use to adjust the ring](/img/14/43266/w960_43266-59.png)
60
Taking Phone Calls
The following screen appears when a call comes in.
[]Use to answer the
phone.
[]Use to hang up
without answering the
phone.
[Volume]Use to adjust the ring
volume. Touch [+] to
increase the volume;
touch [–] to decrease
the volume.
The Steering Switch (On Hook/
Off Hook) and Microphone
After connecting the hands-free device, you can use the steering switch for simple hands-free phoning operations.
(Off Hook)
When there are no
calls, press this icon
to display the Phone
screen.
Press to answer
incoming phone calls.
When the phone is set
to Call Waiting and a
call comes in while you
are on the phone, use
this to toggle between
the calls.
(On Hook)
Press this icon to avoid
incoming calls.
Press to hang up
during a call.
The location of the microphone is shown below. You don’t need to talk directly into the microphone; your voice will successfully reach the microphone when you talk in a normal, sitting position as you drive.
•Settings You Can Establish
While Using the Phone
When you are on the phone, the fol-lowing screen appears.
[]When the phone
device is set up for
call waiting and a call
comes in on another
line, use this function
to switch to this other
call.
[]Hangs up the phone.
* This is the same as
pressing [On Hook]
on the steering
switch.
[Volume]Adjusts the call
volume. Touch [+] to
increase the volume;
touch [–] to decrease
the volume.
•
