TOYOTA tC 2012 Accessories, Audio & Navigation (in English)

1
1

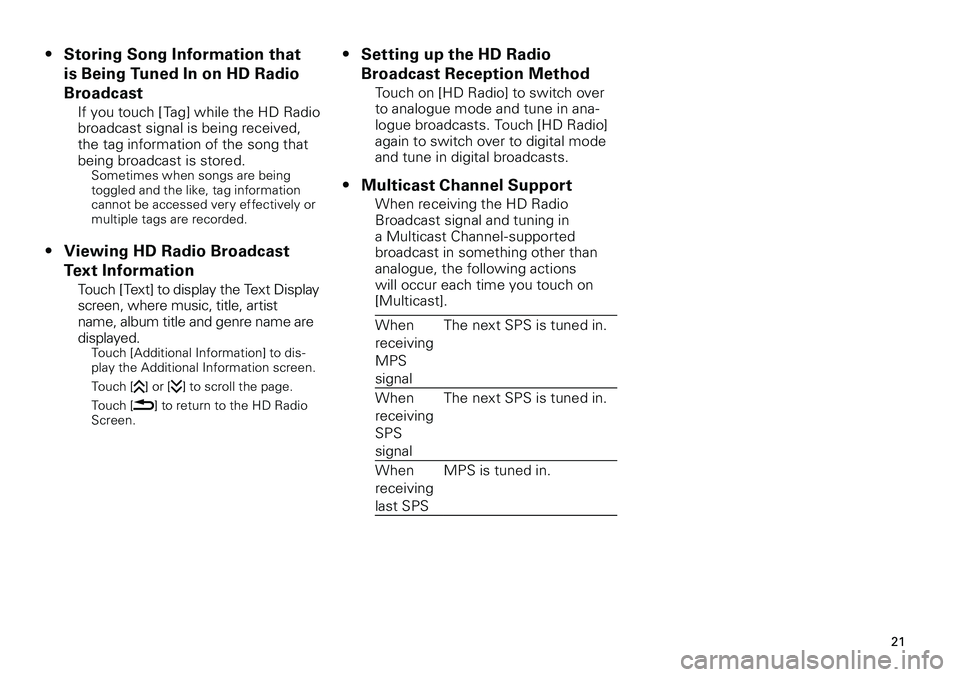

Storing Song Information that
is Being Tuned In on HD Radio
Broadcast
If you touch [Tag] while the HD Radio broadcast signal is being received, the tag information of the song that being broadcast is stored.Sometimes when songs are being toggled and the like, tag information cannot be accessed very effectively or multiple tags are recorded.
Viewing HD Radio Broadcast
Text Information
Touch [Text] to display the Text Display screen, where music, title, artist name, album title and genre name are displayed. Touch [Additional Information] to dis-play the Additional Information screen.
Touch [] or [] to scroll the page.
Touch [] to return to the HD Radio Screen.
•
•
Setting up the HD Radio
Broadcast Reception Method
Touch on [HD Radio] to switch over to analogue mode and tune in ana-logue broadcasts. Touch [HD Radio] again to switch over to digital mode and tune in digital broadcasts.
Multicast Channel Support
When receiving the HD Radio Broadcast signal and tuning in a Multicast Channel-supported broadcast in something other than analogue, the following actions will occur each time you touch on [Multicast].
When
receiving
MPS
signal
The next SPS is tuned in.
When
receiving
SPS
signal
The next SPS is tuned in.
When
receiving
last SPS
MPS is tuned in.
•
•

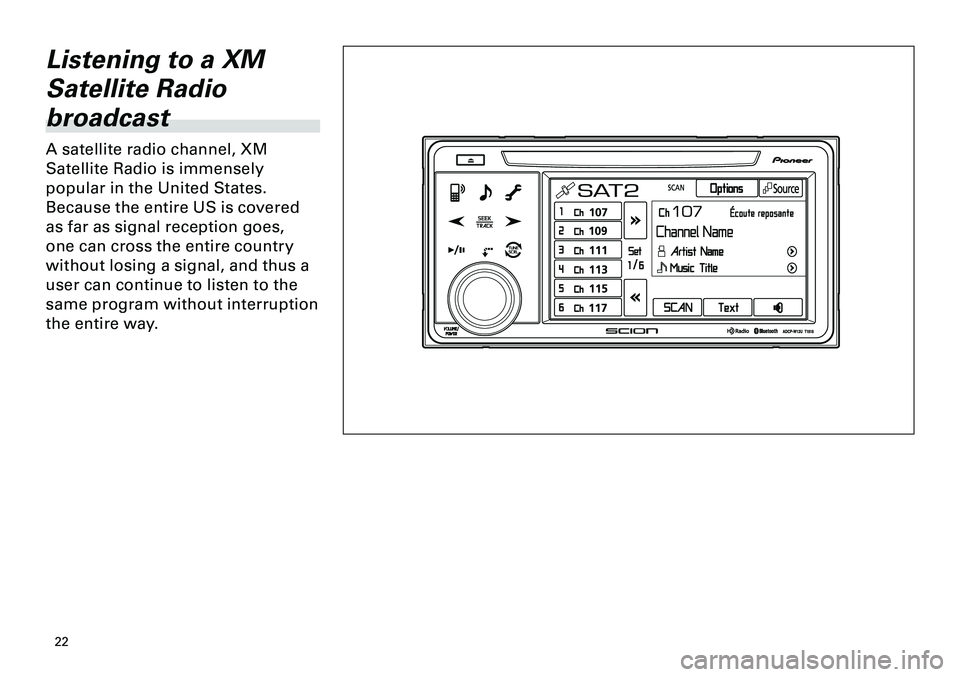

Listening to a XM
Satellite Radio
broadcast
A satellite radio channel, XM
Satellite Radio is immensely
popular in the United States.
Because the entire US is covered
as far as signal reception goes,
one can cross the entire country
without losing a signal, and thus a
user can continue to listen to the
same program without interruption
the entire way.

3
3

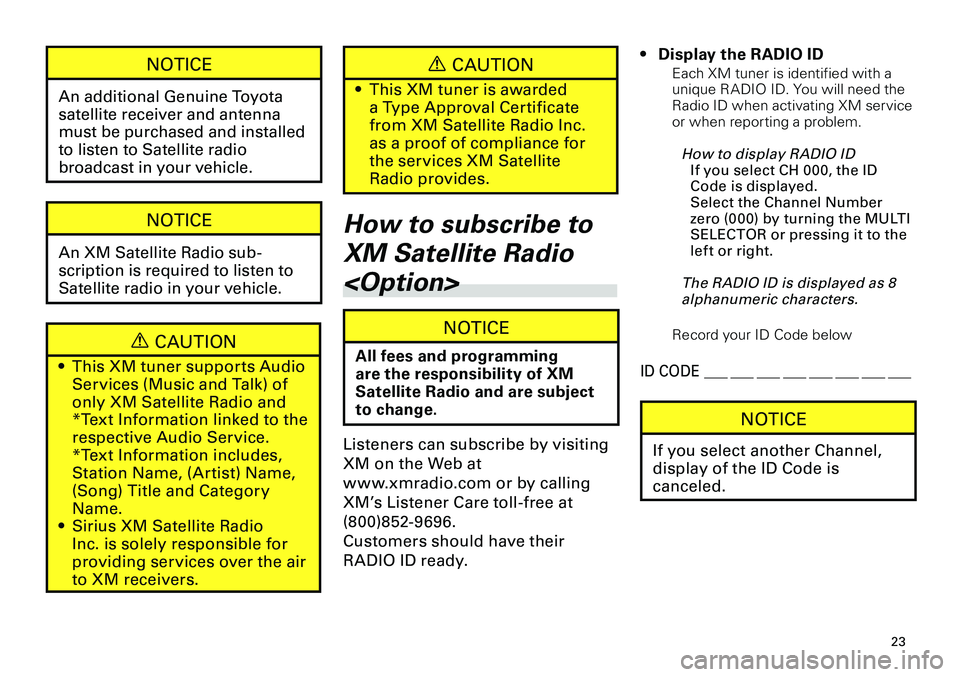

NOTICE
An additional Genuine Toyota
satellite receiver and antenna
must be purchased and installed
to listen to Satellite radio
broadcast in your vehicle.
NOTICE
An XM Satellite Radio sub-
scription is required to listen to
Satellite radio in your vehicle.
CAUTION
This XM tuner supports Audio
Services (Music and Talk) of
only XM Satellite Radio and
*Text Information linked to the
respective Audio Service.
*Text Information includes,
Station Name, (Artist) Name,
(Song) Title and Category
Name.
Sirius XM Satellite Radio
Inc. is solely responsible for
providing services over the air
to XM receivers.
•
•
CAUTION
This XM tuner is awarded
a Type Approval Certificate
from XM Satellite Radio Inc.
as a proof of compliance for
the services XM Satellite
Radio provides.
•
How to subscribe to
XM Satellite Radio

NOTICE
All fees and programming
are the responsibility of XM
Satellite Radio and are subject
to change.
Listeners can subscribe by visiting
XM on the Web at
w w w.xmradio.com or by calling
XM’s Listener Care toll-free at
(800)85-9696.
Customers should have their
RADIO ID ready.
Display the RADIO ID
Each XM tuner is identified with a unique RADIO ID. You will need the Radio ID when activating XM service or when reporting a problem.
How to display RADIO IDIf you select CH 000, the ID Code is displayed.Select the Channel Number zero (000) by turning the MULTI SELECTOR or pressing it to the lef t or right.
The RADIO ID is displayed as 8 alphanumeric characters.
Record your ID Code below
ID CODE ___ ___ ___ ___ ___ ___ ___ ___
NOTICE
If you select another Channel,
display of the ID Code is
canceled.
•

4
4

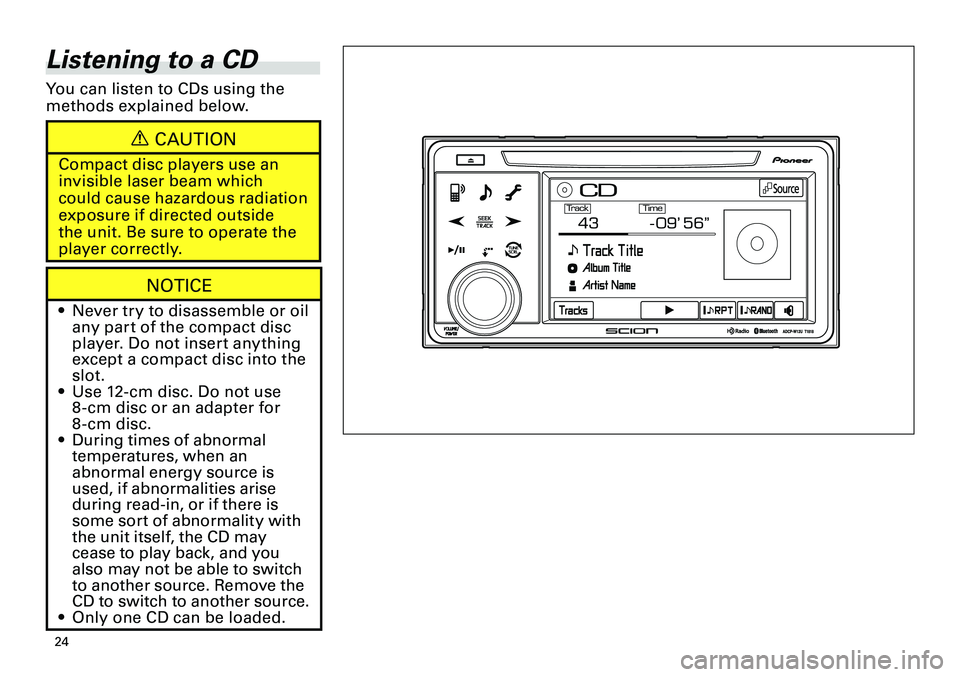

Listening to a CD
You can listen to CDs using the
methods explained below.
CAUTION
Compact disc players use an
invisible laser beam which
could cause hazardous radiation
exposure if directed outside
the unit. Be sure to operate the
player correctly.
NOTICE
Never try to disassemble or oil any part of the compact disc player. Do not insert anything except a compact disc into the slot.
Use 1-cm disc. Do not use 8-cm disc or an adapter for 8-cm disc.During times of abnormal temperatures, when an
abnormal energy source is used, if abnormalities arise during read-in, or if there is some sort of abnormality with the unit itself, the CD may cease to play back, and you also may not be able to switch to another source. Remove the CD to switch to another source.Only one CD can be loaded.
•
•
•
•

5
5

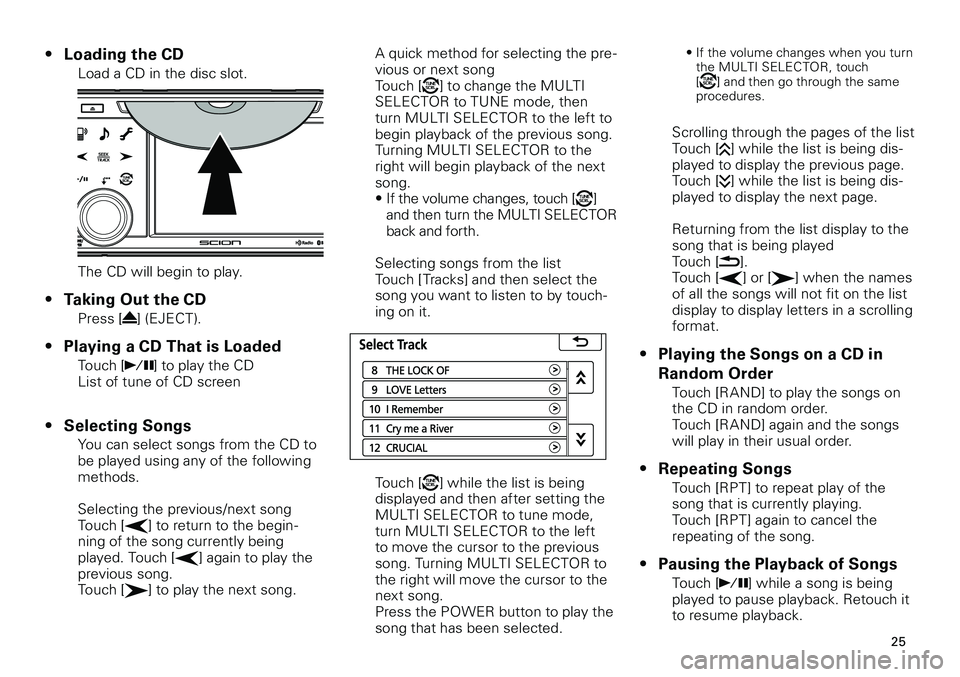

Loading the CD
Load a CD in the disc slot.
The CD will begin to play.
Taking Out the CD
Press [] (EJECT ).
Playing a CD That is Loaded
Touch [] to play the CDList of tune of CD screen
Selecting Songs
You can select songs from the CD to
be played using any of the following methods.
Selecting the previous/next songTouch [] to return to the begin-ning of the song currently being played. Touch [] again to play the previous song. Touch [] to play the next song.
•
•
•
•
A quick method for selecting the pre-vious or next songTouch [] to change the MULTI SELECTOR to TUNE mode, then turn MULTI SELECTOR to the left to begin playback of the previous song. Turning MULTI SELECTOR to the right will begin playback of the next song.
• If the volume changes, touch [] and then turn the MULTI SELECTOR back and forth.
Selecting songs from the listTouch [Tracks] and then select the song you want to listen to by touch-ing on it.
Touch [] while the list is being displayed and then after setting the MULTI SELECTOR to tune mode, turn MULTI SELECTOR to the left to move the cursor to the previous song. Turning MULTI SELECTOR to
the right will move the cursor to the next song. Press the POWER button to play the song that has been selected.
• If the volume changes when you turn the MULTI SELECTOR, touch [] and then go through the same procedures.
Scrolling through the pages of the listTouch [] while the list is being dis-played to display the previous page. Touch [] while the list is being dis-played to display the next page.
Returning from the list display to the song that is being playedTouch [].Touch [] or [] when the names of all the songs will not fit on the list display to display letters in a scrolling format.
Playing the Songs on a CD in
Random Order
Touch [RAND] to play the songs on the CD in random order. Touch [RAND] again and the songs will play in their usual order.
Repeating Songs
Touch [RPT] to repeat play of the song that is currently playing. Touch [RPT] again to cancel the repeating of the song.
Pausing the Playback of Songs
Touch [] while a song is being played to pause playback. Retouch it to resume playback.
•
•
•

6
6

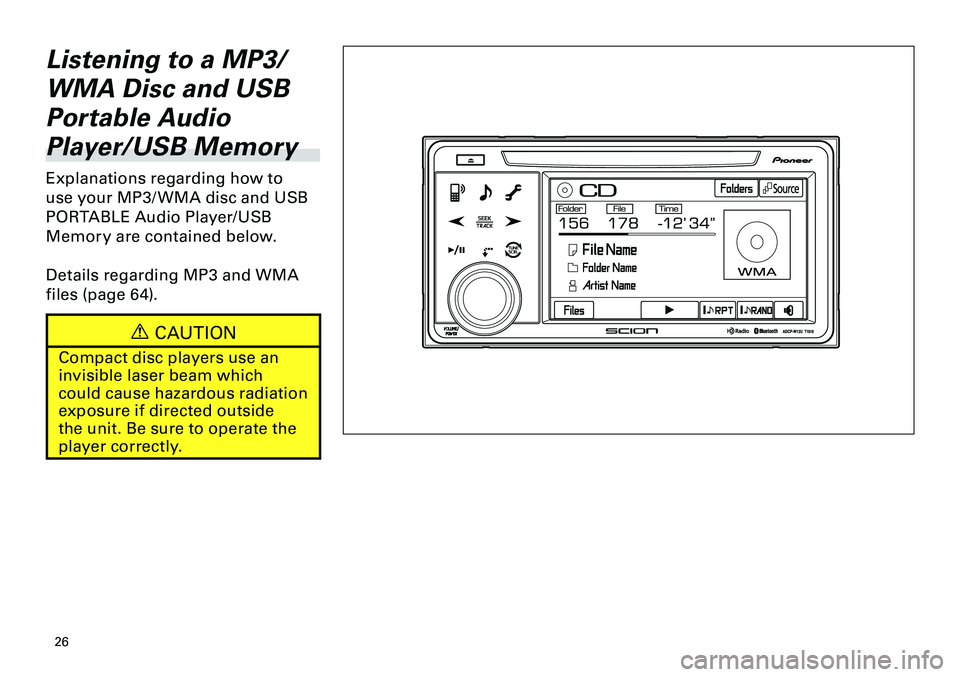

Listening to a MP3/
WMA Disc and USB
Portable Audio
Player/USB Memory
Explanations regarding how to
use your MP3/ WMA disc and USB
PORTABLE Audio Player/USB
Memory are contained below.
Details regarding MP3 and WMA
files (page 64).
CAUTION
Compact disc players use an
invisible laser beam which
could cause hazardous radiation
exposure if directed outside
the unit. Be sure to operate the
player correctly.

7
7

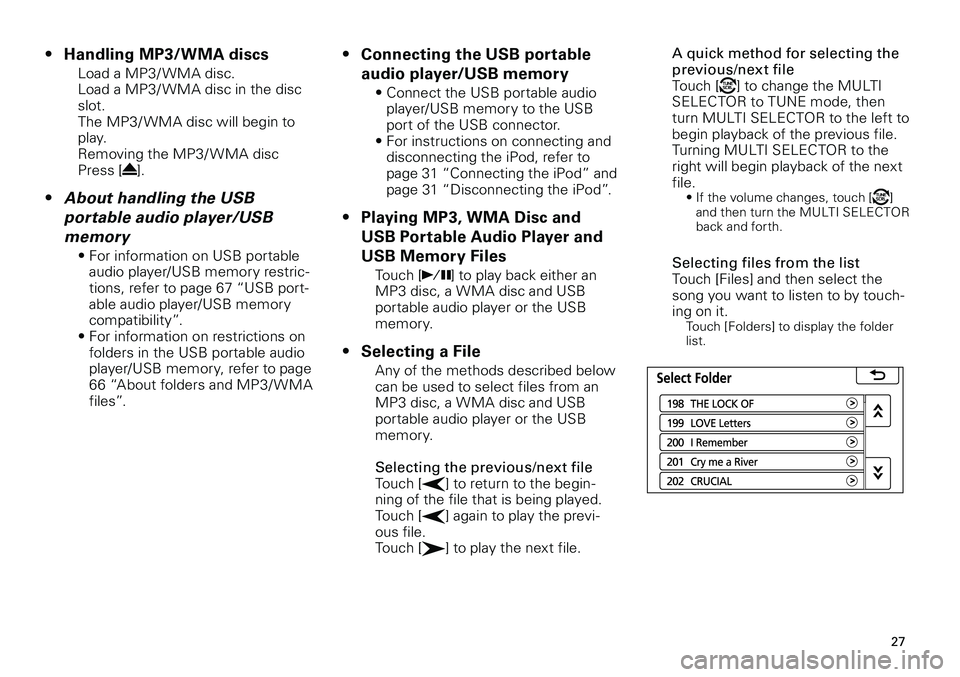

Handling MP3/WMA discs
Load a MP3/ WMA disc.Load a MP3/ WMA disc in the disc slot.The MP3/ WMA disc will begin to play.Removing the MP3/ WMA discPress [].
About handling the USB
portable audio player/USB
memory
• For information on USB portable
audio player/USB memory restric-tions, refer to page 67 “USB port-able audio player/USB memory compatibility”.
• For information on restrictions on
folders in the USB portable audio player/USB memory, refer to page 66 “About folders and MP3/ WMA files”.
•
•
Connecting the USB portable
audio player/USB memory
• Connect the USB portable audio player/USB memory to the USB port of the USB connector.
• For instructions on connecting and
disconnecting the iPod, refer to page 31 “Connecting the iPod” and page 31 “Disconnecting the iPod”.
Playing MP3, WMA Disc and
USB Portable Audio Player and
USB Memory Files
Touch [] to play back either an MP3 disc, a WMA disc and USB portable audio player or the USB memory.
Selecting a File
Any of the methods described below can be used to select files from an MP3 disc, a WMA disc and USB portable audio player or the USB memory.
Selecting the previous/next fileTouch [] to return to the begin-ning of the file that is being played. Touch [] again to play the previ-ous file. Touch [] to play the next file.
•
•
•
A quick method for selecting the previous/next file Touch [] to change the MULTI SELECTOR to TUNE mode, then turn MULTI SELECTOR to the left to begin playback of the previous file. Turning MULTI SELECTOR to the right will begin playback of the next file. • If the volume changes, touch [] and then turn the MULTI SELECTOR back and forth.
Selecting files from the listTouch [Files] and then select the song you want to listen to by touch-ing on it. Touch [Folders] to display the folder list.

8
8

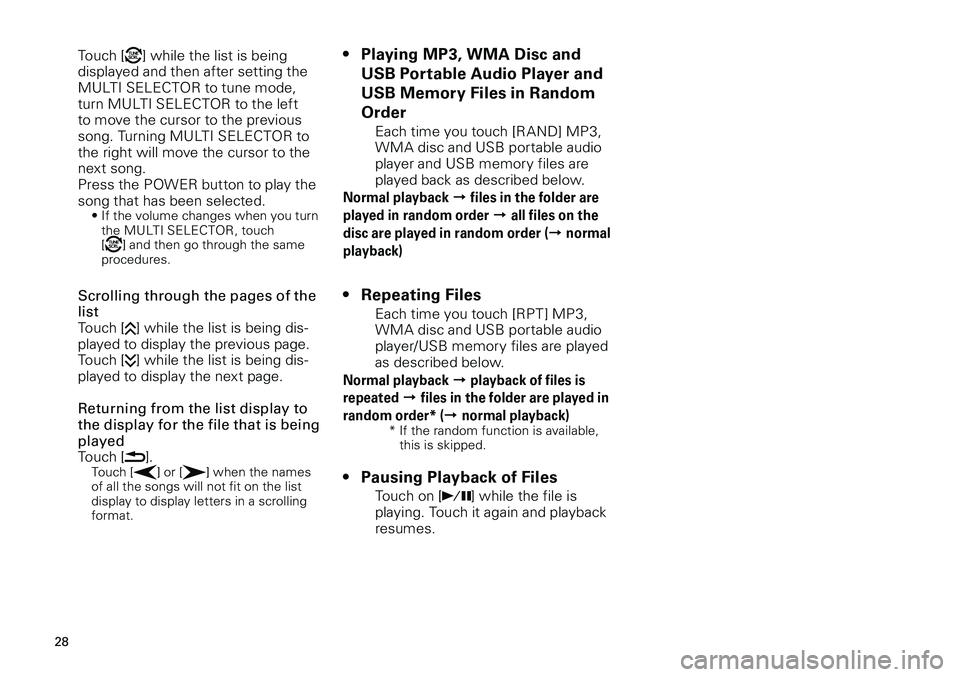

Playing MP3, WMA Disc and
USB Portable Audio Player and
USB Memory Files in Random
Order
Each time you touch [RAND] MP3, WMA disc and USB portable audio player and USB memory files are played back as described below.
Normal playback d files in the folder are
played in random order d all files on the
disc are played in random order (d normal
playback)
Repeating Files
Each time you touch [RPT] MP3, WMA disc and USB portable audio player/USB memory files are played as described below.
Normal playback d playback of files is
repeated d files in the folder are played in
random order* (d normal playback)* If the random function is available, this is skipped.
Pausing Playback of Files
Touch on [] while the file is playing. Touch it again and playback resumes.
•
•
•
Touch [] while the list is being displayed and then after setting the MULTI SELECTOR to tune mode, turn MULTI SELECTOR to the left to move the cursor to the previous song. Turning MULTI SELECTOR to the right will move the cursor to the next song. Press the POWER button to play the song that has been selected.• If the volume changes when you turn the MULTI SELECTOR, touch [] and then go through the same procedures.
Scrolling through the pages of the listTouch [] while the list is being dis-played to display the previous page. Touch [] while the list is being dis-played to display the next page.
Returning from the list display to the display for the file that is being
played Touch []. Touch [] or [] when the names of all the songs will not fit on the list display to display letters in a scrolling format.

9
9

30
30

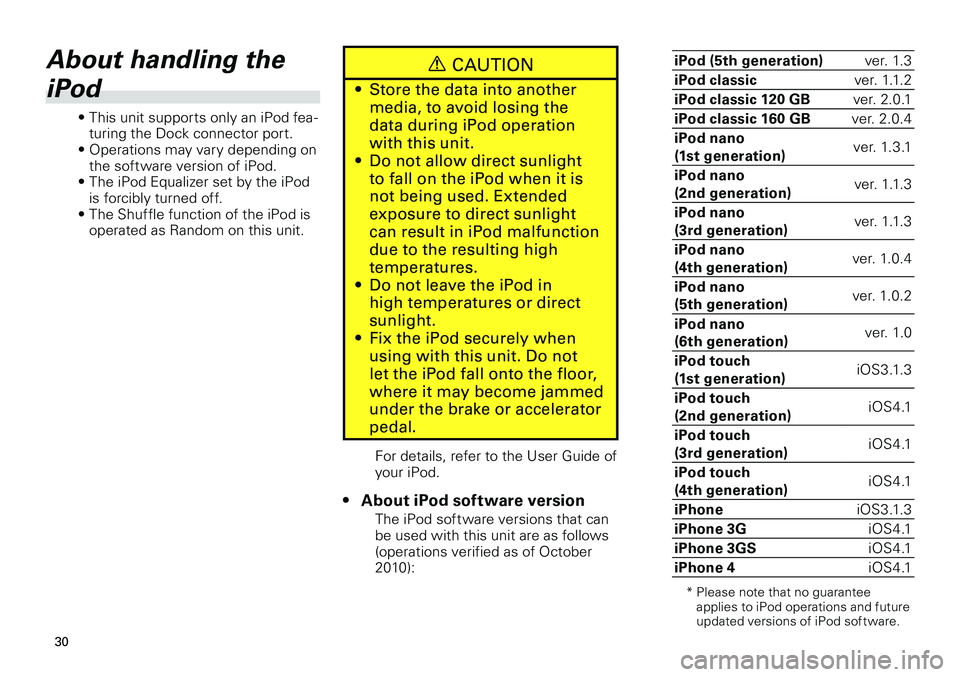

About handling the
iPod
• This unit supports only an iPod fea-turing the Dock connector port.
• Operations may vary depending on
the software version of iPod.
• The iPod Equalizer set by the iPod
is forcibly turned off.
• The Shuffle function of the iPod is
operated as Random on this unit.
CAUTION
Store the data into another
media, to avoid losing the
data during iPod operation
with this unit.
Do not allow direct sunlight
to fall on the iPod when it is
not being used. Extended
exposure to direct sunlight
can result in iPod malfunction
due to the resulting high
temperatures.
Do not leave the iPod in
high temperatures or direct
sunlight.
Fix the iPod securely when
using with this unit. Do not
let the iPod fall onto the floor,
where it may become jammed
under the brake or accelerator
pedal.
•
•
•
•
For details, refer to the User Guide of your iPod.
About iPod software version
The iPod software versions that can be used with this unit are as follows (operations verified as of October 2010):
•
iPod (5th generation)ver. 1.3
iPod classicver. 1.1.2
iPod classic 120 GBver. 2.0.1
iPod classic 160 GBver. 2.0.4
iPod nano
(1st generation)ver. 1.3.1
iPod nano
(2nd generation)ver. 1.1.3
iPod nano
(3rd generation)ver. 1.1.3
iPod nano
(4th generation)ver. 1.0.4
iPod nano
(5th generation)ver. 1.0.2
iPod nano
(6th generation)ver. 1.0
iPod touch
(1st generation)iOS3.1.3
iPod touch
(2nd generation)iOS4.1
iPod touch
(3rd generation)iOS4.1
iPod touch
(4th generation)iOS4.1
iPhoneiOS3.1.3
iPhone 3GiOS4.1
iPhone 3GSiOS4.1
iPhone 4iOS4.1
* Please note that no guarantee applies to iPod operations and future updated versions of iPod software.
