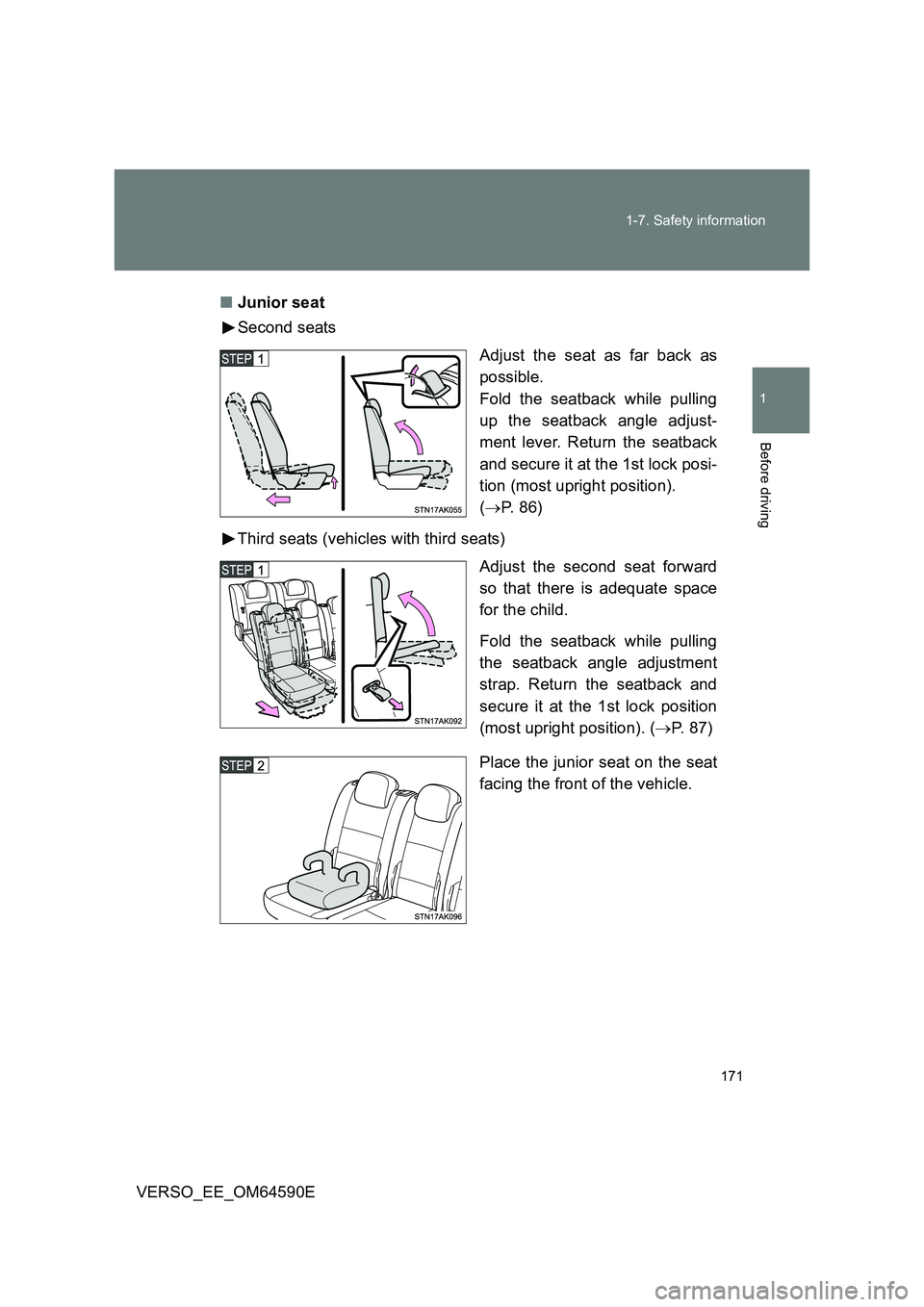

Page 171 of 664
171
1-7. Safety information
1
Before driving
VERSO_EE_OM64590E
■ Junior seat
Second seats
Adjust the seat as far back as
possible.
Fold the seatback while pulling
up the seatback angle adjust-
ment lever. Return the seatback
and secure it at the 1st lock posi-
tion (most upright position).
( P. 8 6 )
Third seats (vehicles with third seats)
Adjust the second seat forward
so that there is adequate space
for the child.
Fold the seatback while pulling
the seatback angle adjustment
strap. Return the seatback and
secure it at the 1st lock position
(most upright position). ( P. 8 7 )
Place the junior seat on the seat
facing the front of the vehicle.

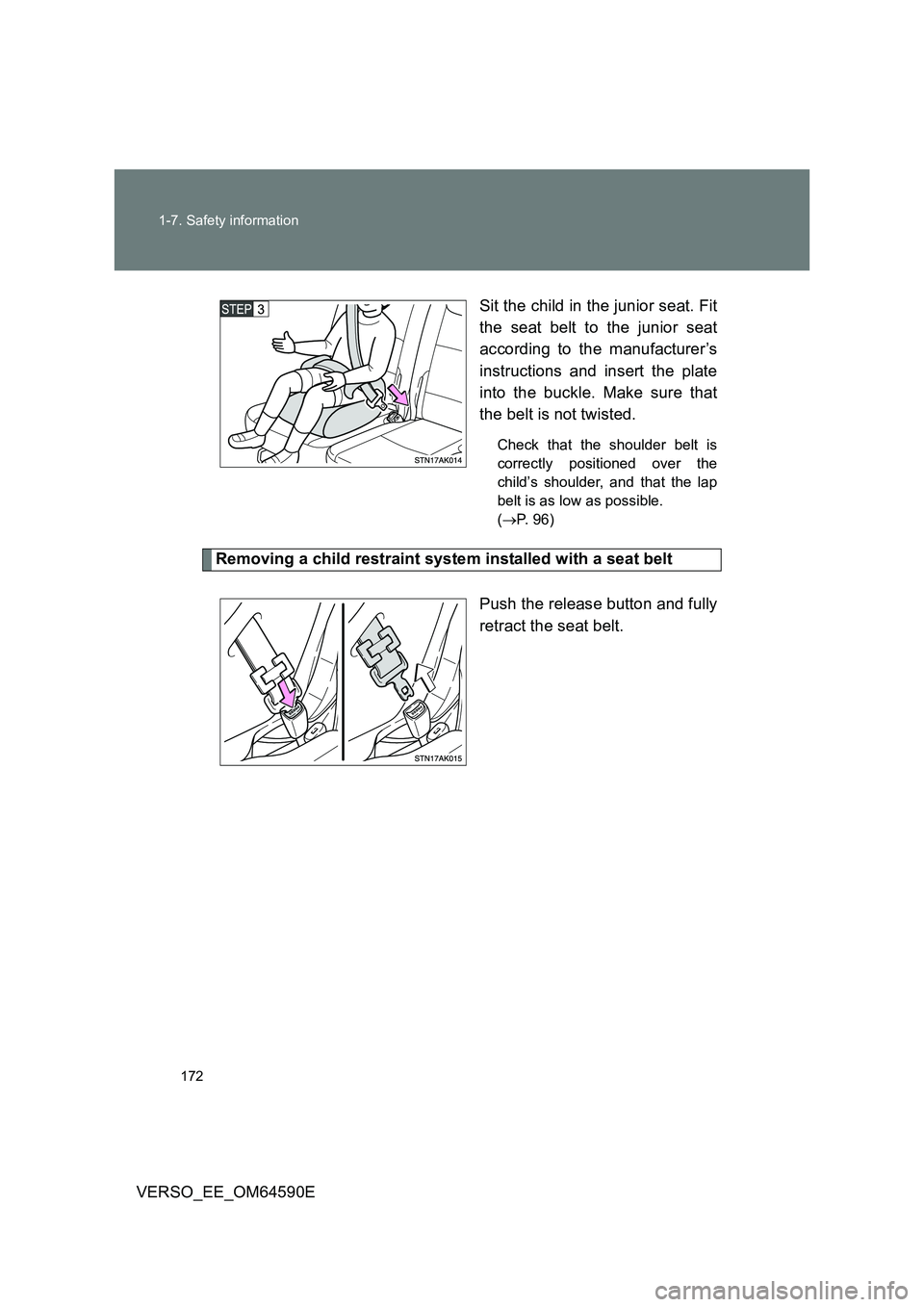

Page 172 of 664
172
1-7. Safety information
VERSO_EE_OM64590E
Sit the child in the junior seat. Fit
the seat belt to the junior seat
according to the manufacturer’s
instructions and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 96)
Removing a child restraint system installed with a seat belt
Push the release button and fully
retract the seat belt.

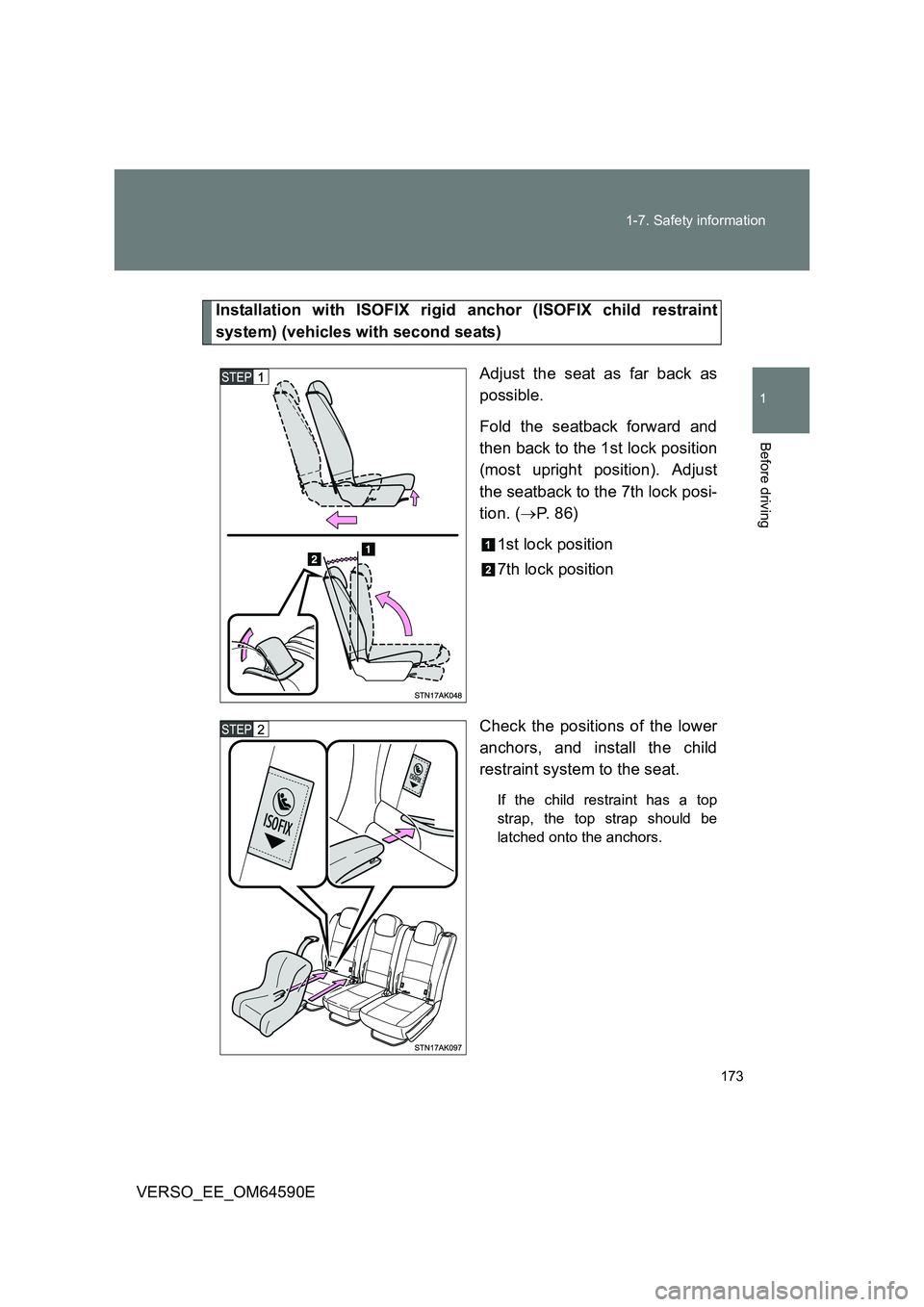

Page 173 of 664
173
1-7. Safety information
1
Before driving
VERSO_EE_OM64590E
Installation with ISOFIX rigid anchor (ISOFIX child restraint
system) (vehicles with second seats)
Adjust the seat as far back as
possible.
Fold the seatback forward and
then back to the 1st lock position
(most upright position). Adjust
the seatback to the 7th lock posi-
tion. ( P. 8 6 )
1st lock position
7th lock position
Check the positions of the lower
anchors, and install the child
restraint system to the seat.
If the child restraint has a top
strap, the top strap should be
latched onto the anchors.

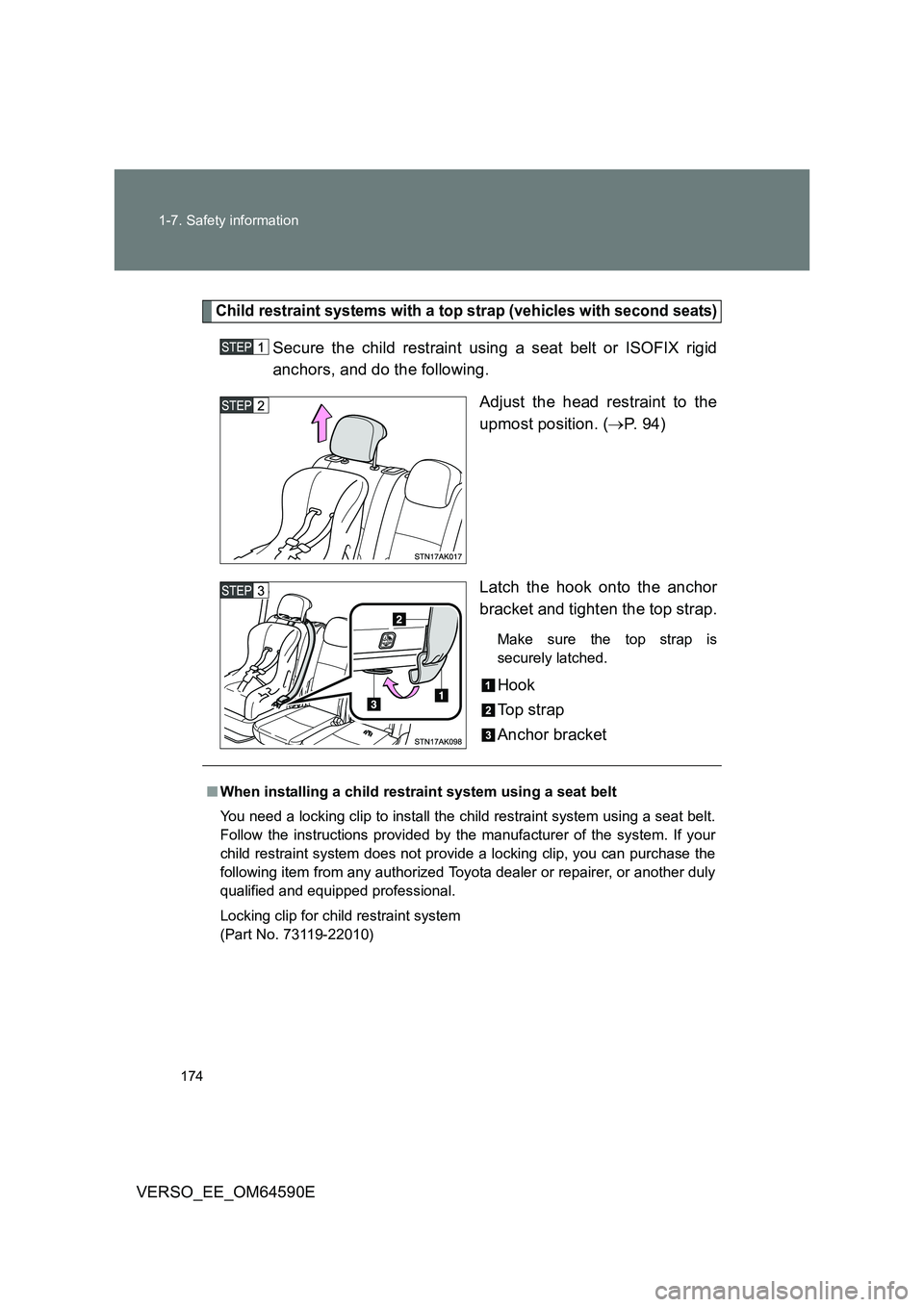

Page 174 of 664
174
1-7. Safety information
VERSO_EE_OM64590E
Child restraint systems with a top strap (vehicles with second seats)
Secure the child restraint using a seat belt or ISOFIX rigid
anchors, and do the following.
Adjust the head restraint to the
upmost position. ( P. 9 4 )
Latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
Hook
To p s t r a p
Anchor bracket
■ When installing a child restraint system using a seat belt
You need a locking clip to install the child restraint system using a seat belt.
Follow the instructions provided by the manufacturer of the system. If your
child restraint system does not provide a locking clip, you can purchase the
following item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)

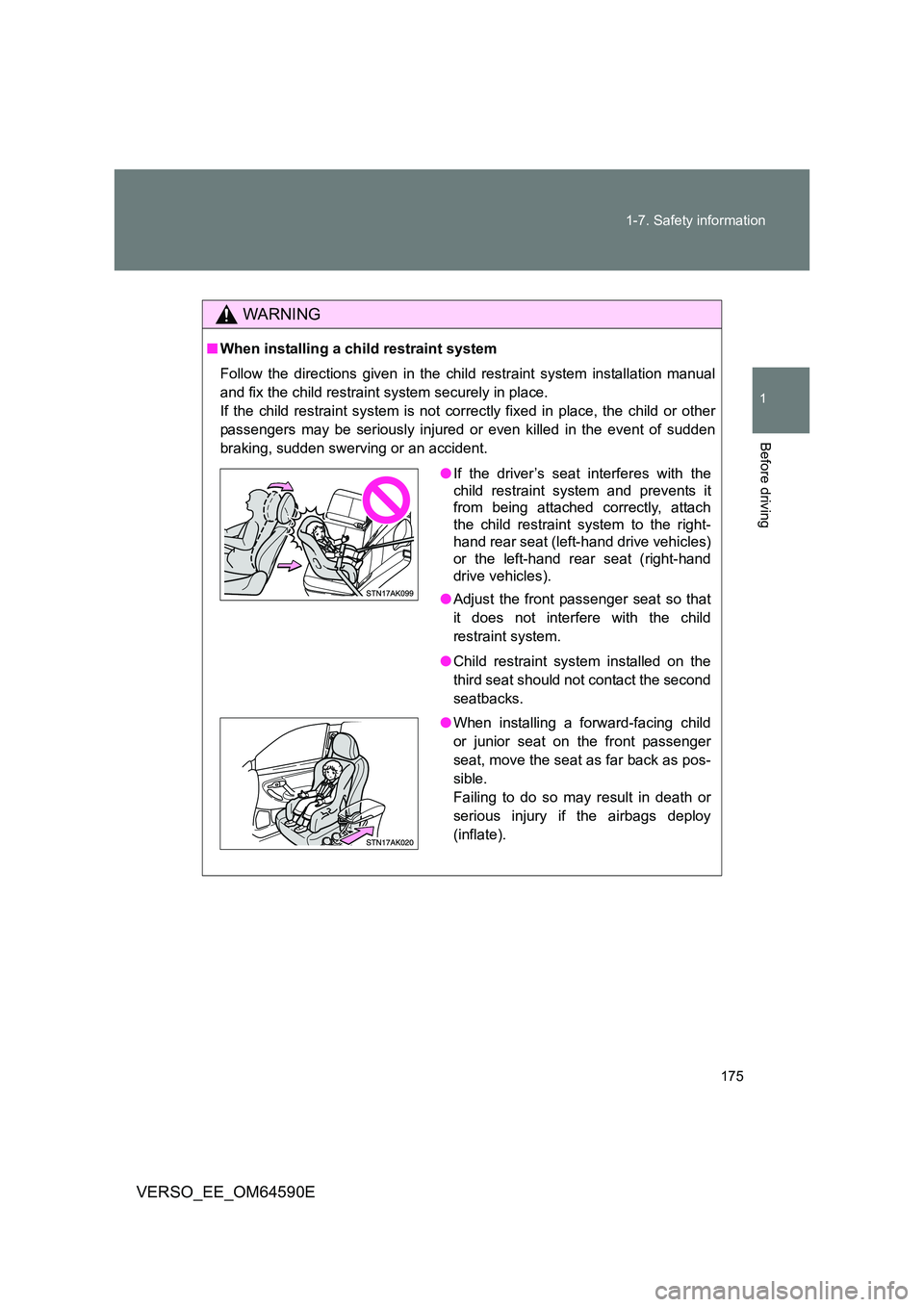

Page 175 of 664

175
1-7. Safety information
1
Before driving
VERSO_EE_OM64590E
WARNING
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat (right-hand
drive vehicles).
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Child restraint system installed on the
third seat should not contact the second
seatbacks.
● When installing a forward-facing child
or junior seat on the front passenger
seat, move the seat as far back as pos-
sible.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).

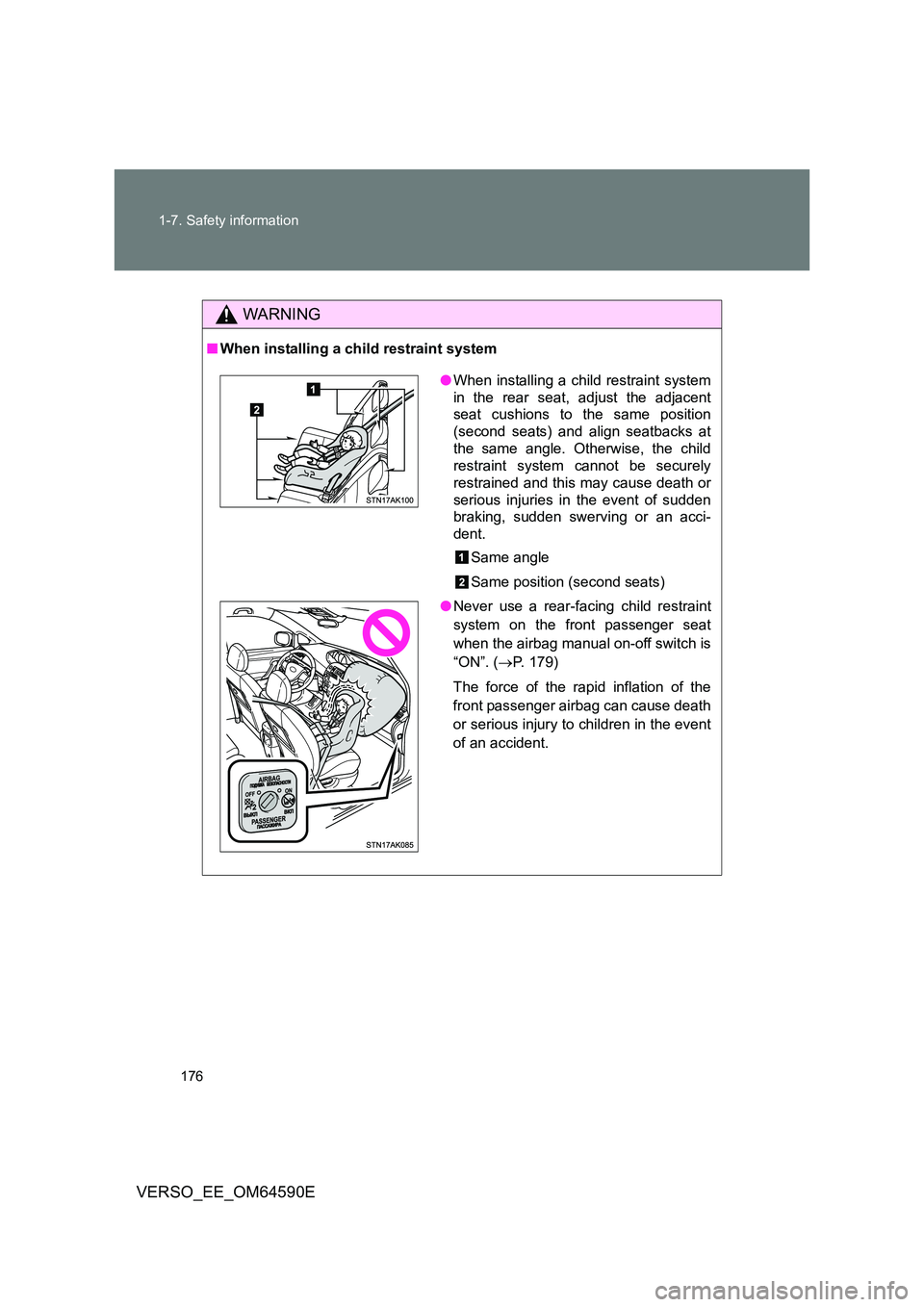

Page 176 of 664
176
1-7. Safety information
VERSO_EE_OM64590E
WARNING
■ When installing a child restraint system
●When installing a child restraint system
in the rear seat, adjust the adjacent
seat cushions to the same position
(second seats) and align seatbacks at
the same angle. Otherwise, the child
restraint system cannot be securely
restrained and this may cause death or
serious injuries in the event of sudden
braking, sudden swerving or an acci-
dent.
Same angle
Same position (second seats)
● Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
“ON”. ( P. 179)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.

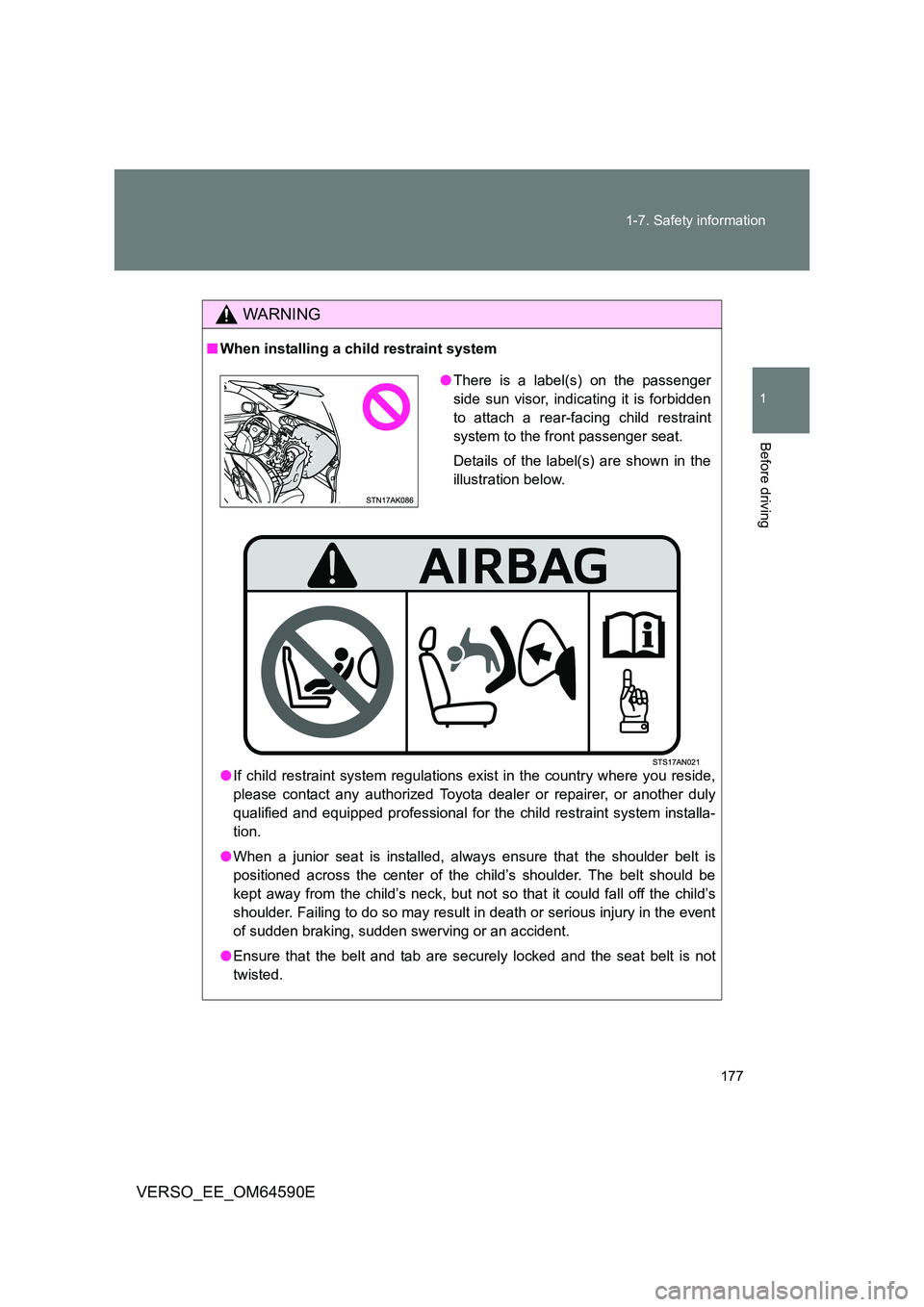

Page 177 of 664

177
1-7. Safety information
1
Before driving
VERSO_EE_OM64590E
WARNING
■ When installing a child restraint system
● If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

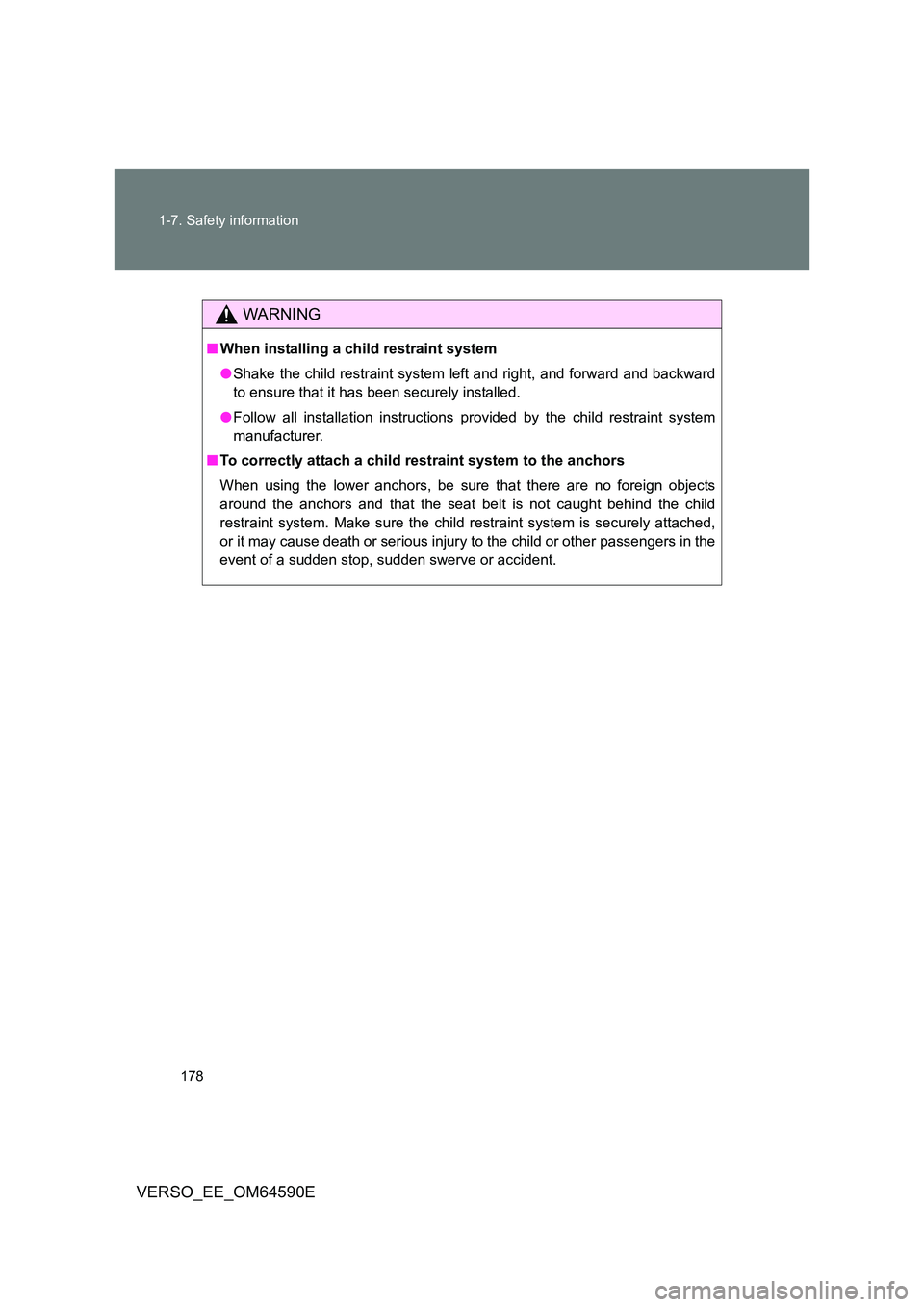

Page 178 of 664
178
1-7. Safety information
VERSO_EE_OM64590E
WARNING
■ When installing a child restraint system
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in the
event of a sudden stop, sudden swerve or accident.

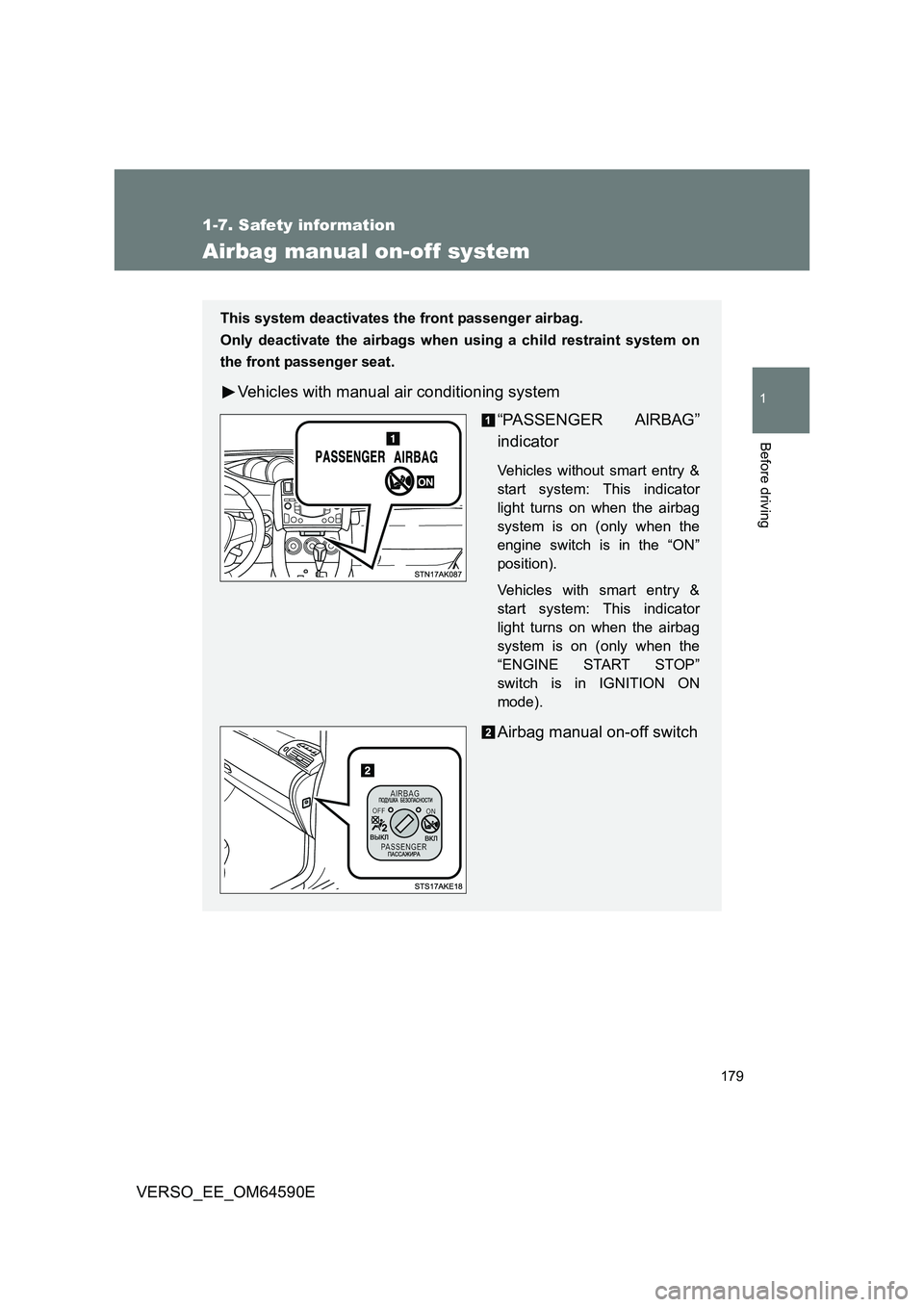

Page 179 of 664
179
1
1-7. Safety information
Before driving
VERSO_EE_OM64590E
Airbag manual on-off system
This system deactivates the front passenger airbag.
Only deactivate the airbags when using a child restraint system on
the front passenger seat.
Vehicles with manual air conditioning system
“PASSENGER AIRBAG”
indicator
Vehicles without smart entry &
start system: This indicator
light turns on when the airbag
system is on (only when the
engine switch is in the “ON”
position).
Vehicles with smart entry &
start system: This indicator
light turns on when the airbag
system is on (only when the
“ENGINE START STOP”
switch is in IGNITION ON
mode).
Airbag manual on-off switch

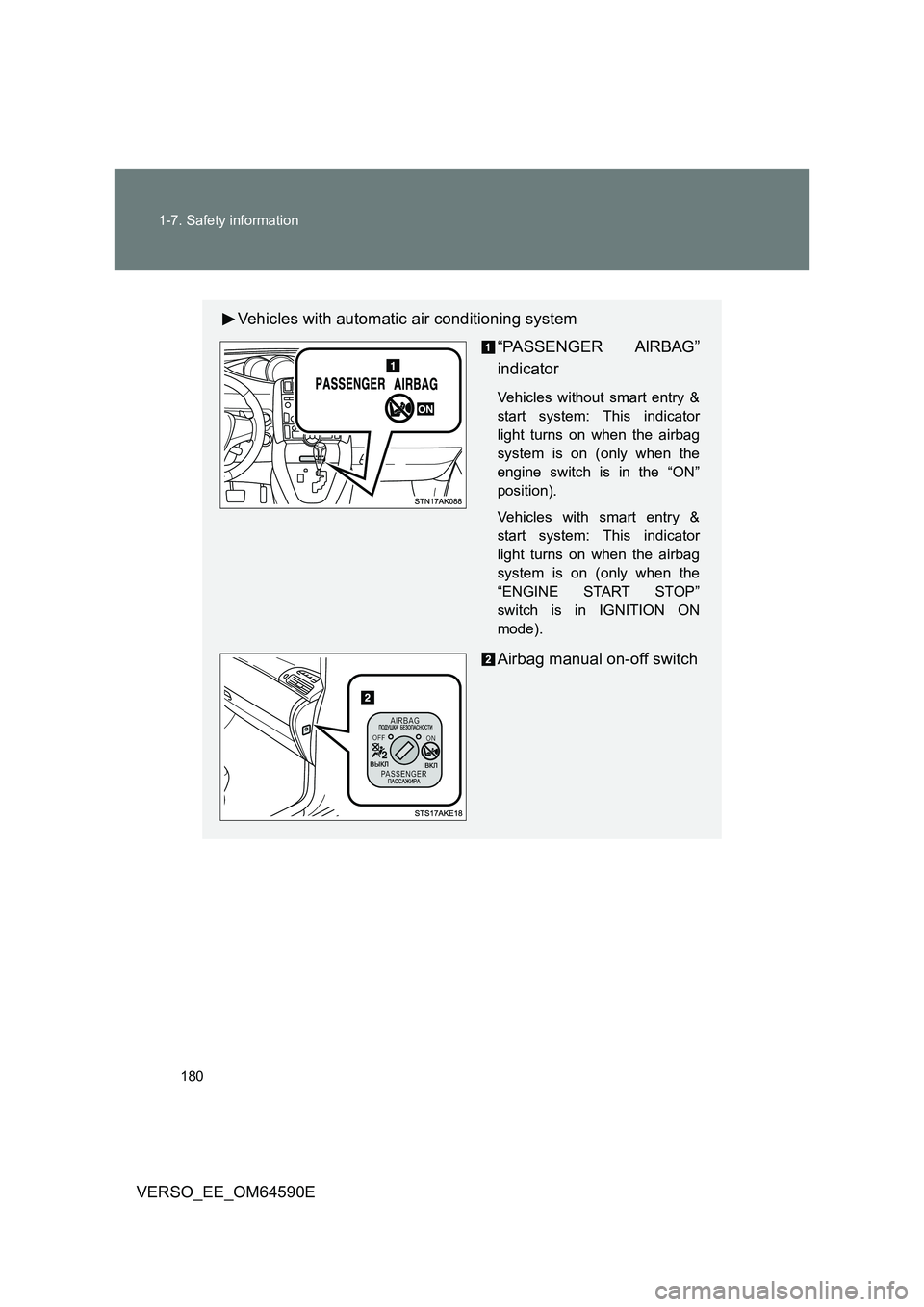

Page 180 of 664
180
1-7. Safety information
VERSO_EE_OM64590E
Vehicles with automatic air conditioning system
“PASSENGER AIRBAG”
indicator
Vehicles without smart entry &
start system: This indicator
light turns on when the airbag
system is on (only when the
engine switch is in the “ON”
position).
Vehicles with smart entry &
start system: This indicator
light turns on when the airbag
system is on (only when the
“ENGINE START STOP”
switch is in IGNITION ON
mode).
Airbag manual on-off switch
