TOYOTA VERSO 2016 Owners Manual

381
3-2. Using the audio system
3
Interior features
VERSO_EE_OM64590E

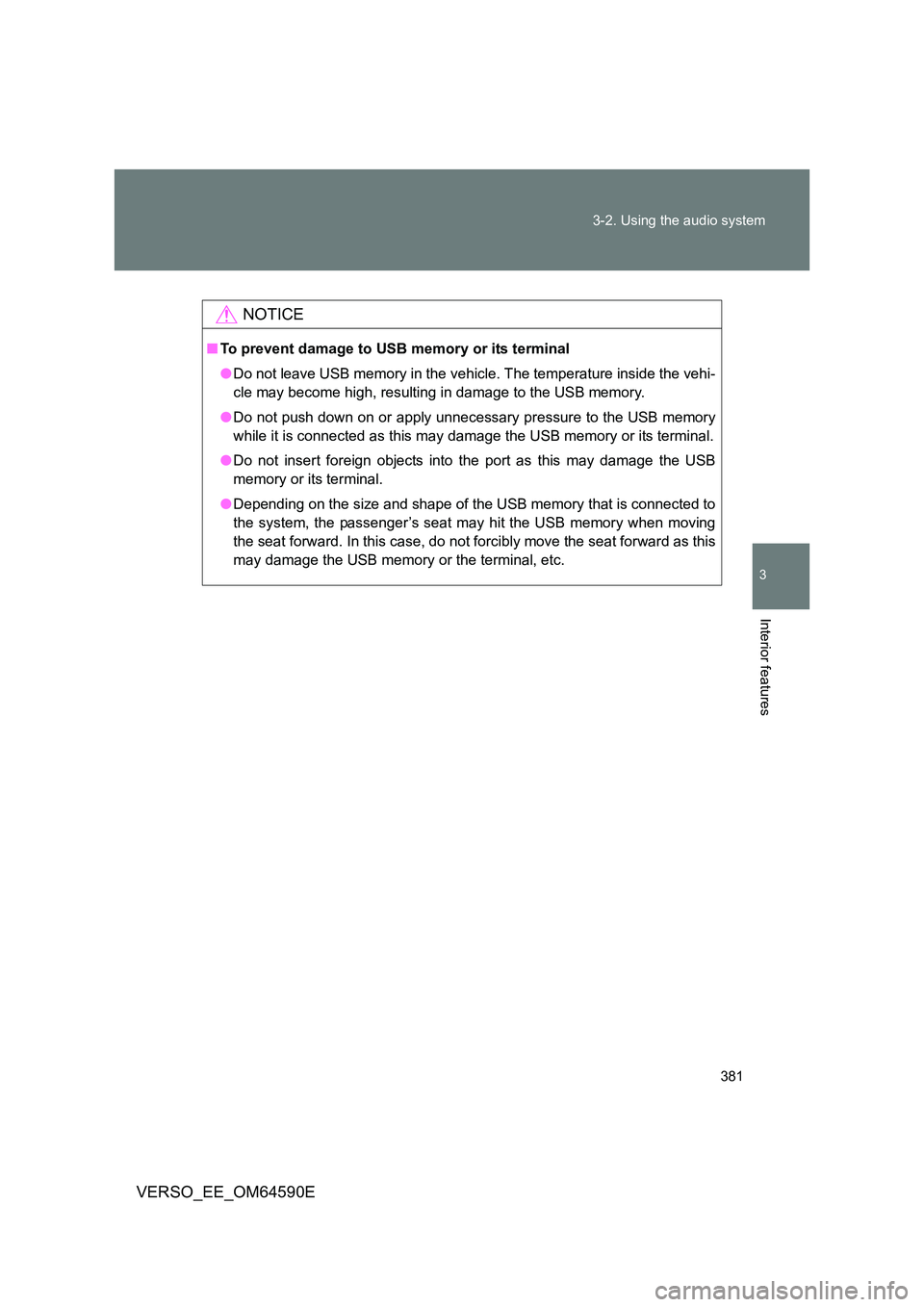

NOTICE
■ To prevent damage to USB memory or its terminal
● Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the USB memory.
● Do not push down on or apply unnecessary pressure to the USB memory
while it is connected as this may damage the USB memory or its terminal.
● Do not insert foreign objects into the port as this may damage the USB
memory or its terminal.
● Depending on the size and shape of the USB memory that is connected to
the system, the passenger’s seat may hit the USB memory when moving
the seat forward. In this case, do not forcibly move the seat forward as this
may damage the USB memory or the terminal, etc.

382
3-2. Using the audio system
VERSO_EE_OM64590E

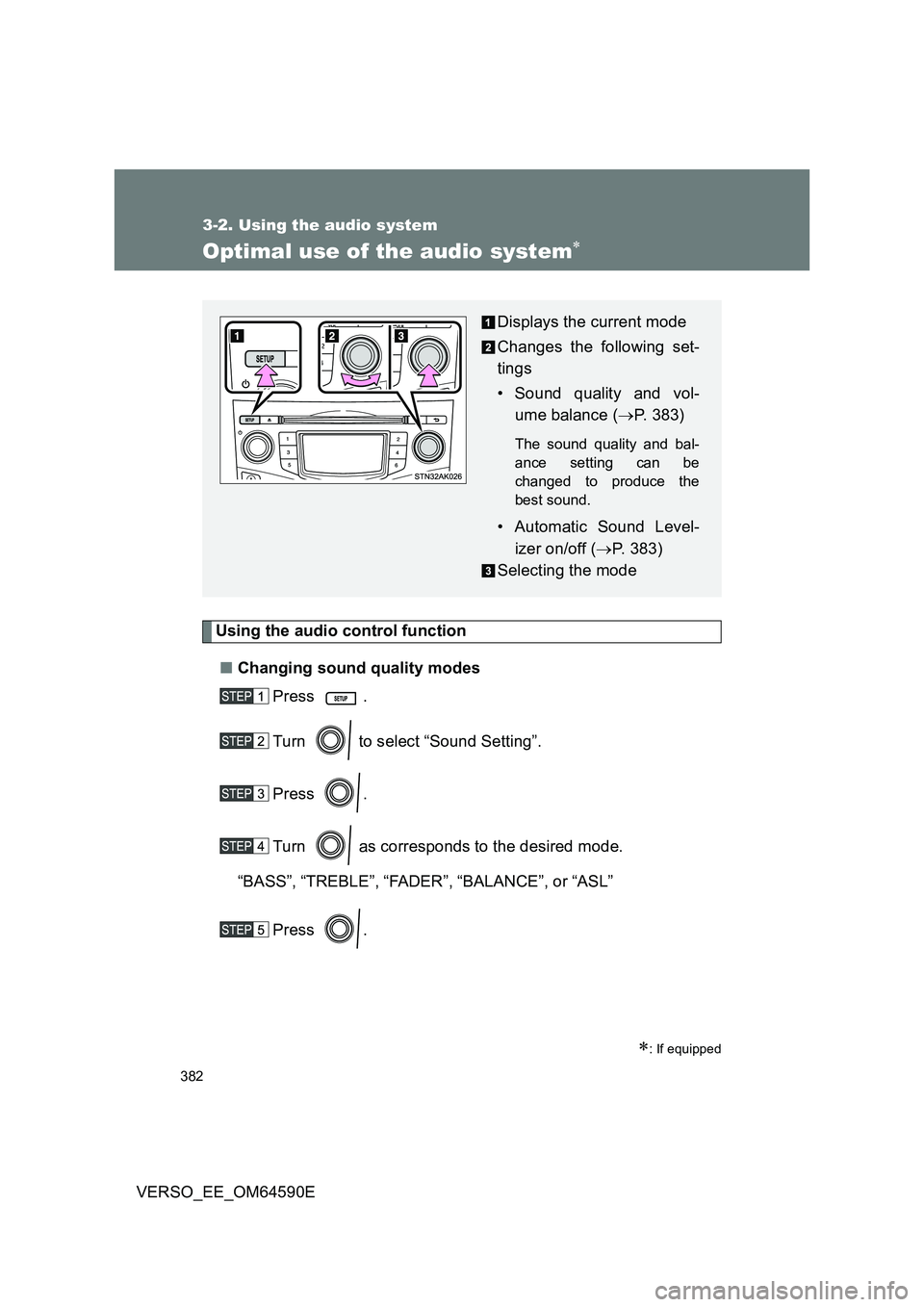

Optimal use of the audio system
Using the audio control function
■ Changing sound quality modes
Press .
Turn to select “Sound Setting”.
Press .
Turn as corresponds to the desired mode.
“BASS”, “TREBLE”,“FADER”,“BALANCE”, or“ASL”
Press .
: If equipped
Displays the current mode
Changes the following set-
tings
• Sound quality and vol-
ume balance ( P. 383)
The sound quality and bal-
ance setting can be
changed to produce the
best sound.
• Automatic Sound Level-
izer on/off ( P. 383)
Selecting the mode

383
3-2. Using the audio system
3
Interior features
VERSO_EE_OM64590E
■ Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
■ Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, turning to the right changes the
amount of ASL in the order of LOW, MID and HIGH.
Turning to the left turns ASL off.
ASL automatically adjusts the volume and tone quality according to vehi-
cle speed.
Sound
quality mode
Mode
displayedLevelTurn to the
left
Turn to the
right
Bass*“BASS”-5 to 5LowHighTreble*“TREBLE”-5 to 5
Front/rear
volume
balance
“FADER”R7 to F7Shifts to rearShifts to
front
Left/right
volume
balance
“BALANCE”L7 to R7Shifts to leftShifts to
right

384
3-2. Using the audio system
VERSO_EE_OM64590E
Using the AUX port
: If equipped
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
■ When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Open the cover and connect
the portable audio device.
Press until “AUX” is displayed.

385
3-2. Using the audio system
3
Interior features
VERSO_EE_OM64590E

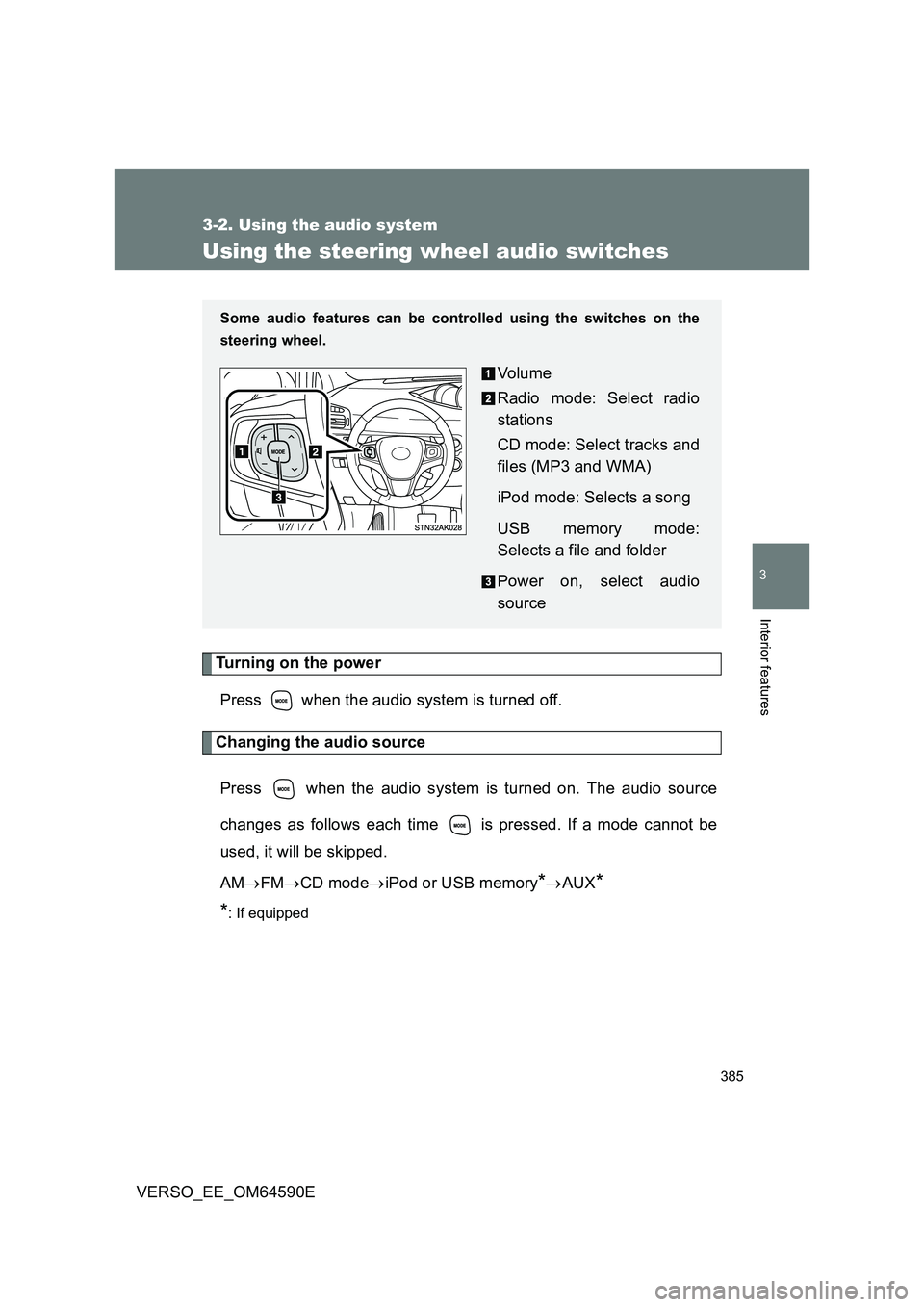

Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed. If a mode cannot be
used, it will be skipped.
AM FMCD modeiPod or USB memory*AUX*
*: If equipped
Some audio features can be cont rolled using the switches on the
steering wheel.
Vo lu m e
Radio mode: Select radio
stations
CD mode: Select tracks and
files (MP3 and WMA)
iPod mode: Selects a song
USB memory mode:
Selects a file and folder
Power on, select audio
source

386
3-2. Using the audio system
VERSO_EE_OM64590E

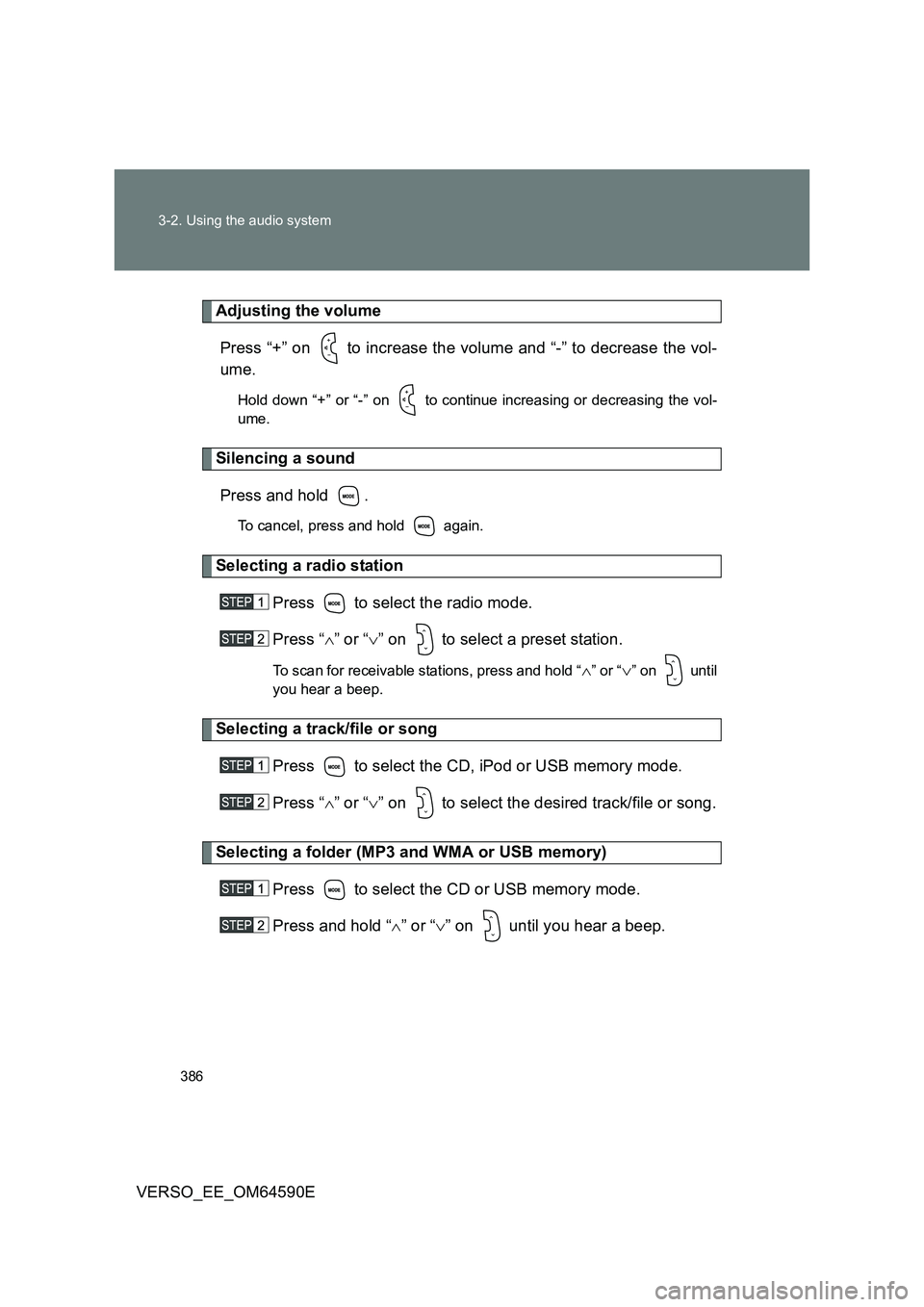

Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down “+” or “-” on to continue increasing or decreasing the vol-
ume.
Silencing a sound
Press and hold .
To cancel, press and hold again.
Selecting a radio station
Press to select the radio mode.
Press “ ” or “” on to select a preset station.
To scan for receivable stations, press and hold “” or “” on until
you hear a beep.
Selecting a track/file or song
Press to select the CD, iPod or USB memory mode.
Press “ ” or “” on to select the desired track/file or song.
Selecting a folder (MP3 and WMA or USB memory)
Press to select the CD or USB memory mode.
Press and hold “ ” or “” on until you hear a beep.

387
3-2. Using the audio system
3
Interior features
VERSO_EE_OM64590E

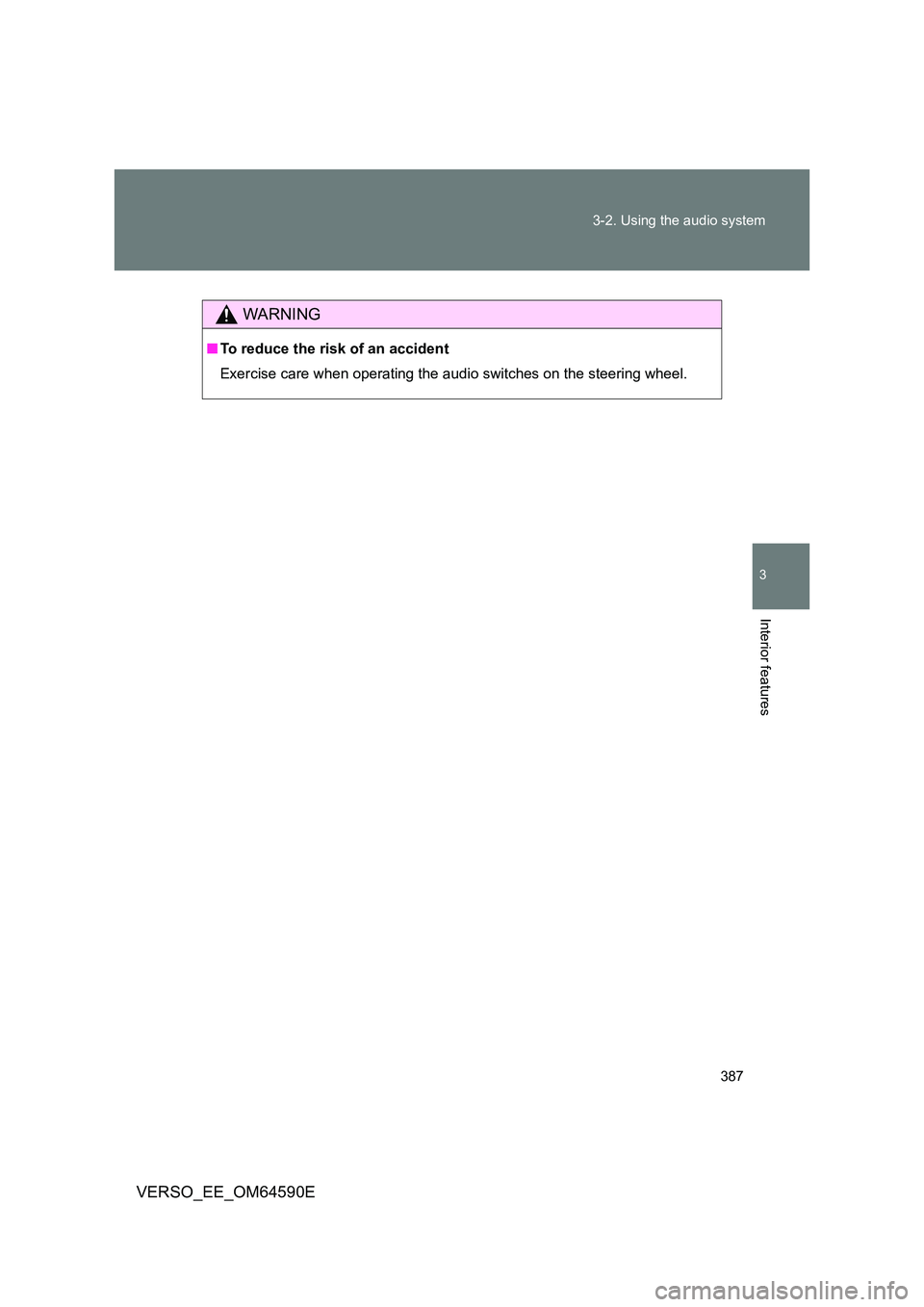

WARNING
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

388
VERSO_EE_OM64590E
3-3. Using the interior lights

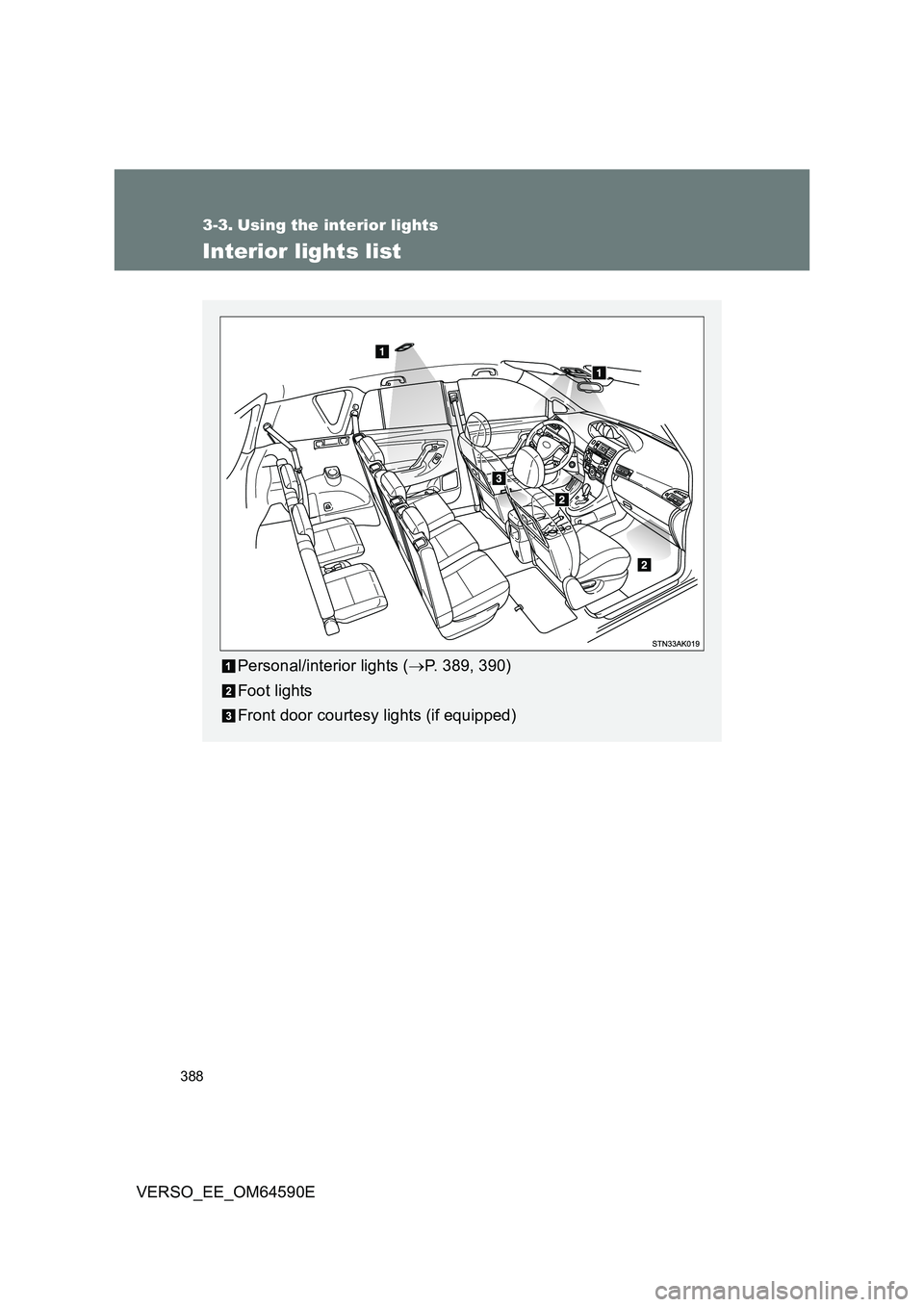

Interior lights list
Personal/interior lights (P. 389, 390)
Foot lights
Front door courtesy lights (if equipped)

389
3-3. Using the interior lights
3
Interior features
VERSO_EE_OM64590E

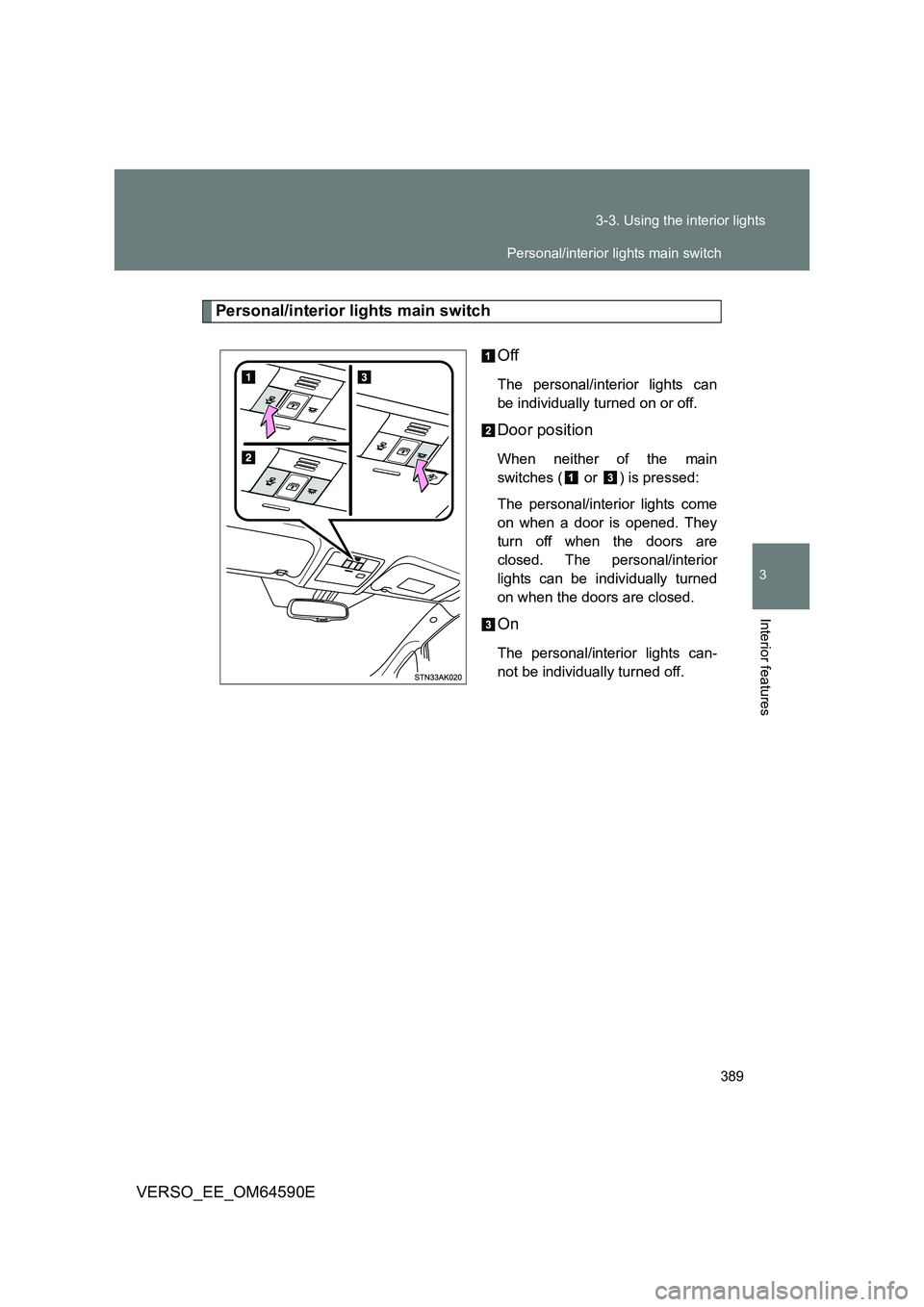

Personal/interior lights main switch
Off
The personal/interior lights can
be individually turned on or off.
Door position
When neither of the main
switches ( or ) is pressed:
The personal/interior lights come
on when a door is opened. They
turn off when the doors are
closed. The personal/interior
lights can be individually turned
on when the doors are closed.
On
The personal/interior lights can-
not be individually turned off.
Personal/interior lights main switch

390
3-3. Using the interior lights
VERSO_EE_OM64590E

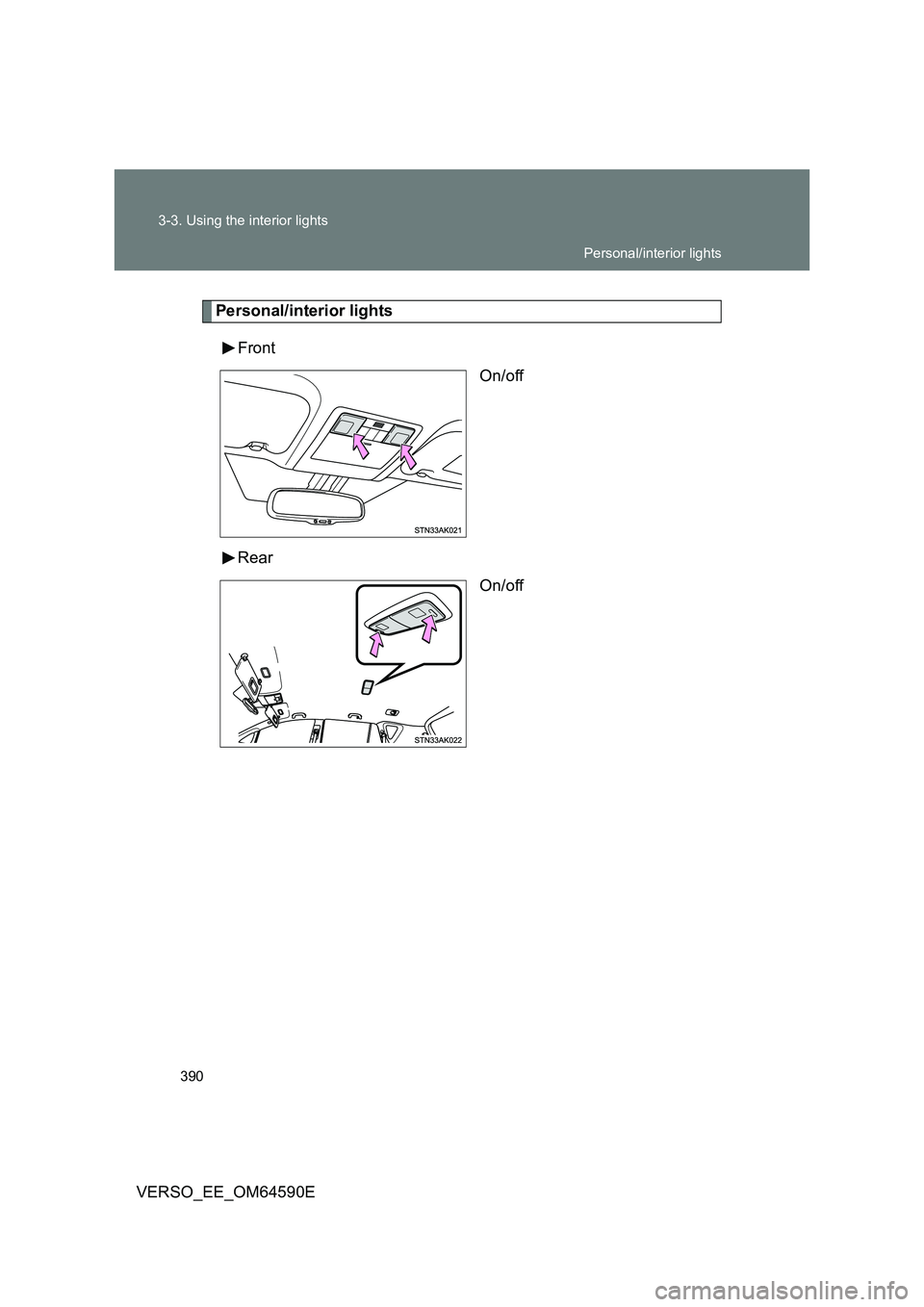

Personal/interior lights
Front
On/off
Rear
On/off
Personal/interior lights
