3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_EE_OM64590E
■ Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated are maintained.

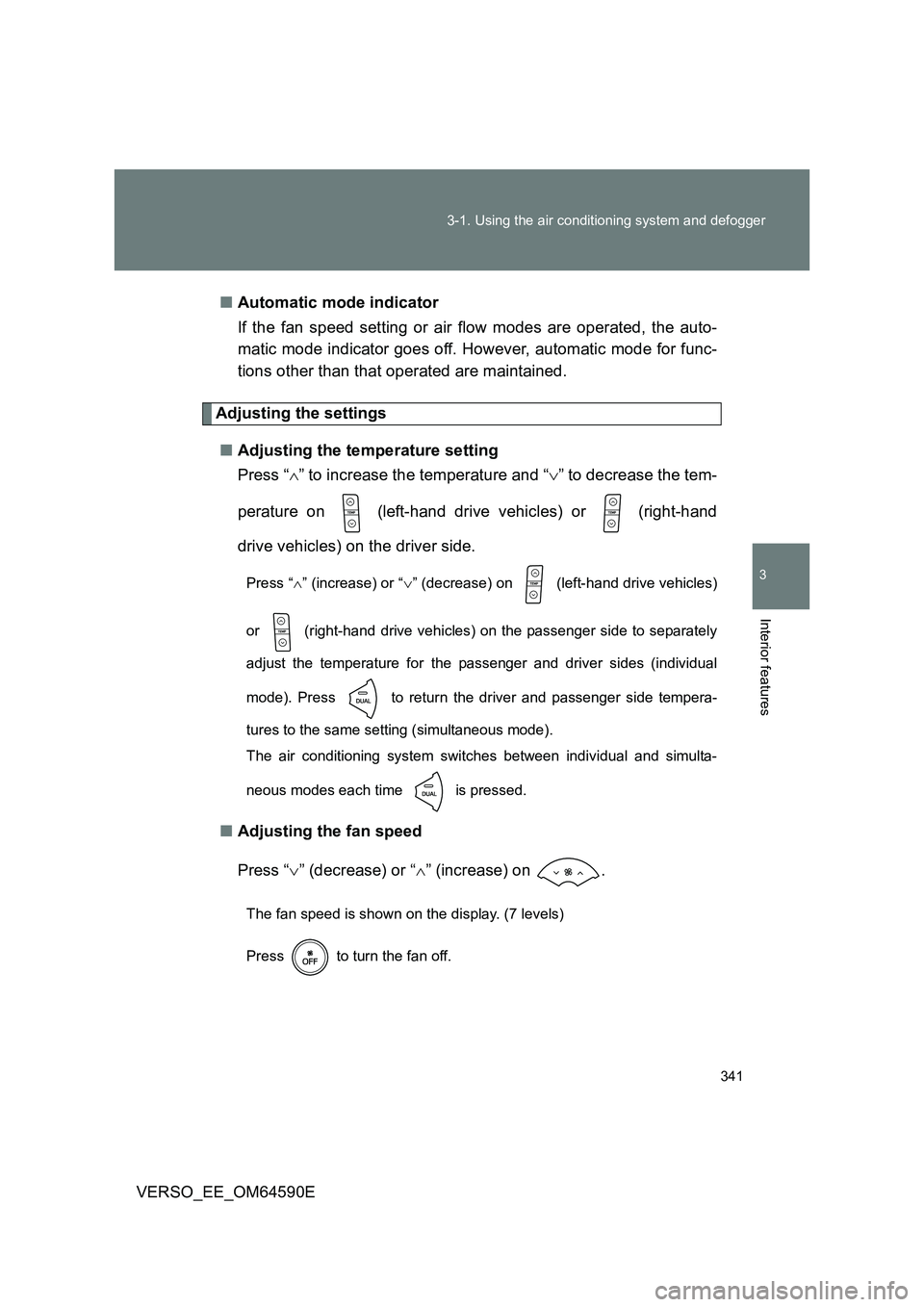

Adjusting the settings
■ Adjusting the temperature setting
Press “ ” to increase the temperature and “” to decrease the tem-
perature on (left-hand drive vehicles) or (right-hand
drive vehicles) on the driver side.
Press “ ” (increase) or “” (decrease) on (left-hand drive vehicles)
or (right-hand drive vehicles) on the passenger side to separately
adjust the temperature for the passenger and driver sides (individual
mode). Press to return the driver and passenger side tempera-
tures to the same setting (simultaneous mode).
The air conditioning system switches between individual and simulta-
neous modes each time is pressed.
■ Adjusting the fan speed
Press “ ” (decrease) or “” (increase) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.

342
3-1. Using the air conditioning system and defogger
VERSO_EE_OM64590E

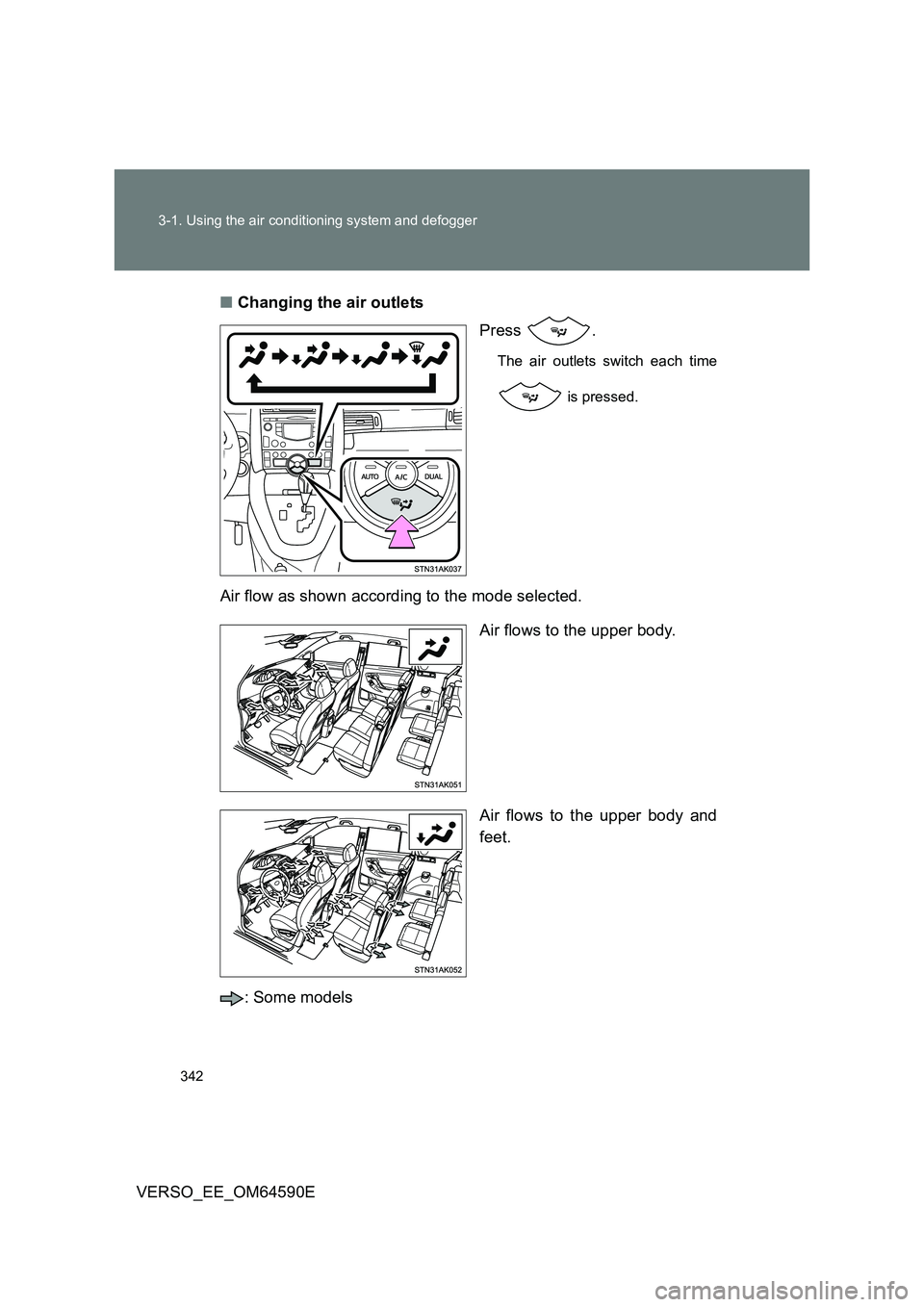

■ Changing the air outlets
Press .
The air outlets switch each time
is pressed.
Air flow as shown according to the mode selected.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models

343
3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_EE_OM64590E

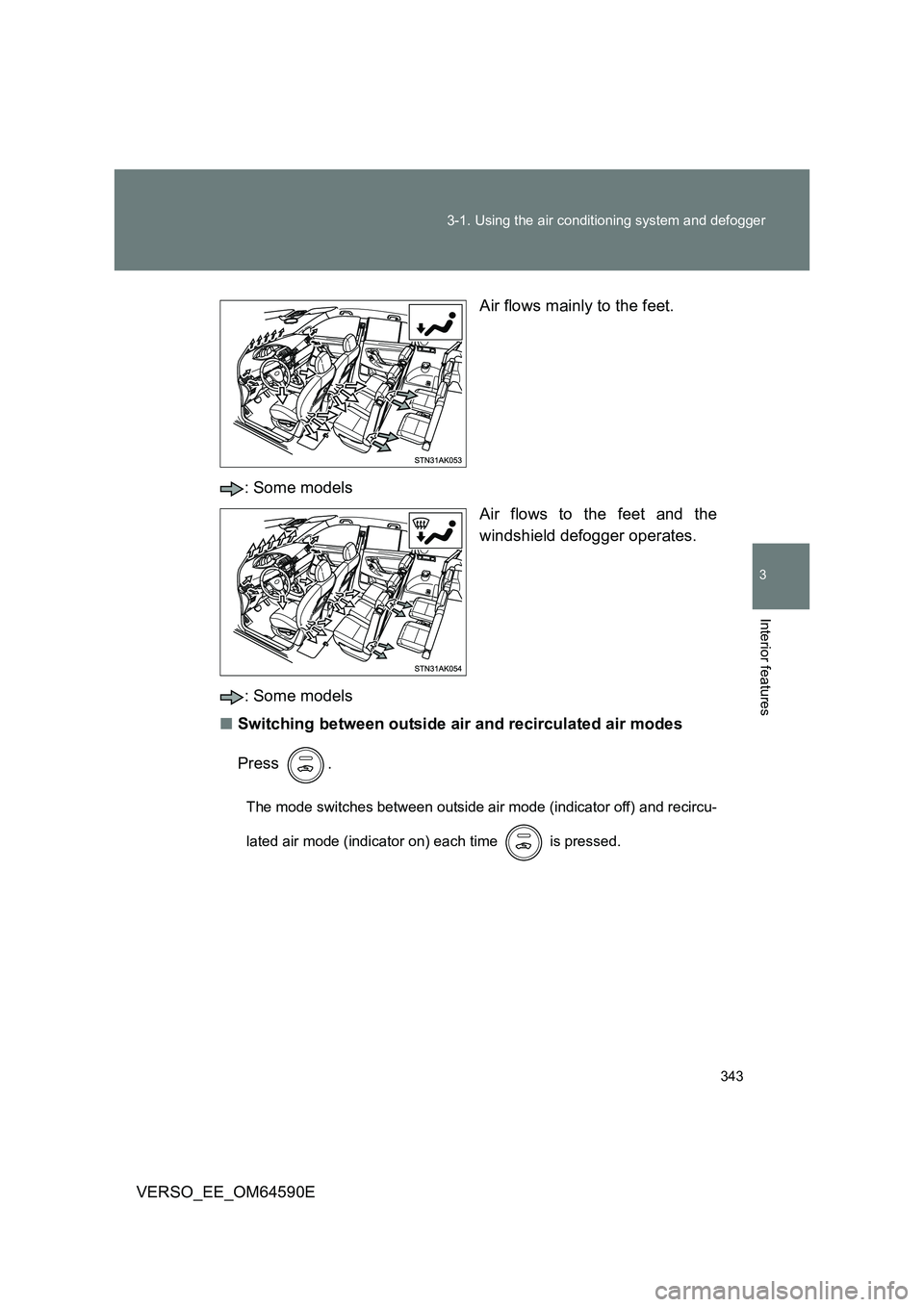

Air flows mainly to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
: Some models
■ Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.

344
3-1. Using the air conditioning system and defogger
VERSO_EE_OM64590E

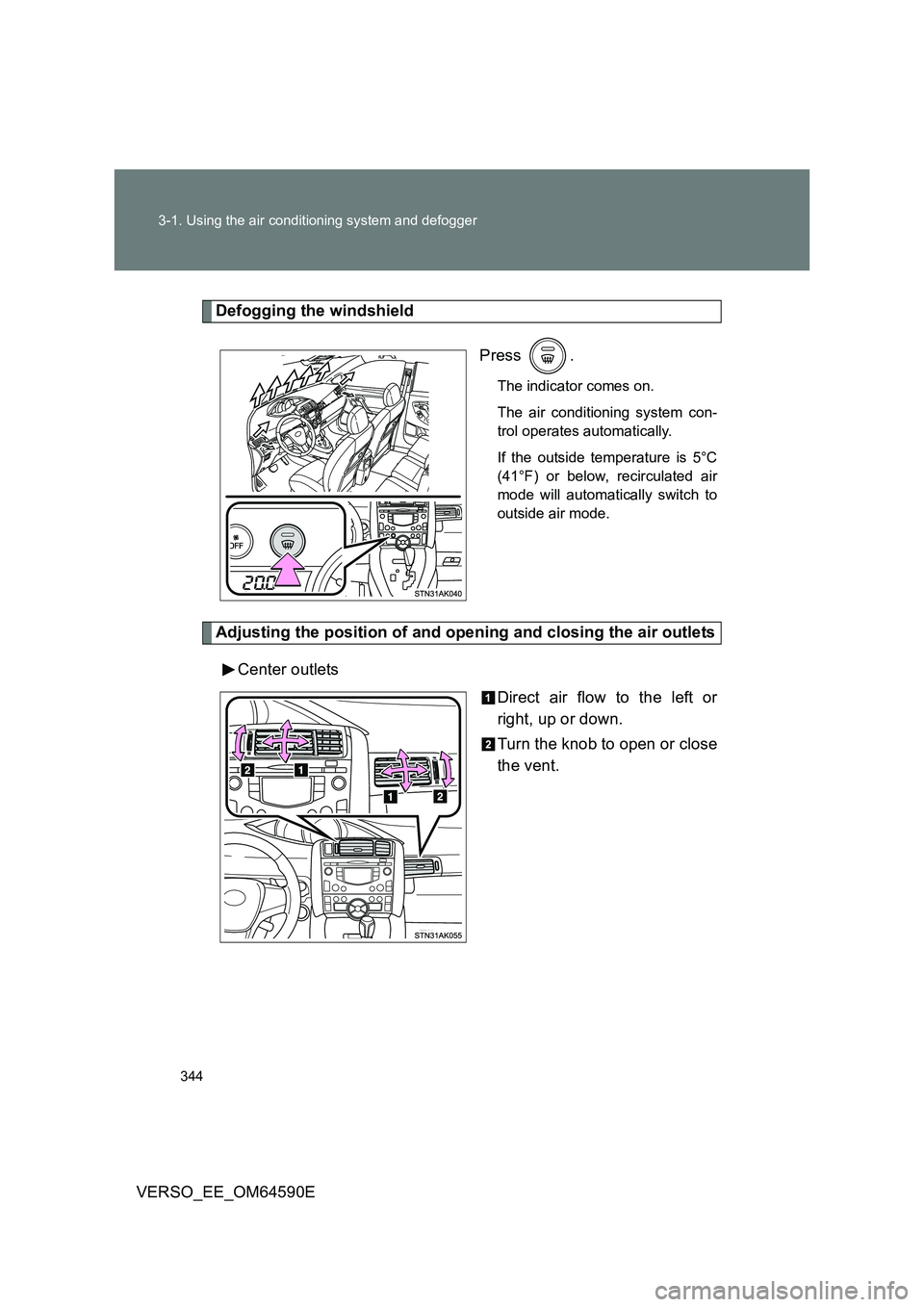

Defogging the windshield
Press .
The indicator comes on.
The air conditioning system con-
trol operates automatically.
If the outside temperature is 5°C
(41°F) or below, recirculated air
mode will automatically switch to
outside air mode.
Adjusting the position of and opening and closing the air outlets
Center outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

345
3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_EE_OM64590E

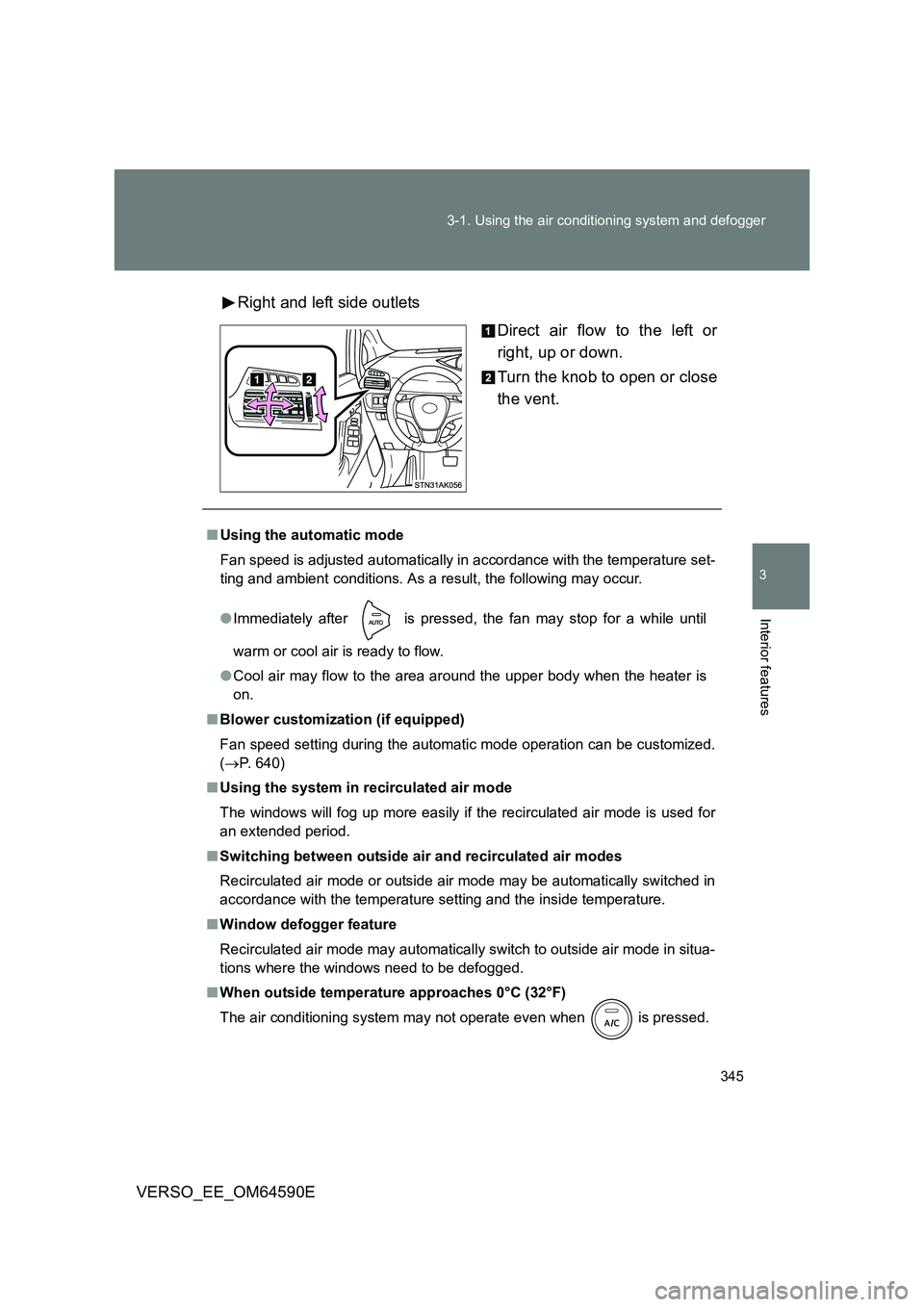

Right and left side outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
■ Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
● Immediately after is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Blower customization (if equipped)
Fan speed setting during the automatic mode operation can be customized.
( P. 640)
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched in
accordance with the temperature setting and the inside temperature.
■ Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.
■ When outside temperature approaches 0°C (32°F)
The air conditioning system may not operate even when is pressed.

346
3-1. Using the air conditioning system and defogger
VERSO_EE_OM64590E

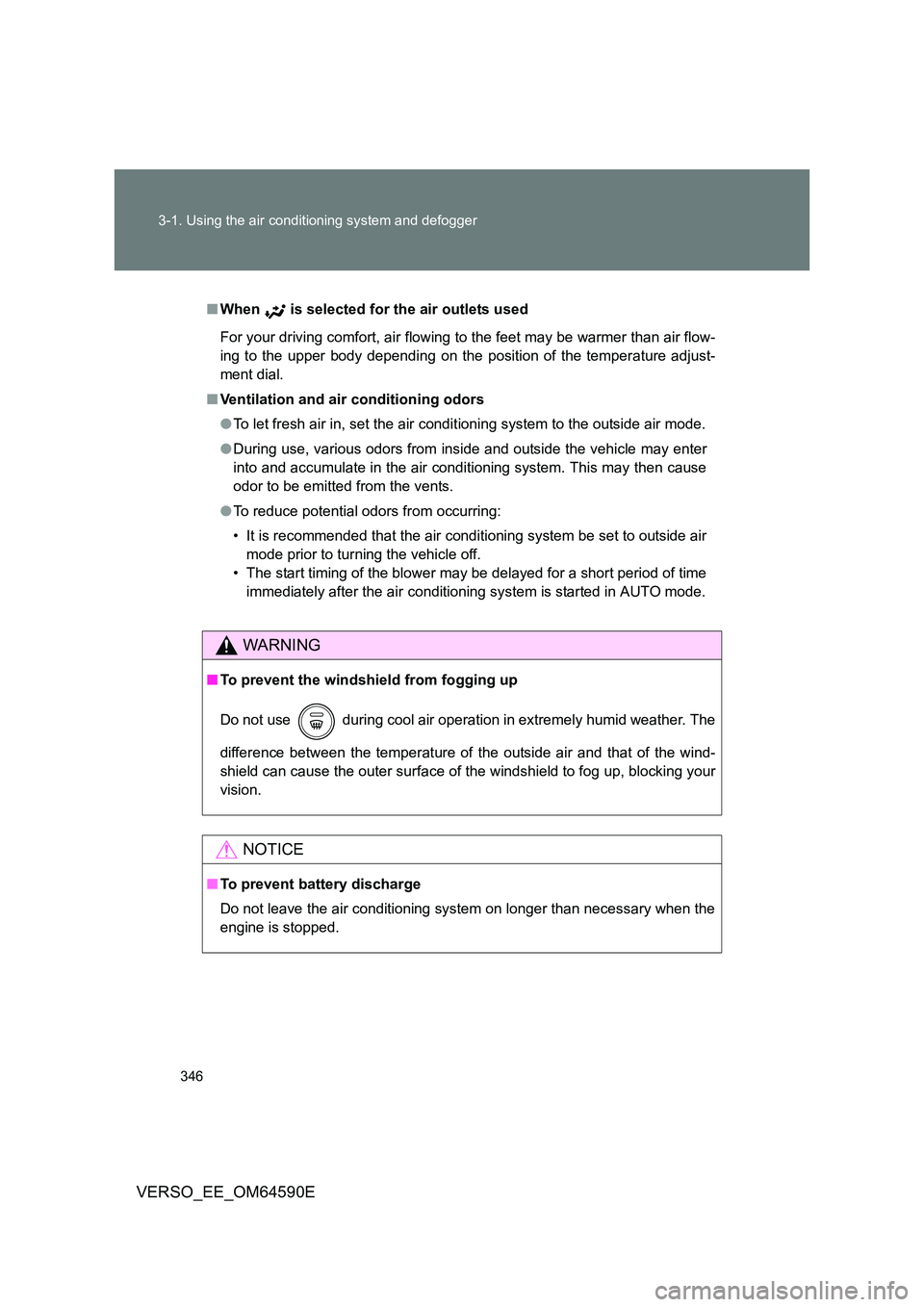

■ When is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the position of the temperature adjust-
ment dial.
■ Ventilation and air conditioning odors
● To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditi oning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the ai r conditioning system is started in AUTO mode.
WARNING
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

347
3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_EE_OM64590E

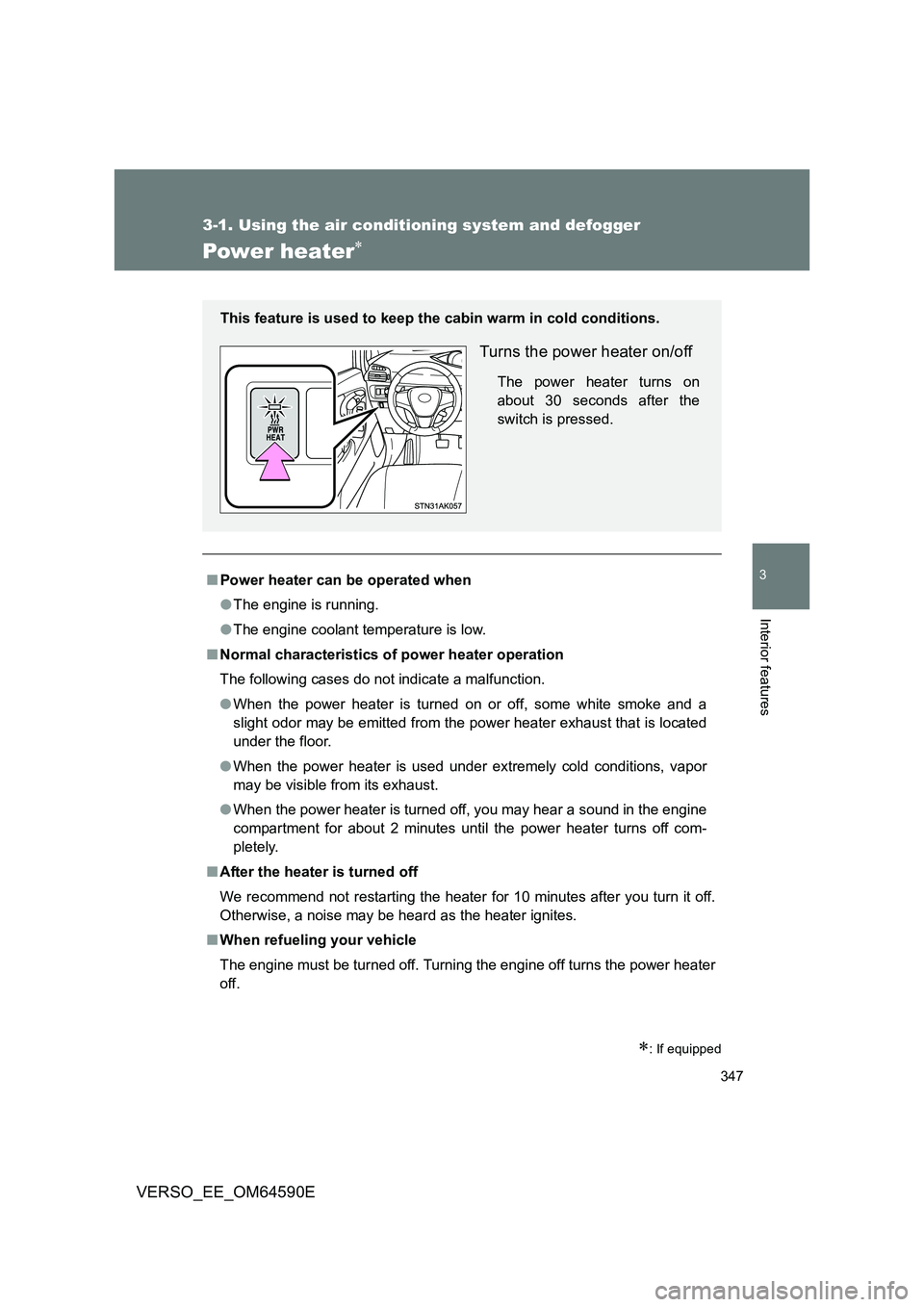

Power heater
: If equipped
■Power heater can be operated when
● The engine is running.
● The engine coolant temperature is low.
■ Normal characteristics of power heater operation
The following cases do not indicate a malfunction.
● When the power heater is turned on or off, some white smoke and a
slight odor may be emitted from the power heater exhaust that is located
under the floor.
● When the power heater is used under extremely cold conditions, vapor
may be visible from its exhaust.
● When the power heater is turned off, you may hear a sound in the engine
compartment for about 2 minutes until the power heater turns off com-
pletely.
■ After the heater is turned off
We recommend not restarting the heater for 10 minutes after you turn it off.
Otherwise, a noise may be heard as the heater ignites.
■ When refueling your vehicle
The engine must be turned off. Turning the engine off turns the power heater
off.
This feature is used to keep the cabin warm in cold conditions.
Turns the power heater on/off
The power heater turns on
about 30 seconds after the
switch is pressed.

348
3-1. Using the air conditioning system and defogger
VERSO_EE_OM64590E

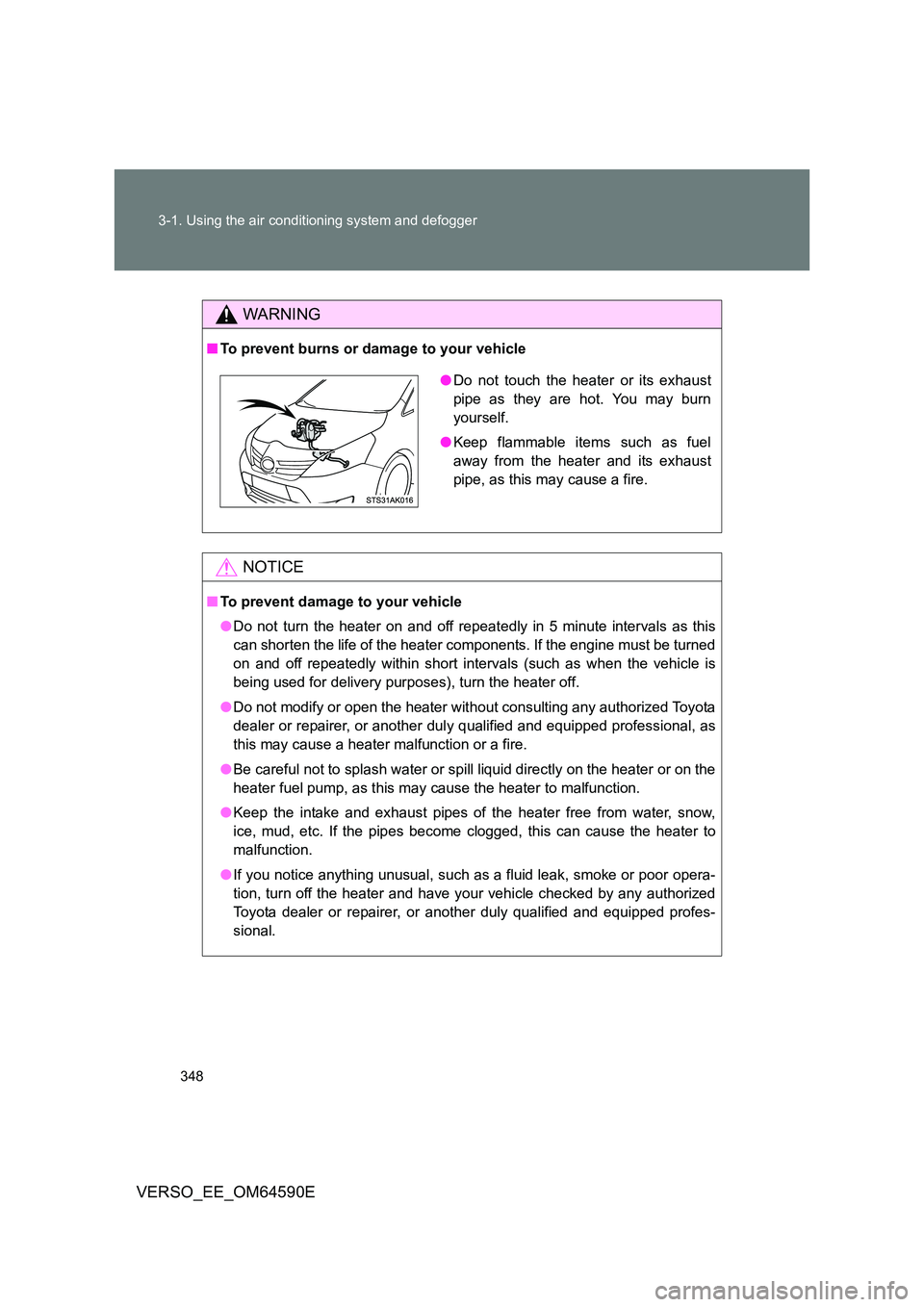

WARNING
■ To prevent burns or damage to your vehicle
NOTICE
■To prevent damage to your vehicle
● Do not turn the heater on and off repeatedly in 5 minute intervals as this
can shorten the life of the heater components. If the engine must be turned
on and off repeatedly within short intervals (such as when the vehicle is
being used for delivery purposes), turn the heater off.
● Do not modify or open the heater without consulting any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional, as
this may cause a heater malfunction or a fire.
● Be careful not to splash water or spill liquid directly on the heater or on the
heater fuel pump, as this may cause the heater to malfunction.
● Keep the intake and exhaust pipes of the heater free from water, snow,
ice, mud, etc. If the pipes become clogged, this can cause the heater to
malfunction.
● If you notice anything unusual, such as a fluid leak, smoke or poor opera-
tion, turn off the heater and have your vehicle checked by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
● Do not touch the heater or its exhaust
pipe as they are hot. You may burn
yourself.
● Keep flammable items such as fuel
away from the heater and its exhaust
pipe, as this may cause a fire.

349
3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_EE_OM64590E

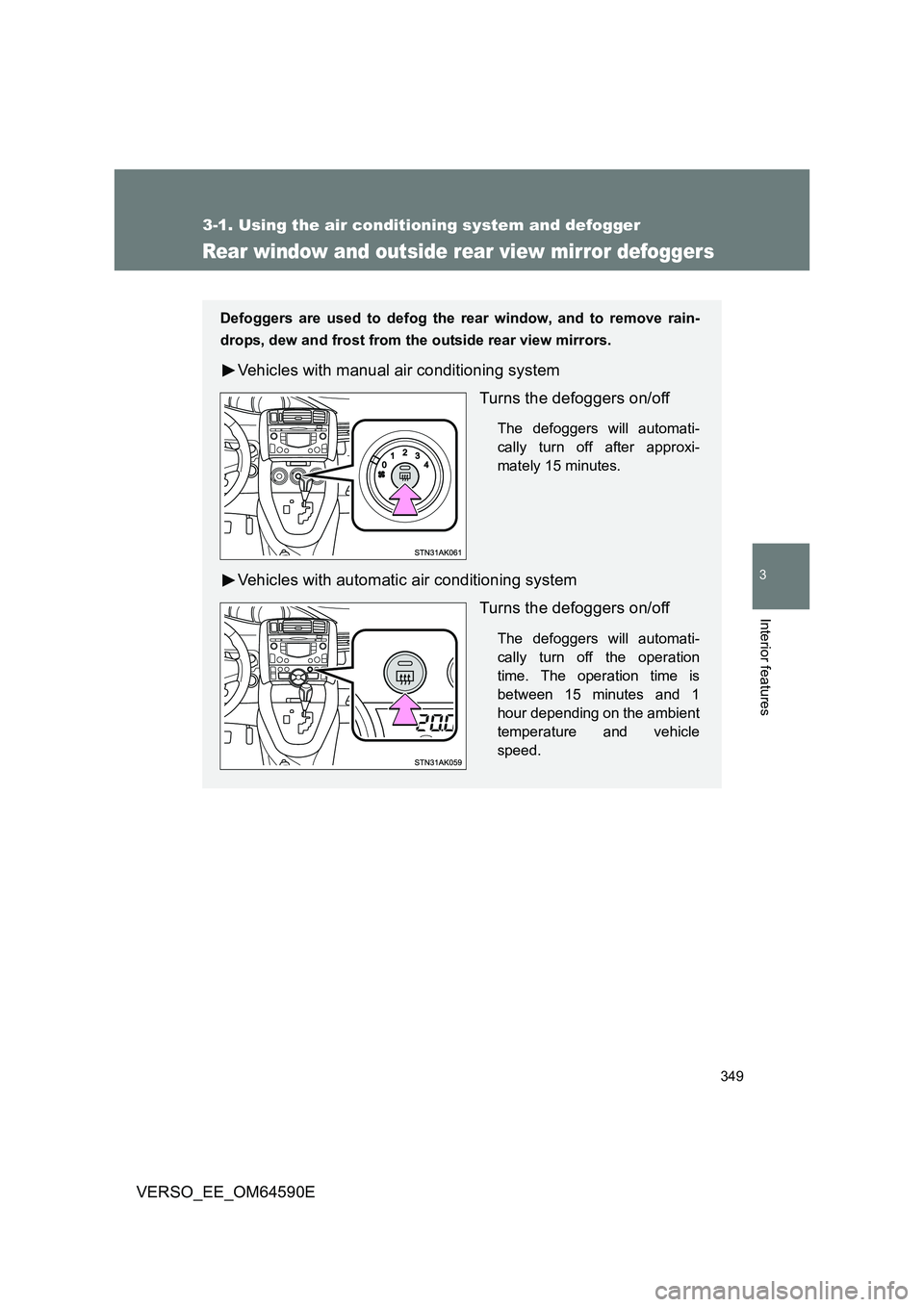

Rear window and outside rear view mirror defoggers
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Vehicles with manual air conditioning system
Turns the defoggers on/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.
Vehicles with automatic air conditioning system
Turns the defoggers on/off
The defoggers will automati-
cally turn off the operation
time. The operation time is
between 15 minutes and 1
hour depending on the ambient
temperature and vehicle
speed.

350
3-1. Using the air conditioning system and defogger
VERSO_EE_OM64590E
■ The defoggers can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ The outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
WARNING
■ When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
