TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)
4595-3. Owner Maintenance
5
Maintenance and Care

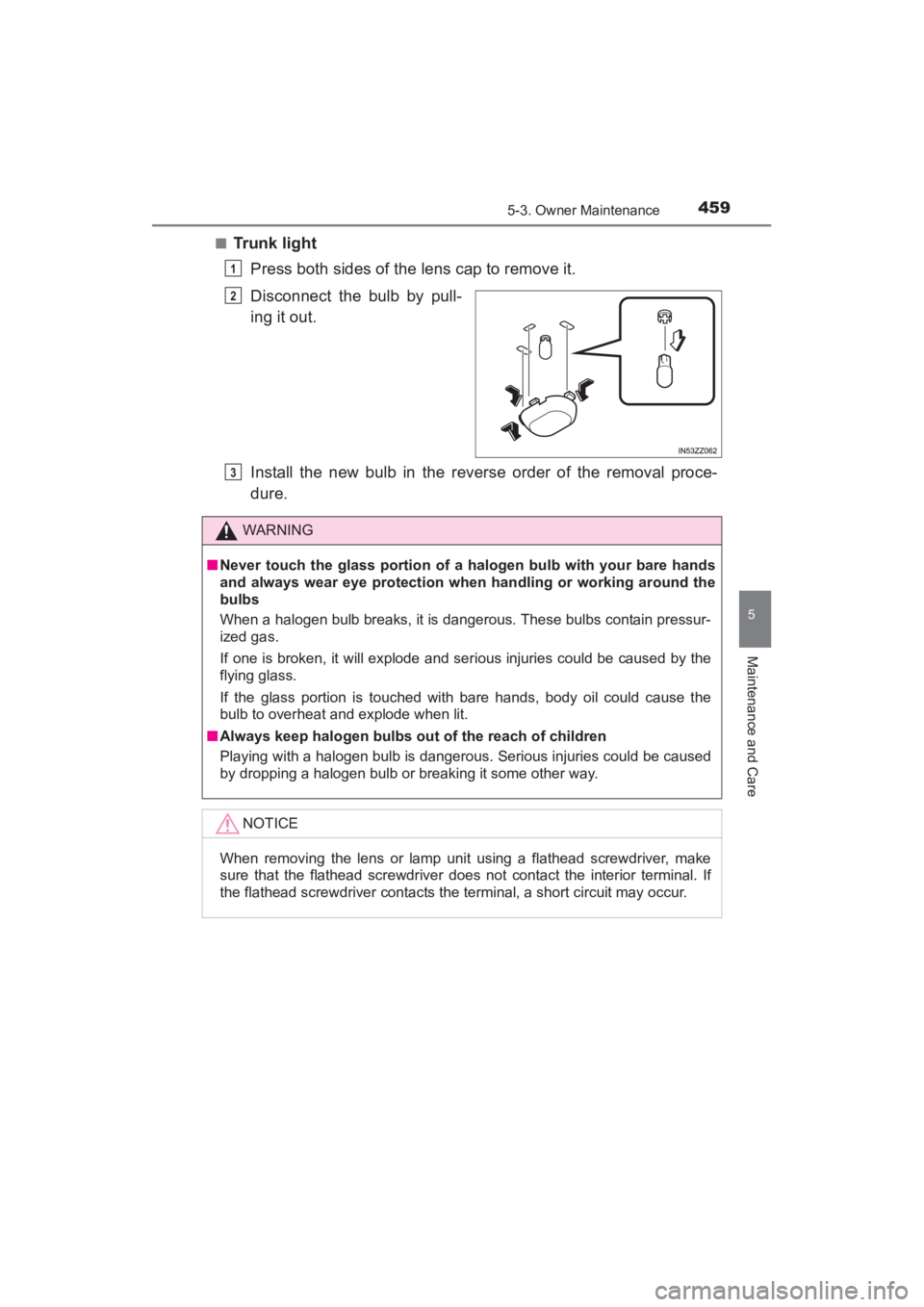

■Trunk lightPress both sides of the lens cap to remove it.
Disconnect the bulb by pull-
ing it out.
Install the new bulb in the reverse order of the removal proce-
dure.
1
2
WARNING
■Never touch the glass portion of a halogen bulb with your bare hands
and always wear eye protection when handling or working around the
bulbs
When a halogen bulb breaks, it is dangerous. These bulbs contain pressur-
ized gas.
If one is broken, it will explode and serious injuries could be caused by the
flying glass.
If the glass portion is touched with bare hands, body oil could cause the
bulb to overheat and explode when lit.
■ Always keep halogen bulbs out of the reach of children
Playing with a halogen bulb is dangerous. Serious injuries could be caused
by dropping a halogen bulb or breaking it some other way.
NOTICE
When removing the lens or lamp unit using a flathead screwdriver, make
sure that the flathead screwdriver does not contact the interior terminal. If
the flathead screwdriver contacts the terminal, a short circuit may occur.
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 459 Monday, June 1, 2015 9:22 PM

460
YARIS_SEDAN_OM_OM99M18z_(U)
5-3. Owner Maintenance
Fuses
■Replacing the fuses on the vehicle’s left side
If the electrical system does not work, first inspect the fuses on the
vehicle’s left side.Make sure the ignition is switched off, and other switches are off.
Open the fuse panel cover.
Pull the fuse straight out with
the fuse puller provided on
the fuse block located in the
engine compartment.
Your vehicle’s electrical system is protected by fuses.
If any lights, accessories, or controls do not work, inspect the
appropriate circuit protector. If a fuse has blown, the inside ele-
ment will be melted.
If the same fuse blows again, avoid using that system and con-
sult your Toyota dealer as soon as possible.
Fuse Replacement
1
2
3
YARIS_SEDAN_OM_OM99M18z_(U).book Page 460 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4615-3. Owner Maintenance
5
Maintenance and Care
Inspect the fuse and replace
it if it is blown.Normal
Blown
Insert a new fuse of the same amperage rating, and make sure it
fits tightly. If it does not fit tightly, have an expert install it. We rec-
ommend your Toyota dealer.
If you have no spare fuses, borrow one of the same rating from a
circuit not essential to vehicle operation, such as the AUDIO or
OUTLET circuit.
Reinstall the cover and make sure that it is securely installed.
■Replacing the fuses under the hood
If the headlights or other electrical components do not work and the
fuses in the cabin are normal, inspect the fuse block under the
hood. If a fuse is blown, it must be replaced. Follow these steps: Make sure the ignition is switched off, and other switches are off.
Remove the fuse block
cover.
4
1
2
5
6
1
2
YARIS_SEDAN_OM_OM99M18z_(U).book Page 461 Monday, June 1, 2015 9:22 PM

4625-3. Owner Maintenance
YARIS_SEDAN_OM_OM99M18z_(U)

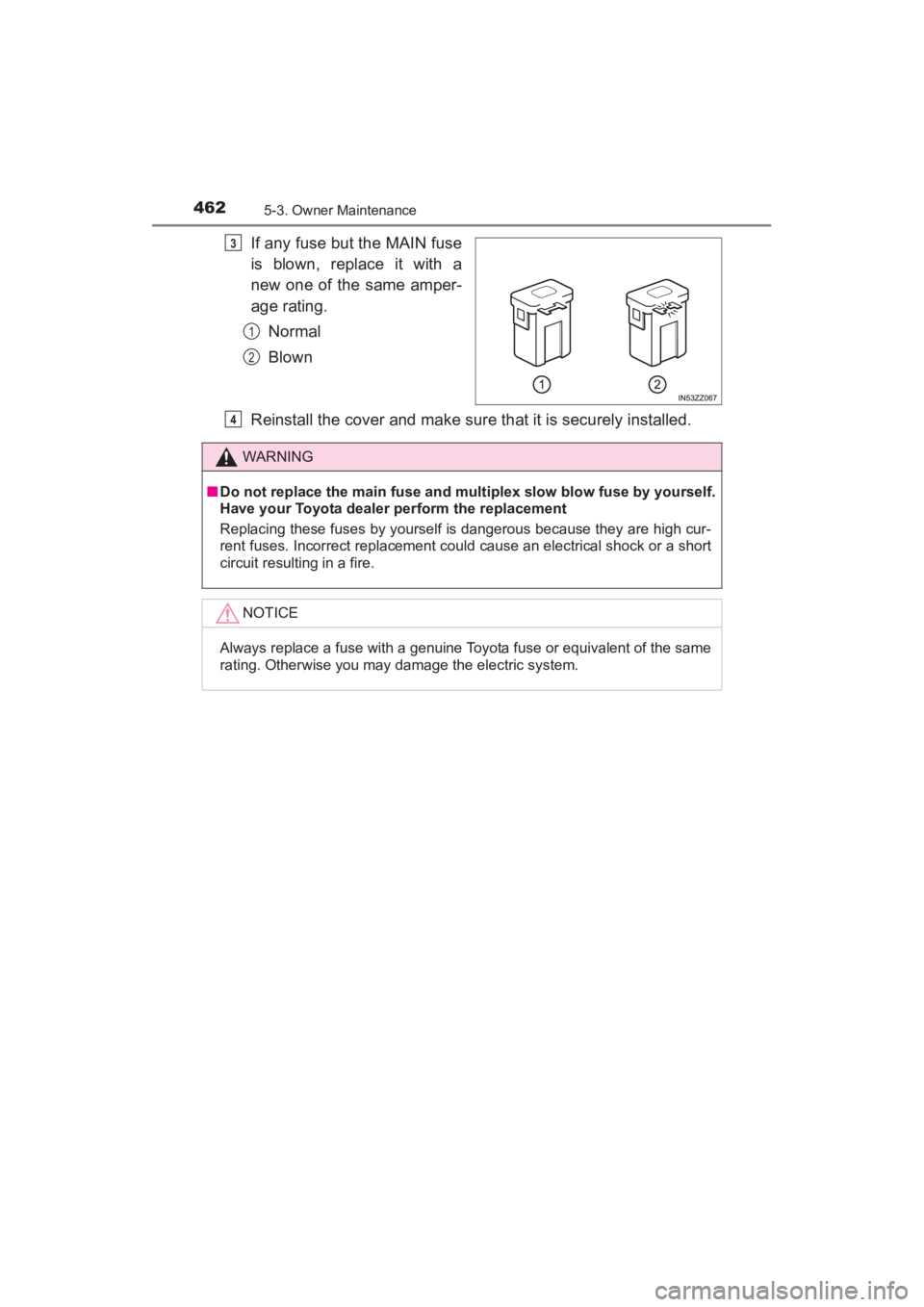

If any fuse but the MAIN fuse
is blown, replace it with a
new one of the same amper-
age rating.Normal
Blown
Reinstall the cover and make sure that it is securely installed.3
1
2
WARNING
■ Do not replace the main fuse and multiplex slow blow fuse by yourself.
Have your Toyota dealer perform the replacement
Replacing these fuses by yourself is dangerous because they are high cur-
rent fuses. Incorrect replacement coul d cause an electrical shock or a short
circuit resulting in a fire.
NOTICE
Always replace a fuse with a genuine Toyota fuse or equivalent of the same
rating. Otherwise you may damage the electric system.
4
YARIS_SEDAN_OM_OM99M18z_(U).book Page 462 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4635-3. Owner Maintenance
5
Maintenance and Care

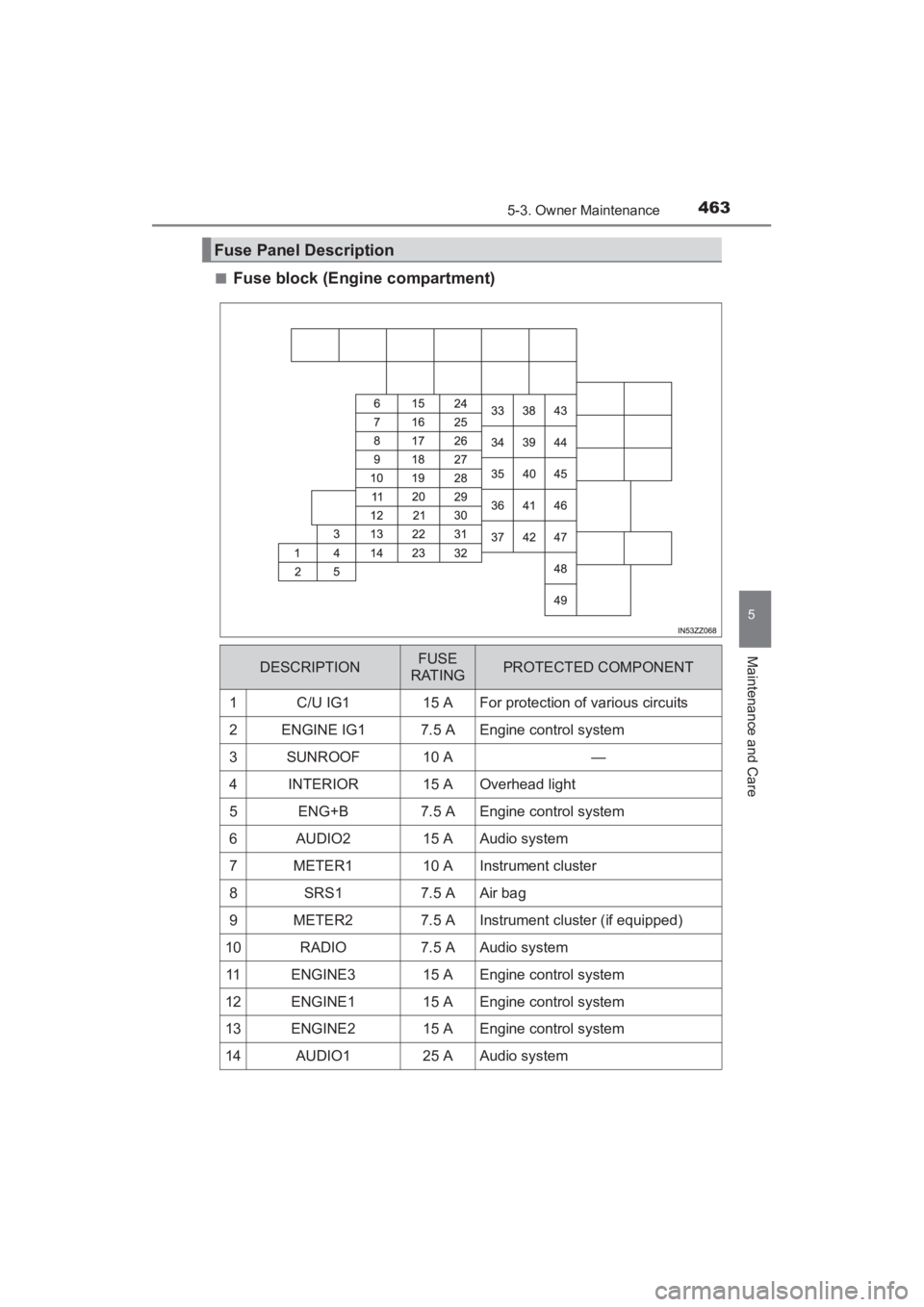

■Fuse block (Engine compartment)
Fuse Panel Description
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1C/U IG115 AFor protection of various circuits
2ENGINE IG17.5 AEngine control system
3SUNROOF10 A—
4INTERIOR15 AOverhead light
5ENG+B7.5 AEngine control system
6AUDIO215 AAudio system
7METER110 AInstrument cluster
8SRS17.5 AAir bag
9METER27.5 AInstrument cluster (if equipped)
10RADIO7.5 AAudio system
11ENGINE315 AEngine control system
12ENGINE115 AEngine control system
13ENGINE215 AEngine control system
14AUDIO125 AAudio system
YARIS_SEDAN_OM_OM99M18z_(U).book Page 463 Monday, June 1, 2015 9:22 PM

4645-3. Owner Maintenance
YARIS_SEDAN_OM_OM99M18z_(U)
15A/C MAG7.5 AAir conditioner
16AT P U M P15 ATransaxle control system
(if equipped)
17AT15 ATransaxle control system
(if equipped)
18D.LOCK25 APower door locks
19H/L RH20 AHeadlight (RH)
20ENG+B27.5 AEngine control system
21TA I L20 ATaillights, License plate lights, Park-
ing lights
22———
23ROOM25 AOverhead light
24FOG15 AFog lights (if equipped)
25H/CLEAN20 A—
26STOP10 ABrake lights
27HORN15 AHorn
28H/L LH20 AHeadlight (LH)
29ABS/DSC S30 AABS, Dynamic stability control sys-
tem
30HAZARD15 AHazard warning flashers, Turn sig-
nal lights
31FUEL PUMP15 AFuel system
32FUEL WARM25 A—
33WIPER20 AFront window wiper
34CABIN+B50 AFor protection of various circuits
35FA N 230 ACooling fan
36FUEL PUMP30 A—
37ABS/DSC M50 AABS, Dynamic stability control sys-
tem
38EVVT20 AEngine control system (if equipped)
39———
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
YARIS_SEDAN_OM_OM99M18z_(U).book Page 464 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4655-3. Owner Maintenance
5
Maintenance and Care

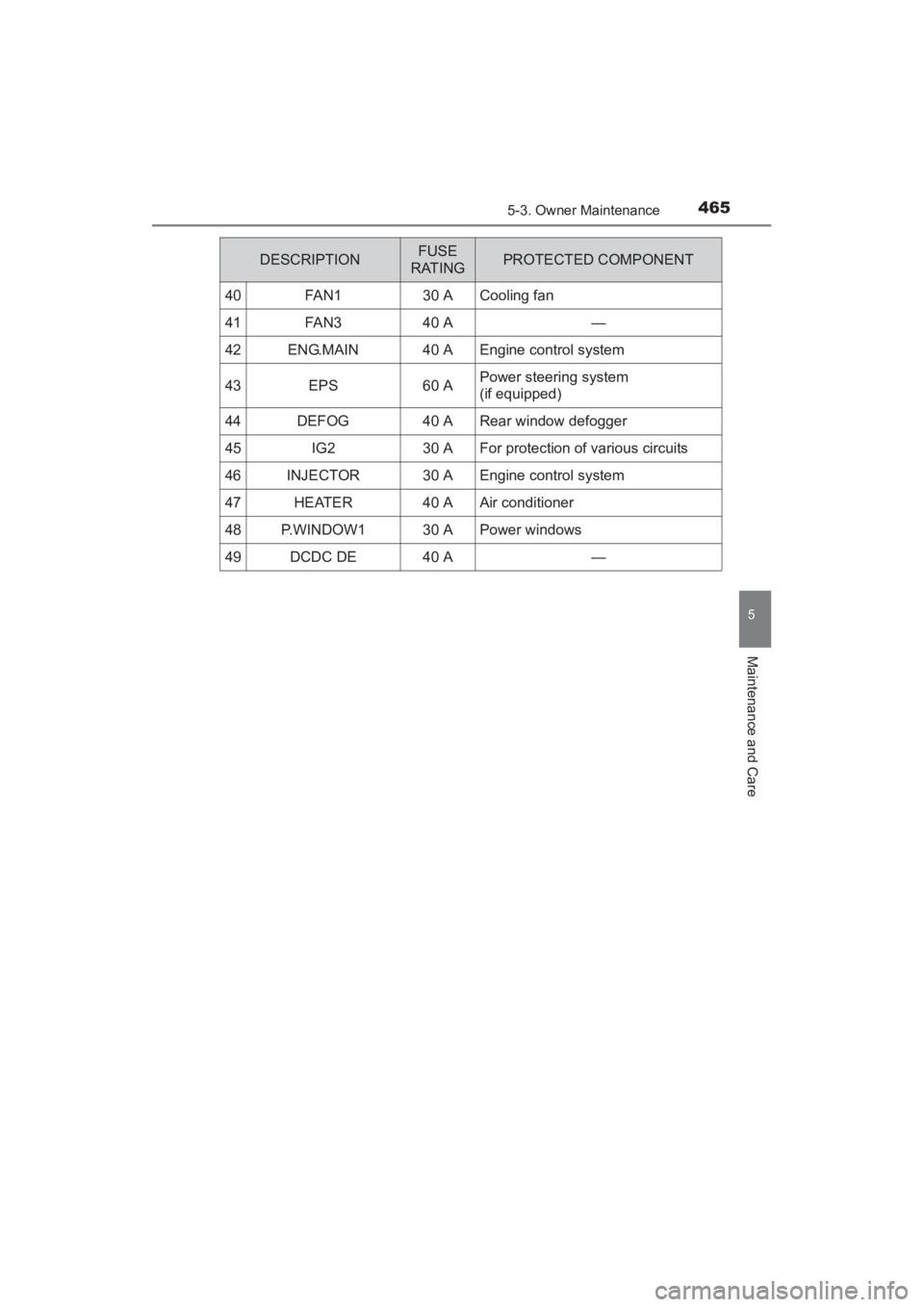

40FA N 130 ACooling fan
41FA N 340 A—
42ENG.MAIN40 AEngine control system
43EPS60 APower steering system
(if equipped)
44DEFOG40 ARear window defogger
45IG230 AFor protection of various circuits
46INJECTOR30 AEngine control system
47HEATER40 AAir conditioner
48P. W I N D O W 130 APower windows
49DCDC DE40 A—
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
YARIS_SEDAN_OM_OM99M18z_(U).book Page 465 Monday, June 1, 2015 9:22 PM

4665-3. Owner Maintenance
YARIS_SEDAN_OM_OM99M18z_(U)■

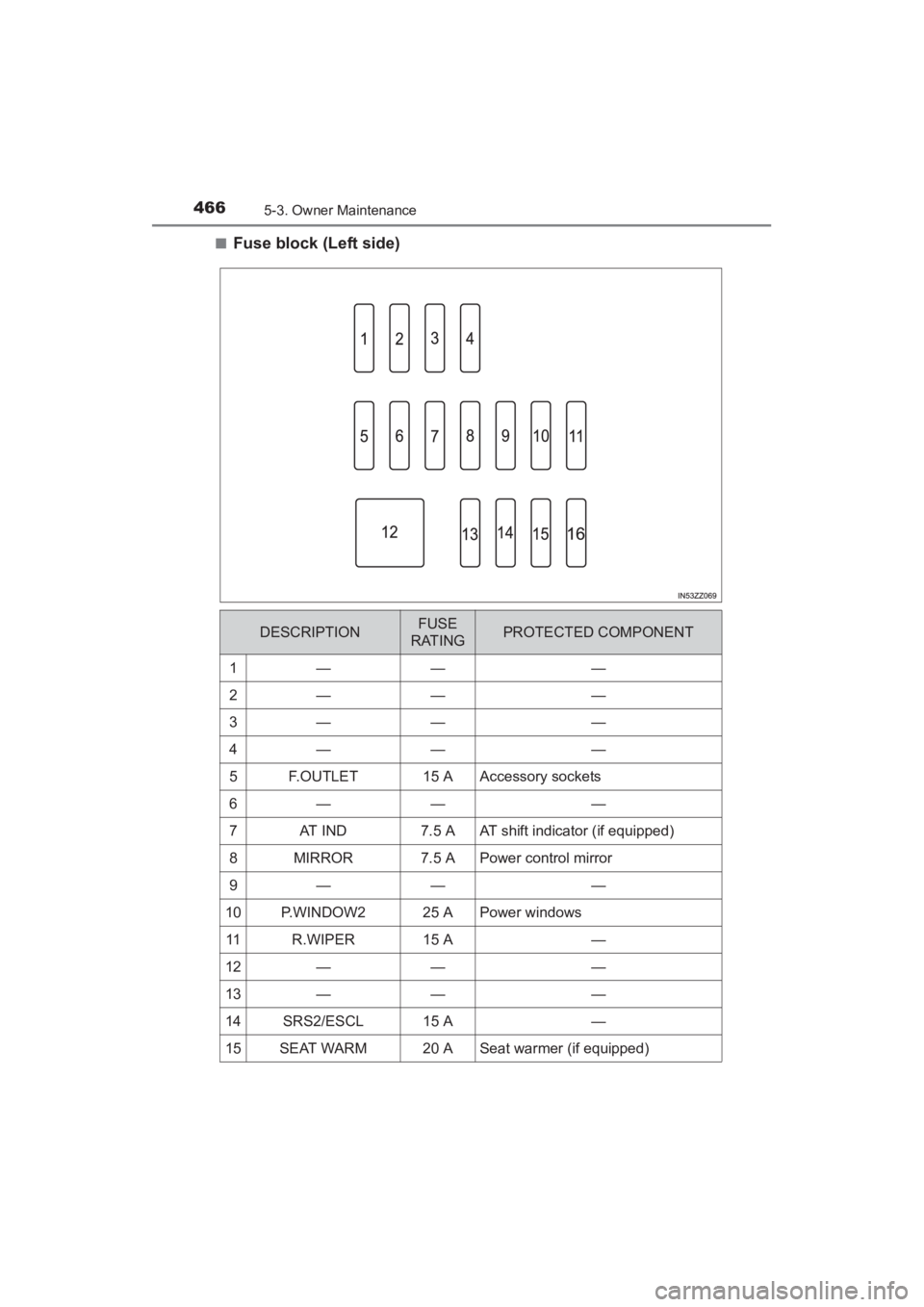

Fuse block (Left side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1———
2———
3———
4———
5F. O U T L E T15 AAccessory sockets
6———
7AT I N D7.5 AAT shift indicator (if equipped)
8MIRROR7.5 APower control mirror
9———
10P. W I N D O W 225 APower windows
11R.WIPER15 A—
12———
13———
14SRS2/ESCL15 A—
15SEAT WARM20 ASeat warmer (if equipped)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 466 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
4675-3. Owner Maintenance
5
Maintenance and Care
16M.DEF7.5 AMirror defogger (if equipped)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
YARIS_SEDAN_OM_OM99M18z_(U).book Page 467 Monday, June 1, 2015 9:22 PM

468
YARIS_SEDAN_OM_OM99M18z_(U)
5-4. Appearance Care

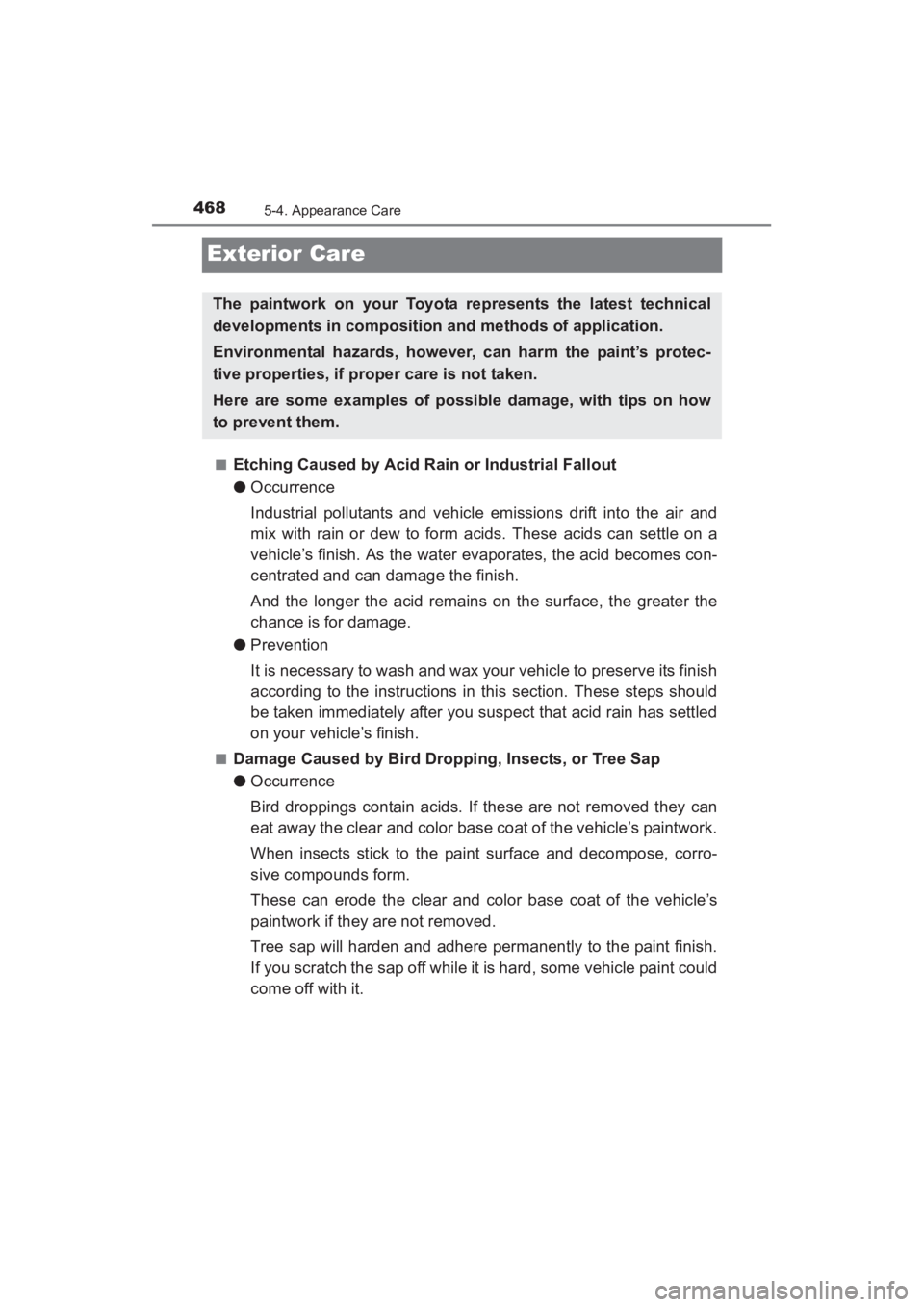

Exterior Care
■Etching Caused by Acid Rain or Industrial Fallout
●Occurrence
Industrial pollutants and vehicle emissions drift into the air and
mix with rain or dew to form acids. These acids can settle on a
vehicle’s finish. As the water evaporates, the acid becomes con-
centrated and can damage the finish.
And the longer the acid remains on the surface, the greater the
chance is for damage.
● Prevention
It is necessary to wash and wax your vehicle to preserve its finish
according to the instructions in this section. These steps should
be taken immediately after you suspect that acid rain has settled
on your vehicle’s finish.
■Damage Caused by Bird Dropping, Insects, or Tree Sap
●Occurrence
Bird droppings contain acids. If these are not removed they can
eat away the clear and color base coat of the vehicle’s paintwork.
When insects stick to the paint surface and decompose, corro-
sive compounds form.
These can erode the clear and color base coat of the vehicle’s
paintwork if they are not removed.
Tree sap will harden and adhere permanently to the paint finish.
If you scratch the sap off while it is hard, some vehicle paint could
come off with it.
The paintwork on your Toyota represents the latest technical
developments in composition and methods of application.
Environmental hazards, however, can harm the paint’s protec-
tive properties, if proper care is not taken.
Here are some examples of possible damage, with tips on how
to prevent them.
