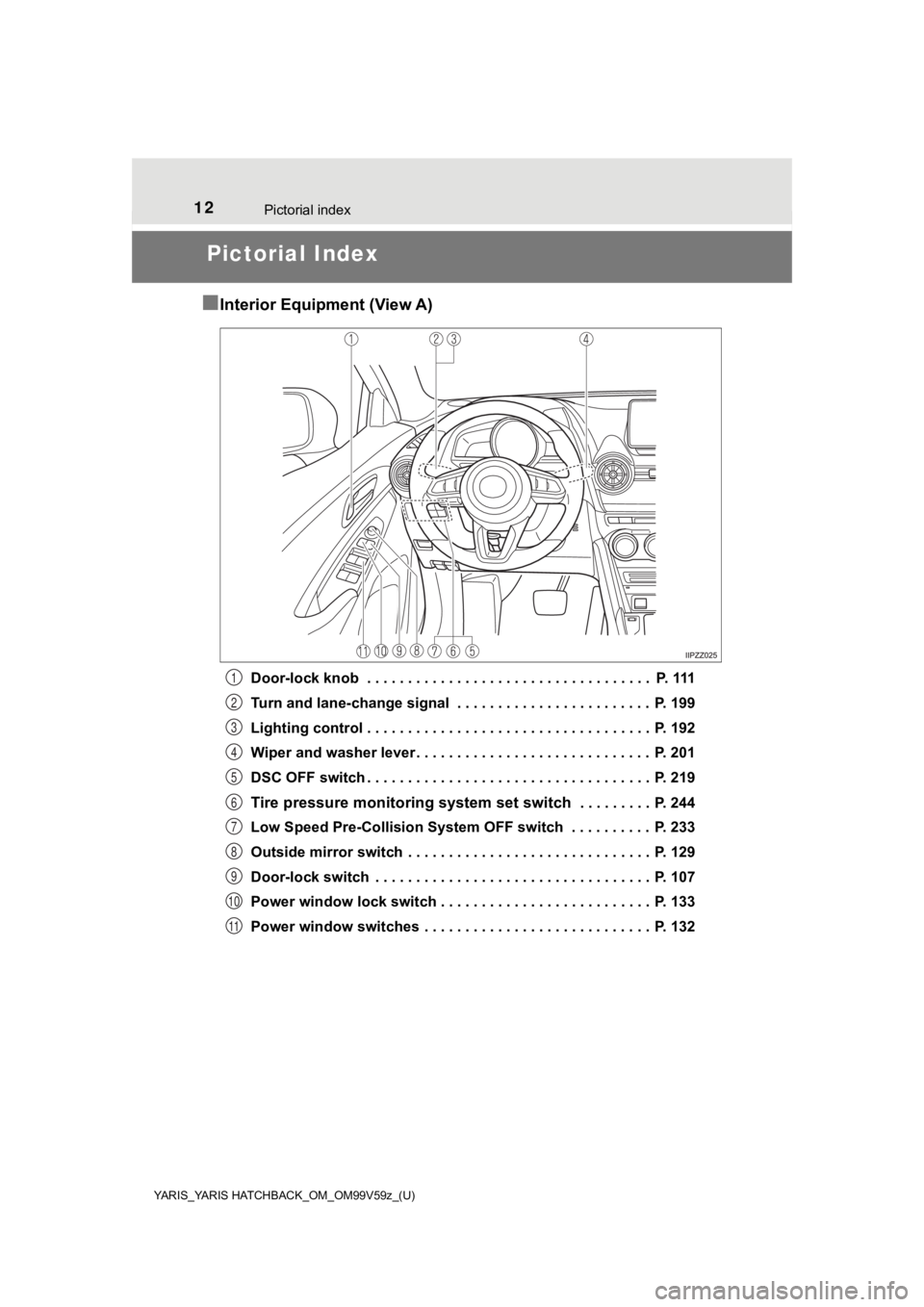

Pictorial Index
■
Interior Equipment (View A)
Door-lock knob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
Turn and lane-change signal . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Wiper and washer lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 201
DSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Tire pressure monitori ng system set switch . . . . . . . . . P. 244
Low Speed Pre-Collision System OFF switch . . . . . . . . . . P. 233
Outside mirror switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 129
Door-lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107
Power window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
1
2
3
4
5
6
7
8
9
10
11
Page 13 of 572

13Pictorial index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
Audio control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 304
Combination meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164
Dashboard illumination knob . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Cruise control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . P. 208
Push button start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127
Hood release handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 392
Remote fuel-filler lid release . . . . . . . . . . . . . . . . . . . . . . . . . P. 125
Trunk release button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 115
The equipment and installation position varies by vehicle
1
2
3
4
5
6
7
8
9
10
Page 14 of 572

14Pictorial index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
■Interior Equipment (View B)
SRS air bags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 66
Climate control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 256
Rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . P. 207
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Seat warmer switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 24
Accessory socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
External input terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
Drive selection switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Shift lever/Selector lever . . . . . . . . . . . . . . . . . . . . . . . . P. 177, 181
Fuse block (Left side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4351
2
3
4
5
6
7
8
9
10
Page 15 of 572

15Pictorial index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
■Interior Equipment (View C)
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 33
SRS air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 66
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Overhead lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 375
Rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 382
Commander switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 23
Rear seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
The equipment and installation position varies by vehicle
1
2
3
4
5
6
7
8
9
10
11
12
13
Page 16 of 572

16Pictorial index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
■Exterior Overview
4-Door
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 392
Windshield wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
Door and key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 103
Fuel-filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 124
Wheels and Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 413
Exterior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 419
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 115
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 112
Outside mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 129
The equipment and installation position varies by vehicle
1
2
3
4
5
6
7
8
9
Page 17 of 572

17Pictorial index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5-Door
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 392
Windshield wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
Door and key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 103
Fuel-filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 124
Wheels and Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 413
Exterior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 419
Rear window wiper blade . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 406
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 115
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 112
Outside mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 129
The equipment and installation position varies by vehicle
1
2
3
4
5
6
7
8
9
10
11
Page 18 of 572

18Pictorial index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
Page 19 of 572

19
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
Essential SafetyEquipment1
1-1. Seats
Seat Precautions ................. 20
Front Seat ........................... 23
Rear Seat ............................ 26
Head Restraints .................. 30
1-2. Seat Belt Systems Seat Belt Precautions ......... 33
Seat Belt ............................. 37
Seat Belt Pretensioner and Load Limiting
Systems ............................ 39
Seat Belt Extender .............. 42 1-3. Child Restraint
Child-Restraint Precautions ....................... 44
Child-Restraint System Installation......................... 49
Installing Child-Restraint Systems ............................ 51
1-4. SRS Air Bags Supplemental Restraint System (SRS)
Precautions ....................... 66
Supplemental Restraint System Components ........ 73
How the SRS Air Bags Work ................................. 74
SRS Air Bag Deployment Criteria .............................. 78
Limitations to SRS Air Bag...................... 80
Front Passenger Occupant Classification
System .............................. 82
Constant Monitoring ............ 87
Page 20 of 572

20
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
1-1. Seats
Seat Precautions
When returning a rear seat to its original position, place the seat belt
in its normal position. Verify t hat the seat belt pulls out and retracts.
WARNING
■Make sure the adjustable components of a seat are locked in place
Adjustable seats and seatbacks that are not securely locked are dangerous.
In a sudden stop or collision, the seat or seatback could move, causing
injury. Make sure the adjustable components of the seat are loc ked in place
by attempting to slide the seat forward and backward and rocking the seat-
back.
■ Never allow children to adjust a seat
Allowing children to adjust a seat is dangerous as it could res ult in serious
injury if a child’s hands or feet become caught in the seat.
■ Do not drive with t he seatback unlocked
All of the seatbacks play an important role in your protection in a vehicle.
Leaving the seatback unlocked is dangerous as it can allow passengers to
be ejected or thrown around and baggage to strike occupants in a sudden
stop or collision, resulting in severe injury. After adjusting the seatback at
any time, even when there are no other passengers, rock the seatback to
make sure it is locked in place.
■ Adjust a seat only when the vehicle is stopped
If the seat is adjusted while the vehicle is being driven, the seating posture
may become unstable and the seat could move unexpectedly result ing in
injury.
■ Do not modify or replace the front seats
Modifying or replacing the front seats such as replacing the up holstery or
loosening any bolts is dangerous. The front seats contain air b ag compo-
nents essential to the supplemental restraint system. Such modi fications
could damage the supplemental restraint system and result in serious injury.
Consult your Toyota dealer if there is any need to remove or re install the
front seats.
■ Do not drive with d amaged front seats
Driving with damaged front seats, such as seat cushions torn or damaged
down to the urethane, is dangerous. A collision, even one not strong
enough to inflate the air bags, could damage the front seats wh ich contain
essential air bag components. If there was a subsequent collision, an air
bag may not deploy which could lead to injuries. Always have yo ur Toyota
dealer inspect the front seats, front seat belt pretensioners a nd air bags
after a collision.
