VAUXHALL MOVANO_B 2014.5 Infotainment system

Introduction11
1m - Press: Switch on/off ........20
Turn: Adjust volume ..............20
2 SETUP - Short press:
Settings menu ....................... 20
3 3 - Radio, Short press:
Search for next radio
frequency .............................. 29
Long press: Automatic
station search ........................ 29
Audio/MP3/WMA CD,
Short press: Skip track
forwards ................................ 37
Long press: Fast forward ......37
4 RADIO - Change audio
source, waveband .................28
5 MEDIA - Change audio
source ................................... 37
6 Rotary knob ........................... 20
Short press: Confirm an
action .................................... 20
Turn: Access display
menu options ........................ 20
7 TEL - Telephone menu .........718Station buttons 1...6 ..............29
Short press: Select station ....29
Long press: Save station ......29
9 USB port ............................... 43
10 / - Return to previous
menu, cancel an action .........20
11 d - CD ejection .....................37
12 AUX input .............................. 41
13 2 - Radio, Short press:
Search for previous radio
frequency .............................. 29
Long press: Automatic
station search ........................ 29
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 37
Long press: Fast rewind .......37

12Introduction

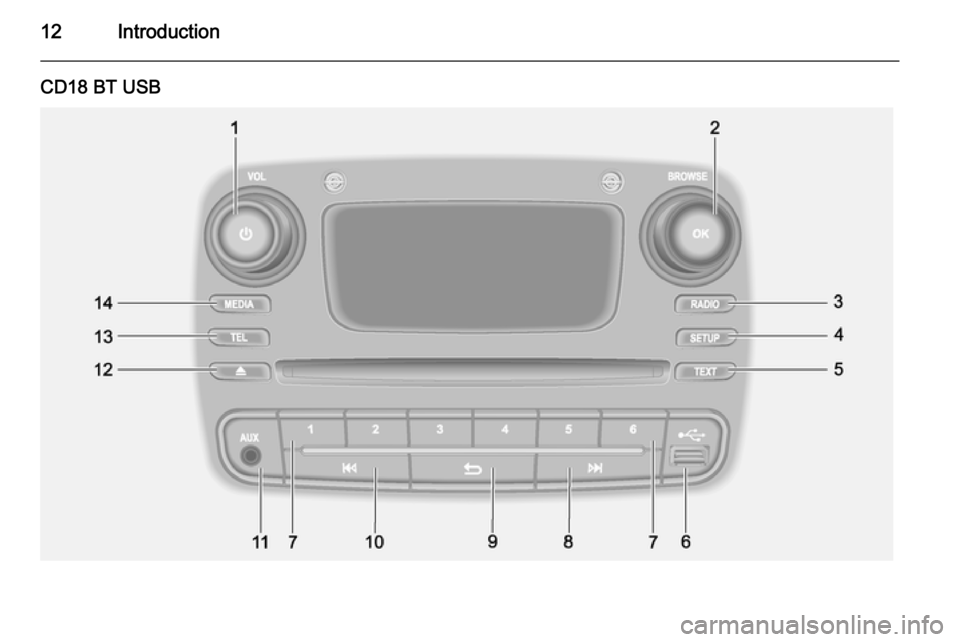

CD18 BT USB

Introduction13
1m - Press: Switch on/off ........20
Turn: Adjust volume ..............20
2 OK rotary knob ...................... 20
Rotary knob ........................... 20
Short press: Confirm an
action .................................... 20
Turn: Access display
menu options ........................ 20
3 RADIO - Change audio
source, waveband .................28
4 SETUP - Short press:
Settings menu ....................... 20
5 TEXT - Display radio text
information ............................ 33
6 USB port ............................... 43
7 Station buttons 1...6 ..............29
Short press: Select station ....29
Long press: Save station ......29
8 3 - Radio, Short press:
Search for next radio
frequency .............................. 29
Long press: Automatic
station search ........................ 29Audio/MP3/WMA CD,
Short press: Skip track
forwards ................................ 37
Long press: Fast forward ......37
9 / - Return to previous
menu, cancel an action .........20
10 2 - Radio, Short press:
Search for previous radio
frequency .............................. 29
Long press: Automatic
station search ........................ 29
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 37
Long press: Fast rewind .......37
11 AUX input .............................. 41
12 d - CD ejection .....................37
13 TEL - Telephone menu .........71
14 MEDIA - Change audio
source ................................... 37

14Introduction

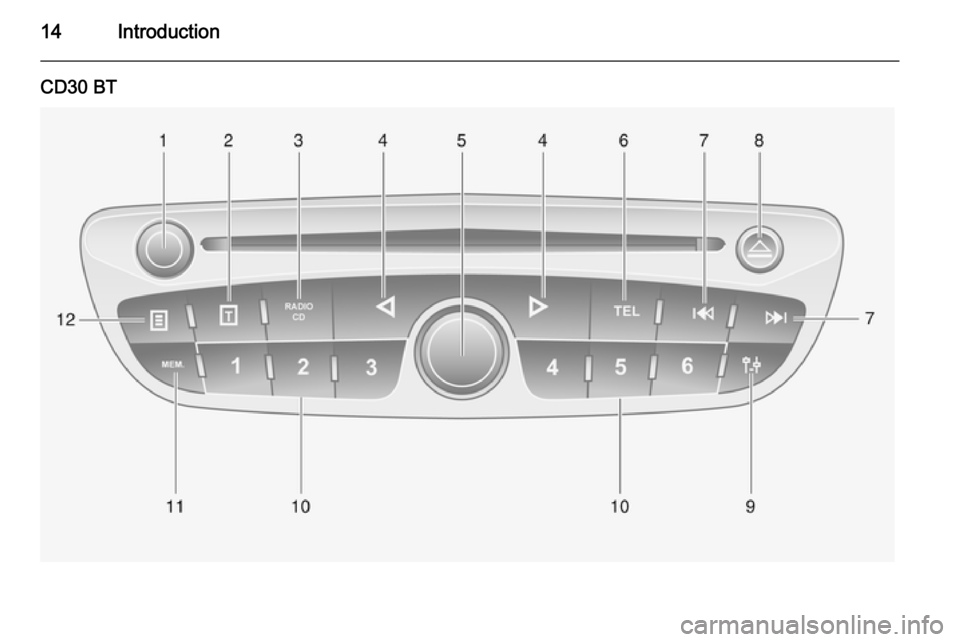

CD30 BT

Introduction15
1m - Turn: Adjust volume ........20
Press: Switch on/off ..............20
2 A - Display radio text
information ............................ 33
Display CD text information ..37
3 RADIO/CD - Change
audio source ......................... 28
4 ⊲ / ⊳ - Move left/right within
display text, move around
the display screen .................29
5 Central rotary knob ...............20
Press: Confirm an action ....... 20
Turn: Search radio station
or waveband ......................... 28
Turn: Change CD track .........37
6 TEL - Telephone menu .........71
7 2 / 3 - Radio frequency:
Search backwards/
forwards ................................ 29
Audio/MP3/WMA CD:
Skip track backwards/
forwards ................................ 37
8 d - CD ejection .....................3790 - Settings menu ................20
10 Station buttons 1...6 ..............32
Short press: Select station ....32
Long press: Save station ......32
11 MEM - Access the stored
radio station list .....................29
12 j - Display CD additional
text information .....................37

16Introduction

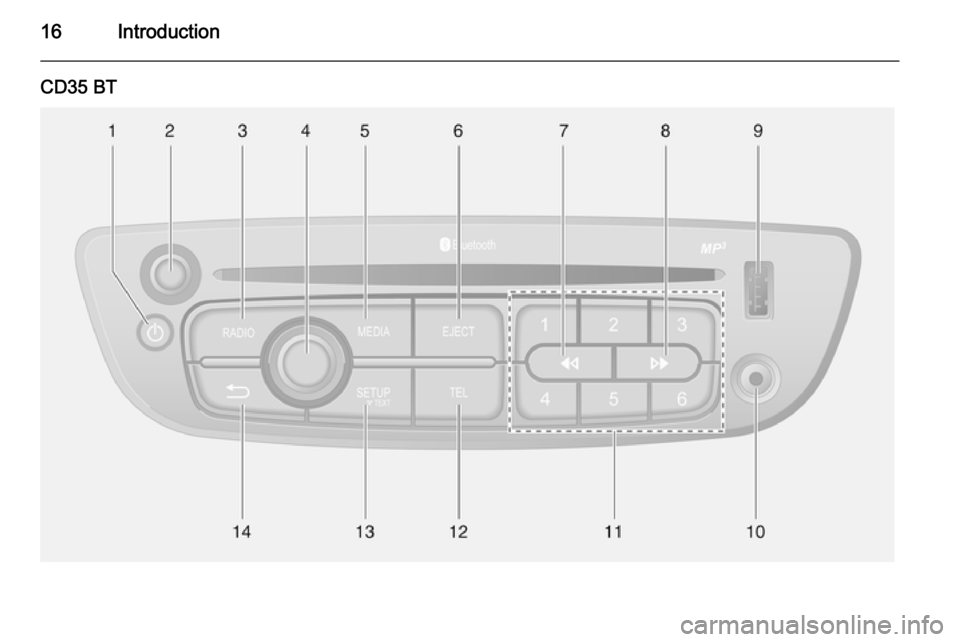

CD35 BT

Introduction17
1m - Press: Switch on/off ........20
2 Volume rotary knob -
Press: Mute/unmute ..............20
Turn: Adjust volume ..............20
3 RADIO - Change audio
source, waveband .................28
4 Central rotary knob ...............20
Press: Confirm an action ....... 20
Turn: Access display
menu options ........................ 20
Turn: Access the stored
radio station list .....................28
Turn: Select next/previous
station ................................... 29
Turn: Change CD/MP3
track ...................................... 37
5 MEDIA - Change audio
source ................................... 37
6 EJECT - CD ejection .............3772 - Radio, Short press:
Search for previous radio
frequency .............................. 29
Long press: Automatic
station search ........................ 29
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 37
Long press: Fast rewind .......37
8 3 - Radio, Short press:
Search for next radio
frequency .............................. 29
Long press: Automatic
station search ........................ 29
Audio/MP3 CD, Short
press: Skip track forwards ..... 37
Long press: Fast forward ......37
9 USB port ............................... 43
10 AUX input .............................. 41
11 Station buttons 1...6 ..............29
Short press: Select station ....29
Long press: Save station ......29
12 TEL - Telephone menu .........7113 SETUP / TEXT - Short
press: Settings menu ............20
Long press: Display radio
text information .....................33
Long press: Display CD
text information .....................37
14 / - Return to previous
menu, cancel an action .........20

18Introduction

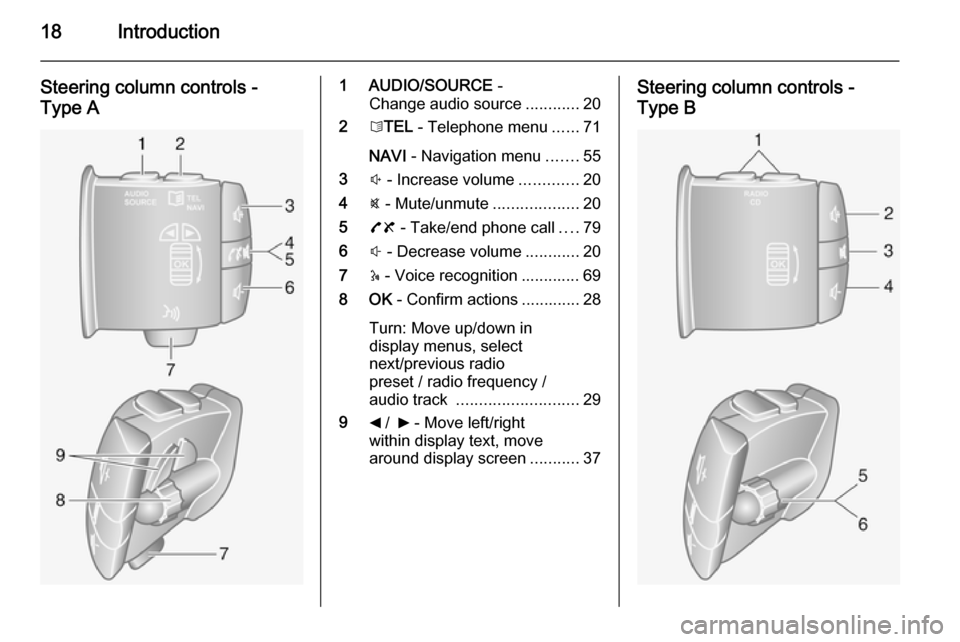

Steering column controls -
Type A1 AUDIO/SOURCE -
Change audio source ............20
2 6TEL - Telephone menu ......71
NAVI - Navigation menu .......55
3 ! - Increase volume .............20
4 @ - Mute/unmute ...................20
5 78 - Take/end phone call ....79
6 # - Decrease volume ............20
7 5 - Voice recognition ............. 69
8 OK - Confirm actions ............. 28
Turn: Move up/down in
display menus, select
next/previous radio
preset / radio frequency /
audio track ........................... 29
9 _ / 6 - Move left/right
within display text, move
around display screen ...........37Steering column controls -
Type B

Introduction19
1 RADIO/CD - Change
audio source ......................... 28
MEDIA - Change audio
source ................................... 28
2 ! - Increase volume .............20
3 @ - Mute/unmute ...................20
4 # - Decrease volume ............20
5 Short press: Change radio
source/waveband ..................28
Long press: Automatic station storing ........................ 32
6 Turn: Change radio
frequency .............................. 29
Short press: Select audio
track (CD player mode) .........37
Long press: Fast forward/
rewind an audio track (CD

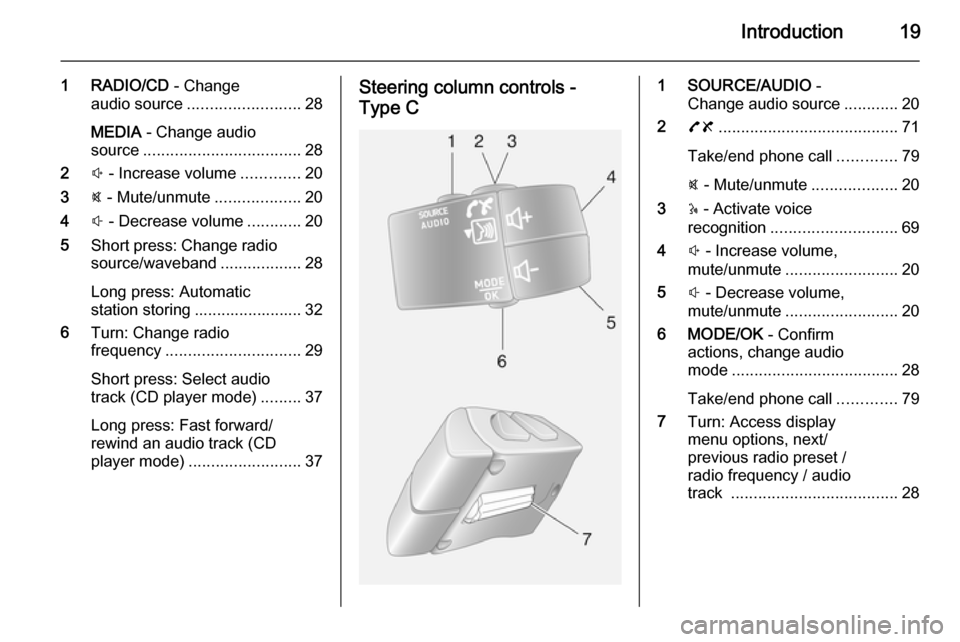

player mode) ......................... 37Steering column controls -
Type C1 SOURCE/AUDIO -
Change audio source ............20
2 78 ........................................ 71
Take/end phone call .............79
@ - Mute/unmute ...................20
3 5 - Activate voice
recognition ............................ 69
4 ! - Increase volume,
mute/unmute ......................... 20
5 # - Decrease volume,
mute/unmute ......................... 20
6 MODE/OK - Confirm
actions, change audio
mode ..................................... 28
Take/end phone call .............79
7 Turn: Access display
menu options, next/
previous radio preset /
radio frequency / audio
track ..................................... 28

20IntroductionTheft-deterrent feature
An electronic security system is
included for the purpose of theft
deterrence. The Infotainment system
functions only in your vehicle and is therefore worthless to a thief.
The security code (supplied
separately) must be entered upon
first use of the system and after
prolonged interruptions to the power
supply.
Entering the security code
When first switching on the
Infotainment system, the message Radio code then 0000 appears on the
display screen.
To enter first digit of security code,
press numbered button 1 on the unit
repeatedly until desired number is
displayed. Enter second, third and
fourth digits using buttons 2, 3 and 4
in the same way.
When the full code is displayed, press and hold button 6 until an audible
signal sounds. The system is
unlocked when the correct code has
been entered.Incorrect code entered
When an incorrect code has been
entered, Error code then Wait 100 is
displayed.
Wait until the countdown has expired, then enter the correct code. Each
time the code is entered incorrectly,
the countdown time is doubled.
Changing the geographical area
When the security code is entered,
you may be prompted to choose a
geographical area, e.g.:
■ Europe
■ Asia
■ Arabia
■ America
Switch off the Infotainment system,
then simultaneously press button 1
and 5 and the m rotary knob. Then
press button _ or 6 until desired area
is highlighted on the display screen
and set with button 6.Usage
Infotainment controls
The Infotainment system is operated
via buttons, rotary knobs and display menus.
Inputs are made via: ■ the central control unit in the instrument panel 3 6, or
■ the controls on the steering column
3 6
■ the voice recognition system (if available) 3 69
Switching the Infotainment
system on or off
Press the X knob to switch the
Infotainment system on.
The previously used audio source is
active.
Press the X knob (or press and hold)
to switch the Infotainment system off.
