ELECTRICAL COMPONENT LOCATOR
Article Text (p. 3)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

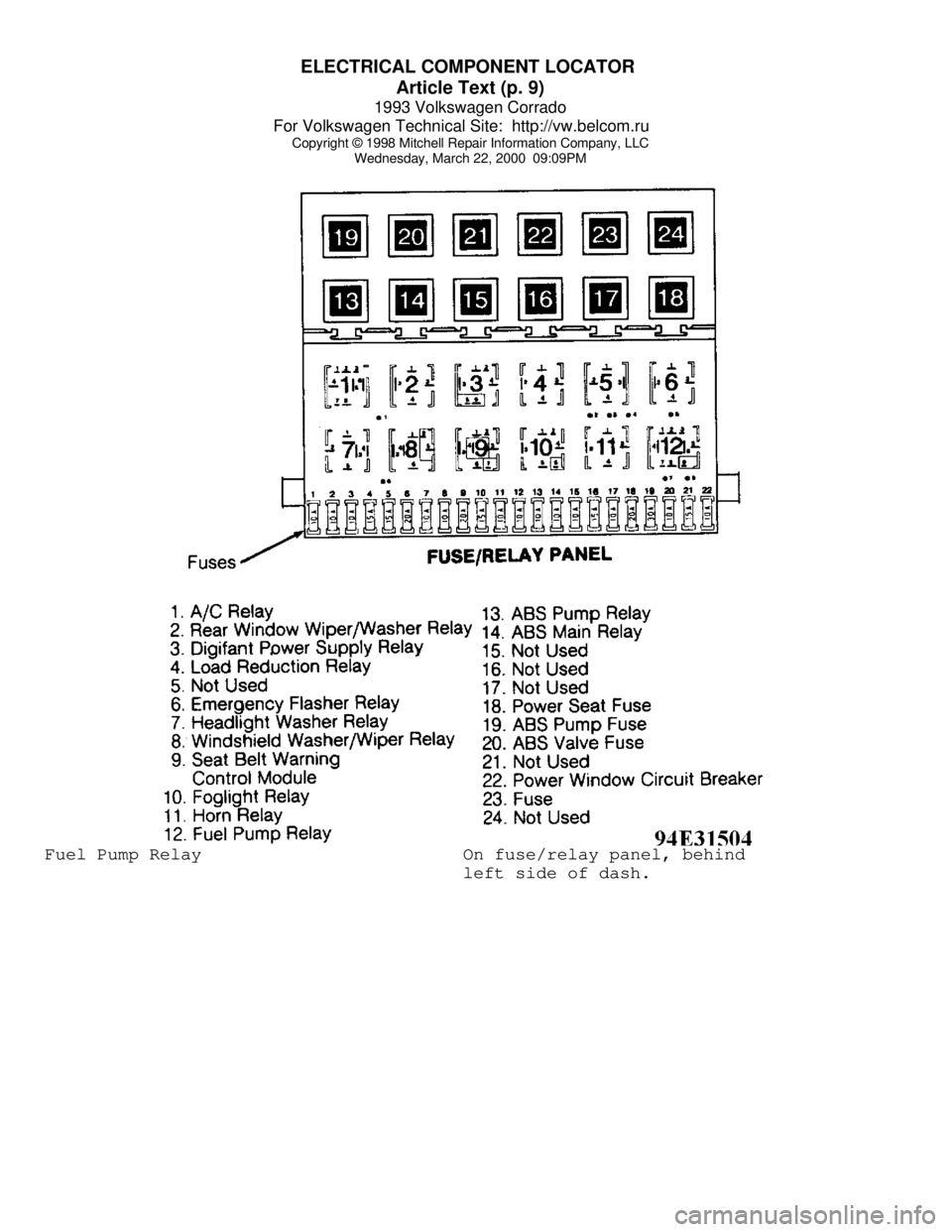

Wednesday, March 22, 2000 09:09PMA/C Relays (2) On fuse/relay panel, behind
left side of dash.
Aux. Coolant Pump Control

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 4)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PM Module Relay On fuse/relay panel, behind
left side of dash.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 5)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PMCoolant Level Module Relay In fuse/relay panel, behind
left side of dash.
Cooling Fan Relay (2nd. Stage) Mounted on top left of
radiator fan shroud.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 6)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PMECM Power Supply Relay On fuse/relay panel, behind
left side of dash.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 7)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PMEmergency Flasher Relay On fuse/relay panel, behind
left side of dash.
Engine Coolant Level
Control Module Relay On fuse/relay block, behind
left side of dash.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 8)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PMFoglight Relay On fuse/relay panel, behind
left side of dash.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 9)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PMFuel Pump Relay On fuse/relay panel, behind
left side of dash.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 10)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

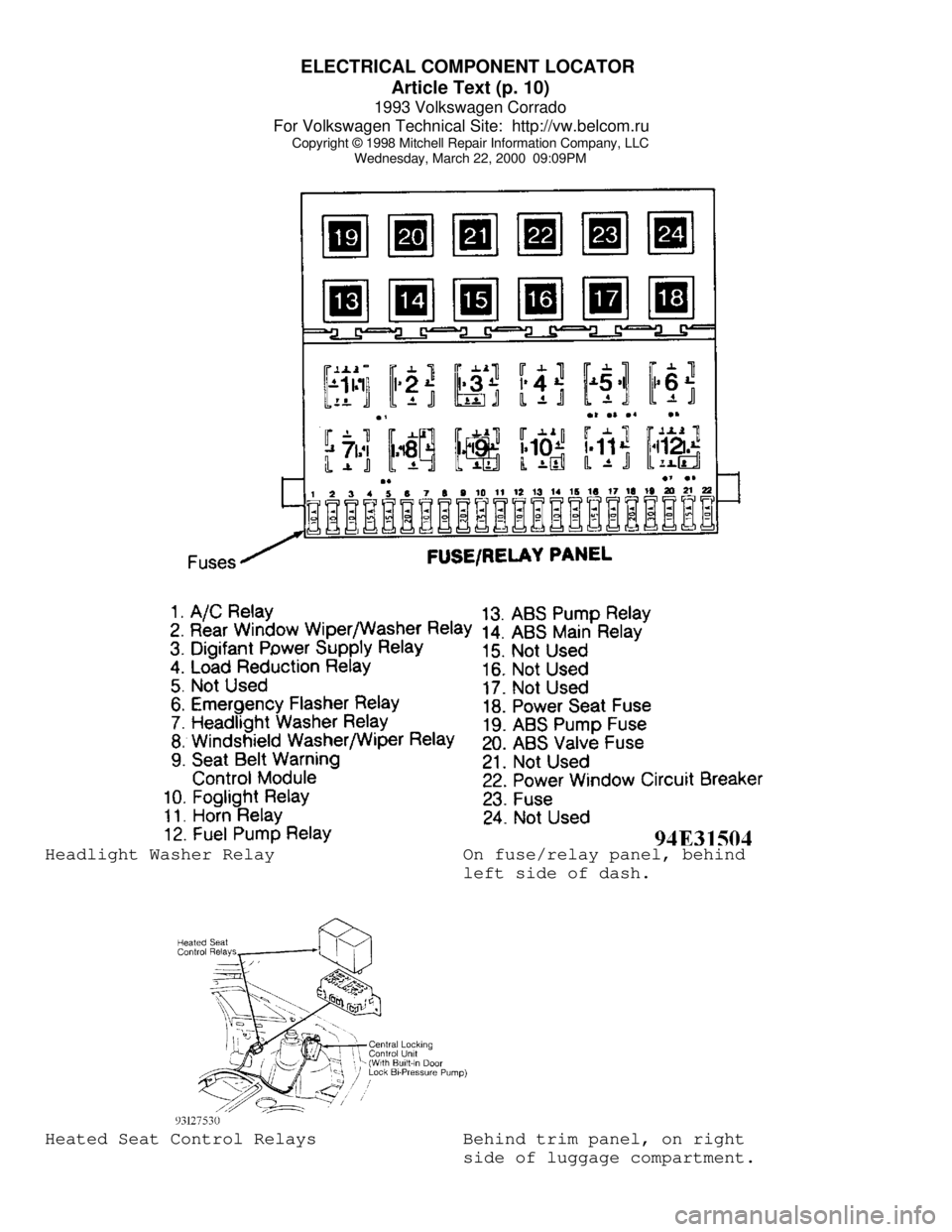

Wednesday, March 22, 2000 09:09PMHeadlight Washer Relay On fuse/relay panel, behind
left side of dash.Heated Seat Control Relays Behind trim panel, on right
side of luggage compartment.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 11)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PMHorn Relay On fuse/relay panel, behind
left side of dash.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 12)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PMLoad Reduction Relay On fuse/relay panel, behind
left side of dash.
