V.A.G 1551
print-out Possible cause
Repair
00526
Brake light
switch -F-
1)
Implausible
signal

- Read measured value block Page 01
-240
Display group number 002

Open circuit, short to
positive or ground in the
wiring - Check wiring and connections using wiring
diagram
- Perform electrical check Page 01
-288

Brake light switch
improperly adjusted

Brake light switch faulty Repair Manual, Brake System, Repair Group 46; Brake pedal - Assembly overview;
Adjusting brake light switch - Adjust brake light switch
1) For ABS/EDL/ASR/ESP and ABS/EDL/ASR/ESP 4MOTION
Стр. 47из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-225

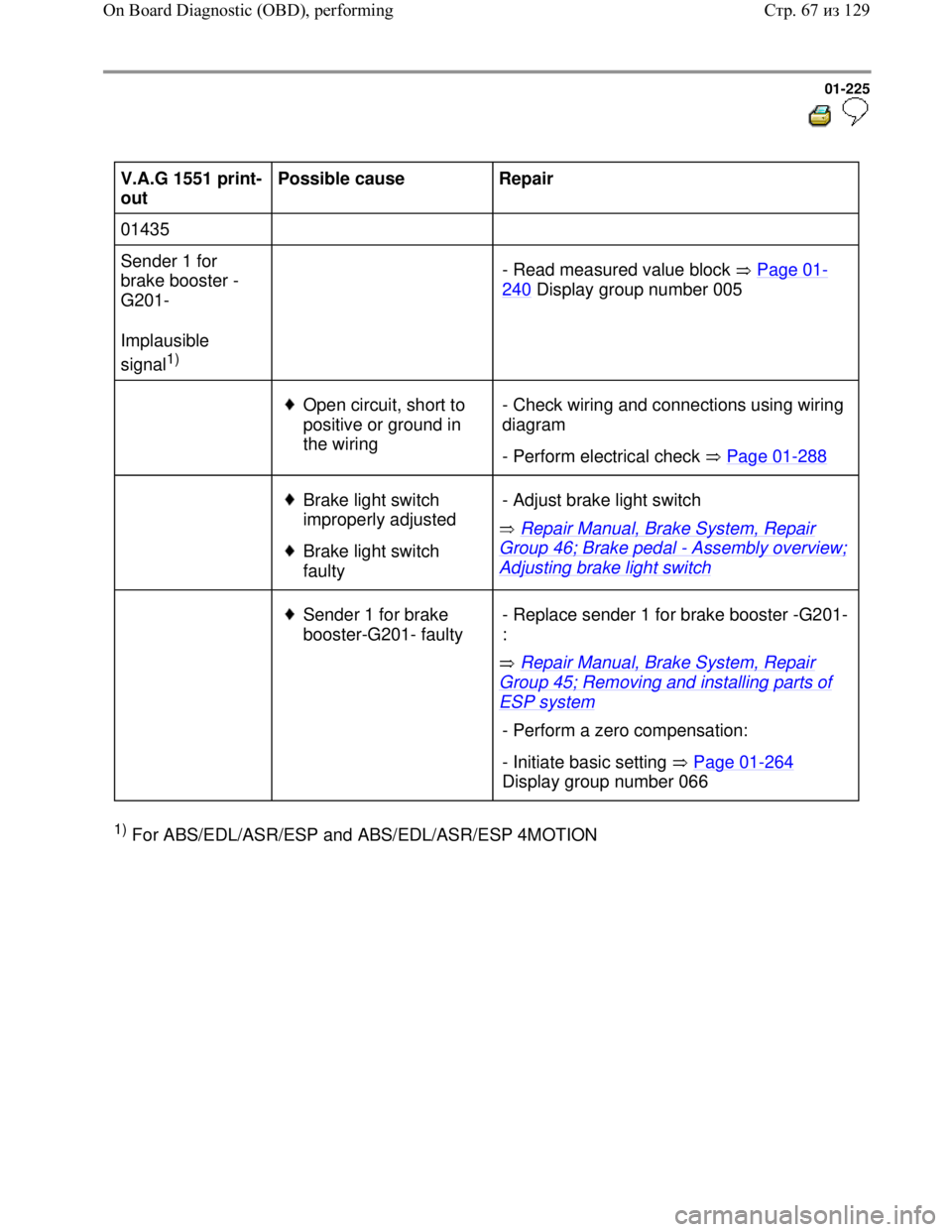

V.A.G 1551 print-
out Possible cause
Repair
01435
Sender 1 for
brake booster -
G201-
Implausible
signal
1)
- Read measured value block Page 01
-
240 Display group number 005
Open circuit, short to
positive or ground in
the wiring - Check wiring and connections using wiring
diagram
- Perform electrical check Page 01
-288
Brake light switch
improperly adjusted
Brake light switch
faulty Repair Manual, Brake System, Repair Group 46; Brake pedal - Assembly overview;
Adjusting brake light switch - Adjust brake light switch
Sender 1 for brake
booster-G201- faulty
Repair Manual, Brake System, Repair
Group 45; Removing and installing parts of
ESP system - Replace sender 1 for brake booster -G201-
:
- Perform a zero compensation:
- Initiate basic setting Page 01
-264
Display group number 066
1) For ABS/EDL/ASR/ESP and ABS/EDL/ASR/ESP 4MOTION
Стр. 67из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-231

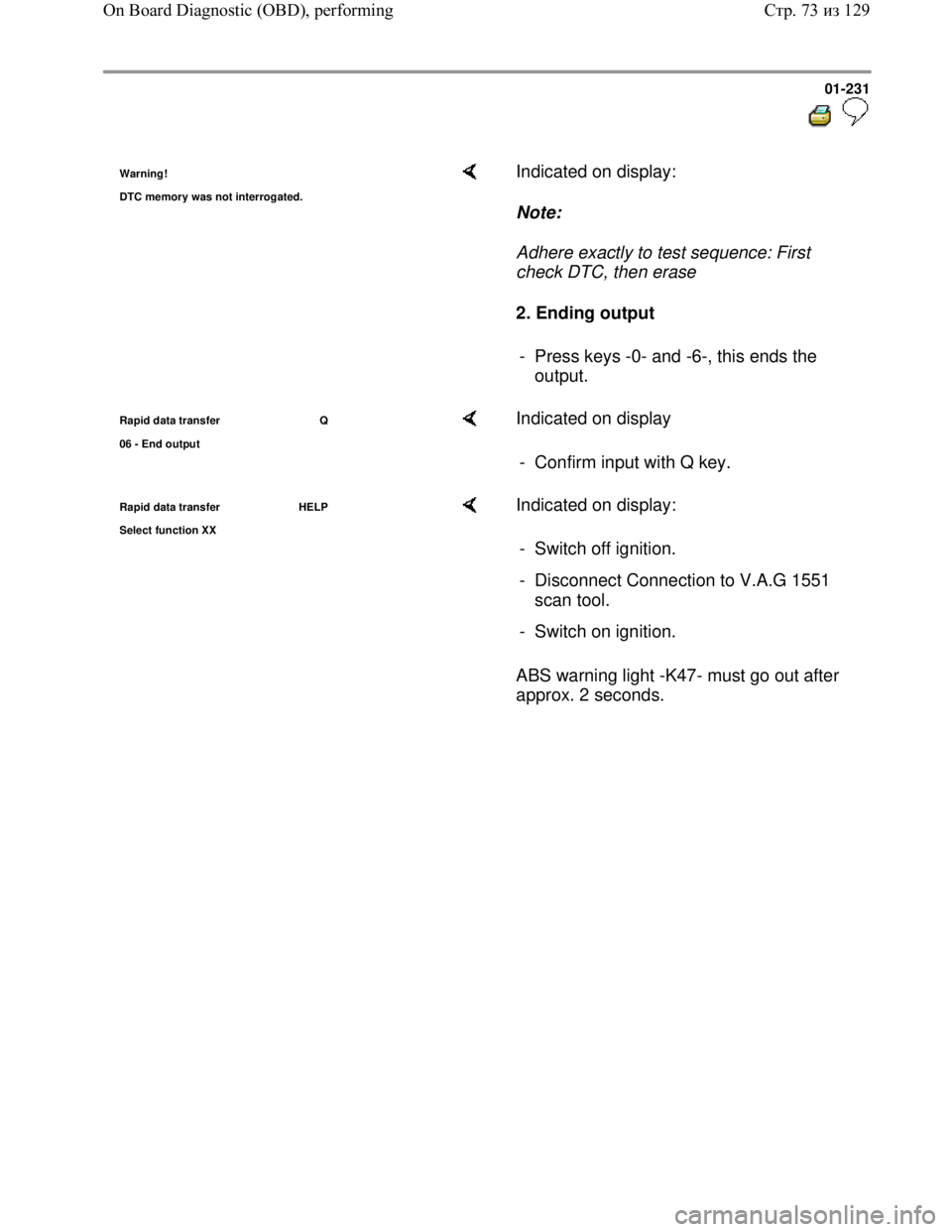

Warning!
DTC memor
y was not interrogated.
Indicated on display:
Note:
Adhere exactly to test sequence: First
check DTC, then erase
2. Ending output
- Press keys -0- and -6-, this ends the
output.
Rapid data transfer Q
06 - End out
put
Indicated on display
- Confirm input with Q key.
Rapid data transfer HELP
Select function XX Indicated on display:
ABS warning light -K47- must go out after
approx. 2 seconds. - Switch off ignition.
- Disconnect Connection to V.A.G 1551
scan tool.
- Switch on ignition.
Стр. 73из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-249



Checking brake light switch, brake
system warning lamp, ABS warning
lamp and ASR/ESP warning lamp

Display group number 003

- Press keys 0, 0 and 3

- Confirm entry with key Q.
Read measured value block
3
1 2 3 4
- There are always 4 display zones -
arrows- in the measured value block.
Decoding the individual values in display
zones 1 to 4 can be read-off from the
following tables.
Read measured value block
3
not oper. off off off
Indicated on display: (vehicle stationary)
Press C key for the next display group
number entry.
If the key is pressed, keys 0 and 8 for
work sequence "Read measured value
block" must be pressed again afterward to
regain entry.
Стр. 91из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-250


Read measured value block
3 Display group number: 003
not
oper. off off off
Indicated on display

ASR/ESP warning light
off
on

ABS warning light
1)
off
on

Brake system warning light
1)

off

on

Brake light switch:
If "not oper." is indicated on the V.A.G 1551 display despite foot brake being
depressed or "operated", despite foot brake not being depressed, perform test step
No. 4 of electrical check, Page 01
-288 .
It is also possible that the brake light switch is not correctly adjusted.
Repair Manual, Brake System, Repair Group 46; Brake pedal
- Assembly
overview; Adjusting brake light switch
not oper. Brake pedal not depressed
operated Brake pedal depressed
1) During the diagnosis, ABS warning light -K47- and Warning light for brake system -K118- will
flash.
Стр. 92из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-252


Read measured value block
4 Display group number: 004
0.0
0.0m/s2-
1.26 /s
Indicated on display (example)

Vacant

Sender for rotation rate:
Specification when vehicle is stationary:+/- 2.5 /s
Perform electrical check from Page 01-288

Sensor for transverse acceleration:

Specification when vehicle stationary:+/- 1.5m/s2

Specification at full lock at a speed of 20 km/h (13 mph) in a left-hand
curve: the values increase steadily.

Specification at full lock at a speed of 20 km/h (13 mph) in a right-hand
curve: the values increase steadily with a negative (-) sign.

Check lateral acceleration sensor -G200- Page 01-253
Perform electrical check from from Page 01-288

Steering angle sensor:

If the steering angle sensor -G85- is tested during straight-ahead travel, then zero
compensation must also be performed.
1)

Specification at straight ahead 4.5
Perform electrical checks from Page 01-288
- Initiate basic setting Page 01-264 Display group number 060
1) During a test drive with the V.A.G 1551 scan tool or tester VAS 5051 connected and in
"Diagnosis" or "Measured value block", there is no ABS or ESP regulation. The ABS or ESP
warning lights will flash. The OBD of ABS control module (w/EDL) -J104- is terminated when a
speed of 20 km/h (13 mph) is exceeded.
Стр. 94из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-258


Read measured value block
6 Display group number: 006
0.0m/s
2

Indicated on display (example)

Vacant

Vacant

Vacant

Longitudinal acceleration sensor:
1)

Specification when vehicle is stationary:+/- 1.5m/s2

Specification when accelerating forwards: The values increase steadily.

Specification when accelerating in reverse: The values increase steadily
with a negative sign (-).

Check longitudinal acceleration sensor -G251- Page 01-259
Perform electrical check Page 01-288
1) When performing a test drive where the V.A.G 1551 scan tool or tester VAS 5051 is
connected and in diagnosis or read measured value block mode there is no ABS regulation.
The ABS warning light does not light up. The OBD of ABS control module (w/EDL) -J104- is
terminated when exceeding a speed of 20 km/h (13 mph).
Стр. 100из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-270


Rapid data transfer HELP
Enter address word XX Indicated on display:
- Press keys 0 and 4. (The function
"Initiating basic setting" is selected with
04).
Rapid data transfer Q
04 - Basic settin
g
Indicated on display:
- Confirm entry with key Q.
Basic setting HELP
Enter displa
y group number XXX
Indicated on display:
- Press keys 0, 4 and 0
- Confirm entry with key Q.
ABS warning light flashes.
Basic setting 40 Indicated on display:
- The longitudinal acceleration sensor -
G251- is now switched off.
- After completing the checks, reactivate
the longitudinal acceleration sensor -
G251- by switching the ignition off and
on again, once.
Стр. 112из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-274



- or:
Basic setting 60 OFF <4-ON>
Compens. not poss.
12. If this appears in the display, the measured
values for the zero compensation are not
within the allowed tolerance.
1. Check DTC memory (Function 02)
2. Erase DTC memory (Function 05)
3. End output (Function 06)
4. Switch off ignition.
5. Switch on ignition.
6. Perform zero compensation again. - Check specifications with help of function
08 "Read measured value block"
Page 01
-240 , Display group number
004.
-
Press key.
Rapid data transfer HELP
Enter address word XX Indicated on display:
- Press keys 0 and 6, this ends the output.
Rapid data transfer Q
06 - End output Indicated on display
ABS and ESP warning lights light up for
approx. 2 seconds.
Стр. 116из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-276


Rapid data transfer Q
04 - Basic settin
g
Indicated on display:
- Confirm entry with key Q.
Basic setting HELP
Enter dis
play group number XXX
Indicated on display:
- Press keys 0, 6 and 3
- Confirm entry with key Q.
ABS warning light flashes.
Basic setting 63 OFF <4-ON>
Compens. OK. 0.6m/s2 And then the display shows e.g.:
Function is unknown or cannot be
-
performed at moment
If this display appears the login procedure
has not been performed successfully.
- or:
Basic setting 63 OFF <4-ON>
Com
pens. not poss. 5.0m/s2
If this appears in the display, the measured
values for the zero compensation are not
within the allowed tolerance.
- Check specifications with help of function
08 "Read measured value block"
Page 01
-240 , Display group number
004.
Стр. 118из 129 On Board Diagnostic (OBD), performing
