Read measured value block
3 Display group number: 003
0
Indicated on display

Vacant

Vacant

Vacant

Brake light switch:
If despite pressed foot brake a -0-, or not pressed foot brake a -1- is displayed on the
V.A.G 1551 display; perform test step No. 4 of Electrical check, Page 01
-102 .
There is also a possibility that the brake light switch has not been correctly adjusted.
Adjusting brake light switch, Page 01
-131 .
0 Brake pedal not depressed
1 Brake pedal depressed
Стр. 51из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-90



-

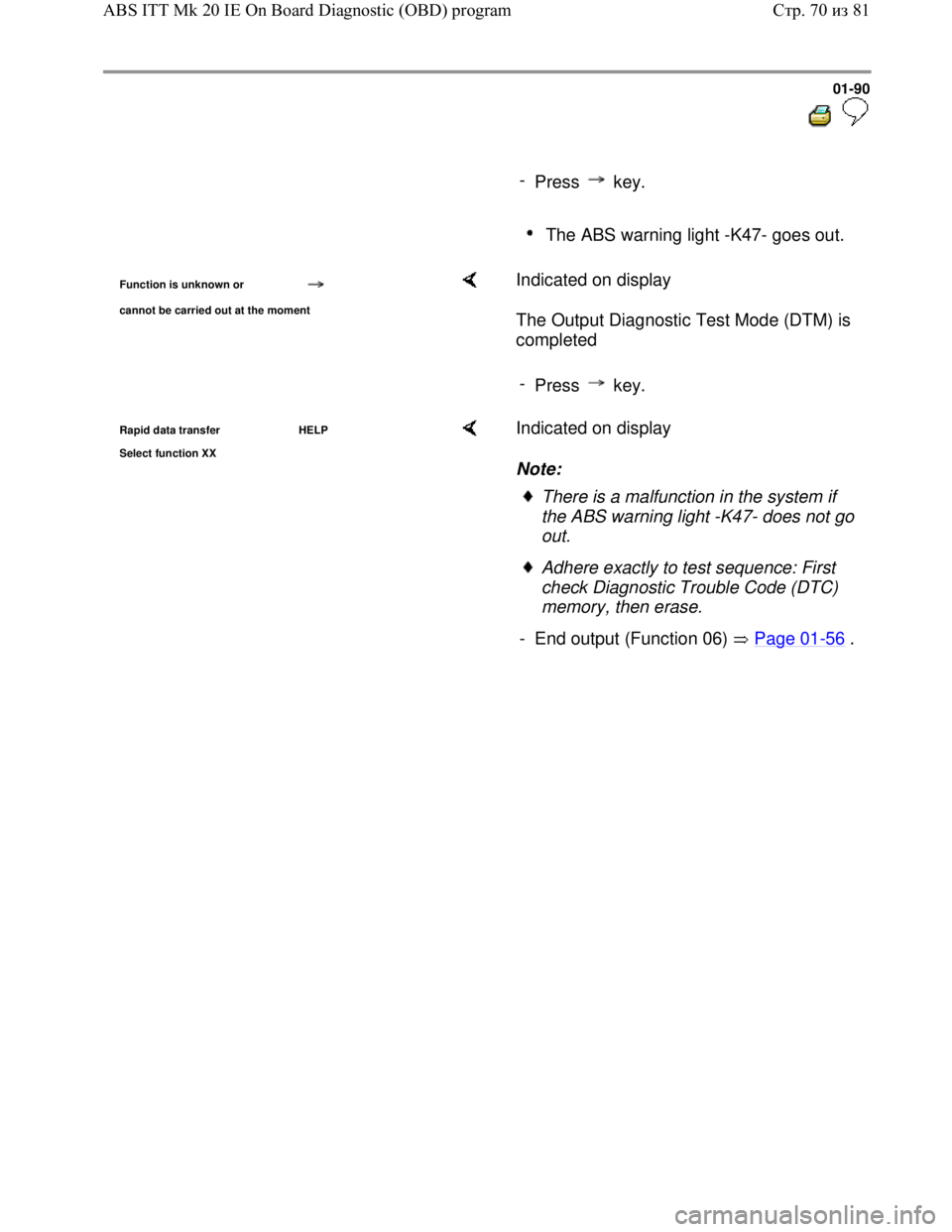

Press key.
The ABS warning light -K47- goes out.
Function is unknown or
cannot be carried out at the moment
Indicated on display
The Output Diagnostic Test Mode (DTM) is
completed
-
Press key.
Rapid data transfer HELP
Select function XX Indicated on display
Note:
There is a malfunction in the system if
the ABS warning light -K47- does not go
out.
Adhere exactly to test sequence: First
check Diagnostic Trouble Code (DTC)
memory, then erase.
- End output (Function 06) Page 01
-56 .
Стр. 70из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-104



Test requirements

Switch ignition and electrical
consumers off before beginning the
check (headlights, lighting, fan ...).

Fuses S9, S13, S178 and S179 must
be OK (remove fuses from fuse holder
to check).

Removing air cleaner
- Pull connector -2- off mass air flow
sensor.
- Release spring-type clip -1- on air duct
hose with pliers V.A.G 1921 and pull
hose off air cleaner.
- Remove air cleaner bolts -3- and take
out air cleaner -4-.
Стр. 3из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-108


Contact
Wiring connection to component ...
13
Longitudinal acceleration sensor -G251-(all-wheel drive vehicles with Haldex
coupling only)
14
Coding bridge to contact 3
15
Longitudinal acceleration sensor -G251-(four-wheel drive vehicles with Haldex
coupling only)
15
ESP Control lamp -K155- activation (vehicles with ABS/EDL/ASR only)
16
ABS warning light -K47- activation
17
Longitudinal acceleration sensor -G251-(four-wheel drive vehicles with Haldex
coupling only)
18
Brake light switch -F-
19
Right front ABS wheel speed sensor -G45-
20
Right front ABS wheel speed sensor -G45-
21
Vehicles with navigation system only
22
Right rear ABS wheel speed sensor -G44-
23
Right rear ABS wheel speed sensor -G44-
24
Ground point left in engine compartment and Ground connection in engine
compartment wiring harness
25
Voltage supply from battery +
Стр. 7из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-109


Test step overview
To test component

Voltage supply for ABS hydraulic pump -V64- to ABS control module
(w/EDL) -J104- - Perform test
step 1
Voltage supply for valves in ABS hydraulic unit -N55- to ABS control
module (w/EDL) -J104- - Perform test
step 2
Voltage supply (terminal X) on ABS control module (w/EDL) -J104-
- Perform test
step 3
Function of brake light switch -F-
- Perform test
step 4
Resistance of right front ABS wheel speed sensor -G45-
- Perform test
step 5
Resistance of left front ABS wheel speed sensor -G47-
- Perform test
step 6
Resistance of right rear ABS wheel speed sensor -G44-
- Perform test
step 7
Resistance of rear left ABS wheel speed sensor -G46-
- Perform test
step 8
Voltage signal of right front ABS wheel speed sensor -G45-
- Perform test
step 9
Voltage signal of left front ABS wheel speed sensor -G47-
- Perform test
step 10
Стр. 8из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-110


To test component

Voltage signal of right rear ABS wheel speed sensor -G44-
- Perform test step 11
Voltage signal of rear left ABS wheel speed sensor -G46-
- Perform test step 12
Coding bridge
- Perform test step 13
Voltage supply for V.A.G 1551, T16 connector
- Perform test step 14
Resistance of K wire for On Board Diagnostic (OBD), T16 connector
- Perform test step 15
Function of ABS warning light -K47-
- Perform test step 16
Function of warning light for brake system -K118-
- Perform test step 17
Function of ABS hydraulic pump -V64-
- Perform test step 18
Check of data bus wiring
- Perform test step 19
Activation of longitudinal acceleration sensor -G251-
1)
- Perform test step 20
Function of ESP Control lamp -K155-
- Perform test step 21
1) All-wheel drive vehicles with Haldex coupling only.
Стр. 9из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-111


Test table
Notes on test table

The socket designations of adapter V.A.G 1598/21 are identical to the control module -J104
contact designations in wiring diagram.
Electrical Wiring Diagrams, Troubleshooting & Component Locations binder
If the readings obtained deviate from the specifications, carry out repair measure in the
right-hand part of the table.
Electrical Wiring Diagrams, Troubleshooting & Component Locations binder
Continuity checks with adapter set V.A.G 1594 A (bridging).

If the measured figures only deviate slightly from the specifications, clean sockets and
connectors of the testers and adapter cables (with contact spray G 000 700 04 ) and repeat
check. Before replacing components, check wiring and connections and also, particularly for
specifications of less than 10 , repeat resistance check on the component.
Стр. 10из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-113


Switch to measuring range:
Voltage measurement (20 V =)
Test
step V.A.G
1598
sockets Item tested
Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
3 8 + 4 Voltage supply
(terminal X) to
ABS Control
Module
(w/EDL) -
J104-
Ignition
switched on10.0 to 14.5 V
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder - Check wire using
wiring diagram
4 8 + 18 Function of
brake light
switch -F- Ignition
switched off
Brake pedal
not
depressed
0.0 to 0.5 V
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder - Check brake light
switch -F- and Read
measured value
block, display group
003
- Check wiring using
wiring diagram

- Press brake
pedal approx. battery
voltage - Checking brake light
switch -F- Page 01
-
131
Стр. 12из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-123


Functional check: ABS warning light -K47-
Test
step V.A.G
1598
sockets Item
tested
Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
16 - Function of
ABS
warning
light -K47-
Switch
ignition on ABS warning light -
K47- lights up for
approx. 2 seconds
and goes out again

Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
Repair Manual,
Body Interior,Repair
Group 70 - Check wiring using
wiring diagram
- Malfunction in
instrument cluster
Стр. 22из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-124


Functional check: Warning light for brake system -K118-
Test
step V.A.G
1598
sockets Item
tested
Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
17 - Function of
warning
light for
brake
system -
K118-
Brake fluid
level is OK.

Switch
ignition on Warning light for
brake system -
K118- lights up for
approx. 2 seconds
and goes out again
Electrical Wiring
Diagrams,
Troubleshooting &
Component
Locations binder - Check brake fluid
level warning
switch -F34- in
sealing cap

- Pull
connectors off
both front speed
sensors
- Start engine
and run at more
than 2000 rpm Warning light -
K118- lights up and
3 warnings are
sounded
Electrical Wiring
Diagrams,
Troubleshooting &
Component
Locations binder
Repair Manual,
Body Interior,Repair
Group 70 - Check wiring
using wiring
diagram
- Malfunction in
instrument cluster

- Reconnect
connectors to
both front speed
sensors again
- Check DTC
memory and
erase
