VOLKSWAGEN POLO 2015 Owner´s Manual

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
8/32

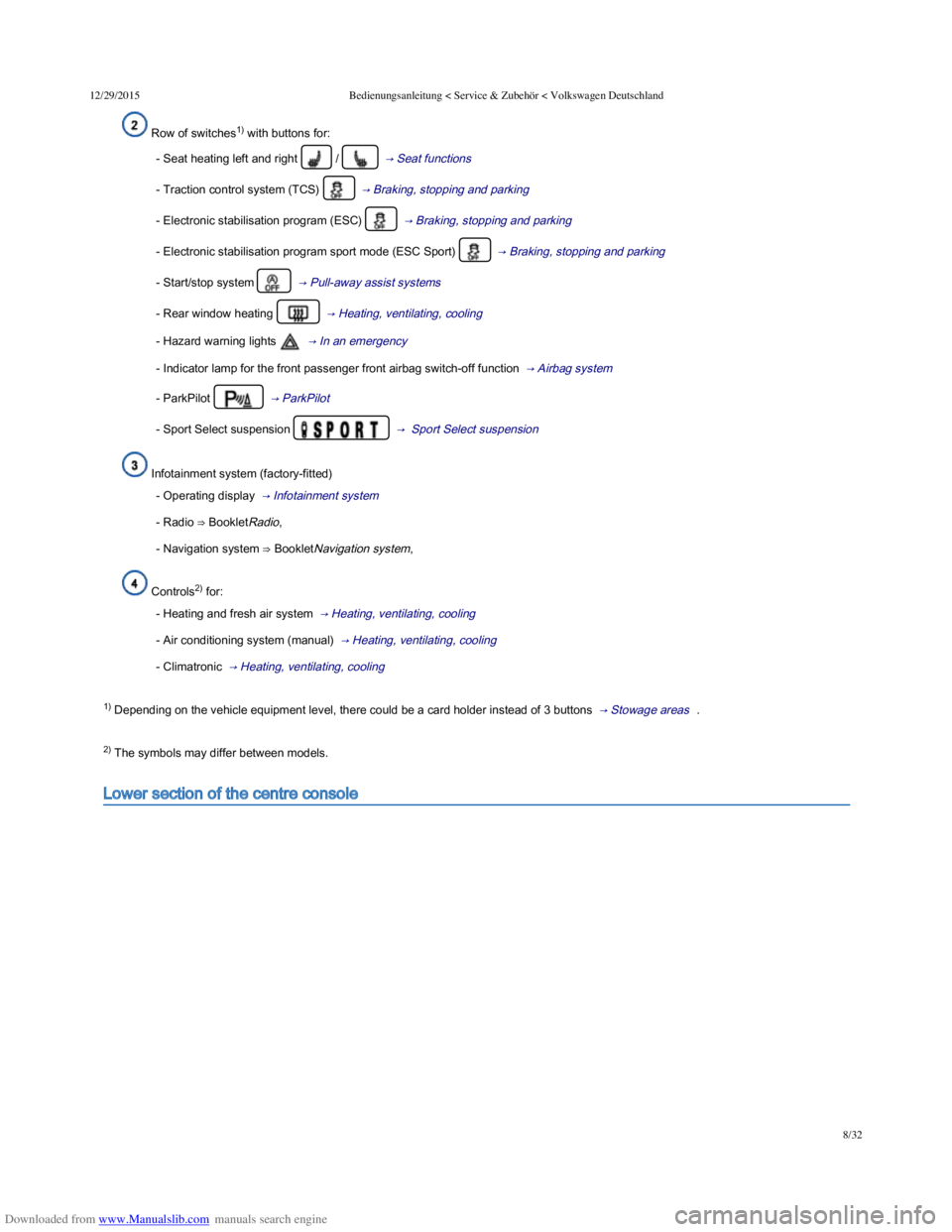

Row of switches1) with buttons for:
- Seat heating left and right /   → Seat functions  
- Traction control system (TCS)  → Braking, stopping and parking  
- Electronic stabilisation program (ESC)  → Braking, stopping and parking  
- Electronic stabilisation program sport mode (ESC Sport)  → Braking, stopping and parking  
- Start/stop system  → Pull-away assist systems  
- Rear window heating   → Heating, ventilating, cooling  
- Hazard warning lights   → In an emergency  
- Indicator lamp for the front passenger front airbag switch-off function  → Airbag system  
- ParkPilot   → ParkPilot  
- Sport Select suspension    →  Sport Select suspension  
Infotainment system (factory-fitted)
- Operating display  → Infotainment system 
- Radio ⇒ BookletRadio,
- Navigation system ⇒ BookletNavigation system,
Controls2) for:
- Heating and fresh air system  → Heating, ventilating, cooling  
- Air conditioning system (manual)  → Heating, ventilating, cooling  
- Climatronic  → Heating, ventilating, cooling  
1) Depending on the vehicle equipment level, there could be a card holder instead of 3 buttons  → Stowage areas   .
2) The symbols may differ between models.
Lower section of the centre console

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
9/32
Fig. 8 Overview of the lower section of the centre console
Key to  → Fig. 8 :
Lever for:
- Manual gearbox  → Changing gear  
- Automatic gearbox  → Changing gear  
Stowage compartment in the front centre console  → Stowage areas  
AUX-IN socket⇒ BookletRadio, or ⇒ BookletNavigation system,
Drink holder  → Drink holder  
12-volt socket  → Socket  
Handbrake lever  → Braking, stopping and parking  
Stowage compartment in the centre armrest  → Stowage areas  
USB socket ⇒ Bookletradio, or ⇒ Bookletnavigation system,

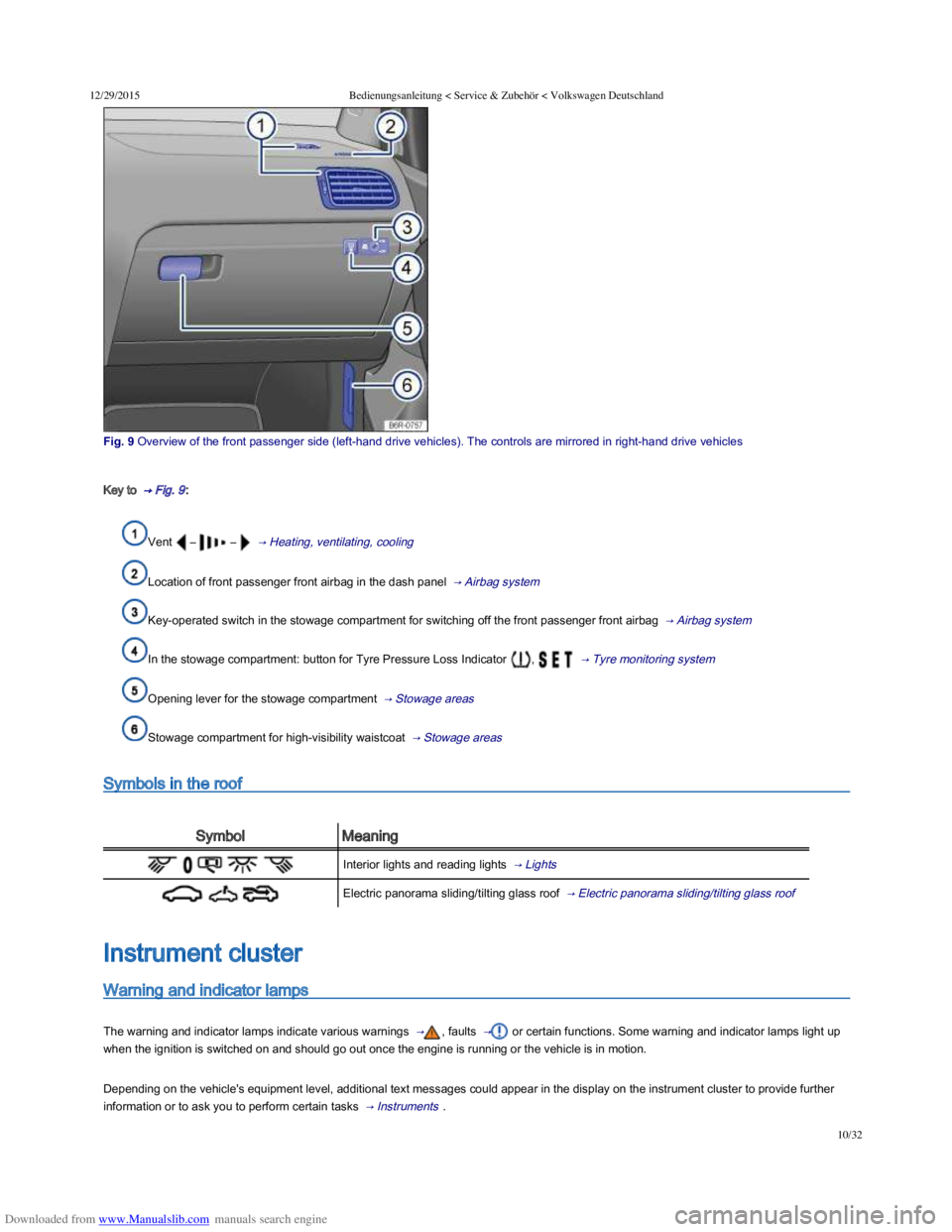

Overview of the front passenger side

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
10/32
Fig. 9 Overview of the front passenger side (left­hand drive vehicles). The controls are mirrored in right­hand drive vehicles
Key to  → Fig. 9 :
Vent  –  –   → Heating, ventilating, cooling  
Location of front passenger front airbag in the dash panel  → Airbag system  
Key-operated switch in the stowage compartment for switching off the front passenger front airbag  → Airbag system  
In the stowage compartment: button for Tyre Pressure Loss Indicator ,   → Tyre monitoring system  
Opening lever for the stowage compartment  → Stowage areas  
Stowage compartment for high-visibility waistcoat  → Stowage areas  
Symbols in the roof
SymbolMeaning
Interior lights and reading lights  → Lights  
Electric panorama sliding/tilting glass roof  → Electric panorama sliding/tilting glass roof  
Warning and indicator lamps
The warning and indicator lamps indicate various warnings  → , faults  →  or certain functions. Some warning and indicator lamps light up
when the ignition is switched on and should go out once the engine is running or the vehicle is in motion.
Depending on the vehicle's equipment level, additional text messages could appear in the display on the instrument cluster to provide further
information or to ask you to perform certain tasks  → Instruments  .
Instrument cluster

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
11/32

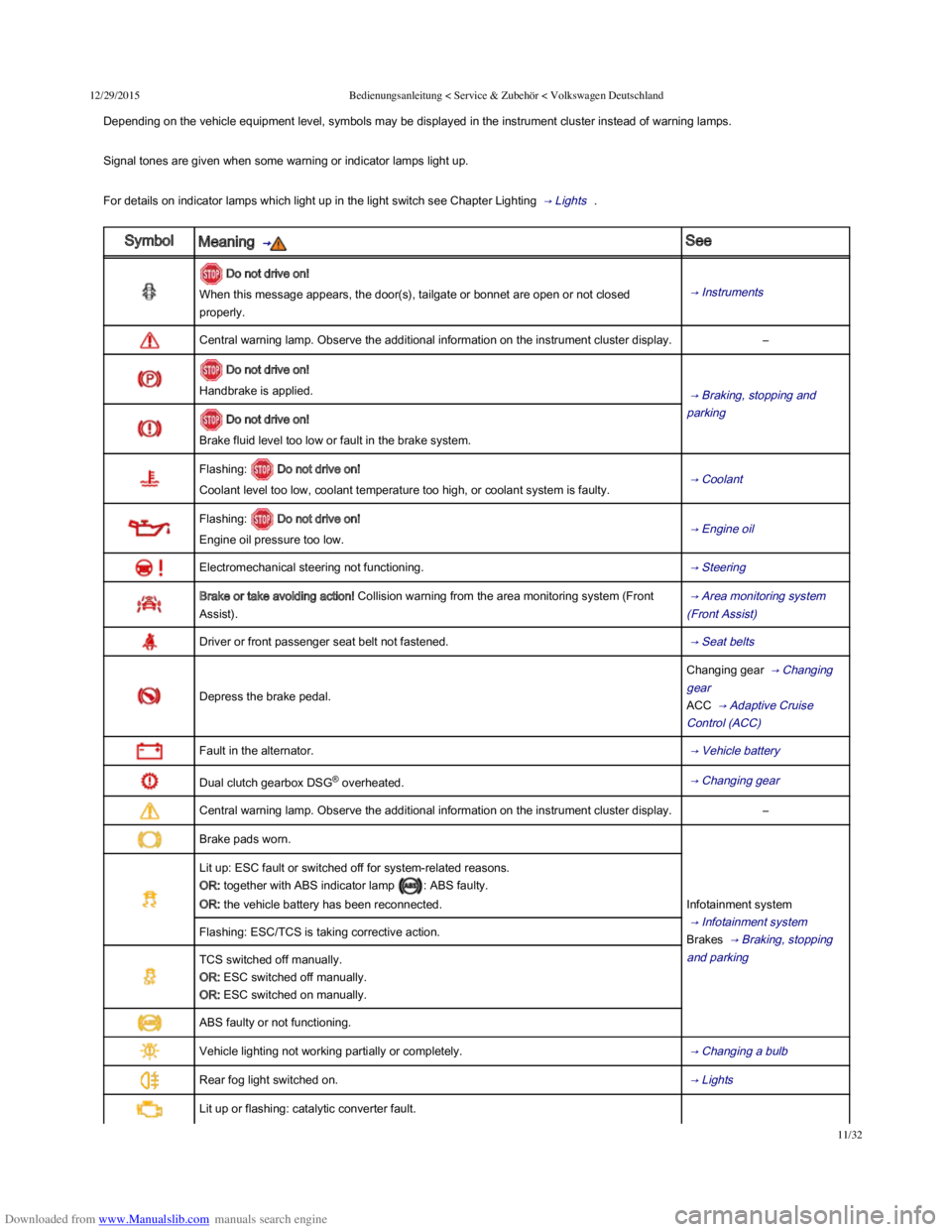

Depending on the vehicle equipment level, symbols may be displayed in the instrument cluster instead of warning lamps.
Signal tones are given when some warning or indicator lamps light up.
For details on indicator lamps which light up in the light switch see Chapter Lighting  → Lights   .
SymbolMeaning  → See
Do not drive on!
When this message appears, the door(s), tailgate or bonnet are open or not closed
properly.
 → Instruments 
Central warning lamp. Observe the additional information on the instrument cluster display.–
Do not drive on!
Handbrake is applied. → Braking, stopping and
parking   Do not drive on!
Brake fluid level too low or fault in the brake system.
Flashing: Do not drive on!
Coolant level too low, coolant temperature too high, or coolant system is faulty. → Coolant  
Flashing: Do not drive on!
Engine oil pressure too low. → Engine oil  
Electromechanical steering not functioning. → Steering  
Brake or take avoiding action! Collision warning from the area monitoring system (Front
Assist).
 → Area monitoring system
(Front Assist)  
Driver or front passenger seat belt not fastened. → Seat belts  
Depress the brake pedal.
Changing gear  → Changing
gear  
ACC  → Adaptive Cruise
Control (ACC)  
Fault in the alternator. → Vehicle battery  
Dual clutch gearbox DSG® overheated. → Changing gear  
Central warning lamp. Observe the additional information on the instrument cluster display.–
Brake pads worn.
Infotainment system
 → Infotainment system 
Brakes  → Braking, stopping
and parking  
Lit up: ESC fault or switched off for system-related reasons.
OR: together with ABS indicator lamp : ABS faulty.
OR: the vehicle battery has been reconnected.
Flashing: ESC/TCS is taking corrective action.
TCS switched off manually.
OR: ESC switched off manually.
OR: ESC switched on manually.
ABS faulty or not functioning.
Vehicle lighting not working partially or completely. → Changing a bulb  
Rear fog light switched on. → Lights  
Lit up or flashing: catalytic converter fault.
Starting the engine  → Starting

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
12/32
Starting the engine  → Starting
and stopping the engine  
Engine management, exhaust
gas purification  → Engine
management system and
exhaust purification system  

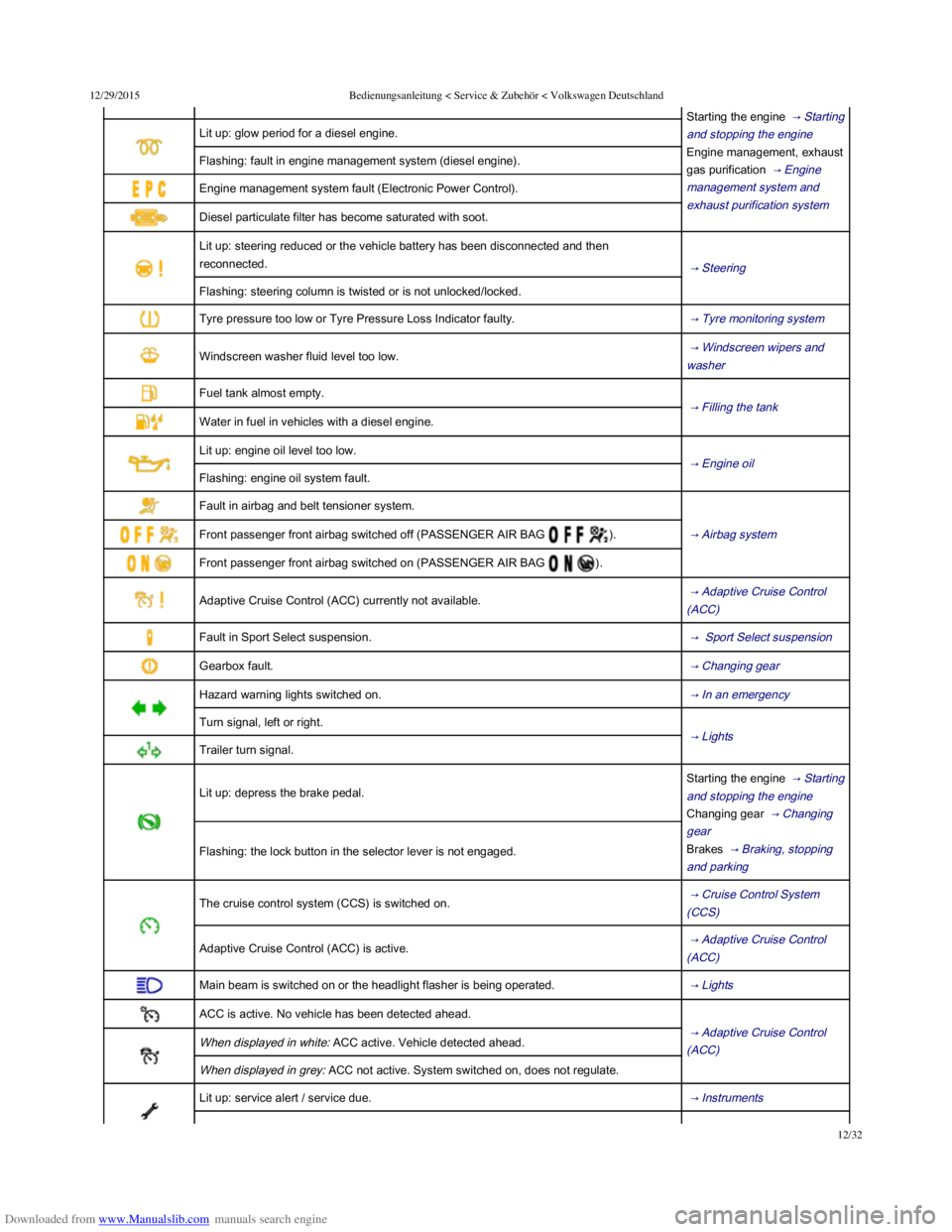

Lit up: glow period for a diesel engine.
Flashing: fault in engine management system (diesel engine).
Engine management system fault (Electronic Power Control).
Diesel particulate filter has become saturated with soot.

Lit up: steering reduced or the vehicle battery has been disconnected and then
reconnected. → Steering  
Flashing: steering column is twisted or is not unlocked/locked.
Tyre pressure too low or Tyre Pressure Loss Indicator faulty. → Tyre monitoring system  
Windscreen washer fluid level too low. → Windscreen wipers and
washer  
Fuel tank almost empty.
 → Filling the tank  
Water in fuel in vehicles with a diesel engine.
Lit up: engine oil level too low.
 → Engine oil  
Flashing: engine oil system fault.
Fault in airbag and belt tensioner system.
 → Airbag system   Front passenger front airbag switched off (PASSENGER AIR BAG  ).
Front passenger front airbag switched on (PASSENGER AIR BAG  ).
Adaptive Cruise Control (ACC) currently not available. → Adaptive Cruise Control
(ACC)  
Fault in Sport Select suspension. →  Sport Select suspension  
Gearbox fault. → Changing gear  

Hazard warning lights switched on. → In an emergency  
Turn signal, left or right.
 → Lights  
Trailer turn signal.
Lit up: depress the brake pedal.
Starting the engine  → Starting
and stopping the engine  
Changing gear  → Changing
gear  
Brakes  → Braking, stopping
and parking  
Flashing: the lock button in the selector lever is not engaged.
The cruise control system (CCS) is switched on. → Cruise Control System
(CCS)  
Adaptive Cruise Control (ACC) is active. → Adaptive Cruise Control
(ACC)  
Main beam is switched on or the headlight flasher is being operated. → Lights  
ACC is active. No vehicle has been detected ahead.
 → Adaptive Cruise Control
(ACC)  When displayed in white: ACC active. Vehicle detected ahead.
When displayed in grey: ACC not active. System switched on, does not regulate.
Lit up: service alert / service due. → Instruments 
 → Changing gear  

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
13/32

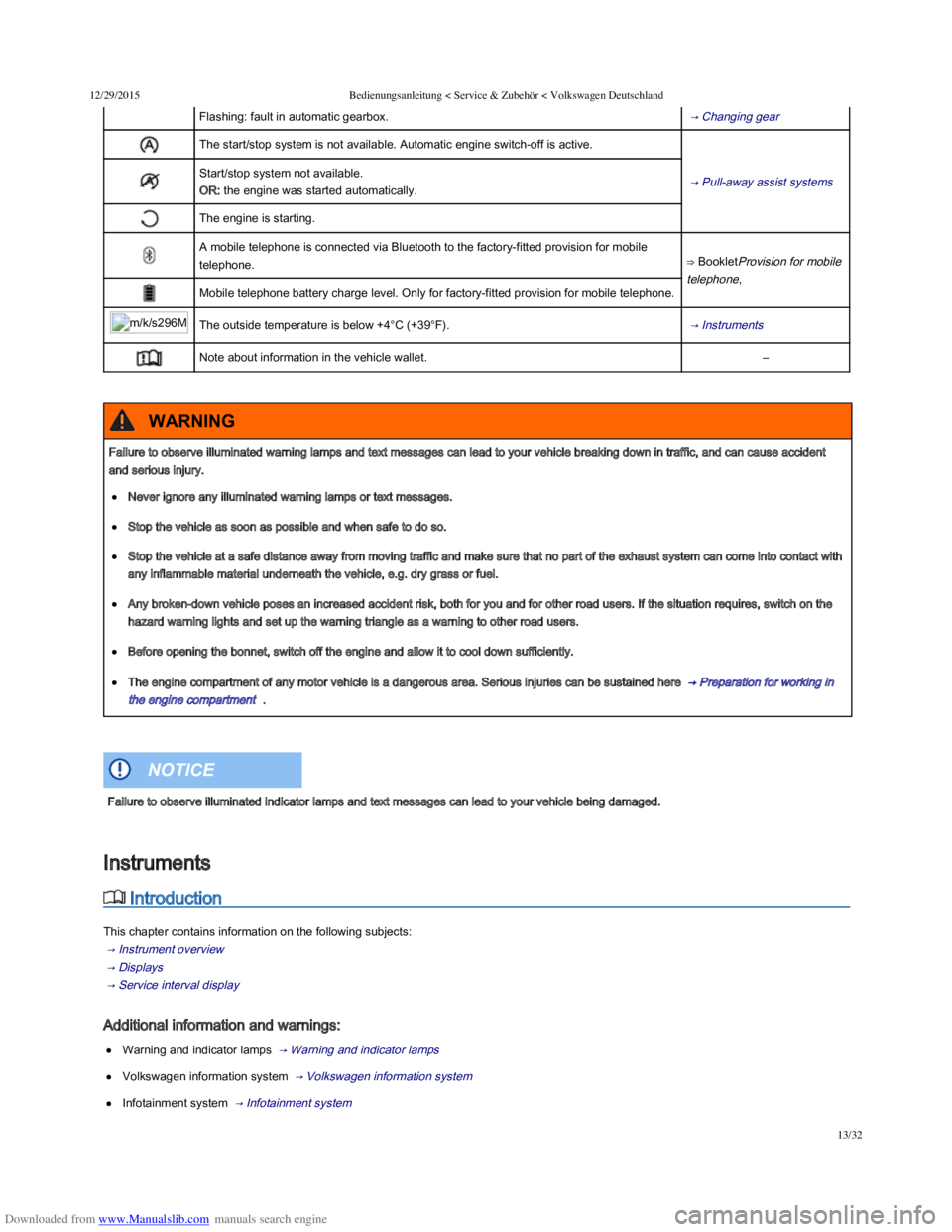

Flashing: fault in automatic gearbox. → Changing gear  
The start/stop system is not available. Automatic engine switch-off is active.
 → Pull-away assist systems  Start/stop system not available.
OR: the engine was started automatically.
The engine is starting.
A mobile telephone is connected via Bluetooth to the factory-fitted provision for mobile
telephone.⇒ BookletProvision for mobile
telephone,
Mobile telephone battery charge level. Only for factory-fitted provision for mobile telephone.
m/k/s296MKThe outside temperature is below +4°C (+39°F). → Instruments 
Note about information in the vehicle wallet.–
 Introduction
This chapter contains information on the following subjects:
 → Instrument overview  
 → Displays  
 → Service interval display  
Additional information and warnings:
Warning and indicator lamps  → Warning and indicator lamps  
Volkswagen information system  → Volkswagen information system  
Infotainment system  → Infotainment system 
Failure to observe illuminated warning lamps and text messages can lead to your vehicle breaking down in traffic, and can cause accident
and serious injury.
Never ignore any illuminated warning lamps or text messages.
Stop the vehicle as soon as possible and when safe to do so.
Stop the vehicle at a safe distance away from moving traffic and make sure that no part of the exhaust system can come into contact with
any inflammable material underneath the vehicle, e.g. dry grass or fuel.
Any broken-down vehicle poses an increased accident risk, both for you and for other road users. If the situation requires, switch on the
hazard warning lights and set up the warning triangle as a warning to other road users.
Before opening the bonnet, switch off the engine and allow it to cool down sufficiently.
The engine compartment of any motor vehicle is a dangerous area. Serious injuries can be sustained here  → Preparation for working in
the engine compartment   .
WARNING
Failure to observe illuminated indicator lamps and text messages can lead to your vehicle being damaged.
NOTICE
Instruments

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
14/32
Selected gear display (for vehicles with an automatic gearbox)  → Changing gear  
Information on service intervals ⇒ BookletService schedule,
Instrument overview

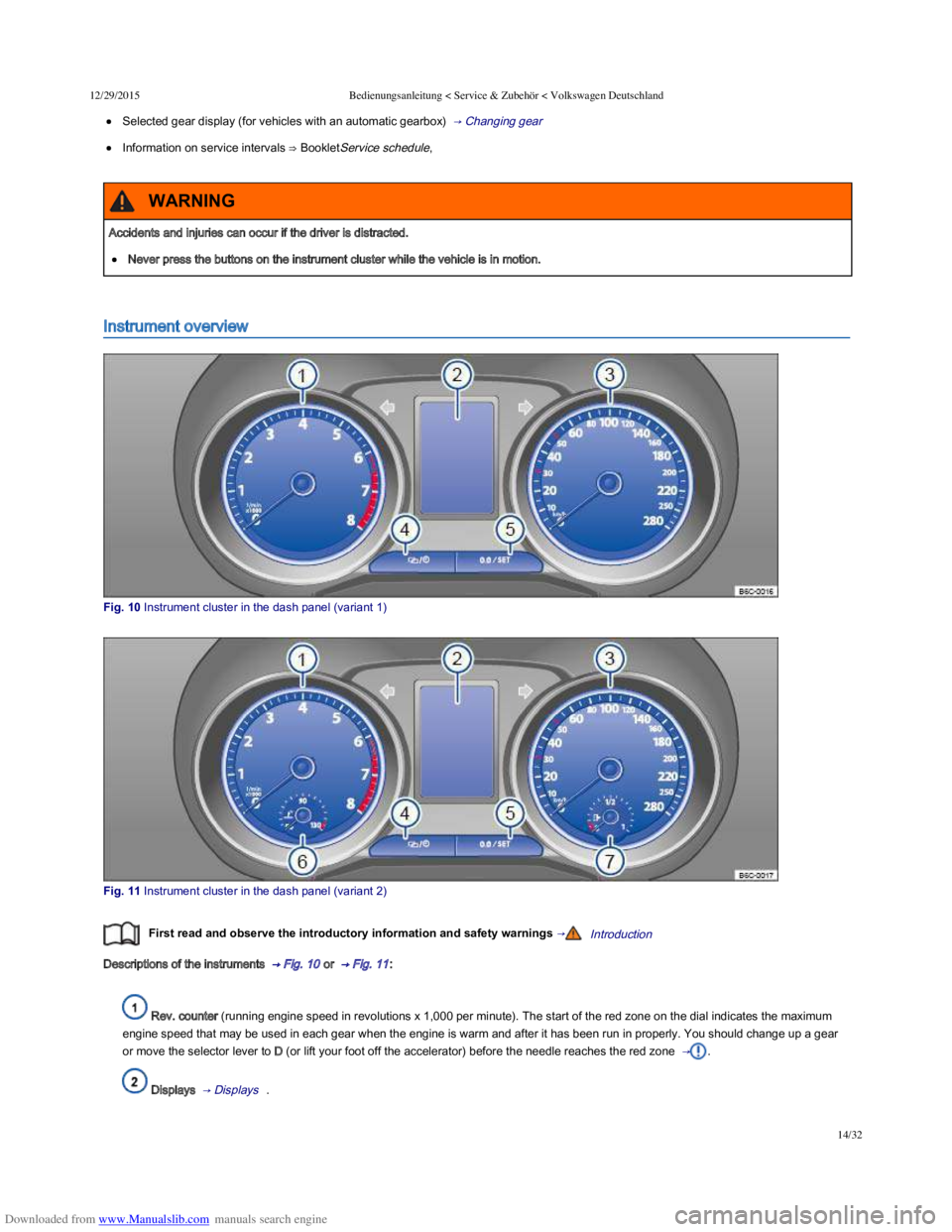

Fig. 10 Instrument cluster in the dash panel (variant 1)
Fig. 11 Instrument cluster in the dash panel (variant 2)
First read and observe the introductory information and safety warnings →Introduction 
Descriptions of the instruments  → Fig. 10  or  → Fig. 11 :
Rev. counter (running engine speed in revolutions x 1,000 per minute). The start of the red zone on the dial indicates the maximum
engine speed that may be used in each gear when the engine is warm and after it has been run in properly. You should change up a gear
or move the selector lever to D (or lift your foot off the accelerator) before the needle reaches the red zone  → .
Displays  → Displays   .
Accidents and injuries can occur if the driver is distracted.
Never press the buttons on the instrument cluster while the vehicle is in motion.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
15/32

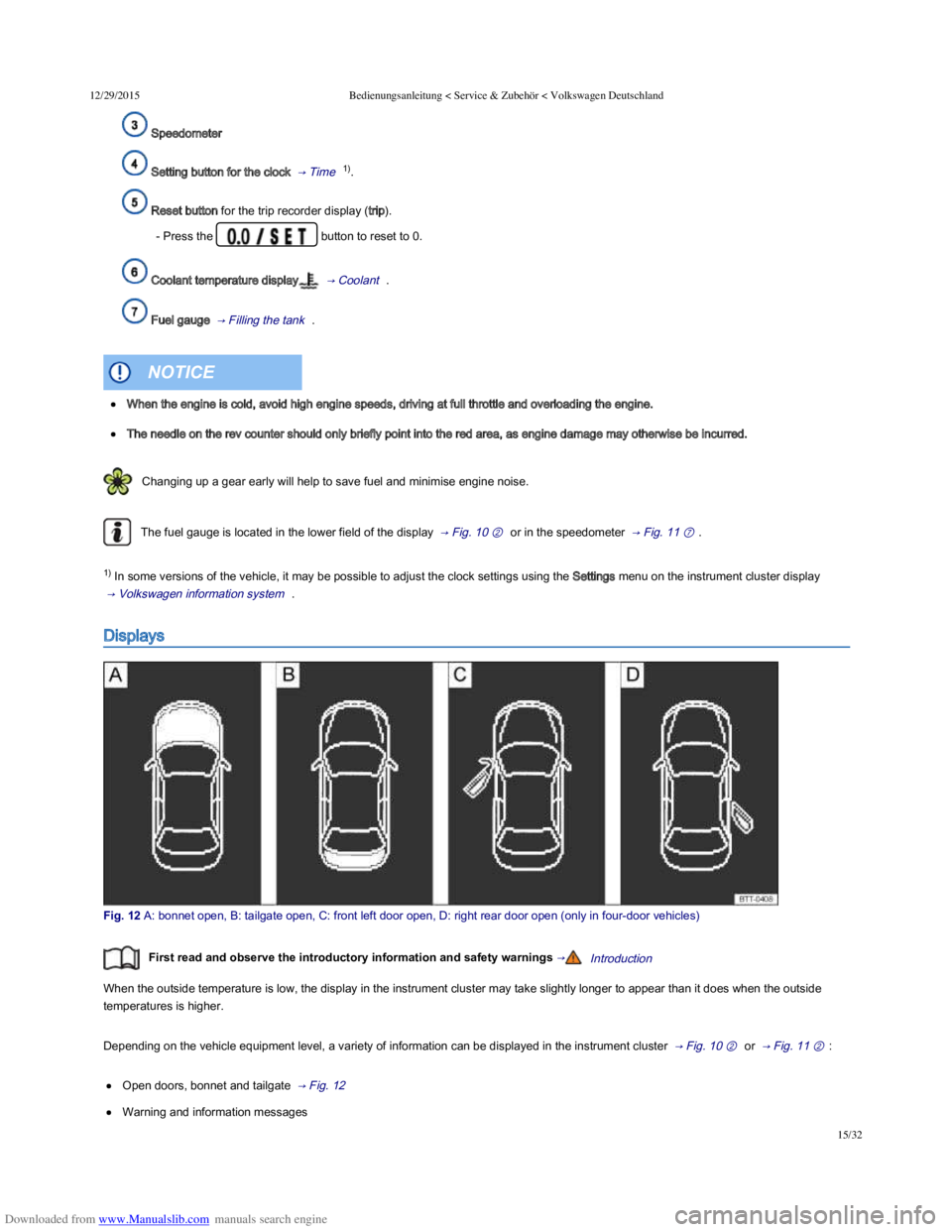

Speedometer
Setting button for the clock  → Time   1).
Reset button for the trip recorder display (trip).
- Press the  button to reset to 0.
Coolant temperature display  → Coolant   .
Fuel gauge  → Filling the tank   .
 Changing up a gear early will help to save fuel and minimise engine noise.
The fuel gauge is located in the lower field of the display  → Fig. 10 ②   or in the speedometer  → Fig. 11 ⑦  .
1) In some versions of the vehicle, it may be possible to adjust the clock settings using the Settings menu on the instrument cluster display
 → Volkswagen information system   .
Displays
Fig. 12 A: bonnet open, B: tailgate open, C: front left door open, D: right rear door open (only in four­door vehicles)
First read and observe the introductory information and safety warnings →Introduction 
When the outside temperature is low, the display in the instrument cluster may take slightly longer to appear than it does when the outside
temperatures is higher.
Depending on the vehicle equipment level, a variety of information can be displayed in the instrument cluster  → Fig. 10 ②   or  → Fig. 11 ②  :
Open doors, bonnet and tailgate  → Fig. 12 
Warning and information messages
When the engine is cold, avoid high engine speeds, driving at full throttle and overloading the engine.
The needle on the rev counter should only briefly point into the red area, as engine damage may otherwise be incurred.
NOTICE

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
16/32

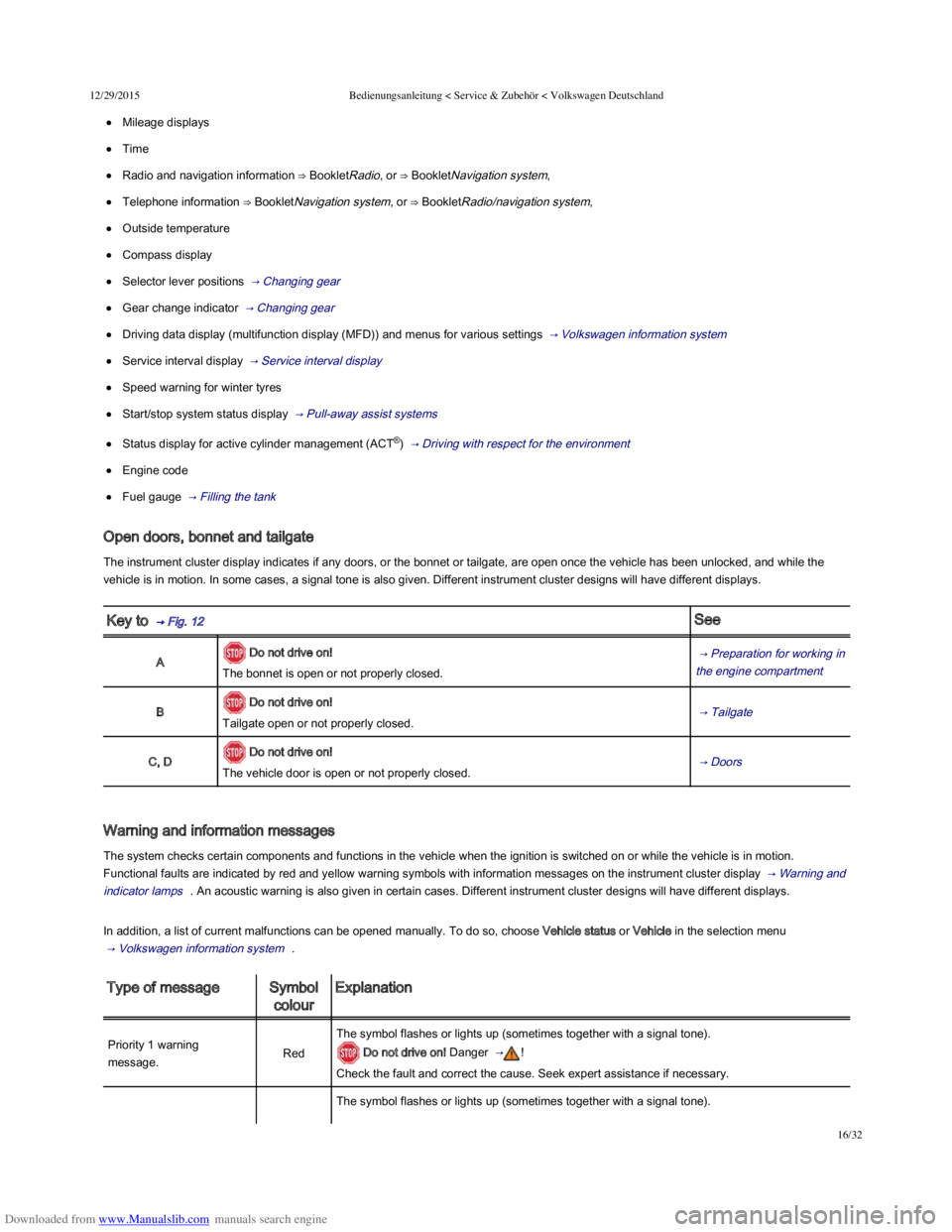

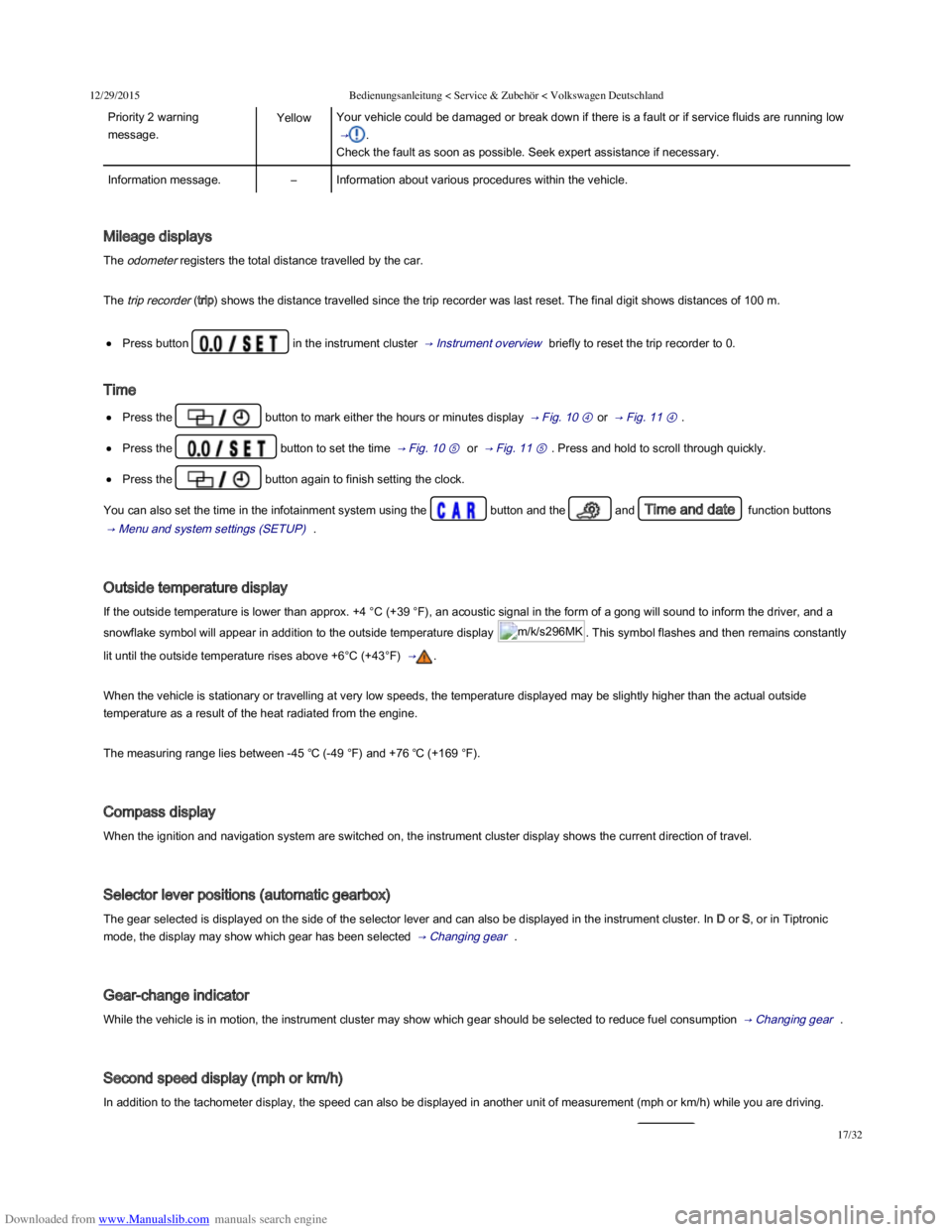

Mileage displays
Time
Radio and navigation information ⇒ BookletRadio, or ⇒ BookletNavigation system,
Telephone information ⇒ BookletNavigation system, or ⇒ BookletRadio/navigation system,
Outside temperature
Compass display
Selector lever positions  → Changing gear  
Gear change indicator  → Changing gear  
Driving data display (multifunction display (MFD)) and menus for various settings  → Volkswagen information system  
Service interval display  → Service interval display  
Speed warning for winter tyres
Start/stop system status display  → Pull-away assist systems  
Status display for active cylinder management (ACT®)  → Driving with respect for the environment  
Engine code
Fuel gauge  → Filling the tank  
Open doors, bonnet and tailgate
The instrument cluster display indicates if any doors, or the bonnet or tailgate, are open once the vehicle has been unlocked, and while the
vehicle is in motion. In some cases, a signal tone is also given. Different instrument cluster designs will have different displays.
Key to  → Fig. 12 See
A Do not drive on!
The bonnet is open or not properly closed.
 → Preparation for working in
the engine compartment  
B Do not drive on!
Tailgate open or not properly closed. → Tailgate  
C, D Do not drive on!
The vehicle door is open or not properly closed. → Doors  
Warning and information messages
The system checks certain components and functions in the vehicle when the ignition is switched on or while the vehicle is in motion.
Functional faults are indicated by red and yellow warning symbols with information messages on the instrument cluster display  → Warning and
indicator lamps   . An acoustic warning is also given in certain cases. Different instrument cluster designs will have different displays.
In addition, a list of current malfunctions can be opened manually. To do so, choose Vehicle status or Vehicle in the selection menu
 → Volkswagen information system   .
Type of messageSymbol
colour
Explanation
Priority 1 warning
message.Red
The symbol flashes or lights up (sometimes together with a signal tone).
Do not drive on! Danger  → !
Check the fault and correct the cause. Seek expert assistance if necessary.
The symbol flashes or lights up (sometimes together with a signal tone).

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
17/32
Priority 2 warning
message.
YellowYour vehicle could be damaged or break down if there is a fault or if service fluids are running low
 → .
Check the fault as soon as possible. Seek expert assistance if necessary.
Information message.–Information about various procedures within the vehicle.
Mileage displays
The odometer registers the total distance travelled by the car.
The trip recorder (trip) shows the distance travelled since the trip recorder was last reset. The final digit shows distances of 100 m.
Press button in the instrument cluster  → Instrument overview   briefly to reset the trip recorder to 0.
Time
Press the  button to mark either the hours or minutes display  → Fig. 10 ④  or  → Fig. 11 ④  .
Press the  button to set the time  → Fig. 10 ⑤   or  → Fig. 11 ⑤  . Press and hold to scroll through quickly.
Press the  button again to finish setting the clock.
You can also set the time in the infotainment system using the button and the and Time and date function buttons
 → Menu and system settings (SETUP)   .
Outside temperature display
If the outside temperature is lower than approx. +4 °C (+39 °F), an acoustic signal in the form of a gong will sound to inform the driver, and a
snowflake symbol will appear in addition to the outside temperature display m/k/s296MK. This symbol flashes and then remains constantly
lit until the outside temperature rises above +6°C (+43°F)  → .
When the vehicle is stationary or travelling at very low speeds, the temperature displayed may be slightly higher than the actual outside
temperature as a result of the heat radiated from the engine.
The measuring range lies between -45 ℃ (-49 °F) and +76 ℃ (+169 °F).
Compass display
When the ignition and navigation system are switched on, the instrument cluster display shows the current direction of travel.
Selector lever positions (automatic gearbox)
The gear selected is displayed on the side of the selector lever and can also be displayed in the instrument cluster. In D or S, or in Tiptronic
mode, the display may show which gear has been selected  → Changing gear   .
Gear-change indicator
While the vehicle is in motion, the instrument cluster may show which gear should be selected to reduce fuel consumption  → Changing gear   .
Second speed display (mph or km/h)
In addition to the tachometer display, the speed can also be displayed in another unit of measurement (mph or km/h) while you are driving.
