36 01 Safety
Infant seats
4. Pull the shoulder section of the seat belt out as far as possible to \
activate the belt's automatic locking
function.
5. Press the infant seat firmly in place, let the seat belt retract and \
pull it taut. A sound from the seat belt
retractor's automatic locking function will be audible at this time and \
is normal. The seat belt should now
be locked in place.
NOTE
The locking retractor will automatically release when the seat belt is u\
nbuckled and allowed to retract
fully.
file:///K|/delme/2007_C70/07c70_01.htm (34 of 41)12/22/2006 9:15:38 PM\

2007 Volvo C70
6. Push and pull the infant seat to ensure that it is held securely in p\
lace by the seat belt.
WARNING
It should not be possible to move the child restraint more than 1 in. (\
2.5 cm) in any
direction.
The infant seat can be removed by unbuckling the seat belt and letting i\
t retract completely.
37 01 Safety
Convertible seats
Securing a convertible seat with a seat belt
NOTE
Refer to
page 40 for information on securing a child restraint using ISOFIX lower
anchors.
Convertible seats can be used in either a forward or rearward-facing pos\
ition, depending on the age and
size of the child.
WARNING
file:///K|/delme/2007_C70/07c70_01.htm (35 of 41)12/22/2006 9:15:38 PM\

2007 Volvo C70
Always use a convertible seat that is suitable for the child's age and s\
ize. See the convertible seat
manufacturer's recommendations.
WARNING
A small child's head represents a considerable part of its total weight \
and its neck is still very weak.
Volvo recommends that children up to age 4 travel, properly restrained, \
facing rearward. In addition,
Volvo recommends that children should ride rearward facing, properly res\
trained, as long as possible.
1. Place the convertible seat in the rear seat of the vehicle.
2. Attach the seat belt to the convertible seat according to the manufac\
turer's instructions.
WARNING
l Convertible child seats should be installed in the rear seat only.
l A rear-facing convertible seat should not be positioned behind the drive\
r's seat unless there is
adequate space for safe installation.
38 01 Safety
Convertible seats
file:///K|/delme/2007_C70/07c70_01.htm (36 of 41)12/22/2006 9:15:38 PM\

2007 Volvo C70
3. Fasten the seat belt by inserting the latch plate into the buckle (l\
ock) until a distinct click is audible.
4. Pull the shoulder section of the seat belt out as far as possible to \
activate the belt's automatic locking
function.
5. Press the convertible seat firmly in place, let the seat belt retract\
and pull it taut. A sound from the seat
belt retractor's automatic locking function will be audible at this time\
and is normal. The seat belt should
now be locked in place.
6. Push and pull the convertible seat to ensure that it is held securely\
in place by the seat belt.
NOTE
The locking retractor will automatically release when the seat belt is u\
nbuckled and allowed to retract
fully.
file:///K|/delme/2007_C70/07c70_01.htm (37 of 41)12/22/2006 9:15:38 PM\

2007 Volvo C70
WARNING
It should not be possible to move the child restraint more than 1 in. (\
2.5 cm) in any
direction.
The convertible seat can be removed by unbuckling the seat belt and lett\
ing it retract completely.
WARNING
A child seat should never be used in the front passenger seat of any veh\
icle with a front passenger
airbag - not even if the "Passenger airbag off" symbol near the rear-vie\
w mirror is illuminated (on
vehicles equipped with Occupant Weight Sensor). If the severity of an a\
ccident were to cause the airbag
to inflate, this could lead to serious injury or death to a child seated\
in this position.
39 01 Safety
Booster cushions
Securing a booster cushion
file:///K|/delme/2007_C70/07c70_01.htm (38 of 41)12/22/2006 9:15:38 PM\

2007 Volvo C70
Booster cushions are recommended for children who have outgrown converti\
ble seats.
1. Place the booster cushion in the rear seat of the vehicle.
2. With the child properly seated on the booster cushion, attach the sea\
t belt to or around the cushion
according to the manufacturer's instructions.
3. Fasten the seat belt by inserting the latch plate into the buckle (l\
ock) until a distinct click is audible.
4. Ensure that the seat belt is pulled taut and fits snugly around the c\
hild.
WARNING
l The hip section of the three-point seat belt must fit snugly across the \
child's hips, not across the
stomach.
l The shoulder section of the three-point seat belt should be positioned a\
cross the chest and shoulder.
l The shoulder belt must never be placed behind the child's back or under \
the arm.
file:///K|/delme/2007_C70/07c70_01.htm (39 of 41)12/22/2006 9:15:38 PM\

2007 Volvo C70
40 01 Safety
ISOFIX lower anchors
Using the ISOFIX lower child seat anchors
Lower anchors for ISOFIX-equipped child seats are located in the rear, o\
utboard seats, hidden below the
backrest cushions. Symbols on the seat back upholstery mark the anchor p\
ositions (see the illustration
above).
To access the anchors:
1. Put the child restraint in position.
2. Kneel on the child restraint to press down the seat cushion and locat\
e the anchors by feel.
3. Fasten the attachment on the child restraint's lower straps to the IS\
OFIX lower anchors.
file:///K|/delme/2007_C70/07c70_01.htm (40 of 41)12/22/2006 9:15:38 PM\

2007 Volvo C70
4. Firmly tension the lower child seat straps according to the manufactu\
rer's instructions.
NOTE
Always follow your child seat manufacturer's installation instructions, \
and use both ISOFIX lower
anchors and top tethers whenever possible.
WARNING

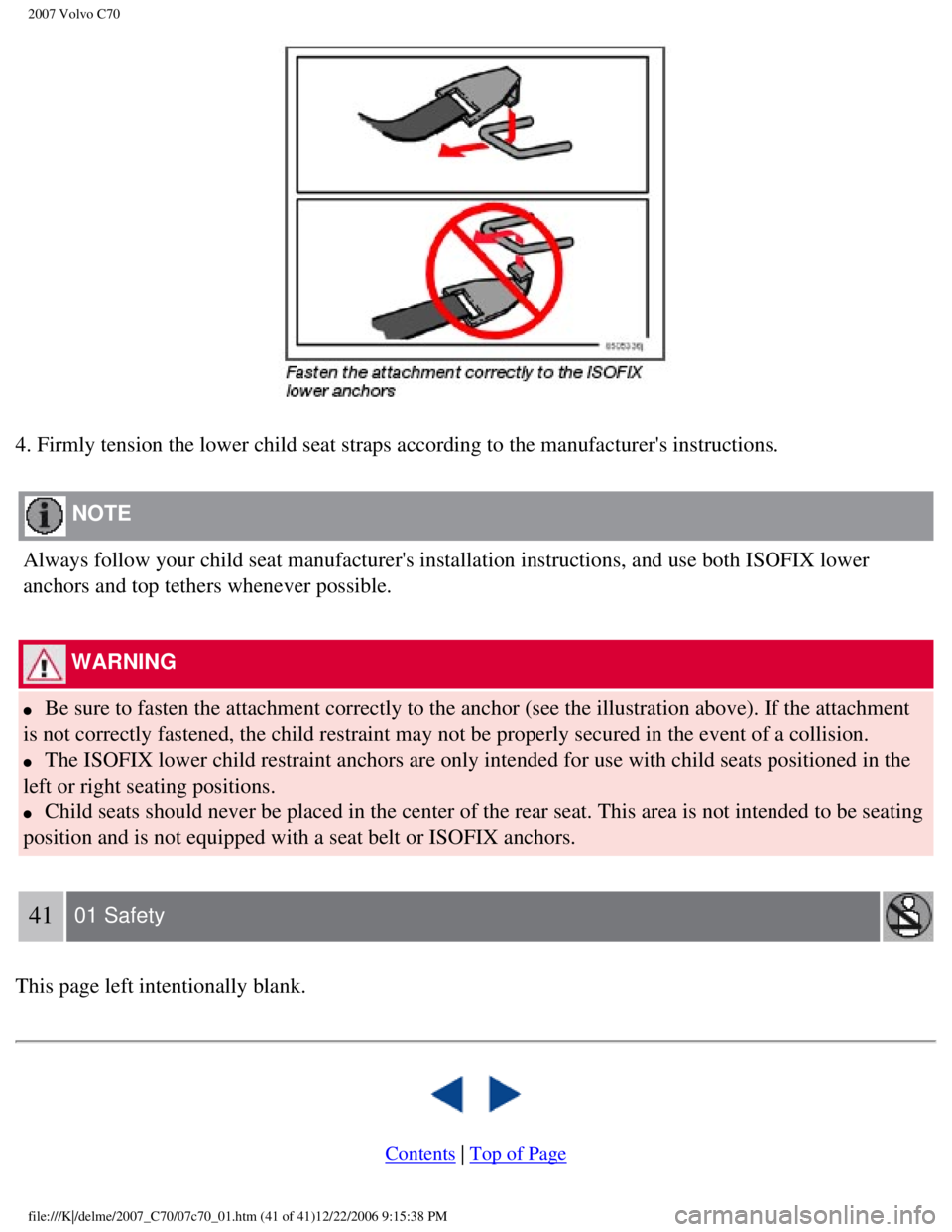

l Be sure to fasten the attachment correctly to the anchor (see the illus\
tration above). If the attachment
is not correctly fastened, the child restraint may not be properly secur\
ed in the event of a collision.
l The ISOFIX lower child restraint anchors are only intended for use with \
child seats positioned in the
left or right seating positions.
l Child seats should never be placed in the center of the rear seat. This \
area is not intended to be seating
position and is not equipped with a seat belt or ISOFIX anchors.
41 01 Safety
This page left intentionally blank.



Contents | Top of Page
file:///K|/delme/2007_C70/07c70_01.htm (41 of 41)12/22/2006 9:15:38 PM\

2007 Volvo C70
2 0 0 7
VOLVO C70
42 02 Instruments and controls
Instrument overview
44
Instrument panel
47
Symbols - instrument panel
50
Information display
53
Lighting panel
55
Left-side steering wheel lever
57
Trip computer
58
Right-side steering wheel lever
60
Cruise control
62
Right-side steering wheel keypad
64
Steering wheel adjustment, Hazard warning flashers
65
Parking brake
66
12-volt sockets
67
Power windows
68
Mirrors
69
Personal settings
72
HomeLink® Universal Transceiver (option)
74
43 02 Instruments and controls
44 02 Instruments and controls
file:///K|/delme/2007_C70/07c70_02.htm (1 of 43)12/22/2006 9:15:41 PM

2007 Volvo C70
Instrument overview
45 02 Instruments and controls
Instrument overview
1. Steering wheel adjustment65
2. Hood opener
189
3. Controls in driver's door (see inset illustration on the next page)\
4. Left steering wheel lever
57
5. Lighting panel, fuel filler door opener
55
6. Door open handle, and locking button
114
7. Lock indicator light
114
8. Climate system air vent
81
9. Side window air vent
10. Cruise control
62
11. Horn, airbag
18
12. Main instrument panel
47
