VOLVO C70 CONVERTIBLE 2007 Owner´s Manual

2007 Volvo C70

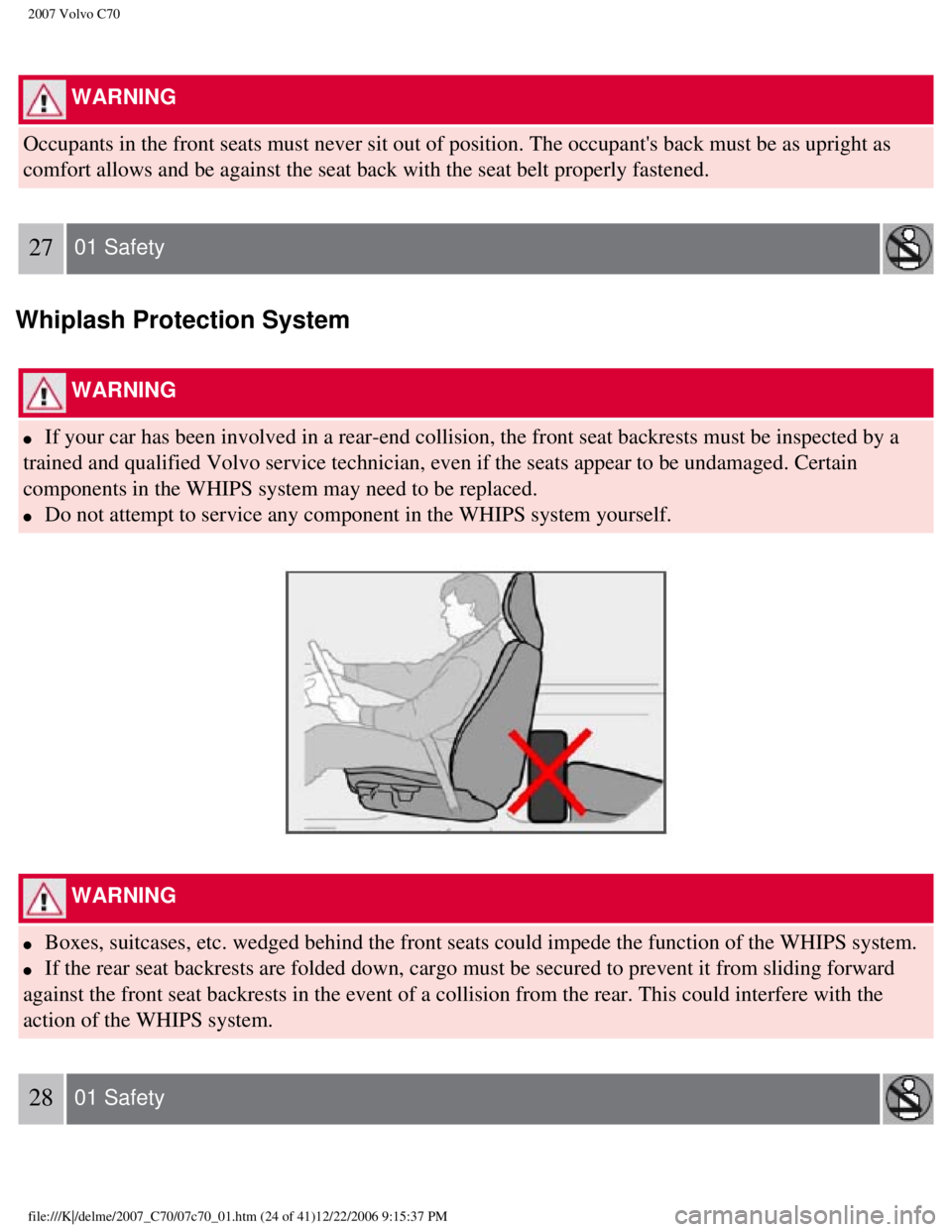

WARNING
Occupants in the front seats must never sit out of position. The occupan\
t's back must be as upright as
comfort allows and be against the seat back with the seat belt properly \
fastened.
27 01 Safety
Whiplash Protection System
WARNING
l If your car has been involved in a rear-end collision, the front seat ba\
ckrests must be inspected by a
trained and qualified Volvo service technician, even if the seats appear\
to be undamaged. Certain
components in the WHIPS system may need to be replaced.
l Do not attempt to service any component in the WHIPS system yourself.
WARNING
l Boxes, suitcases, etc. wedged behind the front seats could impede the fu\
nction of the WHIPS system.
l If the rear seat backrests are folded down, cargo must be secured to pre\
vent it from sliding forward
against the front seat backrests in the event of a collision from the re\
ar. This could interfere with the
action of the WHIPS system.
28 01 Safety
file:///K|/delme/2007_C70/07c70_01.htm (24 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
Roll-over Protection system
Roll-over Protection system (ROPS)
The ROPS system consists of two roll bars located behind the rear seat h\
ead restraints, and a sensor that
monitors the roll or pitch angle of the vehicle.
If the vehicle rolls or pitches beyond a preset angle, or in the event o\
f a rear-end collision of sufficient
force, the roll bars are automatically deployed (raised).
The ROPS system is designed to function regardless of whether the power \
retractable hard top is up or
down. By design, the tops of the roll bars are equipped with a point in \
order to pierce the rear window if
the top is up.
NOTE
If ROPS has deployed, the system should be inspected by a trained and qu\
alified Volvo service
technician.
WARNING
l The rear seat of the Volvo C70 is intended for two occupants, and only t\
wo rear seat belts are
provided. The center section of the seat should never be used to seat a \
passenger.
l No objects should be placed over the roll bars or behind the rear seat h\
ead restraints.
l All repairs or maintenance to the ROPS system should only be performed b\
y a trained Volvo service
technician.
file:///K|/delme/2007_C70/07c70_01.htm (25 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
29 01 Safety
Crash mode
Driving after a collision
If the vehicle has been involved in a collision, the text CRASH MODE SEE\
MANUAL may appear in the
information display. This indicates that the vehicle's functionality has\
been reduced.
This text can only be shown if the display is undamaged and the vehicle'\
s electrical system is intact.
CRASH MODE is a feature that is triggered if one or more of the safety s\
ystems (for example, front or
side airbags, an inflatable curtain, or one or more of the seat belt ten\
sioners) has deployed. The collision
may have damaged an important function in the vehicle, such as the fuel \
lines, sensors for one of the
safety systems, the brake system, etc.
WARNING
l Never attempt to repair the vehicle yourself or to reset the electrical \
system after the vehicle has
displayed CRASH MODE SEE MANUAL. This could result in injury or improper\
system function.
l Restoring the vehicle to normal operating mode should only be done by a \
trained and qualified Volvo
service technician.
l After CRASH MODE SEE MANUAL has been displayed, if you detect the odor o\
f fuel vapor, or see
any signs of fuel leakage, do not attempt to start the vehicle. Leave th\
e vehicle immediately.
Attempting to start the vehicle
If damage to the vehicle is minor and there is no fuel leakage, you may \
attempt to start the vehicle. To do
so:
file:///K|/delme/2007_C70/07c70_01.htm (26 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
1. Remove the ignition key.
2. Reinsert the key in the ignition switch. The vehicle will then attemp\
t to reset CRASH MODE to normal
mode.
3. Try to start the vehicle.
Moving the vehicle
If the electrical system is able to reset system status to normal (CRAS\
H MODE SEE MANUAL will no
longer be displayed), the vehicle may be moved carefully from its prese\
nt position, if for example, it is
blocking traffic. It should, however, not be moved farther than is absol\
utely necessary.
WARNING
Even if the vehicle appears to be drivable after CRASH MODE has been set\
, it should not be driven or
towed (pulled by another vehicle). There may be concealed damage that \
could make it difficult or
impossible to control. The vehicle should be transported on a flatbed to\
w truck to a trained and qualified
Volvo service technician for inspection/ repairs.
30 01 Safety
Child safety
Children should be seated safely
Volvo recommends the proper use of restraint systems for all occupants i\
ncluding children. Remember
that, regardless of age and size, a child should always be properly rest\
rained in a car.
Your car is also equipped with ISOFIX/ LATCH attachments, which make it \
more convenient to install
child seats.
Some restraint systems for children are designed to be secured in the ve\
hicle by lap belts or the lap
portion of a lap-shoulder belt. Such child restraint systems can help pr\
otect children in cars in the event of
an accident only if they are used properly. However, children could be e\
ndangered in a crash if the child
restraints are not properly secured in the vehicle. Failure to follow th\
e installation instructions for your
child restraint can result in your child striking the vehicle's interior\
in a sudden stop.
Holding a child in your arms is NOT a suitable substitute for a child re\
straint system. In an accident, a
child held in a person's arms can be crushed between the vehicle's inter\
ior and an unrestrained person. The
child could also be injured by striking the interior, or by being ejecte\
d from the vehicle during a sudden
maneuver or impact. The same can also happen if the infant or child ride\
s unrestrained on the seat. Other
occupants should also be properly restrained to help reduce the chance o\
f injuring or increasing the injury
of a child.
file:///K|/delme/2007_C70/07c70_01.htm (27 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
All states and provinces have legislation governing how and where childr\
en should be carried in a car.
Find out the regulations existing in your state or province. Recent acci\
dent statistics have shown that
children are safer in rear seating positions than front seating position\
s when properly restrained. A child
restraint system can help protect a child in a vehicle. Here's what to l\
ook for when selecting a child
restraint system:
l It should have a label certifying that it meets applicable Federal Motor\
Vehicle Safety Standards
(FMVSS 213) - or in Canada, CMVSS 213.
l Make sure the child restraint system is approved for the child's height,\
weight and development - the
label required by the standard or regulation, or instructions for infant\
restraints, typically provide this
information.
l In using any child restraint system, we urge you to carefully look over \
the instructions that are provided
with the restraint. Be sure you understand them and can use the device p\
roperly and safely in this vehicle.
A misused child restraint system can result in increased injuries for bo\
th the infant or child and other
occupants in the vehicle.
When a child has outgrown the child safety seat, you should use the rear\
seat with the standard seat belt
fastened. The best way to help protect the child here is to place the ch\
ild on a cushion so that the seat belt
is properly located on the hips (see the illustration on
page 39). Legislation in your state or province may
mandate the use of a child seat or cushion in combination with the seat \
belt, depending on the child's age
and/or size. Please check local regulations.
A specially designed and tested booster cushion (not available in Canad\
a) can be obtained from your
Volvo retailer for children weighing 33 - 80 lb. (15 - 36 kg) and 38-5\
4 inches (97 - 137 cm) in height.
31 01 Safety
Child safety
WARNING
l Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We also
recommend that children under 4 feet 7 inches (140 cm) in height who h\
ave outgrown these devices sit
in the rear seat with the seat belt fastened.
l Keep vehicle doors and trunk locked and keep keys out of a child's reach\
. Unsupervised children
could lock themselves in an open trunk and risk injury. Children should \
be taught not to play in
vehicles.
l On hot days, the temperature in the trunk or vehicle interior can rise v\
ery quickly. Exposure to these
high temperatures for even a short period of time can cause heat-related\
injury or death. Small children
are particularly at risk.
file:///K|/delme/2007_C70/07c70_01.htm (28 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
32 01 Safety
Child safety
Automatic Locking Retractor/Emergency Locking Retractor
To make child seat installation easier, each seat belt (except for the \
driver's belt) is equipped with a
locking mechanism to help keep the seat belt taut.
When attaching the seat belt to a child seat:
l Attach the seat belt to the child seat according to the child seat manuf\
acturer's instructions.
l Pull the seat belt out as far as possible.
l Insert the seat belt latch plate into the buckle (lock) in the usual w\
ay.
l Release the seat belt and pull it taut around the child seat.
A sound from the seat belt retractor will be audible at this time and is\
normal. The belt will now be locked
in place. This function is automatically disabled when the seat belt is \
unlocked and the belt is fully
retracted.
WARNING
Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We also
recommend that children who have outgrown these devices sit in the rear \
seat with the seat belt properly
fastened.
Volvo's recommendations
Why does Volvo believe that no child should sit in the front seat of a c\
ar? It's quite simple really. A front
airbag is a very powerful device designed, by law, to help protect an ad\
ult.
Because of the size of the airbag and its speed of inflation, a child sh\
ould never be placed in the front seat,
even if he or she is properly belted or strapped into a child safety sea\
t. Volvo has been an innovator in
safety for over seventy-five years, and we'll continue to do our part. B\
ut we need your help. Please
remember to put your children in the back seat, and buckle them up.
Volvo has some very specific recommendations:
l Always wear your seat belt.
l Airbags are a SUPPLEMENTAL safety device which, when used with a three-p\
oint seat belt can help
reduce serious injuries during certain types of accidents. Volvo recomme\
nds that you do not disconnect
the airbag system in your vehicle.
l Volvo strongly recommends that everyone in the vehicle be properly restr\
ained.
file:///K|/delme/2007_C70/07c70_01.htm (29 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
l Volvo recommends that ALL occupants (adults and children) shorter than\
4 feet 7 inches (140 cm) be
seated in the back seat of any vehicle with a front passenger side airba\
g.
Drive safely!
33 01 Safety
Child restraint systems
Child restraints

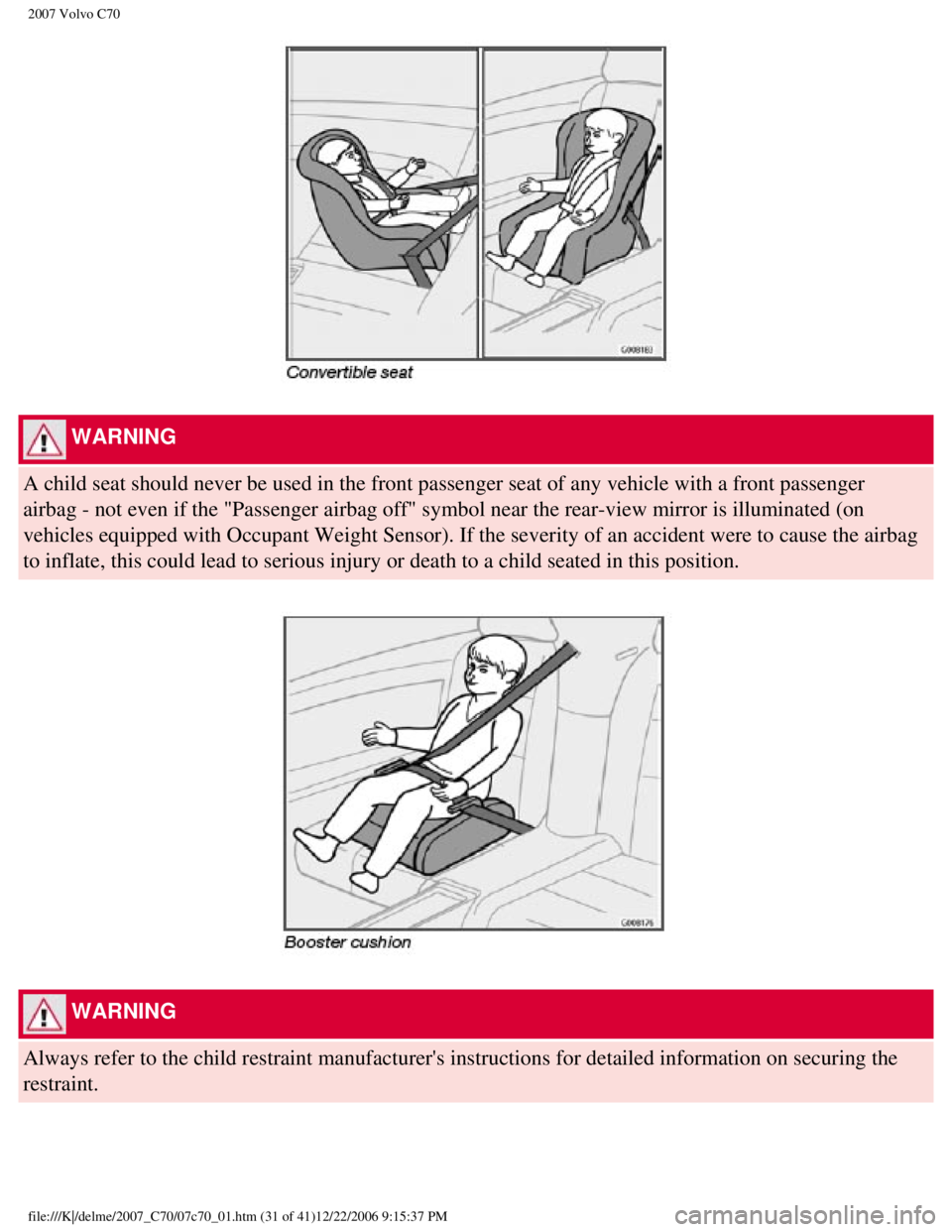

There are three main types of child restraint systems: infant seats, con\
vertible seats, and booster cushions.
They are classified according to the child's age and size.
The following section provides general information on securing a child restraint using a three-point seat
belt. Refer to
page 40 for information on securing a child restraint using ISOFIX lower anchor\
s.
file:///K|/delme/2007_C70/07c70_01.htm (30 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
WARNING
A child seat should never be used in the front passenger seat of any veh\
icle with a front passenger
airbag - not even if the "Passenger airbag off" symbol near the rear-vie\
w mirror is illuminated (on
vehicles equipped with Occupant Weight Sensor). If the severity of an a\
ccident were to cause the airbag
to inflate, this could lead to serious injury or death to a child seated\
in this position.
WARNING
Always refer to the child restraint manufacturer's instructions for deta\
iled information on securing the
restraint.
file:///K|/delme/2007_C70/07c70_01.htm (31 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70

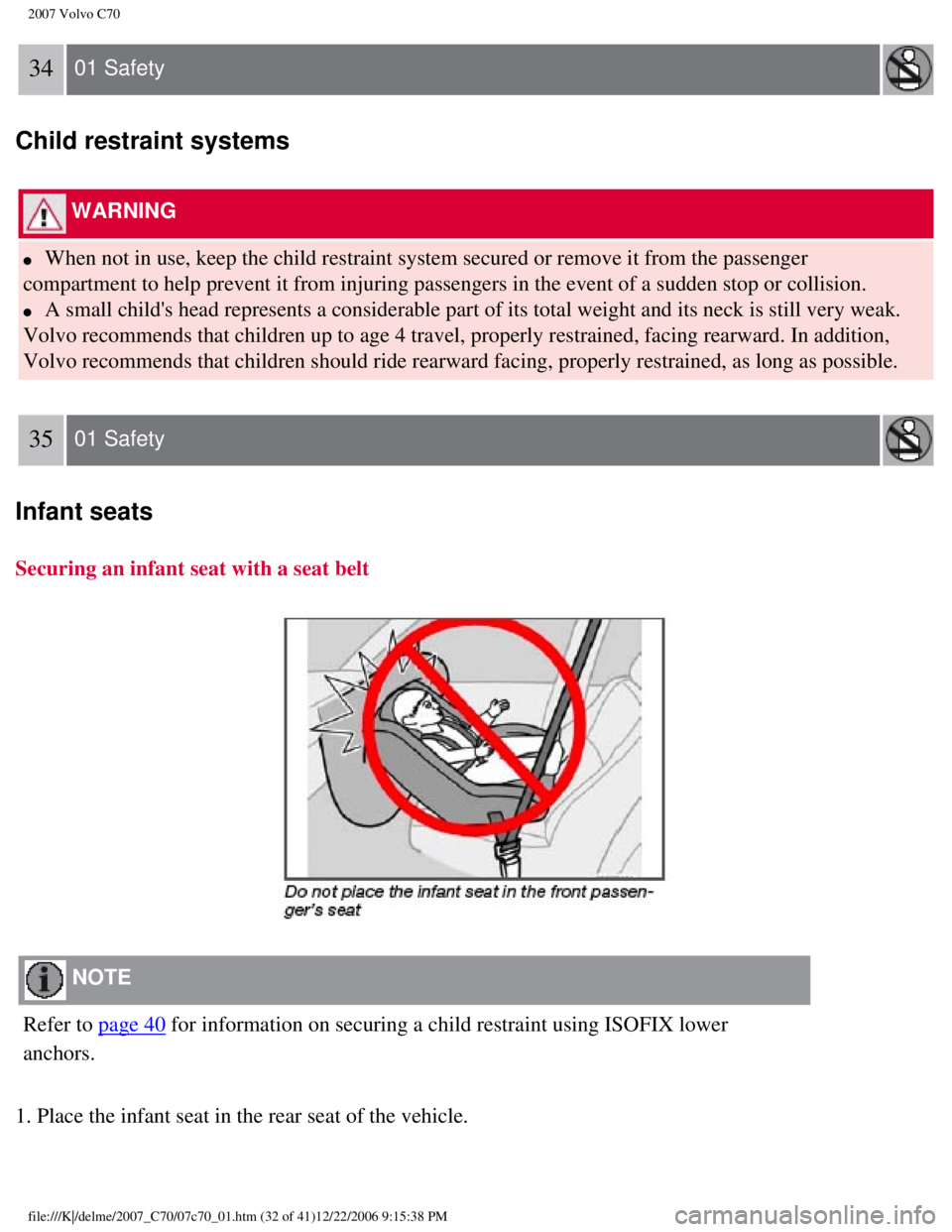

34 01 Safety
Child restraint systems
WARNING
l When not in use, keep the child restraint system secured or remove it fr\
om the passenger
compartment to help prevent it from injuring passengers in the event of \
a sudden stop or collision.
l A small child's head represents a considerable part of its total weight \
and its neck is still very weak.
Volvo recommends that children up to age 4 travel, properly restrained, \
facing rearward. In addition,
Volvo recommends that children should ride rearward facing, properly res\
trained, as long as possible.
35 01 Safety
Infant seats
Securing an infant seat with a seat belt
NOTE
Refer to
page 40 for information on securing a child restraint using ISOFIX lower
anchors.
1. Place the infant seat in the rear seat of the vehicle.
file:///K|/delme/2007_C70/07c70_01.htm (32 of 41)12/22/2006 9:15:38 PM\

2007 Volvo C70

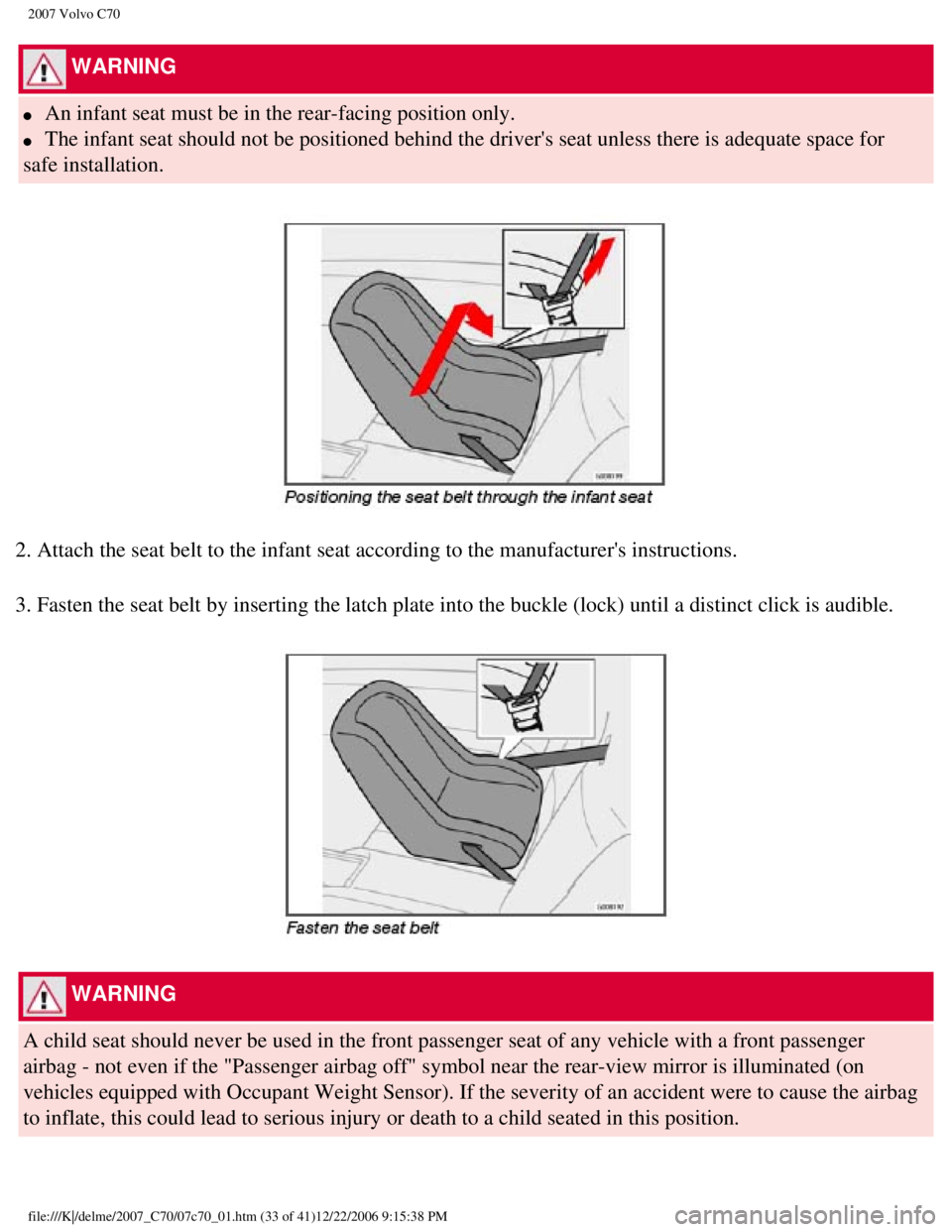

WARNING
l An infant seat must be in the rear-facing position only.
l The infant seat should not be positioned behind the driver's seat unless\
there is adequate space for
safe installation.
2. Attach the seat belt to the infant seat according to the manufacturer\
's instructions.
3. Fasten the seat belt by inserting the latch plate into the buckle (l\
ock) until a distinct click is audible.
WARNING
A child seat should never be used in the front passenger seat of any veh\
icle with a front passenger
airbag - not even if the "Passenger airbag off" symbol near the rear-vie\
w mirror is illuminated (on
vehicles equipped with Occupant Weight Sensor). If the severity of an a\
ccident were to cause the airbag
to inflate, this could lead to serious injury or death to a child seated\
in this position.
file:///K|/delme/2007_C70/07c70_01.htm (33 of 41)12/22/2006 9:15:38 PM\
