VOLVO V90 2017 Owners Manual

LOADING AND STORAGE
* Option/accessory.229

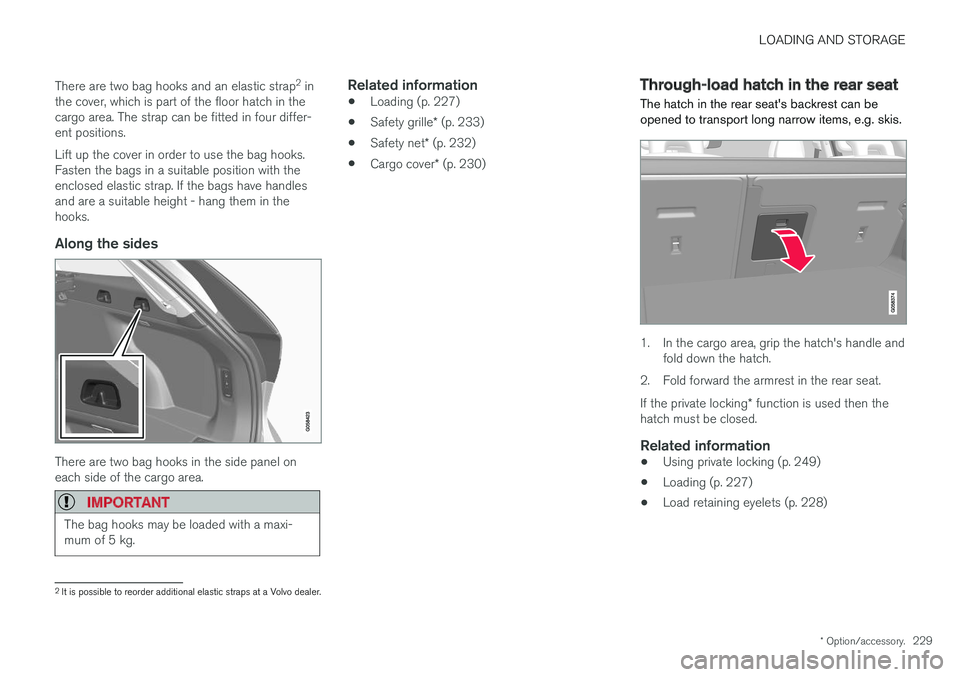

There are two bag hooks and an elastic strap
2
in
the cover, which is part of the floor hatch in the cargo area. The strap can be fitted in four differ-ent positions. Lift up the cover in order to use the bag hooks. Fasten the bags in a suitable position with theenclosed elastic strap. If the bags have handlesand are a suitable height - hang them in thehooks.
Along the sides
There are two bag hooks in the side panel on each side of the cargo area.
IMPORTANT
The bag hooks may be loaded with a maxi- mum of 5 kg.
Related information
• Loading (p. 227)
• Safety grille
* (p. 233)
• Safety net
* (p. 232)
• Cargo cover
* (p. 230)
Through-load hatch in the rear seat
The hatch in the rear seat's backrest can be opened to transport long narrow items, e.g. skis.
1. In the cargo area, grip the hatch's handle and fold down the hatch.
2. Fold forward the armrest in the rear seat. If the private locking * function is used then the
hatch must be closed.
Related information
• Using private locking (p. 249)
• Loading (p. 227)
• Load retaining eyelets (p. 228)
2
It is possible to reorder additional elastic straps at a Volvo dealer.

LOADING AND STORAGE
* Option/accessory.
230

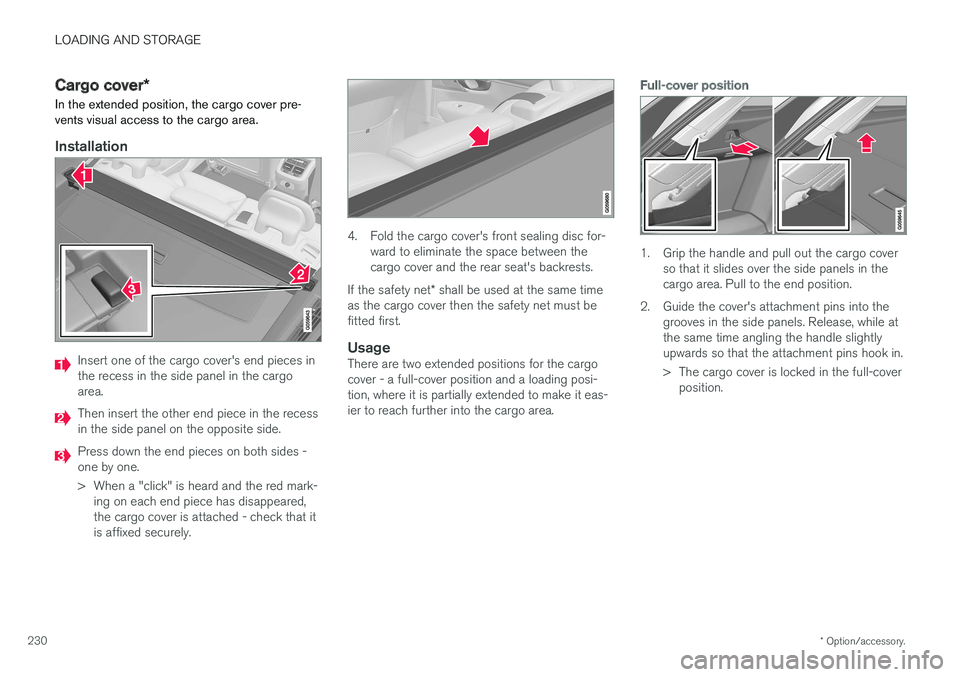

Cargo cover *
In the extended position, the cargo cover pre- vents visual access to the cargo area.
Installation
Insert one of the cargo cover's end pieces in the recess in the side panel in the cargoarea.
Then insert the other end piece in the recess in the side panel on the opposite side.
Press down the end pieces on both sides - one by one.
> When a "click" is heard and the red mark- ing on each end piece has disappeared, the cargo cover is attached - check that itis affixed securely.
4. Fold the cargo cover's front sealing disc for- ward to eliminate the space between the cargo cover and the rear seat's backrests.
If the safety net * shall be used at the same time
as the cargo cover then the safety net must befitted first.
UsageThere are two extended positions for the cargocover - a full-cover position and a loading posi-tion, where it is partially extended to make it eas-ier to reach further into the cargo area.
Full-cover position
1. Grip the handle and pull out the cargo cover so that it slides over the side panels in the cargo area. Pull to the end position.
2. Guide the cover's attachment pins into the grooves in the side panels. Release, while atthe same time angling the handle slightlyupwards so that the attachment pins hook in.
> The cargo cover is locked in the full-coverposition.

LOADING AND STORAGE
}}
* Option/accessory.231

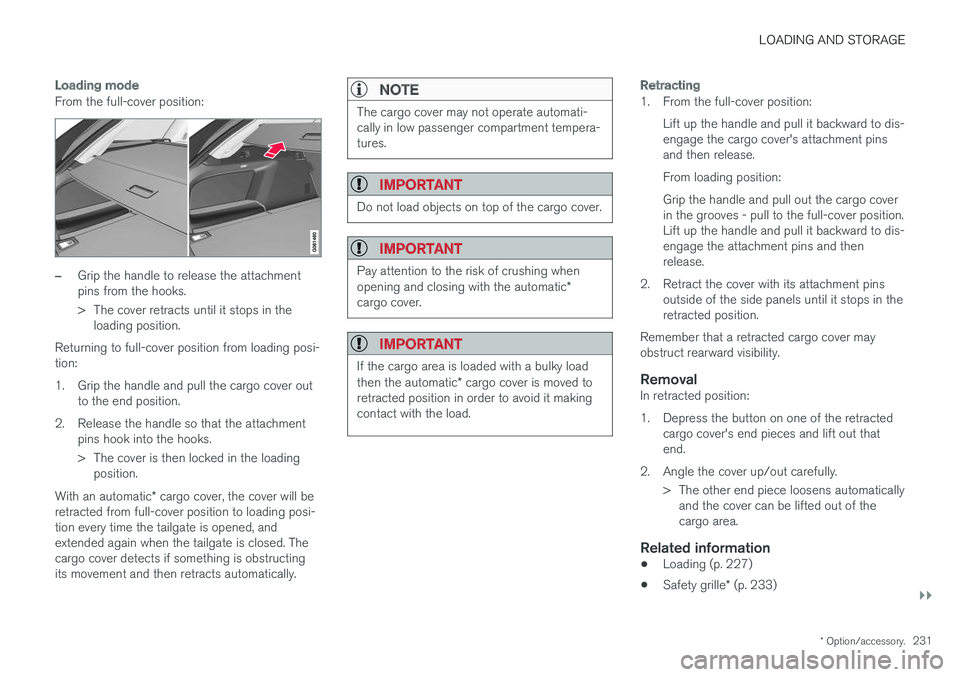

Loading mode
From the full-cover position:
–Grip the handle to release the attachment pins from the hooks.
> The cover retracts until it stops in the
loading position.
Returning to full-cover position from loading posi- tion:
1. Grip the handle and pull the cargo cover out to the end position.
2. Release the handle so that the attachment pins hook into the hooks.
> The cover is then locked in the loadingposition.
With an automatic * cargo cover, the cover will be
retracted from full-cover position to loading posi- tion every time the tailgate is opened, andextended again when the tailgate is closed. Thecargo cover detects if something is obstructingits movement and then retracts automatically.
NOTE
The cargo cover may not operate automati- cally in low passenger compartment tempera-tures.
IMPORTANT
Do not load objects on top of the cargo cover.
IMPORTANT
Pay attention to the risk of crushing when opening and closing with the automatic *
cargo cover.
IMPORTANT
If the cargo area is loaded with a bulky load then the automatic * cargo cover is moved to
retracted position in order to avoid it making contact with the load.
Retracting
1. From the full-cover position:
Lift up the handle and pull it backward to dis- engage the cargo cover's attachment pinsand then release. From loading position:Grip the handle and pull out the cargo cover in the grooves - pull to the full-cover position.Lift up the handle and pull it backward to dis-engage the attachment pins and thenrelease.
2. Retract the cover with its attachment pins outside of the side panels until it stops in theretracted position.
Remember that a retracted cargo cover mayobstruct rearward visibility.
RemovalIn retracted position:
1. Depress the button on one of the retracted cargo cover's end pieces and lift out that end.
2. Angle the cover up/out carefully. > The other end piece loosens automaticallyand the cover can be lifted out of thecargo area.
Related information
• Loading (p. 227)
• Safety grille
* (p. 233)

LOADING AND STORAGE
* Option/accessory.
232 •
Safety net
* (p. 232)
• Load retaining eyelets (p. 228)

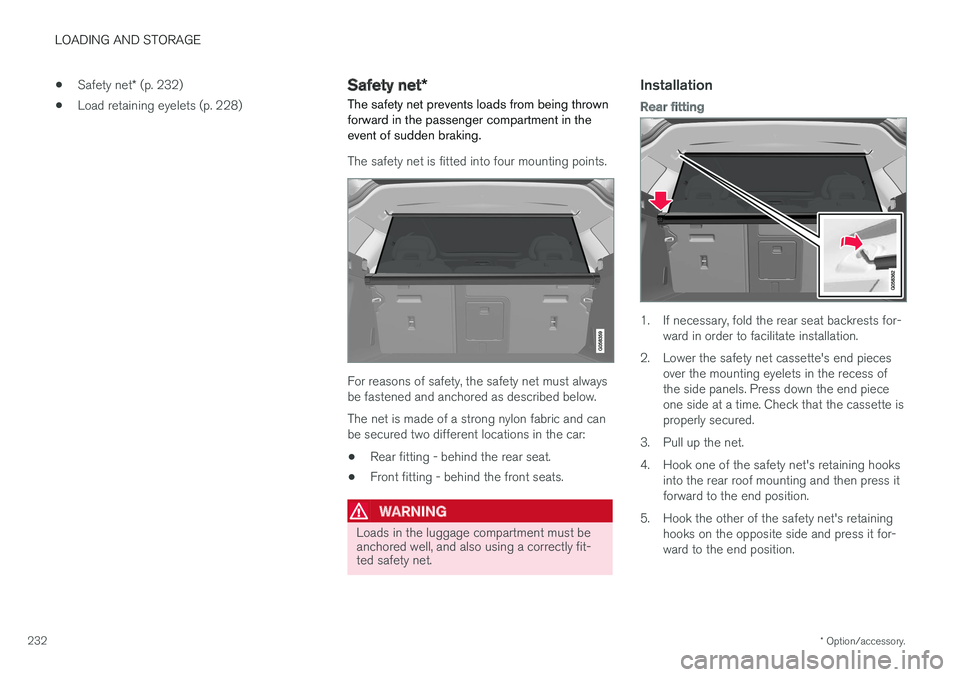

Safety net
*
The safety net prevents loads from being thrown forward in the passenger compartment in theevent of sudden braking.
The safety net is fitted into four mounting points.
For reasons of safety, the safety net must always be fastened and anchored as described below. The net is made of a strong nylon fabric and can be secured two different locations in the car:
• Rear fitting - behind the rear seat.
• Front fitting - behind the front seats.
WARNING
Loads in the luggage compartment must be anchored well, and also using a correctly fit-ted safety net.
Installation
Rear fitting
1. If necessary, fold the rear seat backrests for-
ward in order to facilitate installation.
2. Lower the safety net cassette's end pieces over the mounting eyelets in the recess of the side panels. Press down the end pieceone side at a time. Check that the cassette isproperly secured.
3. Pull up the net.
4. Hook one of the safety net's retaining hooks into the rear roof mounting and then press it forward to the end position.
5. Hook the other of the safety net's retaining hooks on the opposite side and press it for-ward to the end position.

LOADING AND STORAGE
}}
* Option/accessory.233
Front fitting
1. Fold the rear seat's backrest forward.
2. Align the safety net cassette's anchor rails in
front of the backrest's attachment lugs.
3. Slide the cassette into the attachment lugs.
4. Pull up the net.
5. Hook one of the safety net's retaining hooks into the front roof mounting and then press it forward to the end position.
6. Hook the other of the safety net's retaining hooks on the opposite side and press it for-ward to the end position.
Removing and storing1. Undo the safety net from the roof mountingsby pressing the retaining hooks backwards.Allow the net to roll into the cassette. 2.
Rear fitting: Press the button on each side of the cas- sette in order to release the end pieces fromthe mounting eyelets. Lift out the safety net. Front fitting:Slide the cassette from the attachment lugs and lift out the safety net.
Related information
•
Loading (p. 227)
• Safety grille
* (p. 233)
• Cargo cover
* (p. 230)
• Load retaining eyelets (p. 228)
Safety grille
*
The safety grille prevents loads or pets in the cargo area from being thrown forward in thepassenger compartment.
The safety grille is crash-tested in accordance with the ECE R17 legal requirement and fulfilsVolvo's strength requirements.
For safety reasons, the safety grille must always be attached and anchored correctly.
WARNING
Under no circumstances may anybody remain in the cargo area while the car is moving. Thisis to avoid injury in the event of heavy brakingor an accident.

||
LOADING AND STORAGE
* Option/accessory.
234

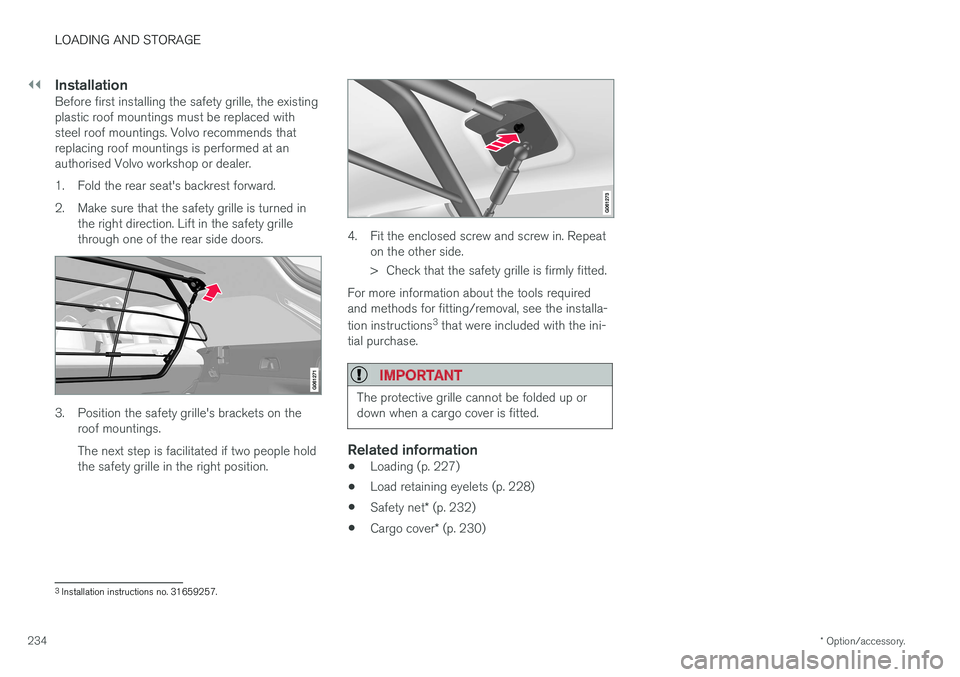

InstallationBefore first installing the safety grille, the existing plastic roof mountings must be replaced withsteel roof mountings. Volvo recommends thatreplacing roof mountings is performed at anauthorised Volvo workshop or dealer.
1. Fold the rear seat's backrest forward.
2. Make sure that the safety grille is turned in
the right direction. Lift in the safety grille through one of the rear side doors.
3. Position the safety grille's brackets on theroof mountings. The next step is facilitated if two people hold the safety grille in the right position.
4. Fit the enclosed screw and screw in. Repeaton the other side.
> Check that the safety grille is firmly fitted.
For more information about the tools required and methods for fitting/removal, see the installa- tion instructions 3
that were included with the ini-
tial purchase.
IMPORTANT
The protective grille cannot be folded up or down when a cargo cover is fitted.
Related information
• Loading (p. 227)
• Load retaining eyelets (p. 228)
• Safety net
* (p. 232)
• Cargo cover
* (p. 230)
3
Installation instructions no. 31659257.

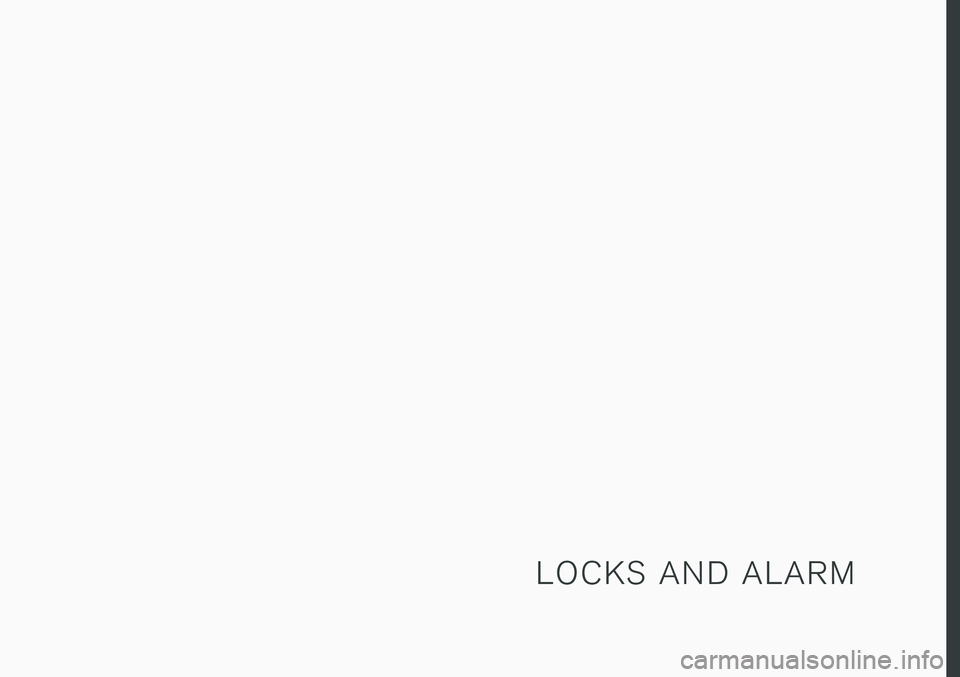

L O C K S A N D A L A R M

LOCKS AND ALARM
* Option/accessory.
236

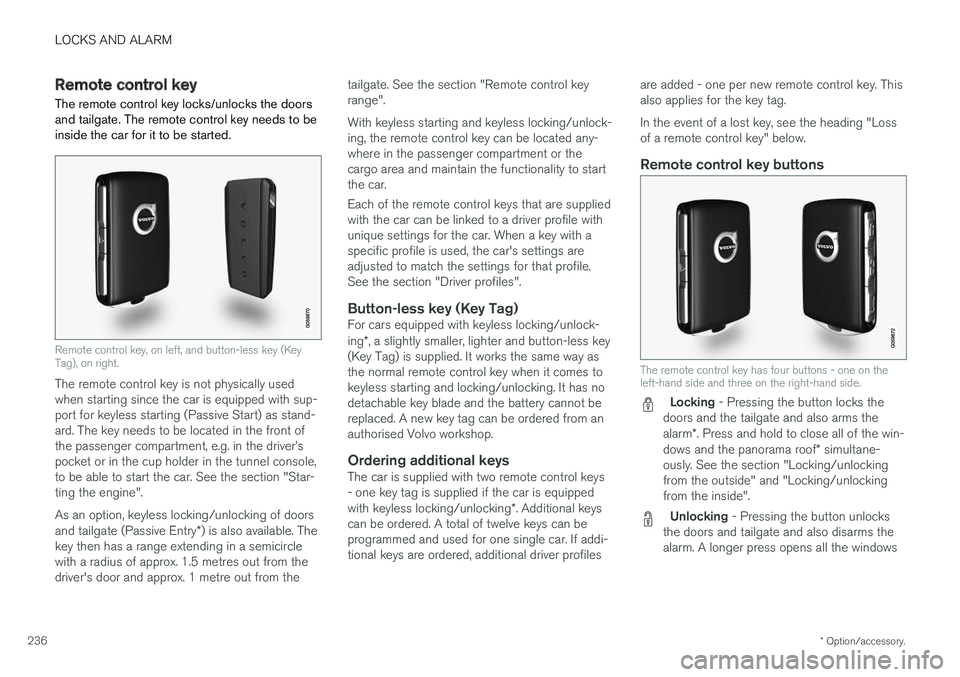

Remote control key
The remote control key locks/unlocks the doors and tailgate. The remote control key needs to beinside the car for it to be started.
Remote control key, on left, and button-less key (Key Tag), on right.
The remote control key is not physically used when starting since the car is equipped with sup-port for keyless starting (Passive Start) as stand-ard. The key needs to be located in the front ofthe passenger compartment, e.g. in the driver

LOCKS AND ALARM
}}
* Option/accessory.237

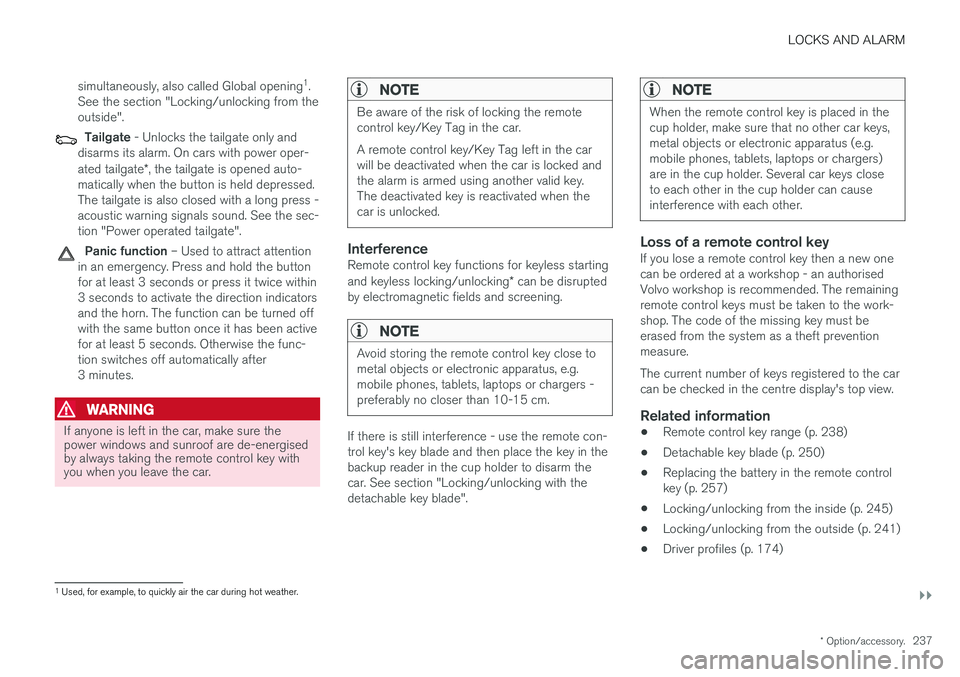

simultaneously, also called Global opening
1
.
See the section "Locking/unlocking from the outside".
Tailgate - Unlocks the tailgate only and
disarms its alarm. On cars with power oper- ated tailgate *, the tailgate is opened auto-
matically when the button is held depressed. The tailgate is also closed with a long press -acoustic warning signals sound. See the sec-tion "Power operated tailgate".
Panic function – Used to attract attention
in an emergency. Press and hold the button for at least 3 seconds or press it twice within3 seconds to activate the direction indicatorsand the horn. The function can be turned offwith the same button once it has been activefor at least 5 seconds. Otherwise the func-tion switches off automatically after3 minutes.
WARNING
If anyone is left in the car, make sure the power windows and sunroof are de-energisedby always taking the remote control key withyou when you leave the car.
NOTE
Be aware of the risk of locking the remote control key/Key Tag in the car. A remote control key/Key Tag left in the car will be deactivated when the car is locked andthe alarm is armed using another valid key.The deactivated key is reactivated when thecar is unlocked.
InterferenceRemote control key functions for keyless starting and keyless locking/unlocking * can be disrupted
by electromagnetic fields and screening.
NOTE
Avoid storing the remote control key close to metal objects or electronic apparatus, e.g.mobile phones, tablets, laptops or chargers -preferably no closer than 10-15 cm.
If there is still interference - use the remote con- trol key's key blade and then place the key in thebackup reader in the cup holder to disarm thecar. See section "Locking/unlocking with thedetachable key blade".
NOTE
When the remote control key is placed in the cup holder, make sure that no other car keys,metal objects or electronic apparatus (e.g.mobile phones, tablets, laptops or chargers)are in the cup holder. Several car keys closeto each other in the cup holder can causeinterference with each other.
Loss of a remote control keyIf you lose a remote control key then a new one can be ordered at a workshop - an authorisedVolvo workshop is recommended. The remainingremote control keys must be taken to the work-shop. The code of the missing key must beerased from the system as a theft preventionmeasure. The current number of keys registered to the car can be checked in the centre display's top view.
Related information
• Remote control key range (p. 238)
• Detachable key blade (p. 250)
• Replacing the battery in the remote controlkey (p. 257)
• Locking/unlocking from the inside (p. 245)
• Locking/unlocking from the outside (p. 241)
• Driver profiles (p. 174)
1
Used, for example, to quickly air the car during hot weather.

LOCKS AND ALARM
* Option/accessory.
238 •
Power operated tailgate
* (p. 253)
• Starting the car (p. 386)
• Red Key - Restricted remote control key
*
(p. 239)

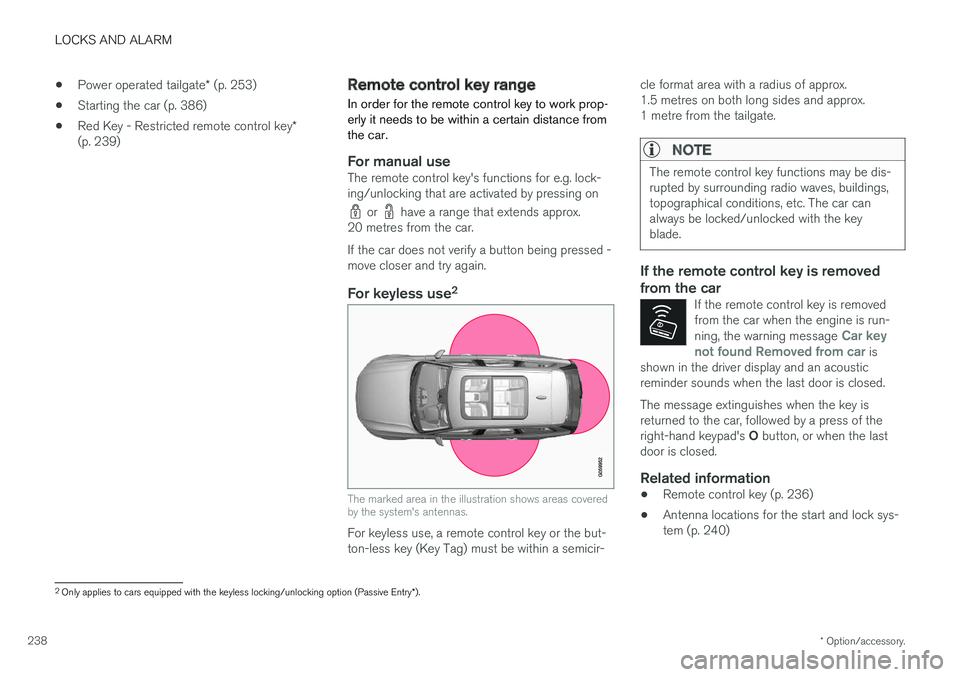

Remote control key range In order for the remote control key to work prop- erly it needs to be within a certain distance fromthe car.
For manual useThe remote control key's functions for e.g. lock- ing/unlocking that are activated by pressing on
or have a range that extends approx.
20 metres from the car. If the car does not verify a button being pressed - move closer and try again.
For keyless use 2
The marked area in the illustration shows areas covered by the system's antennas.
For keyless use, a remote control key or the but- ton-less key (Key Tag) must be within a semicir- cle format area with a radius of approx.1.5 metres on both long sides and approx.1 metre from the tailgate.
NOTE
The remote control key functions may be dis- rupted by surrounding radio waves, buildings,topographical conditions, etc. The car canalways be locked/unlocked with the keyblade.
If the remote control key is removed from the car
If the remote control key is removed from the car when the engine is run- ning, the warning message
Car key
not found Removed from car is
shown in the driver display and an acoustic reminder sounds when the last door is closed.
The message extinguishes when the key is returned to the car, followed by a press of the right-hand keypad's O button, or when the last
door is closed.
Related information
• Remote control key (p. 236)
• Antenna locations for the start and lock sys- tem (p. 240)
2
Only applies to cars equipped with the keyless locking/unlocking option (Passive Entry *).
