VOLVO V90 2017 Owners Manual

LOCKS AND ALARM
}}
* Option/accessory.239

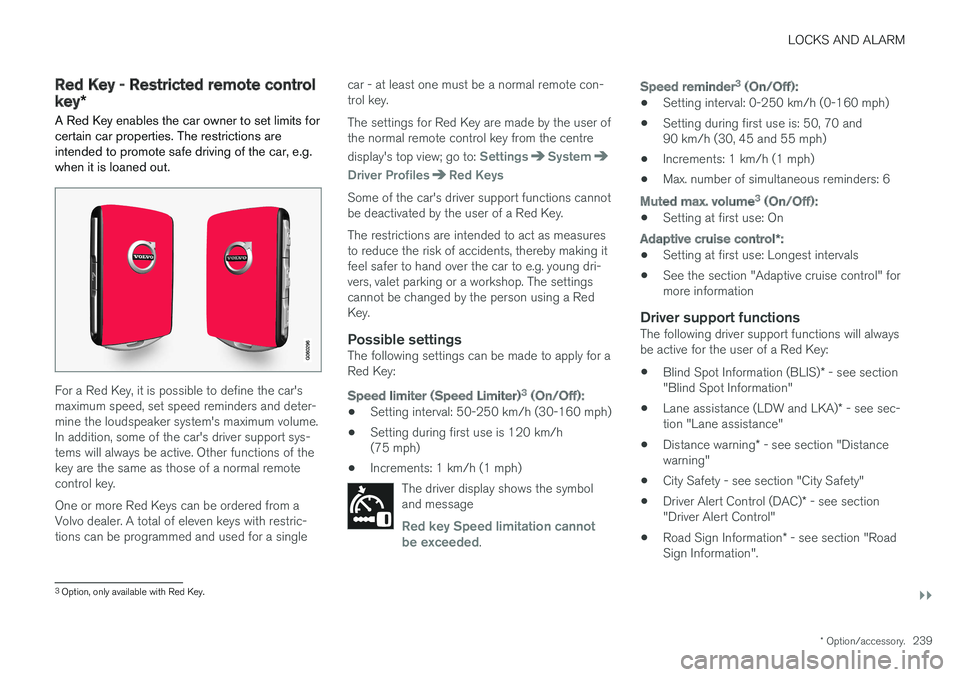

Red Key - Restricted remote control key*
A Red Key enables the car owner to set limits for certain car properties. The restrictions areintended to promote safe driving of the car, e.g.when it is loaned out.
For a Red Key, it is possible to define the car's maximum speed, set speed reminders and deter-mine the loudspeaker system's maximum volume.In addition, some of the car's driver support sys-tems will always be active. Other functions of thekey are the same as those of a normal remotecontrol key. One or more Red Keys can be ordered from a Volvo dealer. A total of eleven keys with restric-tions can be programmed and used for a single car - at least one must be a normal remote con-trol key. The settings for Red Key are made by the user of the normal remote control key from the centre display's top view; go to:
SettingsSystem
Driver ProfilesRed Keys
Some of the car's driver support functions cannot be deactivated by the user of a Red Key. The restrictions are intended to act as measures to reduce the risk of accidents, thereby making itfeel safer to hand over the car to e.g. young dri-vers, valet parking or a workshop. The settingscannot be changed by the person using a RedKey.
Possible settingsThe following settings can be made to apply for aRed Key:
Speed limiter (Speed Limiter)
3
(On/Off):
• Setting interval: 50-250 km/h (30-160 mph)
• Setting during first use is 120 km/h (75 mph)
• Increments: 1 km/h (1 mph)
The driver display shows the symboland message
Red key Speed limitation cannot
be exceeded.
Speed reminder 3
(On/Off):
• Setting interval: 0-250 km/h (0-160 mph)
• Setting during first use is: 50, 70 and 90 km/h (30, 45 and 55 mph)
• Increments: 1 km/h (1 mph)
• Max. number of simultaneous reminders: 6
Muted max. volume 3
(On/Off):
• Setting at first use: On
Adaptive cruise control
*:
• Setting at first use: Longest intervals
• See the section "Adaptive cruise control" for more information
Driver support functionsThe following driver support functions will alwaysbe active for the user of a Red Key:
• Blind Spot Information (BLIS)
* - see section
"Blind Spot Information"
• Lane assistance (LDW and LKA)
* - see sec-
tion "Lane assistance"
• Distance warning
* - see section "Distance
warning"
• City Safety - see section "City Safety"
• Driver Alert Control (DAC)
* - see section
"Driver Alert Control"
• Road Sign Information
* - see section "Road
Sign Information".
3 Option, only available with Red Key.

||
LOCKS AND ALARM
* Option/accessory.
240
Related information
• Remote control key (p. 236)
• Adaptive cruise control
* (p. 290)
• Distance Warning
* (p. 288)
• Blind Spot Information
* (p. 340)
• City Safety (p. 330)
• Lane Keeping Aid (p. 354)
• Driver Alert Control (p. 352)
• Road Sign Information
* (p. 348)
• Driver profiles (p. 174)

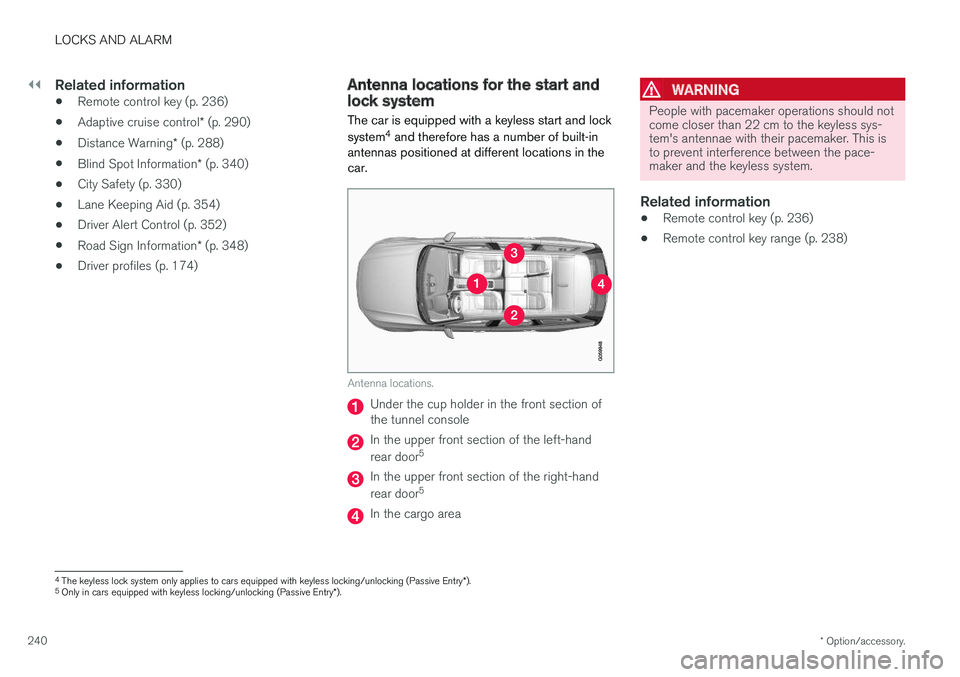

Antenna locations for the start and lock system
The car is equipped with a keyless start and lock system 4
and therefore has a number of built-in
antennas positioned at different locations in the car.
Antenna locations.
Under the cup holder in the front section of the tunnel console
In the upper front section of the left-hand rear door 5
In the upper front section of the right-hand rear door5
In the cargo area
WARNING
People with pacemaker operations should not come closer than 22 cm to the keyless sys-tem's antennae with their pacemaker. This isto prevent interference between the pace-maker and the keyless system.
Related information
•
Remote control key (p. 236)
• Remote control key range (p. 238)
4
The keyless lock system only applies to cars equipped with keyless locking/unlocking (Passive Entry *).
5 Only in cars equipped with keyless locking/unlocking (Passive Entry *).

LOCKS AND ALARM
}}
* Option/accessory.241

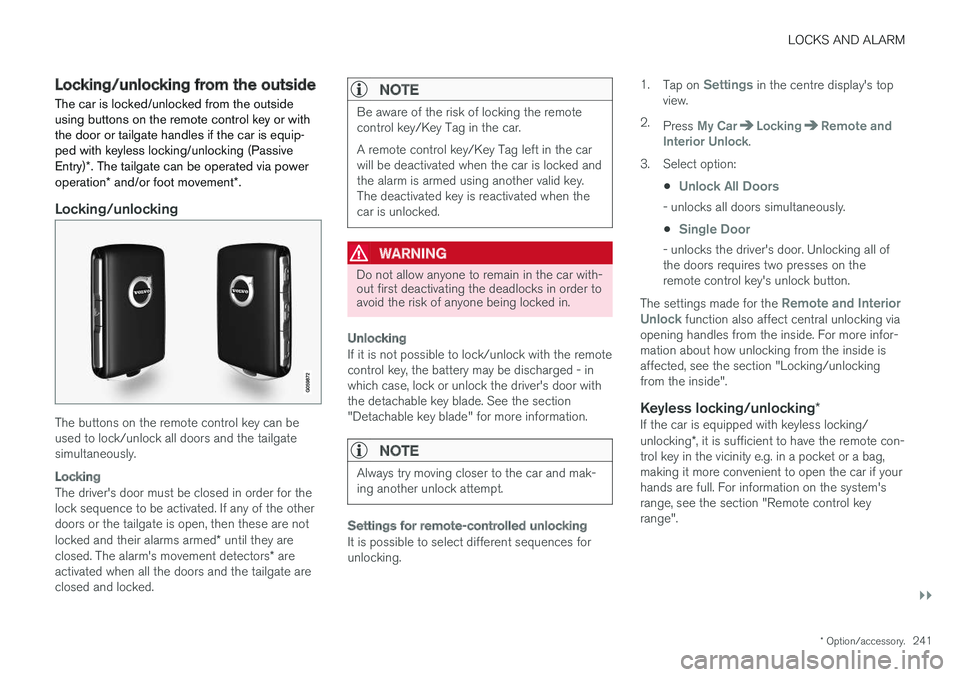

Locking/unlocking from the outside
The car is locked/unlocked from the outside using buttons on the remote control key or withthe door or tailgate handles if the car is equip-ped with keyless locking/unlocking (Passive Entry) *. The tailgate can be operated via power
operation * and/or foot movement *.
Locking/unlocking
The buttons on the remote control key can be used to lock/unlock all doors and the tailgatesimultaneously.
Locking
The driver's door must be closed in order for the lock sequence to be activated. If any of the otherdoors or the tailgate is open, then these are not locked and their alarms armed * until they are
closed. The alarm's movement detectors * are
activated when all the doors and the tailgate are closed and locked.
NOTE
Be aware of the risk of locking the remote control key/Key Tag in the car. A remote control key/Key Tag left in the car will be deactivated when the car is locked andthe alarm is armed using another valid key.The deactivated key is reactivated when thecar is unlocked.
WARNING
Do not allow anyone to remain in the car with- out first deactivating the deadlocks in order toavoid the risk of anyone being locked in.
Unlocking
If it is not possible to lock/unlock with the remote control key, the battery may be discharged - inwhich case, lock or unlock the driver's door withthe detachable key blade. See the section"Detachable key blade" for more information.
NOTE
Always try moving closer to the car and mak- ing another unlock attempt.
Settings for remote-controlled unlocking
It is possible to select different sequences for unlocking. 1.
Tap on
Settings in the centre display's top
view.
2. Press
My CarLockingRemote and
Interior Unlock.
3. Select option:
•
Unlock All Doors
- unlocks all doors simultaneously.
•
Single Door
- unlocks the driver's door. Unlocking all of the doors requires two presses on theremote control key's unlock button.
The settings made for the
Remote and Interior
Unlock function also affect central unlocking via
opening handles from the inside. For more infor- mation about how unlocking from the inside isaffected, see the section "Locking/unlockingfrom the inside".
Keyless locking/unlocking *If the car is equipped with keyless locking/ unlocking*, it is sufficient to have the remote con-
trol key in the vicinity e.g. in a pocket or a bag, making it more convenient to open the car if yourhands are full. For information on the system'srange, see the section "Remote control keyrange".

||
LOCKS AND ALARM
* Option/accessory.
242

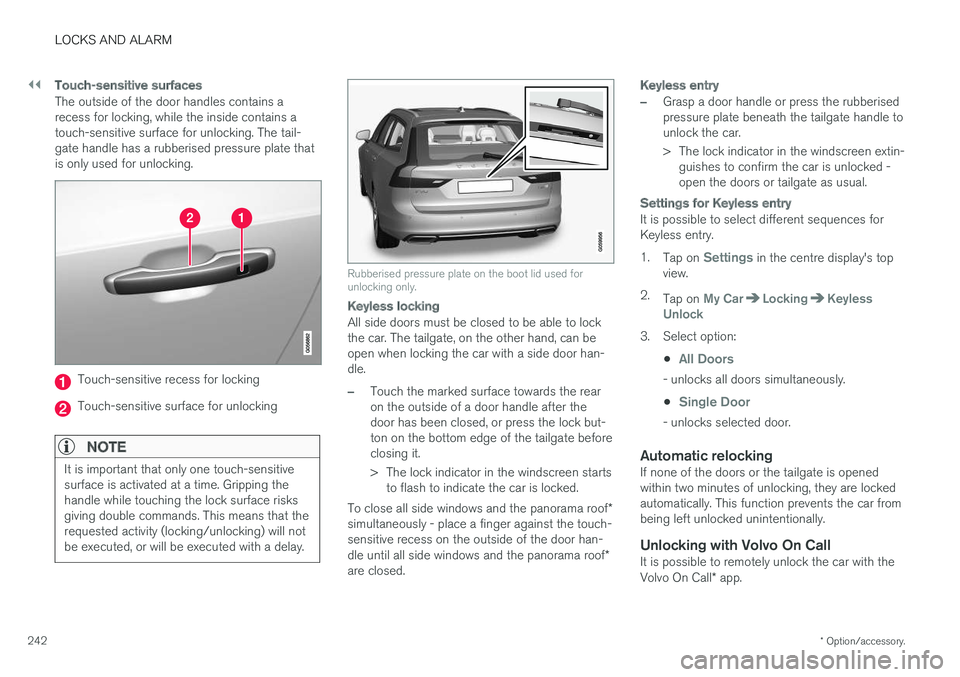

Touch-sensitive surfaces
The outside of the door handles contains a recess for locking, while the inside contains atouch-sensitive surface for unlocking. The tail-gate handle has a rubberised pressure plate thatis only used for unlocking.
Touch-sensitive recess for locking
Touch-sensitive surface for unlocking
NOTE
It is important that only one touch-sensitive surface is activated at a time. Gripping thehandle while touching the lock surface risksgiving double commands. This means that therequested activity (locking/unlocking) will notbe executed, or will be executed with a delay.
Rubberised pressure plate on the boot lid used for unlocking only.
Keyless locking
All side doors must be closed to be able to lock the car. The tailgate, on the other hand, can beopen when locking the car with a side door han-dle.
–Touch the marked surface towards the rear on the outside of a door handle after thedoor has been closed, or press the lock but-ton on the bottom edge of the tailgate beforeclosing it.
> The lock indicator in the windscreen starts
to flash to indicate the car is locked.
To close all side windows and the panorama roof *
simultaneously - place a finger against the touch- sensitive recess on the outside of the door han- dle until all side windows and the panorama roof *
are closed.
Keyless entry
–Grasp a door handle or press the rubberised pressure plate beneath the tailgate handle tounlock the car.
> The lock indicator in the windscreen extin- guishes to confirm the car is unlocked - open the doors or tailgate as usual.
Settings for Keyless entry
It is possible to select different sequences for Keyless entry. 1. Tap on
Settings in the centre display's top
view.
2. Tap on
My CarLockingKeyless
Unlock
3. Select option:
•
All Doors
- unlocks all doors simultaneously.
•
Single Door
- unlocks selected door.
Automatic relockingIf none of the doors or the tailgate is opened within two minutes of unlocking, they are lockedautomatically. This function prevents the car frombeing left unlocked unintentionally.
Unlocking with Volvo On CallIt is possible to remotely unlock the car with the Volvo On Call * app.

LOCKS AND ALARM
}}
* Option/accessory.243
Related information
•Remote control key (p. 236)
• Power operated tailgate
* (p. 253)
• Locking/unlocking the tailgate (p. 247)
• Opening/closing the tailgate with foot move- ment
* (p. 256)
• Remote control key range (p. 238)
• Detachable key blade (p. 250)
• Alarm
* (p. 262)

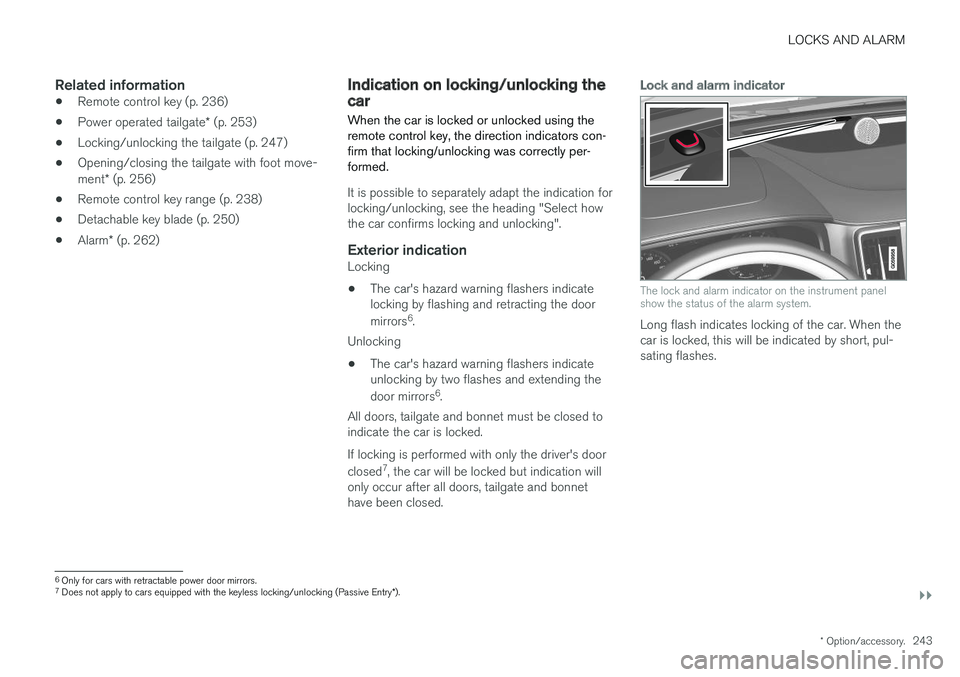

Indication on locking/unlocking the car
When the car is locked or unlocked using the remote control key, the direction indicators con-firm that locking/unlocking was correctly per-formed.
It is possible to separately adapt the indication for locking/unlocking, see the heading "Select howthe car confirms locking and unlocking".
Exterior indicationLocking
• The car's hazard warning flashers indicatelocking by flashing and retracting the door mirrors 6
.
Unlocking
• The car's hazard warning flashers indicate unlocking by two flashes and extending the door mirrors 6
.
All doors, tailgate and bonnet must be closed to indicate the car is locked. If locking is performed with only the driver's door closed 7
, the car will be locked but indication will
only occur after all doors, tailgate and bonnet have been closed.
Lock and alarm indicator
The lock and alarm indicator on the instrument panel show the status of the alarm system.
Long flash indicates locking of the car. When the car is locked, this will be indicated by short, pul-sating flashes.
6 Only for cars with retractable power door mirrors.
7 Does not apply to cars equipped with the keyless locking/unlocking (Passive Entry *).

||
LOCKS AND ALARM
* Option/accessory.
244

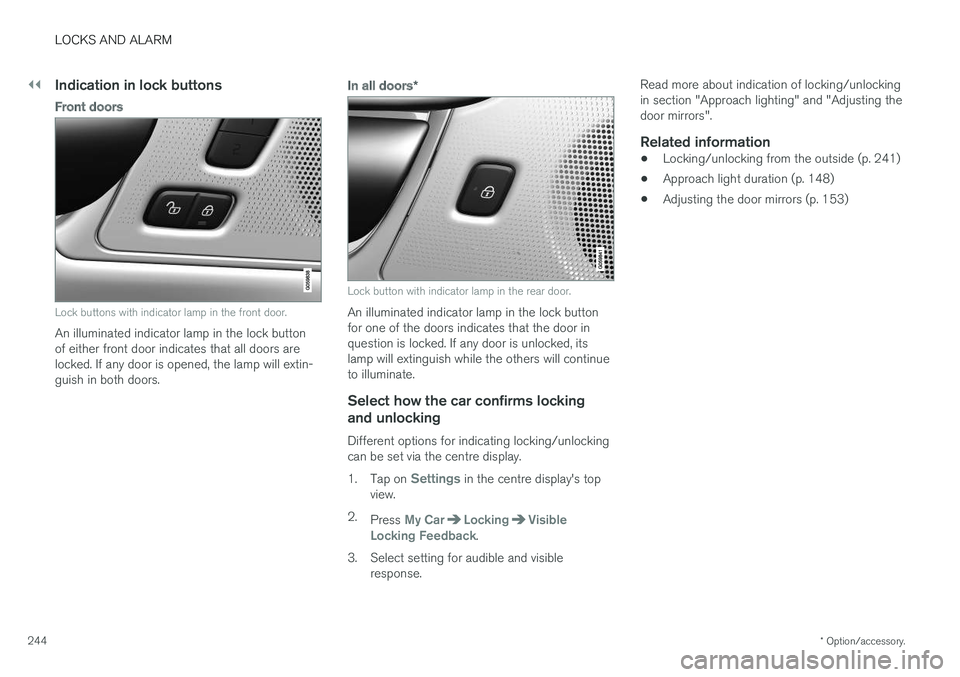

Indication in lock buttons
Front doors
Lock buttons with indicator lamp in the front door.
An illuminated indicator lamp in the lock button of either front door indicates that all doors arelocked. If any door is opened, the lamp will extin-guish in both doors.
In all doors *
Lock button with indicator lamp in the rear door.
An illuminated indicator lamp in the lock button for one of the doors indicates that the door inquestion is locked. If any door is unlocked, itslamp will extinguish while the others will continueto illuminate.
Select how the car confirms locking
and unlocking
Different options for indicating locking/unlockingcan be set via the centre display. 1. Tap on
Settings in the centre display's top
view.
2. Press
My CarLockingVisible
Locking Feedback.
3. Select setting for audible and visible response. Read more about indication of locking/unlocking in section "Approach lighting" and "Adjusting thedoor mirrors".
Related information
•
Locking/unlocking from the outside (p. 241)
• Approach light duration (p. 148)
• Adjusting the door mirrors (p. 153)

LOCKS AND ALARM
}}
* Option/accessory.245

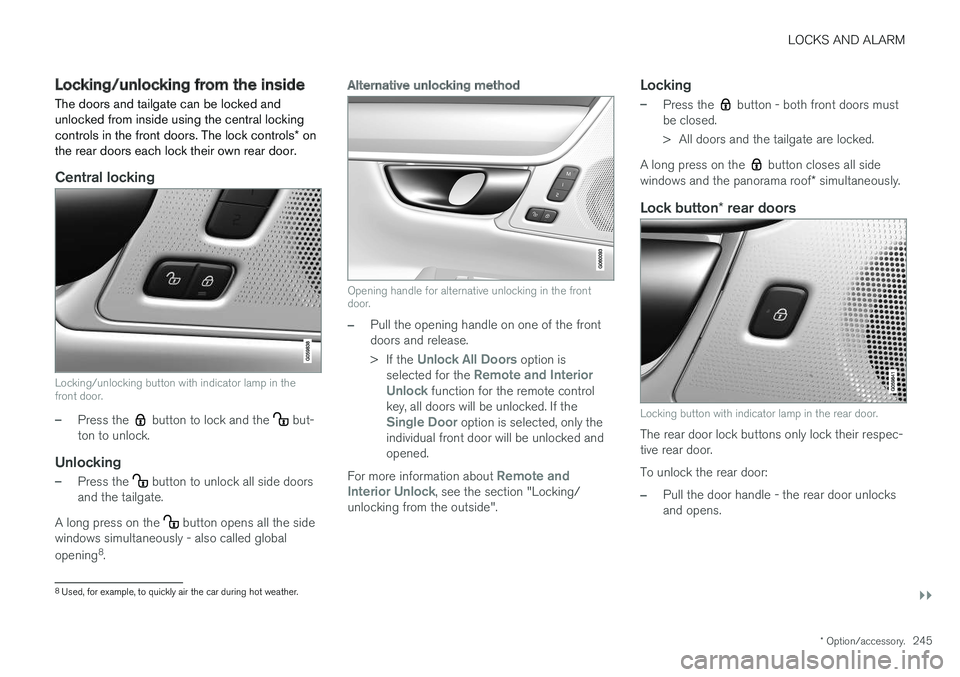

Locking/unlocking from the inside
The doors and tailgate can be locked and unlocked from inside using the central locking controls in the front doors. The lock controls * on
the rear doors each lock their own rear door.
Central locking
Locking/unlocking button with indicator lamp in the front door.
–Press the button to lock and the but-
ton to unlock.
Unlocking
–Press the button to unlock all side doors
and the tailgate.
A long press on the
button opens all the side
windows simultaneously - also called global opening 8
.
Alternative unlocking method
Opening handle for alternative unlocking in the front door.
–Pull the opening handle on one of the front doors and release. > If the
Unlock All Doors option is
selected for the Remote and Interior
Unlock function for the remote control
key, all doors will be unlocked. If the
Single Door option is selected, only the
individual front door will be unlocked and opened.
For more information about
Remote and
Interior Unlock, see the section "Locking/
unlocking from the outside".
Locking
–Press the button - both front doors must
be closed.
> All doors and the tailgate are locked.
A long press on the
button closes all side
windows and the panorama roof * simultaneously.
Lock button * rear doors
Locking button with indicator lamp in the rear door.
The rear door lock buttons only lock their respec- tive rear door. To unlock the rear door:
–Pull the door handle - the rear door unlocks and opens.
8
Used, for example, to quickly air the car during hot weather.

||
LOCKS AND ALARM
* Option/accessory.
246

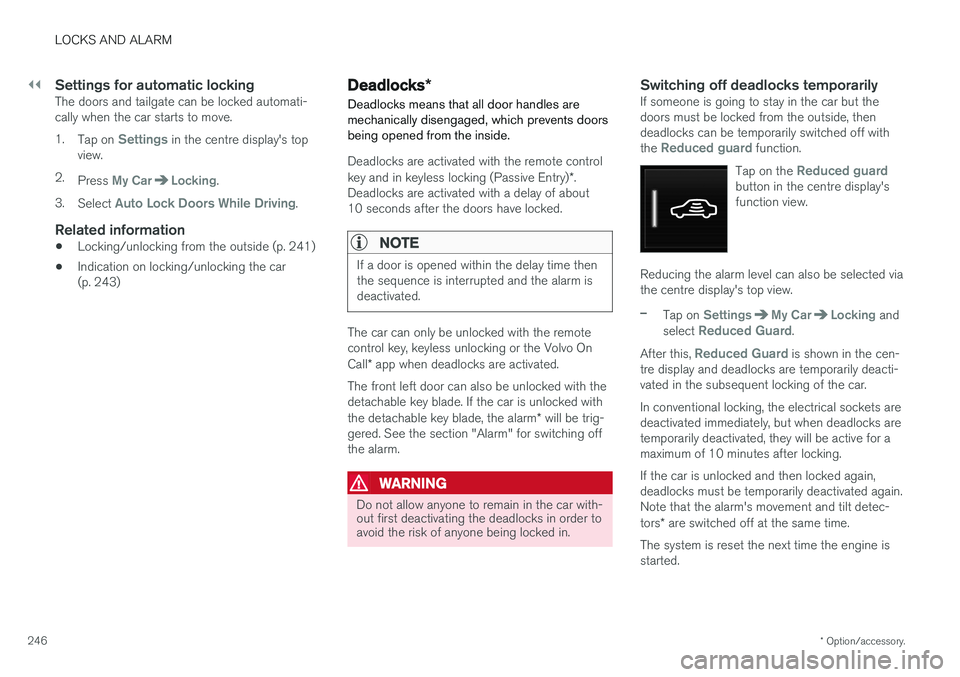

Settings for automatic lockingThe doors and tailgate can be locked automati- cally when the car starts to move. 1.
Tap on
Settings in the centre display's top
view.
2. Press
My CarLocking.
3. Select
Auto Lock Doors While Driving.
Related information
• Locking/unlocking from the outside (p. 241)
• Indication on locking/unlocking the car (p. 243)
Deadlocks
*
Deadlocks means that all door handles are mechanically disengaged, which prevents doorsbeing opened from the inside.
Deadlocks are activated with the remote control key and in keyless locking (Passive Entry) *.
Deadlocks are activated with a delay of about 10 seconds after the doors have locked.
NOTE
If a door is opened within the delay time then the sequence is interrupted and the alarm isdeactivated.
The car can only be unlocked with the remote control key, keyless unlocking or the Volvo On Call * app when deadlocks are activated.
The front left door can also be unlocked with the detachable key blade. If the car is unlocked with the detachable key blade, the alarm * will be trig-
gered. See the section "Alarm" for switching off the alarm.
WARNING
Do not allow anyone to remain in the car with- out first deactivating the deadlocks in order toavoid the risk of anyone being locked in.
Switching off deadlocks temporarilyIf someone is going to stay in the car but the doors must be locked from the outside, thendeadlocks can be temporarily switched off with the
Reduced guard function.
Tap on the
Reduced guardbutton in the centre display's function view.
Reducing the alarm level can also be selected via the centre display's top view.
–Tap on SettingsMy CarLocking and
select Reduced Guard.
After this,
Reduced Guard is shown in the cen-
tre display and deadlocks are temporarily deacti- vated in the subsequent locking of the car. In conventional locking, the electrical sockets are deactivated immediately, but when deadlocks aretemporarily deactivated, they will be active for amaximum of 10 minutes after locking. If the car is unlocked and then locked again, deadlocks must be temporarily deactivated again.Note that the alarm's movement and tilt detec- tors * are switched off at the same time.
The system is reset the next time the engine is started.

LOCKS AND ALARM
}}
* Option/accessory.247
NOTE
•Remember that the alarm is activated when the car is locked.
• If any of the doors are opened from theinside then the alarm is triggered.
Related information
• Remote control key (p. 236)
• Locking/unlocking from the outside (p. 241)
• Locking/unlocking from the inside (p. 245)
• Locking/unlocking with the detachable key blade (p. 251)
• Alarm
* (p. 262)

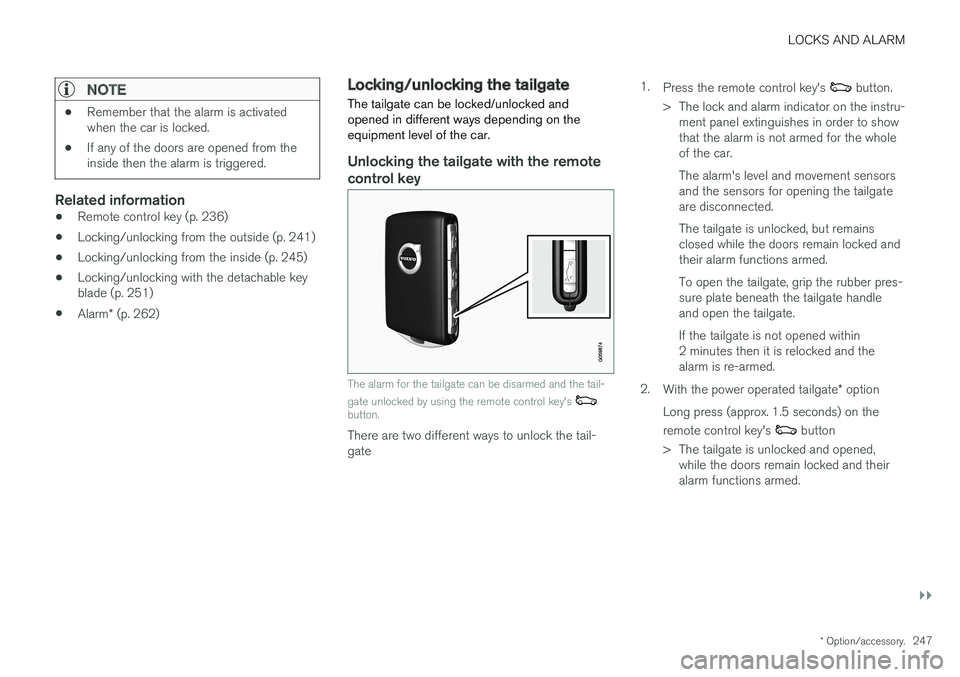

Locking/unlocking the tailgate The tailgate can be locked/unlocked and opened in different ways depending on theequipment level of the car.
Unlocking the tailgate with the remote
control key
The alarm for the tailgate can be disarmed and the tail- gate unlocked by using the remote control key's
button.
There are two different ways to unlock the tail- gate 1.
Press the remote control key's
button.
> The lock and alarm indicator on the instru- ment panel extinguishes in order to show that the alarm is not armed for the wholeof the car. The alarm's level and movement sensors and the sensors for opening the tailgateare disconnected. The tailgate is unlocked, but remains closed while the doors remain locked andtheir alarm functions armed. To open the tailgate, grip the rubber pres- sure plate beneath the tailgate handleand open the tailgate. If the tailgate is not opened within 2 minutes then it is relocked and thealarm is re-armed.
2. With the power operated tailgate * option
Long press (approx. 1.5 seconds) on the remote control key's
button
> The tailgate is unlocked and opened, while the doors remain locked and their alarm functions armed.

||
LOCKS AND ALARM
* Option/accessory.
248

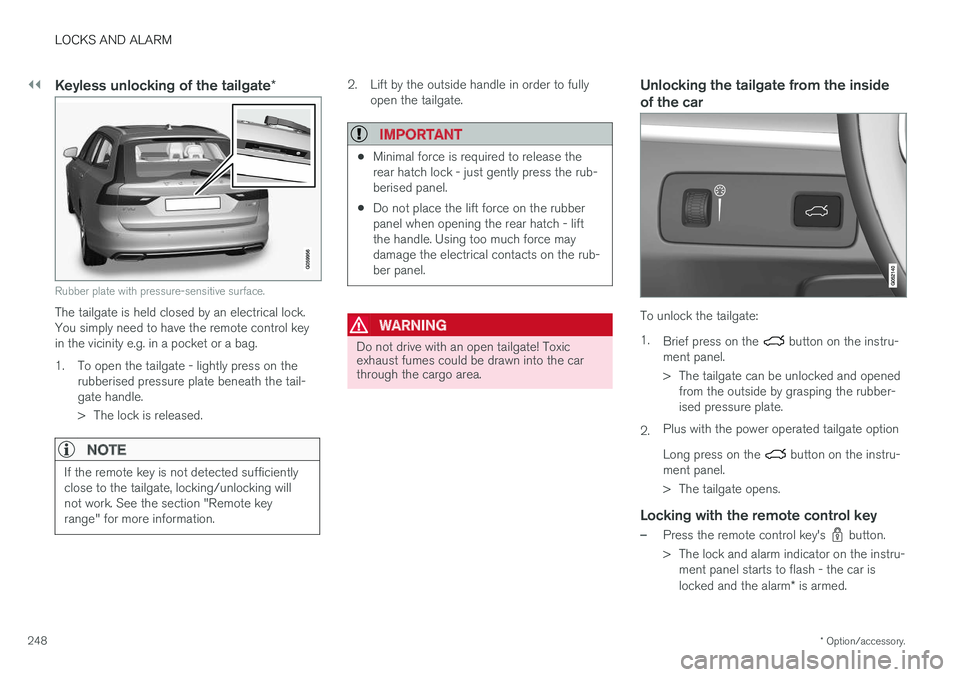

Keyless unlocking of the tailgate *
Rubber plate with pressure-sensitive surface.
The tailgate is held closed by an electrical lock. You simply need to have the remote control keyin the vicinity e.g. in a pocket or a bag.
1. To open the tailgate - lightly press on the
rubberised pressure plate beneath the tail- gate handle.
> The lock is released.
NOTE
If the remote key is not detected sufficiently close to the tailgate, locking/unlocking willnot work. See the section "Remote keyrange" for more information.
2. Lift by the outside handle in order to fullyopen the tailgate.
IMPORTANT
•Minimal force is required to release the rear hatch lock - just gently press the rub-berised panel.
• Do not place the lift force on the rubberpanel when opening the rear hatch - liftthe handle. Using too much force maydamage the electrical contacts on the rub-ber panel.
WARNING
Do not drive with an open tailgate! Toxic exhaust fumes could be drawn into the carthrough the cargo area.
Unlocking the tailgate from the inside of the car
To unlock the tailgate: 1.
Brief press on the
button on the instru-
ment panel.
> The tailgate can be unlocked and opened from the outside by grasping the rubber- ised pressure plate.
2. Plus with the power operated tailgate option Long press on the
button on the instru-
ment panel.
> The tailgate opens.
Locking with the remote control key
–Press the remote control key's button.
> The lock and alarm indicator on the instru- ment panel starts to flash - the car is locked and the alarm * is armed.
