VOLVO V90 2017 Owners Manual

LOCKS AND ALARM
}}
* Option/accessory.249
Related information
•Remote control key (p. 236)
• Power operated tailgate
* (p. 253)
• Opening/closing the tailgate with foot move- ment
* (p. 256)
Using private locking
The tailgate can be locked with the private lock- ing function when the car is taken in for service,left at a hotel or similar.
NOTE
The car needs to be in ignition mode I as a
minimum for the private locking function to be activated.
Function button for private locking. Depending on the cur- rent status of the lock,
Private
locking unlocked or Private
locking locked is shown.
Enter the security code before using for the first time
A security code needs to be selected during the first time the function is used. It can then be usedto deactivate private locking if the selected PINcode has been lost or forgotten. The securitycode acts as a PUK code for all subsequent PINcodes set for the private locking function. Save the security code in a safe place. 1. The security code can be activated from the
function view or the top view in the centre display.
• Tap on the
Private Locking button in the
function view.
Or:
• Tap on
Settings in the top view. Tap on
My CarLocking and select Private
Locking.
> A pop-up window is shown.
2. Enter the desired security code. > The security code is saved. The privatelocking function is now ready to be acti- vated.
If the system has been reset then the above pro-cedure needs to be repeated.
Activate private locking1. The function can be activated from the func- tion view or the top view in the centre display.
• Tap on the
Private Locking button in the
function view.
Or:
• Tap on
Settings in the top view. Tap on
My CarLocking and select Private
Locking.
> A pop-up window is shown.

||
LOCKS AND ALARM
* Option/accessory.
250 2. Enter the code to be used in order to unlock
the tailgate after locking and tap on
Confirm.
> The tailgate is locked. Locking is con- firmed by a green indication at the button in the function view and the private lock-ing box being ticked in the settings view.
Deactivate private locking1. The function can be deactivated from the function view or the top view in the centredisplay.
• Tap on the
Private Locking button in the
function view.
Or:
• Tap on
Settings in the top view. Tap on
My CarLocking and select Private
Locking.
> A pop-up window is shown.
2. Enter the code that was used for locking and tap on
Confirm.
> The tailgate is unlocked. Unlocking is con- firmed by the green indication at the but- ton in the function view disappearing andthe tick disappearing from the privatelocking box in the settings view.
NOTE
If the PIN code has been lost/forgotten, or if the wrong PIN code has been entered morethan three times, the security code can beused to deactivate the private locking.
NOTE
Is private locking is activated and the car is unlocked via Volvo On Call * or the Volvo On
Call * app, private locking will be deactivated
automatically.
Related information
• Using the glovebox (p. 225)
• Locking/unlocking the tailgate (p. 247)
Detachable key blade The remote control key contains a detachable key blade of metal with which a number of func-tions can be activated and some operations car-ried out.
The key blade's unique code is provided by authorised Volvo workshops, which are recom-mended when ordering new key blades.
The key blade's application areasUsing the remote control key's detachable keyblade:
• the left-hand 9
front door can be opened
manually if central locking cannot be acti-vated with the remote control key.
• all doors are emergency locked - see thesection "Locking/unlocking with detachablekey blade".
• the rear doors' mechanical child safety lockscan be activated/deactivated - see the sec-tion "Child safety locks".
The button-less key 10
(Key Tag) does not have a
detachable key blade. If necessary, use thedetachable key blade from the normal remotecontrol key.
9 This applies whether the car is left-hand drive or right-hand drive.
10 Supplied with cars equipped with the keyless locking/unlocking option (Passive Entry *).

LOCKS AND ALARM
}}
251
Detaching the key blade
Hold the remote control key with the
front visible and the Volvo logo facing the right way - slide the button at bottom edgeby the key ring to the right. Guide the frontside's shell a few millimetres upwards.
The shell will then come free and can be
lifted off the key.
Detach the key blade by angling it up.
Return the key blade to its intended position in the remote control key after use.
Refit the shell by pressing it downward
until a clicking sound is heard.
Then slide the shell back sedan.
> A further click will indicate that the shell is securely attached.
Related information
• Locking/unlocking with the detachable key blade (p. 251)
• Child safety locks (p. 261)
• Remote control key (p. 236)
Locking/unlocking with the detachable key blade
Amongst other things, the detachable key blade can be used to unlock the car from the outside -e.g. if the remote control key's battery hasbecome discharged.
Unlocking
Pull out the front door handle on the left- hand side 11
to its end position so that the
lock cylinder become visible.
Insert the key in the lock cylinder.
Turn clockwise 45 degrees so that the key blade is pointing straight back.
Turn the key back 45 degrees to its starting position. Remove the key from the lock cylin-der and release the handle so that the rearsection of the handle is resting against thecar again.
11 This applies whether the car is right-hand drive or left-hand drive.

||
LOCKS AND ALARM
* Option/accessory.
252 5. Pull out the handle.
> The door opens.
Locking will be performed in the same way, but with an anticlockwise turn 45 degrees instead ofclockwise in step (3).
Switching off the alarm *
NOTE
When the door is unlocked using the key blade and is then opened, the alarm is trig-gered.
The backup reader's location in the cup holder.
Deactivate the alarm as follows:
1. Place the remote control key in the backup
reader in the bottom of the cup holder in the tunnel console. 2.
Then turn the start knob to START and
release it.
> The control automatically returns to its starting position - the alarm signal stops and the alarm switches off.
LockingIt is also possible to lock the car with the remotecontrol key's detachable key blade e.g. in theevent of a loss of power or if the key's batteryhas become discharged. The left-hand front door can be locked with its lock cylinder and the detachable key blade. Other doors have no lock cylinders and instead have a lock switch on the end of each door whichmust be depressed using the key blade - they arethen mechanically locked/blocked to preventthem being opened from outside. The doors can still be opened from the inside.
Manual locking of the door. Not to be mixed up with the child safety locks.
–Remove the detachable key blade from the remote control key. Insert the key blade inthe hole for lock reset and press the key inuntil the key bottoms, approx. 12 mm.
The door can be opened from both the out- side and the inside.
The door is blocked against opening from the outside. To return to position A, the innerdoor handle must be opened.
The doors can also be unlocked with the unlockbutton on the remote control key or with the cen-tral locking button on the driver's door.

LOCKS AND ALARM
}}
* Option/accessory.253
NOTE
•A door's lock reset only locks that partic- ular door - not all doors simultaneously.
• A manually locked rear door with acti-vated manual or electric child safety lockscannot be opened from either the outsideor the inside. A rear door that is locked inthis way can only be unlocked with theremote control key or central locking but-ton.
Related information
• Detachable key blade (p. 250)
Power operated tailgate
*
The car's tailgate can be opened/closed electri- cally.
Opening/closing via a foot movement is also available as an extended option - see the section"Opening/closing the power operated tailgatewith foot movement" for more information.
OpeningThe tailgate can be opened with its handle, with foot movement *, a button on the instrument
panel or the remote control key.
Opening/closing button on the instrument panel.
Choose one of the following options to open the tailgate:
• Light press on the tailgate handle.
• Long press on the instrument panel's
button. Keep it depressed until the tailgate starts to open.
• Long press on the remote control key's
button. Keep it depressed until the tailgate starts to open.
ClosingThe tailgate can be closed via the instrument panel's button, with foot movement *, with the
remote control key or the buttons 12
along the
bottom edge of the tailgate. Choose one of the following options to close the tailgate.
–Long press on the instrument panel's
button or the remote control key's but-
ton.
> The tailgate closes automatically and acoustic signals sound - the tailgate remains unlocked.
12A car with keyless locking/entry (Passive Entry *) has one button for closing and one button for closing and locking.

||
LOCKS AND ALARM
* Option/accessory.
254
Button for closing and locking on the underside of the tailgate.
–Press the button 12
on the underside of
the tailgate to close.
> The tailgate closes automatically - the tail- gate remains unlocked.
NOTE
The button is active 24 hours after the hatch has been left open. Thereafter, it must beclosed manually.
–Press the button 12
on the underside of
the tailgate to close it and simultaneously lock the tailgate and doors (all doors must beclosed for locking).
> The tailgate closes automatically - the tail- gate and doors are locked, and the alarm *
is armed.
NOTE
If the remote key is not detected sufficiently close to the tailgate, locking/unlocking willnot work. See the section "Remote keyrange" for more information.
NOTE
When using key-free * blocking/closing, three
signals will sound if the key is not detected sufficiently close to the tailgate. See the sec-tions "Remote key range" and "Locks andremote keys" for more information.
IMPORTANT
During manual tailgate operation, open or close it slowly. Do not use force to open/close it if there is resistance. It may be dam-aged and stop working correctly.
Cancel opening/closing
–There are five ways to cancel opening/clos- ing:
• Press the button on the instrument panel.
• Press the remote control key's button.
• Press the close button 12
along the bottom
edge of the tailgate.
• Press the rubberised pressure platebeneath the outside handle.
• Using the foot movement
* (see section
"Opening/closing power operated tailgatewith foot movement" for more informa-tion).
> Tailgate movement will be interrupted and the tailgate will stop and can then bemanoeuvred manually.
Programmable max. openingThe maximum opening position of the tailgatecan be adjusted, e.g. to suit a low ceiling height ina garage. To adjust max. opening:
1. Open the tailgate - stop it in the open posi- tion.
12A car with keyless locking/entry (Passive Entry *) has one button for closing and one button for closing and locking.

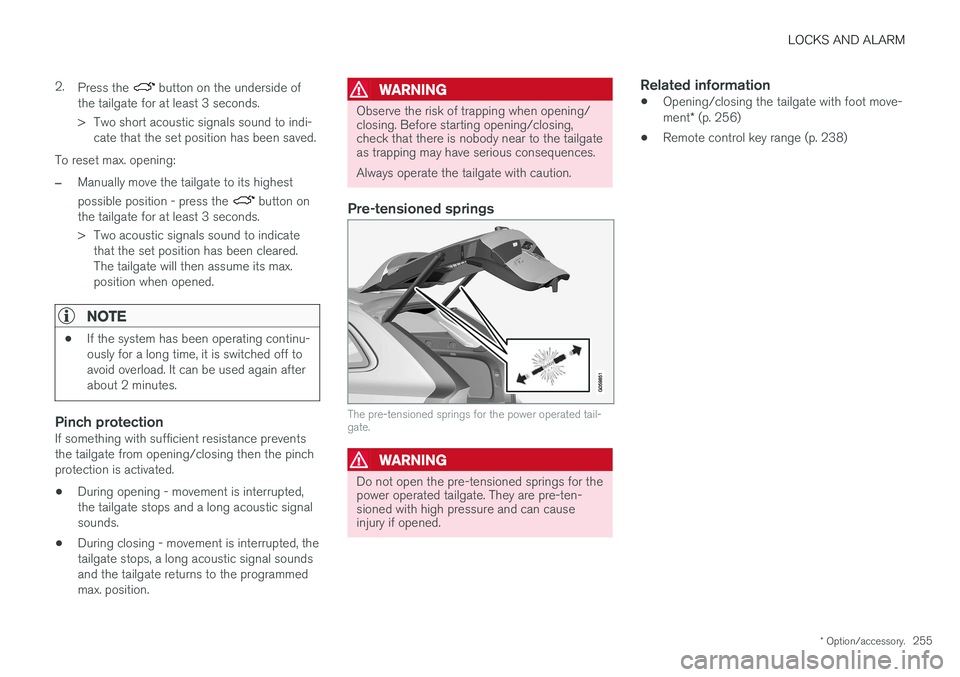

LOCKS AND ALARM
* Option/accessory.255
2.
Press the
button on the underside of
the tailgate for at least 3 seconds.
> Two short acoustic signals sound to indi- cate that the set position has been saved.
To reset max. opening:
–Manually move the tailgate to its highest possible position - press the
button on
the tailgate for at least 3 seconds.
> Two acoustic signals sound to indicate that the set position has been cleared. The tailgate will then assume its max.position when opened.
NOTE
• If the system has been operating continu- ously for a long time, it is switched off toavoid overload. It can be used again afterabout 2 minutes.
Pinch protectionIf something with sufficient resistance prevents the tailgate from opening/closing then the pinchprotection is activated.
• During opening - movement is interrupted,the tailgate stops and a long acoustic signalsounds.
• During closing - movement is interrupted, thetailgate stops, a long acoustic signal soundsand the tailgate returns to the programmedmax. position.
WARNING
Observe the risk of trapping when opening/ closing. Before starting opening/closing,check that there is nobody near to the tailgateas trapping may have serious consequences. Always operate the tailgate with caution.
Pre-tensioned springs
The pre-tensioned springs for the power operated tail- gate.
WARNING
Do not open the pre-tensioned springs for the power operated tailgate. They are pre-ten-sioned with high pressure and can causeinjury if opened.
Related information
• Opening/closing the tailgate with foot move- ment
* (p. 256)
• Remote control key range (p. 238)

LOCKS AND ALARM
* Option/accessory.
256
Opening/closing the tailgate with foot movement *
To facilitate the operation of the tailgate when your hands are occupied, it can be opened/closed by means of a forward kicking motionunder the rear bumper.
The sensor is positioned to the left of centre in the bumper 13
.
One of the car's remote control keys must be within range 14
behind the car in order for open-
ing/closing to be possible. This also applies to an already unlocked car in order to avoid accidentalopening e.g. in a car wash.
Operation
Kicking motion within the detector's valid activation area.
Opening/closing
NOTE
The foot-operated tailgate function is availa- ble in two versions:
• Opening and closing with foot movement
• Only unlocking with foot movement (liftup the tailgate manually to open it)
Note that the function for opening and clos-ing with foot movement requires the "Power operated tailgate" * option.
–Make one slow, forward kicking motion
under the left part of the rear bumper. Then take a step back. The bumper must not betouched.
> A short acoustic signal sounds when opening/closing is activated - the tailgate is opened/closed. If the tailgate is on open position then it is always closed on activation via foot move-ment.
The tailgate can also be closed via the instrumentpanel's button, the remote control key or the but- ton(s) 15
under the tailgate. For more information,
see the section "Power operated tailgate". If several kicking motions take place without an approved remote control key being locatedbehind the car, opening will not be possible untilafter a certain delay. Do not leave your foot positioned under the car during the kicking motion. This could cause acti-vation to fail.
Cancel opening/closing
–Make one slow forward kicking motion when
opening/closing is in progress in order to stop the movement of the tailgate.
The remote control key does not have to be inthe vicinity of the car to cancel opening/closing.
13 If the car is equipped with skid plate/diffuser * then the detector is positioned out towards the left-hand corner of the bumper.
14 See the section "Remote control key range" for more information.
15 Only applies to a car equipped with keyless locking/entry (Passive Entry) *.

LOCKS AND ALARM
}}
* Option/accessory.257
NOTE
There is a risk of reduced function, or no function, if the rear bumper is loaded withlarge amounts of ice, snow, dirt or similar. Forthis reason, make sure you keep it clean.
NOTE
Pay attention to the possibility that the sys- tem may be activated in a car wash or similarif the remote key is within range.
Related information
•Locking/unlocking the tailgate (p. 247)
• Power operated tailgate
* (p. 253)
• Remote control key range (p. 238)
Replacing the battery in the remote control key
The battery in the remote control key needs to be replaced when it has become discharged.
NOTE
All batteries have a limited service life and must eventually be replaced (does not applyto Key Tag). The service life of the battery var-ies depending on how often the vehicle/keyis used.
The battery for the remote control key should be replaced if:
the information symbol illuminates and the message
Car key battery low
See Owner's manual is shown in the
driver display
and/or
• the locks repeatedly do not react to signals from the remote control key within 20 metresfrom the car.
NOTE
Always try moving closer to the car and mak- ing another unlock attempt.
The battery in the button-less key 16
(Key Tag)
cannot be replaced - a new key can be ordered from an authorised Volvo workshop.
IMPORTANT
A discharged Key Tag must be handed over to an authorised Volvo workshop. The keymust be deleted from the car since it is stillpossible to use it to start the car via back-upstart.
16 This key is supplied with a car equipped with the keyless locking/entry option (Passive Entry *).

||
LOCKS AND ALARM
258
Opening and changing
Hold the remote control key with the
front visible and the Volvo logo facing the right way - slide the button at bottom edgeby the key ring to the right. Slide the frontside's shell a few millimetres upwards.
The shell will then come free and can be
lifted off the key.
Move the button to the side and slide the
back shell a few millimetres upwards.
The shell will then come free and can be
lifted off the key.
Use a screwdriver or similar to turn the bat- tery cover anticlockwise until the markings meet at the OPEN text.
Carefully lift away the battery cover by press- ing e.g. a fingernail into the recess. Then prize the battery cover upwards.
The battery ( +) side is facing upwards. Then
carefully prize loose the battery as illustrated.
IMPORTANT
Avoid touching new batteries and their con- tact surfaces with your fingers as this mayimpair their function.
