VOLVO V90 2017 Owners Manual

LOCKS AND ALARM
}}
259
Install a new battery with the (+) side up.
Avoid touching the remote control key's bat- tery contacts with your fingers.
Place the battery in the holder with the
edge down. Then slide the battery forwards so that it fastens under the two plasticcatches.
Press the battery down so that it fastens
under the upper black plastic catch.
NOTE
Use batteries with the designation CR2032, 3 V.
NOTE
Volvo recommends that the batteries to be used in the remote control key fulfil UNManual of Test and Criteria, Part III, sub-section 38.3. Batteries fitted in the factory orreplaced by an authorised Volvo workshopfulfil the above criteria.
Refit the battery cover and turn it clockwise until the marking aligns with the CLOSE text.
Reposition the rear side's shell and press
it down until a clicking sound can be heard.
Then slide the shell back sedan.
> A further click will indicate that the shell is properly positioned and securely attached.

||
LOCKS AND ALARM
* Option/accessory.
260

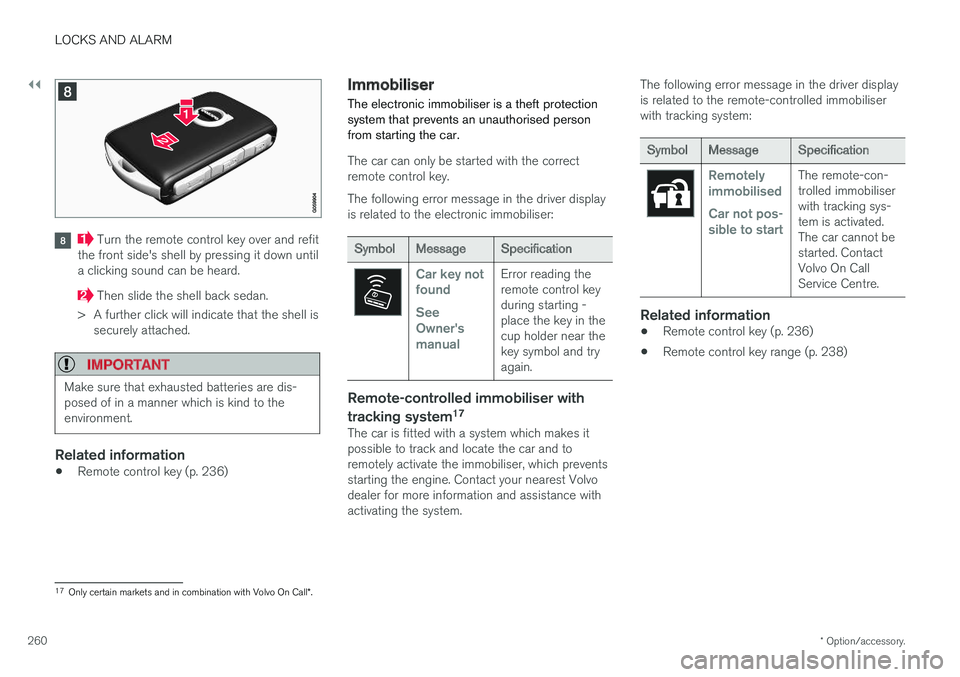

Turn the remote control key over and refit
the front side's shell by pressing it down until a clicking sound can be heard.
Then slide the shell back sedan.
> A further click will indicate that the shell is securely attached.
IMPORTANT
Make sure that exhausted batteries are dis- posed of in a manner which is kind to theenvironment.
Related information
• Remote control key (p. 236)
Immobiliser
The electronic immobiliser is a theft protection system that prevents an unauthorised personfrom starting the car.
The car can only be started with the correct remote control key. The following error message in the driver display is related to the electronic immobiliser:
Symbol Message Specification
Car key not found See Owner'smanualError reading the remote control keyduring starting -place the key in thecup holder near thekey symbol and tryagain.
Remote-controlled immobiliser with tracking system 17
The car is fitted with a system which makes it possible to track and locate the car and toremotely activate the immobiliser, which preventsstarting the engine. Contact your nearest Volvodealer for more information and assistance withactivating the system. The following error message in the driver displayis related to the remote-controlled immobiliserwith tracking system:
Symbol
Message Specification
Remotely immobilised Car not pos- sible to startThe remote-con- trolled immobiliserwith tracking sys-tem is activated.The car cannot bestarted. ContactVolvo On CallService Centre.
Related information
•Remote control key (p. 236)
• Remote control key range (p. 238)
17
Only certain markets and in combination with Volvo On Call *.

LOCKS AND ALARM
}}
* Option/accessory.261
Child safety locks
The child safety locks prevent children from being able to open a rear door from the inside. There is an electric * and a manual lock.
Electric activation/deactivation *The electric child safety locks can be activated/ deactivated in all ignition positions higher than 0.
Activation/deactivation can be performed up to 2 minutes after switching off the engine, providedthat no door is opened. See the section "Ignitionposition" for more information.
Button for electric activation/deactivation.
1. Start the engine or choose an ignition posi-
tion higher than 0. 2. Press the button in the driver's door control
panel.
> The driver display shows the message
Rear child lock Activated and the but-
ton's lamp illuminates - the locks are active.
When the electric child safety lock is active thenthe rear:
• windows can only be opened with the driver'sdoor control panel
• doors cannot be opened from inside.
To deactivate the locks:
–Press the button in the driver's door control panel.
> The driver display shows the message
Rear child lock Deactivated and the
button's lamp goes out - the locks are deactivated.
The current setting is stored when the engine isswitched off - if the child safety locks are acti-vated at engine shutdown, the function willremain activated the next time the engine isstarted.
Symbol Message Specification
Rear child lock Acti-
vatedChild safety locks are acti-vated.
Rear child lock Deacti-
vatedChild safety locks are deacti-vated.
Manual activation/deactivation
Manual child safety locks. Not to be mixed up with man- ual door locks.
–Use the remote control key's detachable key blade to turn the knob. For more information,see the section "Detachable key blade".

||
LOCKS AND ALARM
* Option/accessory.
262

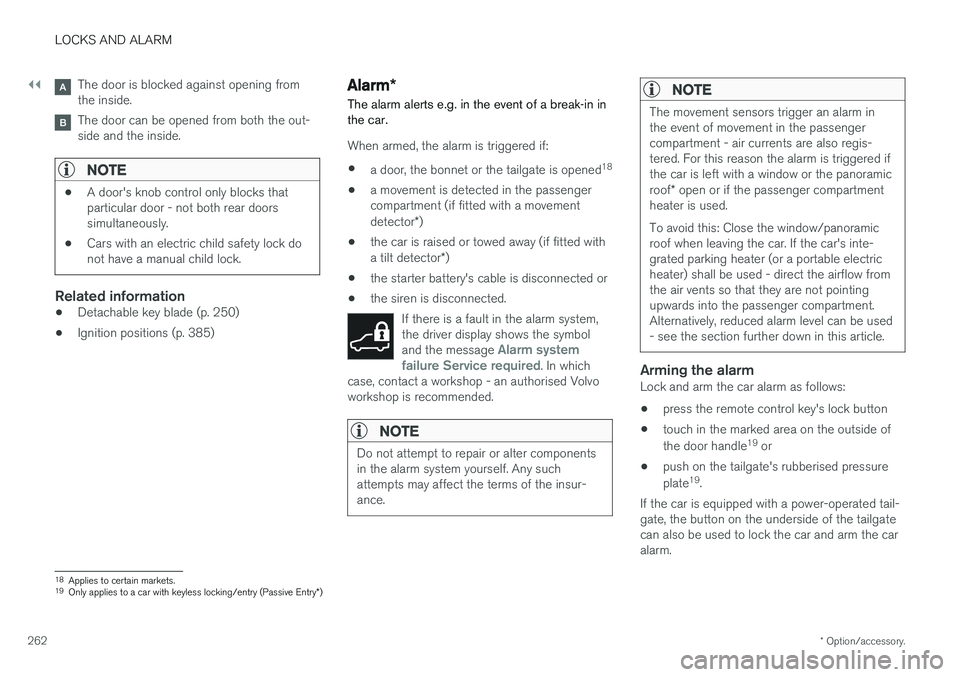

The door is blocked against opening from the inside.
The door can be opened from both the out- side and the inside.
NOTE
• A door's knob control only blocks that particular door - not both rear doorssimultaneously.
• Cars with an electric child safety lock donot have a manual child lock.
Related information
• Detachable key blade (p. 250)
• Ignition positions (p. 385)
Alarm
*
The alarm alerts e.g. in the event of a break-in in the car.
When armed, the alarm is triggered if:
• a door, the bonnet or the tailgate is opened 18
• a movement is detected in the passenger compartment (if fitted with a movement detector
*)
• the car is raised or towed away (if fitted witha tilt detector
*)
• the starter battery's cable is disconnected or
• the siren is disconnected.
If there is a fault in the alarm system, the driver display shows the symbol and the message
Alarm system
failure Service required. In which
case, contact a workshop - an authorised Volvo workshop is recommended.
NOTE
Do not attempt to repair or alter components in the alarm system yourself. Any suchattempts may affect the terms of the insur-ance.
NOTE
The movement sensors trigger an alarm in the event of movement in the passengercompartment - air currents are also regis-tered. For this reason the alarm is triggered ifthe car is left with a window or the panoramic roof * open or if the passenger compartment
heater is used. To avoid this: Close the window/panoramic roof when leaving the car. If the car's inte-grated parking heater (or a portable electricheater) shall be used - direct the airflow fromthe air vents so that they are not pointingupwards into the passenger compartment.Alternatively, reduced alarm level can be used- see the section further down in this article.
Arming the alarmLock and arm the car alarm as follows:
• press the remote control key's lock button
• touch in the marked area on the outside of the door handle 19
or
• push on the tailgate's rubberised pressureplate 19
.
If the car is equipped with a power-operated tail- gate, the button on the underside of the tailgatecan also be used to lock the car and arm the caralarm.
18 Applies to certain markets.
19 Only applies to a car with keyless locking/entry (Passive Entry *)

LOCKS AND ALARM
* Option/accessory.263
Deactivate the alarmUnlock and disarm the car alarm as follows:
• press the remote control key's unlock button
• grip one of the door handles 19
or
• push on the tailgate's rubberised pressure plate 19
.
Switching off a triggered alarm
–Press the remote control key's unlock button or set the car in ignition position I by turning
the ignition dial to START and then releas-
ing.
NOTE
• Remember that the alarm is activated when the car is locked.
• If any of the doors are opened from theinside then the alarm is triggered.
Alarm signalsWhen the alarm has been triggered, the following happens:
• A siren sounds for 30 seconds or until thealarm is switched off.
• The direction indicators flash for 5 minutesor until the alarm is switched off. If the cause of alarm activation is not rectified, the alarm cycle is repeated up to 10 times
20
.
Lock and alarm indicator
A red LED on the instrument panel indicates the alarm system's status:
• LED not lit – alarm not armed.
• The LED flashes once every other second –alarm is armed.
• After the alarm has been disarmed, the LEDflashes rapidly for up to 30 seconds or until ignition position
I has been selected by turn-
ing the ignition dial to START and releasing
it - the alarm has been triggered.
Reduced alarm levelReduced guard means that the movement and tilt detectors can be temporarily deactivated. Switch off the movement and tilt detectors in order to avoid accidental triggering of the alarm -e.g. if a dog is left in a locked car or during trans-port on a car train or car ferry. The procedure isthe same as with the temporary disengaging ofthe deadlocks function.
Press the
Reduced guardbutton in the centre display's function view in order to switchoff the movement and tiltdetectors temporarily.
For more information, see the section "Dead- locks".
Related information
•Automatic arming/rearming of the alarm
*
(p. 264)
• Disarming the alarm
* without working remote
control key (p. 264)
• Deadlocks
* (p. 246)
19
Only applies to a car with keyless locking/entry (Passive Entry *)
20 Applies to certain markets.

LOCKS AND ALARM
* Option/accessory.
264

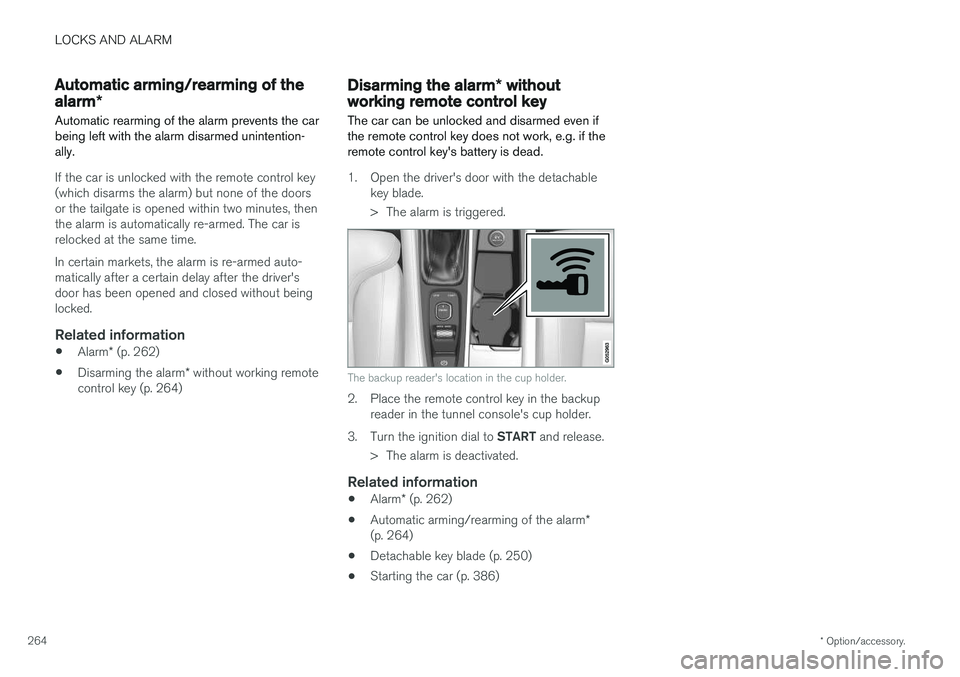

Automatic arming/rearming of the alarm *
Automatic rearming of the alarm prevents the car being left with the alarm disarmed unintention-ally.
If the car is unlocked with the remote control key (which disarms the alarm) but none of the doorsor the tailgate is opened within two minutes, thenthe alarm is automatically re-armed. The car isrelocked at the same time. In certain markets, the alarm is re-armed auto- matically after a certain delay after the driver'sdoor has been opened and closed without beinglocked.
Related information
• Alarm
* (p. 262)
• Disarming the alarm
* without working remote
control key (p. 264)
Disarming the alarm * without
working remote control key
The car can be unlocked and disarmed even if the remote control key does not work, e.g. if theremote control key's battery is dead.
1. Open the driver's door with the detachable key blade.
> The alarm is triggered.
The backup reader's location in the cup holder.
2. Place the remote control key in the backupreader in the tunnel console's cup holder.
3. Turn the ignition dial to START and release.
> The alarm is deactivated.
Related information
• Alarm
* (p. 262)
• Automatic arming/rearming of the alarm
*
(p. 264)
• Detachable key blade (p. 250)
• Starting the car (p. 386)

LOCKS AND ALARM
}}
* Option/accessory.265
Type approval for the remote control key system
Type approval for the remote control key system can be read in the table.Lock system keyless start (Passive Start) and keyless locking/unlocking (Passive Entry *)
CEM marking for the remote control key system. For supplementary type approval number, see the tablebelow.
Country/Area Type approval
Jordan TRC/LPD/2014/250
Serbia P1614120100
Argentina CNC ID: C-14771

||
LOCKS AND ALARM
266
Country/AreaType approval
Brazil MT-3245/2015
Indonesia Nomor: 38301/SDPPI/2015
Malaysia RAAT/37A/0315/S(15-0663)
Mexico IFETEL: RLVDEVO15-0396Russia
The United Arab Emirates ER37847/15 DA0062437/11
For more information about type approval for the remote control key system, seesupport.volvocars.com.

LOCKS AND ALARM
}}
267
Remote control key
Country/AreaType approval
Jordan TRC/LPD/2015/104
Morocco AGREE PAR L'ANRT MAROC Numéro d

||
LOCKS AND ALARM
268

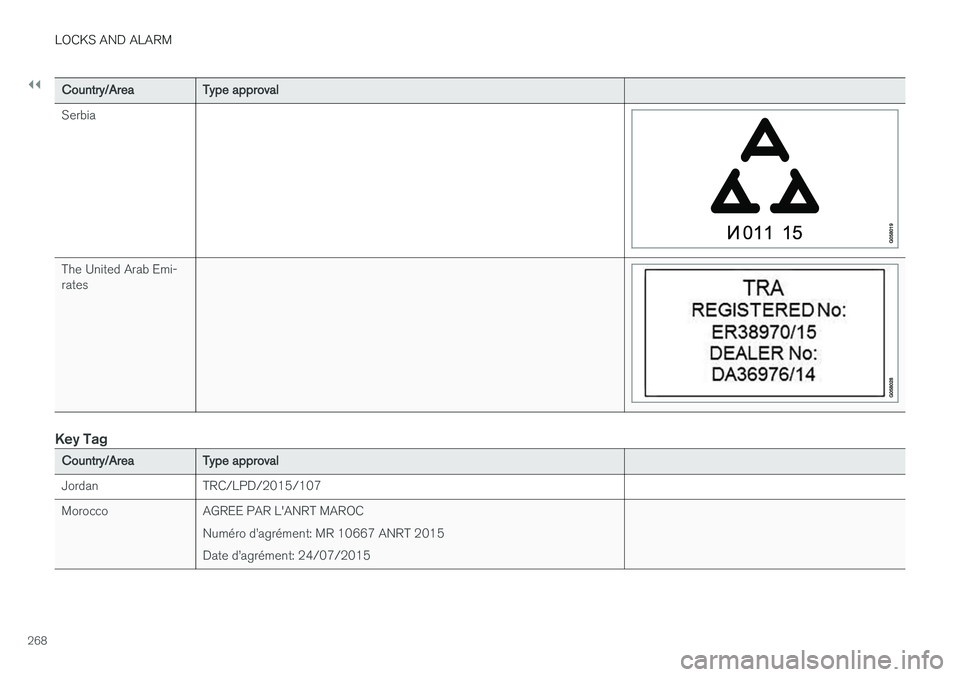

Country/AreaType approval
Serbia
The United Arab Emi- rates
Key Tag
Country/Area Type approval
Jordan TRC/LPD/2015/107
Morocco AGREE PAR L'ANRT MAROC Numéro d
