VOLVO XC90 TWIN ENGINE 2018 Owners Manual

KEY, LOCKS AND ALARM
* Option/accessory.249
secure when handing over the vehicle to e.g. a
young driver, parking attendant or workshop. The
settings for a Red Key cannot be changed by its
user; a regular remote key is needed to change
settings.
Related information
•
Red Key* settings (p. 249)
• Remote key (p. 239) Red Key*
settings
The holder of a regular remote key can adjust
settings for a Red Key. Certain driver support
functions are always active. 1. Tap Settings in the center display's Top
view.
2.

Tap System Driver Profiles Red Key
.
> The following settings can be made:
• Set Time Gap For Adaptive Cruise
Control
• Reduced Maximum Volume
• Max Speed Limit
• Speed Limit Warning
Adaptive Cruise Control*:
• Default setting: Longest interval
Reduced maximum volume (On/Off):
•Default setting: On
Speed Limiter (On/Off):
•Setting interval: 50-250 km/h (30-160 mph)
• The default setting is 120 km/h (75 mph)
• Increments: 1 km/h (1 mph)
The following symbol and message will
be shown in the instrument panel
Red key Speed limitation cannot
be exceeded.
Speed reminder (On/Off):
• Setting interval: 0-250 km/h (0-160 mph)
• Default setting: 50, 70 and 90 km/h (30, 45
and 55 mph)
• Increments: 1 km/h (1 mph)
• Maximum number of simultaneous remind-
ers: 6
Driver support functionsThe following driver support functions will always
be active for a Red Key user:
• Blind Spot Information (BLIS)*
• Lane Keeping Aid (LKA)*
• Distance Alert*
• City Safety
• Driver Alert Control (DAC)*
• Road Sign Information*
Related information
• Red Key - restricted remote key* (p. 248)

KEY, LOCKS AND ALARM
* Option/accessory.
250 Detachable key blade
The remote key contains a detachable metal key
blade that can be used to activate a number of
functions and preform certain actions.
A Volvo workshop can provide you with the key
blade's unique code, which is recommended in
case you need to order a new key blade.
Using the detachable key bladeThe detachable key blade can be used to:
• manually open the left-side front door if cen-
tral locking cannot be activated with the
remote key.
• emergency lock all doors.
• activate/deactivate the rear door mechanical
child safety locks.
The button-less Key Tag 10
does not have a
detachable key blade. If needed, use the standard
remote key's detachable key blade.
Detaching the key blade Hold the remote key with the front side
(with the Volvo logo) facing up and move the
button on the key ring section to the right.
Slide the front cover slightly upward. The cover will loosen and can be
removed from the key. Remove the key blade by pulling it up. Put the key blade back into its designated
spot in the remote key after use.
Replace the cover by pressing it down
until it clicks into place. Slide the cover back.
>
An additional click indicates that the cover
is correctly in place.
Related information
• Locking and unlocking with detachable key
blade (p. 251)
• Remote key (p. 239) 10
Supplied with vehicles equipped with keyless locking/unlocking (Passive\
Entry*).

KEY, LOCKS AND ALARM
}}
251
Locking and unlocking with
detachable key blade
The detachable key blade can be used to unlock
the vehicle from the outside, e.g. if the battery in
the remote key is discharged.
Unlocking Pull the front left-hand door handle to its end
position to access the lock cylinder.
Put the key in the lock cylinder.
Turn the key clockwise 45 degrees so that
the key blade is pointing straight rearward.
Turn the key blade back 45 degrees to its
original position. Remove the key from the
lock cylinder and release the handle so that it
returns to its original position against the
vehicle.
5.

Pull the door handle.
> The door will open. Lock the door in the same way, but turn the key
45 degrees counterclockwise in step (3).
Turning off the alarm
NOTE When the door is unlocked using the detach-
able key blade and then opened, the alarm
will be triggered.
Location of the backup key reader in the cup holder.
Turn off the alarm by:
1.

Place the remote control key on the key sym-
bol in the backup reader in the bottom of the
cup holder in the tunnel console.
2. Turn the start knob clockwise and release it. > The start knob will automatically return toits original position - the alarm signal will
stop and the alarm will be turned off.
LockingThe vehicle can also be locked using the remote
key's detachable key blade, e.g. if either the vehi-
cle's or remote key's batteries are discharged.
The left-hand front door can be locked by insert-
ing the detachable key into the door's lock cylin-
der.
This is the only door with a lock cylinder. The
other doors have lock mechanisms in the side of
the door that must be pushed in using the key
blade. The door will then be locked mechanically
and cannot be opened from the outside.
The doors can still be opened from inside. Manual door lock. This is not the child lock.
–
Remove the detachable key blade from the
remote key. Insert the key blade into the
opening for the lock mechanism and push
the key in as far as possible, about 12 mm.

||KEY, LOCKS AND ALARM
* Option/accessory.
252 The door can be opened from both the out-
side and the inside.
The door cannot be opened from the outside.
To return to position A, open the door using
the inside door handle.
The doors can also be unlocked by pressing the
unlock button on the remote key or the central
lock button in the driver's door.
NOTE •
The door's lock controls only lock that
specific door, not all doors simultane-
ously.
• A manually locked rear door with an acti-
vated manual or electric child safety lock
cannot be opened from either the outside
or inside of the vehicle. A rear door
locked in this way can only be unlocked
using the remote key or the central
unlocking button.
Related information
•Detachable key blade (p. 250)
• Arming and disarming the alarm (p. 269)
• Replacing the remote key's battery (p. 244)
• Remote key (p. 239) Electronic immobilizer
The electronic immobilizer is a start inhibitor that
helps prevent the vehicle from being started by
an unauthorized person. The vehicle can only be started with the right
remote key.
The following instrument panel error messages
are related to the electronic immobilizer: Symbol
Message Meaning Vehicle key
not found
See
Owner's
manual
Remote key not
recognized during
start. Place the
remote key on the
key symbol in the
cup holder and try
to start the vehicle
again.
Related information
•
Remote key (p. 239)
• Ordering additional remote keys (p. 248) Start and lock system type
designations
The following information contains type designa-
tions for the start and lock system.
Alarm systemUSA FCC ID: MAYDA 5823(3)
This device complies with part 15 of the FCC
rules. Operation is subject to the following condi-
tions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Canada IC: 4405A-DA 5823(3)
This device is subject to the following conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesired
operation of the device.
Remote keys (Passive entry/Passive
start*)
USA
Volvo Standard Key FCC ID: YGOHUF8423
Volvo Tag ID FCC ID: YGOHUF8432
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and

KEY, LOCKS AND ALARM
}}
* Option/accessory. 253
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
Any changes or modification not expressly
approved by the party responsible for compliance
could void the user's authority to operate this
equipment.
Canada
Volvo Standard Key IC: 4008C-HUF8423
Volvo Tag ID IC: 4008C-HUF8432
This device complies with Industry Canada
license-exempt RSS standards. Operation is sub-
ject to the following two conditions:
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that may
cause undesired operation.
Immobilizer and Passive entry/Passive
start* systems
USA-FCC ID: LTQVO3134
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation. Any changes or modification not expressly
approved by the party responsible for compliance
could void the user's authority to operate this
equipment.
Canada-IC:3659A-VO3134
This device complies with Industry Canada
license-exempt RSS standards. Operation is sub-
ject to the following two conditions:
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that may
cause undesired operation.
Related information
•
Remote key (p. 239) Keyless and touch-sensitive
surfaces*
If the vehicle is equipped with keyless locking
and unlocking, it is only necessary to have the
remote key within range, e.g. in a pocket or bag,
which makes it easier to open the vehicle if your
hands are full.

||KEY, LOCKS AND ALARM
* Option/accessory.
254

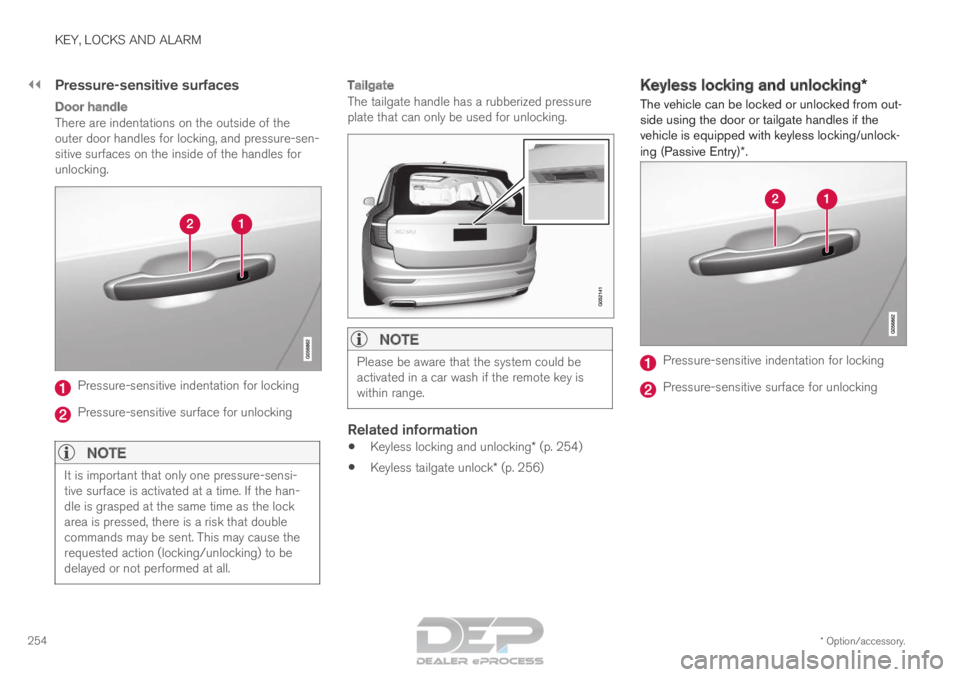

Pressure-sensitive surfaces
Door handle
There are indentations on the outside of the
outer door handles for locking, and pressure-sen-
sitive surfaces on the inside of the handles for
unlocking. Pressure-sensitive indentation for locking
Pressure-sensitive surface for unlocking
NOTE
It is important that only one pressure-sensi-
tive surface is activated at a time. If the han-
dle is grasped at the same time as the lock
area is pressed, there is a risk that double
commands may be sent. This may cause the
requested action (locking/unlocking) to be
delayed or not performed at all.
Tailgate
The tailgate handle has a rubberized pressure
plate that can only be used for unlocking.
NOTE Please be aware that the system could be
activated in a car wash if the remote key is
within range.
Related information
•
Keyless locking and unlocking* (p. 254)
• Keyless tailgate unlock* (p. 256) Keyless locking and unlocking*
The vehicle can be locked or unlocked from out-
side using the door or tailgate handles if the
vehicle is equipped with keyless locking/unlock-
ing (Passive Entry)*. Pressure-sensitive indentation for locking
Pressure-sensitive surface for unlocking

KEY, LOCKS AND ALARM
* Option/accessory.255Rubberized pressure plate on the tailgate used only for
unlocking.
NOTE
One of the vehicle's remote keys must be
within range for locking and unlocking to be
possible.
NOTE
Please be aware that the system could be
activated in a car wash if the remote key is
within range.
Keyless lockingAll of the doors have to be closed before the
vehicle can be locked. However, the tailgate can
be open when a door handle is used for locking.
–
To lock, touch the marked area on the out-
side of one of the door handles after the
door is closed or press the button on the
lower edge of the tailgate 11
before it is
closed.
>

The lock indicator light in the windshield
will flash to confirm that the vehicle is
locked.
To close all door windows at the same time -
place your finger on the pressure-sensitive
indentation on the outside of the door handle and
hold it there until the side windows have closed.
Locking when the tailgate is open
NOTE If the vehicle is locked and the tailgate is still
open, make sure that the remote key is not
left in the cargo compartment when the tail-
gate is closed and the entire vehicle is
locked
12
.
Keyless unlocking
– To unlock, grasp a door handle or press the
rubberized pressure plate on the underside
of the tailgate handle.
>
The lock indicator light in the windshield
will go out to confirm that the vehicle is
unlocked. Open the doors or tailgate as
usual.
Automatic relockingIf none of the doors or tailgate are opened within
two minutes after being unlocked, they will auto-
matically relock. This function reduces the risk of
inadvertently leaving the vehicle unlocked.
Related information
• Keyless unlock settings* (p. 256)
• Keyless tailgate unlock* (p. 256)
• Keyless and touch-sensitive surfaces*
(p. 253) 11
Applies to vehicles with power tailgate*.
12 If the key is detected in the vehicle, the tailgate will not lock when i\
t is closed.

KEY, LOCKS AND ALARM
* Option/accessory.
256 Keyless unlock settings*
Several different sequences are available for
keyless unlocking.
1. Tap Settings in the center display's Top
view.
2.

Tap My Car Locking Keyless Unlock
3. Select alternative:
•All Doors
- unlocks all doors at the same time.
• Single Door
- unlocks the selected door.
Related information
• Keyless locking and unlocking* (p. 254)
• Keyless and touch-sensitive surfaces*
(p. 253) Keyless tailgate unlock*
The tailgate can be opened using the remote
key. The key only needs to be within range, e.g.
in a pocket or bag.
The tailgate is held closed by an electronic lock-
ing mechanism. To open the tailgate:
1.

Lightly press the rubberized pressure plate
on the underside of the tailgate handle.
> The lock will disengage.
NOTE One of the vehicle's remote keys must be
within range behind the vehicle for unlocking
to be possible. 2. Lift the outer handle to fully open the tail-
gate.
CAUTION •
Only light pressure on the rubberized pres-
sure plate is necessary to release the tail-
gate's locking mechanism.
• Use the handle to lift the tailgate and do
not apply force to the rubberized pressure
plate. Too much force can damage the
pressure plate's electrical connections. Hands-free unlocking of the tailgate is also pos-
sible using a foot movement under the rear
bumper; see the separate section.
WARNING
Do not drive with the tailgate open. Toxic
exhaust fumes can be sucked into the vehicle
through the cargo compartment.
Related information
•
Keyless locking and unlocking* (p. 254)
• Keyless and touch-sensitive surfaces*
(p. 253)
• Remote key range (p. 243)
• Foot movement tailgate operation* (p. 265)

KEY, LOCKS AND ALARM
}}
* Option/accessory. 257
Antenna locations for the start and
lock system
The vehicle is equipped with a keyless start and
lock system 13
that uses a number of integrated
antennas positioned throughout the vehicle. Location of the antennas.
Under the cup holder in the front section of
the tunnel console
In the upper front section of the left-side rear
door
14 In the upper front section of the right-side
rear door
14 In the center of the rear seat backrest
14
WARNING Individuals with an implanted pacemaker
should not allow the pacemaker to come
closer than 22 cm (9 in.) to the Keyless sys-
tem antennas. The aim of this is to prevent
disturbances between the pacemaker and the
Keyless system.
Related information
•
Keyless and touch-sensitive surfaces*
(p. 253)
• Remote key range (p. 243) Locking and unlocking from inside
the vehicle
The doors and tailgate can be locked and
unlocked from inside the vehicle using the cen-
tral lock buttons in the front doors. The lock but-
tons in the rear doors* can be used to lock/
unlock that particular door.
Central locking Button with indicator light for locking and unlocking in
front door.
Unlocking using the front door buttons
–
Press the button to unlock all side doors
and the tailgate.
Press and hold the button to open all
side windows at the same time 15
. 13
The keyless lock system only applies to vehicles equipped with keyless l\
ocking and unlocking (Passive Entry*).
14 Only in vehicles equipped with keyless locking and unlocking (Passive E\
ntry*).
15 The total airing function can be used to e.g. quickly air out the vehicl\
e in hot weather.

||KEY, LOCKS AND ALARM
* Option/accessory.
258
Alternative unlocking method Alternative unlocking method using side door opening
handle.
–
Pull either of the side door inside opening
handles and release.
>

Depending on the remote key settings,
either all doors will be unlocked or just the
selected door will be unlocked and
opened.
To change this setting, tap SettingsMy Car Locking Remote and
Interior Unlock in the Top view of the
center display.
Locking using the front door buttons
– Press the button (both front doors must
be closed).
>
All doors and the tailgate will lock.
Press and hold the button to close all side
windows at the same time.
Locking using the rear door button* Button with indicator light for locking/unlocking in rear
door.
The lock buttons in the rear doors only lock/
unlock that particular door.
Unlocking the rear door1. Pull the opening handle to unlock the rear door.
2. Pull the opening handle again to open the rear door 16
.
Related information
• Settings for remote and inside door unlock
(p. 242)
• Unlocking the tailgate from inside the vehicle
(p. 259)
• Activating and deactivating child safety locks
(p. 259) 16
Provided the child safety lock is not activated.
