VOLVO XC90 TWIN ENGINE 2018 Owners Manual

CLIMATE CONTROL
* Option/accessory.229
NOTEThe air conditioning cannot be activated when
the fan speed is set to
Off.
Related information
•Climate system controls (p. 213) Activating and deactivating climate
control for the third-row seats*
The air conditioning cools and dehumidifies
incoming air as needed. Air conditioning button in the Rear climate tab in Cli-
mate view.
1. Open Climate view in the center display and select the Rear climate tab.
2. Tap 3rd row climate.
>

The air conditioning is activated/deacti-
vated and the button lights up/goes out.
NOTE The air conditioning for the third row of seats
is automatically activated if any of the third
row seat belts are buckled.
It is not possible to manually activate air con-
ditioning for the third row of seats if the main
air conditioning system is deactivated or the
climate system for the second row of seats is
deactivated.
Related information
•
Climate system controls (p. 213)

CLIMATE CONTROL
* Option/accessory.
230 Parking climate
The passenger compartment climate can be pre-
conditioned or maintained when the vehicle is
parked. For full functionality, the vehicle's charg-
ing cable must be plugged in. Preconditioning and the climate comfort retaining func-
tion are controlled from the Parking climate tab in the
center display's Climate view.
Related information
•
Climate (p. 202)
• Preconditioning (p. 230)
• Climate comfort retaining function (p. 234)
• Parking climate symbols and messages
(p. 236) Preconditioning
Preconditioning the vehicle before driving can
help reduce wear and reduce energy consump-
tion during a trip.
Preconditioning can be started immediately or
started at a preset time using a timer.
The function utilizes several of the vehicle's sys-
tems:
• In cold weather, the high-voltage coolant
heater (HVCH) heats the passenger com-
partment to a comfortable temperature.
• In warm weather, air conditioning cools the
passenger compartment to a comfortable
temperature.
• The electrically heated steering wheel* and
seats* can be activated.
• Heating for the windshield, rear window and
door mirrors are automatically activated as
needed.
During preconditioning in a hot climate, conden-
sation from the air conditions may drip under the
vehicle. This is normal.

CLIMATE CONTROL
}}
231

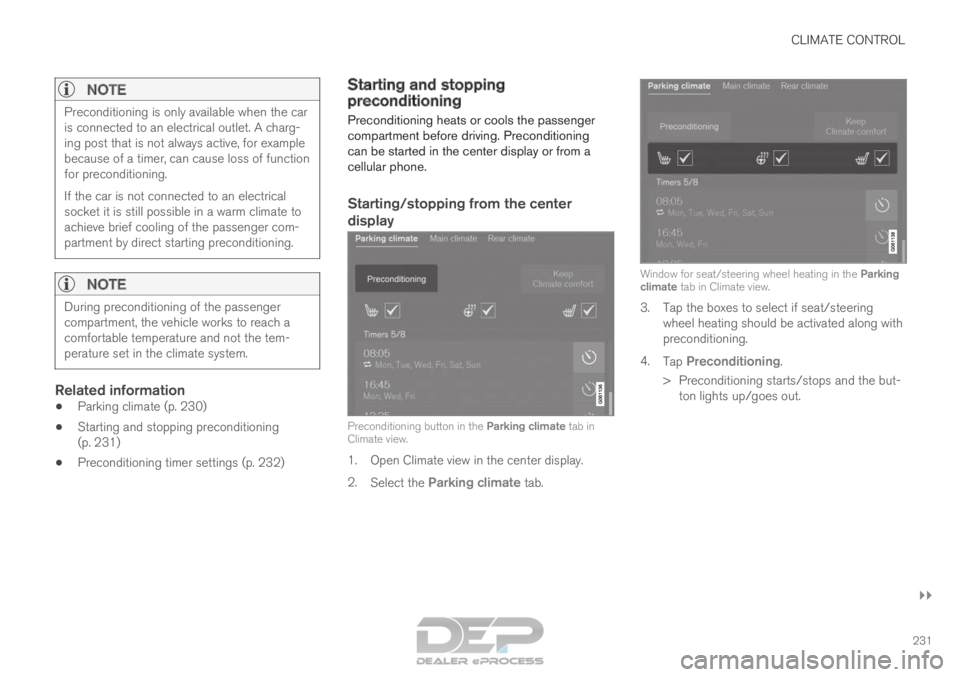

NOTE Preconditioning is only available when the car
is connected to an electrical outlet. A charg-
ing post that is not always active, for example
because of a timer, can cause loss of function
for preconditioning.
If the car is not connected to an electrical
socket it is still possible in a warm climate to
achieve brief cooling of the passenger com-
partment by direct starting preconditioning.
NOTE
During preconditioning of the passenger
compartment, the vehicle works to reach a
comfortable temperature and not the tem-
perature set in the climate system.
Related information
•
Parking climate (p. 230)
• Starting and stopping preconditioning
(p. 231)
• Preconditioning timer settings (p. 232) Starting and stopping
preconditioning
Preconditioning heats or cools the passenger
compartment before driving. Preconditioning
can be started in the center display or from a
cellular phone.
Starting/stopping from the center
display Preconditioning button in the Parking climate tab in
Climate view.
1. Open Climate view in the center display.
2. Select the Parking climate tab. Window for seat/steering wheel heating in the Parking
climate tab in Climate view.
3. Tap the boxes to select if seat/steering
wheel heating should be activated along with
preconditioning.
4. Tap Preconditioning.
>

Preconditioning starts/stops and the but-
ton lights up/goes out.

||CLIMATE CONTROL
* Option/accessory.
232
NOTE Preconditioning is only available when the car
is connected to an electrical outlet. A charg-
ing post that is not always active, for example
because of a timer, can cause loss of function
for preconditioning.
If the car is not connected to an electrical
socket it is still possible in a warm climate to
achieve brief cooling of the passenger com-
partment by direct starting preconditioning.
NOTE
The vehicle doors and windows should be
closed during preconditioning of the passen-
ger compartment.
Starting from app*
A device with the Volvo On Call* app can be used
to start preconditioning or check settings. Pre-
conditioning heats or cools the passenger com-
partment (using the vehicle's air conditioning) to
a comfortable temperature.
The passenger compartment can also be precon-
ditioned using the Engine Remote Start (ERS) 3
function using the Volvo On Call* app.
Related information
• Parking climate (p. 230)
• Preconditioning (p. 230)
• Preconditioning timer settings (p. 232) Preconditioning timer settings
The timer can be set to finish preconditioning at
a predetermined time.
The timer can store up to 8 preset times for:
• A time on a particular date
• A time on one or more days of the week, with
or without the repeat function.
NOTE Preconditioning is only available when the car
is connected to an electrical outlet. A charg-
ing post that is not always active, for example
because of a timer, can cause loss of function
for preconditioning.
If the car is not connected to an electrical
socket it is still possible in a warm climate to
achieve brief cooling of the passenger com-
partment by direct starting preconditioning.
Related information
•
Preconditioning (p. 230)
• Adding and editing timer setting for precon-
ditioning (p. 233)
• Activating and deactivating preconditioning
timer settings (p. 233)
• Deleting preconditioning timer settings
(p. 234) 3
Certain markets only.

CLIMATE CONTROL
233
Adding and editing timer setting for
preconditioning
The preconditioning timer can store up to 8 pre-
set timer settings.
Adding a timer setting Button for adding a timer setting in the Parking climate
tab in Climate view.
1. Open Climate view in the center display.
2.
Select the Parking climate tab.
3. Tap Add timer.
>

A pop-up window will appear.
NOTE It is not possible to add a time setting if there
are already 8 settings for the timer. Delete a
time setting to be able to add a new one. 4.
Tap Date to set a time for a specific date.
Tap Days to set a time for one or more days
of the week.
With Days: Activate/deactivate the repeat
function by selecting/deselecting the
Repeat weekly checkbox.
5. With Date: Select a date for preconditioning
by scrolling in the date list using the arrows.
With Days: Select days of the week for pre-conditioning by tapping the buttons for the
days.
6.

Set the time at which preconditioning should
be completed by scrolling using the arrows in
the clock.
7. Tap Confirm to add a timer setting.
>

The timer setting will be added to the list
and activated.
Editing a timer setting1. Open Climate view in the center display.
2. Select the Parking climate tab.
3.

Tap the timer setting you would like to
change.
> A pop-up window will appear.
4. To edit a timer setting, follow the procedures described under the heading "Adding a timer
setting" above. Activating and deactivating
preconditioning timer settings
Timer settings in the preconditioning timer can
be activated or deactivated as needed. Timer buttons in the Parking climate tab in Climate
view.
1. Open Climate view in the center display.
2.
Select the Parking climate tab.
3.

Activate/deactivate a timer setting by tap-
ping the timer button to the right of the set-
ting.
> The timer setting is activated/deactivated and the button lights up/goes out.

CLIMATE CONTROL
234Deleting preconditioning timer
settings
The button for editing a list/deleting a timer setting in
the Parking climate tab in Climate view.
1. Open Climate view in the center display.
2.
Select the Parking climate tab.
3. Tap Edit list.
4.

Tap the editing icon to the right in the list.
> The icon will change to the text Delete.
5. Tap Delete to confirm.
>

The timer setting will be deleted from the
list. Climate comfort retaining function
The climate in the passenger compartment can
be maintained when the vehicle is parked, e.g. if
the engine is turned off but the driver or passen-
gers remain in the vehicle. This function can only be direct-started.
The function utilizes several of the vehicle's sys-
tems:
• Residual heat from the engine is used to
help heat the passenger compartment to a
comfortable temperature.
• In warm weather, the ventilation system cools
the passenger compartment by blowing air in
from outside.
NOTE Climate comfort maintenance will be deacti-
vated if the vehicle is locked from the outside
in order to avoid using residual engine heat
unnecessarily. This function is intended to be
used to maintain climate comfort when the
driver or a passenger remains in the vehicle
after the engine is turned off.
Related information
•
Parking climate (p. 230)
• Switching on and off the climate retaining
function when parking (p. 234) Switching on and off the climate
retaining function when parking
The climate retaining function maintains the cli-
mate settings in the vehicle after the engine has
been switched off. The function can be activated
in the center display. Button for retaining climate comfort in the Parking
climate tab in Climate view.
1. Open Climate view in the center display.
2.
Select the Parking climate tab.
3. Tap Keep climate comfort.
>

The climate comfort retaining function will
be activated/deactivated and the button
light will go on/off.

CLIMATE CONTROL
235
NOTEMaintained climate comfort is not possible
when there is not sufficient residual engine
heat to maintain the climate settings in the
passenger compartment, or if the outside
temperature is above approximately 20 °C
(68 °F).
NOTE
Climate comfort maintenance will be deacti-
vated if the vehicle is locked from the outside
in order to avoid using residual engine heat
unnecessarily. This function is intended to be
used to maintain climate comfort when the
driver or a passenger remains in the vehicle
after the engine is turned off.

CLIMATE CONTROL
236Parking climate symbols and
messages
A number of symbols and messages related to
parking climate may be displayed in the instru-
ment panel. Symbol
Message MeaningParking climate
Service required
Parking climate is not functioning properly. Contact a workshop
A
to have the system checked as
soon as possible. Parking climate
Temporarily unavailable
Parking climate is temporarily not functioning properly. If the problem \
persists, contact a workshop
A
to have the system checked. Parking climate
Unavailable Charge level too low
The parking climate cannot be activated because the hybrid battery's \
charge level is too low to start
the high-voltage coolant heater. Charge the battery.Parking climate
Unavailable, not con- nected to
power supply
The parking climate cannot be activated if the charging cable is not con\
nected. Connect the charg-
ing cable.Parking climate
Limited Charge level too low
The parking climate is operating with limited functionality because the \
hybrid battery's charge level is
too low to start the high-voltage coolant heater. Charge the battery.A
An authorized Volvo workshop is recommended.
Related information
• Parking climate (p. 230)

K E Y , L O C K S A N D A L A R M

KEY, LOCKS AND ALARM
* Option/accessory.
238 Lock indication
When the vehicle is locked or unlocked, the turn
signals will flash to indicate that the vehicle has
been locked or unlocked correctly.
Exterior confirmationLocking
• The turn signals will flash once and the door
mirrors will fold in 1
to confirm the vehicle is
locked.
Unlocking
• The turn signals will flash twice and the door
mirrors will fold out 1
to confirm the vehicle is
unlocked.
All doors, tailgate and hood must be closed for
confirmation to be given. If only the driver's door
is closed when the vehicle is locked 2
, the vehicle
will be locked but the turn signals will only flash
to indicate locking when all doors and the hood
and tailgate have been closed.
Lock and alarm indicator The locks and alarm indicator on the dashboard will dis-
play the status of the locking system.
A long flash indicates that the vehicle is locked.
When the vehicle is locked, this will be indicated
by short, pulsing flashes.
Other indicators
The home safe lighting and approach lighting
functions also indicate when the vehicle is locked
or unlocked.
Lock button indicators
Front door Lock buttons with indicator lights in front door.
Illuminated indicator lights in both front door lock
buttons indicate that all doors are locked. If any
door is opened, the lights in both doors will go
out. 1
Only vehicles with power folding mirrors.
2 Does not apply to vehicles equipped with keyless locking/unlocking (Pas\
sive Entry*).
