VOLVO XC90 TWIN ENGINE 2019 Owners Manual

LIGHTING
}}
* Option/accessory. 159
Active Bending Lights*
Active Bending Lights (ABL) are designed to
help provide maximum illumination in curves and
intersections. Depending on equipment level,
vehicles with LED 5
headlights* may be equipped
with Active Bending Lights. Headlight pattern with function deactivated (left) and
activated (right).
Active Bending Lights follow the movement of
the steering wheel to help provide maximum illu-
mination in curves and intersections, helping to
improve visibility for the driver.
The function is automatically activated when the
engine is started. If a fault is detected in the sys-
tem, the symbol will illuminate in the
instrument panel and a message will be dis-
played. The function is only active in weak daylight or
dark conditions and only when the vehicle is mov-
ing and the low beams are on.
Deactivating/activating the functionThe function is activated as the default factory
setting and can be activated and deactivated in
the center display's Function view:
Tap the Active BendingLights button.
Related information
Adjusting light functions via the center dis-
play (p. 153) Rear fog light
The rear fog light is considerably brighter than
ordinary taillights and should only be used to
help other road users see the vehicle when visi-
bility is reduced by conditions such as fog,
snow, smoke or dust. Rear fog light button.
The rear fog light consists of a light on the rear
of the vehicle on the driver's side.
The rear fog light can only be switched on when
the ignition is in II mode and the lighting ring is in
position or .
Press the button for On/Off. The symbol in
the instrument panel illuminates when the rear
fog light is on. 5
LED (Light Emitting Diode)

||LIGHTING
160
The rear fog light turns off automatically when
the ignition is switched off or when the steering
wheel lever lighting ring is in position
or
.
NOTE
Regulations concerning rear fog light use vary
from country to country.
Related information

Lighting panel and controls (p. 152)
Ignition modes (p. 437) Brake lights
The brake lights are automatically illuminated
when braking.
The brake lights illuminate when the brake pedal
is depressed. They also illuminate when the
brakes are automatically applied by one of the
driver support systems.
Related information

Emergency brake lights (p. 160)
Brake functions (p. 438) Emergency brake lights
The emergency brake lights are activated to
warn following vehicles of hard braking.
This function causes an additional taillight on
each side of the vehicle to illuminate.
The emergency brake lights are activated in the
event of hard braking or if the ABS system is
activated and the vehicle is traveling at a high
speed.
After the driver decelerates to a low speed and
then releases the brake, the brake lights resume
their normal brightness.
Related information
Brake lights (p. 160)
Brakes (p. 439)
Hazard warning flashers (p. 161)

LIGHTING
* Option/accessory.161
Hazard warning flashers
Hazard warning flashers warn other road users
by all of the vehicle's turn signals being activated
at the same time. The function can be used to
warn about a traffic hazard. Hazard warning flashers button.
Press the button to activate the hazard warning
flashers.
NOTE Regulations concerning the use of hazard
warning flashers may vary from country to
country.
Related information

Emergency brake lights (p. 160)
Using turn signals (p. 158) Using home safe lighting
Some of the exterior lights remain on to illumi-
nate the area around the vehicle. This is called
home safe lighting.
To activate home safe lighting:
1.
Switch off the ignition.
2. Push the left-side steering wheel lever toward the dashboard and release.
3. Exit the vehicle and lock the doors.
When the function is activated, a symbol will be
shown in the instrument panel and the parking
lights, outer door handle lights* and the license
plate lights will be illuminated.
The length of time home safe lighting remains
illuminated can be set in the center display.
Related information
Adjusting light functions via the center dis-
play (p. 153)
Welcome Light (p. 161) Welcome Light
Approach lighting is activated when the vehicle
is unlocked and can be used to provide light as
you walk toward the vehicle.
The function is activated when the remote key is
used for unlocking. The parking lights, outer door
handle lights*, license plate lights, interior ceiling
lights, footwell lighting and trunk/cargo compart-
ment lighting will be illuminated. If a door is
opened while the function is activated, the light-
ing in the outer door handle* and the interior
lighting will remain illuminated for a longer period
of time.
This function can be activated and deactivated in
the center display.
Related information
Adjusting light functions via the center dis-
play (p. 153)
Using home safe lighting (p. 161)
Remote key (p. 243)

LIGHTING

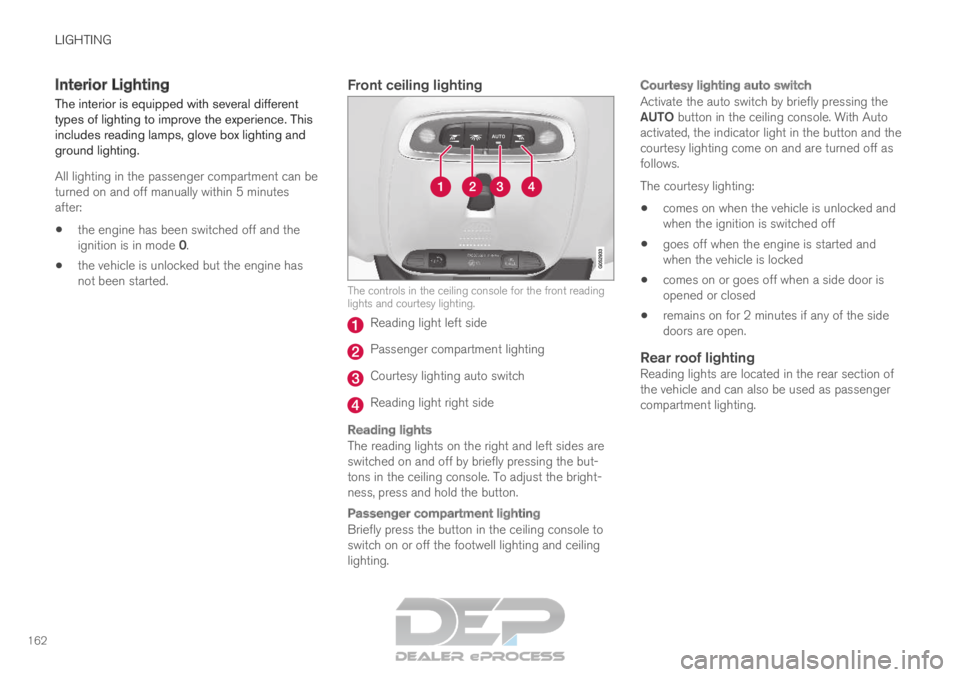

162Interior Lighting
The interior is equipped with several different
types of lighting to improve the experience. This
includes reading lamps, glove box lighting and
ground lighting.
All lighting in the passenger compartment can be
turned on and off manually within 5 minutes
after:
the engine has been switched off and the
ignition is in mode 0.
the vehicle is unlocked but the engine has
not been started.
Front ceiling lighting The controls in the ceiling console for the front reading
lights and courtesy lighting.
Reading light left side
Passenger compartment lighting
Courtesy lighting auto switch
Reading light right side
Reading lights
The reading lights on the right and left sides are
switched on and off by briefly pressing the but-
tons in the ceiling console. To adjust the bright-
ness, press and hold the button.
Passenger compartment lighting
Briefly press the button in the ceiling console to
switch on or off the footwell lighting and ceiling
lighting.
Courtesy lighting auto switch
Activate the auto switch by briefly pressing the
AUTO button in the ceiling console. With Auto
activated, the indicator light in the button and the
courtesy lighting come on and are turned off as
follows.
The courtesy lighting:

comes on when the vehicle is unlocked and
when the ignition is switched off
goes off when the engine is started and
when the vehicle is locked
comes on or goes off when a side door is
opened or closed
remains on for 2 minutes if any of the side
doors are open.
Rear roof lightingReading lights are located in the rear section of
the vehicle and can also be used as passenger
compartment lighting.

LIGHTING
* Option/accessory.163Reading lights over the rear seat
6
. In vehicles with panoramic roofs*, there are two lamp
units, one on each side of the ceiling. 7
Briefly press the button on the light to turn on or
off the reading lights. To adjust the brightness,
press and hold the button.
Glove compartment lightingThe glove compartment lighting comes on or
goes off when the glove compartment is opened
or closed.
Vanity mirror lighting*The vanity mirror lighting comes on or goes off
when the cover over the mirror is opened or
closed.
Ground lighting*The ground lighting comes on or goes off when a
door is opened or closed.
Doorsill lightingThe doorsill lighting comes on or goes off when a
door is opened or closed.
Cargo compartment lightingThe cargo compartment lighting comes on or
goes off when the cargo compartment is opened
or closed.
Ambient LightingThe ambient lighting comes on when the doors
are opened and goes out when the vehicle is
locked. Ambient lighting brightness can be
adjusted in the center display and also fine-tuned
using the thumb wheel in the dashboard.
Mood lighting*The vehicle is equipped with LEDs that provide
faint lighting in various colors. This lighting is on
when the engine is running. Mood lighting can be
adjusted in the center display and also fine-tuned
using the thumb wheel in the dashboard.
Lighting in the door storage
compartments
Lighting in the door storage compartments
comes on when the doors are opened and goes
out when the vehicle is locked. The brightness
can be adjusted using the thumb wheel in the
dashboard.
Lighting in the tunnel console's front cup holder
The lighting in front console cup holders
switches on when the vehicle is unlocked and off
when the vehicle is locked. The brightness can
be adjusted using the thumb wheel in the dash-
board.
Related information
Adjusting interior lighting (p. 164)
Lighting panel and controls (p. 152)
Ignition modes (p. 437)
Passenger compartment interior (p. 592) 6
There are also reading lights over the third row of seats*.
7 Does not apply to the third row of seats*.

LIGHTING
* Option/accessory.
164 Adjusting interior lighting
Illumination in the vehicle varies depending on
ignition mode. The interior lighting can be
adjusted with a thumb wheel in the dashboard
and certain light functions can also be adjusted
via the center display.
The thumb wheel on the dash-
board to the left of the steering
wheel can be used to adjust
the brightness of the display
lighting, instrument lights,
ambient lighting and mood
lighting*.
Adjust ambient decor lighting1.Tap Settings in the Top view in the center
display.
2.
Tap My Car Lights and Lighting
Interior Lighting.
3.

Choose from among the following settings:
Under Ambient Light Intensity, select
Off, Low or High.
Under
Ambient Light Level, select
Reduced or Full.
Adjusting mood lighting*The vehicle is equipped with several LEDs that
provide faint lighting in various colors. This light-
ing is on when the engine is running.
Changing the brightness
1. Tap Settings in the Top view in the center
display.
2.
Tap My Car Lights and Lighting
Interior Lighting Interior Mood Lighting
.
3. Under Interior Mood Light Intensity, select
Off,
Low or High.
Changing the color of the light
1. Tap Settings in the Top view in the center
display.
2.
Tap My Car Lights and Lighting
Interior Lighting Interior Mood Lighting
.
3. Choose By Temperature or By Color to
change the color of the light.
If By Temperature is selected, the light will change according to the temperature set for
the passenger compartment.
If By Color is selected, the subcategory
Theme Colors can be used to make further adjustments.
Related information
Interior Lighting (p. 162)
Adjusting light functions via the center dis-
play (p. 153)
Ignition modes (p. 437)

W I N D O W S , G L A S S A N D M I R R O R S

WINDOWS, GLASS AND MIRRORS
* Option/accessory.
166 Windows, glass and mirrors
The vehicle is equipped with controls for win-
dows, glass and mirrors. Some of the windows
in the car are laminated.
Laminated glassThe windshield has laminated glass. Laminated
glass is also available as on option for some
other glass surfaces. Laminated glass is rein-
forced, which provides better protection against
break-ins and improved soundproofing in the
passenger compartment.
The panoramic roof* also has laminated glass. The symbol shows the windows containing laminated
glass
1
Related information

Pinch protection for windows and sun cur-
tains (p. 166)
Panoramic roof* (p. 172)
Power windows (p. 167)
Rearview/door mirrors (p. 169)
Using sun curtains* (p. 169)
Head-up display* (p. 142)
Using the windshield wipers (p. 176)
Using the windshield and headlight washers
(p. 179)
Activating and deactivating the heated wind-
shield* (p. 223)
Activating and deactivating the heated rear
window and door mirrors (p. 225) Pinch protection for windows and
sun curtains
All power windows and sun curtains* have a
pinch protection function that is triggered if any-
thing blocks them while they are opening or
closing.
If pinch protection is activated, movement will
stop and then retract automatically to approx.
50 mm (2 inches) from the point at which it was
blocked (or to full ventilation position).
It is still possible to override pinch protection
when closing is interrupted (e.g. due to ice) by
pressing and holding down the control in the
same direction.
If there is any problem with the pinch protection,
a rest procedure can be tested.
WARNING If the starter battery is disconnected, the func-
tion for automatic opening and closing must
be reset to function correctly. A reset is
required in order for the pinch protection to
work.
Related information

Reset procedure for pinch protection
(p. 167)
Operating the power windows (p. 168) 1
Does not apply to windshield and panoramic roof*, which are always laminated and therefore do not have this symbol.

WINDOWS, GLASS AND MIRRORS
}}
* Option/accessory. 167

Using sun curtains* (p. 169)
Panoramic roof* (p. 172) Reset procedure for pinch
protection
If you experience any problems with the electri-
cal functions for the power windows, you can try
to perform a reset.
WARNING If the starter battery is disconnected, the func-
tion for automatic opening and closing must
be reset to function correctly. A reset is
required in order for the pinch protection to
work.
If the problem persists or if it affects the panor-
amic roof or sunroof, contact a workshop 2
.
Resetting a power window
1. Start with the window in the closed position.
2. Then operate the window in manual mode
three times upward toward the closed posi-
tion.
> The system will be automatically initiated.
Related information
Pinch protection for windows and sun cur-
tains (p. 166)
Operating the power windows (p. 168)
Using sun curtains* (p. 169) Power windows
The power windows are operated using the con-
trol panels found in the doors. The driver's door
has controls for operating all windows and for
activating the child safety locks. Driver's door control panel.
Electric child safety locks* that deactivate the
controls in the rear doors to prevent the
doors or windows from being opened from
the inside. Rear window controls.
Front window controls.
The power windows have pinch protection. If
there is any problem with the pinch protection, a
rest procedure can be tested. 2
An authorized Volvo workshop is recommended.

||WINDOWS, GLASS AND MIRRORS
* Option/accessory.
168
WARNING Children, other passengers or objects can be
trapped by the moving parts.
Always operate the windows with caution.
Do not allow children to play with the
operating controls.
Never leave a child alone in the vehicle.
Remember to always cut the current to
the power windows by setting the vehi-
cle's electrical system to ignition mode 0
and then taking the remote key with you
when leaving the vehicle.
Never stick objects or body parts out
through the windows, even if the vehicle
electrical system is completely turned off.
Related information
Operating the power windows (p. 168)
Pinch protection for windows and sun cur-
tains (p. 166)
Reset procedure for pinch protection
(p. 167) Operating the power windows
All power windows can be operated using the
control panel in the driver's door. The control
panels in the other doors can be used to oper-
ate that particular door.
The power windows have pinch protection. If
there is any problem with the pinch protection, a
rest procedure can be tested.
WARNING Children, other passengers or objects can be
trapped by the moving parts.
Always operate the windows with caution.
Do not allow children to play with the
operating controls.
Never leave a child alone in the vehicle.
Remember to always cut the current to
the power windows by setting the vehi-
cle's electrical system to ignition mode 0
and then taking the remote key with you
when leaving the vehicle.
Never stick objects or body parts out
through the windows, even if the vehicle
electrical system is completely turned off. Operating the power windows.
Operating manually. Move one of the controls
slightly up or down. The power windows go
up or down while the control is held in posi-
tion.
Operating with automatic controls. Move one
of the controls up or down to its end position
and release it. The window moves automati-
cally to its fully closed/open position.
To use the power windows, the ignition must be
in at least mode I or II. After the ignition has
been switched off, the power windows can be
operated for several minutes or until a door is
opened. Only one control panel can be operated
at a time.
It can also be operated using keyless opening*
with the door handle.
