YAMAHA GIGGLE50 2007 Owner's Manual

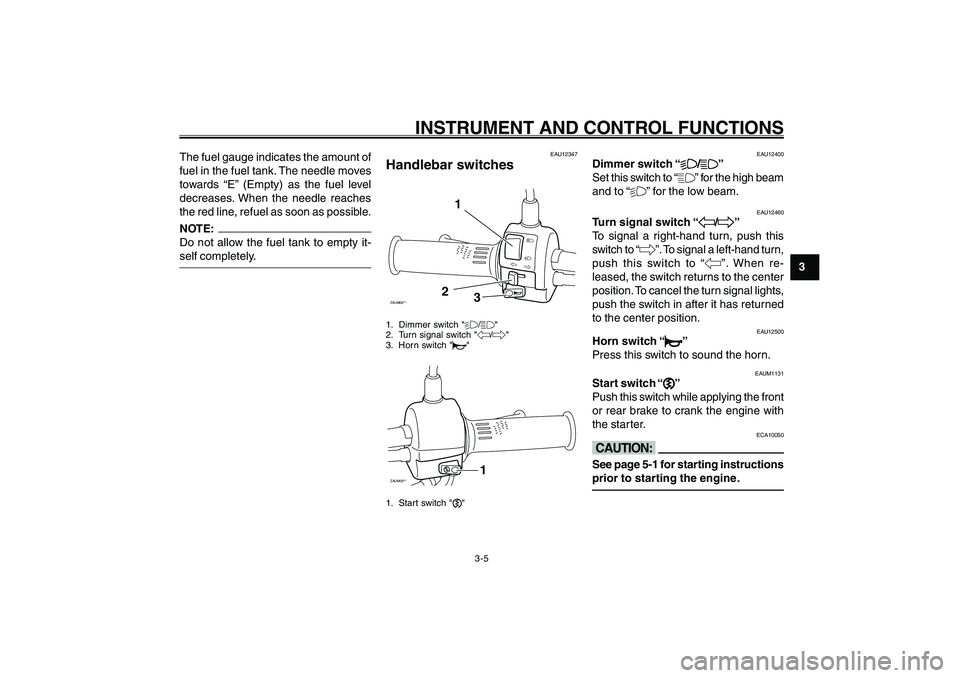

3-5
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
the red line, refuel as soon as possible.NOTE:
Do not allow the fuel tank to empty it-
self completely.
EAU12347
Handlebar switchesZAUM00**
1
2
3
1. Dimmer switch "%/&"
2. Turn signal switch "4/6"
3. Horn switch "*"ZAUM00**
1
1. Start switch ","
Handlebar switches
Dimmer switch
Turn signal switch
Horn switch
Start switch
EAU12400
Dimmer switch “
% %% %
%/
& && &
&”
Set this switch to “&” for the high beam
and to “%” for the low beam.
EAU12460
Turn signal switch “
4 44 4
4/
6 66 6
6”
To signal a right-hand turn, push this
switch to “6”. To signal a left-hand turn,
push this switch to “4”. When re-
leased, the switch returns to the center
position. To cancel the turn signal lights,
push the switch in after it has returned
to the center position.
EAU12500
Horn switch “
* ** *
*”
Press this switch to sound the horn.
EAUM1131
Start switch “
, ,, ,
,”
Push this switch while applying the front
or rear brake to crank the engine with
the starter.
ECA10050
cCSee page 5-1 for starting instructions
prior to starting the engine.
15P-F8199-E0_ch3.pmd2007/06/20, 14:21 5

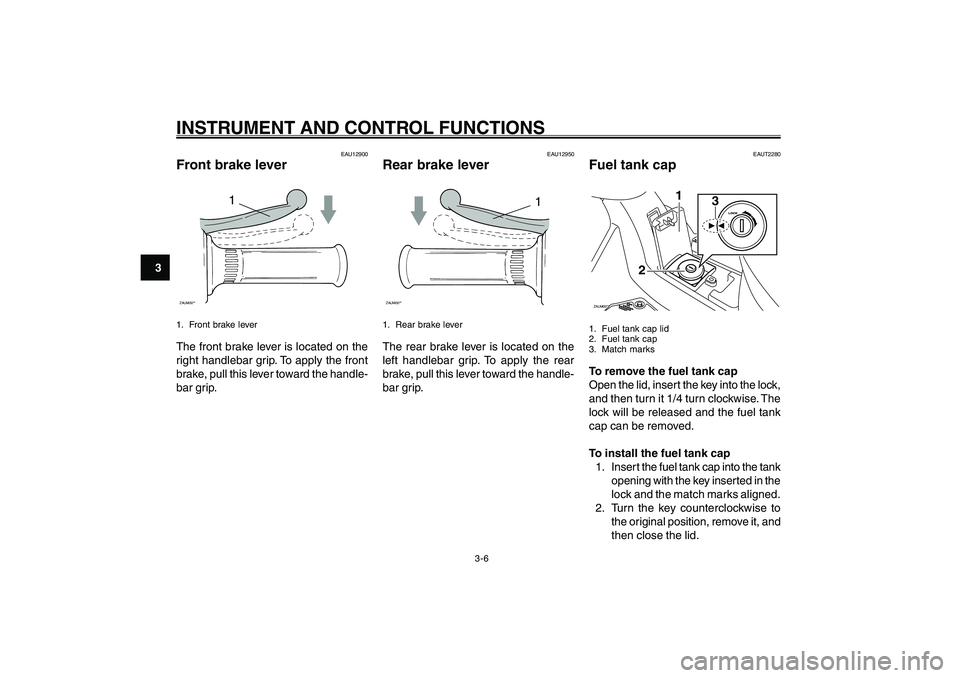

3-6
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONSBrake lever, front
Brake lever, rear
Fuel tank cap
EAU12950
Rear brake lever
1
ZAUM00**1. Rear brake leverThe rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
EAUT2280
Fuel tank capZAUM00**
3
1
2
1. Fuel tank cap lid
2. Fuel tank cap
3. Match marksTo remove the fuel tank cap
Open the lid, insert the key into the lock,
and then turn it 1/4 turn clockwise. The
lock will be released and the fuel tank
cap can be removed.
To install the fuel tank cap
1. Inser t the fuel tank cap into the tank
opening with the key inserted in the
lock and the match marks aligned.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lid.
EAU12900
Front brake lever
1
ZAUM00**1. Front brake leverThe front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
15P-F8199-E0_ch3.pmd2007/06/20, 14:21 6

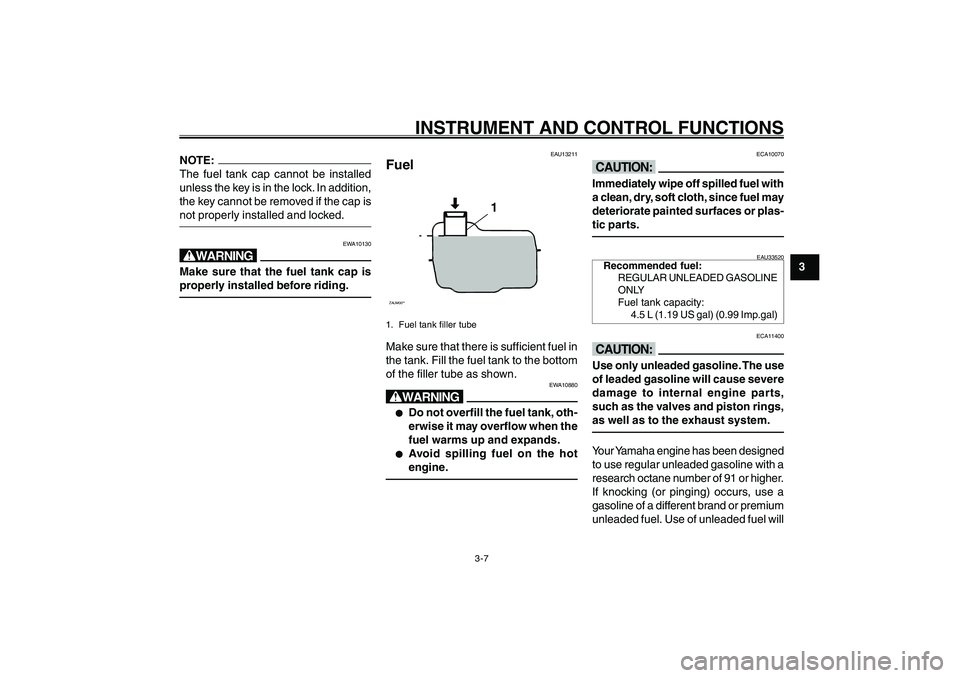

3-7
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU13211
FuelZAUM00**
1
1. Fuel tank filler tubeMake sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
EWA10880
w● ●● ●
●
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
● ●● ●
●
Avoid spilling fuel on the hot
engine.
Fuel
ECA10070
cCImmediately wipe off spilled fuel with
a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plas-
tic parts.
EAU33520
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
4.5 L (1.19 US gal) (0.99 Imp.gal)
ECA11400
cCUse only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been designed
to use regular unleaded gasoline with a
research octane number of 91 or higher.
If knocking (or pinging) occurs, use a
gasoline of a different brand or premium
unleaded fuel. Use of unleaded fuel will
NOTE:
The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked.
EWA10130
wMake sure that the fuel tank cap is
properly installed before riding.
15P-F8199-E0_ch3.pmd2007/06/20, 14:21 7

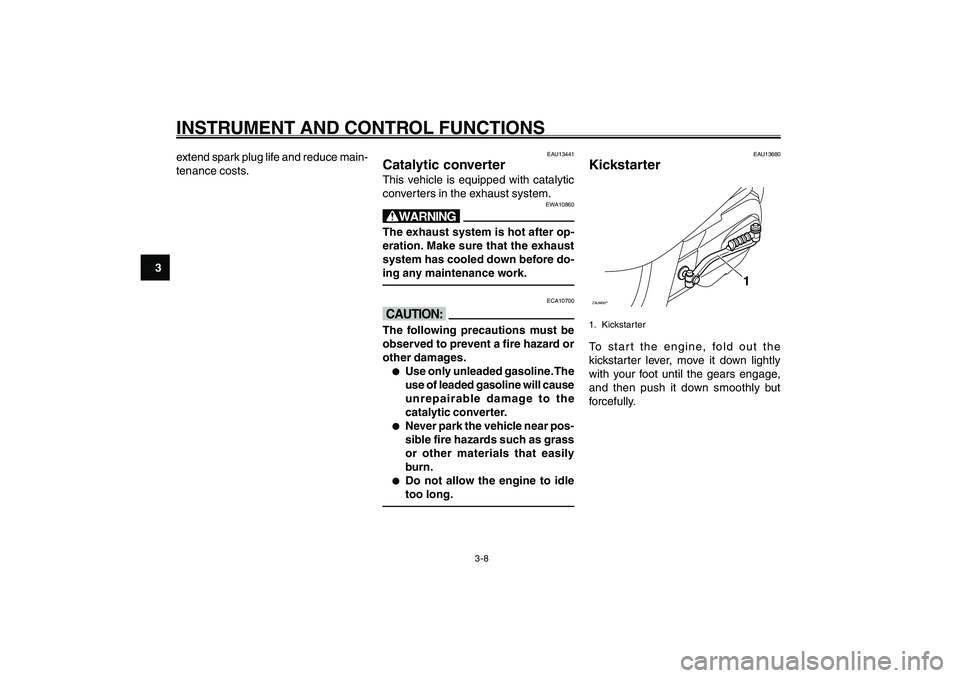

3-8
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU13441
Catalytic converterThis vehicle is equipped with catalytic
converters in the exhaust system.
EWA10860
wThe exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-
ing any maintenance work.
ECA10700
cCThe following precautions must be
observed to prevent a fire hazard or
other damages.● ●● ●
●
Use only unleaded gasoline. The
use of leaded gasoline will cause
unrepairable damage to the
catalytic converter.
● ●● ●
●
Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.
● ●● ●
●
Do not allow the engine to idle
too long.
Catalytic converter
Kickstarter
EAU13680
KickstarterZAUM00**
1
1. Kickstar terTo start the engine, fold out the
kickstarter lever, move it down lightly
with your foot until the gears engage,
and then push it down smoothly but
forcefully. extend spark plug life and reduce main-
tenance costs.
15P-F8199-E0_ch3.pmd2007/06/20, 14:21 8

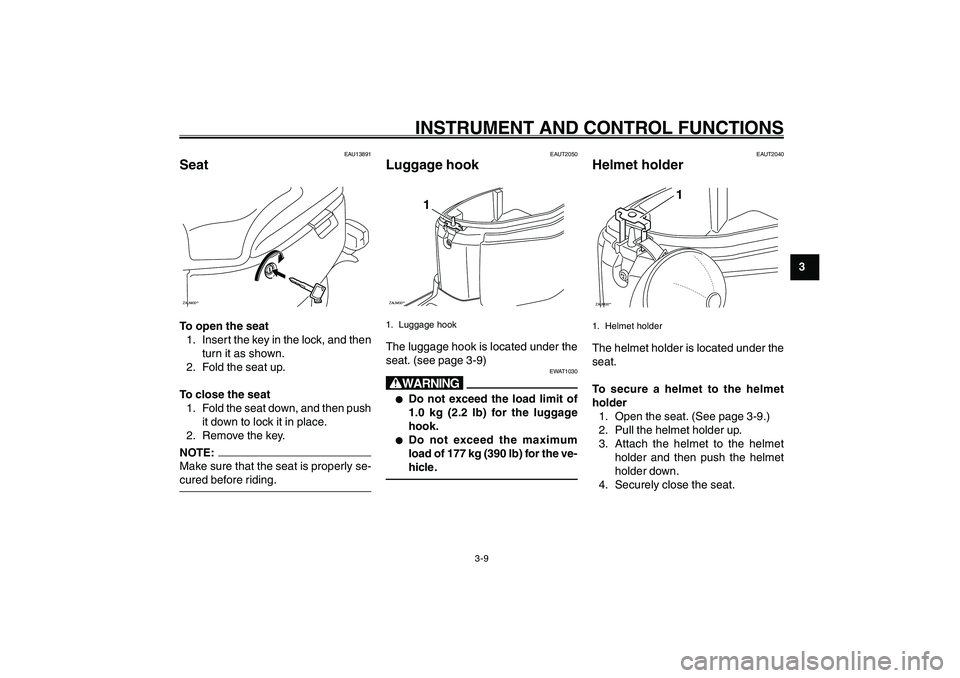

3-9
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
Seat
Luggage hook
Helmet holder
EAUT2050
Luggage hookZAUM00**
1
1. Luggage hookThe luggage hook is located under the
seat. (see page 3-9)
EWAT1030
w● ●● ●
●
Do not exceed the load limit of
1.0 kg (2.2 lb) for the luggage
hook.
● ●● ●
●
Do not exceed the maximum
load of 177 kg (390 lb) for the ve-
hicle.
EAUT2040
Helmet holderZAUM00**
1
1. Helmet holderThe helmet holder is located under the
seat.
To secure a helmet to the helmet
holder
1. Open the seat. (See page 3-9.)
2. Pull the helmet holder up.
3. Attach the helmet to the helmet
holder and then push the helmet
holder down.
4. Securely close the seat.
EAU13891
SeatZAUM00**To open the seat
1. Insert the key in the lock, and then
turn it as shown.
2. Fold the seat up.
To close the seat
1. Fold the seat down, and then push
it down to lock it in place.
2. Remove the key.NOTE:
Make sure that the seat is properly se-
cured before riding.
15P-F8199-E0_ch3.pmd2007/06/20, 14:21 9

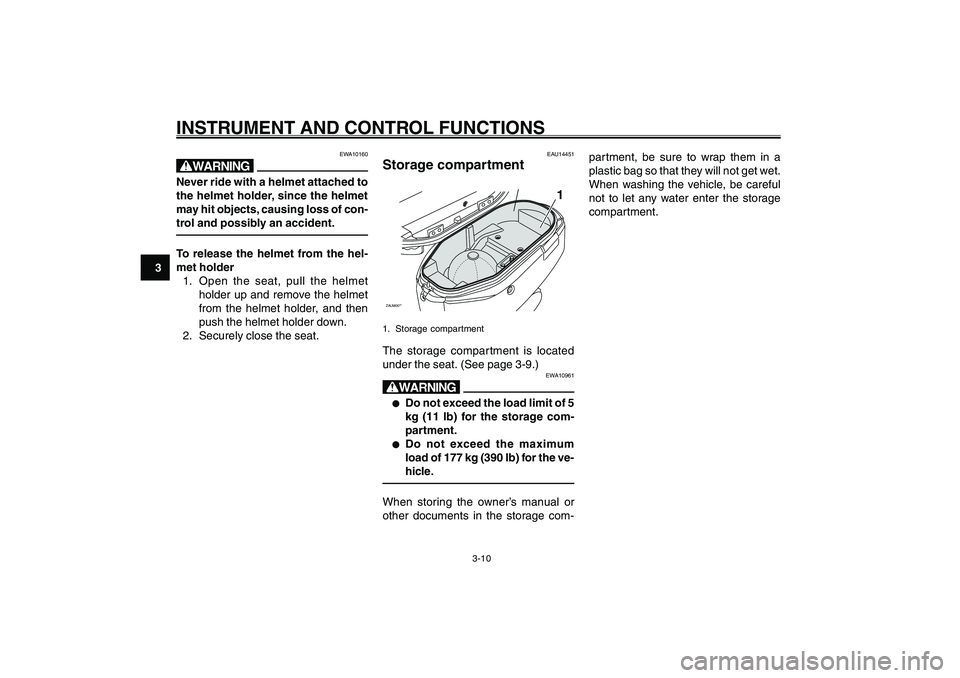

3-10
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
partment, be sure to wrap them in a
plastic bag so that they will not get wet.
When washing the vehicle, be careful
not to let any water enter the storage
compartment.
EAU14451
Storage compartmentZAUM00**
1
1. Storage compartmentThe storage compartment is located
under the seat. (See page 3-9.)
EWA10961
w● ●● ●
●
Do not exceed the load limit of 5
kg (11 lb) for the storage com-
partment.
● ●● ●
●
Do not exceed the maximum
load of 177 kg (390 lb) for the ve-
hicle.
When storing the owner’s manual or
other documents in the storage com- Storage compar tment
EWA10160
wNever ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of con-
trol and possibly an accident.To release the helmet from the hel-
met holder
1. Open the seat, pull the helmet
holder up and remove the helmet
from the helmet holder, and then
push the helmet holder down.
2. Securely close the seat.
15P-F8199-E0_ch3.pmd2007/06/20, 14:21 10

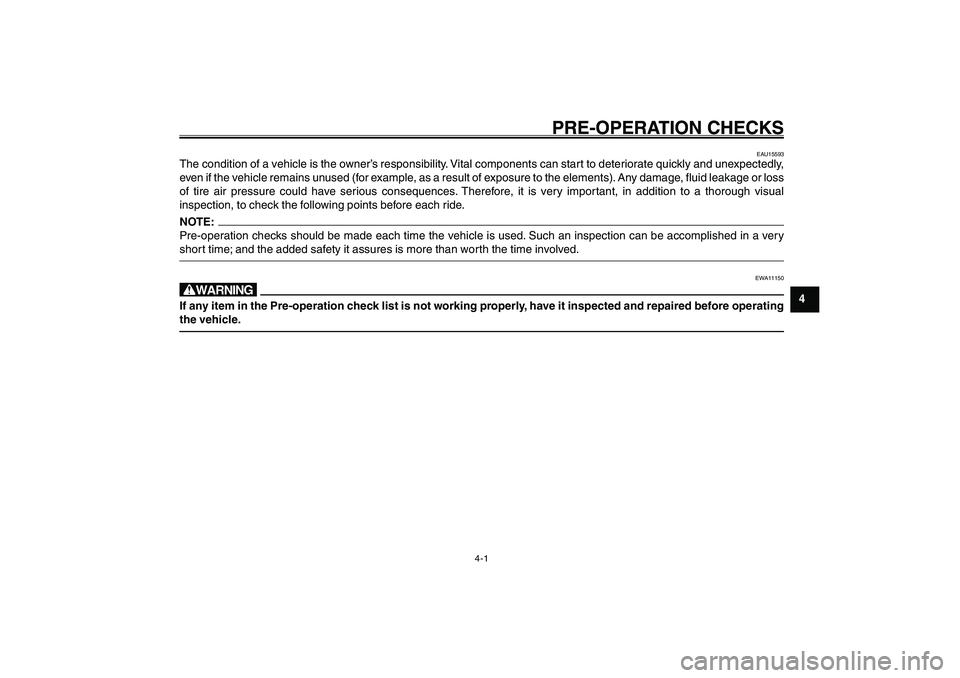

4-1
1
2
3
4
5
6
7
8
9
PRE-OPERATION CHECKS
EAU15580
PRE-OPERATION CHECKS
EAU15593
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual
inspection, to check the following points before each ride.NOTE:
Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very
short time; and the added safety it assures is more than worth the time involved.
EWA11150
wIf any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the vehicle.
15P-F8199-E0_ch4.pmd2007/06/13, 11:16 1

4-2
1
2
3
4
5
6
7
8
9
PRE-OPERATION CHECKS
EAU15605
Pre-operation check listPre-operation check list
ITEM CHECKS PAGE
Fuel• Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.3-7
Engine oil• Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage.6-7
Final transmission oil• Check vehicle for oil leakage. 6-9
Coolant• Check coolant level in reservoir
• If necessary, add recommended coolant to specified level.
• Check cooling system for leakage.6-10
Front brake• Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary.6-15,6-16
Rear brake• Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary.6-16
~6-17
Throttle grip• Make sure that operation is smooth.
• Check cable free play.
• If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-17
Wheels and tires• Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary.6-13~6-15
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.6-1
7
15P-F8199-E0_ch4.pmd2007/06/13, 11:16 2

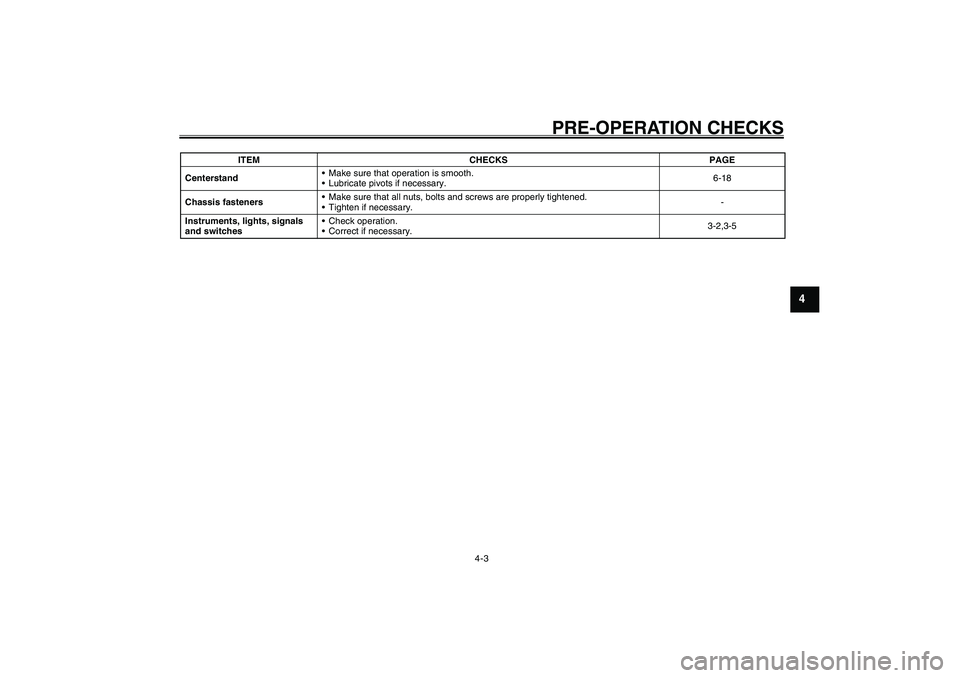

4-3
1
2
3
4
5
6
7
8
9
PRE-OPERATION CHECKS
Centerstand• Make sure that operation is smooth.
• Lubricate pivots if necessary.6-18
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.-
Instruments, lights, signals
and switches• Check operation.
• Correct if necessary.3-2,3-5 ITEM CHECKS PAGE
15P-F8199-E0_ch4.pmd2007/06/13, 11:16 3

5-1
1
2
3
4
5
6
7
8
9
OPERATION AND IMPORTANT RIDING POINTS
EAU15942
OPERATION AND IMPORTANT RIDING POINTS
EAU15980
EWA10870
w● ●● ●
●
Become thoroughly familiar with
all operating controls and their
functions before riding. Consult
a Yamaha dealer regarding any
control or function that you do
not thoroughly understand.
● ●● ●
●
Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
● ●● ●
●
For safety, always start the en-
gine with the centerstand down.
Starting the engine
EAUT2250
Starting the engine
ECA10250
cCSee page 5-3 for engine break-in in-
structions prior to operating the ve-
hicle for the first time.1. Turn the key to “ON”.
ECAT1070
cCThe engine trouble warning light and
coolant temperature warning light
should come on for a few seconds,
then go off. If these warning lights
do not go off, have a Yamaha dealer
check their electrical circuits.2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the front
or rear brake.NOTE:
If the engine does not start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-serve the battery. Do not crank the en-
gine more than 5 seconds on any one
attempt. If the engine does not start with
the starter motor, try using the
kickstarter.
ECA11040
cCFor maximum engine life, never ac-
celerate hard when the engine is
cold!
15P-F8199-E0_ch5.pmd2007/06/13, 11:17 1
