YAMAHA GIGGLE50 2007 User Guide

1-4
1
2
3
4
5
6
7
8
9
EAU10220
Q QQ Q
Q
SAFETY INFORMATION
9Take care not to spill any
gasoline on the engine or
exhaust system when refueling.
9Never refuel while smoking or
in the vicinity of an open flame.
8Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of con-
sciousness and death within a
short time. Always operate your
scooter in an area that has adequate
ventilation.
8Always turn the engine off before
leaving the scooter unattended and
remove the key from the main
switch. When parking the scooter,
note the following:
9The engine and exhaust
system may be hot, therefore,
park the scooter in a place
where pedestrians or children
are not likely to touch these hot
areas.
9Do not park the scooter on a
slope or soft ground, otherwise
it may fall over.
9Do not park the scooter near a
flammable source (e.g., akerosene heater, or near an
open flame), otherwise it could
catch fire.
8If you should swallow any gasoline,
inhale a lot of gasoline vapor, or
allow gasoline to get into your eyes,
see your doctor immediately. If any
gasoline spills on your skin or cloth-
ing, immediately wash the affected
area with soap and water and
change your clothes. Safe-riding points
EAUT2030
Further safe-riding points8Make sure to signal clearly when
making turns.
8Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when stop-
ping on a wet surface.
8Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.
8Be careful when passing parked
cars. A driver might not see you and
open a door in your path.
8Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers become
extremely slippery when wet. Slow
down and cross them with caution.
Keep the scooter upright, otherwise
it could slide out from under you.
8The brake lining could get wet when
you wash the scooter. After wash-
ing the scooter, check the brakes
before riding.
8Always wear a helmet, gloves, trou-
sers (tapered around the cuff and
ankle so they do not flap), and a
15P-F8199-E0_ch1.pmd2007/06/20, 14:20 4

1-5
1
2
3
4
5
6
7
8
9
EAU10220
Q QQ Q
Q

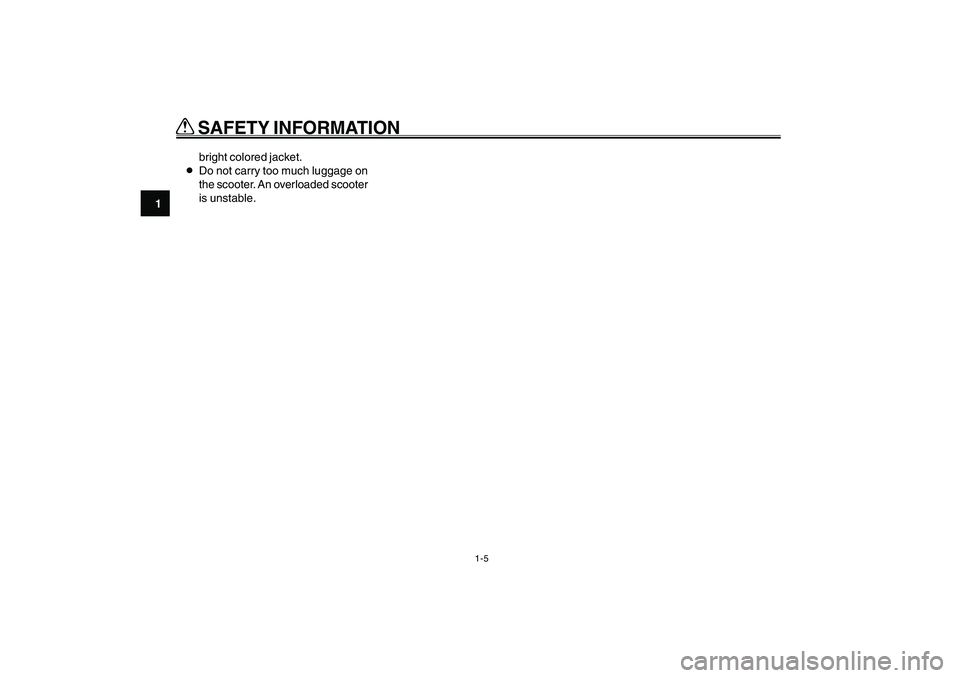

SAFETY INFORMATIONbright colored jacket.
8Do not carry too much luggage on
the scooter. An overloaded scooter
is unstable.
15P-F8199-E0_ch1.pmd2007/06/20, 14:20 5

1-6
1
2
3
4
5
6
7
8
9
EAU10220
Q QQ Q
Q

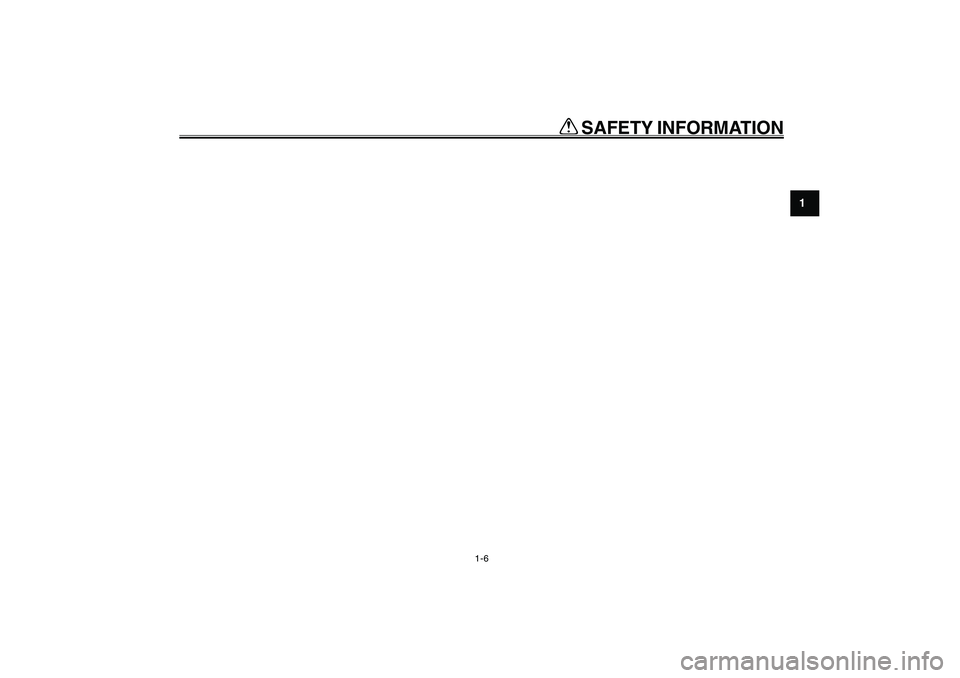

SAFETY INFORMATION
15P-F8199-E0_ch1.pmd2007/06/20, 14:20 6

2-1
1
2
3
4
5
6
7
8
9
DESCRIPTION
EAU10400
DESCRIPTIONPart locations
EAU10410

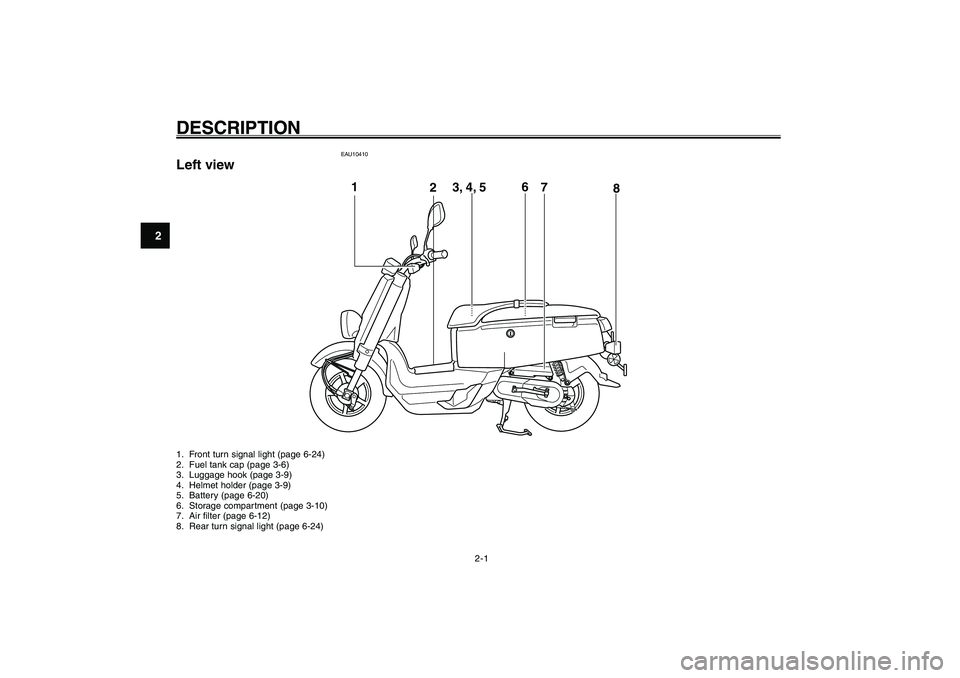

Left view1. Front turn signal light (page 6-24)
2. Fuel tank cap (page 3-6)
3. Luggage hook (page 3-9)
4. Helmet holder (page 3-9)
5. Battery (page 6-20)
6. Storage compartment (page 3-10)
7. Air filter (page 6-12)
8. Rear turn signal light (page 6-24)
1
23, 4, 56
8
7
15P-F8199-E0_ch2.pmd2007/06/13, 11:16 1

2-2
1
2
3
4
5
6
7
8
9
DESCRIPTION
EAU10420

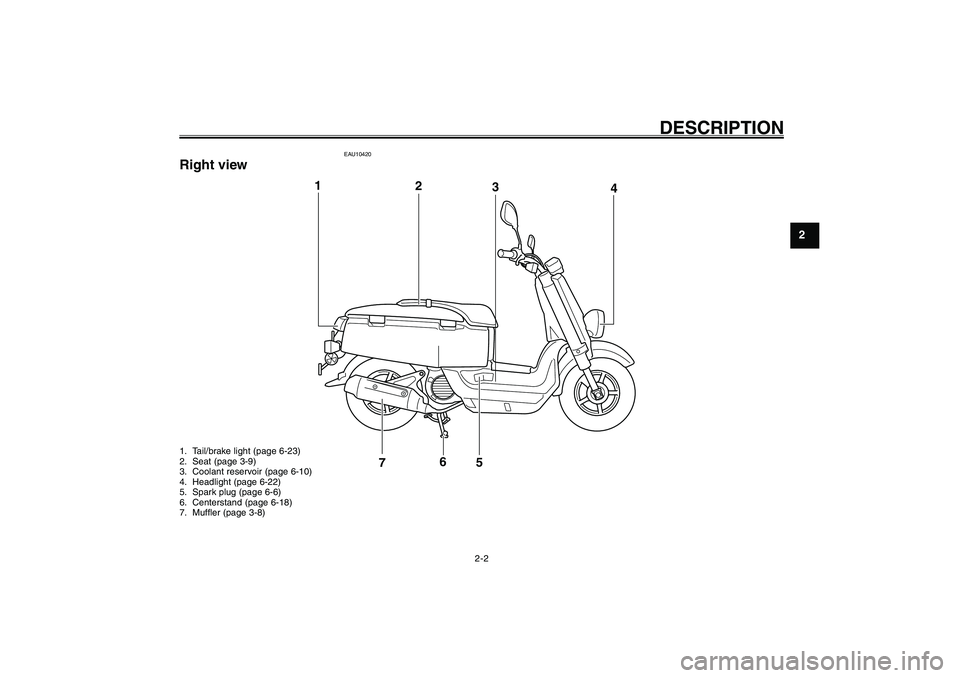

Right view1. Tail/brake light (page 6-23)
2. Seat (page 3-9)
3. Coolant reservoir (page 6-10)
4. Headlight (page 6-22)
5. Spark plug (page 6-6)
6. Centerstand (page 6-18)
7. Muffler (page 3-8)
2
3 1
4
5
6
7
15P-F8199-E0_ch2.pmd2007/06/13, 11:16 2

2-3
1
2
3
4
5
6
7
8
9
DESCRIPTION
EAU10430

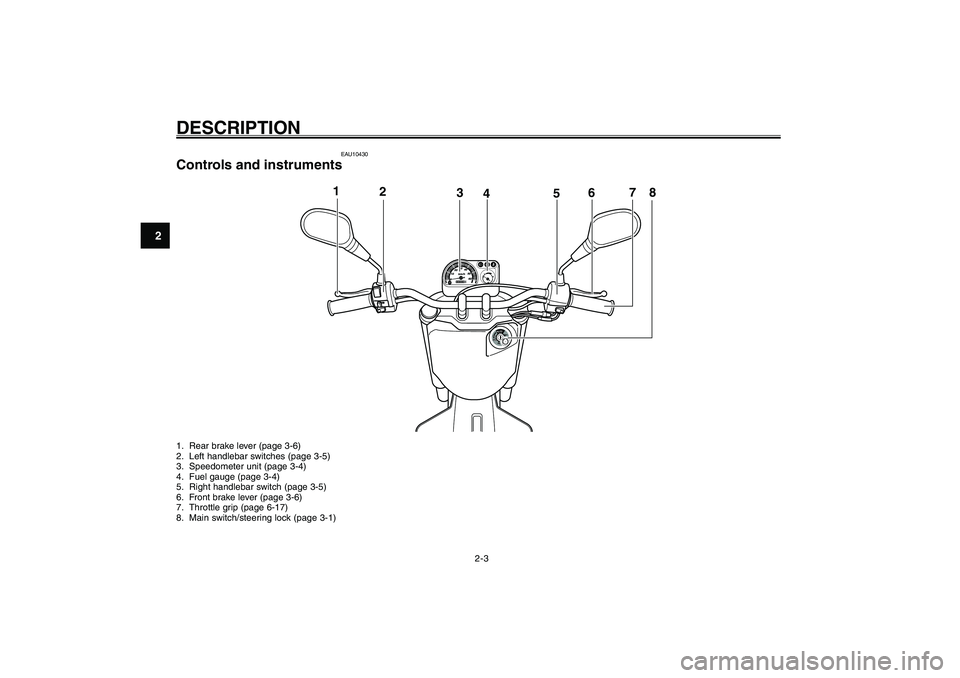

Controls and instruments1. Rear brake lever (page 3-6)
2. Left handlebar switches (page 3-5)
3. Speedometer unit (page 3-4)
4. Fuel gauge (page 3-4)
5. Right handlebar switch (page 3-5)
6. Front brake lever (page 3-6)
7. Throttle grip (page 6-17)
8. Main switch/steering lock (page 3-1)
1
2
3
4
5
6
7
8
15P-F8199-E0_ch2.pmd2007/06/13, 11:16 3

3-1
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU1044D

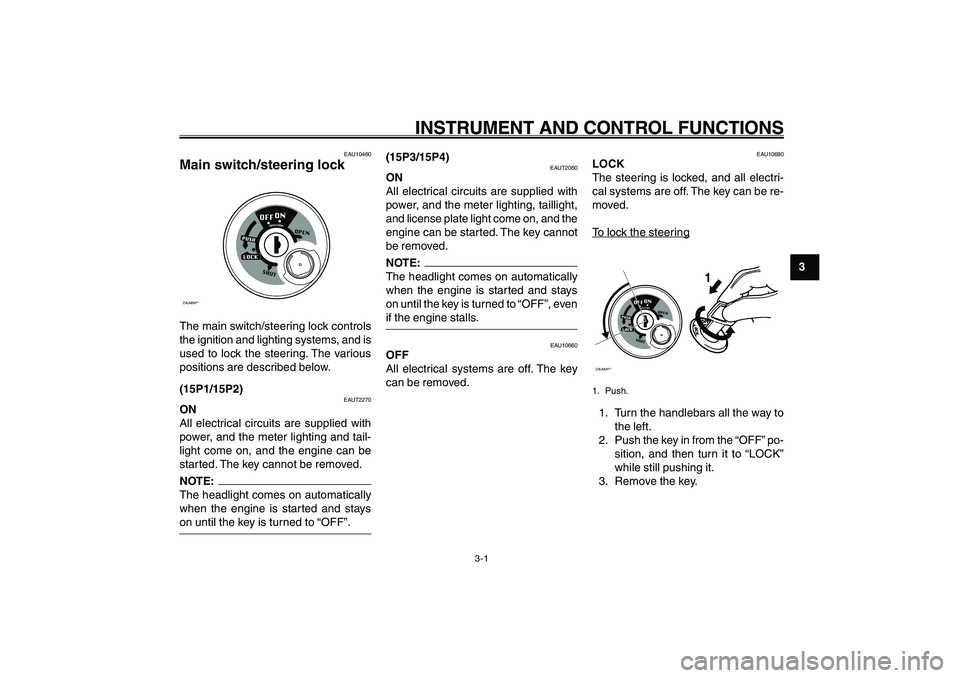

INSTRUMENT AND CONTROL FUNCTIONS
EAU10460
Main switch/steering lockZAUM00**The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below. Main switch/steering lock
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be re-
moved.To loc
k the steer
ing
ZAUM00**
1
1. Push.1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key. (15P1/15P2)
EAUT2270
ON
All electrical circuits are supplied with
power, and the meter lighting and tail-
light come on, and the engine can be
started. The key cannot be removed.NOTE:
The headlight comes on automatically
when the engine is started and stays
on until the key is turned to “OFF”.
(15P3/15P4)
EAUT2060
ON
All electrical circuits are supplied with
power, and the meter lighting, taillight,
and license plate light come on, and the
engine can be started. The key cannot
be removed.NOTE:
The headlight comes on automatically
when the engine is started and stays
on until the key is turned to “OFF”, even
if the engine stalls.
15P-F8199-E0_ch3.pmd2007/06/20, 14:21 1

3-2
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAUT2120

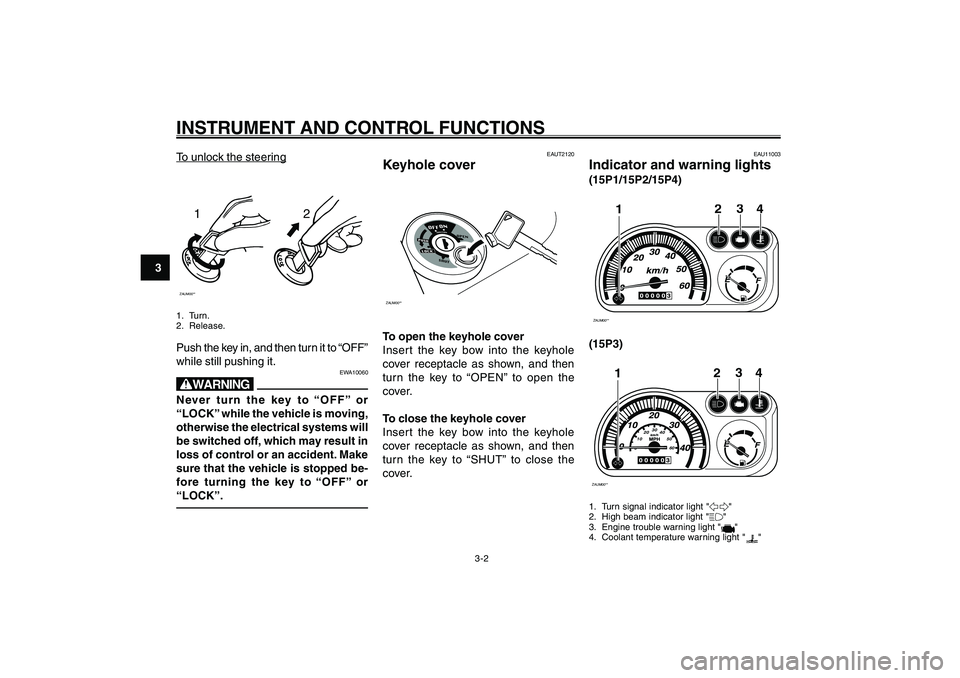

Keyhole coverZAUM00**To open the keyhole cover
Insert the key bow into the keyhole
cover receptacle as shown, and then
turn the key to “OPEN” to open the
cover.
To close the keyhole cover
Insert the key bow into the keyhole
cover receptacle as shown, and then
turn the key to “SHUT” to close the
cover. Keyhole cover
Indicator and warning lights
EAU11003
Indicator and warning lights(15P1/15P2/15P4)ZAUM00**
3
24
1
(15P3)ZAUM00**
0102030
40
50
60
3
24
1
1. Turn signal indicator light "5"
2. High beam indicator light "&"
3. Engine trouble warning light "
"
4. Coolant temperature warning light "
"
To unloc
k the steer
ing
12
ZAUM00**1. Turn.
2. Release.Push the key in, and then turn it to “OFF”
while still pushing it.
EWA10060
wNever turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
15P-F8199-E0_ch3.pmd2007/06/20, 14:21 2

3-3
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU11020
Turn signal indicator light “
5 55 5
5”
This indicator light flashes when the turn
signal switch is pushed to the left or
right.
EAU11080
High beam indicator light “
& && &
&”
This indicator light comes on when the
high beam of the headlight is switched
on. Turn signal indicator light
High beam indicator light
Coolant temperature warning light
Engine trouble warning light
EAUT1930
Engine trouble warning light “
”
This warning light flashes when an elec-
trical circuit monitoring the engine is
defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11440
Coolant temperature warning light
“
”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
ECA10020
cCDo not operate the engine if it is over-
heated.
15P-F8199-E0_ch3.pmd2007/06/20, 14:21 3

3-4
1
2
3
4
5
6
7
8
9

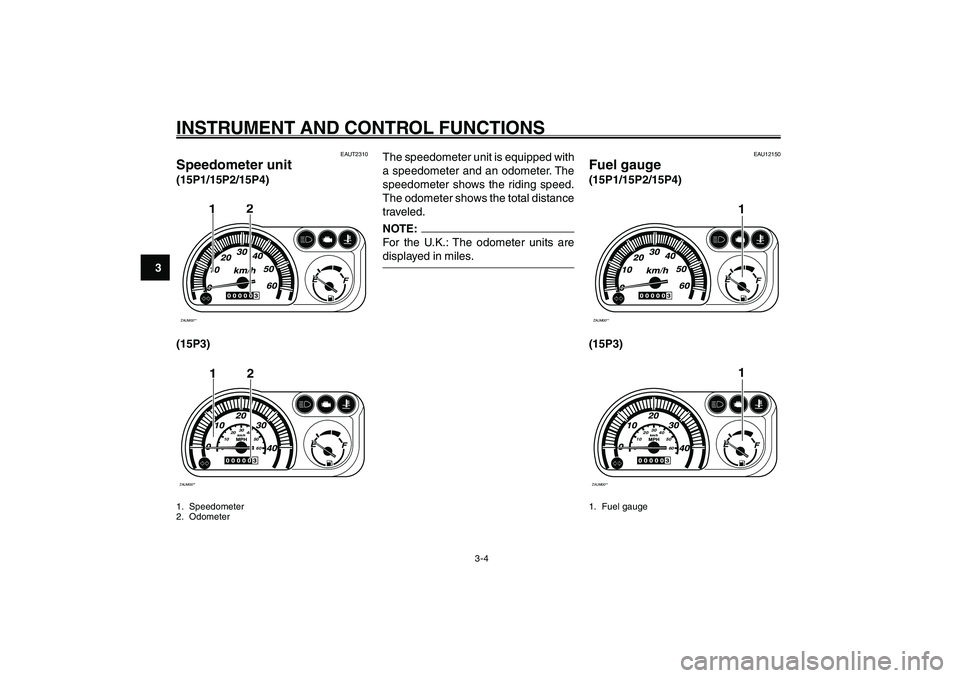

INSTRUMENT AND CONTROL FUNCTIONSSpeedometer unit
Fuel gauge
EAUT2310
Speedometer unit(15P1/15P2/15P4)ZAUM00**
2
1
(15P3)ZAUM00**
2
0102030
40
50
60
1
1. Speedometer
2. Odometer
The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.NOTE:
For the U.K.: The odometer units are
displayed in miles.
EAU12150
Fuel gauge(15P1/15P2/15P4)ZAUM00**
1
(15P3)ZAUM00**
1
0102030
40
50
60
1. Fuel gauge
15P-F8199-E0_ch3.pmd2007/06/20, 14:21 4
