YAMAHA GIGGLE50 2007 Owners Manual
Manufacturer: YAMAHA, Model Year: 2007, Model line: GIGGLE50, Model: YAMAHA GIGGLE50 2007Pages: 72, PDF Size: 1.05 MB
Page 1 of 72
15P-F8199-E0XF50E
OWNER’S MANUAL
15P-F8199-E0_cv.pmd2007/07/18, 12:26 2
Page 2 of 72
1
2
3
4
5
6
7
8
915P-F8199-E0_ch0.pmd2007/06/13, 11:15 1
Page 3 of 72
1
2
3
4
5
6
7
8
9
EAU10050

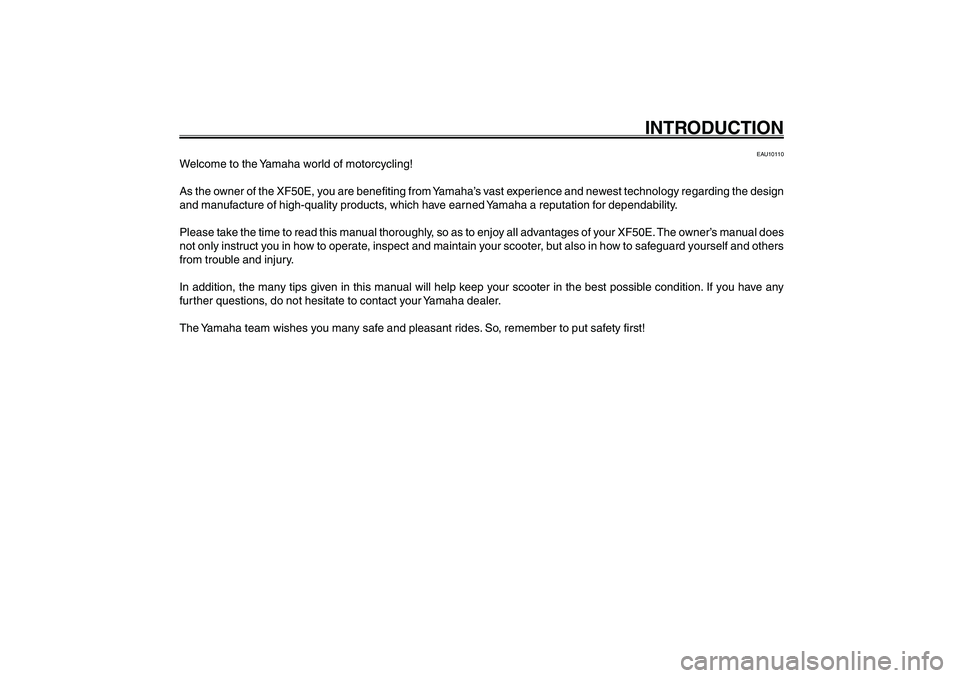

INTRODUCTION
EAU10110
Welcome to the Yamaha world of motorcycling!
As the owner of the XF50E, you are benefiting from Yamaha’s vast experience and newest technology regarding the design
and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your XF50E. The owner’s manual does
not only instruct you in how to operate, inspect and maintain your scooter, but also in how to safeguard yourself and others
from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
15P-F8199-E0_ch0.pmd2007/06/13, 11:15 2
Page 4 of 72
1
2
3
4
5
6
7
8
9
EAU10122

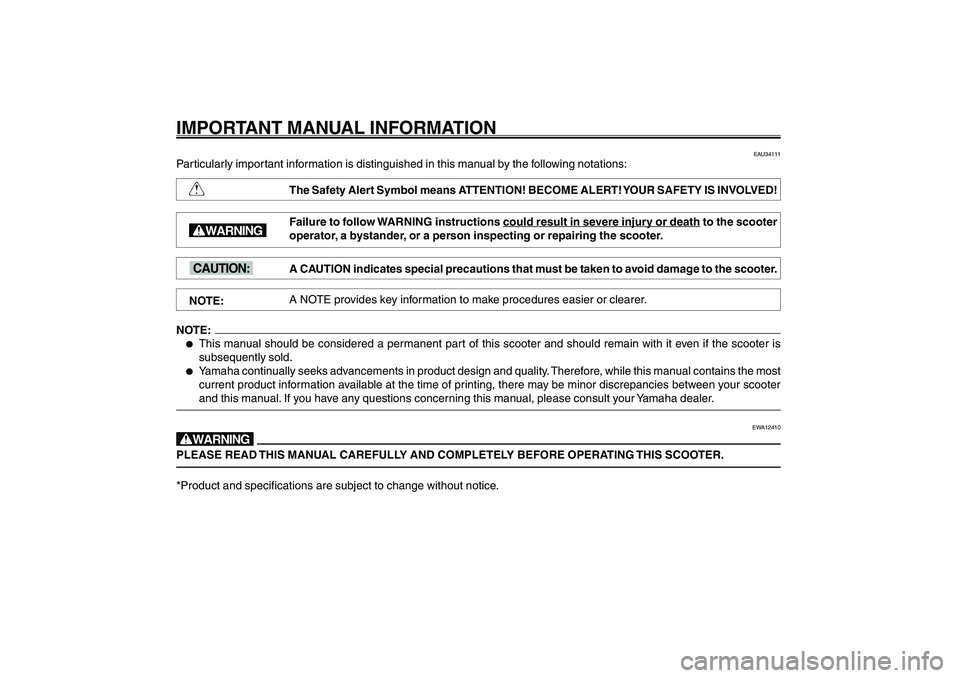

IMPORTANT MANUAL INFORMATION
w
cCNOTE:Q
EAU34111
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Failure to follow WARNING instructions
could result in se
vere injur
y or death to the scooter
operator, a bystander, or a person inspecting or repairing the scooter.
A CAUTION indicates special precautions that must be taken to avoid damage to the scooter.
A NOTE provides key information to make procedures easier or clearer.
NOTE:●
This manual should be considered a permanent part of this scooter and should remain with it even if the scooter is
subsequently sold.
●
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your scooter
and this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.
EWA12410
wPLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS SCOOTER.*Product and specifications are subject to change without notice.
15P-F8199-E0_ch0.pmd2007/06/13, 11:15 3
Page 5 of 72
1
2
3
4
5
6
7
8
9
EAU10122

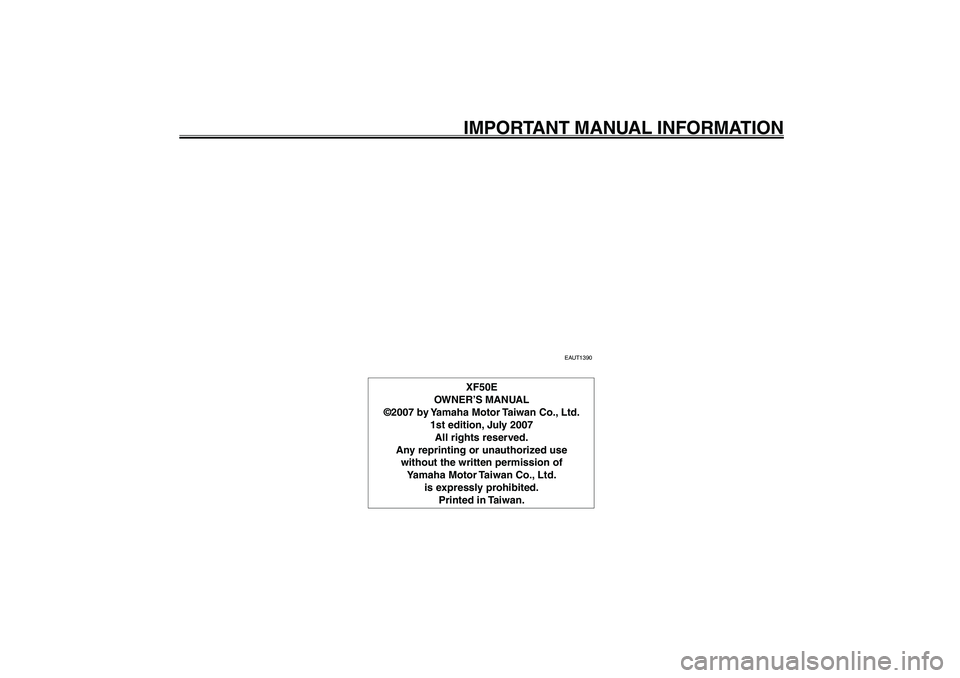

IMPORTANT MANUAL INFORMATION
EAUT1390
XF50E
OWNER’S MANUAL
©2007 by Yamaha Motor Taiwan Co., Ltd.
1st edition, July 2007
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Taiwan Co., Ltd.
is expressly prohibited.
Printed in Taiwan.
15P-F8199-E0_ch0.pmd2007/06/13, 11:15 4
Page 6 of 72
1
2
3
4
5
6
7
8
9
EAU10210
TABLE OF CONTENTSSAFETY INFORMATION ................... 1-1
Fur ther safe-riding points ............... 1-4
DESCRIPTION ................................... 2-1
Left view ......................................... 2-1
Right view ....................................... 2-2
Controls and instruments ............... 2-3
INSTRUMENT AND CONTROL FUNC-
TIONS ................................................ 3-1
Main switch/steering lock ............... 3-1
Keyhole cover ................................. 3-2
Indicator and warning lights ........... 3-2
Speedometer unit ........................... 3-4
Fuel gauge ...................................... 3-4
Handlebar switches ........................ 3-5
Front brake lever ............................. 3-6
Rear brake lever ............................. 3-6
Fuel tank cap .................................. 3-6
Fuel .................................................3-7
Catalytic converter .......................... 3-8
Kickstarter....................................... 3-8
Seat ................................................3-9
Luggage hook ................................. 3-9
Helmet holder ................................. 3-9
Storage compartment ................... 3-10
PRE-OPERATION CHECKS ............. 4-1
Pre-operation check list .................. 4-2OPERATION AND IMPORTANT RIDING
POINTS .............................................. 5-1
Star ting the engine ......................... 5-1
Star ting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking........................................... 5-2
Engine break-in .............................. 5-3
Parking........................................... 5-3
PERIODIC MAINTENANCE AND MINOR
REPAIR .............................................. 6-1
Periodic maintenance and lubrication
chart............................................ 6-2
Removing and installing panels ..... 6-5
Checking the spark plug ................. 6-6
Engine oil and oil strainer ............... 6-7
Final transmission oil ...................... 6-9
Coolant......................................... 6-10
Replacing the air filter element ..... 6-12
Checking the throttle cable free
play............................................ 6-12
Valve clearance ............................ 6-12
Tires.............................................. 6-13
Cast wheels .................................. 6-15
Adjusting the brake lever free
play............................................ 6-15
Adjusting the rear brake lever free
play............................................ 6-16
Checking the front and rear brake
shoes......................................... 6-16Checking and lubricating the throttle
grip and cable ............................ 6-17
Lubricating the front and rear brake
levers......................................... 6-17
Checking and lubricating the
centerstand............................... 6-18
Checking the front fork ................. 6-18
Checking the steering ................... 6-19
Checking the wheel bearings ....... 6-19
Battery.......................................... 6-20
Replacing the fuse ........................ 6-21
Replacing the headlight bulb ........ 6-22
Replacing the tail/brake light bulb 6-23
Replacing a turn signal light bulb . 6-24
Troubleshooting............................ 6-24
Troubleshooting charts ................. 6-25
SCOOTER CARE AND STORAGE ... 7-1
Care ................................................ 7-1
Storage ........................................... 7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION ............ 9-1
Identification numbers .................... 9-1
15P-F8199-E0_ch0.pmd2007/06/13, 11:15 5
Page 7 of 72
1
2
3
4
5
6
7
8
9
EAU10210
TABLE OF CONTENTS
15P-F8199-E0_ch0.pmd2007/06/13, 11:15 6
Page 8 of 72
1-1
1
2
3
4
5
6
7
8
9
EAU10220
Q QQ Q
Q

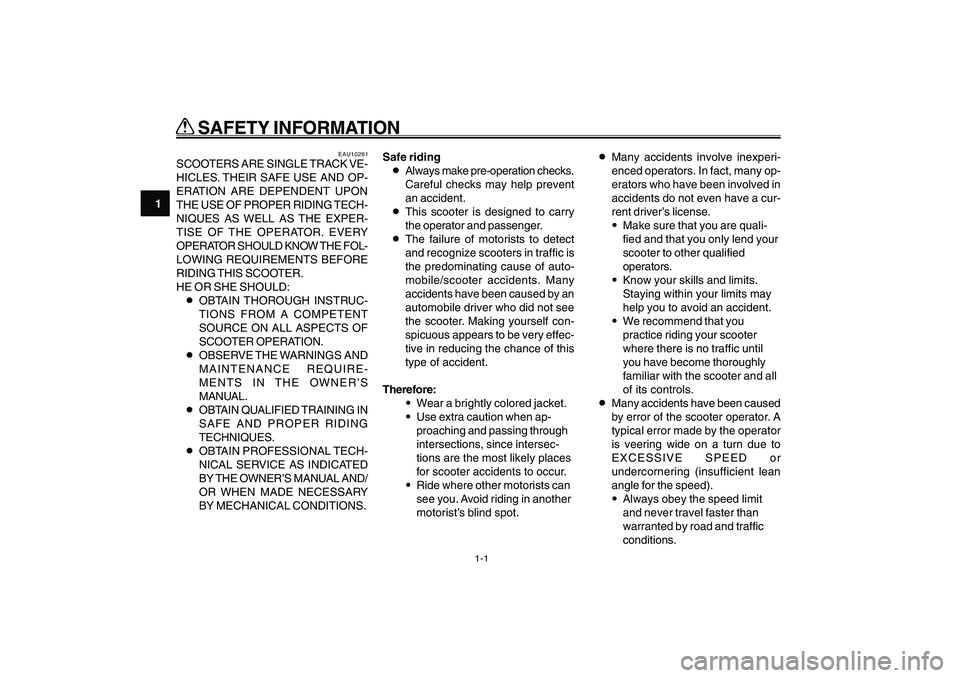

SAFETY INFORMATION
EAU10261
SCOOTERS ARE SINGLE TRACK VE-
HICLES. THEIR SAFE USE AND OP-
ERATION ARE DEPENDENT UPON
THE USE OF PROPER RIDING TECH-
NIQUES AS WELL AS THE EXPER-
TISE OF THE OPERATOR. EVERY
OPERATOR SHOULD KNOW THE FOL-
LOWING REQUIREMENTS BEFORE
RIDING THIS SCOOTER.
HE OR SHE SHOULD:
8OBTAIN THOROUGH INSTRUC-
TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
SCOOTER OPERATION.
8OBSERVE THE WARNINGS AND
MAINTENANCE REQUIRE-
MENTS IN THE OWNER’S
MANUAL.
8OBTAIN QUALIFIED TRAINING IN
SAFE AND PROPER RIDING
TECHNIQUES.
8OBTAIN PROFESSIONAL TECH-
NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUAL AND/
OR WHEN MADE NECESSARY
BY MECHANICAL CONDITIONS.Safe riding
8Always make pre-operation checks.
Careful checks may help prevent
an accident.
8This scooter is designed to carry
the operator and passenger.
8The failure of motorists to detect
and recognize scooters in traffic is
the predominating cause of auto-
mobile/scooter accidents. Many
accidents have been caused by an
automobile driver who did not see
the scooter. Making yourself con-
spicuous appears to be very effec-
tive in reducing the chance of this
type of accident.
Therefore:
9Wear a brightly colored jacket.
9Use extra caution when ap-
proaching and passing through
intersections, since intersec-
tions are the most likely places
for scooter accidents to occur.
9Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.8Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent driver’s license.
9Make sure that you are quali-
fied and that you only lend your
scooter to other qualified
operators.
9Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
9We recommend that you
practice riding your scooter
where there is no traffic until
you have become thoroughly
familiar with the scooter and all
of its controls.
8Many accidents have been caused
by error of the scooter operator. A
typical error made by the operator
is veering wide on a turn due to
EXCESSIVE SPEED or
undercornering (insufficient lean
angle for the speed).
9Always obey the speed limit
and never travel faster than
warranted by road and traffic
conditions. Safety information
EAU10220
Q QQ Q
Q
SAFETY INFORMATION
15P-F8199-E0_ch1.pmd2007/06/20, 14:20 1
Page 9 of 72
1-2
1
2
3
4
5
6
7
8
9
EAU10220
Q QQ Q
Q
SAFETY INFORMATION

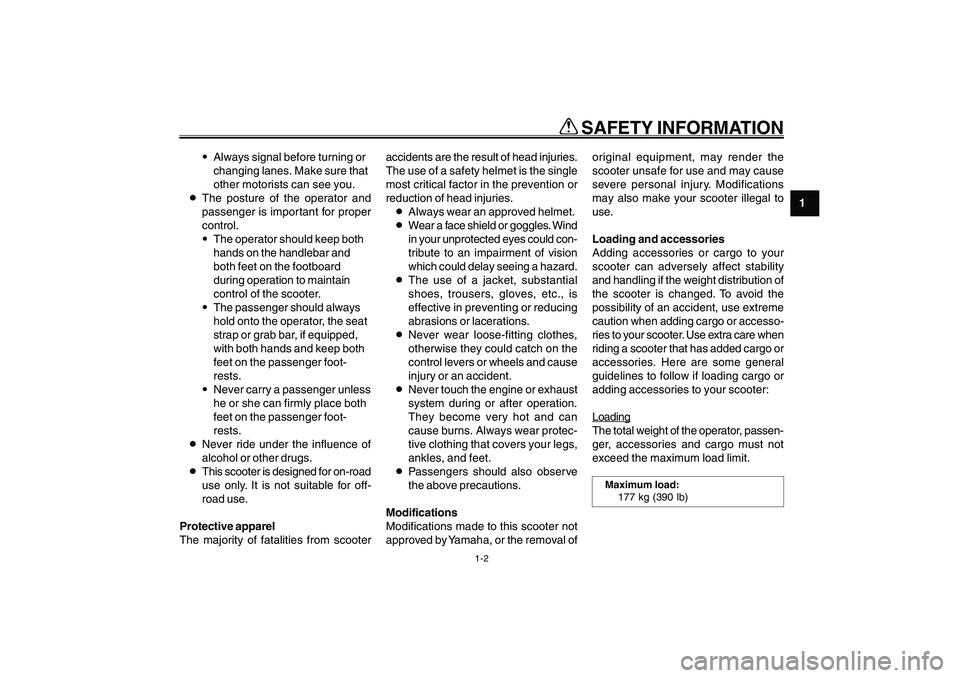

9Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
8The posture of the operator and
passenger is important for proper
control.
9The operator should keep both
hands on the handlebar and
both feet on the footboard
during operation to maintain
control of the scooter.
9The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foot-
rests.
9Never carry a passenger unless
he or she can firmly place both
feet on the passenger foot-
rests.
8Never ride under the influence of
alcohol or other drugs.
8This scooter is designed for on-road
use only. It is not suitable for off-
road use.
Protective apparel
The majority of fatalities from scooteraccidents are the result of head injuries.
The use of a safety helmet is the single
most critical factor in the prevention or
reduction of head injuries.
8Always wear an approved helmet.
8Wear a face shield or goggles. Wind
in your unprotected eyes could con-
tribute to an impairment of vision
which could delay seeing a hazard.
8The use of a jacket, substantial
shoes, trousers, gloves, etc., is
effective in preventing or reducing
abrasions or lacerations.
8Never wear loose-fitting clothes,
otherwise they could catch on the
control levers or wheels and cause
injury or an accident.
8Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec-
tive clothing that covers your legs,
ankles, and feet.
8Passengers should also observe
the above precautions.
Modifications
Modifications made to this scooter not
approved by Yamaha, or the removal oforiginal equipment, may render the
scooter unsafe for use and may cause
severe personal injury. Modifications
may also make your scooter illegal to
use.
Loading and accessories
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution of
the scooter is changed. To avoid the
possibility of an accident, use extreme
caution when adding cargo or accesso-
ries to your scooter. Use extra care when
riding a scooter that has added cargo or
accessories. Here are some general
guidelines to follow if loading cargo or
adding accessories to your scooter:
Loading
The total weight of the operator, passen-
ger, accessories and cargo must not
exceed the maximum load limit.
Maximum load:
177 kg (390 lb)
15P-F8199-E0_ch1.pmd2007/06/20, 14:20 2
Page 10 of 72
1-3
1
2
3
4
5
6
7
8
9
EAU10220
Q QQ Q
Q
SAFETY INFORMATION
When loading within this weight limit,
keep the following in mind:
8Cargo and accessory weight should
be kept as low and close to the
scooter as possible. Make sure to
distribute the weight as evenly as
possible on both sides of the
scooter to minimize imbalance or
instability.
8Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the scooter before riding.
Check accessory mounts and
cargo restraints frequently.
8Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can cre-
ate unstable handling or a slow
steering response.Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot test
all other accessories that may be avail-
able, you must personally be responsible
for the proper selection, installation and
use of non-Yamaha accessories. Useextreme caution when selecting and in-
stalling any accessories.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
8Never install accessories or carry
cargo that would impair the perfor-
mance of your scooter. Carefully
inspect the accessory before us-
ing it to make sure that it does not
in any way reduce ground clear-
ance or cornering clearance, limit
suspension travel, steering travel
or control operation, or obscure
lights or reflectors.
9Accessories fitted to the
handlebar or the front fork area
can create instability due to
improper weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
9Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic
effects. Wind may attempt tolift the scooter, or the scooter
may become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by
large vehicles.
9Certain accessories can
displace the operator from his
or her normal riding position.
This improper position limits
the freedom of movement of
the operator and may limit
control ability, therefore, such
accessories are not recom-
mended.
8Use caution when adding electrical
accessories. If electrical accesso-
ries exceed the capacity of the
scooter’s electrical system an elec-
tric failure could result, which could
cause a dangerous loss of lights or
engine power.
Gasoline and exhaust gas
8GASOLINE IS HIGHLY FLAM-
MABLE:
9Always turn the engine off
when refueling.
15P-F8199-E0_ch1.pmd2007/06/20, 14:20 3
