SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-4
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-3
Controls and instruments .................2-5
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Main switch/steering lock .................3-1
Indicator and warning lights .............3-2
Speedometer ....................................3-3
Multi-function display .......................3-4
Handlebar switches ..........................3-6
Front brake lever...............................3-6
Rear brake lever................................3-7
Fuel and 2-stroke engine oil tank
caps ...............................................3-7
Fuel ...................................................3-8
Catalytic converter............................3-8
2-stroke engine oil ............................3-9
2-stroke engine oil tank ....................3-9
Kickstarter.......................................3-10
Seat.................................................3-10
Storage compartment.....................3-11
Luggage hook .................................3-12
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2OPERATION AND IMPORTANT
RIDING POINTS..................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-3
Tips for reducing fuel
consumption..................................5-3
Engine break-in.................................5-4
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Periodic maintenance and
lubrication chart ............................6-2
Removing and installing the
cowling and panel .........................6-5
Checking the spark plug ..................6-6
Final transmission oil ........................6-7
Coolant (only for liquid-cooled
models) ..........................................6-8
Air filter element ................................6-9
Adjusting the carburetor .................6-10
Adjusting the throttle cable
free play .......................................6-10
Tires ................................................6-11
Cast wheels ....................................6-12
Checking the front brake lever
free play .......................................6-13
Adjusting the rear brake lever
free play .......................................6-13Checking the front brake pads
and rear brake shoes ..................6-14
Checking the brake fluid level ........6-15
Changing the brake fluid ................6-16
Checking and lubricating the
throttle grip and cable .................6-16
Lubricating the front and rear
brake levers .................................6-16
Checking and lubricanting the
centerstand .................................6-17
Checking the front fork ...................6-17
Checking the steering.....................6-18
Checking the wheel bearings .........6-19
Battery ............................................6-19
Replacing the fuse ..........................6-20
Replacing the headlight bulb
or a front turn signal light
bulb .............................................6-21
Replacing the tail/brake light
bulb or a rear turn signal light
bulb .............................................6-22
Replacing an auxiliary light
bulb .............................................6-23
Troubleshooting ..............................6-24
Troubleshooting charts ...................6-25
SCOOTER CARE AND STORAGE.....7-1
Matte color caution...........................7-1
Care ..................................................7-1
Storage .............................................7-3
TABLE OF CONTENTS
5RW-F8199-E4.QXD 19/11/07 08:01 Página 5

EAU13211

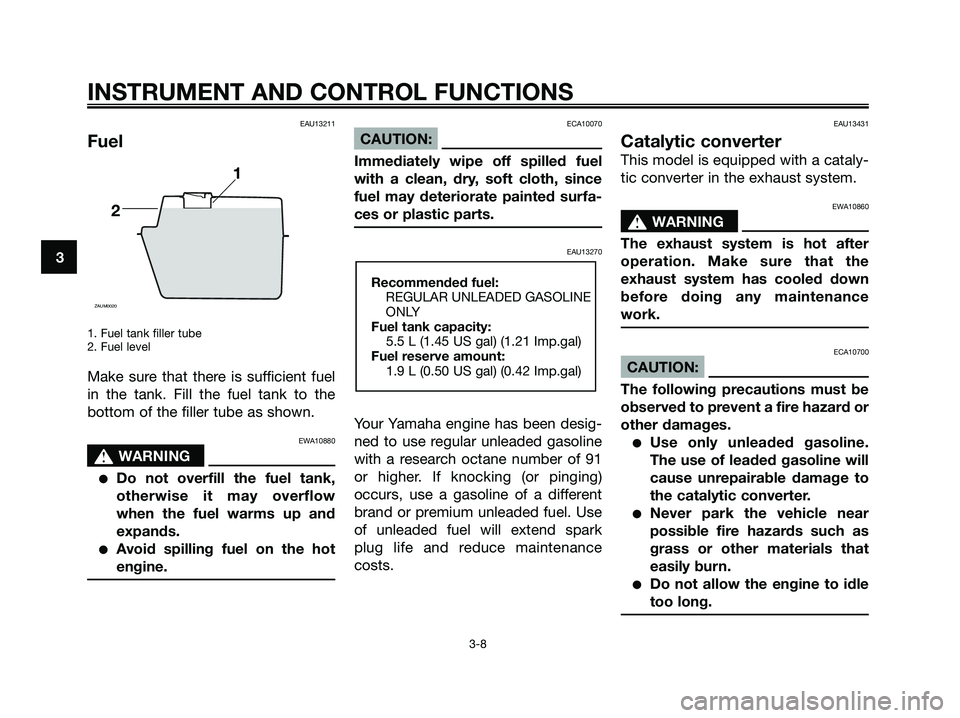

Fuel
1. Fuel tank filler tube
2. Fuel level
Make sure that there is sufficient fuel
in the tank. Fill the fuel tank to the
bottom of the filler tube as shown.
EWA10880
s s
WARNING
●Do not overfill the fuel tank,
otherwise it may overflow
when the fuel warms up and
expands.
●Avoid spilling fuel on the hot
engine.
ECA10070
CAUTION:
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfa-
ces or plastic parts.
EAU13270
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark
plug life and reduce maintenance
costs.
EAU13431
Catalytic converter
This model is equipped with a cataly-
tic converter in the exhaust system.
EWA10860
s s
WARNING
The exhaust system is hot after
operation. Make sure that the
exhaust system has cooled down
before doing any maintenance
work.
ECA10700
CAUTION:
The following precautions must be
observed to prevent a fire hazard or
other damages.
●Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
●Never park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●Do not allow the engine to idle
too long.
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
5.5 L (1.45 US gal) (1.21 Imp.gal)
Fuel reserve amount:
1.9 L (0.50 US gal) (0.42 Imp.gal)
1
2
ZAUM0020
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 24

2-stroke engine oil tank .............................3-9
AAcceleration and deceleration ...................5-2
Air filter element .........................................6-9
Auxiliary light bulb, replacing ...................6-23
BBattery......................................................6-19
Brake fluid level, checking .......................6-15
Brake fluid, changing ...............................6-16
Brake lever, front ........................................3-6
Brake lever, rear .........................................3-7
Brake levers, lubricating ..........................6-16
Brake pads and shoes, checking ............6-14
Braking .......................................................5-3
C
Carburetor,adjusting.................................6-10
Care............................................................7-1
Catalytic converter .....................................3-8
Centerstand,Checking and lubricating ....6-17
Coolant.......................................................6-8
Coolant temperature warning light ............3-3
Cowling and panel, removing
and installing............................................6-5
DDimmer switch ...........................................3-6
EEngine break-in ..........................................5-4
Engine oil ...................................................3-9
FFinal transmission oil .................................6-7
Front brake lever free play, checking.......6-13
Front fork, checking .................................6-17
Fuel ............................................................3-8
Fuel and 2-stroke engine oil tank caps .....3-7Fuel consumption, tips for reducing ..........5-3
Fuse, replacing.........................................6-20
HHandlebar switches ...................................3-6
Headlight and front turn signal light
bulb, replacing .......................................6-21
High beam indicator light...........................3-2
Horn switch ................................................3-6
IIdentification numbers ...............................9-1
Indicator and warning lights ......................3-2
KKey identification number ..........................9-1
Kickstarter ................................................3-10
LLuggage hook ..........................................3-12
MMain switch/steering lock ..........................3-1
Matte color, caution ...................................7-1
Model label ................................................9-2
Multi-function display ................................3-4
OOil level warning light .................................3-2
PParking .......................................................5-4
Part locations .............................................2-1
Periodic maintenance and lubrication
chart .........................................................6-2
Pre-operation check list .............................4-2
RRear brake lever free play, adjusting .......6-13
SSafe-riding points.......................................1-4
Safety information ......................................1-1Seat ..........................................................3-10
Spark plug, checking .................................6-6
Specifications.............................................8-1
Speedometer .............................................3-3
Start switch ................................................3-6
Starting a cold engine ................................5-1
Starting off .................................................5-2
Steering, checking ...................................6-18
Storage.......................................................7-3
Storage compartment ..............................3-11
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-22
Throttle cable free play, adjusting ............6-10
Throttle grip and cable, checking and
lubricating ..............................................6-16
Tires .........................................................6-11
Troubleshooting .......................................6-24
Troubleshooting charts ............................6-25
Turn signal indicator lights .........................3-2
Turn signal switch ......................................3-6
VVehicle identification number .....................9-1
WWheel bearings, checking........................6-19
Wheels .....................................................6-12
