1. Tire tread depth
2. Tire sidewall
Tire inspection
The tires must be checked before
each ride. If the center tread depth
reaches the specified limit, if the tire
has a nail or glass fragments in it, or if
the sidewall is cracked, have a Yama-
ha dealer replace the tire immediately.
NOTE:
The tire tread depth limits may differ
from country to country. Always
comply with the local regulations.
Tire information
This model is equipped with tubeless
tires.
EWA10470
s s
WARNING
●Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the
vehicle with excessively worn
tires decreases riding stability
and can lead to loss of control.
●The replacement of all wheel
and brake related parts, inclu-
ding the tires, should be left to
a Yamaha dealer, who has the
necessary professional know-
ledge and experience.
EAU21960
Cast wheels
To maximize the performance, durabi-
lity, and safe operation of your vehi-
cle, note the following points regar-
ding the specified wheels.
●The wheel rims should be chec-
ked for cracks, bends or warpage
before each ride. If any damage
is found, have a Yamaha dealer
replace the wheel. Do not
attempt even the smallest repair
to the wheel. A deformed or crac-
ked wheel must be replaced.
●The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
●Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for
it to develop its optimal characte-
ristics.
Front tire:
Size:
110/70-12 47L
Manufacturer/model:
CHENG SHIN TIRE/C922
Rear tire:
Size:
120/70-12 51L
Manufacturer/model:
CHENG SHIN TIRE/C922
Minimum tire tread depth (front
and rear):
1.6 mm (0.06 in)
1
2
ZAUM0054
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6
5RW-F8199-E4.QXD 19/11/07 08:01 Página 47

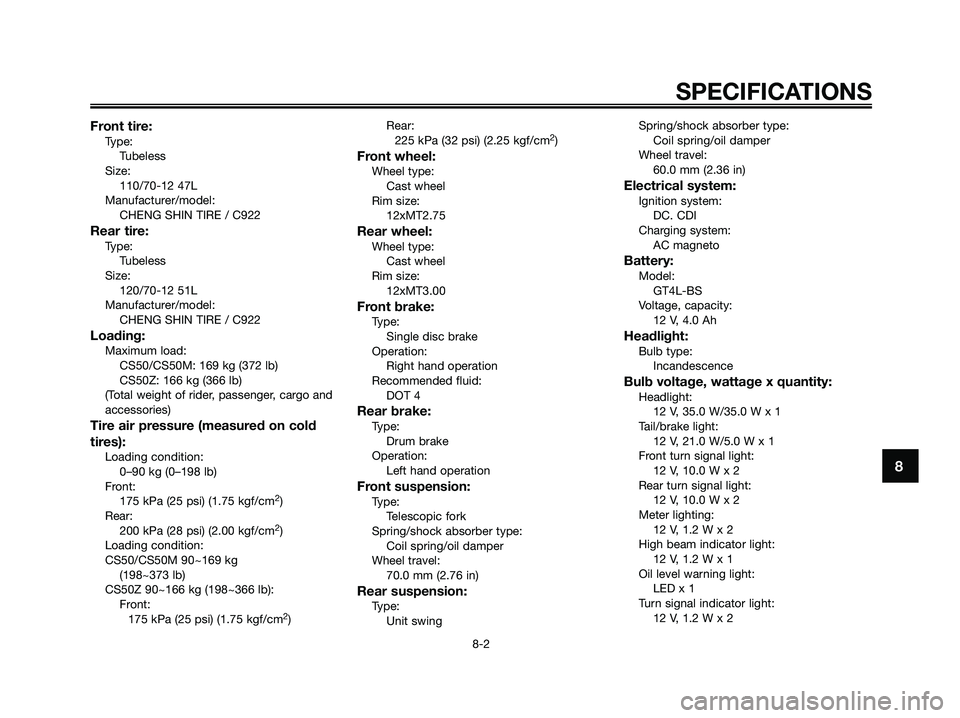

Front tire:Type:Tubeless
Size: 110/70-12 47L
Manufacturer/model: CHENG SHIN TIRE / C922
Rear tire:Type:Tubeless
Size: 120/70-12 51L
Manufacturer/model: CHENG SHIN TIRE / C922
Loading:Maximum load:CS50/CS50M: 169 kg (372 lb)
CS50Z: 166 kg (366 lb)
(Total weight of rider, passenger, cargo and
accessories)
Tire air pressure (measured on cold
tires):
Loading condition: 0–90 kg (0–198 lb)
Front: 175 kPa (25 psi) (1.75 kgf/cm
2)
Rear: 200 kPa (28 psi) (2.00 kgf/cm
2)
Loading condition:
CS50/CS50M 90~169 kg (198~373 lb)
CS50Z 90~166 kg (198~366 lb): Front:175 kPa (25 psi) (1.75 kgf/cm
2) Rear:
225 kPa (32 psi) (2.25 kgf/cm
2)
Front wheel:Wheel type: Cast wheel
Rim size: 12xMT2.75
Rear wheel:Wheel type:Cast wheel
Rim size: 12xMT3.00
Front brake:Type:Single disc brake
Operation: Right hand operation
Recommended fluid: DOT 4
Rear brake:Type:Drum brake
Operation: Left hand operation
Front suspension:Type:Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 70.0 mm (2.76 in)
Rear suspension:Type:Unit swing Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 60.0 mm (2.36 in)
Electrical system:Ignition system:DC. CDI
Charging system: AC magneto
Battery:Model:GT4L-BS
Voltage, capacity: 12 V, 4.0 Ah
Headlight:
Bulb type:Incandescence
Bulb voltage, wattage x quantity:Headlight:12 V, 35.0 W/35.0 W x 1
Tail/brake light: 12 V, 21.0 W/5.0 W x 1
Front turn signal light: 12 V, 10.0 W x 2
Rear turn signal light: 12 V, 10.0 W x 2
Meter lighting: 12 V, 1.2 W x 2
High beam indicator light: 12 V, 1.2 W x 1
Oil level warning light: LED x 1
Turn signal indicator light: 12 V, 1.2 W x 2
SPECIFICATIONS
