DESCRIPTION
Left view.............................................................................................2-1
Right view...........................................................................................2-2
Controls and instruments....................................................................2-3
2
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 11
Page 13 of 106
EAU00026
DESCRIPTION
12
3
4
5
6
7
8
9
2-1

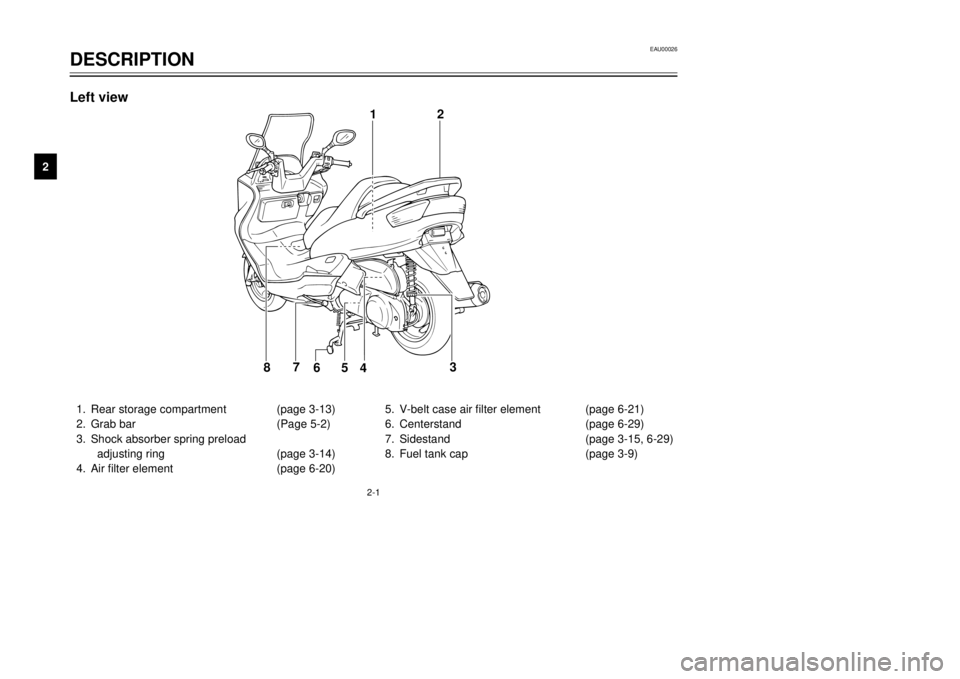

1.Rear storage compartment (page 3-13)
2.Grab bar (Page 5-2)
3.Shock absorber spring preload
adjusting ring (page 3-14)
4.Air filter element(page 6-20)5.V-belt case air filter element(page 6-21)
6.Centerstand (page 6-29)
7.Sidestand (page 3-15, 6-29)
8.Fuel tank cap (page 3-9)
12
3
4 5 6 7
8
Left view
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 12
Page 14 of 106
DESCRIPTION
12
3
4
5
6
7
8
9
2-2

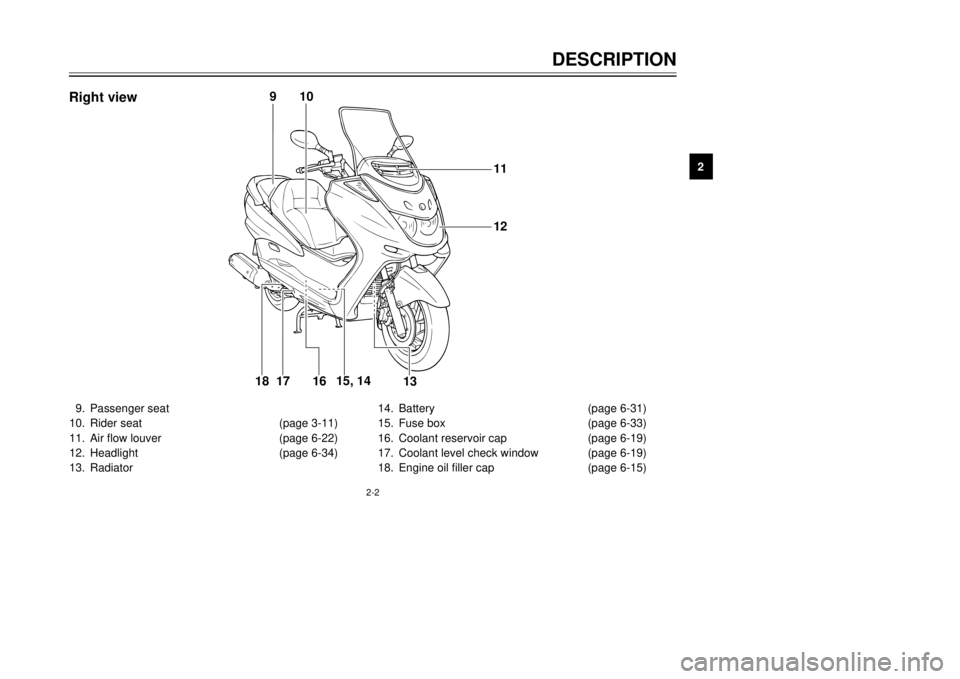

9.Passenger seat
10.Rider seat(page 3-11)
11.Air flow louver(page 6-22)
12.Headlight (page 6-34)
13.Radiator14.Battery(page 6-31)
15.Fuse box(page 6-33)
16.Coolant reservoir cap (page 6-19)
17.Coolant level check window (page 6-19)
18.Engine oil filler cap(page 6-15)
10
11
12
13 16 17
1815, 14
9
Right view
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 13
Page 15 of 106
12
3
4
5
6
7
8
9
2-3

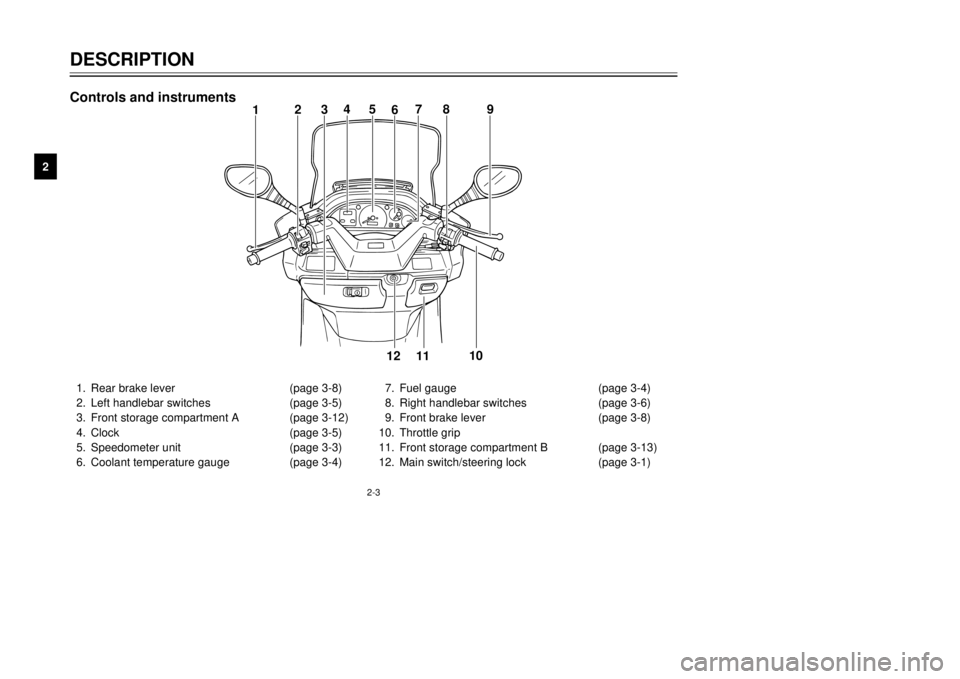

1.Rear brake lever(page 3-8)
2.Left handlebar switches(page 3-5)
3.Front storage compartment A (page 3-12)
4.Clock(page 3-5)
5.Speedometer unit(page 3-3)
6.Coolant temperature gauge (page 3-4)7.Fuel gauge(page 3-4)
8.Right handlebar switches(page 3-6)
9.Front brake lever(page 3-8)
10.Throttle grip
11.Front storage compartment B(page 3-13)
12.Main switch/steering lock(page 3-1)
12345
6789
10
11 12
Controls and instrumentsDESCRIPTION
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 14
Page 16 of 106
INSTRUMENT AND CONTROL FUNCTIONSMain switch/steering lock....................................................................3-1
Indicator lights....................................................................................3-2
Speedometer unit...............................................................................3-3
Self-diagnosis device .........................................................................3-3
Anti-theft alarm (optional)...................................................................3-4
Fuel gauge..........................................................................................3-4
Coolant temperature gauge................................................................3-4
Clock...................................................................................................3-5
Handlebar switches............................................................................3-5
Front brake lever................................................................................3-8
Rear brake lever.................................................................................3-8
Fuel tank cap......................................................................................3-9
Fuel...................................................................................................3-10
Catalytic converter............................................................................3-10
Rider seat.........................................................................................3-11
Adjusting the rider seat.....................................................................3-12
Storage compartments.....................................................................3-12
Adjusting the shock absorber assemblies........................................3-14
Sidestand..........................................................................................3-15
Ignition circuit cut-off system............................................................3-15
3
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 15
Page 17 of 106
3-1
IGNITION
P
LOCK
ON
OFF
OPENPUSHPUSH
EAU00029
Main switch/steering lockThe main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU00036
ON
All electrical systems are supplied
with power, and the engine can be
started. The key cannot be removed.
EAU00038
OFF
All electrical systems are off. The key
can be removed.
EAU00040
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
To lock the steering1.Turn the handlebars all the way
to the left.
2.Push the key in from the ÒOFFÓ
position, and then turn it to
ÒLOCKÓ while still pushing it.
3.Remove the key.
To unlock the steeringPush the key in, and then turn it to
ÒOFFÓ while still pushing it.
EW000016
wNever turn the key to ÒOFFÓ or
ÒLOCKÓ while the scooter is mov-
ing, otherwise the electrical sys-
tems will be switched off, which
may result in loss of control or an
accident. Make sure that the scoot-
er is stopped before turning the
key to ÒOFFÓ or ÒLOCKÓ.
EAU03733
.
(Parking)
The steering is locked, and the tail-
light, license light and auxiliary light
are on, but all other electrical sys-
tems are off. The key can be
removed.
To turn the main switch to Ò
.
Ó
:
1.Turn the key to ÒLOCKÓ.
2.Slightly turn the key counter-
clockwise until it stops.
3.While still turning the key coun-
terclockwise, push it in until it
snaps into place.
ECA00043
cCDo not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
95GM-9-E1(No ABS) 9/27/00 2:18 PM Page 16
Page 18 of 106
3-2
134
2
EAU00056
Indicator lights
EAU03734
Oil change indicator light Ò
7
Ó
This indicator light comes on at the
initial 1,000 km and every 3,000 km
thereafter to indicate that the engine
oil should be changed.
After changing the engine oil, reset
the oil change indicator light.(See
page 6-17 for the resetting proce-
dure.)The electrical circuit of the indicator
light can be checked according to the
following procedure.
1.Set the engine stop switch to Ò#Ó
and turn the key to ÒONÓ.
2.Check that the indicator comes
on for a few seconds and then
goes off.
If the indicator light does not
come on, have a Yamaha dealer
check the electrical circuit.
NOTE:
The oil change indicator light may
flash when the engine is revved with
the scooter on the centerstand, but
this does not indicate a malfunction.
1.Oil change indicator light Ò
7
Ó
2.High beam indicator light Ò&Ó
3.Left turn signal indicator light Ò4Ó
4.Right turn signal indicator light Ò6Ó
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
EAU00063
High beam indicator light Ò&Ó
This indicator light comes on when
the high beam of the headlight is
switched on.
EAU03299
Turn signal indicator lights
Ò4Ó/Ò6Ó
The corresponding indicator light
flashes when the turn signal switch is
pushed to the left or right.
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 17
Page 19 of 106
EAU03740
Self-diagnosis deviceThis model is equipped with a self-
diagnosis device for the throttle posi-
tion sensor, oil change indicator light,
speedometer unit circuits. If any of
those circuits are defective, the oil
change indicator light will flash.
If the indicator light flashes or comes
on, have a Yamaha dealer check the
motorcycle as soon as possible.NOTE:
The oil change indicator light may
flash when the engine is revved with
the scooter on the centerstand, but
this does not indicate a malfunction.
3-3
EAU01586
Speedometer unit The speedometer unit is equipped
with a speedometer, an odometer
and a tripmeter. The speedometer
shows riding speed. The odometer
shows the total distance traveled.
The tripmeter shows the distance
traveled since it was last set to zero.
Pushing the ÒTRIPÓ button switches
the display between the odometer
mode ÒODOÓ and the tripmeter mode
ÒTRIPÓ. To reset the tripmeter, enter
the ÒTRIPÓ mode, and then hold downthe ÒTRIPÓ button for at least one
second. The tripmeter can be used
together with the fuel gauge to esti-
mate the distance that can be trav-
eled with a full tank of fuel. This infor-
mation will enable you to plan future
fuel stops.INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
123
1.Speedometer
2.Odometer/tripmeter
3.ÒTRIPÓ button
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 18
Page 20 of 106
3-4
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9

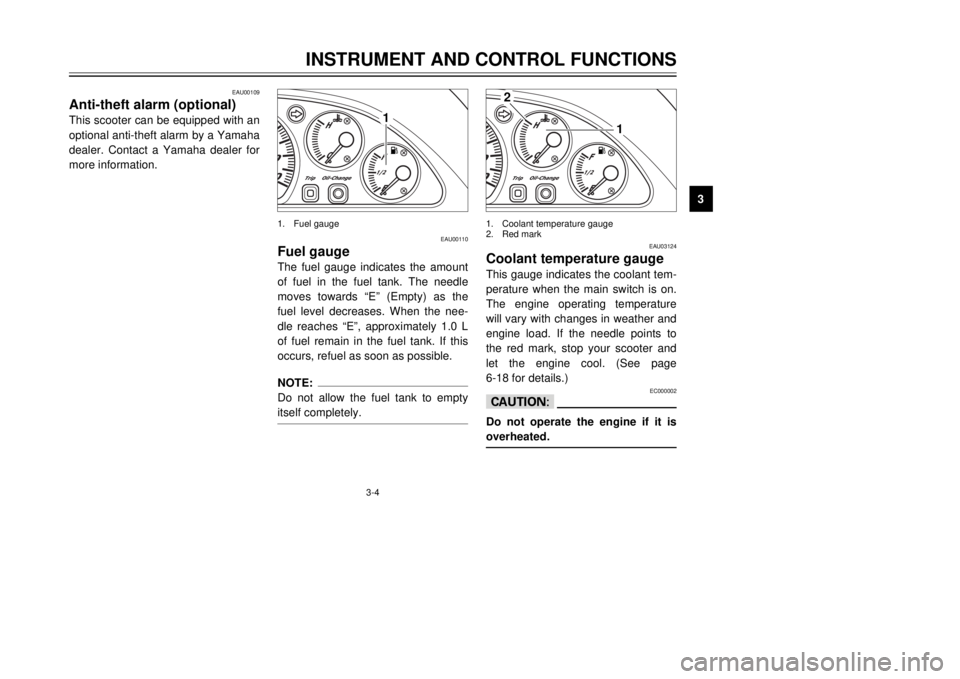

1
EAU00110
Fuel gaugeThe fuel gauge indicates the amount
of fuel in the fuel tank. The needle
moves towards ÒEÓ (Empty) as the
fuel level decreases. When the nee-
dle reaches ÒEÓ, approximately 1.0 L
of fuel remain in the fuel tank. If this
occurs, refuel as soon as possible.NOTE:
Do not allow the fuel tank to empty
itself completely.1.Fuel gauge
1
2

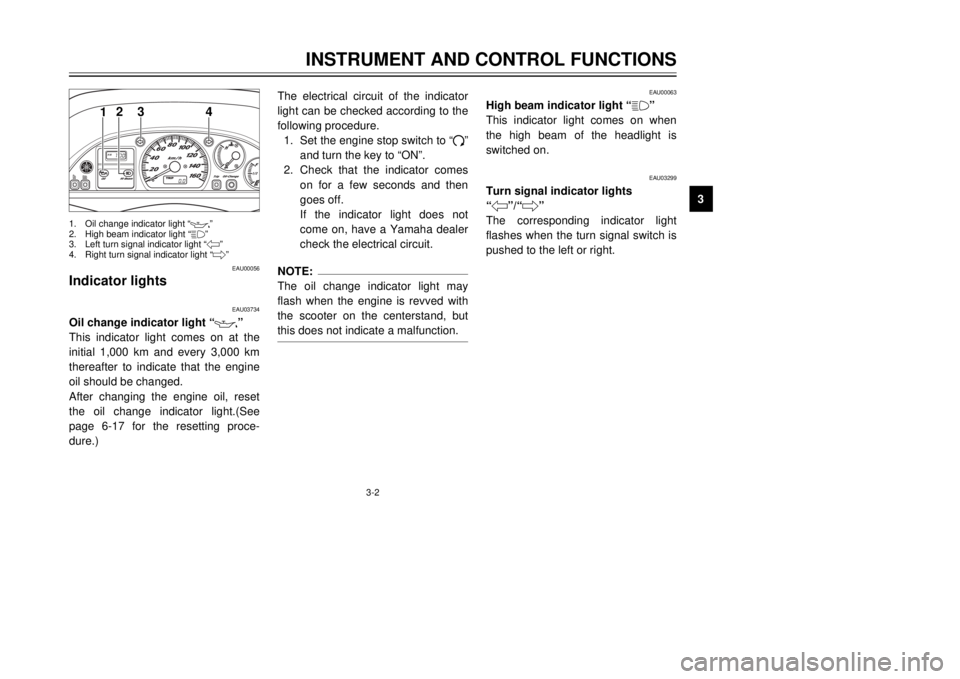

1.Coolant temperature gauge
2.Red mark
EAU03124
Coolant temperature gaugeThis gauge indicates the coolant tem-
perature when the main switch is on.
The engine operating temperature
will vary with changes in weather and
engine load. If the needle points to
the red mark, stop your scooter and
let the engine cool. (See page
6-18 for details.)
EC000002
cCDo not operate the engine if it is
overheated.
EAU00109
Anti-theft alarm (optional)This scooter can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
