YAMAHA MAJESTY 250 2000 Service Manual
Manufacturer: YAMAHA, Model Year: 2000, Model line: MAJESTY 250, Model: YAMAHA MAJESTY 250 2000Pages: 106, PDF Size: 1.65 MB
Page 41 of 106
5-3
EW000057
w8Avoid braking hard or sudden-
ly (especially when leaning
over to one side), otherwise
the scooter may skid or over-
turn.
8Railroad crossings, streetcar
rails, iron plates on road con-
struction sites, and manhole
covers become extremely slip-
pery when wet. Therefore,
slow down when approaching
such areas and cross them
with caution.
8Keep in mind that braking on a
wet road is much more diffi-
cult.
8Ride slowly down a hill, as
braking downhill can be very
difficult.
OPERATION AND IMPORTANT RIDING POINTS
1
2
3
45
6
7
8
9
EAU00435
Braking1.Close the throttle completely.
2.Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
EAU00434
Acceleration and
decelerationThe speed can be adjusted by open-
ing and closing the throttle. To
increase the speed, turn the throttle
grip in direction a. To reduce the
speed, turn the throttle grip in direc-
tion b.
b
a
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 40
Page 42 of 106
5-4
EAU03123
0Ð1,000 km
Avoid operation above 1/3 throttle.
1,000Ð1,600 km
Avoid cruising speeds in excess of
1/2 throttle.
ECA00054
cCAfter 1,000 km of operation, be
sure to replace the engine oil and
final gear oil.1,600 km and beyond
Proceed with normal riding.
EC000049
cCIf any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
OPERATION AND IMPORTANT RIDING POINTS
1
2
3
45
6
7
8
9
EAU01128
Engine break-inThere is never a more important peri-
od in the life of your engine than the
period between 0 and 1,600 km. For
this reason, you should read the fol-
lowing material carefully.
Since the engine is brand new, do
not put an excessive load on it for the
first 1,600 km. The various parts in
the engine wear and polish them-
selves to the correct operating clear-
ances. During this period, prolonged
full-throttle operation or any condition
that might result in engine overheat-
ing must be avoided.
EAU03093
Tips for reducing fuel
consumptionFuel consumption depends largely on
your riding style. Consider the follow-
ing tips to reduce fuel consumption:
8Thoroughly warm up the engine.
8Avoid high engine speeds during
acceleration.
8Avoid high engine speeds with
no load on the engine.
8Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cross-
ings).
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 41
Page 43 of 106
5-5
OPERATION AND IMPORTANT RIDING POINTS
1
2
3
45
6
7
8
9
EAU00461
ParkingWhen parking, stop the engine, and
then remove the key from the main
switch.
EW000058
w8Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely
to touch them.
8Do not park on a slope or on
soft ground, otherwise the
scooter may overturn.
EC000062
cCNever park in an area where there
are fire hazards such as grass or
other flammable materials.
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 42
Page 44 of 106

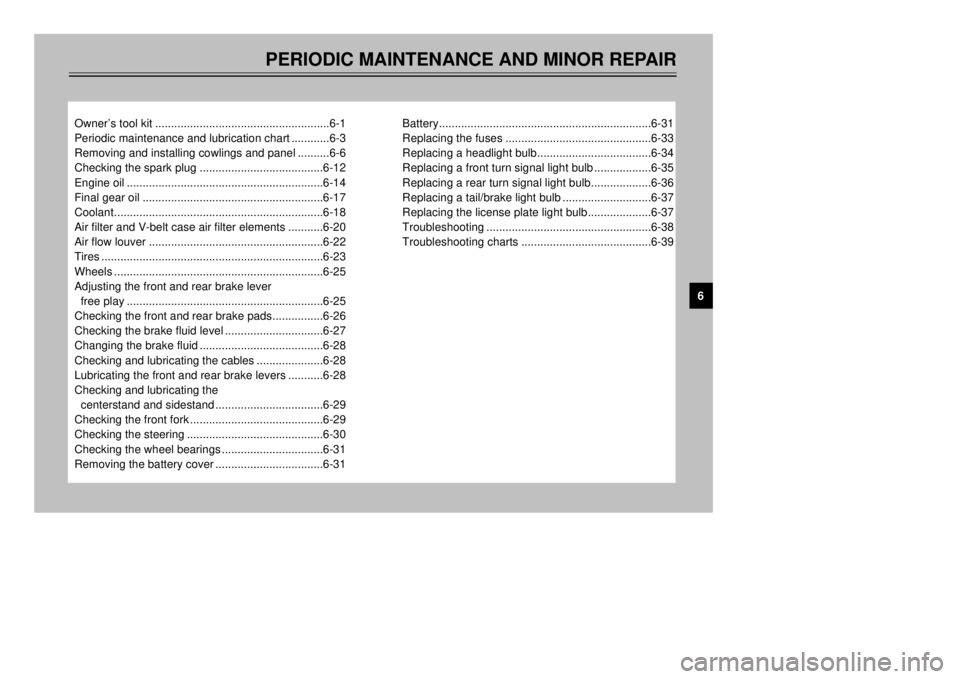

PERIODIC MAINTENANCE AND MINOR REPAIR
OwnerÕs tool kit.......................................................6-1
Periodic maintenance and lubrication chart............6-3
Removing and installing cowlings and panel..........6-6
Checking the spark plug.......................................6-12
Engine oil..............................................................6-14
Final gear oil.........................................................6-17
Coolant..................................................................6-18
Air filter and V-belt case air filter elements...........6-20
Air flow louver.......................................................6-22
Tires......................................................................6-23
Wheels..................................................................6-25
Adjusting the front and rear brake lever
free play..............................................................6-25
Checking the front and rear brake pads................6-26
Checking the brake fluid level...............................6-27
Changing the brake fluid.......................................6-28
Checking and lubricating the cables.....................6-28
Lubricating the front and rear brake levers...........6-28
Checking and lubricating the
centerstand and sidestand..................................6-29
Checking the front fork..........................................6-29
Checking the steering...........................................6-30
Checking the wheel bearings................................6-31
Removing the battery cover..................................6-31Battery...................................................................6-31
Replacing the fuses..............................................6-33
Replacing a headlight bulb....................................6-34
Replacing a front turn signal light bulb..................6-35
Replacing a rear turn signal light bulb...................6-36
Replacing a tail/brake light bulb............................6-37
Replacing the license plate light bulb....................6-37
Troubleshooting....................................................6-38
Troubleshooting charts.........................................6-39
6
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 43
Page 45 of 106
6-1
EAU00464
Safety is an obligation of the owner.
Periodic inspection, adjustment and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. The most important
points of inspection, adjustment, and
lubrication are explained on the fol-
lowing pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, DEPENDING
ON THE WEATHER, TERRAIN,
GEOGRAPHICAL LOCATION, AND
INDIVIDUAL USE, THE MAINTE-
NANCE INTERVALS MAY NEED TO
BE SHORTENED.
EW000060
wIf you are not familiar with scooter
maintenance work, have a Yamaha
dealer do it for you.
EAU00466
wThis scooter is designed for use
on paved roads only. If this scoot-
er is operated in abnormally dusty,
muddy or wet conditions, the air
filter element should be cleaned or
replaced more frequently, other-
wise rapid engine wear may result.
Consult a Yamaha dealer for prop-
er maintenance intervals.
EAU00462
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU03623
OwnerÕs tool kitThe ownerÕs tool kit is located inside
the rear storage compartment. (See
page 3-13 for the rear storage com-
partment opening procedures.)
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 44
Page 46 of 106
6-2
NOTE:
If you do not have the tools or experi-
ence required for a particular job,
have a Yamaha dealer perform it for
you.
EW000063
wModifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle
unsafe for use. Consult a Yamaha
dealer before attempting any
changes.
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
2
1
Pull up the mat and then remove the
ownerÕs tool kit.
The service information included in
this manual and the tools provided in
the ownerÕs tool kit are intended to
assist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be nec-
essary to perform certain mainte-
nance work correctly.1.Mat
2.OwnerÕs tool kit
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 45
Page 47 of 106
6-3
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU03685
Periodic maintenance and lubrication chart
NOTE:
8The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
8From 50,000 km, repeat the maintenance intervals starting from 10,000 km.
8Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.NO.ITEMCHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
110203040
1
*Fuel line¥Check fuel hoses and vacuum hose for cracks or damage.ÖÖÖÖÖ
2Spark plug¥Check condition.
¥Clean and regap.ÖÖ
¥Replace.ÖÖ
3*Valves¥Check valve clearance.
¥Adjust.ÖÖ
4Air filter element¥Clean.ÖÖ
¥Replace.ÖÖ
5V-belt case air filter
element¥Clean.ÖÖÖÖ
6*Front brake¥Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)ÖÖÖÖÖÖ
¥Replace brake pads.Whenever worn to the limit
7*Rear brake¥Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)ÖÖÖÖÖÖ
¥Replace brake pads.Whenever worn to the limit
8*Brake hoses¥Check for cracks or damage.ÖÖÖÖÖ
¥Replace. (See NOTE on page 6-5.)Every 4 years
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 46
Page 48 of 106
6-4
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
9
*Wheels¥Check runout and for damage.ÖÖÖÖ
10*Tires¥Check tread depth and for damage.
¥Replace if necessary.
¥Check air pressure.
¥Correct if necessary.ÖÖÖÖ
11*Wheel bearings¥Check bearing for looseness or damage.ÖÖÖÖ
12*Steering bearings¥Check bearing play and steering for roughness.ÖÖÖÖÖ
¥Lubricate with lithium-soap-based greaseEvery 20,000km
13*Chassis fasteners¥Make sure that all nuts, bolts and screws are properly tightened.ÖÖÖÖÖ
14Sidestand/centerstand¥Check operation.
¥Lubricate.ÖÖÖÖÖ
15*Sidestand switch¥Check operation.ÖÖÖÖÖÖ
16*Front fork¥Check operation and for oil leakage.ÖÖÖÖ
17*Rear shock absorber
assemblies¥Check operation and shock absorbers for oil leakage.ÖÖÖÖ
18*Carburetor¥Check starter (choke) operation.
¥Adjust engine idling speed.ÖÖÖÖÖÖ
19Engine oil¥Change when the oil change indicator light comes on. (See
page 3-2 and 6-17.)ÖEvery 3,000 km
20*Engine oil strainer¥Clean.ÖÖÖ
21*Cooling system¥Check coolant level and vehicle for coolant leakage.ÖÖÖÖÖ
¥Change.Every 3 years NO.ITEMCHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
110203040
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 47
Page 49 of 106
6-5
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU03541
NOTE:
8The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
8Hydraulic brake service
9Regularly check and, if necessary, correct the brake fluid level.
9Every two years replace the internal components of the brake master cylinder and caliper, and change the brake
fluid.
9Replace the brake hoses every four years and if cracked or damaged.22Final gear oil¥Check vehicle for oil leakage.ÖÖÖ
¥Change.ÖÖÖ
23
*V-belt¥Replace.ÖÖ
24*Front and rear brake
switches¥Check operation.ÖÖÖÖÖÖ
25Moving parts and cables¥Lubricate.ÖÖÖÖÖ
26*Lights, signals and
switches¥Check operation.
¥Adjust headlight beam.ÖÖÖÖÖÖ NO.ITEMCHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
110203040
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 48
Page 50 of 106
6-6
1
1
EAU03624
Removing and installing
cowlings and panelThe cowlings and panel shown above
need to be removed to perform some
of the maintenance jobs described in
this chapter. Refer to this section
each time a cowling or panel needs
to be removed and installed.1.Cowling A1.Cowling B
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
1
1.Cowling C
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 49
