warning YAMAHA MT-03 2012 Owner's Manual

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
EWA10380
WARNING0
Never attempt to remove the radia-
tor cap when the engine is hot.
NOTE:
●The radiator fan is automatically
switched on or off according to
the coolant temperature in the ra-
diator.
●If the engine overheats, see page
3-4 for further instructions.
EAU33030
Changing the coolant
EWA10380
WARNING0
Never attempt to remove the radia-
tor cap when the engine is hot.
The coolant must be changed at the
intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer change the
coolant.
EAUB1280
Replacing the air filter
element and cleaning the
check hoses
The air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas. In addition,
the air filter check hoses must be fre-
quently checked and cleaned if neces-
sary. To replace the air filter element
1. Air filter case
2. Screws
1. Remove the air filter case cover
by removing the screws.
2. Pull the air filter element out.
3. Insert a new air filter element into
the air filter case as shown.
6-13

PERIODIC MAINTENANCE AND MINOR REPAIR

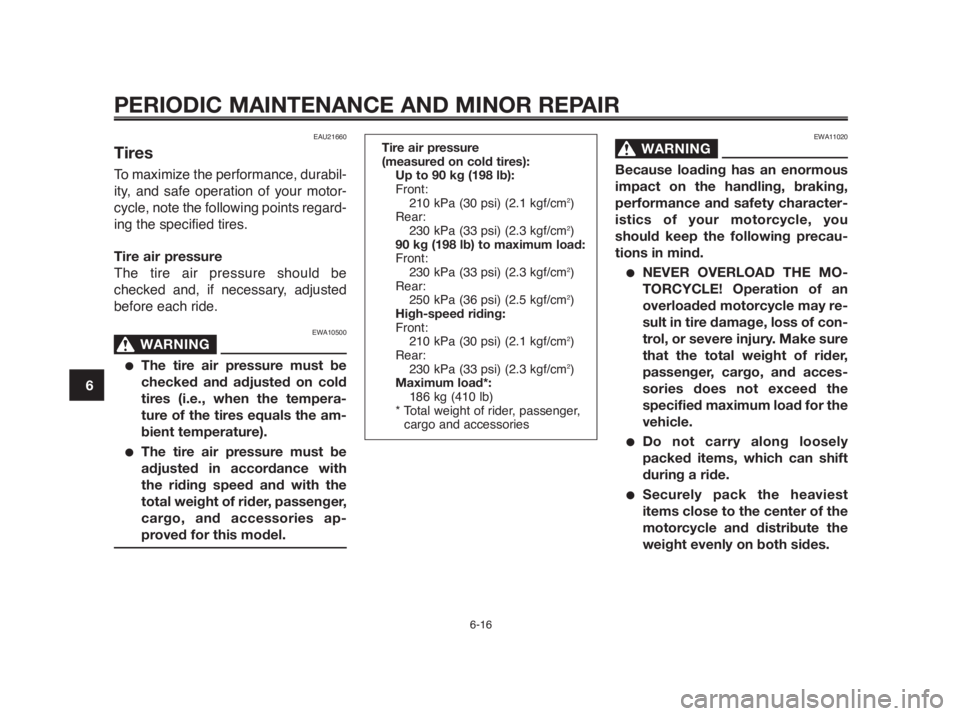

EAU21660
Tires
To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points regard-
ing the specified tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
EWA10500
WARNING0
●The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the tempera-
ture of the tires equals the am-
bient temperature).
●The tire air pressure must be
adjusted in accordance with
the riding speed and with the
total weight of rider, passenger,
cargo, and accessories ap-
proved for this model.
EWA11020
WARNING0
Because loading has an enormous
impact on the handling, braking,
performance and safety character-
istics of your motorcycle, you
should keep the following precau-
tions in mind.
●NEVER OVERLOAD THE MO-
TORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,
passenger, cargo, and acces-
sories does not exceed the
specified maximum load for the
vehicle.
●Do not carry along loosely
packed items, which can shift
during a ride.
●Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.
6-16
1
2
3
4
5
6
7
8
9
10
Tire air pressure
(measured on cold tires):
Up to 90 kg (198 lb):
Front:
210 kPa (30 psi) (2.1 kgf/cm
2)
Rear:
230 kPa (33 psi) (2.3 kgf/cm
2)
90 kg (198 lb) to maximum load:
Front:
230 kPa (33 psi) (2.3 kgf/cm
2)
Rear:
250 kPa (36 psi) (2.5 kgf/cm
2)
High-speed riding:
Front:
210 kPa (30 psi) (2.1 kgf/cm
2)
Rear:
230 kPa (33 psi) (2.3 kgf/cm
2)
Maximum load*:
186 kg (410 lb)
* Total weight of rider, passenger,
cargo and accessories

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR

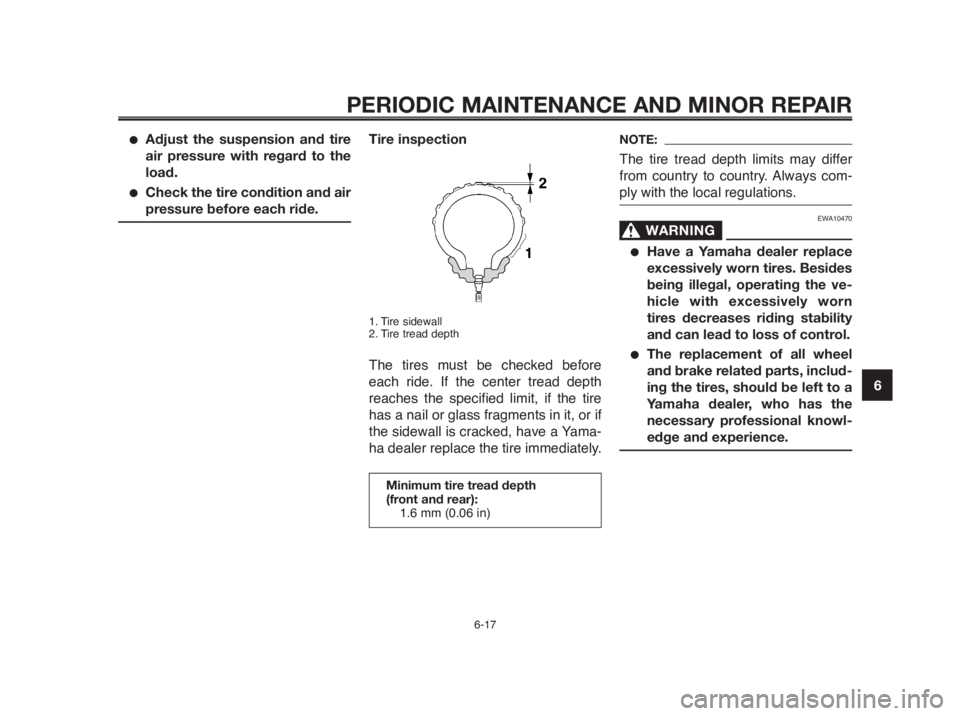

●Adjust the suspension and tire
air pressure with regard to the
load.
●Check the tire condition and air
pressure before each ride.Tire inspection
1. Tire sidewall
2. Tire tread depth
The tires must be checked before
each ride. If the center tread depth
reaches the specified limit, if the tire
has a nail or glass fragments in it, or if
the sidewall is cracked, have a Yama-
ha dealer replace the tire immediately.
NOTE:
The tire tread depth limits may differ
from country to country. Always com-
ply with the local regulations.
EWA10470
WARNING0
●Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the ve-
hicle with excessively worn
tires decreases riding stability
and can lead to loss of control.
●The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
6-17
Minimum tire tread depth
(front and rear):
1.6 mm (0.06 in)

Front tire:
Size:
120/70-ZR17 M/C (58W)
120/70-R17 M/C (58H)
Manufacturer/model:
DUNLOP D270F
PIRELLI SCORPION SYNC
Tire air valve:
TR412
Valve core:
#9000A (standard)
Rear tire:
Size:
160/60-ZR17 M/C (69W)
160/60-R17 M/C (69H)
Manufacturer/model:
DUNLOP D270
PIRELLI SCORPION SYNC
Tire air valve:
TR412
Valve core:

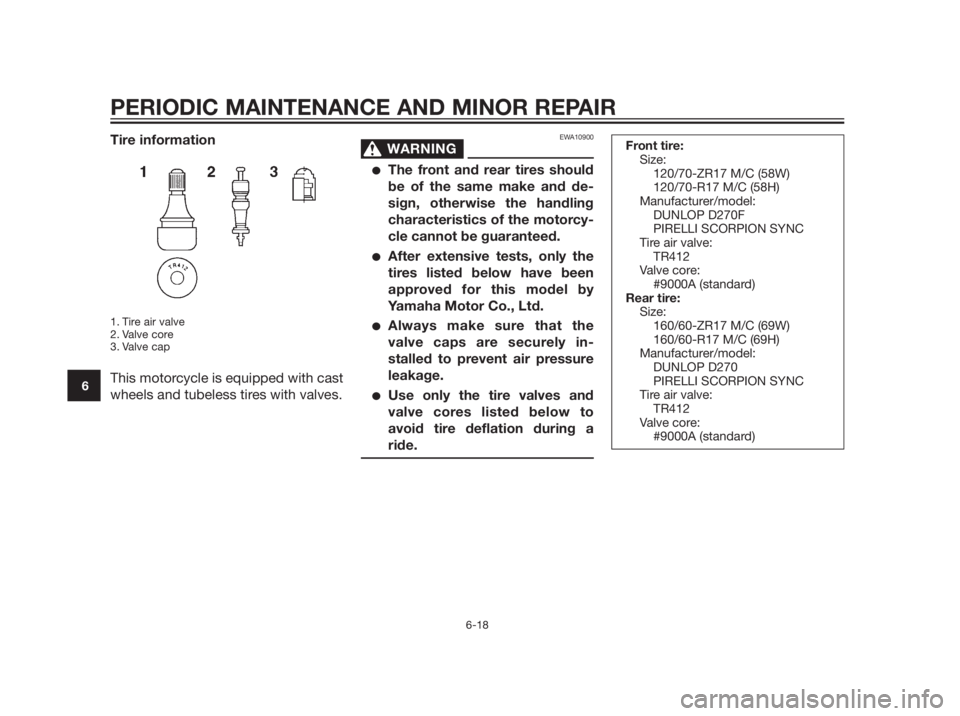

#9000A (standard)Tire information
1. Tire air valve
2. Valve core
3. Valve cap
This motorcycle is equipped with cast
wheels and tubeless tires with valves.
EWA10900
WARNING0
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motorcy-
cle cannot be guaranteed.
After extensive tests, only the
tires listed below have been
approved for this model by
Yamaha Motor Co., Ltd.
Always make sure that the
valve caps are securely in-
stalled to prevent air pressure
leakage.
Use only the tire valves and
valve cores listed below to
avoid tire deflation during a
ride.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR

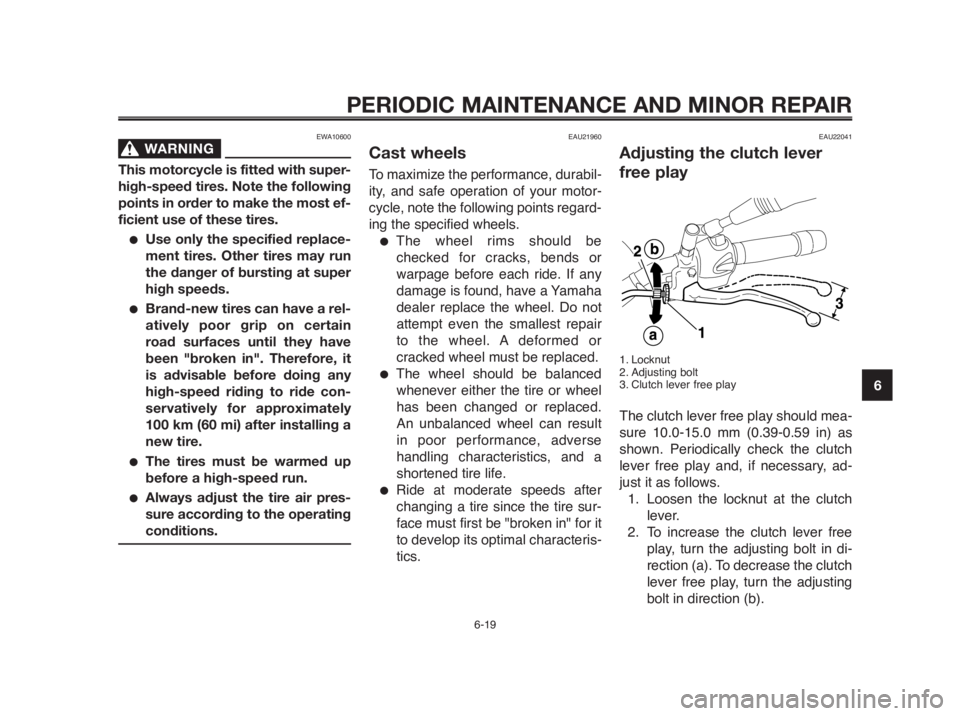

EWA10600
WARNING0
This motorcycle is fitted with super-
high-speed tires. Note the following
points in order to make the most ef-
ficient use of these tires.
●Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.
●Brand-new tires can have a rel-
atively poor grip on certain
road surfaces until they have
been "broken in". Therefore, it
is advisable before doing any
high-speed riding to ride con-
servatively for approximately
100 km (60 mi) after installing a
new tire.
●The tires must be warmed up
before a high-speed run.
●Always adjust the tire air pres-
sure according to the operating
conditions.
EAU21960
Cast wheels
To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points regard-
ing the specified wheels.
●The wheel rims should be
checked for cracks, bends or
warpage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair
to the wheel. A deformed or
cracked wheel must be replaced.
●The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
●Ride at moderate speeds after
changing a tire since the tire sur-
face must first be "broken in" for it
to develop its optimal characteris-
tics.
EAU22041
Adjusting the clutch lever
free play
1. Locknut
2. Adjusting bolt
3. Clutch lever free play
The clutch lever free play should mea-
sure 10.0-15.0 mm (0.39-0.59 in) as
shown. Periodically check the clutch
lever free play and, if necessary, ad-
just it as follows.
1. Loosen the locknut at the clutch
lever.
2. To increase the clutch lever free
play, turn the adjusting bolt in di-
rection (a). To decrease the clutch
lever free play, turn the adjusting
bolt in direction (b).
6-19

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
ECA11110CAUTION:
Do not use engine oil or any other
lubricants for the drive chain, as
they may contain substances that
could damage the O-rings.
EAU23100
Checking and lubricating
the cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is dam-
aged or does not move smoothly,
have a Yamaha dealer check or re-
place it.
Recommended lubricant:
Engine oil
EWA10720
WARNING0
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions.
EAU23111
Checking and lubricating
the throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated at the intervals specified in the
periodic maintenance chart.

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR

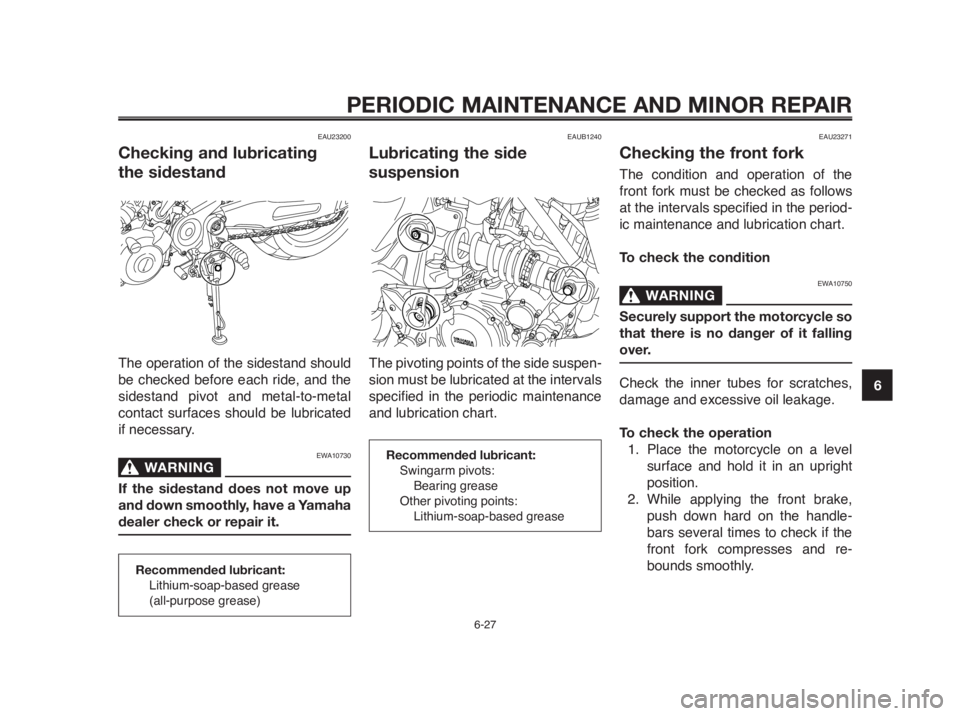

EAU23200
Checking and lubricating
the sidestand
The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated
if necessary.
EWA10730
WARNING0
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it.
EAUB1240
Lubricating the side
suspension
The pivoting points of the side suspen-
sion must be lubricated at the intervals
specified in the periodic maintenance
and lubrication chart.
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
Recommended lubricant:
Swingarm pivots:
Bearing grease
Other pivoting points:
Lithium-soap-based grease
EAU23271
Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the period-
ic maintenance and lubrication chart.
To check the condition
EWA10750
WARNING0
Securely support the motorcycle so
that there is no danger of it falling
over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position.
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
6-27

PERIODIC MAINTENANCE AND MINOR REPAIR
ECA10590CAUTION:
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAU23280
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
6-28
1
2
3
4
5
6
7
8
9
10
EWA10750
WARNING0
Securely support the motorcycle so
that there is no danger of it falling
over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.

PERIODIC MAINTENANCE AND MINOR REPAIR
1. Fuel tank couplers
2. Fuel hose
3. Fuel tank breather/overflow hoses
4. Clamps
3. Remove the fuel tank, by remov-
ing the bolt and the washer at the
rear of the fuel tank, and the two
bolts at the front of the fuel tank.
4. Remove the clamp shown, and
then remove the fuel hoses.
5. Remove the fuel tank by pulling it
upward.
6. Remove the battery cover by
pulling it upward.
1. Positive battery terminal
2. Negative battery terminal
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that
the battery tends to discharge more
quickly if the vehicle is equipped with
optional electrical accessories.
EWA10760
WARNING0
●Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes se-
vere burns. Avoid any contact
with skin, eyes or clothing and
always shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
•EXTERNAL: Flush with plenty
of water.
•INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
•EYES: Flush with water for 15
minutes and seek prompt
medical attention.
●Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed space.
●KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
6-30
1
2
3
4
5
6
7
8
9
10

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
EAUB1360
Replacing the headlight bulb
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
2. Headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Turn the handlebar to the left side
to access the headlight coupler.
2. Disconnect the headlight coupler,
and then remove the bulb cover.
3. Unhook the headlight bulb holder,
and then remove the defective
bulb.
EWA10790
WARNING0
Headlight bulbs get very hot. There-
fore, keep flammable products
away from a lit headlight bulb, and
do not touch the bulb until it has
cooled down.
4. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
1. Do not touch this areaECA10650CAUTION:
Take care not to damage the fol-
lowing parts:
●Headlight bulb
•Do not touch the glass part
of the headlight bulb to keep
it free from oil, otherwise the
transparency of the glass,
the luminosity of the bulb,
and the bulb life will be ad-
versely affected. Thoroughly
clean off any dirt and finger-
prints on the headlight bulb
using a cloth moistened with
alcohol or thinner.
6-33
