Instrument and control functions
3-5
3
Clock
The clock uses a 12-hour time system.
To set the clock
1. Turn the key to “ON”.
2. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
3. When the hour digits start flash- ing, push the “RESET” button to
set the hours.
4. Push the “SELECT” button, and the minute digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button and then release it to start the clock. Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment and
fuel level warning indicator “ ” start
flashing, refuel as soon as possible.
TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, the fol-
lowing cycle is repeated until the
malfunction is corrected: fuel level seg-
ments and fuel level warning
indicator “ ” flash eight times, then go off for approximately 3 seconds. If this
occurs, have a Yamaha dealer check
the electrical circuit.
Instantaneous fuel consumption
meter
This meter shows the instantaneous
fuel consumption.
Depending on the display setting se-
lected for the instantaneous fuel con-
sumption mode “F/ECO”, the
displayed segments increase or de-
crease.
 km/L and MPG (for the UK): The
number of segments displayed in-
creases the more efficiently the
vehicle is being operated.
1. Clock
1
1. Fuel meter
2. Fuel level warning indicator “ ”
1
2
1. Instantaneous fuel consumption meter
1
U2DSE0E0.book Page 5 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-6
3 
L/100 km: The number of seg-
ments displayed decreases the
more efficiently the vehicle is be-
ing operated.
Multi-function display
The multi-function display is equipped
with the following:  an odometer
 two tripmeters (which show the
distance traveled since they were
last set to zero)
 a fuel reserve tripmeter (which
shows the distance traveled since
the last segment of the fuel meter
started flashing)
 an instantaneous fuel consump-
tion display 
an average fuel consumption dis-
play
 an oil change tripmeter
 a V-belt replacement tripmeter
 an oil change indicator
 a V-belt replacement indicator
 an error code display
Except for the UK:
Push the “SELECT” button to switch
the display between the odometer
mode “ODO”, tripmeter modes “TRIP
1” and “TRIP 2”, oil change tripmeter
mode “OIL TRIP”, V-belt replacement
tripmeter mode “V-BELT TRIP”, in-
stantaneous fuel consumption mode
“F/ECO” (km/L or L/100 km), and aver-
age fuel consumption mode “AVE
F/ECO” (km/L or L/100 km) in the fol-
lowing order:
ODO → TRIP 1 → TRIP 2 → OIL TRIP
→ V-BELT TRIP → F/ECO → AVE
F/ECO → ODO
For the UK:Push the “SELECT” button to switch
the display between the odometer
mode “ODO”, tripmeter modes “TRIP 1” and “TRIP 2”, oil change tripmeter
mode “OIL TRIP”, V-belt replacement
tripmeter mode “V-BELT TRIP”, in-
stantaneous fuel consumption mode
“F/ECO” (MPG or L/100 km), and aver-
age fuel consumption mode “AVE
F/ECO” (MPG or L/100 km) in the fol-
lowing order:
ODO
→ TRIP 1 → TRIP 2 → OIL TRIP
→ V-BELT TRIP → F/ECO → AVE
F/ECO → ODO
If the fuel level warning indicator “ ”
and last segment of the fuel meter start
flashing, the display automatically
changes to the fuel reserve tripmeter
mode “TRIP F” and starts counting the
distance traveled from that point. In
that case, push the “SELECT” button
to switch the display between the vari-
ous tripmeter, odometer, oil change
tripmeter, V-belt replacement tripme-
ter, instantaneous fuel consumption
and average fuel consumption modes
in the following order:
1. Multi-function display
1
U2DSE0E0.book Page 6 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-7
3
TRIP F
→ TRIP 1 → TRIP 2 → OIL TRIP
→ V-BELT TRIP → F/ECO → AVE
F/ECO → ODO → TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second.
TIP If you do not reset the fuel reserve
tripmeter manually, it resets itself
automatically and the display re-
turns to the prior mode after refu-
eling and traveling 5 km (3 mi).
 If you do not reset tripmeters 1
and 2, they will reset to 0 and con-
tinue counting after 9999.9 has
been reached.
 The odometer will lock at 999999
and cannot be reset.
Instantaneous fuel consumption
mo de
The instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km”, and either “MPG” or
“L/100 km” (for the UK).  “km/L”: The distance that can be
traveled on 1.0 L of fuel under the
current riding conditions is shown.
 “L/100 km”: The amount of fuel
necessary to travel 100 km under
the current riding conditions is
shown.
 “MPG”: The distance that can be
traveled on 1.0 lmp. gal of the fuel
under the current riding conditions
is shown. To switch between the instantaneous
fuel consumption display settings,
push the “SELECT” button for one sec-
ond.
TIP
If traveling at speeds under 10
km/h (6 mi/h), “_ _._” is displayed.
 When MPG is selected, no units
indicator will be displayed.Avera ge fuel consumption mo de
This display shows the average fuel
consumption since it was last reset.
The average fuel consumption display
can be set to either “km/L” or “L/100
km”, and either “MPG” or “L/100 km”
(for the UK).
1. Instantaneous fuel consumption display
1
1. Average fuel consumption display
1
U2DSE0E0.book Page 7 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-8
3 
“km/L”: The average distance that
can be traveled on 1.0 L of fuel is
shown.
 “L/100 km”: The average amount
of fuel necessary to travel 100 km
is shown.
 “MPG”: The average distance that
can be traveled on 1.0 lmp. gal of
fuel under the current riding condi-
tions is shown.
To switch between the average fuel
consumption display settings, push
the “SELECT” button for one second.
To reset the average fuel consumption,
push the “RESET” button for at least
one second.
TIP After resetting the average fuel
consumption, “_ _._” will be
shown until the vehicle has trav-
eled 0.1 km (0.06 mi).
 When MPG is selected, no units
indicator will be displayed.
Oil chan ge tripmeter mo de
The oil change tripmeter shows the
distance traveled since it was last reset
(i.e., since the last oil change).
The oil change indicator “OIL” will flash
at the initial 1000 km (600 mi), then at
6000 km (3500 mi) and every 6000 km
(3500 mi) thereafter to indicate that the
engine oil should be changed.
After changing the engine oil, reset the
oil change tripmeter and the oil change
indicator. To reset them both, select
the oil change tripmeter, and then push
the “RESET” button for one second.
Then, while “OIL” and the oil change tripmeter are flashing, push the “RE-
SET” button for three seconds. The oil
change indicator will be reset.
If the engine oil is changed before the
oil change indicator comes on (i.e., be-
fore the periodic oil change interval has
been reached), the oil change tripmeter
must be reset for the next periodic oil
change to be indicated at the correct
time.
V-
belt replacement tripmeter mod e
The V-belt replacement tripmeter
shows the distance traveled since it
was last reset (i.e., since the last V-belt
replacement).1. Oil change indicator “OIL”
2. Oil change tripmeter
2
1
1. V-belt replacement indicator “V-BELT”
2. V-belt replacement tripmeter
2
1
U2DSE0E0.book Page 8 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-9
3
The V-belt replacement indicator “V-
BELT” will flash at every 18000 km
(10500 mi) thereafter to indicate that
the V-belt should be replaced.
After replacing the V-belt, reset the V-
belt replacement tripmeter and the V-
belt replacement indicator. To reset
them both, select the V-belt replace-
ment tripmeter, and then push the
“RESET” button for one second. Then,
while “V-BELT” and the V-belt replace-
ment tripmeter are flashing, push the
“RESET” button for three seconds. The
V-belt replacement indicator will be re-
set.
If the V-belt is replaced before the V-
belt replacement indicator comes on
(i.e., before the periodic V-belt replace-
ment interval has been reached), the V-
belt replacement tripmeter must be re-
set for the next periodic V-belt replace-
ment to be indicated at the correct
time. Self-d
iagnosis mo de
This model is equipped with a self-di-
agnosis device for various electrical
circuits.
If a problem is detected in any of those
circuits, the engine trouble warning
light will come on and the display will
indicate an error code.
If the display indicates any error codes,
note the code number, and then have
a Yamaha dealer check the vehicle.
NOTICE
ECA11591
If the display in dicates an error
co de, the vehicle shoul d b e checked
as soon as possi ble in or der to avoi d
en gine damag e.
1. Engine trouble warning light “ ”
2. Error code display
1
2
U2DSE0E0.book Page 9 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-10
3
EAU1234H
Han dle bar switchesLeft
Ri ght
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn si gnal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU12722
Start switch “ ”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter. See
page 5-1 for starting instructions prior
to starting the engine.
EAU12902
Front brake leverThe front brake lever is located on the
right side of the handlebar. To apply
the front brake, pull this lever toward
the throttle grip.

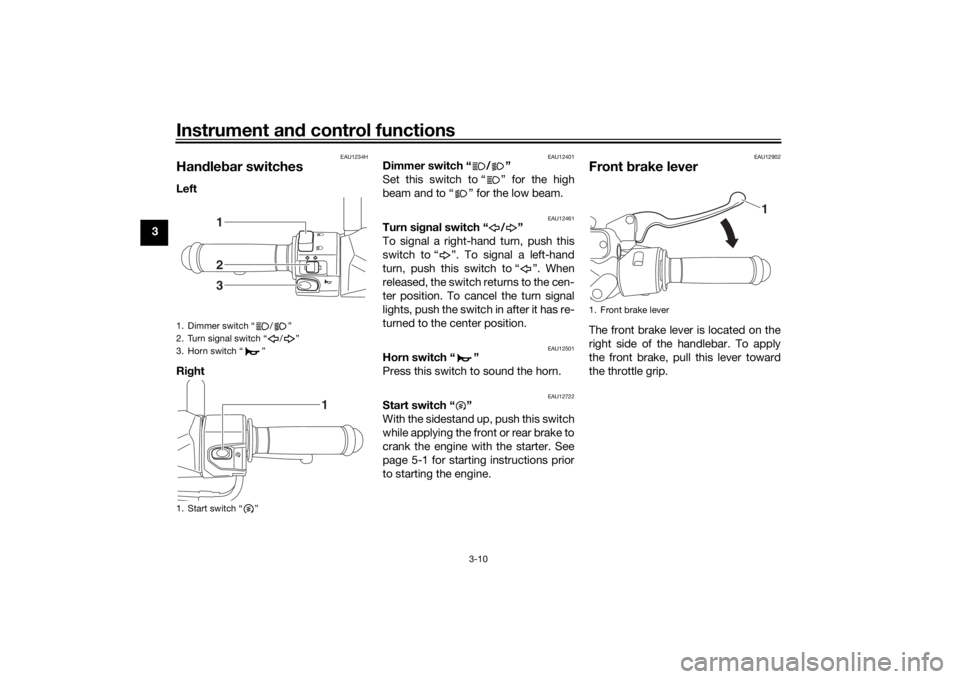

1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
1. Start switch “ ”
123
1
1. Front brake lever
1
U2DSE0E0.book Page 10 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-11
3
EAU12952
Rear brake leverThe rear brake lever is located on the
left side of the handlebar. To apply the
rear brake, pull this lever toward the
handlebar grip.
EAU66680
ABSThe Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently.
Operate the brakes with ABS as you
would conventional brakes. If the ABS
is activated, a pulsating sensation may
be felt at the brake levers. In this situa-
tion, continue to apply the brakes and
let the ABS work; do not “pump” the
brakes as this will reduce braking ef-
fectiveness.
WARNING
EWA16051
Always keep a sufficient d istance
from the vehicle ahea d to match the
ri din g speed even with ABS.
 The ABS performs best with
lon g b rakin g d istances.
 On certain surfaces, such as
rou gh or g ravel roa ds, the b rak-
in g d istance may be lon ger with
the ABS than without.The ABS is monitored by an ECU,
which will revert the system to conven-
tional braking if a malfunction occurs.
TIP The ABS performs a self-diagno-
sis test each time the vehicle first
starts off after the key is turned to
“ON” and the vehicle has traveled
at a speed of 10 km/h (6 mi/h) or
higher. During this test, a “click-
ing” noise can be heard from the
front of the vehicle, and if either
brake lever is even slightly ap-
plied, a vibration can be felt at the
lever, but these do not indicate a
malfunction.
 This ABS has a test mode which
allows the owner to experience
the pulsation at the brake levers
when the ABS is operating. How-
ever, special tools are required, so
please consult your Yamaha deal-
er.NOTICE
ECA20100
Be careful not to d amage the wheel
sensor or wheel sensor rotor; other-
wise, improper performance of the
ABS will result.
1. Rear brake lever
1
U2DSE0E0.book Page 11 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-12
3
EAU66690
Fuel tank capTo remove the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be
released and the fuel tank cap can be
removed.
To install the fuel tank cap
1. Insert the fuel tank cap into the tank opening with the key inserted
in the lock and with the “ ” mark
facing forward. 2. Turn the key counterclockwise to
the original position, remove it,
and then close the lock cover.
TIPThe fuel tank cap cannot be installed
unless the key is in the lock. In addi-
tion, the key cannot be removed if the
cap is not properly installed and
locked.
WARNING
EWA10132
Make sure that the fuel tank cap is
properly installe d before ri din g.
Leakin g fuel is a fire hazar d.
1. Front wheel sensor
2. Front wheel sensor rotor
1. Rear wheel sensor
2. Rear wheel sensor rotor
2
1
1
2
1. Fuel tank cap lock cover
2. Lock.
3. Unlock.
1 2
3
1. “ ” mark
1
U2DSE0E0.book Page 12 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-13
3
EAU13213
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline an d gasoline vapors are
extremely flammab le. To avoid fires
an d explosions an d to re duce the
risk of injury when refuelin g, follow
these instructions.1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. Stop filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately
wipe off spille d fuel with a clean,
d ry, soft cloth, since fuel may
d eteriorate painte d surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous an d can
cause injury or d eath. Handle gaso-
line with care. Never siphon gasoline
b y mouth. If you shoul d swallow
some gasoline or inhale a lot of gas-
oline vapor, or g et some gasoline in
your eyes, see your doctor imme di- ately. If g
asoline spills on your skin,
wash with soap an d water. If gaso-
line spills on your clothin g, chan ge
your clothes.
EAU53013
NOTICE
ECA11401
Use only unlea ded g asoline. The use
of lead ed g asoline will cause severe
d amag e to internal en gine parts,
such as the valves an d piston rin gs,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark plug
life and reduce maintenance costs.

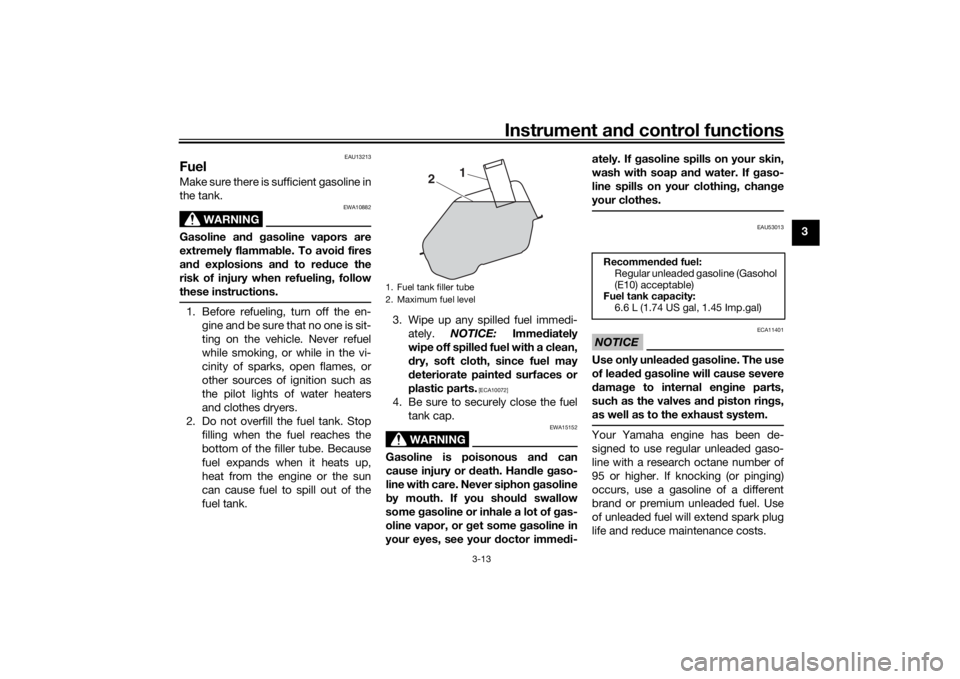

1. Fuel tank filler tube
2. Maximum fuel level
2 1
Recommen
ded fuel:
Regular unleaded gasoline (Gasohol
(E10) acceptable)
Fuel tank capacity:
6.6 L (1.74 US gal, 1.45 Imp.gal)
U2DSE0E0.book Page 13 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-14
3 Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
EAU58300
Fuel tank overflow hoseBefore operating the scooter:
 Check the fuel tank overflow hose
connection and routing.
 Check the fuel tank overflow hose
for cracks or damage, and replace
it if necessary.
 Make sure that the fuel tank over-
flow hose is not blocked, and
clean it if necessary.
EAU13434
Catalytic converterThis model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazar d or
b urns:
 Do not park the vehicle near
possi ble fire hazard s such as
g rass or other materials that
easily burn.
 Park the vehicle in a place
where ped estrians or chil dren
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has coole d down before
d oin g any maintenance work.
 Do not allow the en gine to i dle
more than a few minutes. Lon g
i d lin g can cause a b uild-up of
heat.

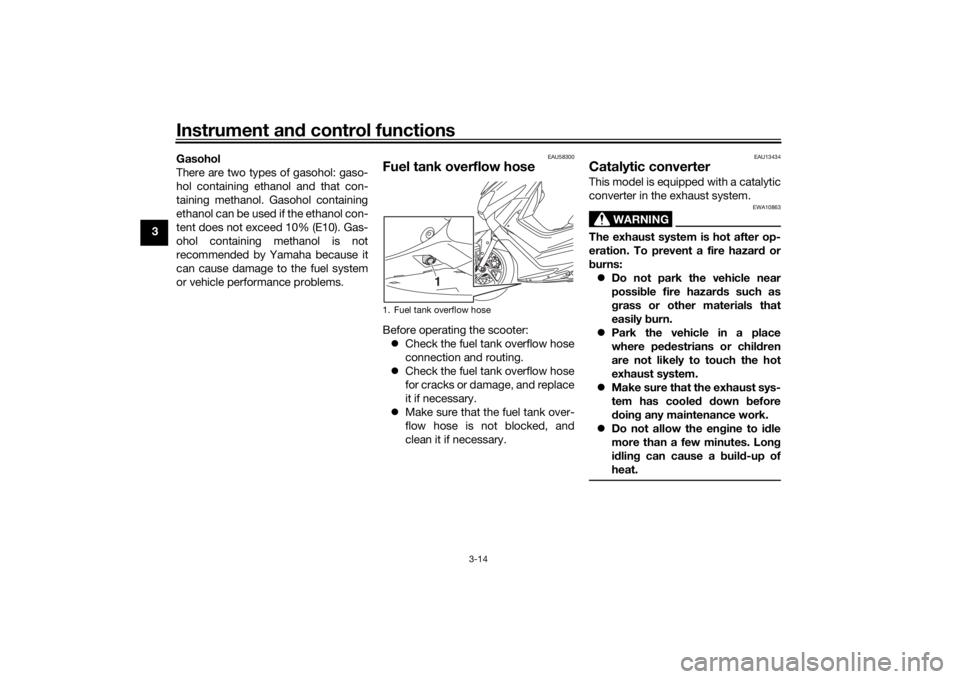

1. Fuel tank overflow hose
1
U2DSE0E0.book Page 14 Thursday, March 19, 2015 10:34 AM
