YAMAHA NMAX 2015 Workshop Manual

Periodic maintenance an d a djustment
6-11
6
To chan
ge the en gine oil an d clean
the oil strainer 1. Start the engine, warm it up for several minutes, and then turn it
off.
2. Place an oil pan under the engine to collect the used oil.
3. Remove the engine oil filler cap and engine oil drain bolts A and B
to drain the oil from the crankcase.
NOTICE: When removin g the
en gine oil drain bolt B, the O-
rin g, compression sprin g, an d
oil strainer will fall out. Take
care not to lose these parts.
[ECAT1022]
4. Clean the engine oil strainer with solvent, and then check it for
damage and replace it if neces-
sary.
5. Install the engine oil strainer, com- pression spring, new O-ring and
engine oil drain bolt B.TIPMake sure that the O-ring is properly
seated.
6. Install engine oil drain bolt A andits new gasket, and then tighten
both drain bolts to their specified
torques.
7. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11621
In or der to prevent clutch slip-
pa ge (since the en gine oil also
lu bricates the clutch), do not
1. Engine oil drain bolt A
2. Gasket
3. Oil strainer
4. Compression spring
5. O-ring
6. Engine oil drain bolt B
1
3456
2
Ti ghtenin g torque:
Engine oil drain bolt A: 20 Nm (2.0 m·kgf, 14 ft·lbf)
Engine oil drain bolt B:
32 Nm (3.2 m·kgf, 23 ft·lbf)
Recommen ded en gine oil:
See page 8-1.
Oil quantity: 0.90 L (0.95 US qt, 0.79 Imp.qt)
U2DSE0E0.book Page 11 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-12
6 mix any chemical additives. Do
not use oils with a d
iesel speci-
fication of “CD” or oils of a hi gh-
er quality than specifie d. In
a ddition, do not use oils la beled
“ENERGY CONSERVING II” or
hi gher.
 Make sure that no forei gn mate-
rial enters the crankcase.
8. Start the engine, and then let it idle for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
9. Turn the engine off, and then check the oil level and correct it if
necessary.
10. Reset the oil change tripmeter and oil change indicator “OIL”. (See
page 3-6 for reset procedures.)
EAU20067
Final transmission oilThe final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the scooter. In addition, the final transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart. 1. Start the engine, warm up the final transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the center- stand.
3. Place an oil pan under the final transmission case to collect the
used oil.
4. Remove the final transmission oil filler cap and its O-ring from the fi-
nal transmission case. 5. Remove the final transmission oil
drain bolt and its gasket to drain
the oil from the final transmission
case.
1. Final transmission oil filler cap
2. O-ring
1. Final transmission oil drain bolt
2. Gasket
1
21
2
U2DSE0E0.book Page 12 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-13
6
6. Install the final transmission oil
drain bolt and its new gasket, and
then tighten the bolt to the speci-
fied torque.
7. Refill with the specified amount of the recommended final transmis-
sion oil. WARNING! Make sure
that no forei gn material enters
the final transmission case.
Make sure that no oil gets on
the tire or wheel.
[EWA11312]
8. Install the final transmission oil fill- er cap and its new O-ring, and
then tighten the oil filler cap.
9. Check the final transmission case for oil leakage. If oil is leaking,
check for the cause.
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUN1090
To check the coolant level1. Place the vehicle on the center- stand.TIPThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
 Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.2. Check the coolant level through
the check window.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below theminimum level mark, remove the
right floorboard mat by pulling it
up.
Tightenin g torque:
Final transmission oil drain bolt: 20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommen ded final transmission
oil: See page 8-1.
Oil quantity: 0.15 L (0.16 US qt, 0.13 Imp.qt)
1. Coolant level check window
2. Maximum level mark
3. Minimum level mark
1. Floorboard mat
1
23
1
U2DSE0E0.book Page 13 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-14
6 4. Remove the coolant reservoir cov-
er.
5. Remove the coolant reservoir cap, add coolant to the maximum level
mark, and then install the reservoir
cap. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the ra diator
cap when the en gine is hot.
[EWA15162]
NOTICE: If coolant is not
availa ble, use distille d water or
soft tap water instea d. Do not
use har d water or salt water
since it is harmful to the en gine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possi ble, other-
wise the coolin g system will not b
e protecte d a gainst frost an d
corrosion. If water has been
a dde d to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possi ble, otherwise the
effectiveness of the coolant will
b e re duce d.
[ECA10473]
6. Install the coolant reservoir cover.
7. Place the right floorboard mat in
the original position and push it
downward to secure it.
EAU67280
To chan ge the coolant
1. Place the vehicle on a level sur- face and let the engine cool if nec-
essary.
2. Remove panels A and B. (See page 6-7.)
3. Remove the radiator cover by re- moving the bolts.
4. Place a container under the en- gine to collect the used coolant.
5. Remove the radiator cap. WARNING! Never attempt to re-
move the ra diator cap when the
en gine is hot.
[EWA10382]
1. Coolant reservoir cover
1
1. Coolant reservoir capCoolant reservoir capacity (up to
the maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
1
1. Radiator cover
2. Bolt
1
2
U2DSE0E0.book Page 14 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-15
6

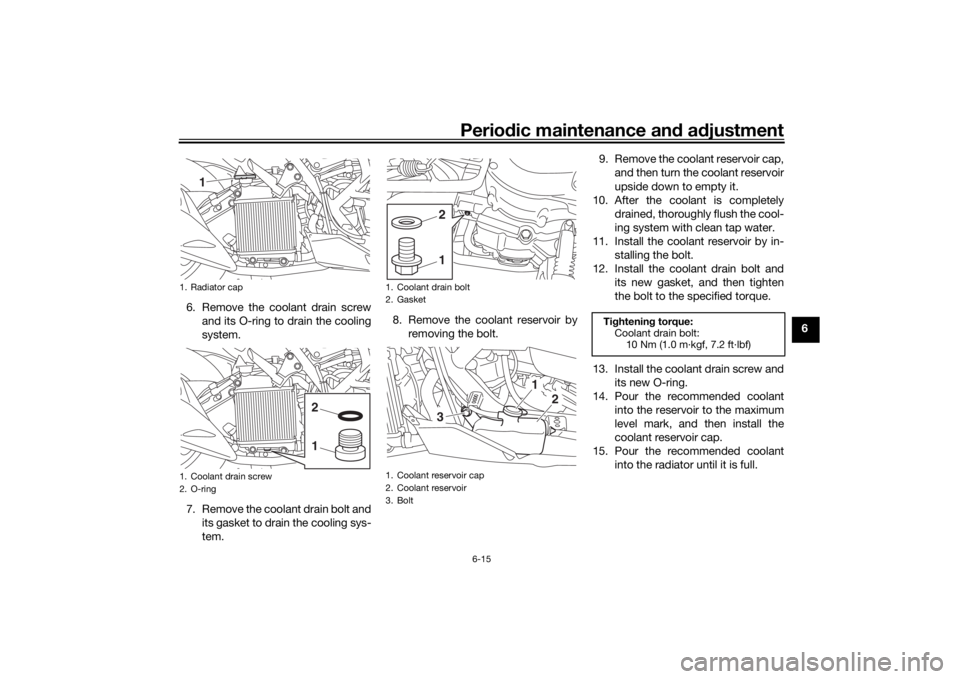

6. Remove the coolant drain screw
and its O-ring to drain the cooling
system.
7. Remove the coolant drain bolt and its gasket to drain the cooling sys-
tem. 8. Remove the coolant reservoir by
removing the bolt. 9. Remove the coolant reservoir cap,
and then turn the coolant reservoir
upside down to empty it.
10. After the coolant is completely drained, thoroughly flush the cool-
ing system with clean tap water.
11. Install the coolant reservoir by in- stalling the bolt.
12. Install the coolant drain bolt and its new gasket, and then tighten
the bolt to the specified torque.
13. Install the coolant drain screw and its new O-ring.
14. Pour the recommended coolant into the reservoir to the maximum
level mark, and then install the
coolant reservoir cap.
15. Pour the recommended coolant into the radiator until it is full.
1. Radiator cap
1. Coolant drain screw
2. O-ring
1
12
1. Coolant drain bolt
2. Gasket
1. Coolant reservoir cap
2. Coolant reservoir
3. Bolt
12
1
2
3
Tightenin g torque:
Coolant drain bolt: 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U2DSE0E0.book Page 15 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-16
6 16. Install the radiator cap, start the
engine, let it idle for several min-
utes, and then turn it off.
17. Remove the radiator cap to check the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radi-
ator, and then install the radiator
cap.
18. Start the engine, and then check the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
19. Install the radiator cover by install- ing the bolts.
20. Install the panels.
EAU67171
Air filter an d V- belt case air fil-
ter elementsThe air filter element should be re-
placed and the V-belt case air filter el-
ement should be cleaned at the
intervals specified in the periodic main-
tenance and lubrication chart. Service
the air filter elements more frequently if
you are riding in unusually wet or dusty
areas. The air filter check hose and V-
belt case air filter check hose must be
frequently checked and cleaned if nec-
essary.
Replacin g the air filter element
1. Place the vehicle on the center- stand.
2. Remove the air filter case cover by removing the screws. 3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case. NOTICE: Make
sure that the air filter element is
properly seate d in the air filter
case. The en gine shoul d never
Antifreeze/water mixture ratio:
1:1
Recommen ded antifreeze:
High-quality ethylene glycol anti-
freeze containing corrosion inhibi-
tors for aluminum engines
Coolant quantity:
Radiator (including all routes):0.46 L (0.49 US qt, 0.40 Imp.qt)
Coolant reservoir (up to the maxi-
mum level mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
1. Air filter case cover
2. Screw
1. Air filter element
2
2
11
U2DSE0E0.book Page 16 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-17
6
b
e operated without the air filter
element installed , otherwise the
piston(s) an d/or cylin der(s) may
b ecome excessively worn.
[ECA10482]
5. Install the air filter case cover by
installing the screws.

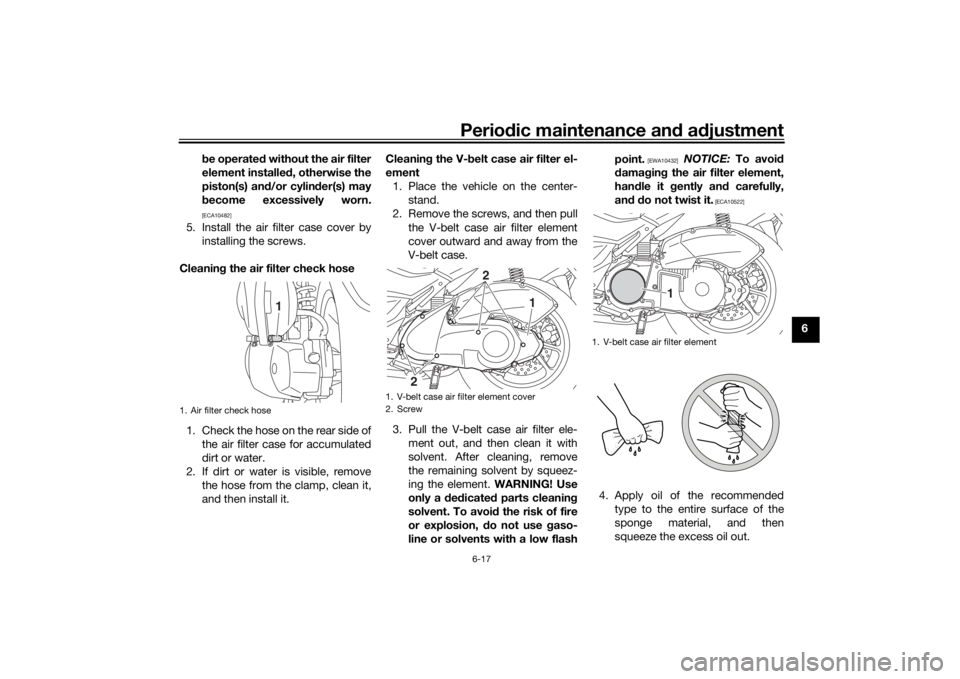

Cleanin g the air filter check hose
1. Check the hose on the rear side of the air filter case for accumulated
dirt or water.
2. If dirt or water is visible, remove the hose from the clamp, clean it,
and then install it. Cleanin
g the V- belt case air filter el-
ement 1. Place the vehicle on the center- stand.
2. Remove the screws, and then pull the V-belt case air filter element
cover outward and away from the
V-belt case.
3. Pull the V-belt case air filter ele- ment out, and then clean it with
solvent. After cleaning, remove
the remaining solvent by squeez-
ing the element. WARNING! Use
only a ded icated parts cleanin g
solvent. To avoi d the risk of fire
or explosion, do not use gaso-
line or solvents with a low flash point.
[EWA10432]

NOTICE: To avoi d
d ama gin g the air filter element,
hand le it g ently an d carefully,
an d d o not twist it.
[ECA10522]
4. Apply oil of the recommended
type to the entire surface of the
sponge material, and then
squeeze the excess oil out.
1. Air filter check hose
1
1. V-belt case air filter element cover
2. Screw
2
2
1
1. V-belt case air filter element
1
U2DSE0E0.book Page 17 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-18
6
TIPThe air filter element should be wet but
not dripping.5. Insert the element into the V-belt
case.
6. Install the air filter element cover by installing the screws.

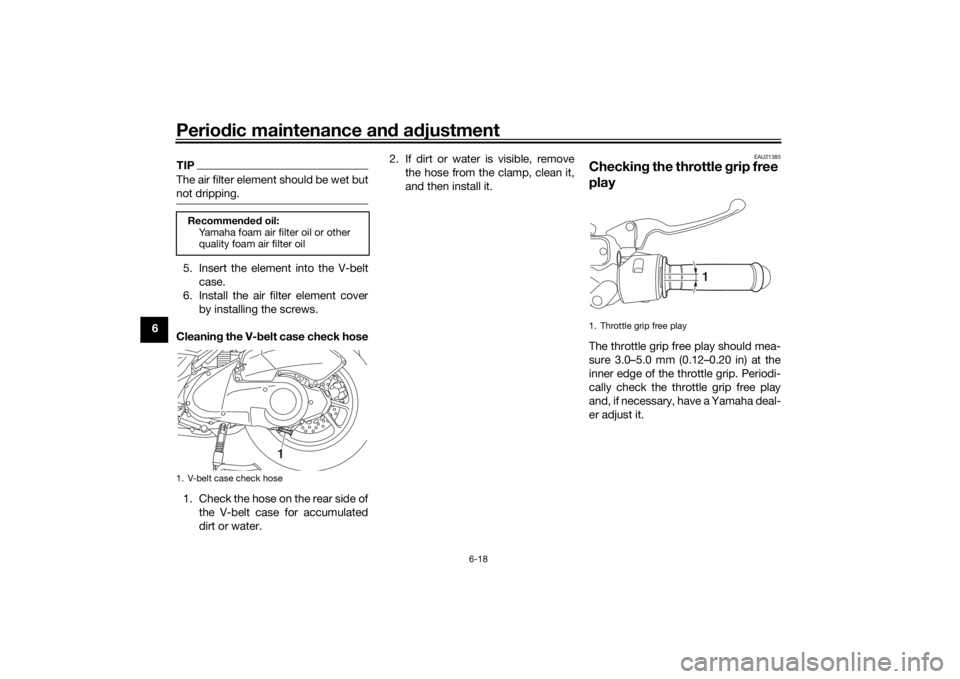

Cleanin g the V- belt case check hose
1. Check the hose on the rear side of the V-belt case for accumulated
dirt or water. 2. If dirt or water is visible, remove
the hose from the clamp, clean it,
and then install it.
EAU21385
Checkin g the throttle grip free
playThe throttle grip free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
inner edge of the throttle grip. Periodi-
cally check the throttle grip free play
and, if necessary, have a Yamaha deal-
er adjust it.
Recommen ded oil:
Yamaha foam air filter oil or other
quality foam air filter oil1. V-belt case check hose
1
1. Throttle grip free play
1
U2DSE0E0.book Page 18 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-19
6
EAU21402
Valve clearanceThe valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAUN0701
TiresTires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or d eath from loss of
control.  The tire air pressure must b e
checked and a djuste d on col d
tires (i.e., when the temperature
of the tires equals the am bient
temperature).
 The tire air pressure must b e
a d juste d in accor dance with the
ri din g speed and with the total wei
ght of ri der, passen ger, car-
g o, an d accessories approve d
for this mo del.
WARNING
EWA10512
Never overloa d your vehicle. Opera-
tion of an overloa ded vehicle coul d
cause an acci dent.
Tire air pressure (measure d on col d
tires): Front (1 person):150 kPa (1.50 kgf/cm2, 22 psi)
Rear (1 person): 250 kPa (2.50 kgf/cm2, 36 psi)
Front (2 persons):
150 kPa (1.50 kgf/cm2, 22 psi)
Rear (2 persons): 250 kPa (2.50 kgf/cm2, 36 psi)
Maximum loa d*:
168 kg (370 lb)
* Total weight of rider, passenger, car-
go and accessories
U2DSE0E0.book Page 19 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-20
6 Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail
or glass fragments in it, or if the side-
wall is cracked, have a Yamaha dealer
replace the tire immediately.
TIPThe tire tread depth limits may differ
from country to country. Always com-
ply with the local regulations.
WARNING
EWA10472

Have a Yamaha dealer replace
excessively worn tires. Besi des
b ein g ille gal, operatin g the vehi-
cle with excessively worn tires
d ecreases ri din g sta bility an d
can lead to loss of control.
 The replacement of all wheel
and b rake-relate d parts, inclu d-
in g the tires, shoul d b e left to a
Yamaha dealer, who has the
necessary professional knowl-
e dge an d experience to d o so.
 Ride at mo derate speed s after
chan gin g a tire since the tire
surface must first be “ broken
in” for it to develop its optimal
characteristics.Tire information
This model is equipped with tubeless
tires and rubber tire air valves.
Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of ageing. Old and aged tires shall be
checked by tire specialists to ascertain
their suitability for further use.
WARNING
EWA10462
The front an
d rear tires shoul d b e of
the same make an d d esi gn, other-
wise the han dlin g characteristics of
the vehicle may b e different, which
coul d lea d to an acci dent.After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha.

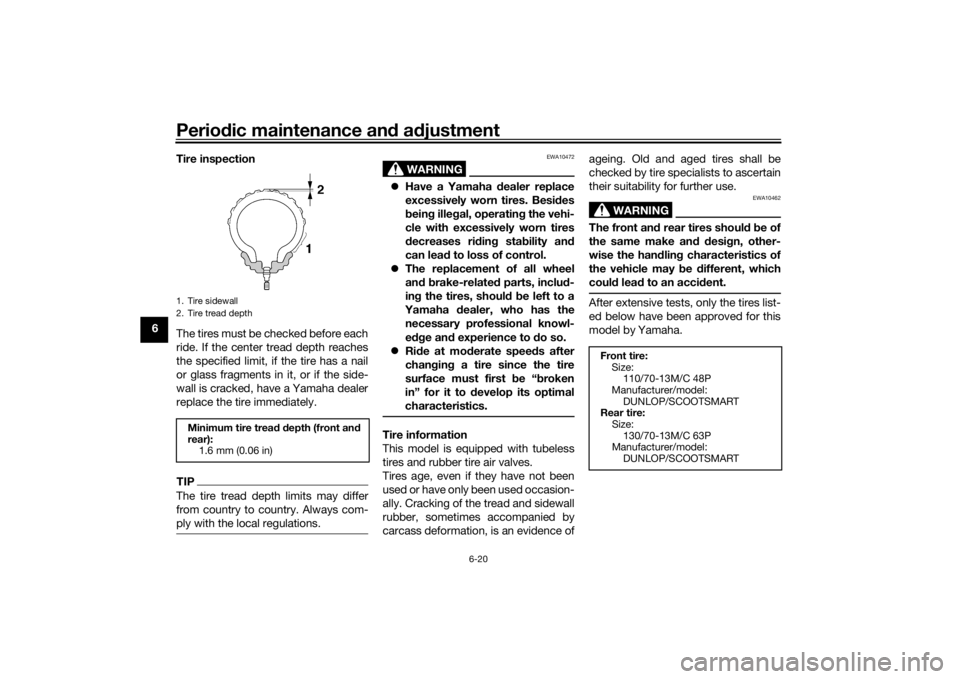

1. Tire sidewall
2. Tire tread depthMinimum tire trea d d epth (front an d
rear): 1.6 mm (0.06 in)
Front tire:Size:110/70-13M/C 48P
Manufacturer/model: DUNLOP/SCOOTSMART
Rear tire:
Size:130/70-13M/C 63P
Manufacturer/model:
DUNLOP/SCOOTSMART
U2DSE0E0.book Page 20 Thursday, March 19, 2015 10:34 AM
