Page 301 of 490

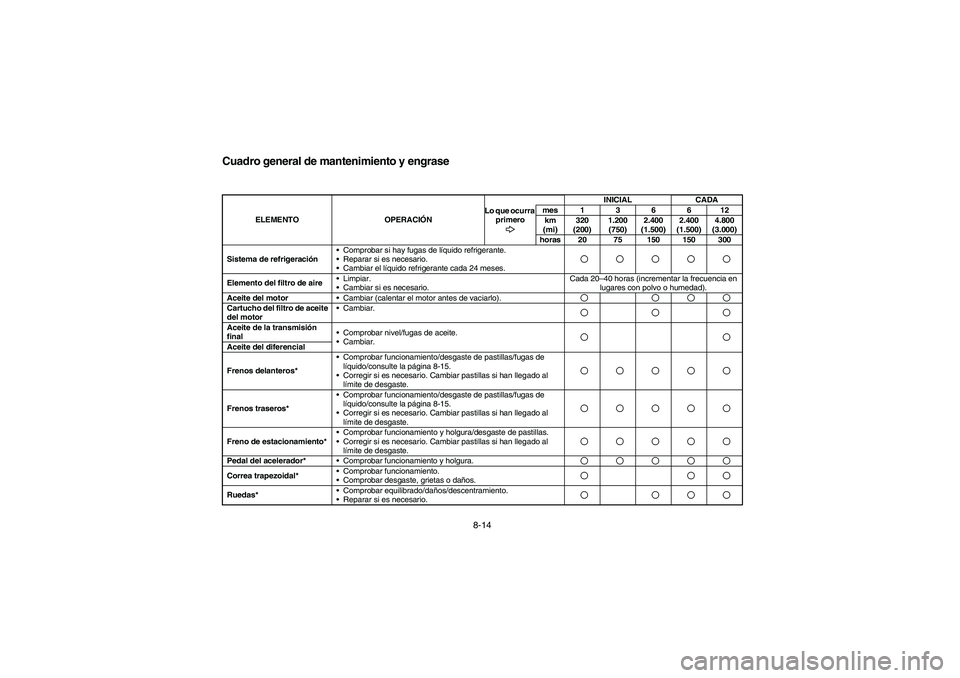

YAMAHA RHINO 700 2008  Notices Demploi (in French) 8-14
SVU01650
Cuadro general de mantenimiento y engrase
ELEMENTO OPERACIÓNLo que ocurra
primeroINICIAL CADA
mes136612
km
(mi)320
(200)1.200
(750)2.400
(1.500)2.400
(1.500)4.800
(3.000)
horas 20

Page 302 of 490

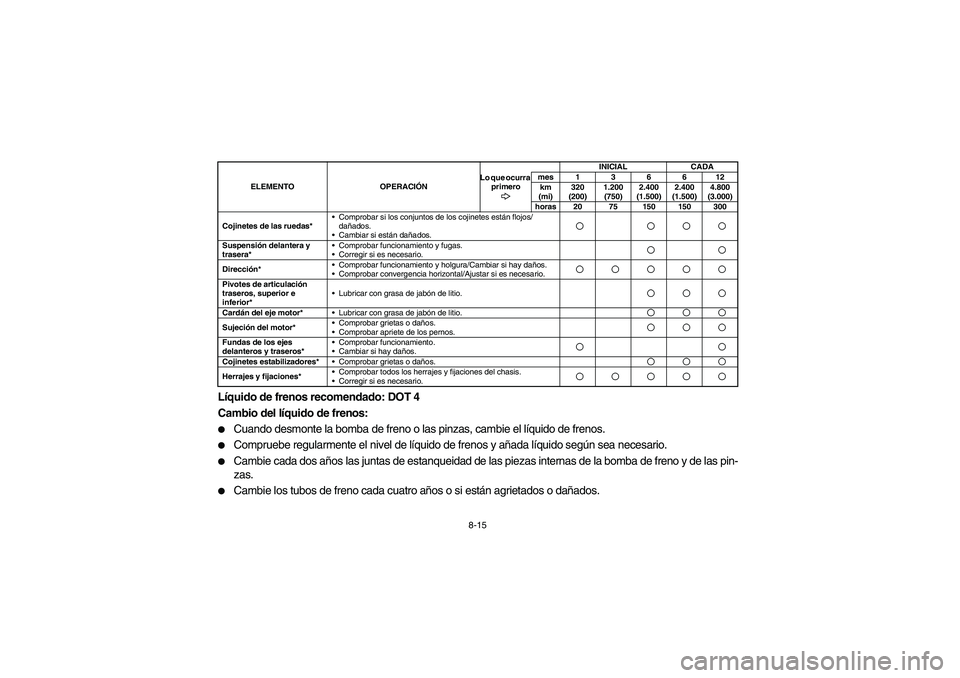

YAMAHA RHINO 700 2008  Notices Demploi (in French) 8-15
Líquido de frenos recomendado: DOT 4
Cambio del líquido de frenos:
Cuando desmonte la bomba de freno o las pinzas, cambie el líquido de frenos.

Compruebe regularmente el nivel de líquido d

Page 303 of 490

YAMAHA RHINO 700 2008  Notices Demploi (in French) 8-16
EE.book  Page 16  Wednesday, November 7, 2007  2:40 PM

Page 304 of 490

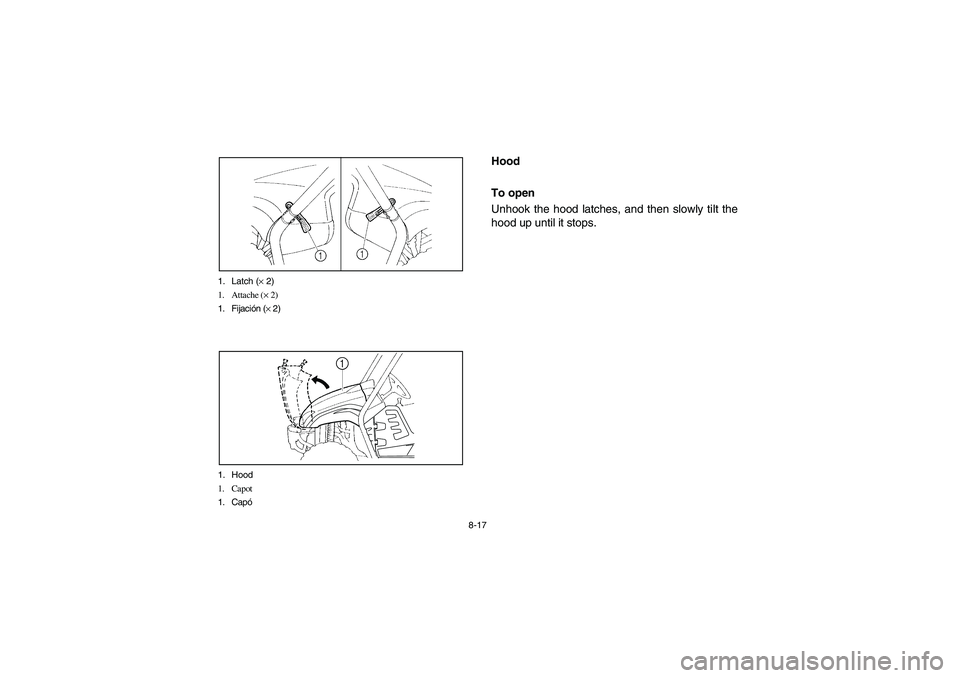

YAMAHA RHINO 700 2008  Notices Demploi (in French) 8-17 1. Latch (× 2)
1. Attache (× 2)
1. Fijación (× 2)
1. Hood
1. Capot
1. Capó
1
EVU00680
Hood
To open
Unhook the hood latches, and then slowly tilt the
hood up until it stops.
EE.book  Page 17

Page 305 of 490

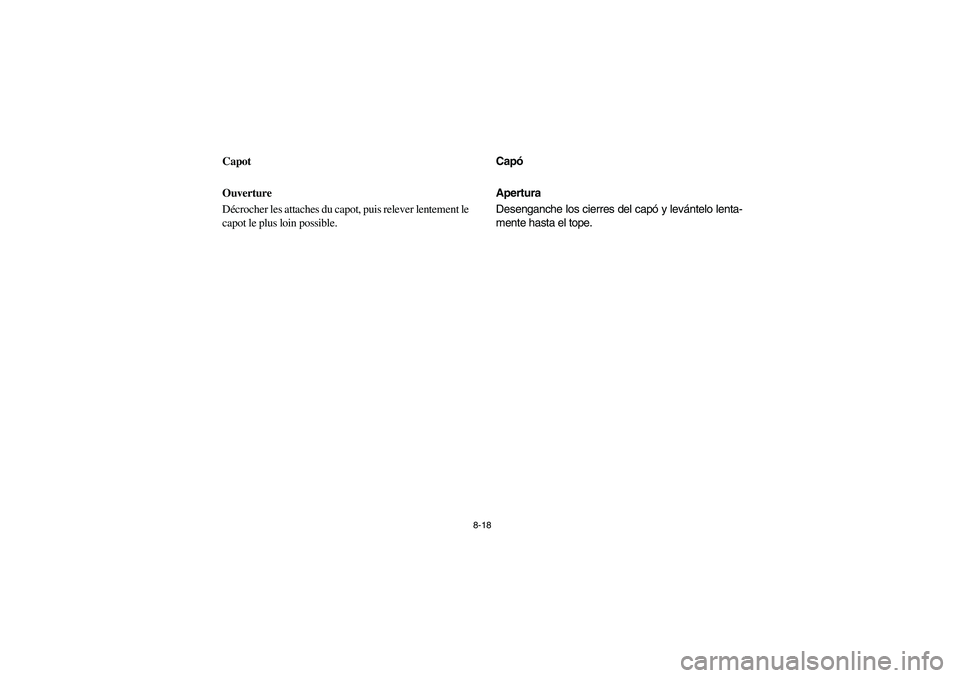

YAMAHA RHINO 700 2008  Notices Demploi (in French) 8-18
FVU00680
Capot
Ouverture
Décrocher les attaches du capot, puis relever lentement le
capot le plus loin possible.
SVU00680
Capó
Apertura
Desenganche los cierres del capó y levántelo lenta-
men

Page 306 of 490

YAMAHA RHINO 700 2008  Notices Demploi (in French) 8-19 1. Projection (× 2) 2. Slot (× 2)
3. Slot (× 2) 4. Projection (× 2)
1. Patte de fixation (× 2) 2. Fente (× 2)
3. Fente (× 2) 4. Patte de fixation (× 2)
1. Saliente (× 2) 2. Ranura (× 2)

Page 307 of 490

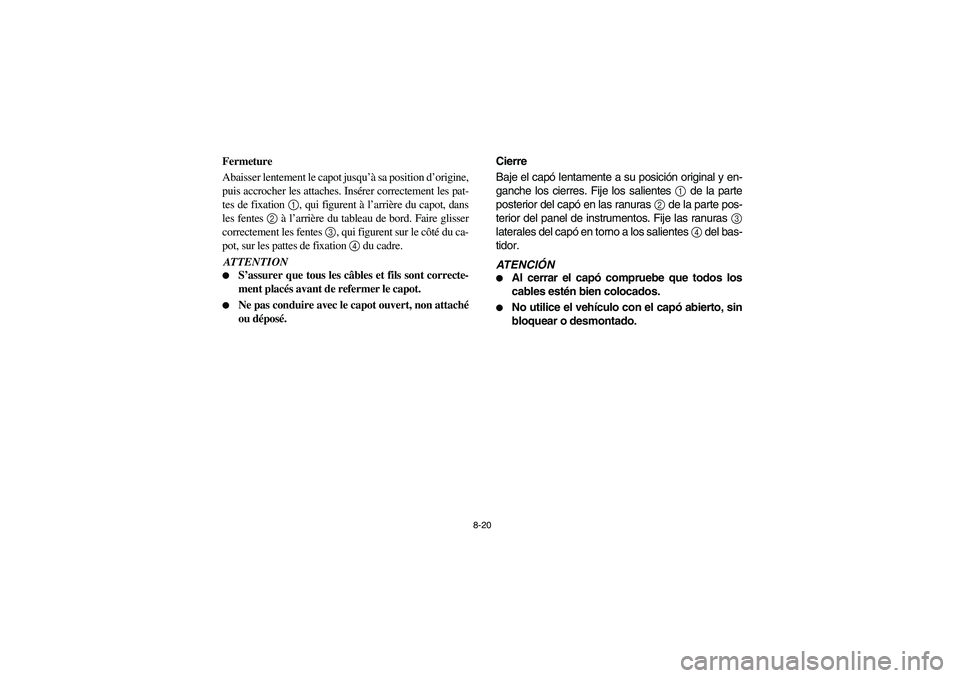

YAMAHA RHINO 700 2008  Notices Demploi (in French) 8-20
Fermeture
Abaisser lentement le capot jusqu’à sa position d’origine,
puis accrocher les attaches. Insérer correctement les pat-
tes de fixation 1, qui figurent à l’arrière du capot, dan

Page 308 of 490

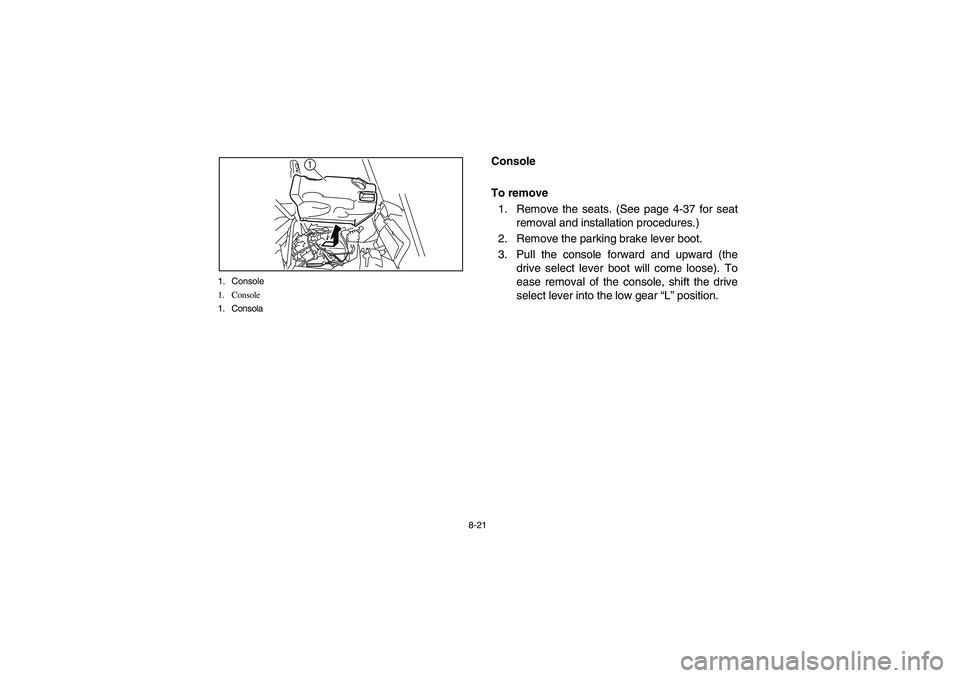

YAMAHA RHINO 700 2008  Notices Demploi (in French) 8-21 1. Console
1. Console
1. Consola
1
5B410011
Console
To remove
1. Remove the seats. (See page 4-37 for seat
removal and installation procedures.)
2. Remove the parking brake lever boot.
3. Pull th

Page 309 of 490

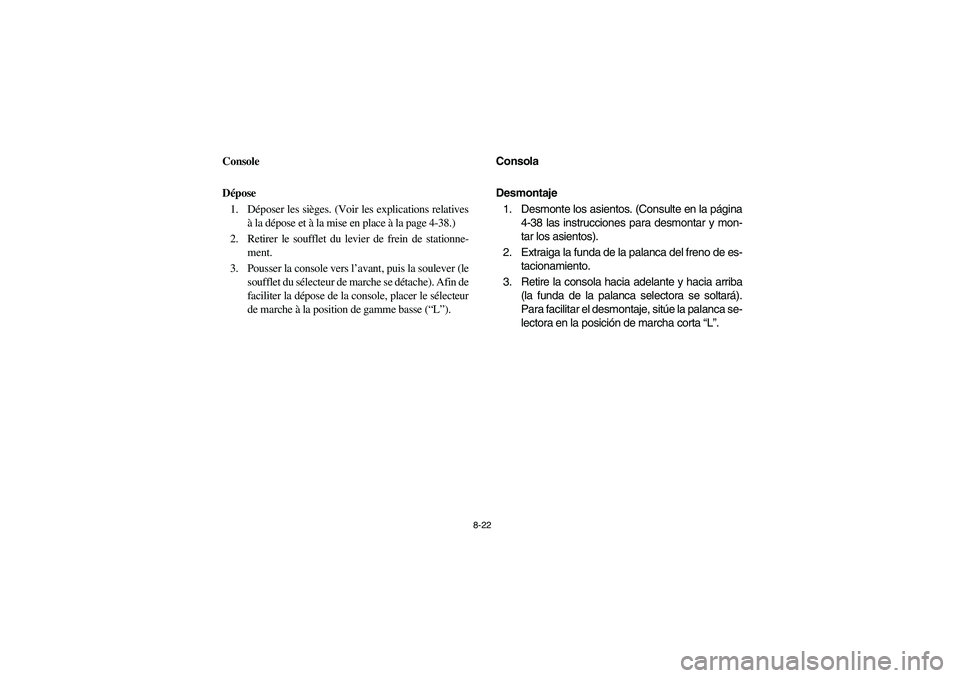

YAMAHA RHINO 700 2008  Notices Demploi (in French) 8-22
5B410011
Console
Dépose
1. Déposer les sièges. (Voir les explications relatives
à la dépose et à la mise en place à la page 4-38.)
2. Retirer le soufflet du levier de frein de stationne-
m

Page 310 of 490

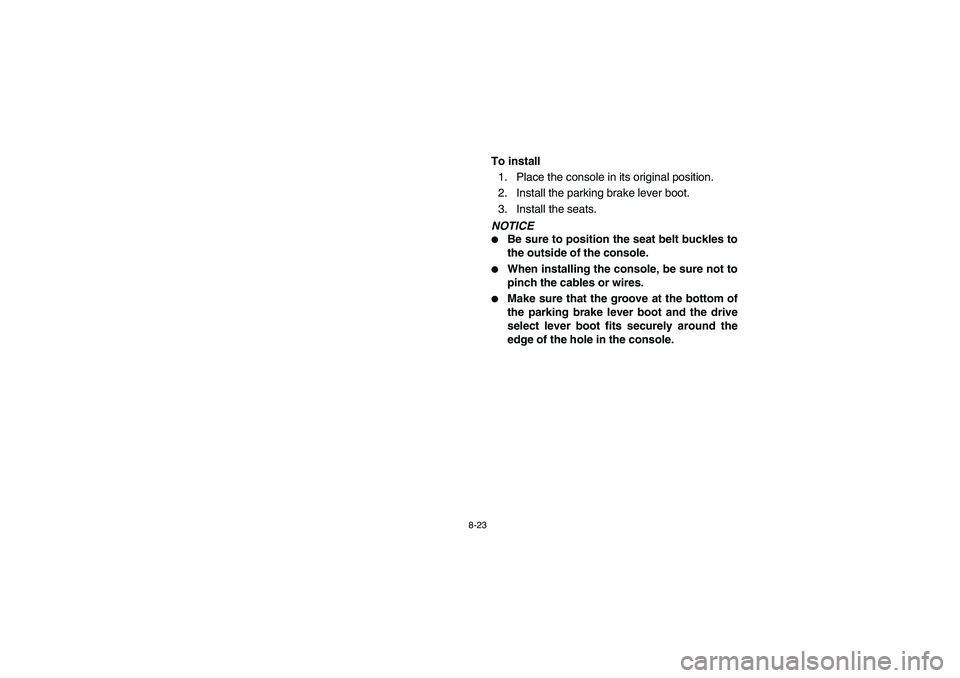

YAMAHA RHINO 700 2008  Notices Demploi (in French) 8-23
To install
1. Place the console in its original position.
2. Install the parking brake lever boot.
3. Install the seats.NOTICE
Be sure to position the seat belt buckles to
the outside of the con
