YAMAHA RHINO 700 2008  Owners Manual 8-16
EE.book  Page 16  Monday, October 8, 2007  4:48 PM

Page 282 of 468

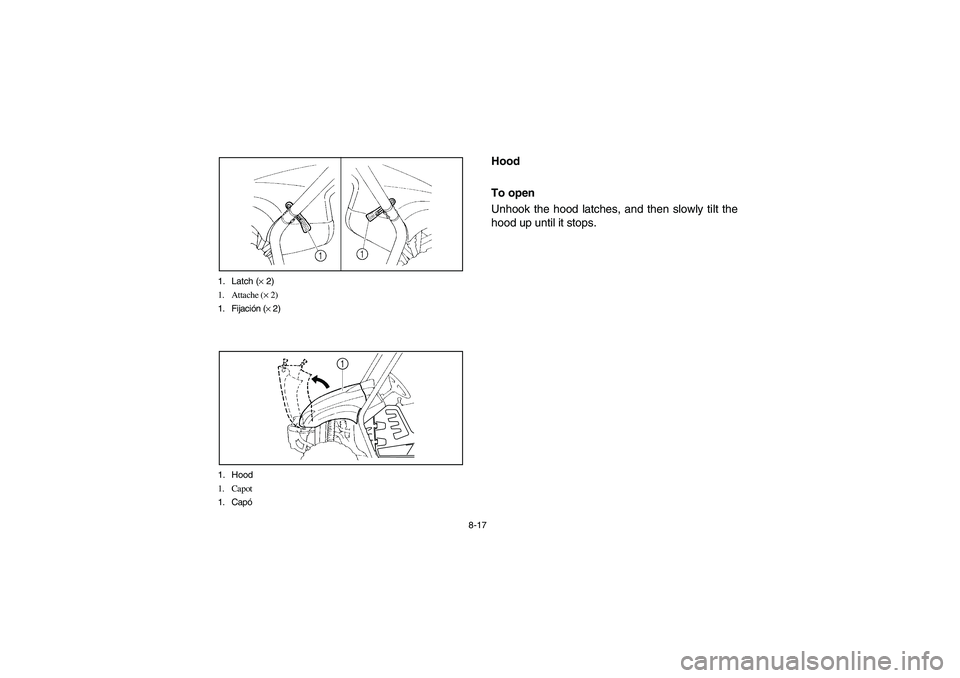

YAMAHA RHINO 700 2008  Owners Manual 8-17 1. Latch (× 2)
1. Attache (× 2)
1. Fijación (× 2)
1. Hood
1. Capot
1. Capó
1
EVU00680
Hood
To open
Unhook the hood latches, and then slowly tilt the
hood up until it stops.
EE.book  Page 17

Page 283 of 468

YAMAHA RHINO 700 2008  Owners Manual 8-18

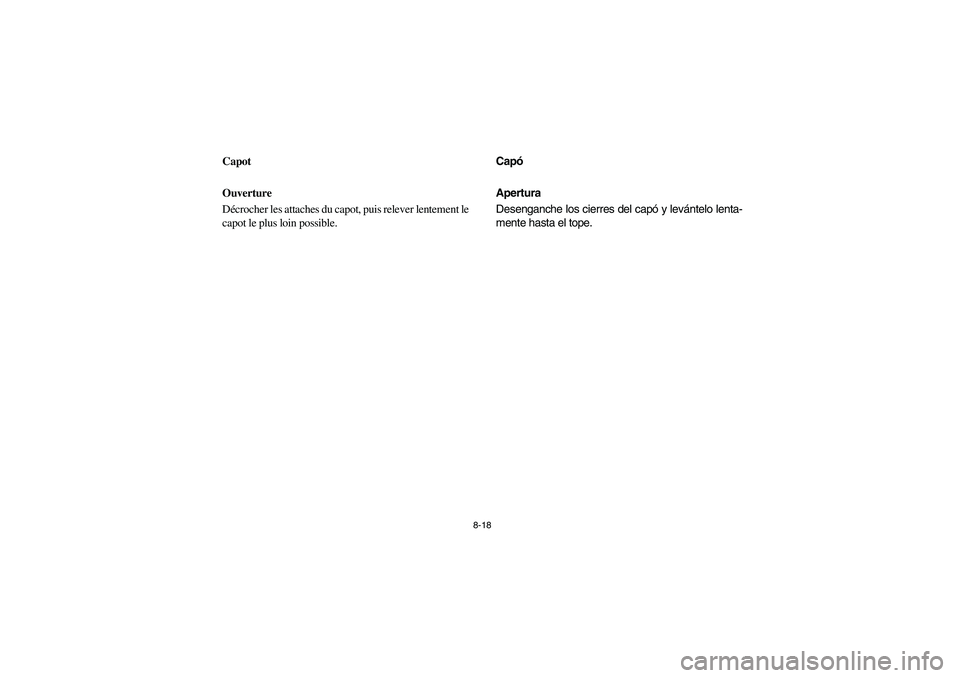

FVU00680
Capot
Ouverture
Décrocher les attaches du capot, puis relever lentement le
capot le plus loin possible.
SVU00680
Capó
Apertura
Desenganche los cierres del capó y levántelo lenta-
men

Page 284 of 468

YAMAHA RHINO 700 2008  Owners Manual 8-19 1. Projection (× 2) 2. Slot (× 2)
3. Slot (× 2) 4. Projection (× 2)
1. Patte de fixation (× 2) 2. Fente (× 2)
3. Fente (× 2) 4. Patte de fixation (× 2)
1. Saliente (× 2) 2. Ranura (× 2)

Page 285 of 468

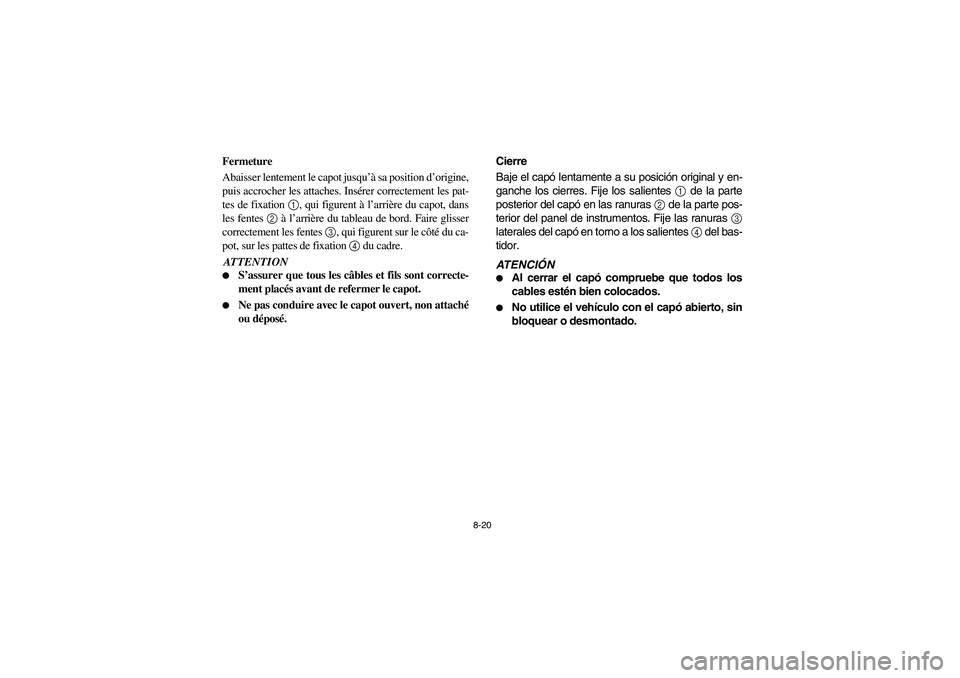

YAMAHA RHINO 700 2008  Owners Manual 8-20
Fermeture
Abaisser lentement le capot jusqu’à sa position d’origine,
puis accrocher les attaches. Insérer correctement les pat-
tes de fixation 1, qui figurent à l’arrière du capot, dan

Page 286 of 468

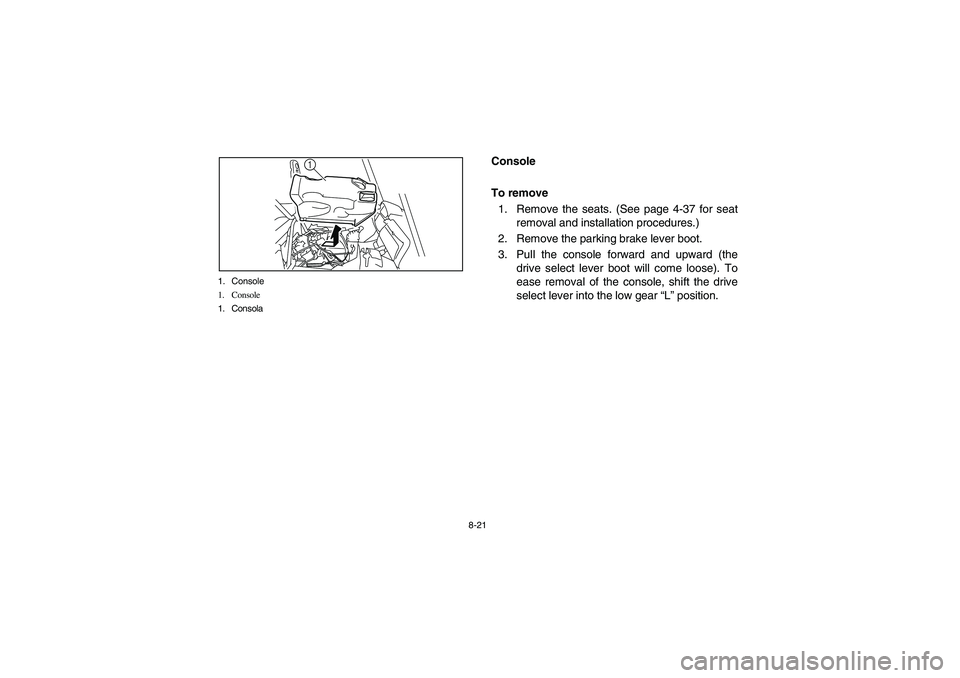

YAMAHA RHINO 700 2008  Owners Manual 8-21 1. Console
1. Console
1. Consola
1
5B410011
Console
To remove
1. Remove the seats. (See page 4-37 for seat
removal and installation procedures.)
2. Remove the parking brake lever boot.
3. Pull th

Page 287 of 468

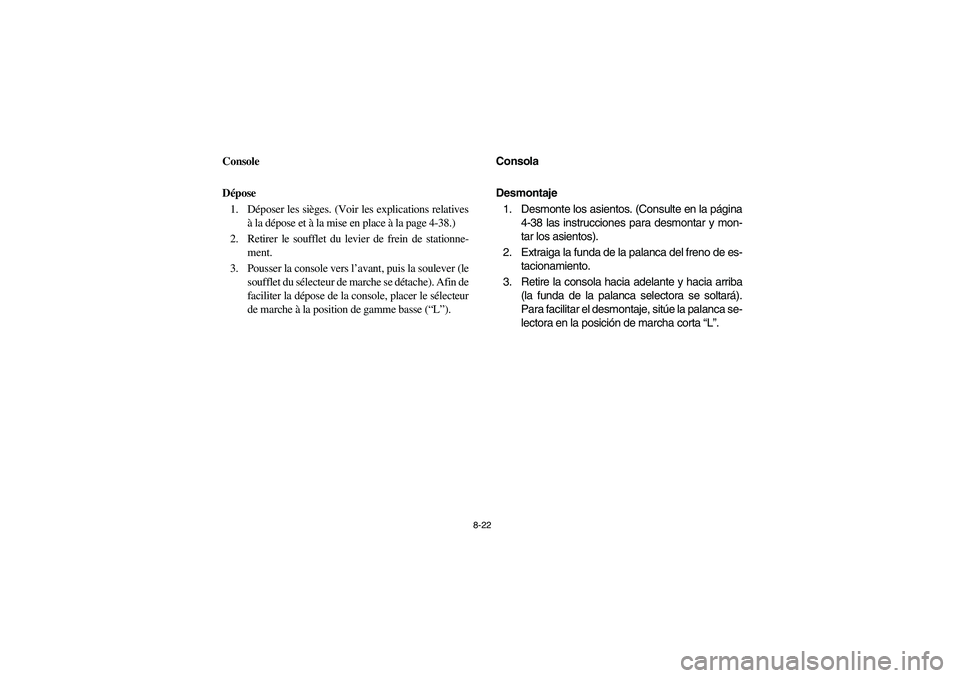

YAMAHA RHINO 700 2008  Owners Manual 8-22
5B410011
Console
Dépose
1. Déposer les sièges. (Voir les explications relatives
à la dépose et à la mise en place à la page 4-38.)
2. Retirer le soufflet du levier de frein de stationne-
m

Page 288 of 468

YAMAHA RHINO 700 2008  Owners Manual 8-23

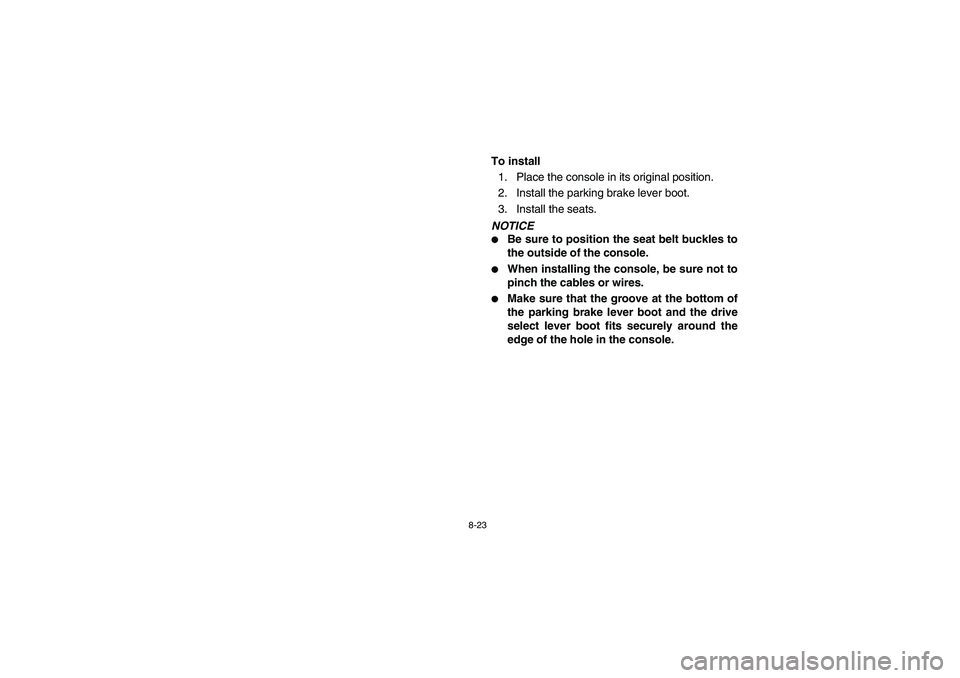

To install
1. Place the console in its original position.
2. Install the parking brake lever boot.
3. Install the seats.NOTICE
Be sure to position the seat belt buckles to
the outside of the con

Page 289 of 468

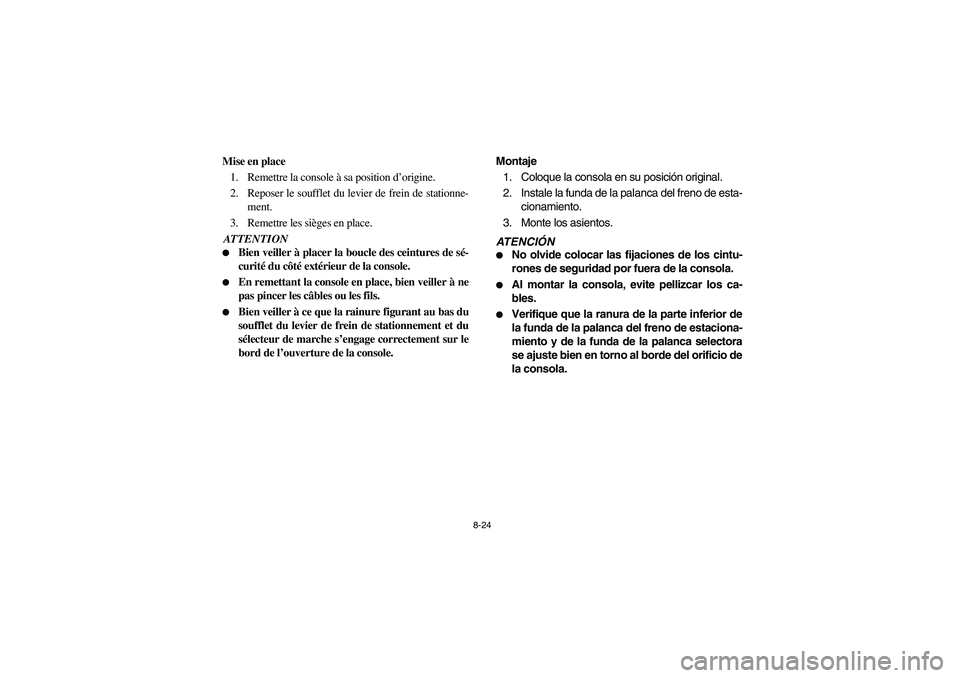

YAMAHA RHINO 700 2008  Owners Manual 8-24
Mise en place
1. Remettre la console à sa position d’origine.
2. Reposer le soufflet du levier de frein de stationne-
ment.
3. Remettre les sièges en place.ATTENTION
Bien veiller à placer l

Page 290 of 468

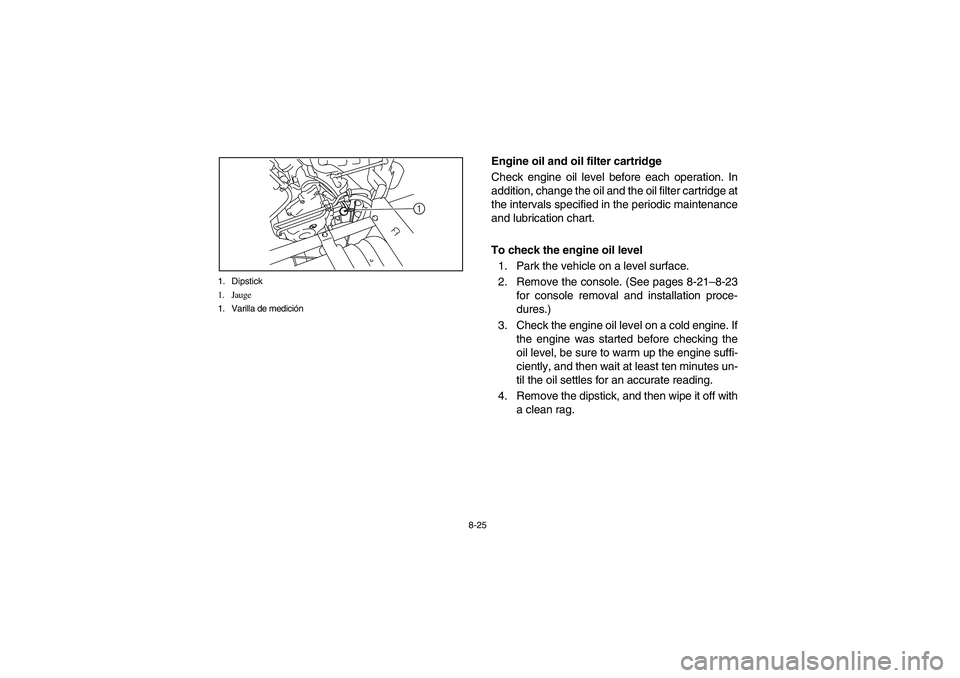

YAMAHA RHINO 700 2008  Owners Manual 8-25 1. Dipstick
1. Jauge
1. Varilla de medición
1
5B410012
Engine oil and oil filter cartridge
Check engine oil level before each operation. In
addition, change the oil and the oil filter cartridge
