YAMAHA RHINO 700 2013 Owner's Guide

4-1
1
2
34
5
6
7
8
9
10
11
12
13
14
EVU00130
1-INSTRUMENT AND CONTROL FUNCTIONS

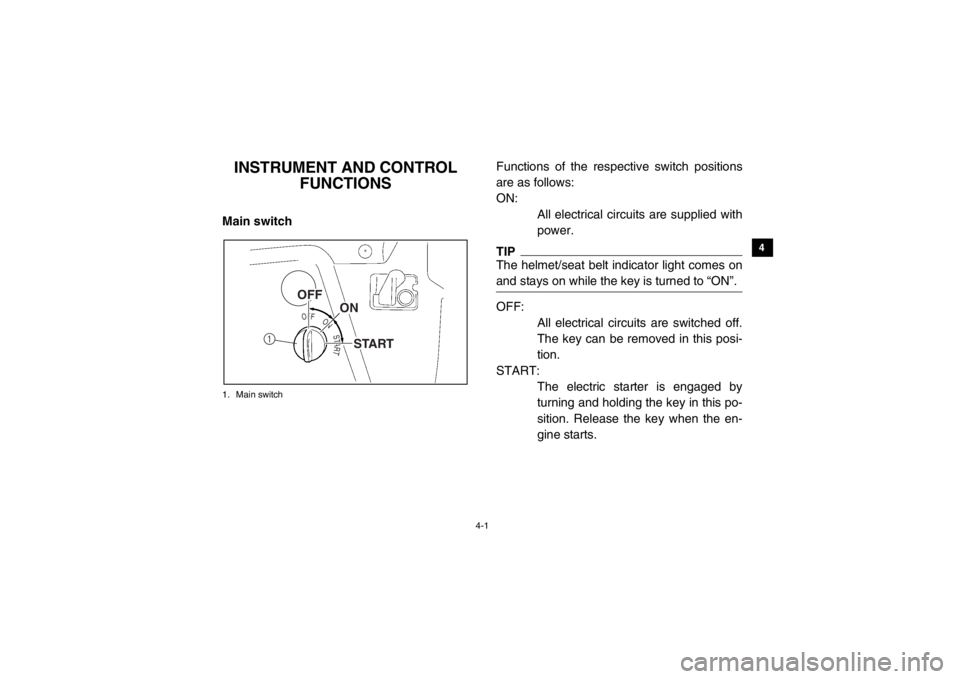

EVU00140Main switch1. Main switch
Functions of the respective switch positions
are as follows:
ON:
All electrical circuits are supplied with
power.TIPTIPThe helmet/seat belt indicator light comes on
and stays on while the key is turned to “ON”.OFF:All electrical circuits are switched off.
The key can be removed in this posi-
tion.
START: The electric starter is engaged by
turning and holding the key in this po-
sition. Release the key when the en-
gine starts.
OFF
ONSTART
1OFF
ON
START
1RB7A_EE.book Page 1 Tuesday, April 24, 2012 9:07 AM

4-2

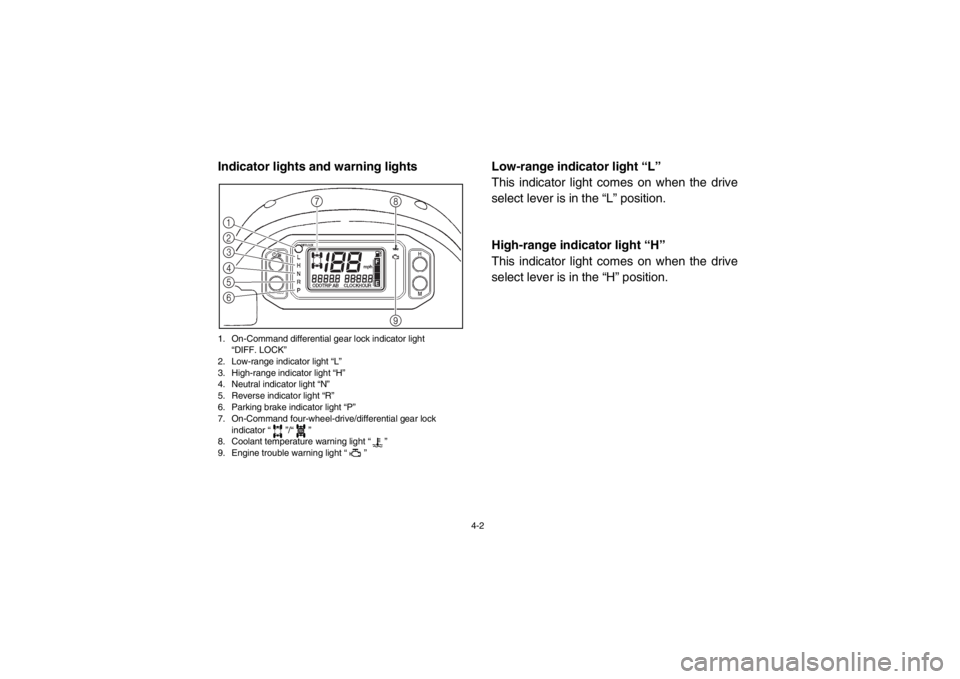

EVU00150Indicator lights and warning lights1. On-Command differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Parking brake indicator light “P”
7. On-Command four-wheel-drive/differential gear lock indicator “ ”/“ ”
8. Coolant temperature warning light “ ”
9. Engine trouble warning light “ ”
EVU01140Low-range indicator light “L”
This indicator light comes on when the drive
select lever is in the “L” position.EVU01150High-range indicator light “H”
This indicator light comes on when the drive
select lever is in the “H” position.
1
2
3
4
5
6
8
9
7
DIFF.
LOCK
1RB7A_EE.book Page 2 Tuesday, April 24, 2012 9:07 AM

4-3
EVU00170Neutral indicator light “N”
This indicator light comes on when the drive
select lever is in the “N” position.5B410001Reverse indicator light “R”
This indicator light comes on when the drive
select lever is in the “R” position.EVU00210Parking brake indicator light “P”
This indicator light comes on when the park-
ing brake is applied.
EBU29621On-Command four-wheel-drive indicator
“ ”, On-Command differential gear lock
indicator “ ” and indicator light “DIFF.
LOCK”
The On-Command four-wheel-drive indicator
“ ” comes on when the On-Command four-
wheel-drive switch is set to the “4WD” posi-
tion.
The On-Command differential gear lock indi-
cator “ ” and the On-Command differential
gear lock indicator light “DIFF. LOCK” come
on when the On-Command differential gear
lock switch is set to the “LOCK” position.
DIFF.
LOCK
DIFF.
LOCK
1RB7A_EE.book Page 3 Tuesday, April 24, 2012 9:07 AM

4-4
TIP●
Due to the synchronizing mechanism in
the differential gear case, the four-wheel-
drive indicator may not come on until the
Rhino starts moving.
●
When the On-Command differential gear
lock switch is set to “LOCK” or “4WD”, the
indicator “ ” and the indicator light
“DIFF. LOCK” will flash until the differen-
tial gear is completely locked or un-
locked. If the indicator and the indicator
light continue to flash, the differential is
not completely locked or unlocked. In this
case, start moving to allow time for the
differential to lock or unlock.
5B410002Coolant temperature warning light “ ”
If the coolant temperature reaches a specific
level, this light comes on to warn that the cool-
ant temperature is too hot. If the light comes
on during operation, stop the engine as soon
as it is safe to do so and allow the engine to
cool down for about 10 minutes.
(See page 8-62.)
The electrical circuit of the warning light can
be checked by turning the key to “ON”. If the
warning light does not come on initially when
the key is turned to “ON”, or if the warning light
remains on, have a Yamaha dealer check the
electrical circuit.
DIFF.
LOCK
1RB7A_EE.book Page 4 Tuesday, April 24, 2012 9:07 AM

4-5
NOTICE●
The engine may overheat if the vehicle
is overloaded. If this happens, reduce
the load to specification.
●
After restarting, make sure that the
warning light is out. Continuous use
while this warning light is on may
cause damage to the engine.
5B410003Engine trouble warning light “ ”
This warning light comes on or flashes if a
problem is detected in the electrical circuit
monitoring the engine. When this occurs,
have a Yamaha dealer check the self-diagno-
sis system. (See pages 4-11–4-12 for an ex-
planation of the self-diagnosis device.)
The electrical circuit of the warning light can
be checked by turning the key to “ON”. If the
warning light does not come on initially when
the key is turned to “ON”, or if the warning light
remains on, have a Yamaha dealer check the
electrical circuit.
1RB7A_EE.book Page 5 Tuesday, April 24, 2012 9:07 AM

4-6
Helmet/seat belt indicator light “ / ”1. Helmet/seat belt indicator light “ / ”The indicator light comes on when the key is
turned to “ON” to remind the occupants to al-
ways wear a helmet and to fasten their seat
belt. The indicator light stays on even when
the seat belt is properly latched.
If the indicator light does not come on when
the key is turned to “ON”, have a Yamaha
dealer check the electrical circuit.
5B410004*Multi-function meter unit1. Speedometer 2. Fuel meter
3. “H” button 4. “M” button
5. Clock/Hour meter/Voltage display
6. Odometer/Tripmeter A/Tripmeter B
7. “TRIP/ODO” button 8. Clock/Hour button “ / ”The multi-function meter unit is equipped with
the following:●
a speedometer
●
an odometer
123
4
5
6
7 8
1RB7A_EE.book Page 6 Tuesday, April 24, 2012 9:07 AM

4-7
●
two tripmeters (which show the distance
traveled since they were last set to zero)
●
a clock
●
an hour meter (which shows the total time
the engine has been running)
●
a voltage display (which shows the battery
voltage)
●
a fuel meter
●
a self-diagnosis device
Odometer and tripmeter modes
1. Odometer/Tripmeter A/Tripmeter B
2. “TRIP/ODO” buttonPushing the “TRIP/ODO” button switches the
display between the odometer mode “ODO”
and the tripmeter modes “TRIP A” and
“TRIP B” in the following order:
ODO
→ TRIP A → TRIP B → ODO
1
2
1RB7A_EE.book Page 7 Tuesday, April 24, 2012 9:07 AM

4-8
To reset a tripmeter, select it by pushing the
“TRIP/ODO” button, and then hold the “TRIP/
ODO” button for at least three seconds. The
tripmeters can be used to estimate the dis-
tance that can be traveled with a full tank of fu-
el. This information enables you to plan future
fuel stops.TIPTo switch the display between “km/h” and
“mph”, turn the key to “OFF”, then push and
hold the “TRIP/ODO” button while turning the
key to “ON”.
Clock, hour meter and voltage display
modes1. Clock/Hour button “ / ”
2. “H” button 3. “M” button
4. Clock/Hour meter/Voltage displayPushing the “ / ” button switches the dis-
play between the clock mode “CLOCK”, the
hour meter mode “HOUR”, and the voltage
display mode “ ” in the following order:
CLOCK → HOUR → → CLOCK
4
1
2
3
1RB7A_EE.book Page 8 Tuesday, April 24, 2012 9:07 AM

4-9
To set the clock1. Set the display to the clock.
2. Push the “ / ” button until the clockstarts flashing.
3. Set the hours by pushing the “H” button.
4. Set the minutes by pushing the “M” but- ton.
5. Push the “ / ” button, and then re- lease it to start the clock. Voltage display mode
This display shows the battery voltage.
“ ” appears for 1 second when the volt-
age display mode is first selected, and then
“ ” appears and the battery voltage is dis-
played.
If the battery voltage is less than 10 volts, “LO”
is displayed, and if the voltage is above 16
volts, “HI” is displayed.
1RB7A_EE.book Page 9 Tuesday, April 24, 2012 9:07 AM

4-10
NOTICEIf the voltage display indicates “LO” or
“HI”, there may be trouble with the battery
charging circuit or the battery may be
faulty. If this occurs, have a Yamaha dealer
check or repair the vehicle.
Fuel meter1. Fuel level warning indicator
2. Fuel meter 3. “E” segmentThe fuel meter indicates the amount of fuel in
the fuel tank. The display segments of the fuel
meter disappear from “F” (full) towards “E”
(empty) as the fuel level decreases. When the
“E” segment disappears and the fuel level
warning indicator flashes, refuel as soon as
possible.
123
