SPECIFICATIONS
8-2
8
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 10.0 L
Fuel reserve amount 1.6 L
Carburetor
Type ´ quantity Y24P ´ 1
Manufacturer TEIKEI
Spark plug
Manufacturer/Type NGK / DR8EA
Gap 0.6 ~ 0.7 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 3.318
Secondary reduction system Chain drive
Secondary reduction ratio 3.500
Number of drive chain
sprocket teeth (rear/front) 49/14
Transmission type Constant mesh 5-speed
Operation Left foot operationGear ratio
1st 2.250
2nd 1.476
3rd 1.125
4th 0.926
5th 0.793
Chassis
Frame type Diamond
Caster angle 26°45¢
Trail 90 mm
Tires
Front
Type With tube
Size 3.00-17 45P
Manufacturer/
model Inoue / 8F
Rear
Type With tube
Size 3.50-16 52P
Manufacturer/
model Inoue / 8RA
E_3mw.book Page 2 Monday, February 5, 2001 9:54 AM

SPECIFICATIONS
8-3
8
Maximum load* 160 kg
Air pressure (cold tire)
Up to 90 kg load*
Front 175 kPa (1.75 kg/cm
2, 1.75 bar)
Rear 200 kPa (2.00 kg/cm2, 2.00 bar)
90 kg load ~ maximum load*
Front 175 kPa (1.75 kg/cm2, 1.75 bar)
Rear 225 kPa (2.25 kg/cm2, 2.25 bar)
*Load is total weight of cargo, rider, passenger and accessories
Wheels
Front
Type Spoke
Size 17 ´ 1.60
Rear
Type Spoke
Size 16 ´ 1.85
Brakes
Front
Type Single disc brake
Operation Right hand operation
Fluid DOT 4 or DOT 3
Rear
Type Drum brake
Operation Right foot operationSuspension
Front
Ty p e Te l e s c o p i c f o r k
Rear
Type Swingarm
Shock absorbers
Front Coil spring / oil damper
Rear Coil spring / oil damper
Wheel travel
Front 120 mm
Rear 76 mm
Electrical system
Ignition system C.D.I.
Charging system
Type C.D.I. magneto
Standard output 14 V, 9 A @ 5,000 r/min
Battery
Type 12N7-3B-1
Voltage, capacity 12 V, 7 AH
Headlight typeQuartz bulb (halogen)
E_3mw.book Page 3 Monday, February 5, 2001 9:54 AM

SPECIFICATIONS
8-4
8
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 1
Auxiliary light 12 V, 4 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 1
Turn signal light 12 V, 21 W ´ 4
Meter light 14 V, 3 W ´ 1
Neutral indicator light 12 V, 1.7 W ´ 1
High beam indicator light 12 V, 1.7 W ´ 1
Turn indicator light 12 V, 1.7 W ´ 1
Fuse20 A
E_3mw.book Page 4 Monday, February 5, 2001 9:54 AM

SPECIFICATIONS
8-5
8
EAU01064
HOW TO USE THE CONVERSION TABLECS-02E All specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL
unit data.
Ex.METRIC MULTIPLIER IMPERIAL
**mm´ 0.03937 = **in
2 mm´ 0.03937 = 0.08 in
CONVERSION TABLE
METRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
Torquem·kg
m·kg
cm·kg
cm·kg7.233
86.794
0.0723
0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g2.205
0.03527lb
oz
Speed km/hr 0.6214 mph
Distancekm
m
m
cm
mm0.6214
3.281
1.094
0.3937
0.03937mi
ft
yd
in
in
Volume /
Capacitycc (cm3)
cc (cm3)
lt (liter)
lt (liter)0.03527
0.06102
0.8799
0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Misc.kg/mm
kg/cm2
Centigrade (°
C)55.997
14.2234
9/5 + 32 lb/in
psi (lb/in
2)
Fahrenheit (°
F)
E_3mw.book Page 5 Monday, February 5, 2001 9:54 AM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944

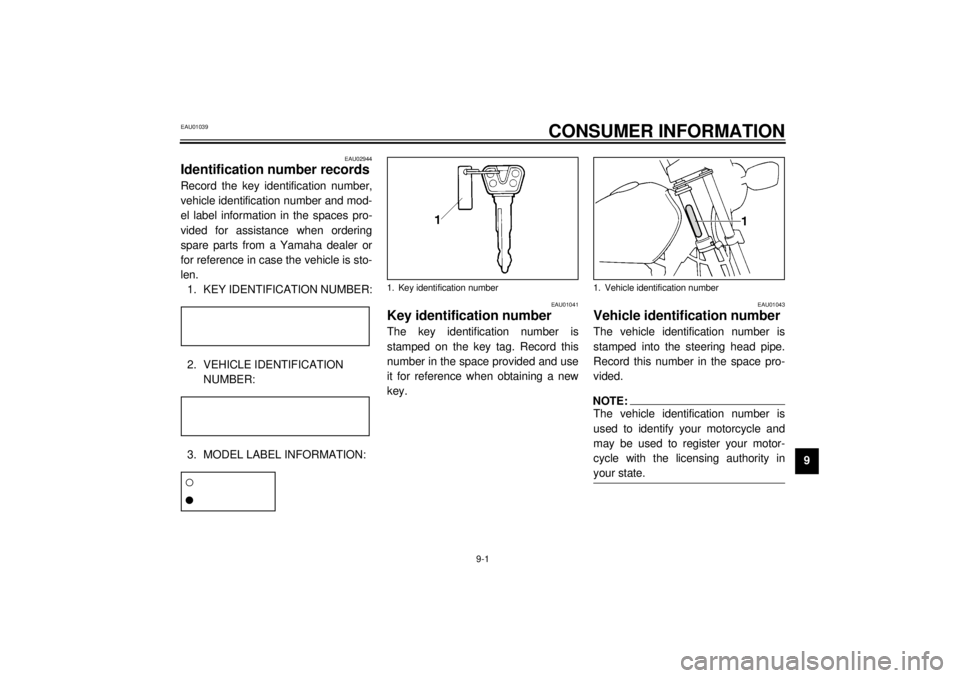

Identification number recordsRecord the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided for assistance when ordering
spare parts from a Yamaha dealer or
for reference in case the vehicle is sto-
len.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification numberThe key identification number is
stamped on the key tag. Record this
number in the space provided and use
it for reference when obtaining a new
key.
EAU01043
Vehicle identification numberThe vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your state. @
1. Key identification number
1. Vehicle identification number
E_3mw.book Page 1 Monday, February 5, 2001 9:54 AM

CONSUMER INFORMATION
9-2
9
EAU01050
Model labelThe model label is affixed to the frame
under the seat. (See page 3-8 for seat
removal procedures.) Record the infor-
mation on this label in the space pro-
vided. This information will be needed
to order spare parts from your Yamaha
dealer.1. Model labelE_3mw.book Page 2 Monday, February 5, 2001 9:54 AM
